Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11309 - FXZ(RHD)EURO5
▶
5 - Frame, Cab Mounting
▶
5-17 - CYLINDER; CAB TILT
▶
5-17 — CYLINDER; CAB TILT
(#71444) — 52 parça
Tümü
A - FGZ5MX
B - GGZ5MX
◀

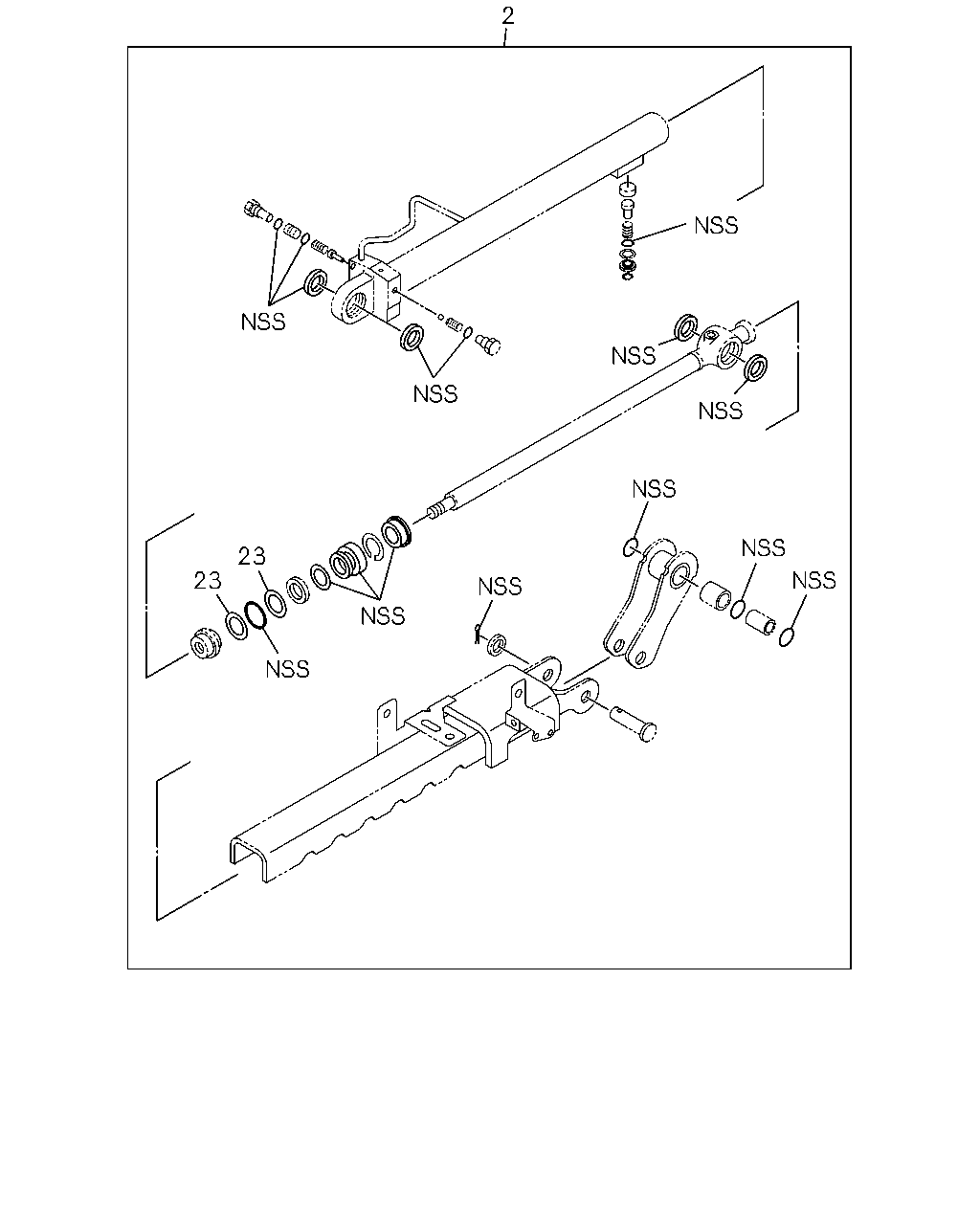

[517A] REPAIR KIT (4 parça)

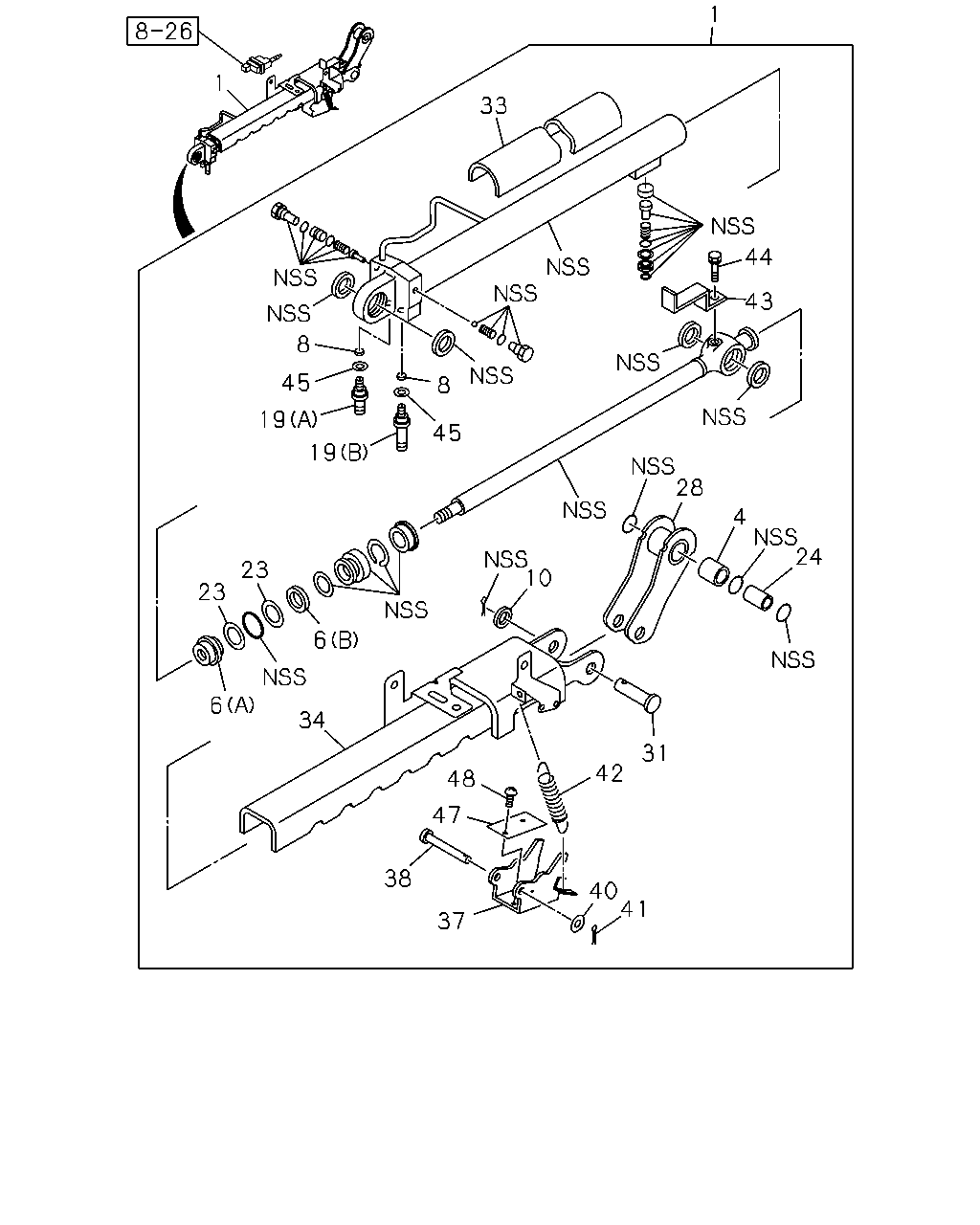

[517A] COMPONENT (48 parça)
▶
2
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; OIL CYL
1-85579-068-0
01
1
1009-1303
●
2
REPAIR KIT; OIL CYL
1-85579-068-0
01
1
1304-
●
●
23
RING; SNAP
1-53457-048-0
02
1
1009-1303
●
23
RING; SNAP
1-53457-048-0
02
1
1304-
●
●
1
33
8
8
45
19
45
19
23
23
43
44
28
24
4
31
10
6
6
34
38
47
48
37
42
40
41
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CYLINDER; OIL,CAB TILT
1-53457-151-1
01
1
1009-1303
●
1
CYLINDER; OIL,CAB TILT
1-53457-151-1
01
1
1304-
●
●
4
BUSHING; OIL CYL
1-53458-405-0
01
1
1009-1303
●
4
BUSHING; OIL CYL
1-53458-405-0
01
1
1304-
●
●
6
PISTON; OIL CYL
(A)
8-98134-365-0
01
1
1009-1303
●
6
PISTON; OIL CYL
(A)
8-98134-365-0
01
1
1304-
●
●
6
PISTON; OIL CYL
(B)
8-98134-367-0
01
1
1009-1303
●
6
PISTON; OIL CYL
(B)
8-98134-367-0
01
1
1304-
●
●
8
FILTER; OIL CYL
1-53458-102-0
02
1
1009-1303
●
8
FILTER; OIL CYL
1-53458-102-0
02
1
1304-
●
●
10
WASHER; OIL CYL
1-53458-401-0
01
1
1009-1303
●
10
WASHER; OIL CYL
1-53458-401-0
01
1
1304-
●
●
19
NIPPLE; OIL CYL
(A)
1-53457-044-0
01
1
1009-1303
●
19
NIPPLE; OIL CYL
(A)
1-53457-044-0
01
1
1304-
●
●
19
NIPPLE; OIL CYL
(B)
1-53457-045-0
01
1
1009-1303
●
19
NIPPLE; OIL CYL
(B)
1-53457-045-0
01
1
1304-
●
●
23
RING; SNAP
1-53457-048-0
02
1
1009-1303
●
23
RING; SNAP
1-53457-048-0
02
1
1304-
●
●
24
COLLAR; LEVER
1-53458-398-0
01
1
1009-1303
●
24
COLLAR; LEVER
1-53458-398-0
01
1
1304-
●
●
28
LEVER; OIL CYL
1-53458-557-1
01
1
1009-1303
●
28
LEVER; OIL CYL
1-53458-557-1
01
1
1304-
●
●
31
PIN; OIL CYL
1-53457-172-0
01
1
1009-1303
●
31
PIN; OIL CYL
1-53457-172-0
01
1
1304-
●
●
33
COVER; CYL
1-53458-556-0
01
1
1009-1303
●
33
COVER; CYL
1-53458-556-0
01
1
1304-
●
●
34
STOPPER; OIL CYL
1-53458-555-0
01
1
1009-1303
●
34
STOPPER; OIL CYL
1-53458-555-0
01
1
1304-
●
●
37
LEVER; STOPPER
1-53457-170-0
01
1
1009-1303
●
37
LEVER; STOPPER
1-53457-170-0
01
1
1304-
●
●
38
PIN; STOPPER
1-53458-550-0
01
1
1009-1303
●
38
PIN; STOPPER
1-53458-550-0
01
1
1304-
●
●
40
WASHER; STOPPER PIN
1-53458-045-0
01
1
1009-1303
●
40
WASHER; STOPPER PIN
1-53458-045-0
01
1
1304-
●
●
41
PIN; SPLIT
1-53458-545-0
01
1
1009-1303
●
41
PIN; SPLIT
1-53458-545-0
01
1
1304-
●
●
42
SPRING; LOCK LEVER
1-53457-168-0
01
1
1009-1303
●
42
SPRING; LOCK LEVER
1-53457-168-0
01
1
1304-
●
●
43
PLATE; SW
1-53457-167-0
01
1
1009-1303
●
43
PLATE; SW
1-53457-167-0
01
1
1304-
●
●
44
BOLT; SW PLATE
M6X12
1-53458-542-0
01
1
1009-1303
●
44
BOLT; SW PLATE
M6X12
1-53458-542-0
01
1
1304-
●
●
45
GASKET; OIL CYL
1-53458-073-0
02
1
1009-1303
●
45
GASKET; OIL CYL
1-53458-073-0
02
1
1304-
●
●
47
PLATE; THRUST,OIL CYL
1-53457-169-0
01
1
1009-1303
●
47
PLATE; THRUST,OIL CYL
1-53457-169-0
01
1
1304-
●
●
48
SCREW; OIL CYL
M5X8
1-53458-005-0
02
1
1009-1303
●
48
SCREW; OIL CYL
M5X8
1-53458-005-0
02
1
1304-
●
●
