◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#71442) — 140 parça

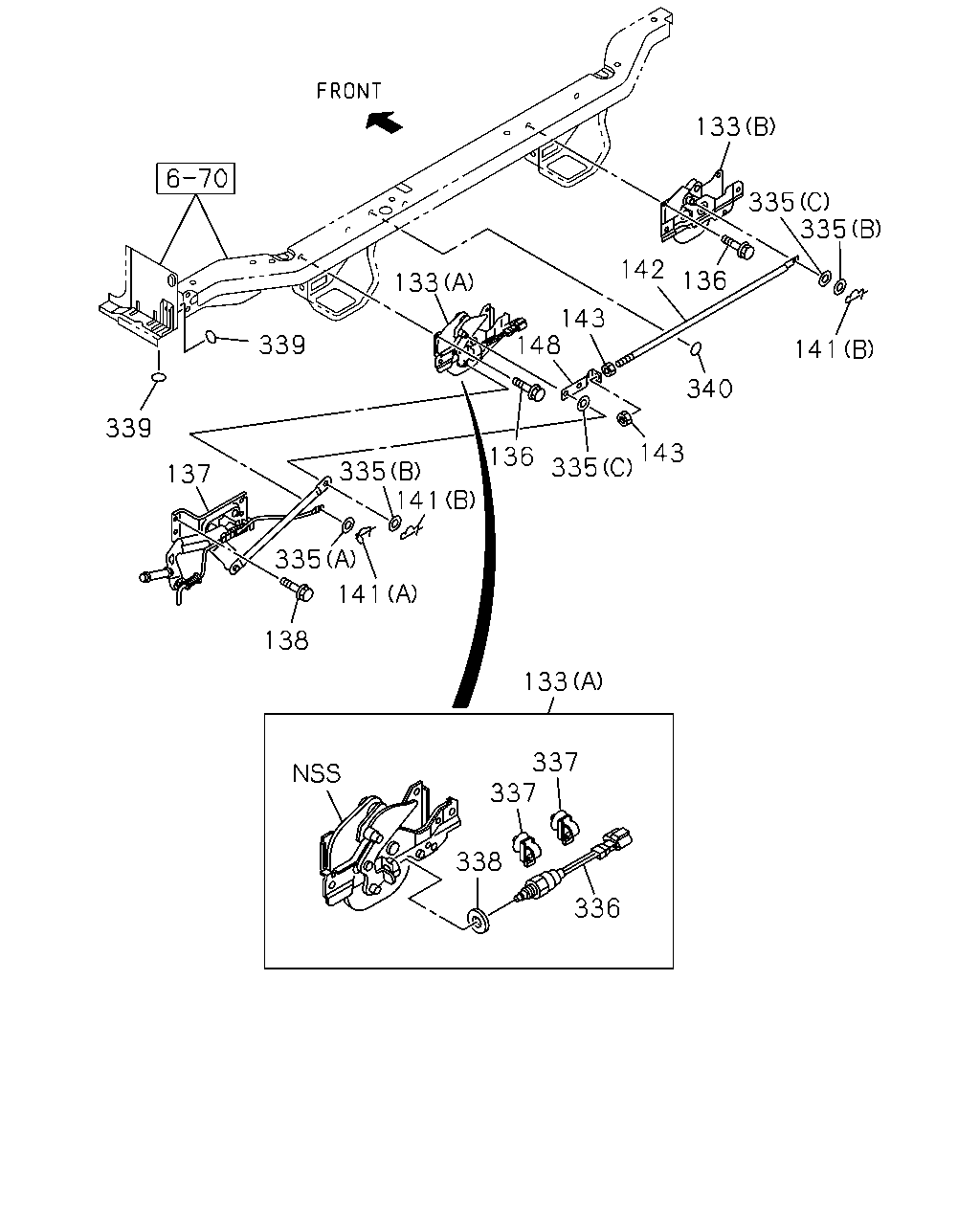

çizim 126091
339 137 335 335 141 133 337 337 338 336 136 335 143 30 141 136 142 133 335 335 133 143 148 141 339 138
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1009-1303 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1304- ● ●
133 LOCK ASM; CAB
(A) 		8-98094-285-2 01 1 1009-1303 ●
133 LOCK ASM; CAB
(A) 		8-98094-285-2 01 1 1304- ● ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1009-1303 ●
133 LOCK ASM; CAB
(B) 		8-98061-489-1 01 1 1304- ● ●
136 BOLT; CAB LK
M8X20 FLANGE 		0-28650-820-0 08 1 1009-1303 ●
136 BOLT; CAB LK
M8X20 FLANGE 		0-28650-820-0 08 1 1304- ● ●
137 CONTROL UNIT; CAB LOCK 8-98053-683-2 01 1 1009-1303 ●
137 CONTROL UNIT; CAB LOCK 8-98053-683-2 01 1 1304- ● ●
138 BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE 		0-28650-820-0 04 1 1009-1303 ●
138 BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE 		0-28650-820-0 04 1 1304- ● ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=25.3 		8-98039-045-1 01 1 1009-1303 ●
141 PIN; SNAP,CAB LOCK ROD
(A) L=25.3 		8-98039-045-1 01 1 1304- ● ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		8-98062-280-0 02 1 1009-1303 ●
141 PIN; SNAP,CAB LOCK ROD
(B) L=32.6 		8-98062-280-0 02 1 1304- ● ●
142 ROD; HOOK TO HOOK 8-97587-990-0 01 1 1009-1303 ●
142 ROD; HOOK TO HOOK 8-97587-990-0 01 1 1304- ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		0-91110-510-0 02 1 1009-1303 ●
143 NUT; JAW JOINT,HOOK TO HOOK
M10 		0-91110-510-0 02 1 1304- ● ●
148 JOINT; JAW,HOOK TO HOOK 8-97410-736-0 01 1 1009-1303 ●
148 JOINT; JAW,HOOK TO HOOK 8-97410-736-0 01 1 1304- ● ●
335 WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 		0-91610-508-0 01 1 1009-1303 ●
335 WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16 		0-91610-508-0 01 1 1304- ● ●
335 WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 		0-91610-612-0 02 1 1009-1303 ●
335 WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26 		0-91610-612-0 02 1 1304- ● ●
335 WASHER; CAB LOCK ROD
(C) ID=13 OD=22 		8-98060-839-0 02 1 1009-1303 ●
335 WASHER; CAB LOCK ROD
(C) ID=13 OD=22 		8-98060-839-0 02 1 1304- ● ●
336 SWITCH; CAB LOCK 8-98091-155-1 01 1 1009-1303 ●
336 SWITCH; CAB LOCK 8-98091-155-1 01 1 1304- ● ●
337 CLIP; CAB LOCK
L=155 		8-97173-307-0 02 1 1009-1009 ●
338 WASHER; CAB LOCK
ID=17 OD=30 		0-91610-516-0 01 1 1009-1303 ●
338 WASHER; CAB LOCK
ID=17 OD=30 		0-91610-516-0 01 1 1304- ● ●
339 SEAL; TILT HANDLE
OD=25 BLACK 		1-76798-019-0 04 1 1009-1303 ●
339 SEAL; TILT HANDLE
OD=25 BLACK 		1-76798-019-0 04 1 1304- ● ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1009-1303 ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1304- ● ●

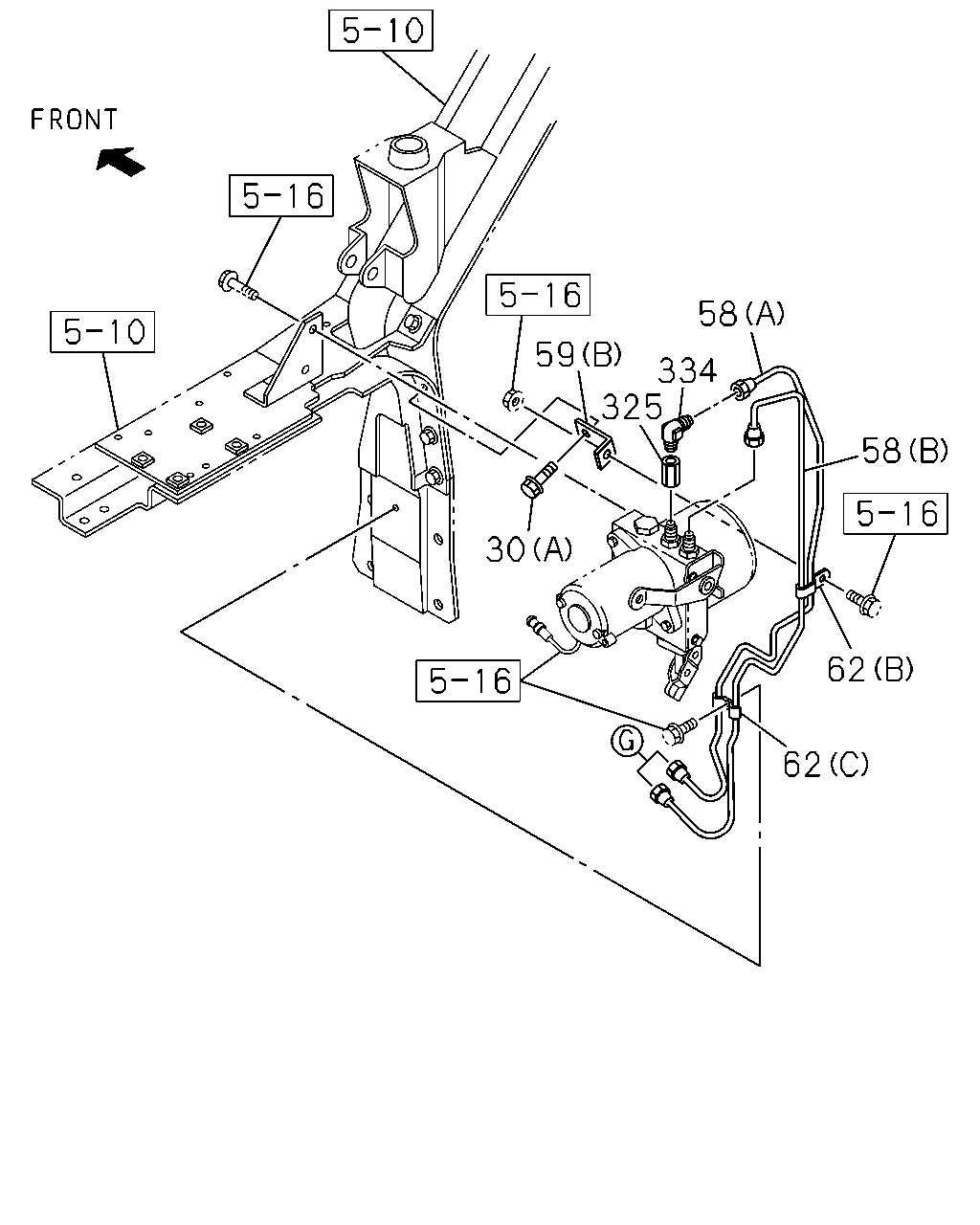

çizim 126227
59 30 325 334 58 58 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1009-1303 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1304- ● ●
58 PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900 		1-47428-729-0 01 1 1009-1303 ●
58 PIPE; OIL,POWER UNIT
(A) L=865 SERVICED BY L=900 		1-47428-729-0 01 1 1304- ● ●
58 PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000 		1-47428-730-0 01 1 1009-1303 ●
58 PIPE; OIL,POWER UNIT
(B) L=983 SERVICED BY L=1000 		1-47428-730-0 01 1 1304- ● ●
59 BRACKET; CLIP
(A) 		1-47478-113-0 01 1 1009-1303 ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 02 1 1304- ● ●
59 BRACKET; CLIP
(C) 		1-47479-248-0 02 1 1009-1303 ●
59 BRACKET; CLIP
(C) 		1-47479-248-0 02 1 1304- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (D) 		1-47479-721-0 01 1 1009-1106 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (E) 		1-47479-698-0 01 1 1107-1303 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (E) 		1-47479-698-0 01 1 1304- ● ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 01 1 1009-1303 ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1009-1303 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47478-113-0 01 1 1304- ● ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=115 B=25 		1-47476-758-0 01 1 1009-1303 ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 02 1 1009-1303 ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47478-113-0 02 1 1304- ● ●
62 CLIP; OIL PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40 		1-09700-991-1 04 1 1304- ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009-1303 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1304- ● ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=25 L=60 		1-09701-041-1 01 1 1304- ● ●
62 CLIP; OIL PIPE
(F) ID=28 L=30 		1-09700-607-1 01 1 1009-1106 ●
62 CLIP; OIL PIPE
(G) ID=25 L=60 		1-09701-041-1 01 1 1107-1303 ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1304- ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1304- ● ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1304- ● ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1304- ● ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1009-1303 ●
325 ADAPTER; PUMP
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1304- ● ●
334 CONNECTOR; PUMP
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1009-1303 ●
334 CONNECTOR; PUMP
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1304- ● ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1009-1303 ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1304- ● ●

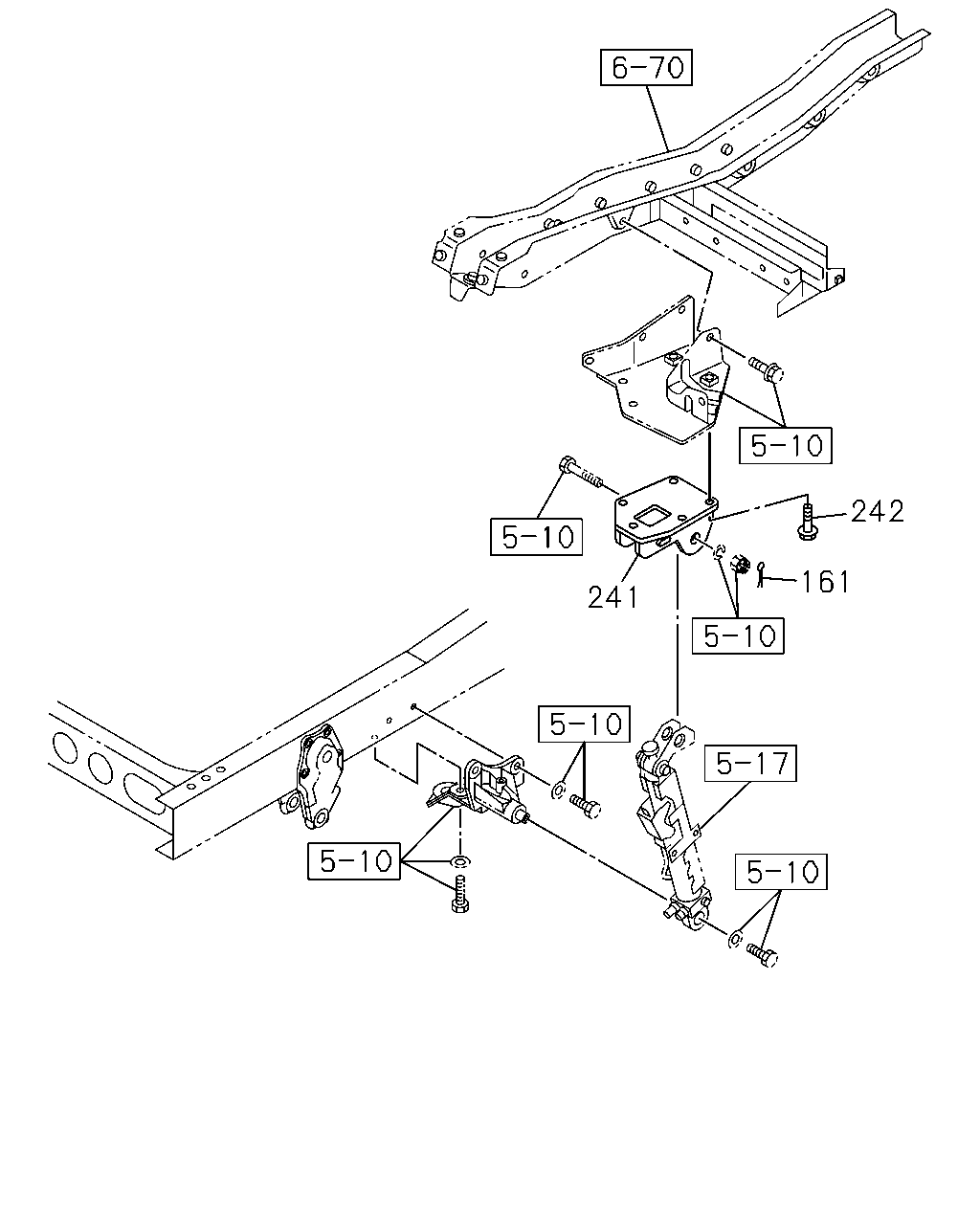

çizim 189491
241 242 161
BalonParca AdiParca NoAdetTipApplied Date A B
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 1009-1303 ●
161 PIN; SPLIT
OD=2.8 L=25 		0-81123-025-0 01 1 1304- ● ●
241 BRACKET; POWER CYL UPR,CAB TILT 8-98054-834-0 01 1 1009-1303 ●
241 BRACKET; POWER CYL UPR,CAB TILT 8-98054-834-0 01 1 1304- ● ●
242 BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE 		0-28051-025-0 05 1 1009-1303 ●
242 BOLT; POWER CYL BRKT,CAB TILT
M10X25 FLANGE 		0-28051-025-0 05 1 1304- ● ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1009-1303 ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1304- ● ●

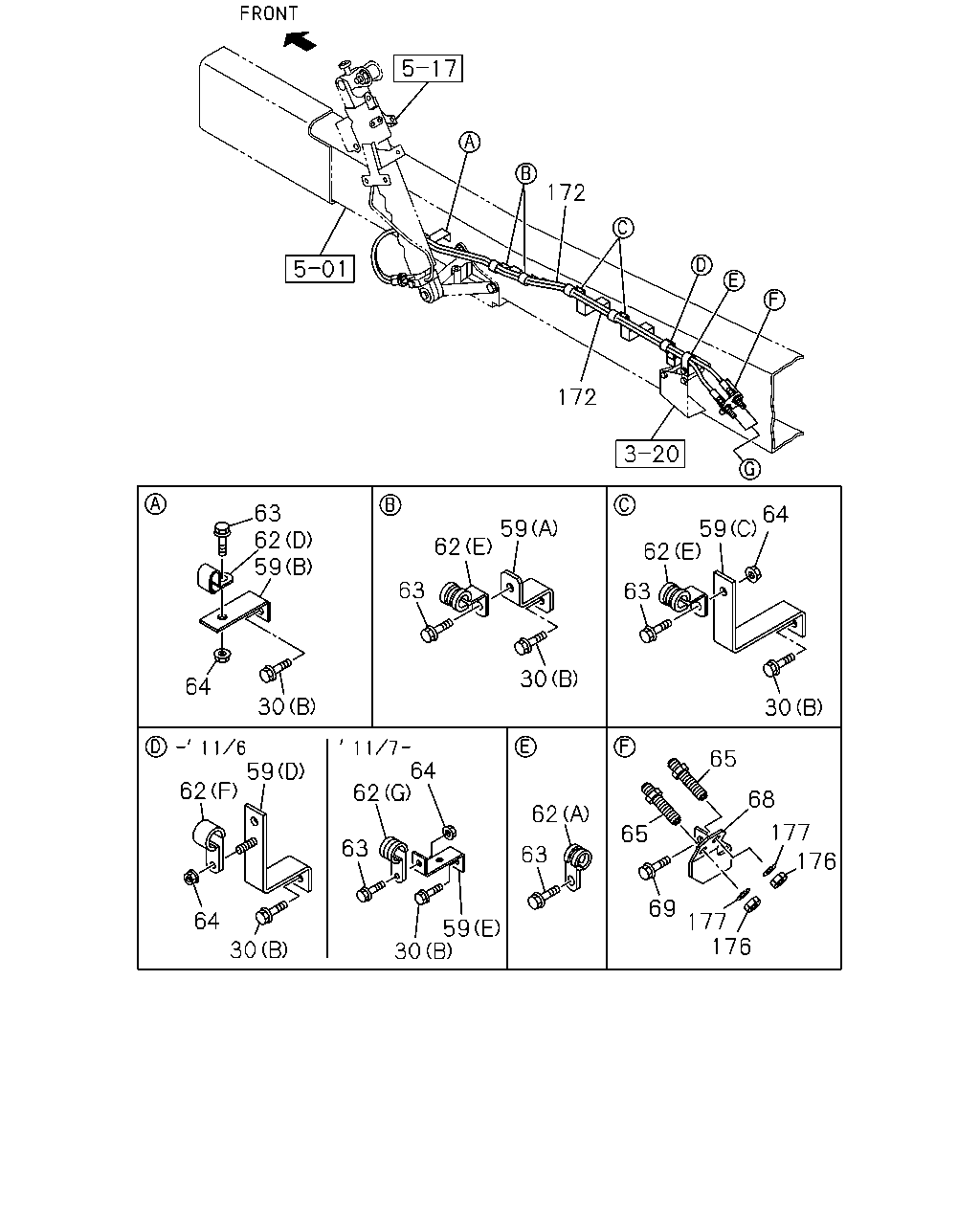

çizim 189493
172 172 62 59 62 59 64 63 30 30 63 59 62 63 30 64 65 68 177 176 176 177 69 65 62 63 59 30 63 62 30 59 62 64 64
BalonParca AdiParca NoAdetTipApplied Date A B
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
30 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1009-1303 ●
30 BOLT; BRKT FIX
(B) M8X30 FLANGE 		0-28650-830-0 05 1 1304- ● ●
59 BRACKET; CLIP
(A) 		1-47478-113-0 01 1 1009-1303 ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 02 1 1304- ● ●
59 BRACKET; CLIP
(C) 		1-47479-248-0 02 1 1009-1303 ●
59 BRACKET; CLIP
(C) 		1-47479-248-0 02 1 1304- ● ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (D) 		1-47479-721-0 01 1 1009-1106 ●
59 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (E) 		1-47479-698-0 01 1 1107-1303 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (E) 		1-47479-698-0 01 1 1304- ● ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 01 1 1009-1303 ●
59 BRACKET; CLIP
(B) L=75 		1-47478-323-0 01 1 1009-1303 ●
59 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47478-113-0 01 1 1304- ● ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=115 B=25 		1-47476-758-0 01 1 1009-1303 ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) L=75 		1-47478-323-0 02 1 1009-1303 ●
59 BRACKET; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-47478-113-0 02 1 1304- ● ●
62 CLIP; OIL PIPE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40 		1-09700-991-1 04 1 1304- ● ●
62 CLIP; OIL PIPE
(E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009-1303 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (E) ID=21 L=30 H=40 		1-09700-991-1 03 1 1304- ● ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (G) ID=25 L=60 		1-09701-041-1 01 1 1304- ● ●
62 CLIP; OIL PIPE
(F) ID=28 L=30 		1-09700-607-1 01 1 1009-1106 ●
62 CLIP; OIL PIPE
(G) ID=25 L=60 		1-09701-041-1 01 1 1107-1303 ●
62 CLIP; OIL PIPE
(B) ID=7X2 L=20 		0-95324-635-0 01 1 1304- ● ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
(C) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 1304- ● ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
(D) ID=9 & 9 L=20 		1-09701-321-0 01 1 1304- ● ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1009-1303 ●
62 CLIP; OIL PIPE
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=24 L=27 		1-09700-809-0 01 1 1304- ● ●
63 BOLT; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 05 1 1304- ● ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1009-1106 ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 06 1 1107-1303 ●
63 BOLT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 06 1 1304- ● ●
64 NUT; CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
64 NUT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 04 1 1009-1303 ●
64 NUT; CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1009-1303 ●
65 UNION; OIL PIPE
M12 L=66.5 		0-92113-306-0 02 1 1304- ● ●
68 BRACKET; UNION 8-98109-453-0 01 1 1009-1303 ●
68 BRACKET; UNION 8-98109-453-0 01 1 1304- ● ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-1303 ●
69 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ● ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 02 1 1009-1303 ●
172 HOSE; FLEX,OIL TILT 8-98086-335-0 02 1 1304- ● ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1009-1303 ●
176 NUT; UNION
M12 		9-09840-280-0 02 1 1304- ● ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1009-1303 ●
177 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 1304- ● ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1009-1303 ●
340 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 02 1 1304- ● ●
