◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#71441) — 177 parça
çizim 125592
112 65 202 202 203 204 205 204 203 27 48 51 535 191 191 535 51 48 27 536 51 535 191 535 535 535 535 535 191 51 536
BalonParca AdiParca NoAdetTipApplied Date A B
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1009-1303 ●
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1304- ● ●
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1009-1303 ●
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1304- ● ●
51 BUSHING; RUBBER 1-53458-714-0 04 1 1009-1303 ●
51 BUSHING; RUBBER 1-53458-714-0 04 1 1304- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1009-1303 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1304- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1009-1303 ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1304- ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1009-1303 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1304- ● ●
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1009-1303 ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1304- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1009-1303 ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1304- ● ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1009-1303 ●
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1304- ● ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1009-1303 ●
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1304- ● ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1009-1303 ●
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1304- ● ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1009-1303 ●
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1304- ● ●
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1009-1303 ●
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1304- ● ●
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1009-1303 ●
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1304- ● ●
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1009-1303 ●
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1304- ● ●
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1009-1303 ●
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1304- ● ●

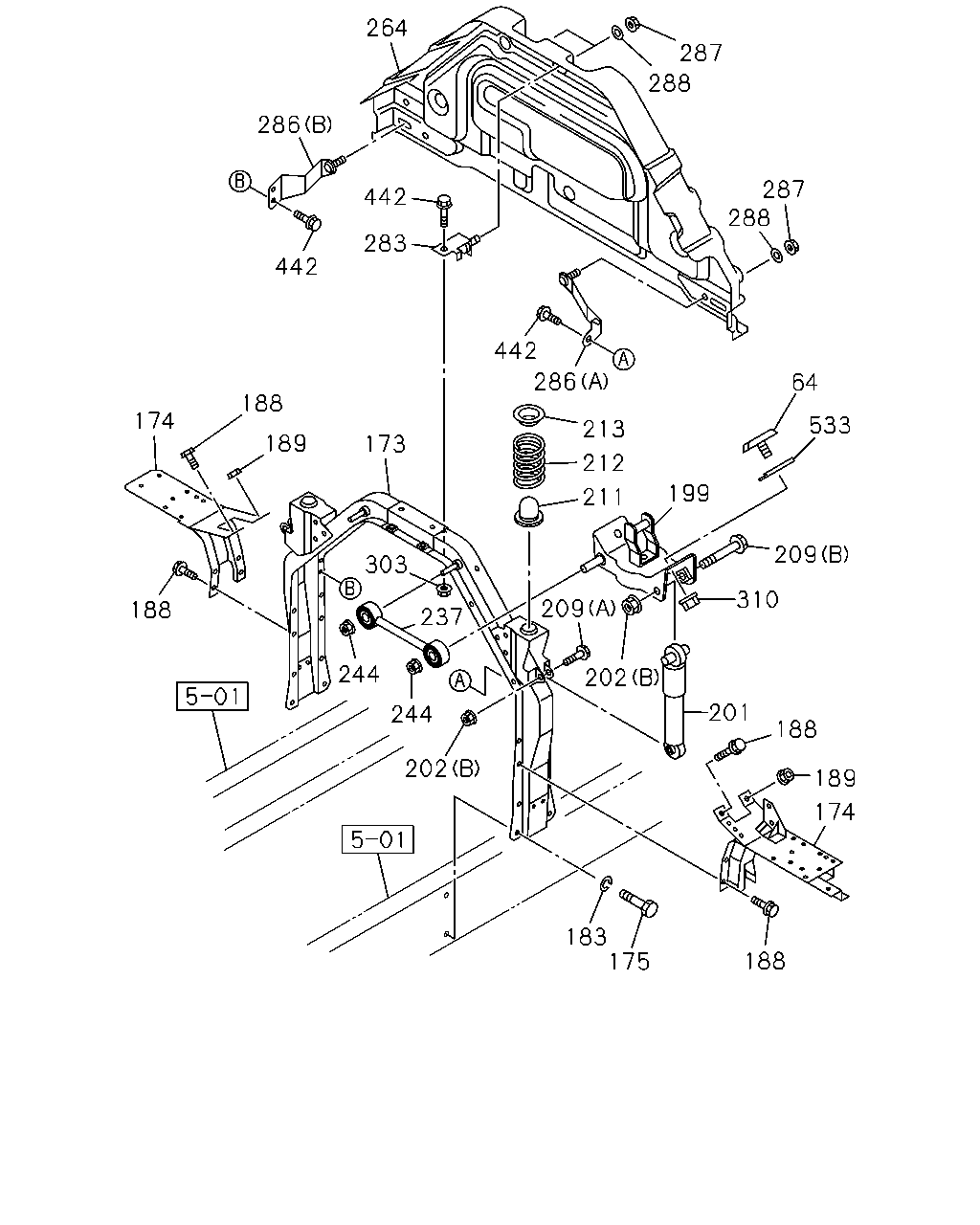

çizim 189487
287 288 288 287 264 286 442 442 283 173 189 188 174 188 244 244 202 202 209 237 303 211 212 213 286 442 199 64 533 209 310 201 188 189 174 188 175 183
BalonParca AdiParca NoAdetTipApplied Date A B
64 RUBBER; CUSHION 8-97113-340-0 04 1 1009-1303 ●
64 RUBBER; CUSHION 8-97113-340-0 04 1 1304- ● ●
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1009-1303 ●
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1304- ● ●
174 OUTRIGGER 8-98054-839-2 01 1 1009-1303 ●
174 OUTRIGGER 8-98054-839-2 01 1 1304- ● ●
174 OUTRIGGER 8-98054-838-1 01 1 1009-1303 ●
174 OUTRIGGER 8-98054-838-1 01 1 1304- ● ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1009-1303 ●
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1304- ● ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1009-1303 ●
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1304- ● ●
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1009-1303 ●
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1304- ● ●
189 NUT; OUTRIGGER
M12 FLANGE 		0-91180-212-0 02 1 1009-1303 ●
189 NUT; OUTRIGGER
M12 FLANGE 		0-91180-212-0 02 1 1304- ● ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1009-1303 ●
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1304- ● ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1009-1303 ●
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1304-1403 ● ●
199 BRACKET; CAB RR MTG 8-98270-495-0 01 1 1404- ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1009-1303 ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1304-1401 ● ●
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402- ● ●
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1009-1303 ●
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1304- ● ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1009-1303 ●
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1304- ● ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1009-1303 ●
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1304- ● ●
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1009-1303 ●
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1304- ● ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1009-1303 ●
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1304- ● ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1009-1303 ●
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1304- ● ●
212 SPRING; COIL 1-09580-398-1 02 1 1009-1303 ●
212 SPRING; COIL 1-09580-398-1 02 1 1304- ● ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1009-1303 ●
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1304- ● ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1009-1303 ●
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1304- ● ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1009-1303 ●
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1304- ● ●
264 PANEL; BACK
HONG KONG EQUIPMENT(PQ1) 		8-98055-597-1 01 1 1009-1303 ●
264 PANEL; BACK
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		8-98055-597-1 01 1 1304- ● ●
283 BRACKET; UPR
HONG KONG EQUIPMENT(PQ1) 		1-53457-187-0 01 1 1009-1303 ●
283 BRACKET; UPR
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> 		1-53457-187-0 01 1 1304- ● ●
286 BRACKET; LOW
HONG KONG EQUIPMENT(PQ1) (A) 		8-98057-240-0 01 1 1009-1303 ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (A) 		8-98057-240-0 01 1 1304- ● ●
286 BRACKET; LOW
HONG KONG EQUIPMENT(PQ1) (B) 		8-98057-241-0 01 1 1009-1303 ●
286 BRACKET; LOW
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> (B) 		8-98057-241-0 01 1 1304- ● ●
287 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
287 NUT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
288 WASHER; PL
HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26 		0-91614-808-0 03 1 1009-1303 ●
288 WASHER; PL
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> ID=8.4 OD=26 		0-91614-808-0 03 1 1304- ● ●
303 NUT; BRKT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
303 NUT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1009-1303 ●
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
442 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28650-820-0 04 1 1009-1303 ●
442 BOLT; BRKT
ANTI NOISE EQUIPMENT-ECE R51.02<JCA> M8X20 FLANGE 		0-28650-820-0 04 1 1304- ● ●
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1009-1303 ●
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1304- ● ●

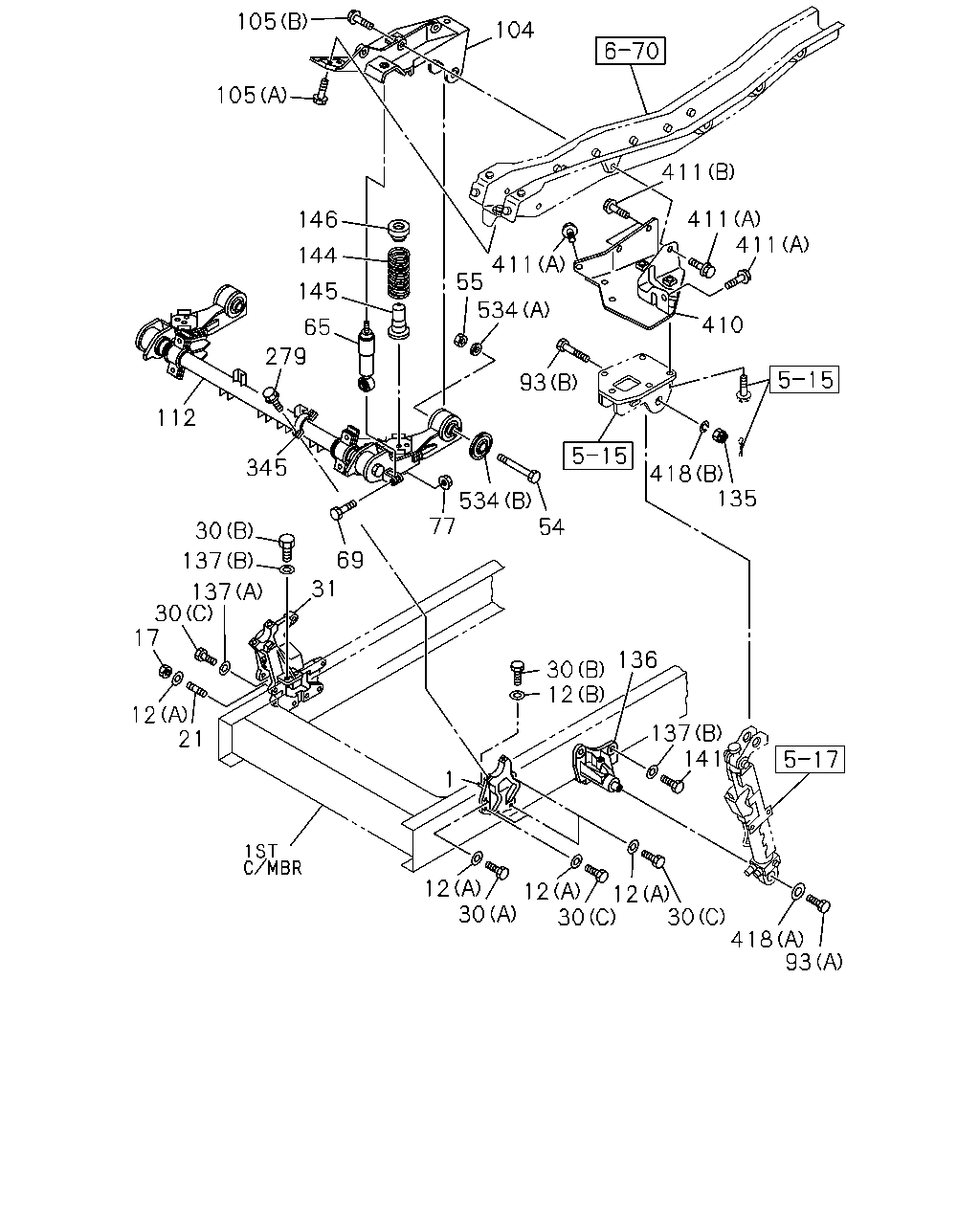

çizim 189488
93 418 30 141 137 12 30 136 30 12 12 12 30 1 21 12 17 137 30 69 137 30 31 77 54 135 418 410 411 411 411 93 534 55 411 534 345 112 279 65 145 144 146 105 105 104
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1009-1303 ●
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1304- ● ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1009-1303 ●
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1304- ● ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1009-1303 ●
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1304- ● ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1009-1303 ●
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1304- ● ●
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1009-1303 ●
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1304- ● ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1009-1303 ●
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1304- ● ●
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 09 1 1009-1303 ●
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 09 1 1304- ● ●
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1009-1303 ●
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1304- ● ●
31 BRACKET; CAB 1-44226-181-0 01 1 1009-1303 ●
31 BRACKET; CAB 1-44226-181-0 01 1 1304- ● ●
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1009-1303 ●
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1304- ● ●
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1009-1303 ●
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1304- ● ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1009-1303 ●
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1304- ● ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1009-1303 ●
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1304- ● ●
77 NUT
M12 FLANGE 		0-91180-212-0 02 1 1009-1303 ●
77 NUT
M12 FLANGE 		0-91180-212-0 02 1 1304- ● ●
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1009-1303 ●
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1304- ● ●
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1009-1303 ●
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1304- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1009-1303 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1304- ● ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1009-1303 ●
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1304- ● ●
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 06 1 1009-1303 ●
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 06 1 1304- ● ●
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE 		0-28661-030-0 08 1 1009-1303 ●
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE 		0-28661-030-0 08 1 1304- ● ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-0 01 1 1009-1303 ●
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1304- ● ●
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1009-1303 ●
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1304- ● ●
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1009-1303 ●
136 BRACKET; OIL CYL 8-98226-400-0 01 1 1304- ● ●
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1009-1303 ●
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1304- ● ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1009-1303 ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1304- ● ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 04 1 1009-1303 ●
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 04 1 1304- ● ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1009-1303 ●
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1304- ● ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1009-1303 ●
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1304- ● ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1009-1303 ●
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1304- ● ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1009-1303 ●
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1304- ● ●
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1009-1303 ●
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1304-1510 ● ●
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511- ● ●
345 CAP; CAB 1-53458-336-3 02 1 1009-1303 ●
345 CAP; CAB 1-53458-336-3 02 1 1304- ● ●
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1009-1303 ●
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1304- ● ●
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-1303 ●
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1304- ● ●
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 1009-1303 ●
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 1304- ● ●
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1009-1303 ●
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1304- ● ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1009-1303 ●
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1304- ● ●
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1009-1303 ●
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1304- ● ●
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1009-1303 ●
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
