Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#71440) — 565 parça

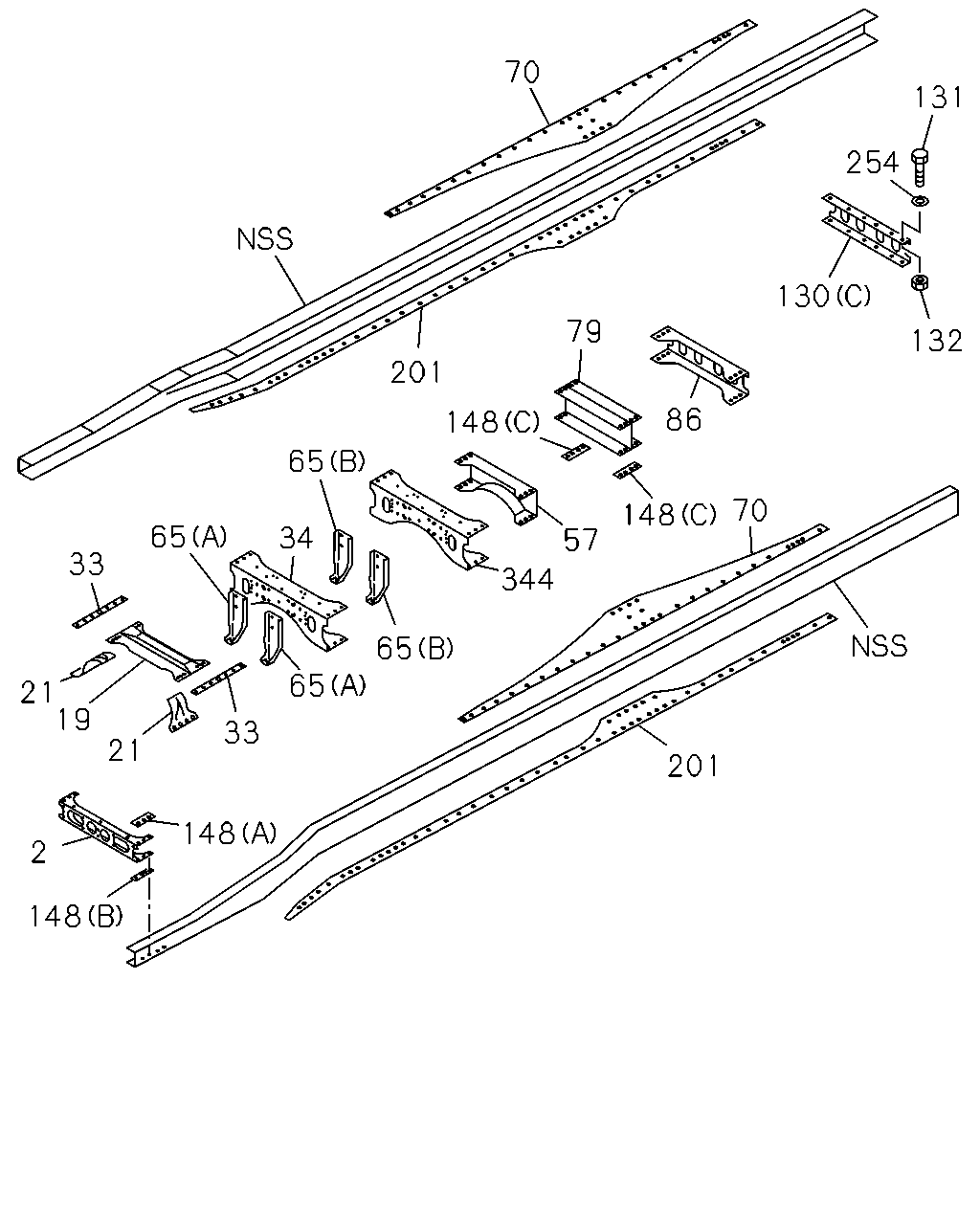

70 201 79 86 130 254 131 132 70 148 57 344 201 148 65 65 34 33 21 19 21 65 65 148 33 2 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-1303	●	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1304-	●		●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1303	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1304-	●				●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1303			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1304-			●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1303			●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1304-			●	●
33	SPACER; 2ND C/MBR,UPR	1-53168-443-0	02	1	1009-1303			●
33	SPACER; 2ND C/MBR,UPR	8-98098-110-0	02	1	1304-			●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	1009-1303		●
34	MEMBER; CROSS,3RD	8-98105-393-0	01	1	1304-						●
34	MEMBER; CROSS,3RD	1-53181-640-3	01	1	1009-1303			●
34	MEMBER; CROSS,3RD	8-98105-873-0	01	1	1304-			●
57	MEMBER; CROSS,RR SUSP FRT	8-98120-087-0	01	1	1304-						●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1009-1303	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1304-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1009-1303			●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1304-			●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	1009-1303		●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	1304-			●
65	BRACKET; CENTER BRG (B)	8-97614-126-0	02	1	1009-1303			●
65	BRACKET; CENTER BRG (C)	8-97614-125-0	02	1	1304-						●
65	BRACKET; CENTER BRG (A)	8-97614-130-0	02	1	1009-1303			●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1304-			●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1304-	●
70	GUSSET; TRUNNION,UPR	8-98233-271-0	02	1	1304-						●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1304-					●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1303	●	●
70	GUSSET; TRUNNION,UPR	8-98216-664-0	02	1	1304-				●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1009-1303			●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1304-			●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1303	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1304-				●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1009-			●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1304-				●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1304-					●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-7	01	1	1009-1303		●
86	MEMBER; CROSS,RR SUSP RR	8-98105-054-1	01	1	1304-						●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1009-			●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	1-53181-646-7	01	1	1009-1303	●
130	MEMBER; CROSS,END MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A)	8-98105-054-1	01	1	1304-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	1-53181-613-1	01	1	1009-1303	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	1009-1303		●
130	MEMBER; CROSS,END MJT7U M/T(Y4X) (B)	8-98105-203-0	01	1	1304-	●
130	MEMBER; CROSS,END (B)	8-98105-203-0	01	1	1304-						●
130	MEMBER; CROSS,END (C)	1-53181-537-2	01	1	1009-1303			●
130	MEMBER; CROSS,END (C)	8-98103-326-1	01	1	1304-			●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1009-1303	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1303		●	●
131	BOLT; END C/MBR MJT7U M/T(Y4X) M14X40	0-20951-440-0	04	1	1304-	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1304-			●			●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1009-1303	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1303		●	●
132	NUT; END C/MBR MJT7U M/T(Y4X) M14	0-91110-514-0	04	1	1304-	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1304-			●			●
148	SPACER; C/MBR (D)	8-98231-873-0	02	1	1304-						●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1009-1303	●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1304-	●				●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1009-1303			●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1304-			●	●
201	GUSSET; C/MBR	8-98233-272-0	02	1	1304-						●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1304-					●
201	GUSSET; C/MBR	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR	8-98153-307-0	02	1	1009-1303		●
201	GUSSET; C/MBR	8-98216-665-0	02	1	1304-				●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1009-			●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1009-1303	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1303		●	●
254	WASHER; PL,C/MBR MJT7U M/T(Y4X) ID=15	8-98010-627-1	04	1	1304-	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1304-			●			●
344	MEMBER; CROSS,4TH	1-53181-640-3	01	1	1009-1303			●
344	MEMBER; CROSS,4TH	8-98105-873-0	01	1	1304-			●

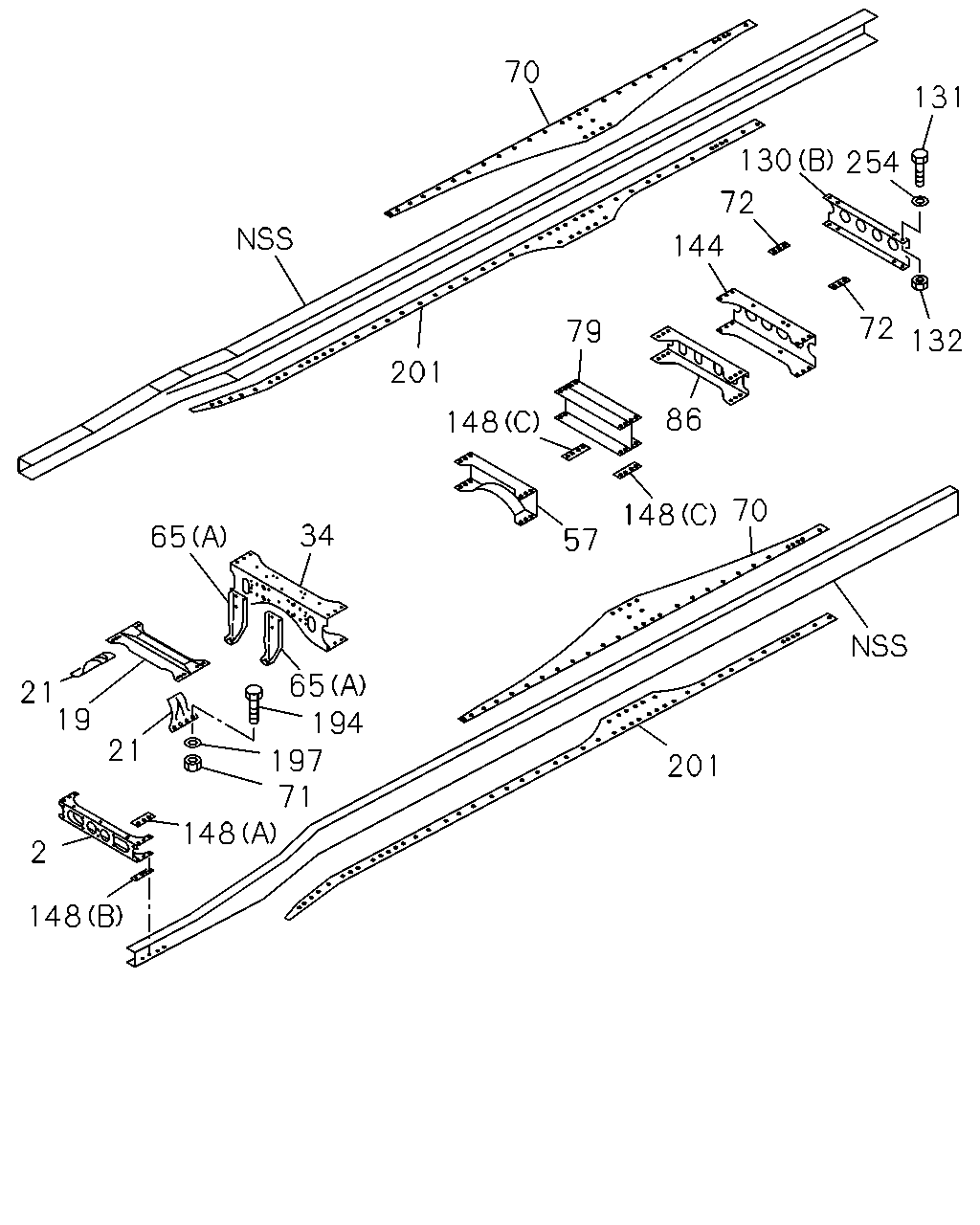

70 131 254 130 72 144 79 148 201 34 65 21 19 21 2 148 148 197 194 65 57 148 86 72 132 70 201 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-1303	●	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1304-	●		●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1303	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1304-	●				●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1303			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1304-			●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1303			●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1304-			●	●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	1009-1303		●
34	MEMBER; CROSS,3RD	8-98105-393-0	01	1	1304-						●
34	MEMBER; CROSS,3RD	1-53181-640-3	01	1	1009-1303			●
34	MEMBER; CROSS,3RD	8-98105-873-0	01	1	1304-			●
57	MEMBER; CROSS,RR SUSP FRT	8-98120-087-0	01	1	1304-						●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1009-1303	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1304-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1009-1303			●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1304-			●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	1009-1303		●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	1304-			●
65	BRACKET; CENTER BRG (B)	8-97614-126-0	02	1	1009-1303			●
65	BRACKET; CENTER BRG (C)	8-97614-125-0	02	1	1304-						●
65	BRACKET; CENTER BRG (A)	8-97614-130-0	02	1	1009-1303			●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1304-			●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1304-	●
70	GUSSET; TRUNNION,UPR	8-98233-271-0	02	1	1304-						●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1304-					●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1303	●	●
70	GUSSET; TRUNNION,UPR	8-98216-664-0	02	1	1304-				●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1009-1303			●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1304-			●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1009-1303	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1304-	●					●
72	SPACER; TRUNNION	1-53168-100-0	02	1	1009-1303		●
72	SPACER; TRUNNION	8-98098-261-0	02	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1303	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1304-				●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1009-			●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1304-				●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1304-					●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-7	01	1	1009-1303		●
86	MEMBER; CROSS,RR SUSP RR	8-98105-054-1	01	1	1304-						●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1009-			●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	1-53181-646-7	01	1	1009-1303	●
130	MEMBER; CROSS,END MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A)	8-98105-054-1	01	1	1304-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	1-53181-613-1	01	1	1009-1303	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	1009-1303		●
130	MEMBER; CROSS,END MJT7U M/T(Y4X) (B)	8-98105-203-0	01	1	1304-	●
130	MEMBER; CROSS,END (B)	8-98105-203-0	01	1	1304-						●
130	MEMBER; CROSS,END (C)	1-53181-537-2	01	1	1009-1303			●
130	MEMBER; CROSS,END (C)	8-98103-326-1	01	1	1304-			●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1009-1303	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1303		●	●
131	BOLT; END C/MBR MJT7U M/T(Y4X) M14X40	0-20951-440-0	04	1	1304-	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1304-			●			●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1009-1303	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1303		●	●
132	NUT; END C/MBR MJT7U M/T(Y4X) M14	0-91110-514-0	04	1	1304-	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1304-			●			●
144	MEMBER; CROSS,8TH	1-53181-646-7	01	1	1009-1303		●
148	SPACER; C/MBR (D)	8-98231-873-0	02	1	1304-						●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1009-1303	●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1304-	●				●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1009-1303			●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1304-			●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1009-1303	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1304-	●					●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1009-1303	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1304-	●					●
201	GUSSET; C/MBR	8-98233-272-0	02	1	1304-						●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1304-					●
201	GUSSET; C/MBR	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR	8-98153-307-0	02	1	1009-1303		●
201	GUSSET; C/MBR	8-98216-665-0	02	1	1304-				●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1009-			●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1009-1303	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1303		●	●
254	WASHER; PL,C/MBR MJT7U M/T(Y4X) ID=15	8-98010-627-1	04	1	1304-	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1304-			●			●

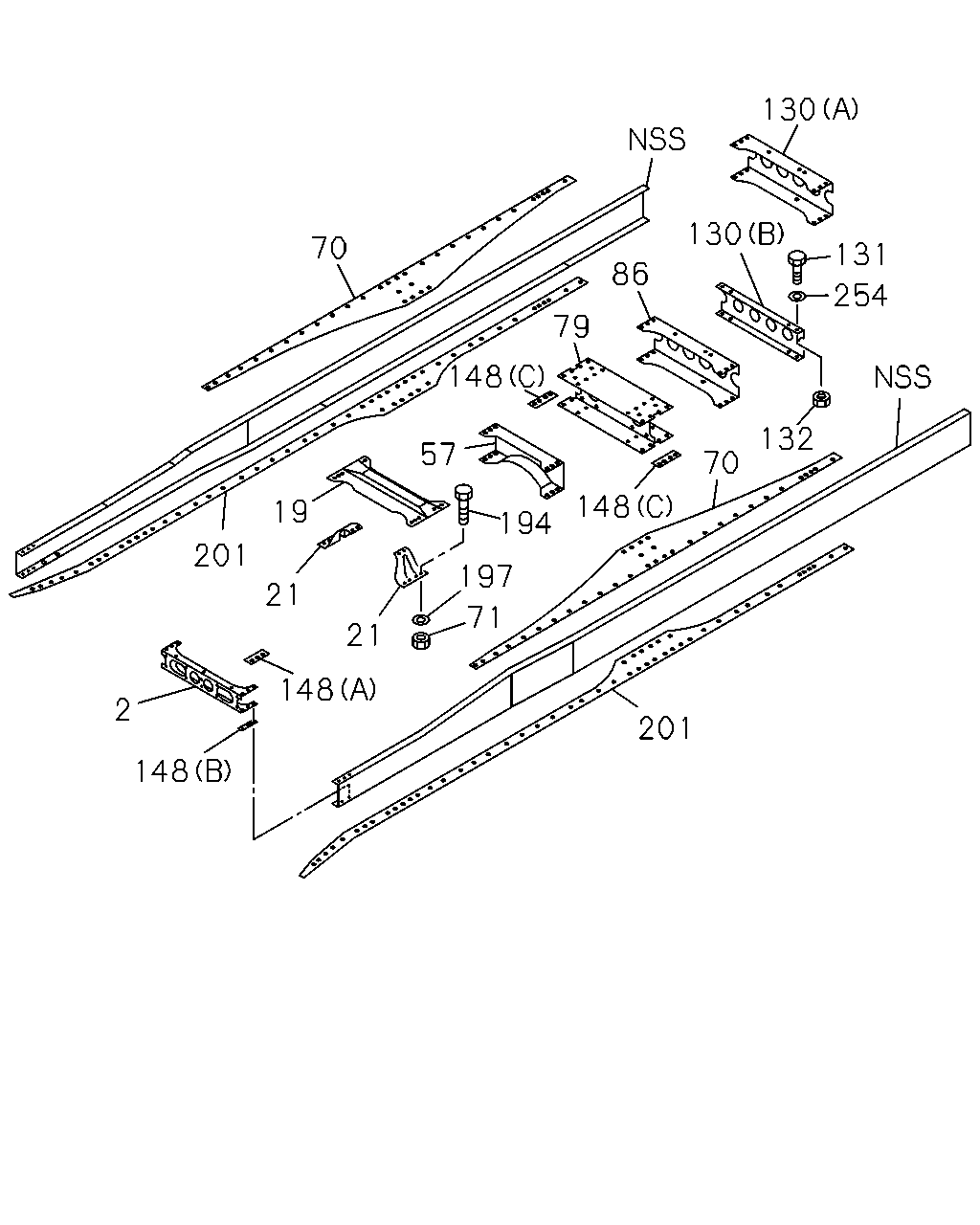

201 70 132 254 131 130 130 86 79 148 194 197 21 148 21 19 201 2 70 148 71 148 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-1303	●	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1304-	●		●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1303	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1304-	●				●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1303			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1304-			●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1303			●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1304-			●	●
57	MEMBER; CROSS,RR SUSP FRT	8-98120-087-0	01	1	1304-						●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1009-1303	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1304-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1009-1303			●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1304-			●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1304-	●
70	GUSSET; TRUNNION,UPR	8-98233-271-0	02	1	1304-						●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1304-					●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1303	●	●
70	GUSSET; TRUNNION,UPR	8-98216-664-0	02	1	1304-				●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1009-1303			●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1304-			●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1009-1303	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1303	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1304-				●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1009-			●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1304-				●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1304-					●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-7	01	1	1009-1303		●
86	MEMBER; CROSS,RR SUSP RR	8-98105-054-1	01	1	1304-						●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1009-			●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	1-53181-646-7	01	1	1009-1303	●
130	MEMBER; CROSS,END MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A)	8-98105-054-1	01	1	1304-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	1-53181-613-1	01	1	1009-1303	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	1009-1303		●
130	MEMBER; CROSS,END MJT7U M/T(Y4X) (B)	8-98105-203-0	01	1	1304-	●
130	MEMBER; CROSS,END (B)	8-98105-203-0	01	1	1304-						●
130	MEMBER; CROSS,END (C)	1-53181-537-2	01	1	1009-1303			●
130	MEMBER; CROSS,END (C)	8-98103-326-1	01	1	1304-			●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1009-1303	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1303		●	●
131	BOLT; END C/MBR MJT7U M/T(Y4X) M14X40	0-20951-440-0	04	1	1304-	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1304-			●			●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1009-1303	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1303		●	●
132	NUT; END C/MBR MJT7U M/T(Y4X) M14	0-91110-514-0	04	1	1304-	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1304-			●			●
148	SPACER; C/MBR (D)	8-98231-873-0	02	1	1304-						●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1009-1303	●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1304-	●				●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1009-1303			●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1304-			●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1009-1303	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1304-	●					●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1009-1303	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1304-	●					●
201	GUSSET; C/MBR	8-98233-272-0	02	1	1304-						●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1304-					●
201	GUSSET; C/MBR	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR	8-98153-307-0	02	1	1009-1303		●
201	GUSSET; C/MBR	8-98216-665-0	02	1	1304-				●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1009-			●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1009-1303	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1303		●	●
254	WASHER; PL,C/MBR MJT7U M/T(Y4X) ID=15	8-98010-627-1	04	1	1304-	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1304-			●			●

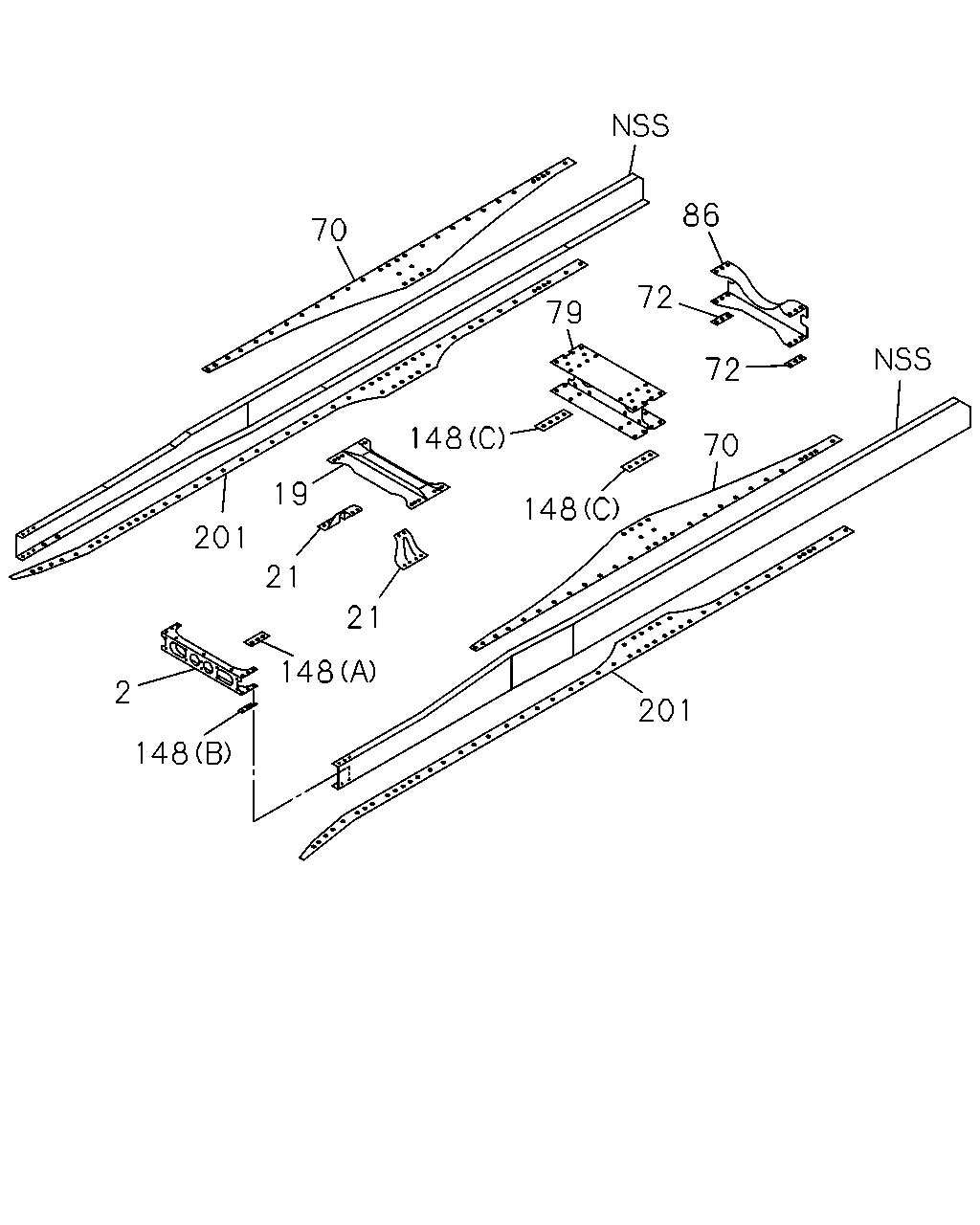

70 86 72 72 70 79 148 148 19 201 21 148 21 2 148 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-1303	●	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1304-	●		●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1303	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1304-	●				●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1303			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1304-			●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1303			●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1304-			●	●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1304-	●
70	GUSSET; TRUNNION,UPR	8-98233-271-0	02	1	1304-						●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1304-					●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1303	●	●
70	GUSSET; TRUNNION,UPR	8-98216-664-0	02	1	1304-				●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1009-1303			●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1304-			●
72	SPACER; TRUNNION	1-53168-100-0	02	1	1009-1303		●
72	SPACER; TRUNNION	8-98098-261-0	02	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1303	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1304-				●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1009-			●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1304-				●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1304-					●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-7	01	1	1009-1303		●
86	MEMBER; CROSS,RR SUSP RR	8-98105-054-1	01	1	1304-						●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1009-			●
148	SPACER; C/MBR (D)	8-98231-873-0	02	1	1304-						●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1009-1303	●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1304-	●				●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1009-1303			●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1304-			●	●
201	GUSSET; C/MBR	8-98233-272-0	02	1	1304-						●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1304-					●
201	GUSSET; C/MBR	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR	8-98153-307-0	02	1	1009-1303		●
201	GUSSET; C/MBR	8-98216-665-0	02	1	1304-				●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1009-			●

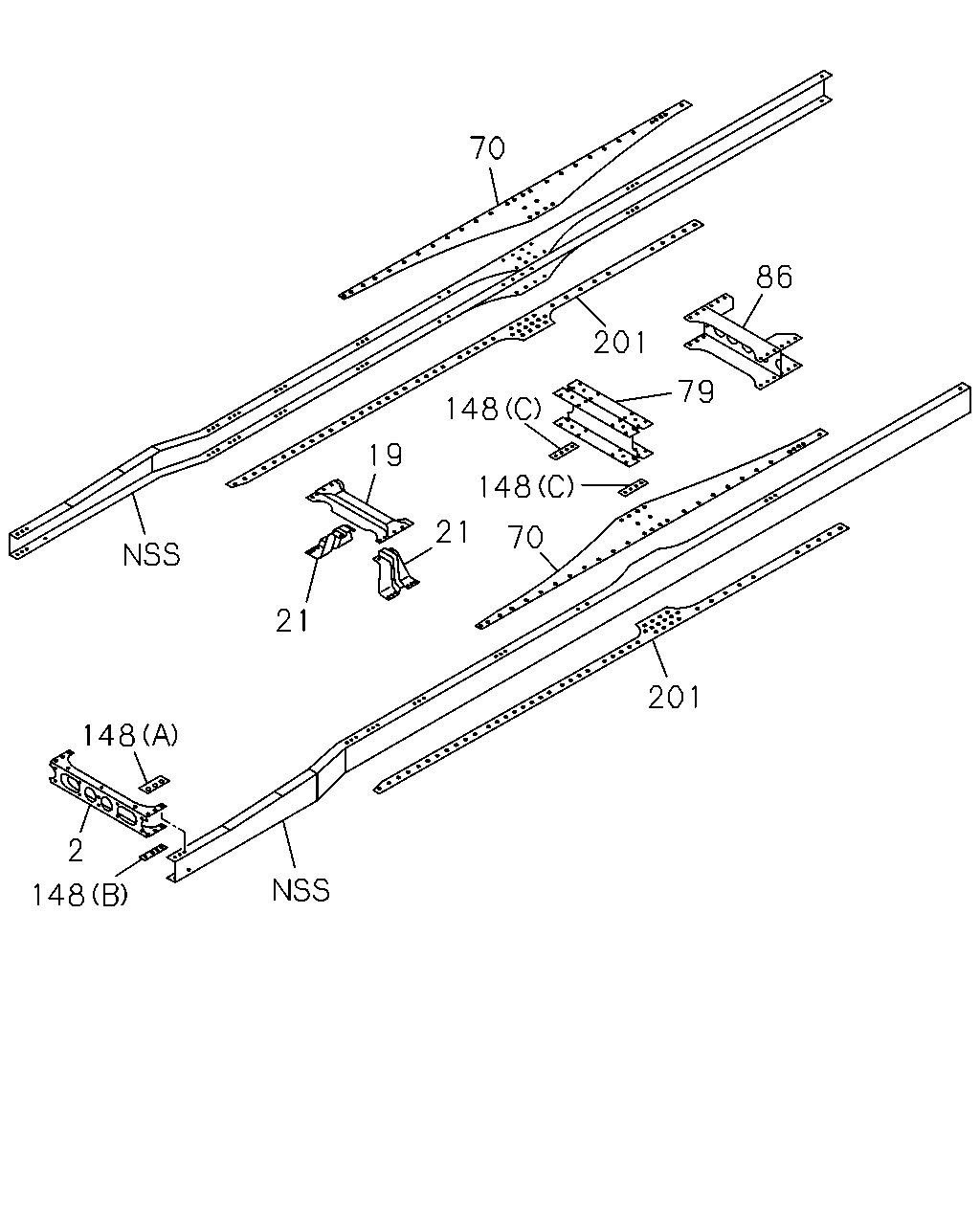

70 201 86 201 70 148 79 148 19 21 21 148 148 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-1303	●	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1304-	●		●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1303	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1304-	●				●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1303			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1304-			●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1303			●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1304-			●	●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1304-	●
70	GUSSET; TRUNNION,UPR	8-98233-271-0	02	1	1304-						●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1304-					●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1303	●	●
70	GUSSET; TRUNNION,UPR	8-98216-664-0	02	1	1304-				●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1009-1303			●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1304-			●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1303	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1304-				●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1009-			●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1304-				●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1304-					●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-7	01	1	1009-1303		●
86	MEMBER; CROSS,RR SUSP RR	8-98105-054-1	01	1	1304-						●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1009-			●
148	SPACER; C/MBR (D)	8-98231-873-0	02	1	1304-						●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1009-1303	●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1304-	●				●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1009-1303			●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1304-			●	●
201	GUSSET; C/MBR	8-98233-272-0	02	1	1304-						●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1304-					●
201	GUSSET; C/MBR	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR	8-98153-307-0	02	1	1009-1303		●
201	GUSSET; C/MBR	8-98216-665-0	02	1	1304-				●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1009-			●

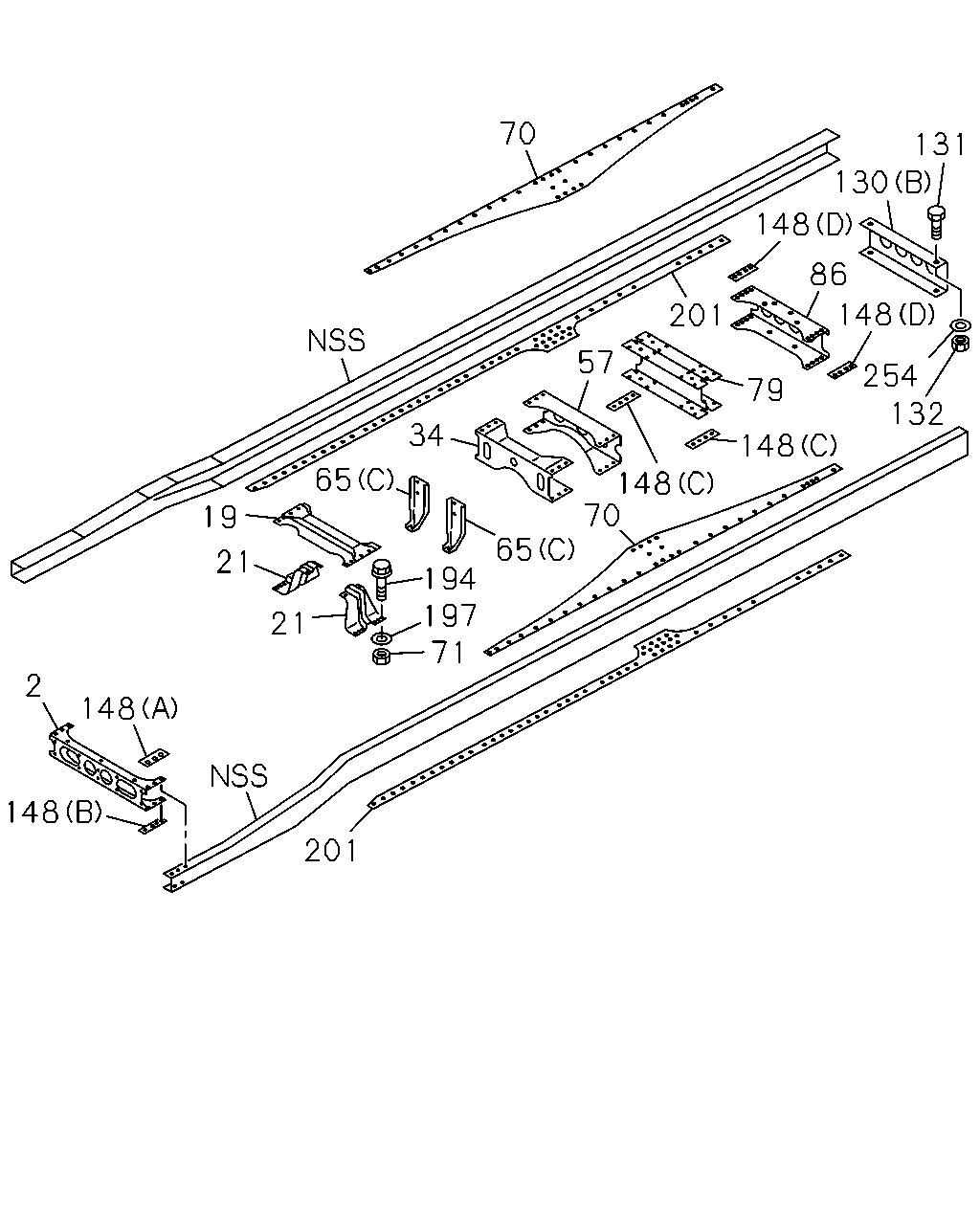

2 148 148 201 21 21 19 65 34 65 71 194 197 70 148 57 201 70 48 148 86 79 148 132 254 131 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1009-1303	●	●	●
2	MEMBER; CROSS,1ST	8-97623-017-3	01	1	1304-	●		●	●	●	●
19	MEMBER; CROSS,2ND	1-53174-231-1	01	1	1009-1303	●	●
19	MEMBER; CROSS,2ND	8-98098-303-0	01	1	1304-	●				●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1009-1303			●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	1304-			●	●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-398-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1304-1407					●
21	GUSSET; 2ND CROSS	8-98202-399-0	01	1	1408-					●
21	GUSSET; 2ND CROSS	1-53164-226-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-310-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-227-1	01	1	1009-1303	●	●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1304-1407	●					●
21	GUSSET; 2ND CROSS	8-98098-311-1	01	1	1408-	●					●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1009-1303			●
21	GUSSET; 2ND CROSS	1-53164-225-0	02	1	1304-			●	●
34	MEMBER; CROSS,3RD	1-53181-650-3	01	1	1009-1303		●
34	MEMBER; CROSS,3RD	8-98105-393-0	01	1	1304-						●
34	MEMBER; CROSS,3RD	1-53181-640-3	01	1	1009-1303			●
34	MEMBER; CROSS,3RD	8-98105-873-0	01	1	1304-			●
57	MEMBER; CROSS,RR SUSP FRT	8-98120-087-0	01	1	1304-						●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1009-1303	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97625-336-0	01	1	1304-	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-994-1	01	1	1009-1303			●
57	MEMBER; CROSS,RR SUSP FRT	8-98101-103-0	01	1	1304-			●
65	BRACKET; CENTER BRG (A)	8-97614-128-0	02	1	1009-1303		●
65	BRACKET; CENTER BRG (B)	8-97612-486-0	02	1	1304-			●
65	BRACKET; CENTER BRG (B)	8-97614-126-0	02	1	1009-1303			●
65	BRACKET; CENTER BRG (C)	8-97614-125-0	02	1	1304-						●
65	BRACKET; CENTER BRG (A)	8-97614-130-0	02	1	1009-1303			●
65	BRACKET; CENTER BRG (A)	8-97623-448-0	02	1	1304-			●
70	GUSSET; TRUNNION,UPR	8-98191-622-0	02	1	1304-	●
70	GUSSET; TRUNNION,UPR	8-98233-271-0	02	1	1304-						●
70	GUSSET; TRUNNION,UPR	8-97618-852-0	02	1	1304-					●
70	GUSSET; TRUNNION,UPR	1-53161-477-0	02	1	1009-1303	●	●
70	GUSSET; TRUNNION,UPR	8-98216-664-0	02	1	1304-				●
70	GUSSET; TRUNNION,UPR	1-53161-478-0	02	1	1009-1303			●
70	GUSSET; TRUNNION,UPR	8-98098-172-0	02	1	1304-			●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1009-1303	●	●
71	NUT; 2ND C/MBR M14	0-91110-514-0	08	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1303	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1304-				●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1009-			●
86	MEMBER; CROSS,RR SUSP RR	8-98100-868-0	01	1	1304-				●
86	MEMBER; CROSS,RR SUSP RR	8-97623-323-0	01	1	1304-					●
86	MEMBER; CROSS,RR SUSP RR	8-97626-686-1	01	1	1009-	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-646-7	01	1	1009-1303		●
86	MEMBER; CROSS,RR SUSP RR	8-98105-054-1	01	1	1304-						●
86	MEMBER; CROSS,RR SUSP RR	8-97626-664-0	01	1	1009-			●
130	MEMBER; CROSS,END ENGINE REAR PTO(SV1) (A)	1-53181-646-7	01	1	1009-1303	●
130	MEMBER; CROSS,END MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A)	8-98105-054-1	01	1	1304-	●
130	MEMBER; CROSS,END EXC. ENGINE REAR PTO(SV1) (B)	1-53181-613-1	01	1	1009-1303	●
130	MEMBER; CROSS,END (B)	1-53181-613-1	01	1	1009-1303		●
130	MEMBER; CROSS,END MJT7U M/T(Y4X) (B)	8-98105-203-0	01	1	1304-	●
130	MEMBER; CROSS,END (B)	8-98105-203-0	01	1	1304-						●
130	MEMBER; CROSS,END (C)	1-53181-537-2	01	1	1009-1303			●
130	MEMBER; CROSS,END (C)	8-98103-326-1	01	1	1304-			●
131	BOLT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14X40	0-20951-440-0	04	1	1009-1303	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1009-1303		●	●
131	BOLT; END C/MBR MJT7U M/T(Y4X) M14X40	0-20951-440-0	04	1	1304-	●
131	BOLT; END C/MBR M14X40	0-20951-440-0	04	1	1304-			●			●
132	NUT; END C/MBR EXC. ENGINE REAR PTO(SV1) M14	0-91110-514-0	04	1	1009-1303	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1009-1303		●	●
132	NUT; END C/MBR MJT7U M/T(Y4X) M14	0-91110-514-0	04	1	1304-	●
132	NUT; END C/MBR M14	0-91110-514-0	04	1	1304-			●			●
148	SPACER; C/MBR (D)	8-98231-873-0	02	1	1304-						●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1009-1303	●	●
148	SPACER; C/MBR (C)	8-97623-201-0	02	1	1304-	●				●	●
148	SPACER; C/MBR (A)	1-53168-400-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (A)	8-98118-884-2	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (B)	1-53168-403-1	02	1	1009-1303	●	●	●
148	SPACER; C/MBR (B)	8-98118-885-0	02	1	1304-	●		●	●	●	●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1009-1303			●
148	SPACER; C/MBR (C)	8-97623-199-0	02	1	1304-			●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1009-1303	●	●
194	BOLT; 2ND C/MBR M14X60	0-20951-460-0	08	1	1304-	●					●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1009-1303	●	●
197	WASHER; PL,2ND C/MBR ID=15	8-98010-627-1	16	1	1304-	●					●
201	GUSSET; C/MBR	8-98233-272-0	02	1	1304-						●
201	GUSSET; C/MBR	8-98173-673-0	02	1	1304-					●
201	GUSSET; C/MBR	8-97624-333-2	02	1	1009-	●
201	GUSSET; C/MBR	8-98153-307-0	02	1	1009-1303		●
201	GUSSET; C/MBR	8-98216-665-0	02	1	1304-				●
201	GUSSET; C/MBR	8-97624-306-1	02	1	1009-			●
254	WASHER; PL,C/MBR EXC. ENGINE REAR PTO(SV1) ID=15	8-98010-627-1	04	1	1009-1303	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1009-1303		●	●
254	WASHER; PL,C/MBR MJT7U M/T(Y4X) ID=15	8-98010-627-1	04	1	1304-	●
254	WASHER; PL,C/MBR ID=15	8-98010-627-1	04	1	1304-			●			●

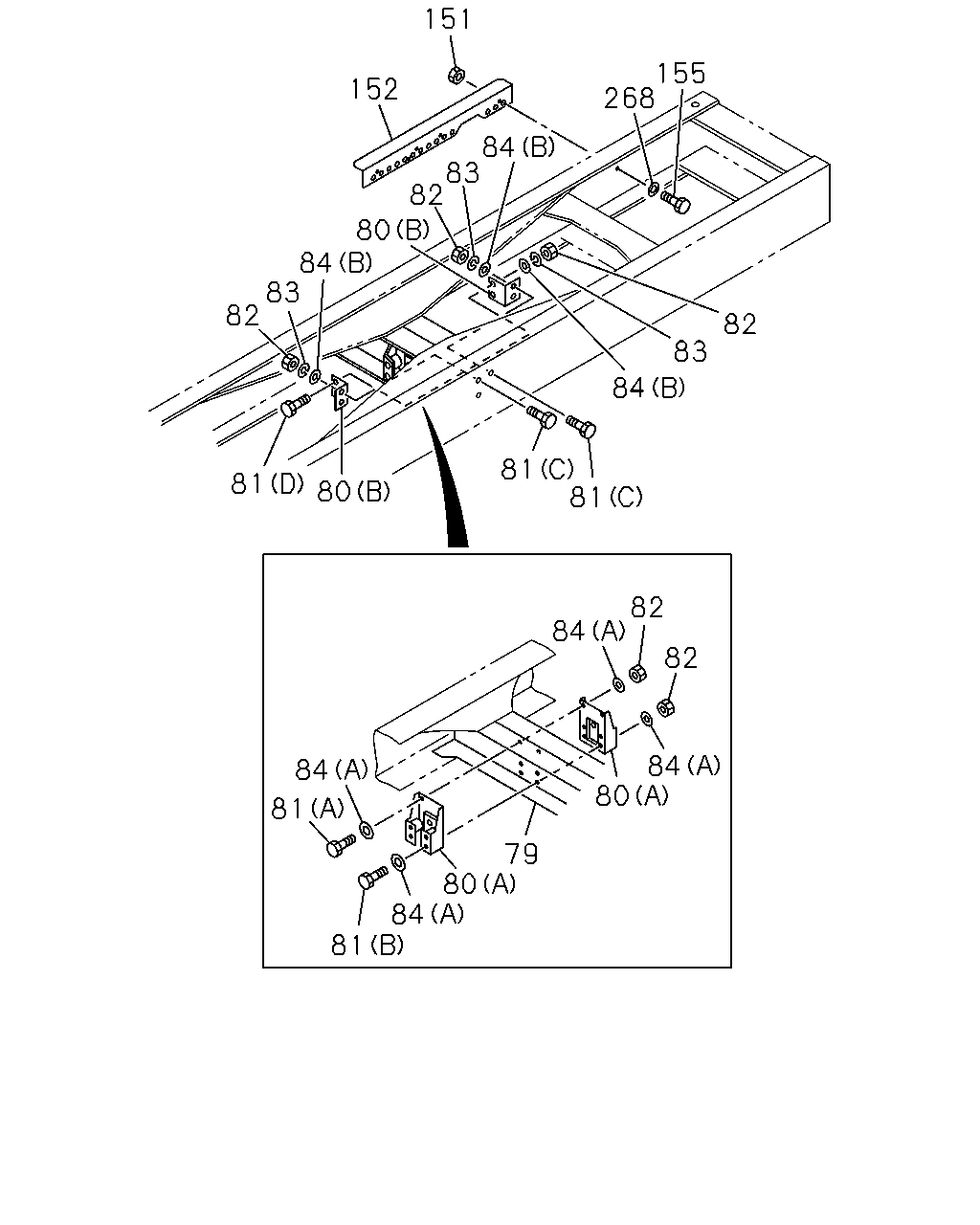

151 268 155 84 82 83 84 81 80 81 82 83 84 80 82 83 152 81 82 82 84 84 80 79 80 84 81 81 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
79	MEMBER; CROSS,TRUNNION ASM	8-98191-628-1	01	1	1304-	●					●
79	MEMBER; CROSS,TRUNNION ASM	8-98226-878-0	01	1	1304-					●
79	MEMBER; CROSS,TRUNNION ASM	1-53181-923-0	01	1	1009-1303	●	●
79	MEMBER; CROSS,TRUNNION ASM	8-97623-020-3	01	1	1304-				●
79	MEMBER; CROSS,TRUNNION ASM	8-97626-665-1	01	1	1009-			●
80	BRACKET; C/MBR (B)	1-53167-610-0	04	1	1009-1303	●	●
80	BRACKET; C/MBR (B)	1-53167-610-0	04	1	1304-	●				●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1009-1303	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	1304-	●		●	●	●	●
81	BOLT; BRKT (C) M14X40	0-20951-440-0	08	1	1009-1303	●	●
81	BOLT; BRKT (C) M14X40	0-20951-440-0	08	1	1304-	●				●	●
81	BOLT; BRKT (D) M14X55	0-20951-455-0	04	1	1009-1303	●	●
81	BOLT; BRKT (D) M14X55	0-20951-455-0	04	1	1304-	●				●	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1009-1303	●	●	●
81	BOLT; BRKT (A) M14X50	0-20951-450-0	02	1	1304-	●		●	●	●	●
81	BOLT; BRKT (B) M14X205	1-09000-147-0	02	1	1009-1303	●	●	●
81	BOLT; BRKT (B) M14X205	1-09000-147-0	02	1	1304-	●		●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1009-1303	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1304-	●		●	●	●	●
82	NUT; BRKT M14	0-91110-514-0	04	1	1009-1303	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	1304-	●				●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	1009-1303	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	1304-	●				●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1009-1303	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1304-	●				●	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1009-1303	●	●	●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1304-	●		●	●	●	●
151	NUT; OUTRIGGER M16	0-91110-516-0	28	1	1304-	●		●	●	●	●
152	OUTRIGGER	8-98231-858-0	01	1	1304-	●		●	●	●	●
152	OUTRIGGER	8-98231-859-0	01	1	1304-	●		●	●	●	●
155	BOLT; OUTRIGGER M16X40	0-20951-640-0	28	1	1304-	●		●	●	●	●
268	WASHER; PL,OUTRIGGER ID=17 OD=30	9-09851-935-0	28	1	1304-	●		●	●	●	●

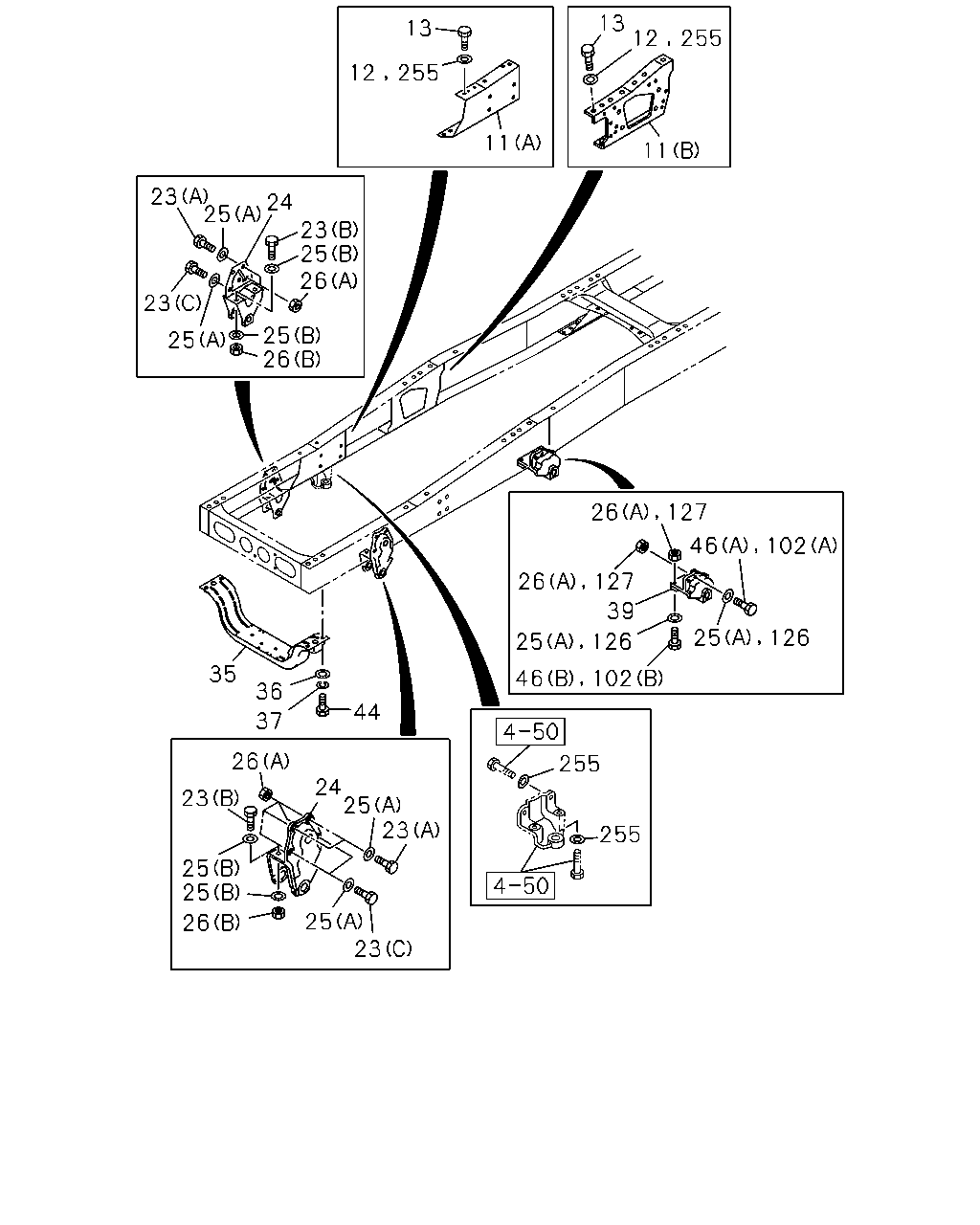

23 25 26 25 25 23 25 23 26 24 255 255 25 126 102 46 127 26 127 26 25 46 102 39 126 44 37 35 36 26 25 26 25 23 24 25 23 23 25 11 255 12 13 11 255 12 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
11	BRACKET; ENG MTG MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98055-432-1	01	1	1304-	●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1304-					●
11	BRACKET; ENG MTG MJT7U M/T(Y4X) (B)	8-98055-432-1	01	1	1304-						●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1304-	●		●		●	●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1304-	●		●		●	●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1304-	●				●	●
11	BRACKET; ENG MTG A/T ALLISON 4430(Y5V) (B)	8-98233-358-0	01	1	1304-	●					●
11	BRACKET; ENG MTG (B)	8-98055-432-1	01	1	1009-1303	●	●
11	BRACKET; ENG MTG (B)	8-98055-430-1	01	1	1304-				●
11	BRACKET; ENG MTG (B)	8-98055-433-0	01	1	1009-1303	●	●
11	BRACKET; ENG MTG (B)	8-98055-431-0	01	1	1304-				●
11	BRACKET; ENG MTG (A)	8-98059-445-1	01	1	1009-1303	●	●	●
11	BRACKET; ENG MTG (A)	8-98059-880-1	01	1	1304-				●
11	BRACKET; ENG MTG (A)	8-98059-446-1	01	1	1009-1303	●	●	●
11	BRACKET; ENG MTG (A)	8-98059-881-1	01	1	1304-				●
11	BRACKET; ENG MTG (B)	8-98084-524-0	01	1	1009-			●
11	BRACKET; ENG MTG (B)	8-98084-525-0	01	1	1009-			●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	14	1	1304-				●
13	BOLT; BRKT,ENG MTG M14X50	0-20951-450-0	10	1	1304-				●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1009-1303	●	●	●
13	BOLT; BRKT,ENG MTG M14X35	0-20951-435-0	04	1	1304-	●		●	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1009-1303	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	10	1	1304-	●		●		●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1304-	●		●		●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1009-1303	●	●	●
23	BOLT; BRKT,SPR (A) M14X40	0-20951-440-0	04	1	1304-	●		●	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1009-1303	●	●	●
23	BOLT; BRKT,SPR (B) M16X50	0-20951-650-0	04	1	1304-	●		●	●	●	●
23	BOLT; BRKT,SPR (C) M14X43	8-98097-159-0	04	1	1009-1303	●	●	●
23	BOLT; BRKT,SPR (C) M14X50	8-98097-158-0	04	1	1304-				●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1009-1303	●	●	●
24	BRACKET; FRT SPR,FRT	8-98052-580-0	02	1	1304-	●		●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	20	1	1304-	●		●		●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1009-1303	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	1304-	●		●	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	20	1	1009-1303	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1304-				●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1304-	●		●		●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	16	1	1009-1303	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	08	1	1304-				●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1009-1303	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	1304-	●		●	●	●	●
35	MEMBER; UNDER A/T ALLISON 4430(Y5V)	1-53174-301-3	01	1	1304-	●					●
35	MEMBER; UNDER	1-53174-263-2	01	1	1009-1303	●	●	●	●	●	●
35	MEMBER; UNDER MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K)	1-53174-263-2	01	1	1304-	●
35	MEMBER; UNDER	1-53174-263-2	01	1	1304-			●	●	●
35	MEMBER; UNDER MJT7U M/T(Y4X)	1-53174-263-2	01	1	1304-						●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1009-1303	●	●	●	●	●	●
36	WASHER; PL,UNDER MBR ID=17	0-91614-516-0	04	1	1304-	●		●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1009-1303	●	●	●	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	1304-	●		●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1009-1303	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1304-1407	●		●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	1408-	●		●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1009-1303	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1304-1407	●		●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	1408-	●		●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1009-1303	●	●	●	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	1304-	●		●	●	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	1009-1303	●	●	●
46	BOLT; BRKT FIX (A) M14X40	0-20951-440-0	04	1	1304-	●		●		●	●
46	BOLT; BRKT FIX (B) M14X40	8-98097-157-0	04	1	1009-1303	●	●	●
46	BOLT; BRKT FIX (B) M14X40	8-98097-157-0	04	1	1304-	●		●		●	●
102	BOLT; BRKT,RR SPR (A) M14X50	0-20951-450-0	04	1	1304-				●
102	BOLT; BRKT,RR SPR (B) M14X50	8-98097-158-0	04	1	1304-				●
126	WASHER; PL,BRKT ID=15	8-98010-627-1	12	1	1304-				●
127	NUT; BRKT M14	0-91110-514-0	08	1	1304-				●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	1304-				●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	18	1	1009-1303	●	●	●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	18	1	1304-	●		●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
