◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#7144) — 25 parça
çizim 5952
49 49 150
BalonParca AdiParca NoAdetTipApplied Date A B
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> (B) 		1-85878-297-0 01 1 0012- ● ●
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS SPANISH<YN1> (A) 		1-85878-298-1 01 1 0012- ● ●
150 PLATE; CAUTION,INSTRUCTION
ELECTRIC SWITCH BOX ENGINE ROOM<TEK> 		1-85888-543-0 01 1 0012- ● ●
çizim 43942
228 181
BalonParca AdiParca NoAdetTipApplied Date A B
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 0012- ● ●
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0012-1001 ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-85887-935-0 01 1 0012-1001 ●

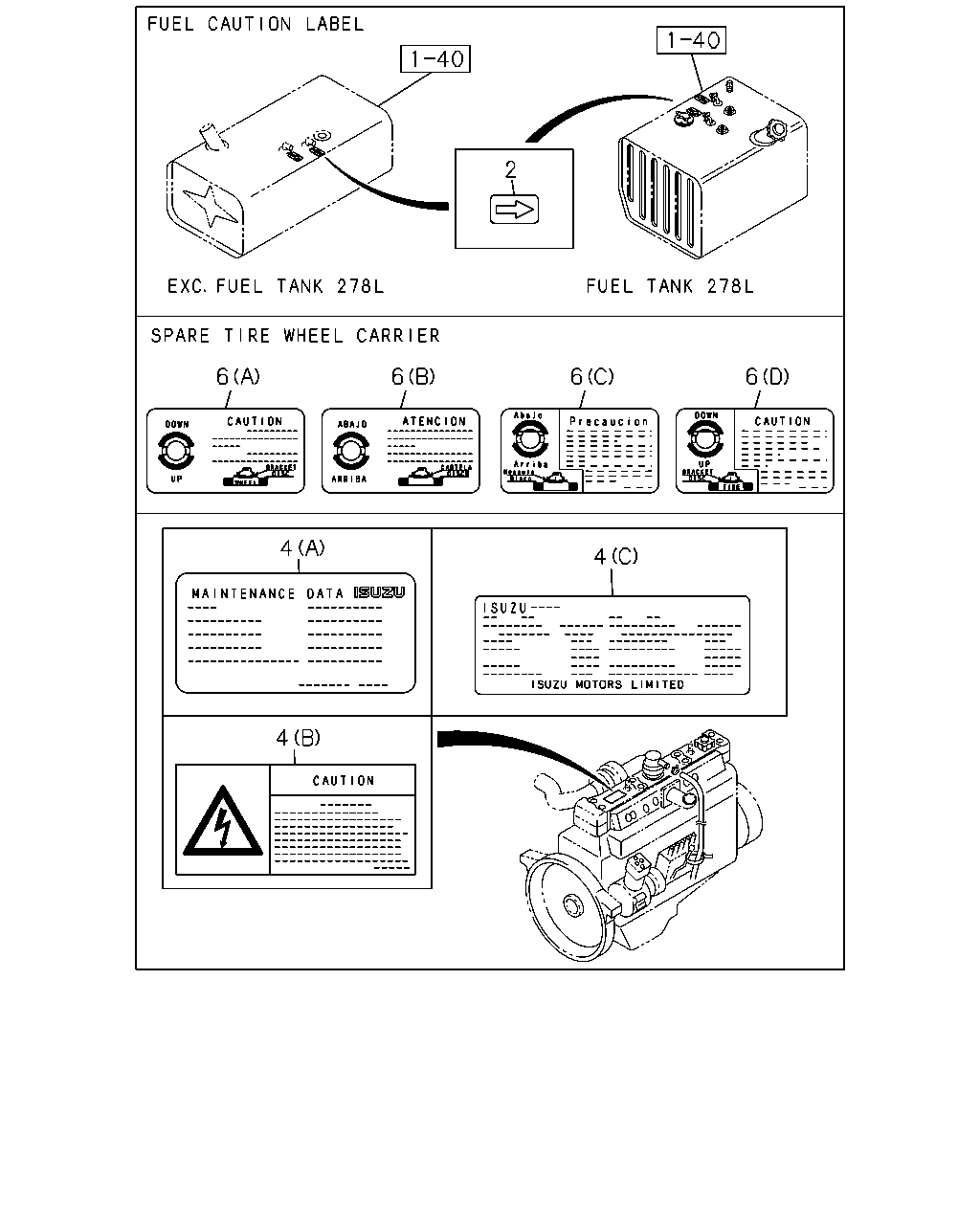

çizim 45054
6 6 6 6 4 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 LABEL; FUEL CAUTION 1-85889-068-0 02 1 0012- ● ●
4 LABEL; ENG MAINTENANCE
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) 		1-85889-081-0 01 1 0107-0210 ●
4 LABEL; ENG MAINTENANCE
6SD1 TC-S(83L) (A) 		1-85889-081-0 01 1 0107-0210 ●
4 LABEL; ENG MAINTENANCE
EURO3 SPECIFICATION(NJX) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (A) 		1-85889-081-0 01 1 0211- ●
4 LABEL; ENG MAINTENANCE
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (B) 		8-94391-524-0 01 1 0107-0210 ●
4 LABEL; ENG MAINTENANCE
6SD1 TC-S(83L) (B) 		8-94391-524-0 01 1 0107-0210 ●
4 LABEL; ENG MAINTENANCE
EURO3 SPECIFICATION(NJX) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V> (B) 		8-94391-524-0 01 1 0211- ●
4 LABEL; ENG MAINTENANCE
6SD1 TC-S(83L) (A) 		1-85889-082-0 01 1 0211- ●
4 LABEL; ENG MAINTENANCE
OIL FILTER SETTING DOWNWARD<E7V> EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) TAMPER PROOF INJ PUMP SET<W44> EXC. INTAKE HEATER<SL2> (A) 		1-85886-841-0 01 1 0012-0106 ● ●
4 LABEL; ENG MAINTENANCE
INTAKE HEATER<SL2> EURO2 SPECIFICATION(THN) INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. OIL FILTER SETTING DOWNWARD<E7V>,TAMPER PROOFINJ PUMP SET<W44> (A) 		1-85886-841-0 01 1 0012-0106 ● ●
4 LABEL; ENG MAINTENANCE
EURO2 SPECIFICATION(THN) EXC. OIL FILTER SETTING DOWNWARD<E7V>,INTAKE HEATER<SL2>,TAMPER PROOF INJ PUMP SET<W44> (A) 		1-85886-841-0 01 1 0012-0106 ● ●
4 LABEL; ENG MAINTENANCE
EURO2 SPECIFICATION(THN) (A) 		1-85886-841-0 01 1 0107- ● ●
4 LABEL; ENG MAINTENANCE
EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-85886-788-0 01 1 0012-0203 ● ●
4 LABEL; ENG MAINTENANCE
EXC. OIL FILTER SETTING DOWNWARD<E7V>,EURO3 SPECIFICATION(NJX),EURO2 SPECIFICATION(THN),INJ PUMP Q SET SPECIAL +5%Q(T1A) (A) 		1-85886-788-0 01 1 0204- ● ●
4 LABEL; ENG MAINTENANCE
6WA1 TC-C(55L) EURO2 SPECIFICATION(THN) (C) 		1-85886-840-0 01 1 0204- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> CAUTIONS SPANISH<YN1> (B) 		1-53639-005-0 01 1 0012-0708 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> CAUTIONS SPANISH<YN1> (C) 		8-98082-439-0 01 1 0709- ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> EXC. CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0012-0708 ● ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER<SFB> EXC. CAUTIONS SPANISH<YN1> (D) 		8-98082-437-0 01 1 0709- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
