4-50 — FRONT SUSPENSION (#71435) — 82 parça

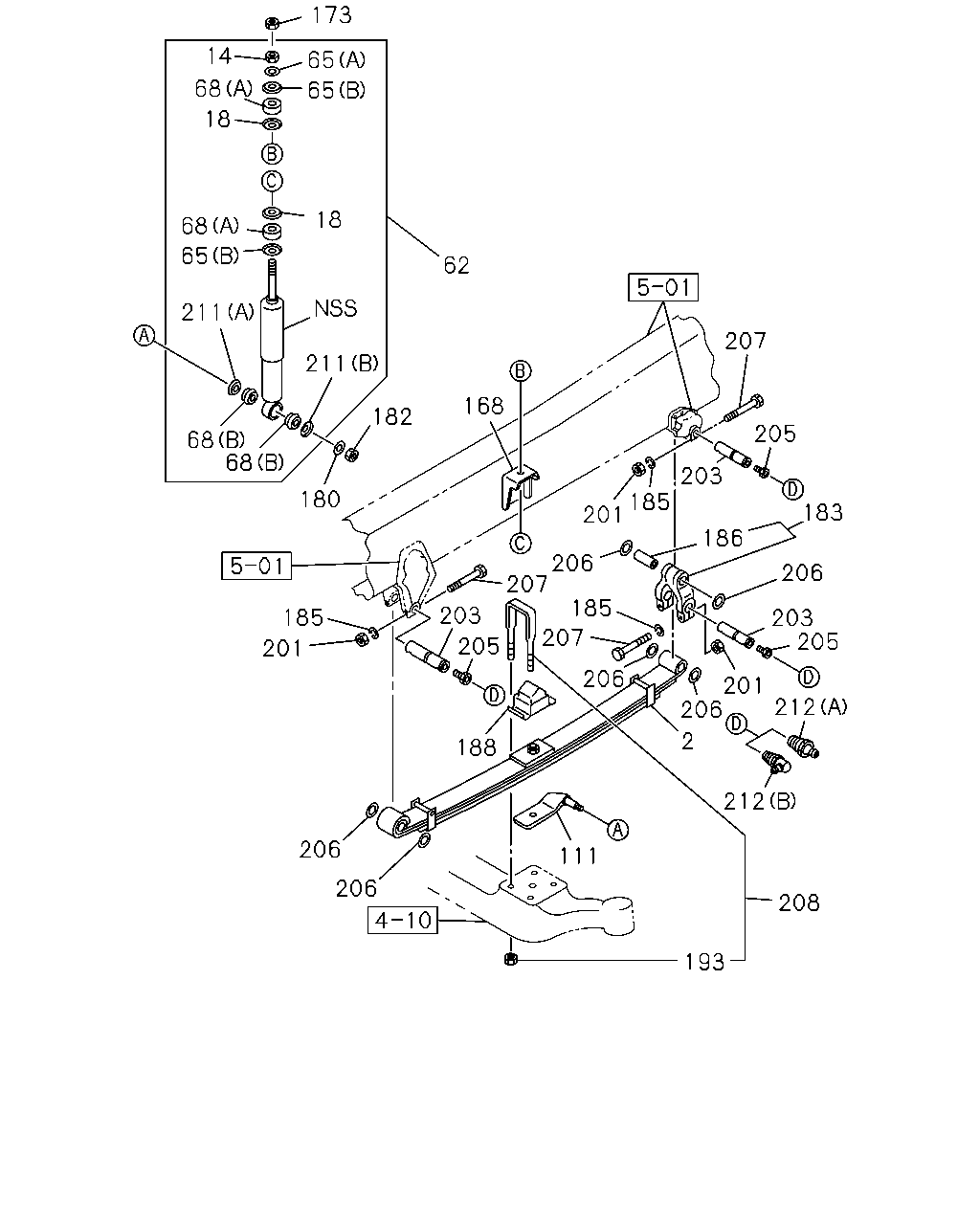

çizim 189482
173 65 68 14 18 65 18 68 65 62 211 211 68 180 68 182 168 207 203 205 183 185 201 206 207 203 185 201 205 185 207 206 206 2 212 208 193 206 206 188 201 203 206 212 186 205 111
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) DUMP CHASSIS(V4D) 7-LEAF 		8-98236-921-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) 7-LEAF 		8-98179-183-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 6600MM(66W) 4-LEAF 		8-97618-758-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98090-276-0 02 1 1304-1305 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98241-419-0 02 1 1306- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 3-LEAF 		8-98107-909-0 02 1 1009-1303 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) HONG KONG EQUIPMENT(PQ1) EXC. DUMP CHASSIS(V4D) 7-LEAF 		8-98162-076-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W) EXC. HONG KONG EQUIPMENT(PQ1) 7-LEAF 		8-98162-076-0 02 1 1304- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W) HONG KONG EQUIPMENT(PQ1) DUMP CHASSIS(V4D) 7-LEAF 		8-98162-076-0 02 1 1304- ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1009-1303 ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 1304- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1009-1303 ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 1304- ● ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) BEST VALUE PARTS 		1-87610-154-0 02 1 1304- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W) 		1-51630-417-0 02 1 1304- ●
62 ABSORBER ASM; SHOCK,FRT
WHEEL BASE 6600MM(66W) 		1-51630-833-0 02 1 1304- ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-830-0 02 1 1009-1303 ●
62 ABSORBER ASM; SHOCK,FRT
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		1-51630-837-0 02 1 1304- ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1009-1303 ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 1304- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1009-1303 ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 1304- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1009-1303 ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 1304- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1009-1303 ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 1304- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1009-1303 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-193-0 01 1 1304- ● ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1009-1303 ●
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98121-195-0 01 1 1304- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1009-1303 ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 1304- ● ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1009-1303 ●
173 NUT; S/ABS
M14 		0-91111-514-0 02 1 1304- ● ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1009-1303 ●
180 WASHER; PL,PIN
ID=21 		0-91610-520-0 02 1 1304- ● ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1009-1303 ●
182 NUT; S/ABS LWR
M20 		0-91110-520-0 02 1 1304- ● ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1009-1303 ●
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1304- ● ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1009-1303 ●
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 12 1 1304- ● ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1009-1303 ●
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1304- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-51172-085-2 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 5300MM(53W) HONG KONG EQUIPMENT(PQ1) A/T<X9D> 		1-51172-085-2 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) ZF M/T<X9E> 		1-51172-125-1 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 4700MM(47W) HONG KONG EQUIPMENT(PQ1) 		1-51172-125-1 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 4700MM(47W) SINGAPORE EQUIPMENT(WQ3) 		1-51172-097-1 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1009-1303 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 4500MM(45W) SINGAPORE EQUIPMENT(WQ3) ISUZU M/T<X9A> 		1-51172-086-2 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) ISUZU M/T<X9A>,A/T<X9D>,ZF M/T<X9E> 		1-51172-086-2 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 5300MM(53W) HONG KONG EQUIPMENT(PQ1) ISUZU M/T<X9A> 		1-51172-086-2 02 1 1304- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
WHEEL BASE 5300MM(53W) SINGAPORE EQUIPMENT(WQ3) ISUZU M/T<X9A>,A/T<X9D> 		1-51172-086-2 02 1 1304- ●
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1009-1206 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-1303 ●
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1304- ● ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1009-1303 ●
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1304- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1009-1303 ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 1304- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1009-1303 ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1304- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1009-1303 ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 1304- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1009-1303 ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 12 1 1304- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-2 04 1 1009-1206 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1207-1303 ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-493-0 04 1 1304- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1009-1303 ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 1304- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1009-1303 ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 1304- ● ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1009-1303 ●
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1304- ● ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1009-1303 ●
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 04 1 1304- ● ●

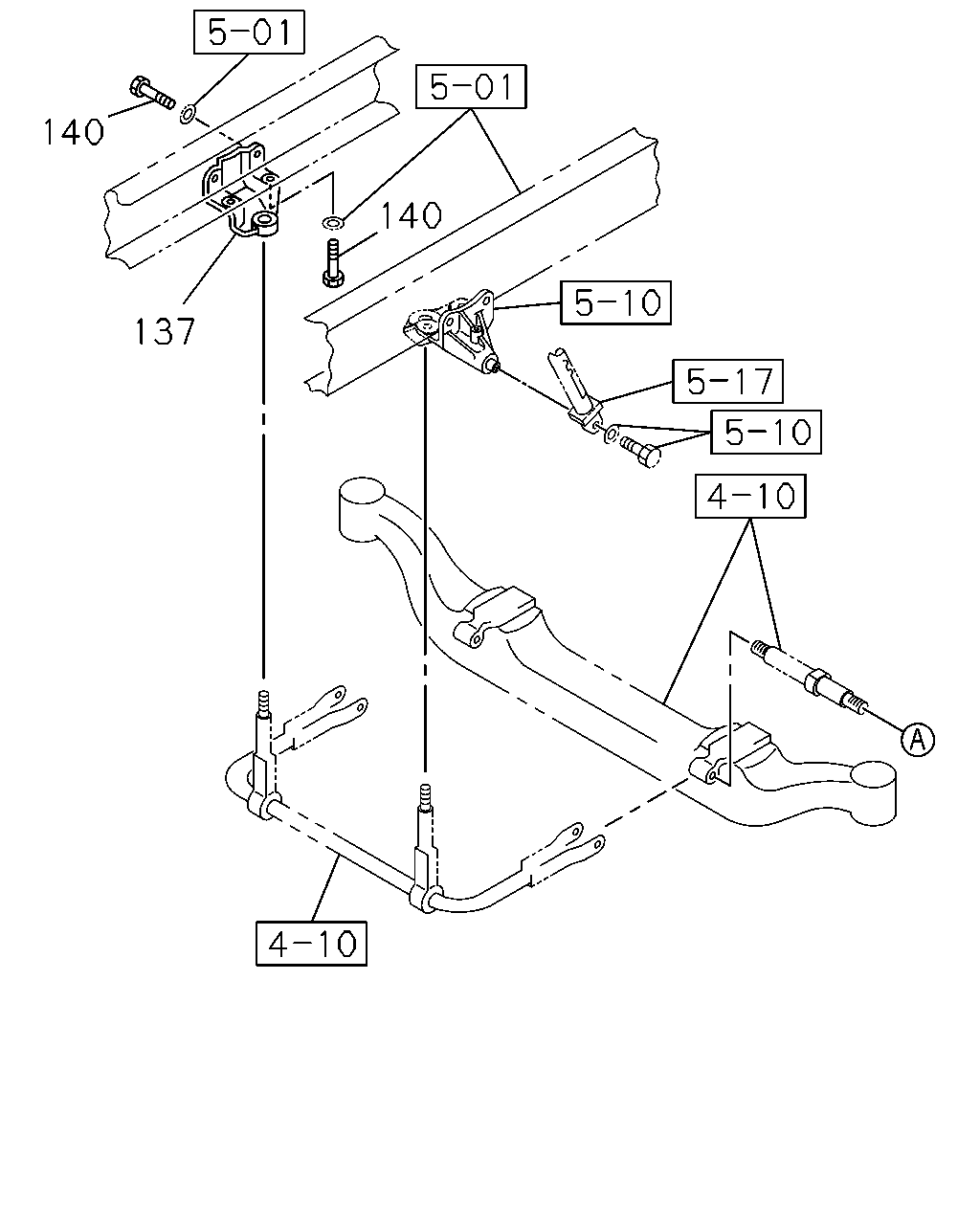

çizim 189485
140 137 140
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1009-1303 ●
137 BRACKET; STAB BAR TO FRAME 1-51781-111-0 01 1 1304- ● ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1009-1303 ●
140 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1304- ● ●
