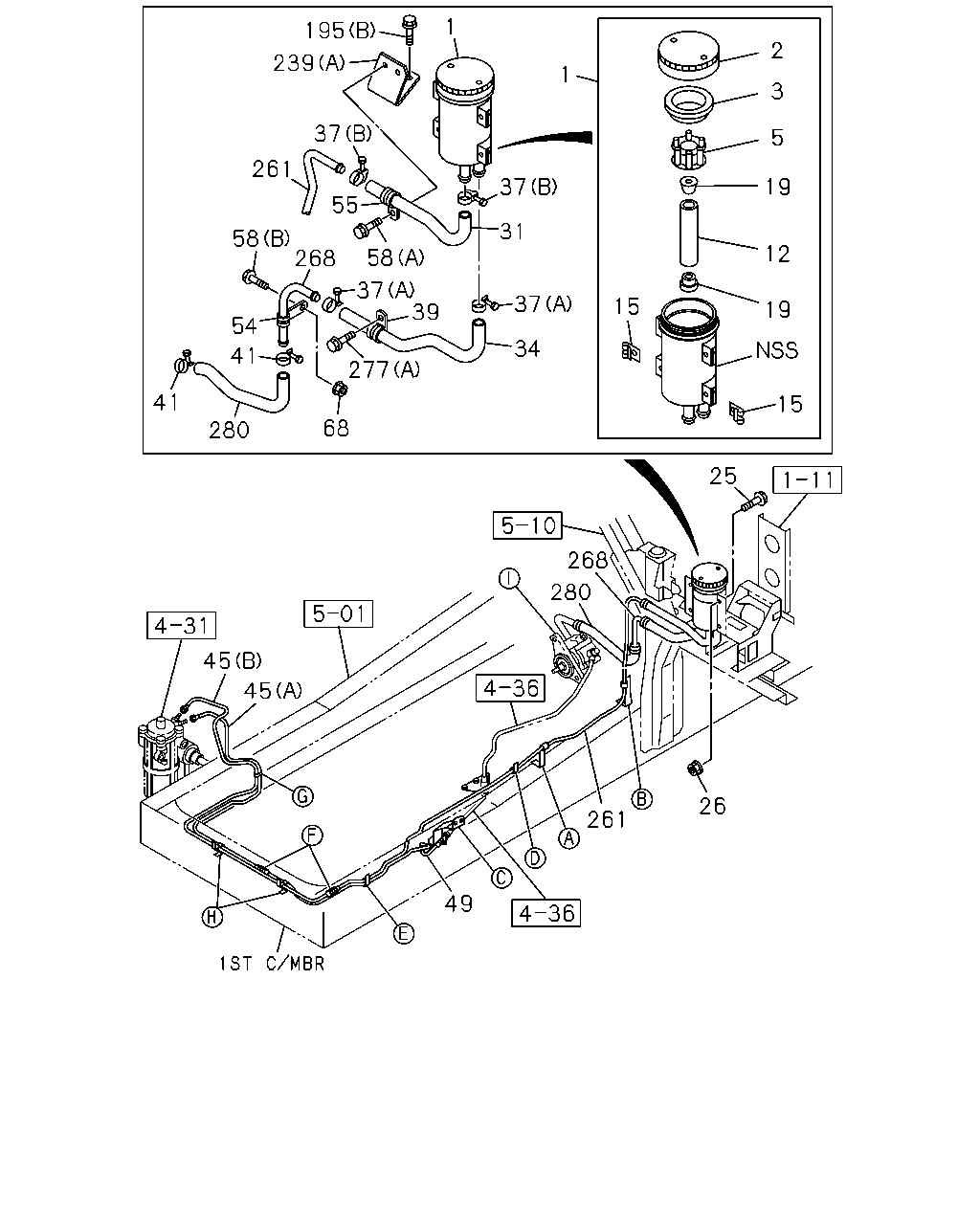

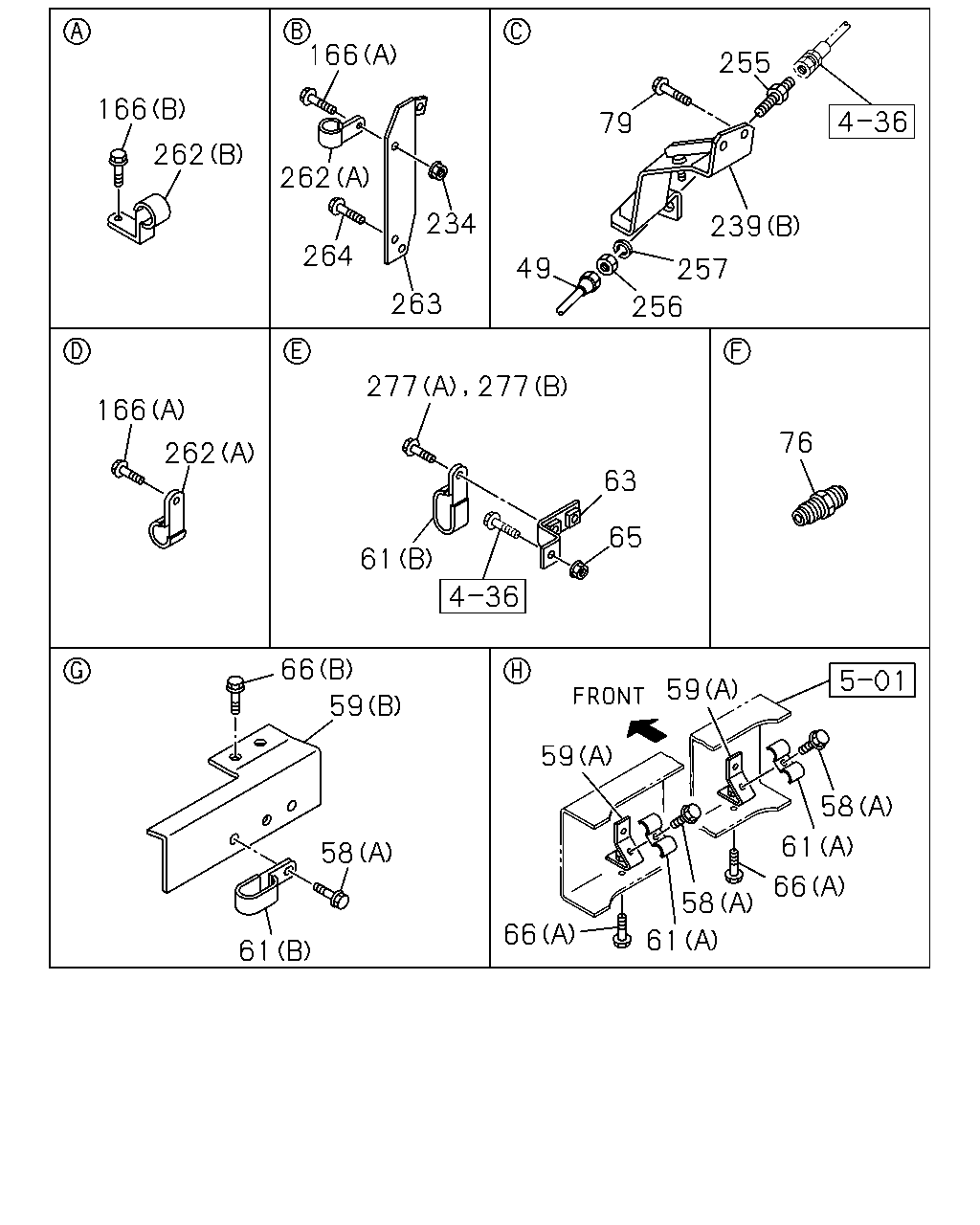

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#71431) — 144 parça

166 166 234 264 262 262 79 255 239 257 256 49 263 166 61 277 277 63 66 59 59 58 61 66 58 61 66 61 59 58 65 76 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1009-1303	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-634-0	01	1	1304-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1303	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1009-1303	●
59	BRACKET; CLIP,OIL PIPE (A)	1-47479-521-0	02	1	1304-	●	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98169-340-0	01	1	1009-1303	●
59	BRACKET; CLIP,OIL PIPE (B)	8-98169-340-0	01	1	1304-	●	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1009-1303	●
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1304-	●	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1009-1303	●
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	1304-	●	●
63	BRACKET; CLIP,P/S	1-47479-482-0	01	1	1009-1303	●
63	BRACKET; CLIP,P/S	1-47479-482-0	01	1	1304-	●	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	1009-1303	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28050-820-0	02	1	1304-	●	●
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
66	BOLT; BRKT,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1009-1303	●
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	1304-	●	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303	●
166	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
166	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1009-1303	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1304-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1009-1303	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1304-	●	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1009-1303	●
255	UNION; FLEX HOSE M22 & M22 STRAIGHT	1-09654-204-2	01	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-1303	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-1303	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-1303	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-1303	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1009-1303	●
262	CLIP; P/S PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1304-	●	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-1303	●
262	CLIP; P/S PIPE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	1304-	●	●
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1009-1303	●
263	BRACKET; P/S PIPE	8-98090-366-0	01	1	1304-	●	●
264	BOLT; PIPE BRKT WHEEL BASE 4500MM(45W) M8X35 FLANGE	0-28650-835-0	02	1	1304-	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
264	BOLT; PIPE BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●

157 41 280 41 266 111 257 256 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1009-1303	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1304-	●	●
111	BRACKET; OIL PIPE	8-98131-436-0	01	1	1009-1303	●
111	BRACKET; OIL PIPE	8-98131-436-0	01	1	1304-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1009-1303	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	1304-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1303	●
195	BOLT; BRKT (A) M10X20 FLANGE	0-28651-020-0	02	1	1304-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1009-1303	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-1303	●
256	NUT; UNION M22	0-91111-522-0	01	1	1009-1303	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
256	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-1303	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-1303	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1009-1303	●
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1304-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1009-1303	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1304-	●	●

195 239 37 261 55 58 268 58 37 39 277 68 280 41 41 54 1 1 37 31 37 34 2 3 5 19 12 19 15 15 25 268 280 26 261 49 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1009-1303	●
1	TANK ASM; OIL,P/S	8-98166-958-0	01	1	1304-	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1009-1303	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1304-	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1009-1303	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1304-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1009-1303	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1304-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1009-1303	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1304-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1009-1303	●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1304-	●	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1009-1303	●
19	SEAT; OIL TANK	1-21249-004-0	02	1	1304-	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1009-1303	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1304-	●	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1009-1303	●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	1304-	●	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1009-1303	●
31	HOSE; P/S OIL TANK,INL	8-97618-666-1	01	1	1304-	●	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1009-1303	●
34	HOSE; P/S OIL TANK,OUTLET	8-97618-665-1	01	1	1304-	●	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1009-1303	●
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	1304-	●	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1009-1303	●
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1304-	●	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1009-1303	●
39	CLIP; FLEX HOSE ID=31 L=35	1-09700-329-1	01	1	1304-	●	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1009-1303	●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1304-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1009-1303	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98123-061-0	01	1	1304-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1009-1303	●
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98123-062-0	01	1	1304-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98123-063-0	01	1	1009-1303	●
49	PIPE; OIL,FLEX HOSE TO UNION	8-98240-634-0	01	1	1304-	●	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1009-1303	●
54	CLIP; OIL PIPE ID=19 L=60	0-95235-896-0	01	1	1304-	●	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1009-1303	●
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	1304-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1303	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
58	BOLT; CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
195	BOLT; BRKT (B) M10X20 FLANGE	0-28651-020-0	02	1	1009-1303	●
195	BOLT; BRKT (A) M10X20 FLANGE	0-28651-020-0	02	1	1304-	●	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1009-1303	●
195	BOLT; BRKT (A) M8X35 W/LK&PL WASHER	0-50640-835-0	02	1	1304-	●	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1009-1303	●
239	BRACKET; FLEX HOSE (B)	8-97608-869-1	01	1	1304-	●	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1009-1303	●
239	BRACKET; FLEX HOSE (A)	8-97621-113-0	01	1	1304-	●	●
261	PIPE; OIL,UNION TO HOSE	8-98124-680-0	01	1	1009-1303	●
261	PIPE; OIL,UNION TO HOSE	8-98226-407-0	01	1	1304-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1009-1303	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-97618-672-0	01	1	1304-	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
277	BOLT; HOSE CLIP (B) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1009-1303	●
280	HOSE; P/S OIL PUMP,INL	1-21437-995-0	01	1	1304-	●	●
