◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#71429) — 47 parça

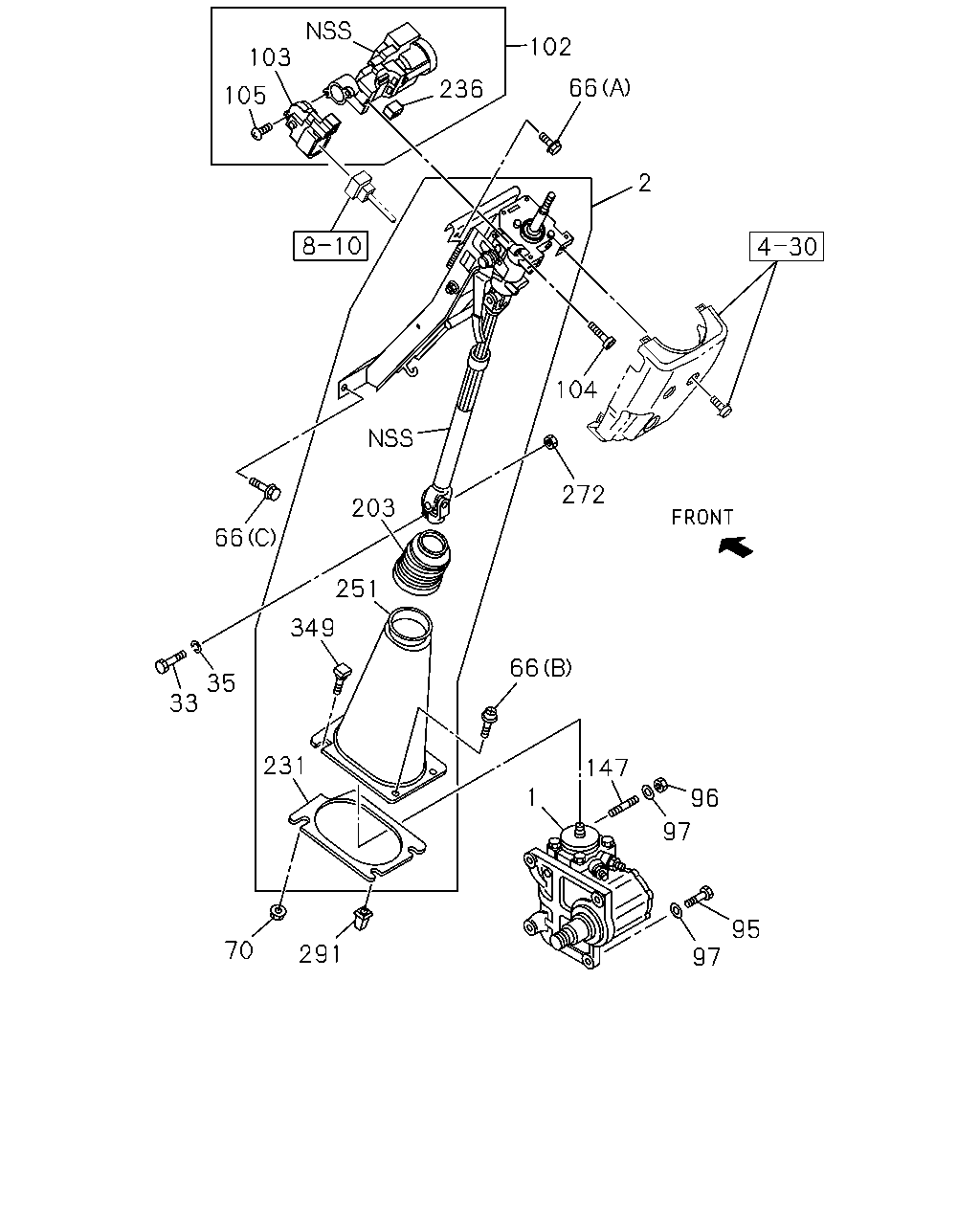

çizim 123110
103 236 105 102 66 2 104 66 35 33 70 291 97 97 95 96 147 1 66 272 231 349 203 251
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-942-2 01 1 1009-1303 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		1-44000-942-2 01 1 1304- ● ●
2 SHAFT ASM; STRG
DRIVING POSITION WIDE LEG SPACE<PR2> 		8-97413-112-3 01 1 1009-1303 ●
2 SHAFT ASM; STRG
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> 		8-97413-111-3 01 1 1009-1303 ●
2 SHAFT ASM; STRG 8-97413-111-3 01 1 1304- ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X50 		1-09000-786-0 01 1 1009-1303 ●
33 BOLT; STRG SHAFT TO UNIT
M10X50 		1-09000-786-0 01 1 1304- ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		0-91510-810-0 01 1 1009-1303 ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		0-91510-810-0 01 1 1304- ● ●
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1303 ●
66 BOLT; STRG COLUMN
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 1009-1303 ●
66 BOLT; STRG COLUMN
(B) M5X18 TAPPING 		0-72180-518-0 02 1 1304- ● ●
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1009-1303 ●
66 BOLT; STRG COLUMN
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 02 1 1304- ● ●
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1009-1303 ●
70 NUT; STRG COLUMN
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 1304- ● ●
95 BOLT; STRG UNIT
M18X60 		8-98036-497-0 03 1 1009-1303 ●
95 BOLT; STRG UNIT
M18X60 		8-98036-497-0 03 1 1304- ● ●
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 1009-1303 ●
96 NUT; STRG UNIT
M18 		0-91110-518-0 01 1 1304- ● ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 1009-1303 ●
97 WASHER; PL,STRG UNIT
ID=18 		9-09851-862-0 04 1 1304- ● ●
102 LOCK ASM; STRG
REMOTE CONT DOOR LOCK<6NF> 		8-97387-036-0 01 1 1009-1303 ●
102 LOCK ASM; STRG
EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98006-150-0 01 1 1009-1303 ●
102 LOCK ASM; STRG 8-98006-150-0 01 1 1304- ● ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 1009-1303 ●
103 SWITCH; IGNITION 8-98045-349-0 01 1 1304- ● ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1009-1303 ●
104 BOLT; STRG LOCK TO COLUMN
M8X20 TORQUE SHEAR BOLT 		8-97321-385-0 02 1 1304- ● ●
105 SCREW; IGN SW 8-98045-346-0 02 1 1009-1303 ●
105 SCREW; IGN SW 8-98045-346-0 02 1 1304- ● ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 1009-1303 ●
147 STUD; STRG UNIT
M18X49 L=76 		1-09300-107-0 01 1 1304- ● ●
203 BOOT; STRG COLUMN LWR 8-98137-336-0 01 1 1009-1303 ●
203 BOOT; STRG COLUMN LWR 8-98137-336-0 01 1 1304- ● ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 1009-1303 ●
231 SEAL; RUBBER,STRG COLUMN 8-98137-330-0 01 1 1304- ● ●
236 SWITCH; DOOR WARNING,STRG LOCK
REMOTE CONT DOOR LOCK<6NF> 		8-98045-350-0 01 1 1009-1303 ●
251 COVER; LWR
BLACK 		8-97417-051-0 01 1 1009-1303 ●
251 COVER; LWR
BLACK 		8-97417-051-0 01 1 1304- ● ●
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 01 1 1009-1303 ●
272 NUT; SHAFT TO YOKE
M10 		0-91110-510-0 01 1 1304- ● ●
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1009-1303 ●
291 GROMMET; STRG SHAFT COVER
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1304- ● ●
349 BOLT; COVER 8-98137-334-0 02 1 1009-1303 ●
349 BOLT; COVER 8-98137-334-0 02 1 1304- ● ●
