4-30 — STEERING WHEEL AND COWL (#71428) — 50 parça

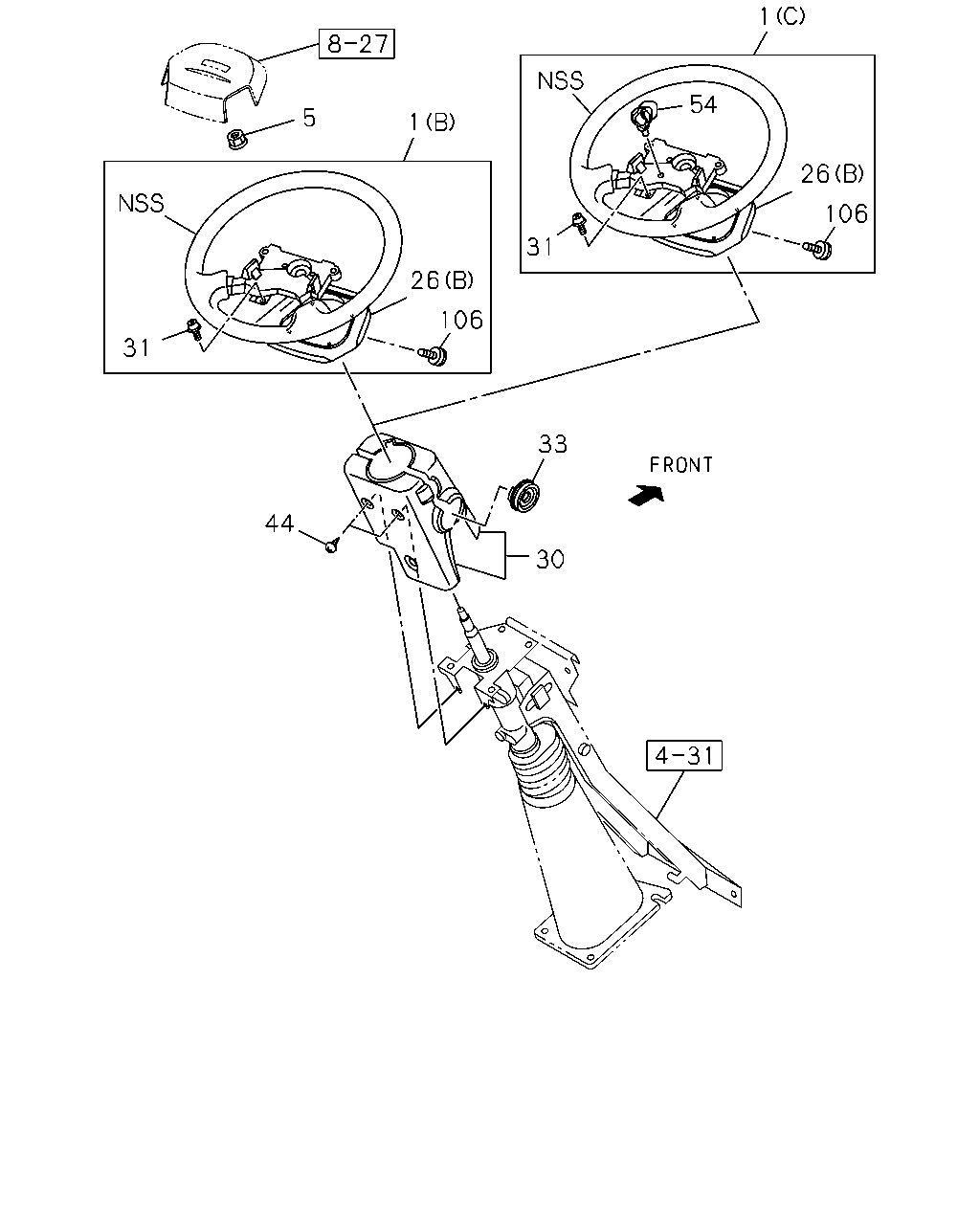

31 5 1 26 106 44 33 30 31 54 1 26 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97407-720-0	01	1	1009-1210	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1211-1303	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1304-	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1009-1303	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1304-	●	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1009-1303	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1304-	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97405-841-0	01	1	1009-1303	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97421-978-0	01	1	1304-	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1009-1303	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1304-	●	●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97415-543-0	01	1	1009-1303	●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	1009-1303	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1304-	●	●
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1009-1303	●
31	SCREW; BOSS TO COVER AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1304-	●	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1009-1303	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1304-	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1009-1303	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1304-	●	●
54	CLIP; HARNESS AIR BAG DRIVER(AJ3)	8-98165-703-0	01	1	1211-1303	●
54	CLIP; HARNESS AIR BAG DRIVER(AJ3)	8-98165-703-0	01	1	1304-	●	●
106	BOLT; TORX	8-98231-397-0	02	1	1009-1303	●
106	BOLT; TORX	8-98231-397-0	02	1	1304-	●	●

30 33 106 26 1 6 5 20 81 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97407-720-0	01	1	1009-1210	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1211-1303	●
1	WHEEL; STRG AIR BAG DRIVER(AJ3) (C) DARK GRAY	8-97423-998-0	01	1	1304-	●	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1009-1303	●
1	WHEEL; STRG EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97412-555-1	01	1	1304-	●	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1009-1303	●
5	NUT; STRG WHEEL TO SHAFT M14	0-91111-514-0	01	1	1304-	●	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1009-1303	●
6	SCREW; HORN SPR CONTACT EXC. AIR BAG DRIVER(AJ3) M4X12	8-97167-588-0	04	1	1304-	●	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-985-1	01	1	1009-1303	●
20	SHROUD; PAD,STRG WHEEL EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-985-1	01	1	1304-	●	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97405-841-0	01	1	1009-1303	●
26	COVER; STRG WHEEL,LWR AIR BAG DRIVER(AJ3) (B) DARK GRAY	8-97421-978-0	01	1	1304-	●	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1009-1303	●
26	COVER; STRG WHEEL,LWR EXC. AIR BAG DRIVER(AJ3) (A) DARK GRAY	8-97409-275-2	01	1	1304-	●	●
30	COWL; STEERING DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97415-543-0	01	1	1009-1303	●
30	COWL; STEERING EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY	8-97405-356-5	01	1	1009-1303	●
30	COWL; STEERING DARK GRAY	8-97405-356-5	01	1	1304-	●	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1009-1303	●
33	COVER; STRG COWL DARK GRAY	8-97409-495-0	01	1	1304-	●	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1009-1303	●
44	SCREW; STRG COWL M5X12	0-38050-512-0	03	1	1304-	●	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-986-0	01	1	1009-1303	●
81	EMBLEM; STRG WHEEL EXC. AIR BAG DRIVER(AJ3) DARK GRAY	8-97405-986-0	01	1	1304-	●	●
106	BOLT; TORX	8-98231-397-0	02	1	1009-1303	●
106	BOLT; TORX	8-98231-397-0	02	1	1304-	●	●
