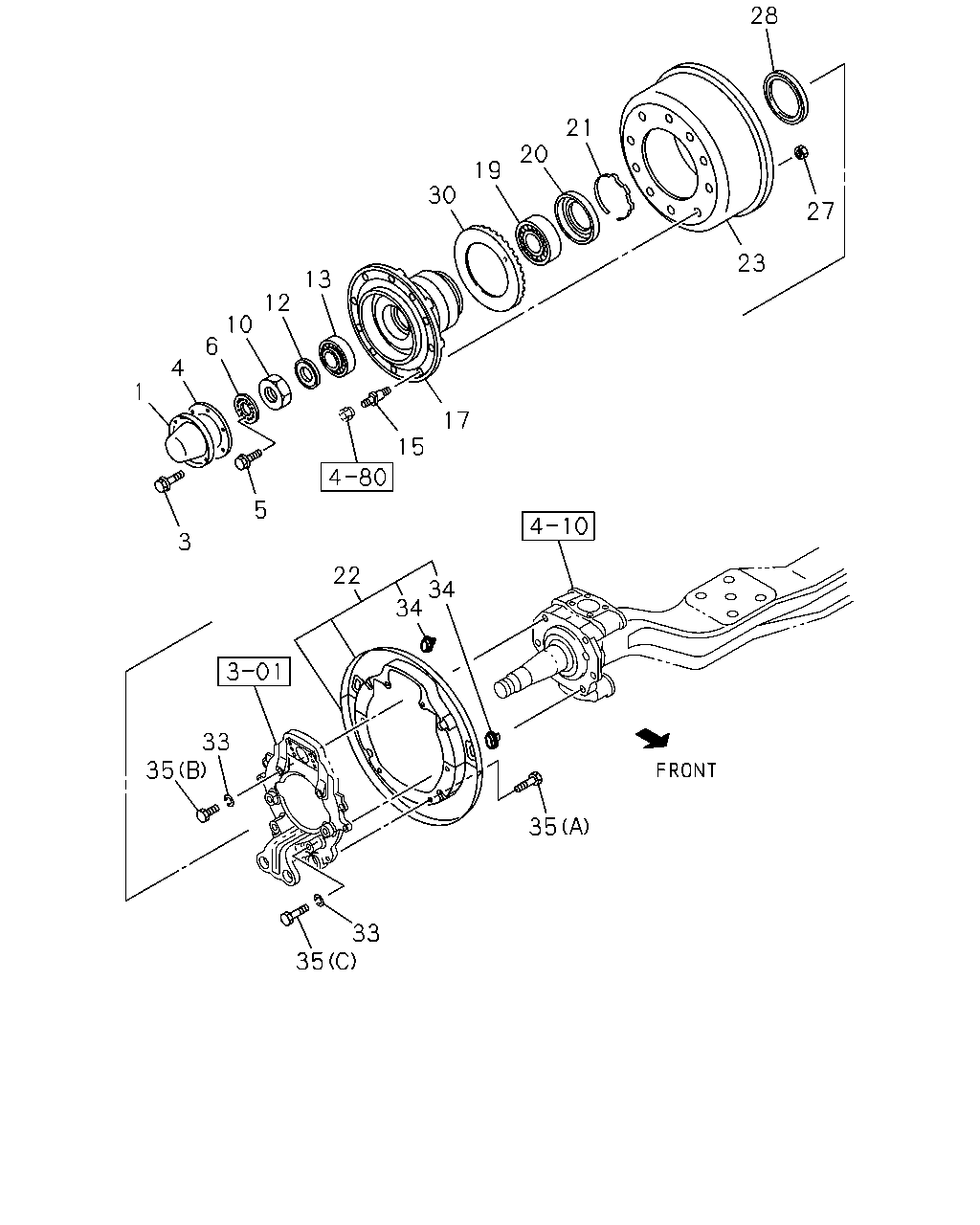

1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
1009-1303 |
● |
|
| |
1 |
CAP; HUB,FRT AXLE
OD=156
|
9-42313-123-2 |
02 |
1 |
1304- |
● |
● |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28050-812-0 |
12 |
1 |
1009-1303 |
● |
|
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28050-812-0 |
12 |
1 |
1304- |
● |
● |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-2 |
02 |
1 |
1009-1303 |
● |
|
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-2 |
02 |
1 |
1304- |
● |
● |
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98084-271-0 |
04 |
1 |
1009-1201 |
● |
|
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98200-943-0 |
04 |
1 |
1202-1303 |
● |
|
| |
5 |
BOLT; LK WASHER
M6X16 HEX SOCKET
|
8-98200-943-0 |
04 |
1 |
1304- |
● |
● |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
1009-1303 |
● |
|
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
1304- |
● |
● |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
1009-1303 |
● |
|
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
1304- |
● |
● |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
8-98156-755-0 |
02 |
1 |
1009-1303 |
● |
|
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
|
8-98156-755-0 |
02 |
1 |
1304- |
● |
● |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
1009-1303 |
● |
|
| |
13 |
BEARING; HUB OUTER,FRT AXLE
JTEKT
|
1-09812-234-0 |
02 |
1 |
1304- |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
DISC WHEEL AL<SDM>
M22X48.8,M22X55.5 RH THREAD
|
1-42337-068-1 |
20 |
1 |
1403- |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-1 |
08 |
1 |
1304- |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-1 |
08 |
1 |
1304- |
● |
● |
| |
15 |
PIN; WHEEL,FRT AXLE
M22X42.8,M22X55.5 RH THREAD
|
1-42337-067-1 |
20 |
1 |
1009-1303 |
● |
|
| |
15 |
PIN; WHEEL,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22X42.8,M22X55.5 RH THREAD
|
1-42337-067-1 |
20 |
1 |
1304- |
● |
● |
| |
17 |
HUB; FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42312-151-3 |
02 |
1 |
1304- |
● |
● |
| |
17 |
HUB; FRT AXLE
|
1-42312-160-0 |
02 |
1 |
1009-1303 |
● |
|
| |
17 |
HUB; FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42312-160-0 |
02 |
1 |
1304- |
● |
● |
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
1-09812-231-0 |
02 |
1 |
1009-1303 |
● |
|
| |
19 |
BEARING; HUB INNER,FRT AXLE
JTEKT
|
1-09812-231-0 |
02 |
1 |
1304- |
● |
● |
| |
20 |
COVER; HUB BRG INNER
|
1-42319-039-0 |
02 |
1 |
1009-1303 |
● |
|
| |
20 |
COVER; HUB BRG INNER
|
1-42319-039-0 |
02 |
1 |
1304- |
● |
● |
| |
21 |
RING; SNAP,HUB
|
1-09587-017-0 |
02 |
1 |
1009-1303 |
● |
|
| |
21 |
RING; SNAP,HUB
|
1-09587-017-0 |
02 |
1 |
1304- |
● |
● |
| |
22 |
COVER SET; FRT BRK DRUM
|
1-87831-225-0 |
02 |
1 |
1009-1303 |
● |
|
| |
22 |
COVER SET; FRT BRK DRUM
|
1-87831-225-0 |
02 |
1 |
1304- |
● |
● |
| |
23 |
DRUM; BRK,FRT
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42315-397-0 |
02 |
1 |
1304- |
● |
● |
| |
23 |
DRUM; BRK,FRT
|
1-42315-365-0 |
02 |
1 |
1009-1303 |
● |
|
| |
23 |
DRUM; BRK,FRT
INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42315-365-0 |
02 |
1 |
1304- |
● |
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22 FLANGE
|
1-09440-065-0 |
16 |
1 |
1304- |
● |
● |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22
|
1-09400-071-0 |
20 |
1 |
1009-1303 |
● |
|
| |
27 |
NUT; WHEEL PIN,FRT AXLE
INTERNATIONAL STANDARD ISO 10STUD<B3V>
M22
|
1-09400-071-0 |
20 |
1 |
1304- |
● |
● |
| |
28 |
SEAL; OIL,FRT HUB
OD=140
|
1-09625-041-0 |
02 |
1 |
1009-1303 |
● |
|
| |
28 |
SEAL; OIL,FRT HUB
OD=140
|
1-09625-041-0 |
02 |
1 |
1304- |
● |
● |
| |
30 |
RING; EXCITER,FRT HUB
|
1-42319-203-0 |
02 |
1 |
1009-1303 |
● |
|
| |
30 |
RING; EXCITER,FRT HUB
ANTILOCK BRAKE SYSTEM(BFA)
|
1-42319-203-0 |
02 |
1 |
1304-1308 |
● |
● |
| |
30 |
RING; EXCITER,FRT HUB
INTERNATIONAL STANDARD ISO 10STUD<B3V>
|
1-42319-203-0 |
02 |
1 |
1309- |
● |
● |
| |
33 |
WASHER; LK,DRUM COVER
ID=18.2
|
0-91510-818-0 |
12 |
1 |
1009-1303 |
● |
|
| |
33 |
WASHER; LK,DRUM COVER
ID=18.2
|
0-91510-818-0 |
12 |
1 |
1304- |
● |
● |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1009-1303 |
● |
|
| |
34 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1304- |
● |
● |
| |
35 |
BOLT; DRUM COVER
(C)
M18X65
|
1-09000-789-0 |
04 |
1 |
1009-1303 |
● |
|
| |
35 |
BOLT; DRUM COVER
(C)
M18X65
|
1-09000-789-0 |
04 |
1 |
1304- |
● |
● |
| |
35 |
BOLT; DRUM COVER
(B)
M18X45
|
1-09000-790-0 |
08 |
1 |
1009-1303 |
● |
|
| |
35 |
BOLT; DRUM COVER
(B)
M18X45
|
1-09000-790-0 |
08 |
1 |
1304- |
● |
● |
| |
35 |
BOLT; DRUM COVER
(A)
M10X12
|
1-47159-187-0 |
12 |
1 |
1009-1303 |
● |
|
| |
35 |
BOLT; DRUM COVER
(A)
M10X12
|
1-47159-187-0 |
12 |
1 |
1304- |
● |
● |
