Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#71424) — 321 parça

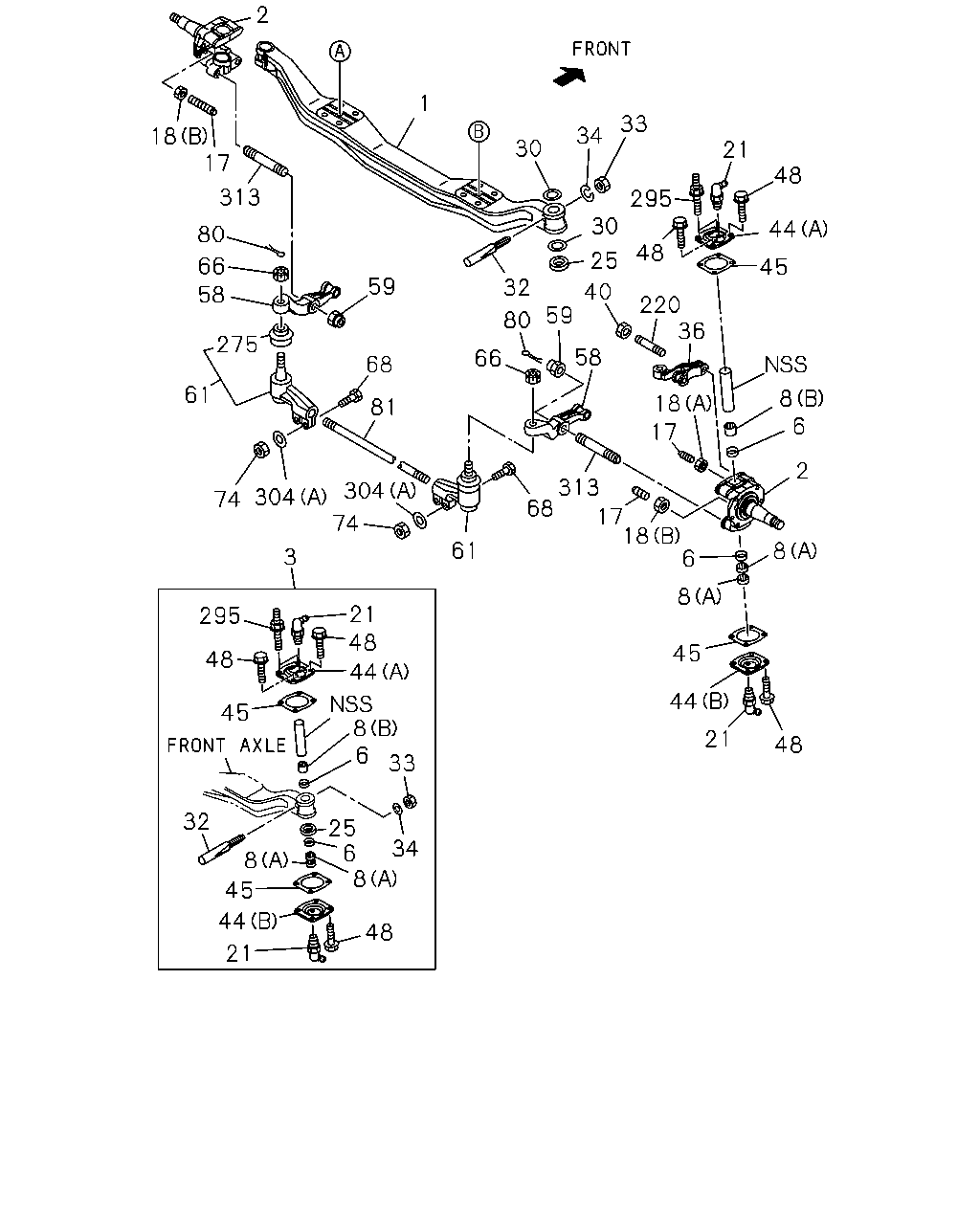

18 2 1 30 34 33 21 48 44 45 8 6 2 8 48 21 44 45 8 18 17 17 18 36 220 48 295 30 25 40 58 59 32 80 66 313 68 61 74 304 304 74 61 275 58 66 80 313 17 59 68 81 295 48 45 32 8 45 44 21 48 8 6 25 34 33 6 8 44 48 21 6 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-1303	●
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1304-	●	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-1303	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1304-	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-1303	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1304-1308	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1309-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-1303	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1304-1308	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1309-	●	●
3	KING PIN SET	1-87831-349-2	02	1	1009-1303	●
3	KING PIN SET	1-87831-349-3	02	1	1304-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-1303	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1304-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-1303	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1304-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-1303	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) M18X53	1-09009-066-0	01	1	1009-1303	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X53	1-09009-066-0	01	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) M18X43	1-09009-190-0	02	1	1009-1303	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X43	1-09009-190-0	02	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-16 RIB(75N) M18X53	1-09009-066-0	03	1	1009-1303	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 12R22.5-16RIB(75N) M18X53	1-09009-066-0	03	1	1304-1402	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X53	1-09009-066-0	03	1	1403-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-1303	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1304-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-1303	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1304-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-1303	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1304-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-1303	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1304-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1009-1303	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1304-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-1303	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1304-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-1303	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1304-	●	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1009-1303	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1304-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-1303	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1304-	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-1303	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1304-	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-1303	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1304-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-1303	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1304-	●	●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM(BFA) M10X25 FLANGE	0-28751-025-0	16	1	1304-	●	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1009-1303	●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM(BFA) M10X25 FLANGE	0-28751-025-0	12	1	1304-	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1009-1303	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1304-1308	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1309-	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1009-1303	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1304-1308	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1309-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-1303	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1304-	●	●
61	ROD END; TIE ROD	8-98054-851-0	01	1	1009-1009	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1303	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1304-1306	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-1308	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1309-	●	●
61	ROD END; TIE ROD	8-98054-853-0	01	1	1009-1009	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1303	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1304-1306	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-1308	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1309-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-1303	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1304-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1009-1303	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1304-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1009-1303	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1304-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-1303	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1304-	●	●
81	ROD; TIE	1-43151-154-0	01	1	1009-1009	●
81	ROD; TIE	8-98105-064-0	01	1	1010-1303	●
81	ROD; TIE	8-98105-064-0	01	1	1304-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-1303	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1304-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1009-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1303	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1304-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-1303	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM(BFA) M10X20,M10X26 L=56	8-98010-334-0	04	1	1304-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-1303	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1304-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1009-1303	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1304-	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-1303	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1304-	●	●

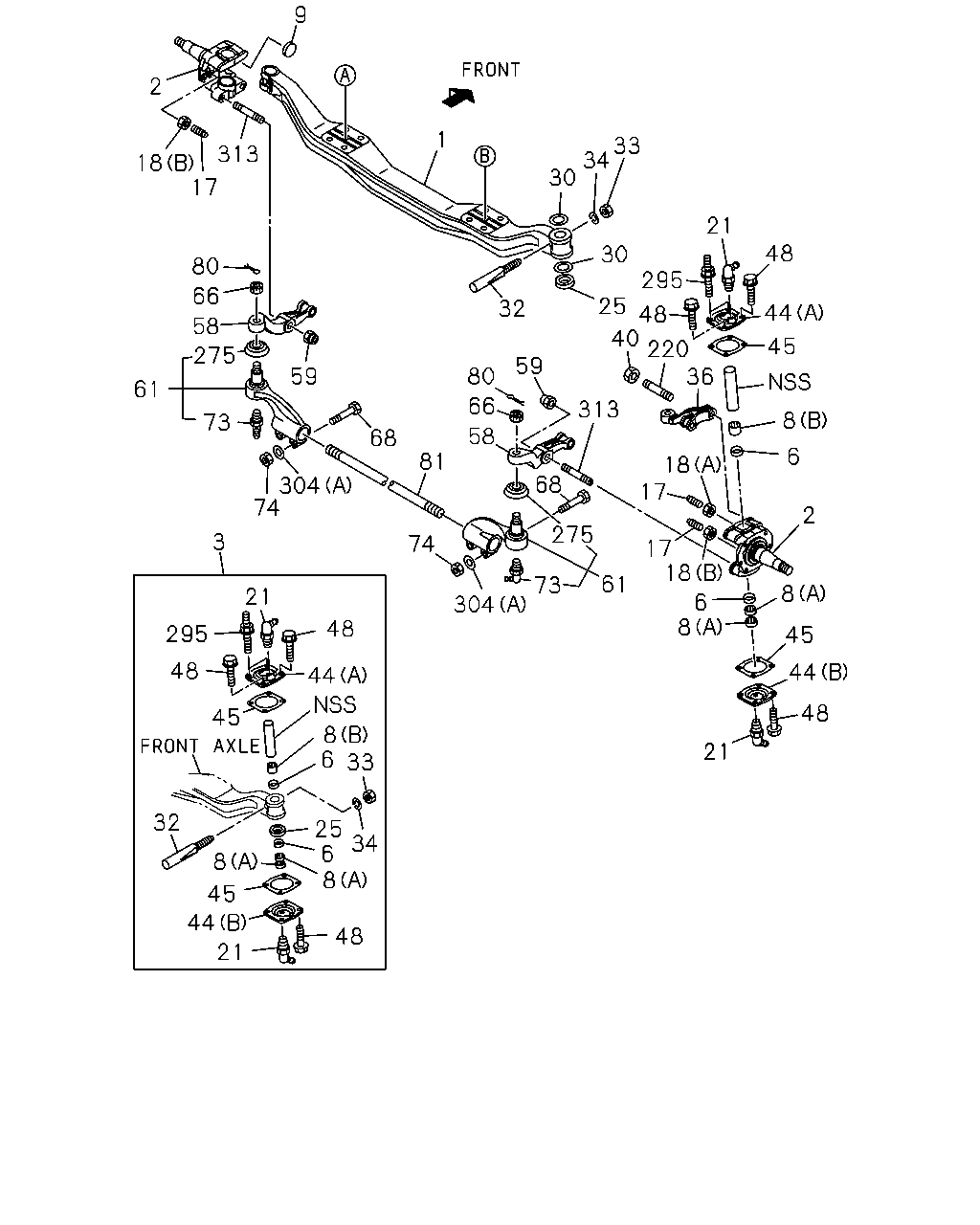

9 2 18 313 30 34 33 30 32 25 17 21 295 48 44 45 40 220 36 313 8 6 18 17 2 17 18 6 8 8 45 44 48 21 61 275 73 304 74 68 58 66 80 59 81 68 304 74 3 73 59 61 275 58 66 80 21 48 44 6 8 33 25 34 6 8 48 21 44 45 8 32 45 48 295 1 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1009-1303	●
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1304-	●	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1009-1303	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1304-	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1009-1303	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1304-1308	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1309-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1009-1303	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1304-1308	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1309-	●	●
3	KING PIN SET	1-87831-349-2	02	1	1009-1303	●
3	KING PIN SET	1-87831-349-3	02	1	1304-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1009-1303	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1304-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1009-1303	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1304-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1009-1303	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1304-	●	●
9	PLUG; KNUCKLE EXC. ANTILOCK BRAKE SYSTEM(BFA) OD=22	1-09600-011-2	02	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) M18X53	1-09009-066-0	01	1	1009-1303	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X53	1-09009-066-0	01	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N) M18X43	1-09009-190-0	02	1	1009-1303	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X43	1-09009-190-0	02	1	1304-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-16 RIB(75N) M18X53	1-09009-066-0	03	1	1009-1303	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-152/148L RIB LUG(5A7),TIRE 12R22.5-16RIB(75N) M18X53	1-09009-066-0	03	1	1304-1402	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148K RIB LUG CHINA(5D9),TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X53	1-09009-066-0	03	1	1403-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1009-1303	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1304-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1009-1303	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1304-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1009-1303	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1304-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1009-1303	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1304-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1009-1303	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1304-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1009-1303	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1304-	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1009-1303	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1304-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1009-1303	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1304-	●	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1009-1303	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1304-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1009-1303	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1304-	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1009-1303	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1304-	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1009-1303	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1304-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1009-1303	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1304-	●	●
48	BOLT; COVER EXC. ANTILOCK BRAKE SYSTEM(BFA) M10X25 FLANGE	0-28751-025-0	16	1	1304-	●	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1009-1303	●
48	BOLT; COVER ANTILOCK BRAKE SYSTEM(BFA) M10X25 FLANGE	0-28751-025-0	12	1	1304-	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1009-1303	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1304-1308	●	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1309-	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1009-1303	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1304-1308	●	●
58	ARM; TIE ROD	1-43135-049-4	01	1	1309-	●	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1009-1303	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1304-	●	●
61	ROD END; TIE ROD	8-98054-851-0	01	1	1009-1009	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1303	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1304-1306	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-1308	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1309-	●	●
61	ROD END; TIE ROD	8-98054-853-0	01	1	1009-1009	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1303	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1304-1306	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-1308	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1309-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1009-1303	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1304-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1009-1303	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1304-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-1303	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1304-	●	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1009-1303	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1304-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1009-1303	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1304-	●	●
81	ROD; TIE	1-43151-154-0	01	1	1009-1009	●
81	ROD; TIE	8-98105-064-0	01	1	1010-1303	●
81	ROD; TIE	8-98105-064-0	01	1	1304-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1009-1303	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1304-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1009-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1303	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1304-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-1303	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM(BFA) M10X20,M10X26 L=56	8-98010-334-0	04	1	1304-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-1303	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1304-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1009-1303	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1304-	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1009-1303	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1304-	●	●

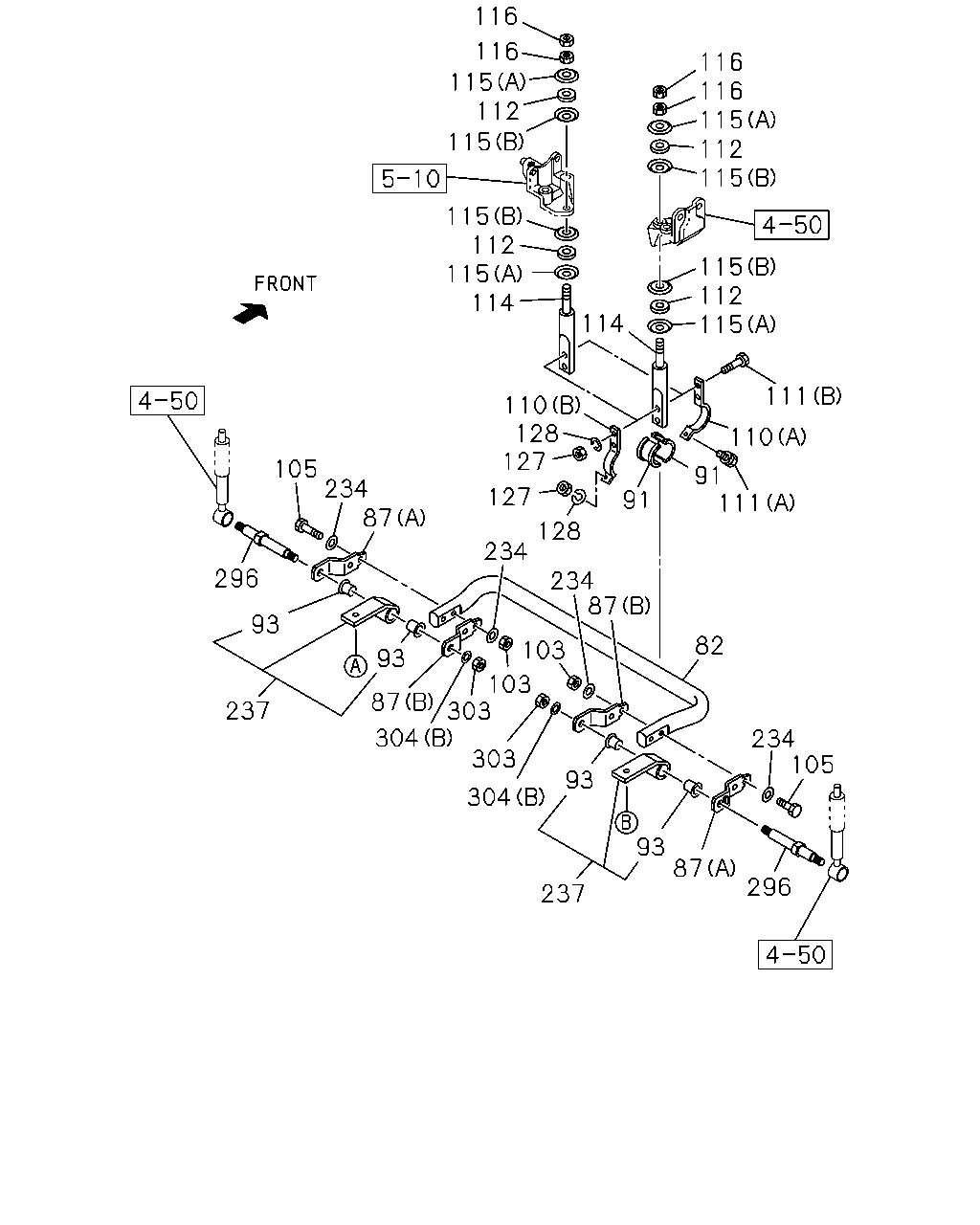

116 116 115 115 112 116 115 116 112 115 115 112 114 115 115 112 114 115 111 110 91 91 110 128 127 127 234 111 128 234 87 82 234 105 105 87 103 93 296 87 93 237 303 303 304 103 93 93 87 296 237 304 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-1	01	1	1009-1303	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-136-1	01	1	1304-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1009-1303	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1304-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1009-1303	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1304-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1009-1303	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-087-1	04	1	1304-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1009-1303	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1304-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1009-1303	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1304-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1009-1303	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1304-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1009-1303	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1304-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1009-1303	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1304-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1009-1303	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1304-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1009-1303	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1304-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1009-1303	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1304-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> ISUZU M/T<X9A>,ZF M/T<X9E>	1-51773-072-2	02	1	1304-	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1304-		●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1009-1303	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59> A/T<X9D>	1-51773-071-2	02	1	1304-	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1009-1303	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1304-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1009-1303	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1304-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1009-1303	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1304-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1009-1303	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1304-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1009-1303	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1304-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1009-1303	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1304-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1009-1303	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1304-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1009-1303	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1304-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1009-1303	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1304-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1009-1303	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1304-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1009-1303	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	1304-	●	●

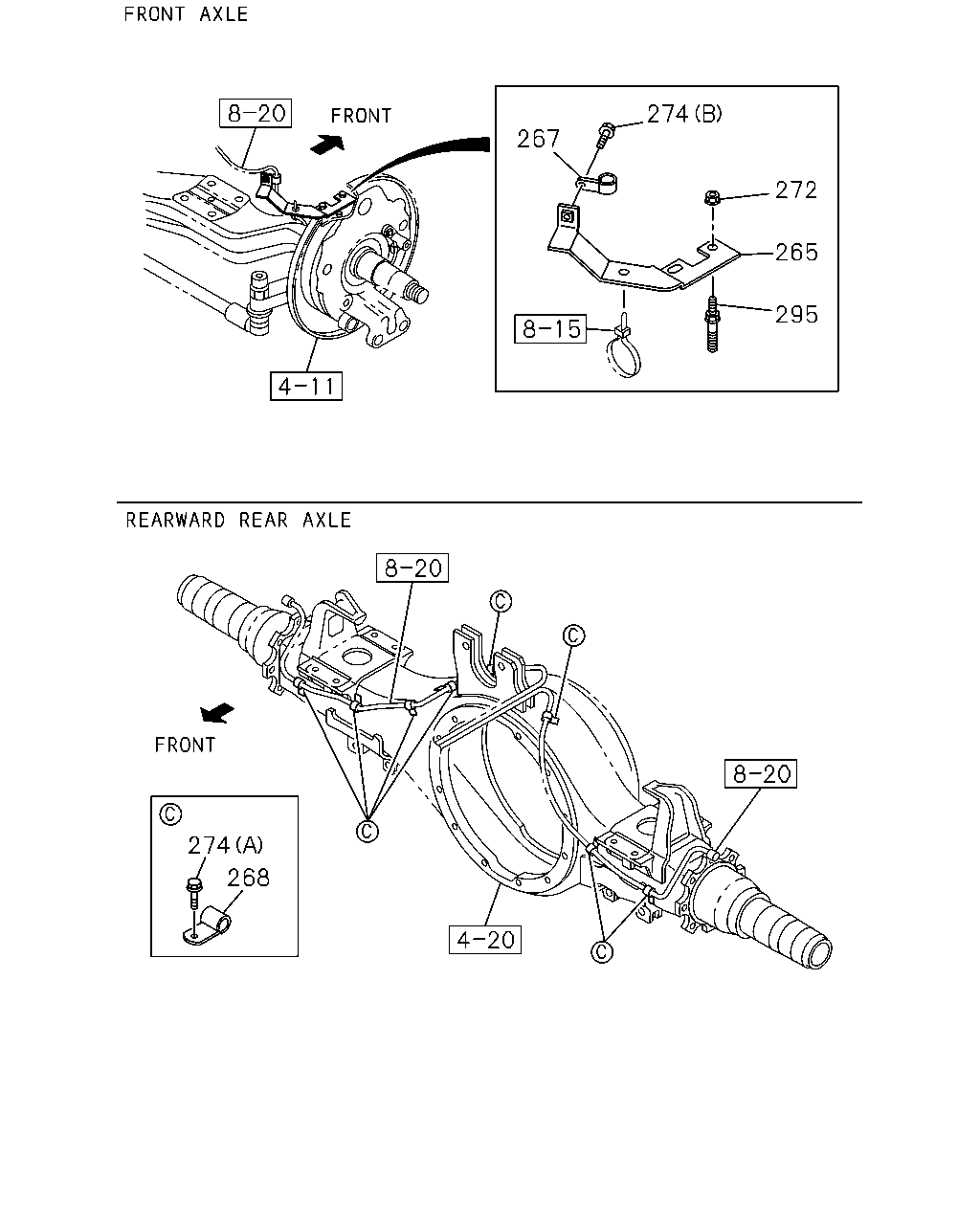

267 274 272 265 295 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1009-1303	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-426-0	01	1	1304-1308	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-426-0	01	1	1309-	●	●
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1009-1303	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-427-0	01	1	1304-1308	●	●
265	BRACKET; CLIP I BEAM ANTILOCK BRAKE SYSTEM(BFA)	1-82698-427-0	01	1	1309-	●	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1009-1303	●
267	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=20	0-95235-035-0	02	1	1304-	●	●
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	08	1	1009-1303	●
268	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=20	0-95235-035-0	08	1	1304-	●	●
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1009-1303	●
272	NUT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-110-0	04	1	1304-	●	●
274	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1009-1303	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) (B) M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	1009-1303	●
274	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) (A) M8X10 FLANGE	0-28050-810-0	08	1	1304-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1009-1303	●
295	STUD; COVER,KING PIN ANTILOCK BRAKE SYSTEM(BFA) M10X20,M10X26 L=56	8-98010-334-0	04	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
