◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶

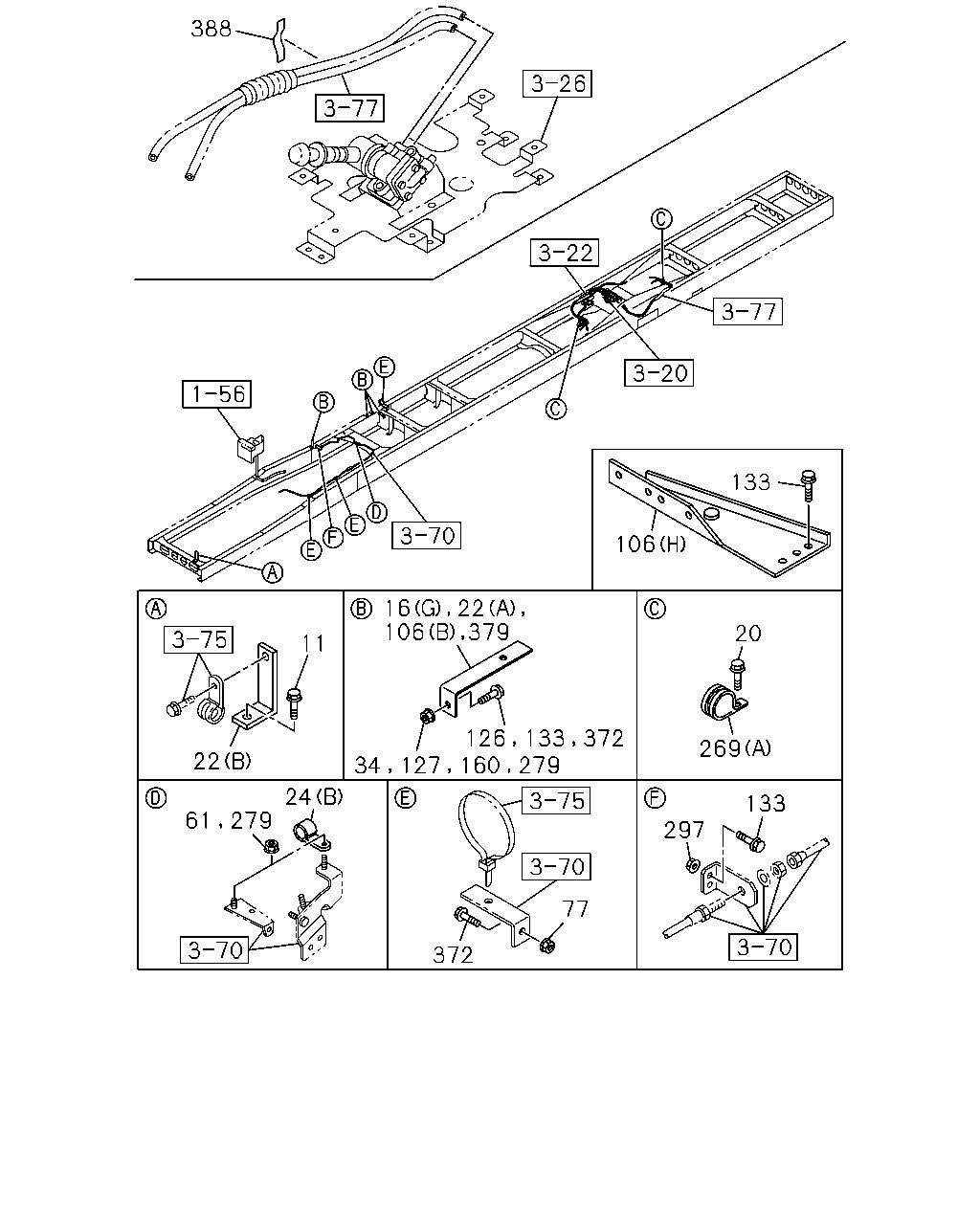

3-78 — FIXING PARTS; AIR PIPING (#71422) — 530 parça
çizim 122374
388 133 106 20 269 133 297 77 372 61 279 24 22 11 16 22 379 106 126 133 372 279 160 127 34
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28050-825-0 03 1 1009-1303 ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1304- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1304- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1009- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1303 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
20 BOLT; CLIP
MJT7U M/T(Y4X) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
20 BOLT; CLIP
MJT7U M/T(Y4X) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(F) L=150 		1-47471-217-0 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (C) 		1-47479-554-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) (D) 		1-47479-693-0 01 1 1009-1303 ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (G) L=150 H=30 		1-47477-629-2 01 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) L=60 H=30 		1-47477-716-1 01 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (E) L=105 B=25 		1-47476-161-0 02 1 1009-1303 ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (A) L=60 H=30 		1-47477-716-1 02 1 1009-1303 ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 1304- ● ●
24 CLIP; PIPE
MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1303 ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1304- ● ●
24 CLIP; PIPE
ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 02 1 1009-1303 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1304-1412 ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) (B) ID=25 L=50 		1-09701-019-0 03 1 1304-1412 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1009-1303 ●
24 CLIP; PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 02 1 1304-1412 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
61 NUT; CLIP FIX
ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
61 NUT; CLIP FIX
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1304-1412 ●
61 NUT; CLIP FIX
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 02 1 1501- ●
61 NUT; CLIP FIX
MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1501- ●
61 NUT; CLIP FIX
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
61 NUT; CLIP FIX
A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 03 1 1304-1412 ●
61 NUT; CLIP FIX
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1304-1412 ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1304-1412 ●
61 NUT; CLIP FIX
ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 03 1 1501- ●
61 NUT; CLIP FIX
A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 03 1 1501- ●
61 NUT; CLIP FIX
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1501- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1501- ●
77 NUT; CLIP BRKT
WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
77 NUT; CLIP BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (H) 		8-98100-335-0 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(H) 		8-98100-335-0 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30 		1-47477-645-2 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1304- ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (D) 		1-47479-598-0 02 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(F) L=150 		1-47471-217-0 03 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (E) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-329-0 01 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) L=90 		1-47477-755-1 02 1 1009-1303 ●
106 BRACKET; TUBE CLIP
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (B) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (A) L=100 H=30 		1-47477-645-2 04 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (D) 		1-47479-598-0 04 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-598-0 02 1 1304- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (C) 		1-47479-693-0 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B) L=115 H=30 		1-47477-715-3 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
MJT7U M/T(Y4X) (B) L=90 		1-47477-755-1 01 1 1304- ●
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1304- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
133 BOLT; BRKT
MJT7U M/T(Y4X) M8X35 FLANGE 		0-28650-835-0 03 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 08 1 1009-1303 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1009-1303 ●
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
133 BOLT; BRKT
WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X35 FLANGE 		0-28650-835-0 01 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
133 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
133 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1303 ●
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1009-1303 ●
133 BOLT; BRKT
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
133 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 04 1 1304- ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 1304- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 21 1 1304-1309 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 22 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 05 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4500MM(45W) (B) L=350 		1-09707-183-0 15 1 1304- ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1304- ● ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (A) ID=28 L=40 		1-09701-261-0 01 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (A) ID=28 L=40 		1-09701-261-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (A) ID=23 L=27 		1-09700-946-0 01 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (A) ID=23 L=27 		1-09700-946-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40 		1-09700-991-1 02 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 23 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 16 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6300MM(63W) (A) ID=19 L=28 		0-95235-856-0 02 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 30 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 12 1 1304- ●
279 NUT; BRKT
MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
279 NUT; BRKT
MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 02 1 1304- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 11 1 1304- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
279 NUT; BRKT
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 05 1 1304- ●
279 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 06 1 1009-1303 ●
279 NUT; BRKT
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) M8 FLANGE 		0-91180-108-0 06 1 1304- ●
279 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 10 1 1009-1303 ●
279 NUT; BRKT
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
279 NUT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ●
297 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
297 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
297 NUT; BRKT
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
297 NUT; BRKT
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
297 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
372 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1303 ●
372 BOLT; CLIP BRKT
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
372 BOLT; CLIP BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
379 BRACKET; NYLON TUBE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) L=60 H=30 		1-47477-716-1 02 1 1009-1303 ●
388 SEAL
100X40 		1-72498-022-1 03 1 1009-1303 ●
388 SEAL
100X40 		1-72498-022-1 03 1 1304- ● ●

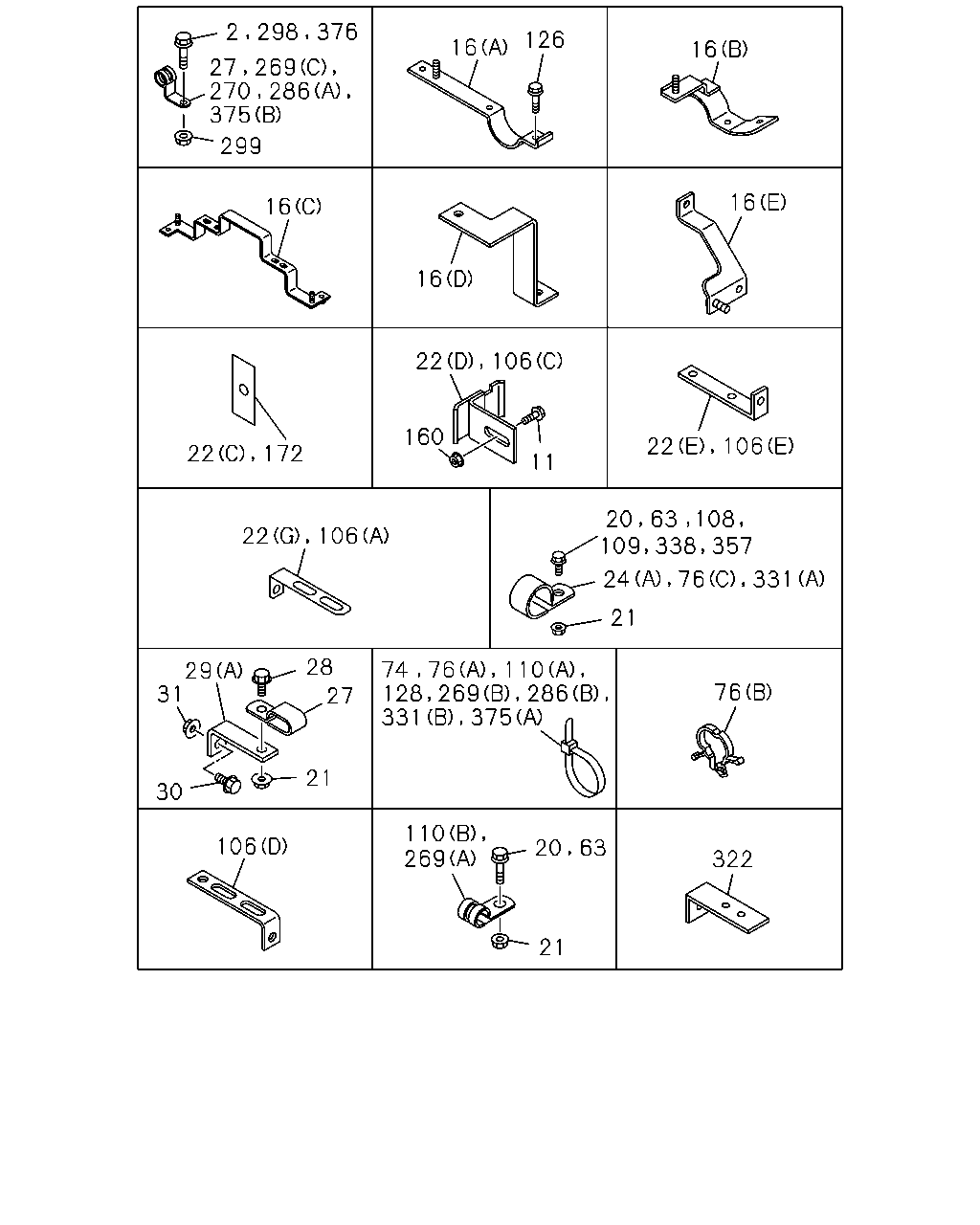

çizim 189601
16 126 16 16 16 16 22 160 106 22 172 22 106 22 106 20 63 108 109 338 357 24 76 331 21 76 106 110 269 20 63 322 31 28 27 21 30 29 2 298 376 27 269 375 286 299 270 11 74 76 110 128 269 286 331 375 21
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 03 1 1009- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28050-825-0 03 1 1009-1303 ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1304- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1304- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1009- ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1009-1303 ●
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1304- ● ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
20 BOLT; CLIP
MJT7U M/T(Y4X) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
20 BOLT; CLIP
MJT7U M/T(Y4X) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-1211 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 1212-1303 ●
21 NUT; CLIP
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1009-1211 ●
21 NUT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1009-1211 ●
21 NUT; CLIP
WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 01 1 1009-1211 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1212-1303 ●
21 NUT; CLIP
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1212-1303 ●
21 NUT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1212-1303 ●
21 NUT; CLIP
WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 01 1 1212-1303 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
21 NUT; CLIP
MJT7U M/T(Y4X) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
21 NUT; CLIP
WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(F) L=150 		1-47471-217-0 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (C) 		1-47479-554-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) (D) 		1-47479-693-0 01 1 1009-1303 ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (G) L=150 H=30 		1-47477-629-2 01 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) L=60 H=30 		1-47477-716-1 01 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (E) L=105 B=25 		1-47476-161-0 02 1 1009-1303 ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (A) L=60 H=30 		1-47477-716-1 02 1 1009-1303 ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 1304- ● ●
24 CLIP; PIPE
MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1303 ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1304- ● ●
24 CLIP; PIPE
ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 02 1 1009-1303 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1304-1412 ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) (B) ID=25 L=50 		1-09701-019-0 03 1 1304-1412 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1009-1303 ●
24 CLIP; PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 02 1 1304-1412 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
27 CLIP; FLEX HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-1303 ●
27 CLIP; FLEX HOSE
WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-1303 ●
27 CLIP; FLEX HOSE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ● ●
27 CLIP; FLEX HOSE
WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> ID=25 H=30 L=35 		1-09700-875-0 02 1 1009-1303 ●
28 BOLT; CLIP,FLEX HOSE
WHEEL BASE 6300MM(63W) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
28 BOLT; CLIP,FLEX HOSE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
28 BOLT; CLIP,FLEX HOSE
BATTERY 80D26L<TM1> M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 6300MM(63W) (A) 		1-47475-927-0 01 1 1009-1010 ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) 		1-47475-927-0 01 1 1009-1010 ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 6300MM(63W) (A) L=68 		1-47475-525-0 01 1 1011-1303 ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) L=68 		1-47475-525-0 01 1 1011-1303 ●
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1> (B) L=145 B=25 		1-47479-123-0 01 1 1304- ● ●
30 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
30 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1> M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
31 NUT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
31 NUT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1> M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
63 BOLT; CLIP
MJT7U M/T(Y4X) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
63 BOLT; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 02 1 1009-1303 ●
63 BOLT; CLIP
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●
63 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●
74 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 04 1 1009-1303 ●
74 CLIP; NYLON TUBE
L=350 		1-09707-183-0 02 1 1304- ●
74 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) L=350 		1-09707-183-0 11 1 1009-1303 ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1009-1303 ●
76 CLIP; NYLON TUBE
(B) ID=24-30 L=18 		1-09709-297-0 01 1 1304- ● ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1009-1303 ●
76 CLIP; NYLON TUBE
(C) ID=39 L=33 		8-98009-359-0 01 1 1304- ● ●
76 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) (A) L=350 		1-09707-183-0 05 1 1009-1303 ●
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=350 		1-09707-183-0 08 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 08 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) (A) L=350 		1-09707-183-0 06 1 1009-1303 ●
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=350 		1-09707-183-0 07 1 1304- ●
76 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 08 1 1009-1303 ●
76 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 05 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (H) 		8-98100-335-0 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(H) 		8-98100-335-0 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30 		1-47477-645-2 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1304- ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (D) 		1-47479-598-0 02 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(F) L=150 		1-47471-217-0 03 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (E) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-329-0 01 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) L=90 		1-47477-755-1 02 1 1009-1303 ●
106 BRACKET; TUBE CLIP
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (B) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (A) L=100 H=30 		1-47477-645-2 04 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (D) 		1-47479-598-0 04 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-598-0 02 1 1304- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (C) 		1-47479-693-0 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B) L=115 H=30 		1-47477-715-3 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
MJT7U M/T(Y4X) (B) L=90 		1-47477-755-1 01 1 1304- ●
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
108 BOLT; TUBE CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 03 1 1009-1303 ●
108 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 03 1 1304- ● ●
109 NUT; TUBE CLIP
EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 04 1 1009-1303 ●
109 NUT; TUBE CLIP
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1304- ● ●
110 CLIP; BAND,NYLON TUBE
MJT7U M/T(Y4X) (B) ID=19 L=20 		0-95235-836-0 01 1 1304- ●
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 09 1 1009-1303 ●
110 CLIP; BAND,NYLON TUBE
MJT7U M/T(Y4X) (A) L=350 		1-09707-183-0 11 1 1304- ●
110 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 10 1 1009-1303 ●
110 CLIP; BAND,NYLON TUBE
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (A) L=350 		1-09707-183-0 10 1 1304- ●
110 CLIP; BAND,NYLON TUBE
(A) L=350 		1-09707-183-0 10 1 1304- ●
110 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) ID=19 L=20 		0-95235-836-0 02 1 1009-1303 ●
110 CLIP; BAND,NYLON TUBE
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (B) ID=19 L=20 		0-95235-836-0 02 1 1304- ●
110 CLIP; BAND,NYLON TUBE
(B) ID=19 L=20 		0-95235-836-0 02 1 1304- ●
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1304- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
128 CLIP; NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 10 1 1310- ●
128 CLIP; NYLON TUBE
L=350 		1-09707-183-0 10 1 1304-1309 ●
128 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) L=350 		1-09707-183-0 11 1 1310- ●
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 04 1 1009-1303 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 02 1 1304-1304 ●
128 CLIP; NYLON TUBE
WHEEL BASE 6300MM(63W) L=350 		1-09707-183-0 05 1 1009-1303 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) L=350 		1-09707-183-0 03 1 1304-1304 ●
128 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) L=350 		1-09707-183-0 03 1 1305- ●
128 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) L=350 		1-09707-183-0 07 1 1009-1303 ●
128 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) L=350 		1-09707-183-0 05 1 1304- ●
160 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009- ●
172 BRACKET; TUBE CLIP 1-47479-554-0 01 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 1304- ● ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 21 1 1304-1309 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 22 1 1310- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 05 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 1009- ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4500MM(45W) (B) L=350 		1-09707-183-0 15 1 1304- ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 03 1 1304- ● ●
269 CLIP; BAND,NYLON TUBE
DRIVER ISRINGHAUSEN SEAT(SJA) (A) ID=28 L=40 		1-09701-261-0 01 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (A) ID=28 L=40 		1-09701-261-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (A) ID=23 L=27 		1-09700-946-0 01 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (A) ID=23 L=27 		1-09700-946-0 02 1 1304- ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40 		1-09700-991-1 02 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
RIGID SEAT WO/ARM REST(TAZ) (C) ID=21 L=30 H=40 		1-09700-991-1 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 23 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4900MM(49W) (B) L=350 		1-09707-183-0 16 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6300MM(63W) (A) ID=19 L=28 		0-95235-856-0 02 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
AIR SUSP DRIVER SEAT(A56) (C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
(C) ID=28 H=45 L=30 		1-09700-948-0 01 1 1304- ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 30 1 1009-1303 ●
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 12 1 1304- ●
270 CLIP; NYLON TUBE
ID=16 H=45 L=20 		1-09701-161-0 02 1 1304- ●
270 CLIP; NYLON TUBE
ID=16 H=25 L=25 		1-09701-162-0 03 1 1009- ●
286 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) (A) ID=21 L=30 H=40 		1-09700-991-1 02 1 1009-1303 ●
286 CLIP; NYLON TUBE
WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) (B) L=350 		1-09707-183-0 03 1 1009-1303 ●
286 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (A) ID=21 L=30 H=40 		1-09700-991-1 03 1 1009-1303 ●
286 CLIP; NYLON TUBE
WHEEL BASE 6600MM(66W) (B) L=350 		1-09707-183-0 02 1 1009-1303 ●
298 BOLT; CLIP
WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
298 BOLT; CLIP
WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 03 1 1009-1303 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
299 NUT; CLIP
WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
299 NUT; CLIP
WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
322 BRACKET; CLIP
MJT7U M/T(Y4X) L=95 		1-82698-557-0 01 1 1009- ●
331 CLIP; NYLON TUBE
ZF9S1310 M/T(Y5K) (B) L=350 		1-09707-183-0 04 1 1009-1303 ●
331 CLIP; NYLON TUBE
MAL6R M/T(Y2J),A/T ALLISON 4430(Y5V) (B) L=350 		1-09707-183-0 03 1 1304- ●
331 CLIP; NYLON TUBE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1009-1303 ●
331 CLIP; NYLON TUBE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) L=350 		1-09707-183-0 04 1 1304- ●
331 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 1304- ●
331 CLIP; NYLON TUBE
TRANSMISSION-FULLER RTO11908(Y5L) (B) L=350 		1-09707-183-0 03 1 1009-1303 ●
331 CLIP; NYLON TUBE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 1304- ● ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
338 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1304- ● ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1009-1303 ●
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 1304- ● ●
375 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 01 1 1009-1303 ●
375 CLIP; AIR PIPE
(A) L=350 		1-09707-183-0 01 1 1304- ● ●
375 CLIP; AIR PIPE
MJT7U M/T(Y4X) (B) ID=8 H=20 L=20 		1-09700-604-0 01 1 1009- ●
376 BOLT; BRKT
MJT7U M/T(Y4X) M8X25 FLANGE 		0-28650-825-0 01 1 1009- ●

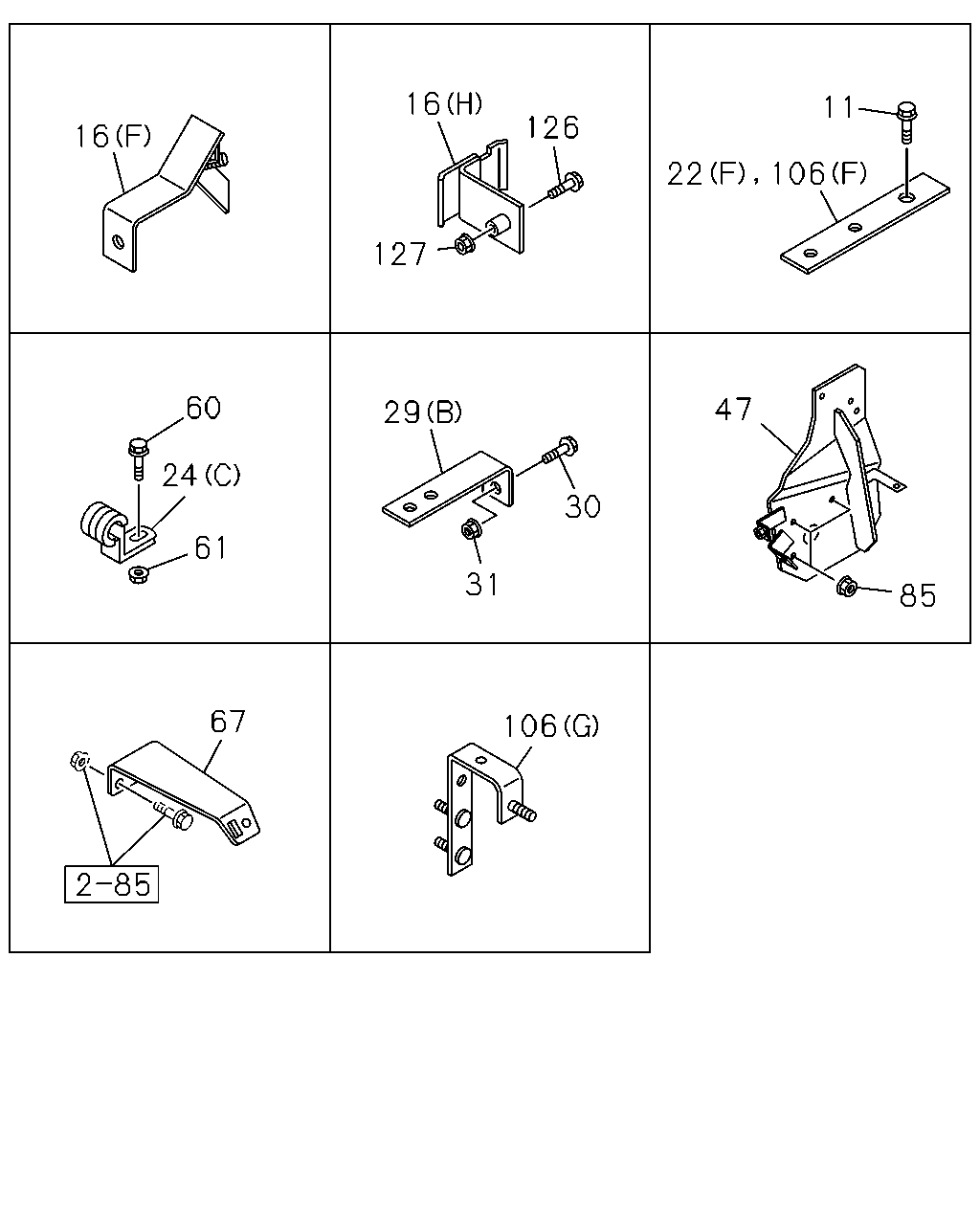

çizim 343246
16 16 127 126 106 11 22 60 24 61 29 31 30 47 85 106 67
BalonParca AdiParca NoAdetTipApplied Date A B
11 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28050-825-0 03 1 1009-1303 ●
11 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ●
11 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
11 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X30 FLANGE 		0-28650-830-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(F) 		1-47471-309-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(G) L=60 H=30 		1-47477-716-1 01 1 1304- ●
16 BRACKET; PIPE CLIP
(H) 		8-98054-389-0 01 1 1304- ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(A) 		1-47479-856-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(B) 		1-47479-857-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 02 1 1304- ● ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1009-1303 ●
16 BRACKET; PIPE CLIP
(D) 		8-98086-226-0 01 1 1304- ● ●
16 BRACKET; PIPE CLIP
(E) 		8-98110-074-0 01 1 1009- ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(F) L=150 		1-47471-217-0 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (C) 		1-47479-554-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(C) 		1-47479-554-0 01 1 1304- ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 1009-1303 ●
22 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 02 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W) (D) 		1-47479-693-0 01 1 1009-1303 ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (G) L=150 H=30 		1-47477-629-2 01 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
(A) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) L=60 H=30 		1-47477-716-1 01 1 1304- ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (E) L=105 B=25 		1-47476-161-0 02 1 1009-1303 ●
22 BRACKET; CLIP
(B) L=145 		1-47475-655-0 01 1 1304- ● ●
22 BRACKET; CLIP
WHEEL BASE 6300MM(63W) (A) L=60 H=30 		1-47477-716-1 02 1 1009-1303 ●
22 BRACKET; CLIP
(E) L=95 		1-82698-557-0 01 1 1304- ● ●
24 CLIP; PIPE
MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) ID=25 H=30 L=35 		1-09700-875-0 01 1 1304- ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1009-1303 ●
24 CLIP; PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 1304- ● ●
24 CLIP; PIPE
ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 02 1 1009-1303 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1304-1412 ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) (B) ID=25 L=50 		1-09701-019-0 03 1 1304-1412 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 03 1 1501- ●
24 CLIP; PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50 		1-09701-019-0 03 1 1009-1303 ●
24 CLIP; PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 02 1 1304-1412 ●
24 CLIP; PIPE
MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
24 CLIP; PIPE
ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
24 CLIP; PIPE
(B) ID=25 L=50 		1-09701-019-0 02 1 1501- ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 6300MM(63W) (A) 		1-47475-927-0 01 1 1009-1010 ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) 		1-47475-927-0 01 1 1009-1010 ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 6300MM(63W) (A) L=68 		1-47475-525-0 01 1 1011-1303 ●
29 BRACKET; CLIP,AIR PIPE
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) L=68 		1-47475-525-0 01 1 1011-1303 ●
29 BRACKET; CLIP,AIR PIPE
BATTERY 80D26L<TM1> (B) L=145 B=25 		1-47479-123-0 01 1 1304- ● ●
30 BOLT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
30 BOLT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8X30 FLANGE 		0-28650-830-0 01 1 1009-1303 ●
30 BOLT; CLIP BRKT
BATTERY 80D26L<TM1> M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
31 NUT; CLIP BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
31 NUT; CLIP BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
31 NUT; CLIP BRKT
BATTERY 80D26L<TM1> M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) 		8-98091-266-1 01 1 1304-1402 ●
47 BRACKET; PIPE CLIP
A/T ALLISON 4430(Y5V) 		8-98255-490-0 01 1 1403- ●
60 BOLT; CLIP FIX
MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE 		0-28650-820-0 01 1 1304- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
61 NUT; CLIP FIX
ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
61 NUT; CLIP FIX
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1304-1412 ●
61 NUT; CLIP FIX
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 02 1 1501- ●
61 NUT; CLIP FIX
MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 02 1 1501- ●
61 NUT; CLIP FIX
EXC. ENGINE REAR PTO(SV1) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
61 NUT; CLIP FIX
A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 03 1 1304-1412 ●
61 NUT; CLIP FIX
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1304-1412 ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1304-1412 ●
61 NUT; CLIP FIX
ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) M8 FLANGE 		0-91180-108-0 03 1 1501- ●
61 NUT; CLIP FIX
A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 03 1 1501- ●
61 NUT; CLIP FIX
WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1501- ●
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 1501- ●
67 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98240-931-0 01 1 1304- ●
85 NUT; CLIP BRKT
A/T ALLISON 4430(Y5V) M10 FLANGE 		0-91180-210-0 03 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) (H) 		8-98100-335-0 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(H) 		8-98100-335-0 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (A) L=100 H=30 		1-47477-645-2 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 02 1 1304- ●
106 BRACKET; TUBE CLIP
SHIFT PATTERN SINGLE-H<EDY> (D) 		1-47479-598-0 02 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(F) L=150 		1-47471-217-0 03 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W) (E) L=60 H=30 		1-47477-716-1 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(G) 		1-47479-329-0 01 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) L=90 		1-47477-755-1 02 1 1009-1303 ●
106 BRACKET; TUBE CLIP
MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) (B) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
(B) L=90 		1-47477-755-1 02 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (A) L=100 H=30 		1-47477-645-2 04 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 01 1 1304- ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (D) 		1-47479-598-0 04 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(D) 		1-47479-598-0 02 1 1304- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W) (C) 		1-47479-693-0 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
(E) L=60 H=30 		1-47477-716-1 01 1 1304- ● ●
106 BRACKET; TUBE CLIP
WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B) L=115 H=30 		1-47477-715-3 01 1 1009-1303 ●
106 BRACKET; TUBE CLIP
MJT7U M/T(Y4X) (B) L=90 		1-47477-755-1 01 1 1304- ●
126 BOLT; CLIP BRKT
M8X45 FLANGE 		0-28050-845-0 01 1 1304- ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 1304- ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ● ●
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1304- ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1009-1303 ●
126 BOLT; CLIP BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ●

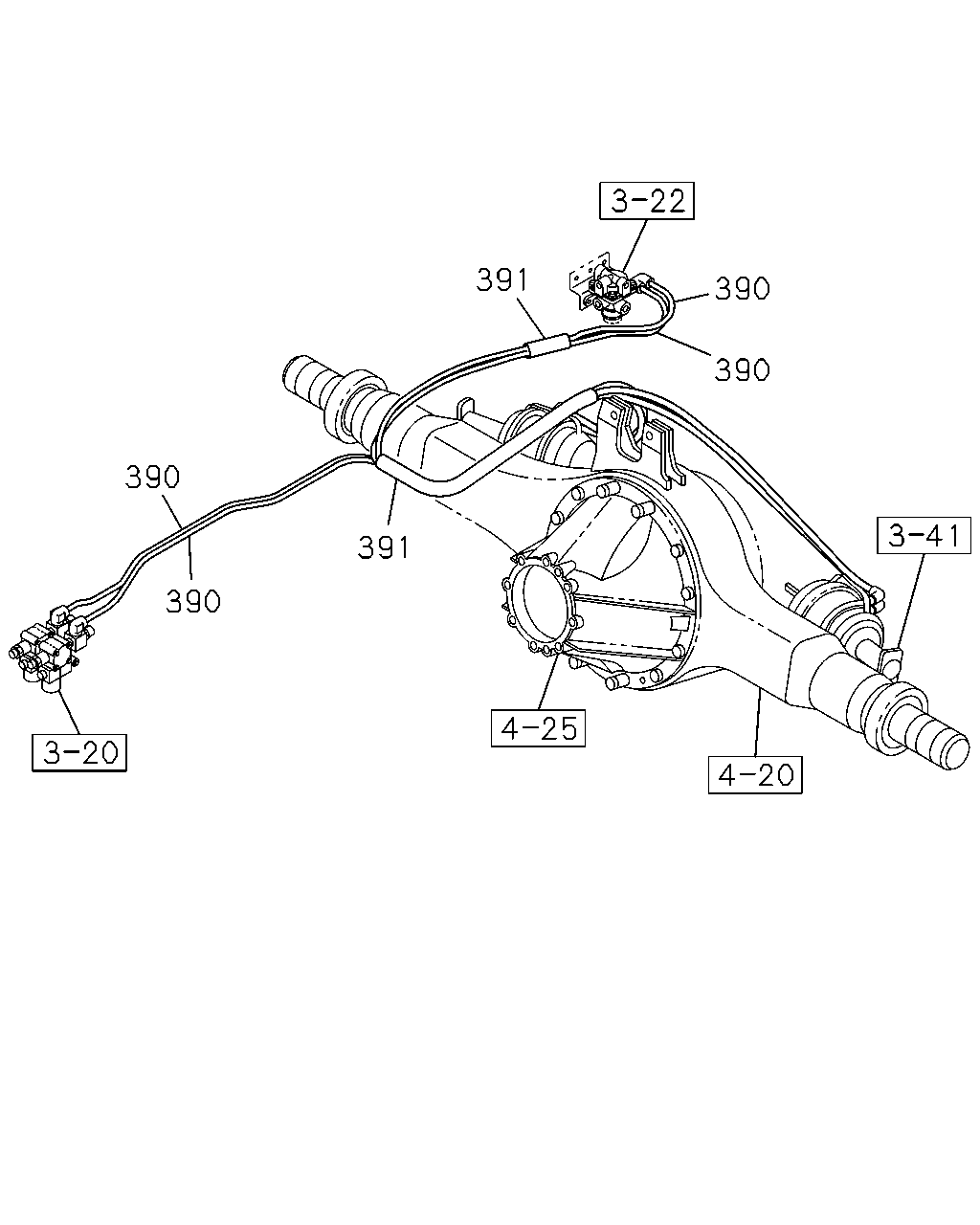

çizim 343290
391 390 390 391 390 390
BalonParca AdiParca NoAdetTipApplied Date A B
390 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
390 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009- ● ●
391 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1009- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
