◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#71421) — 227 parça

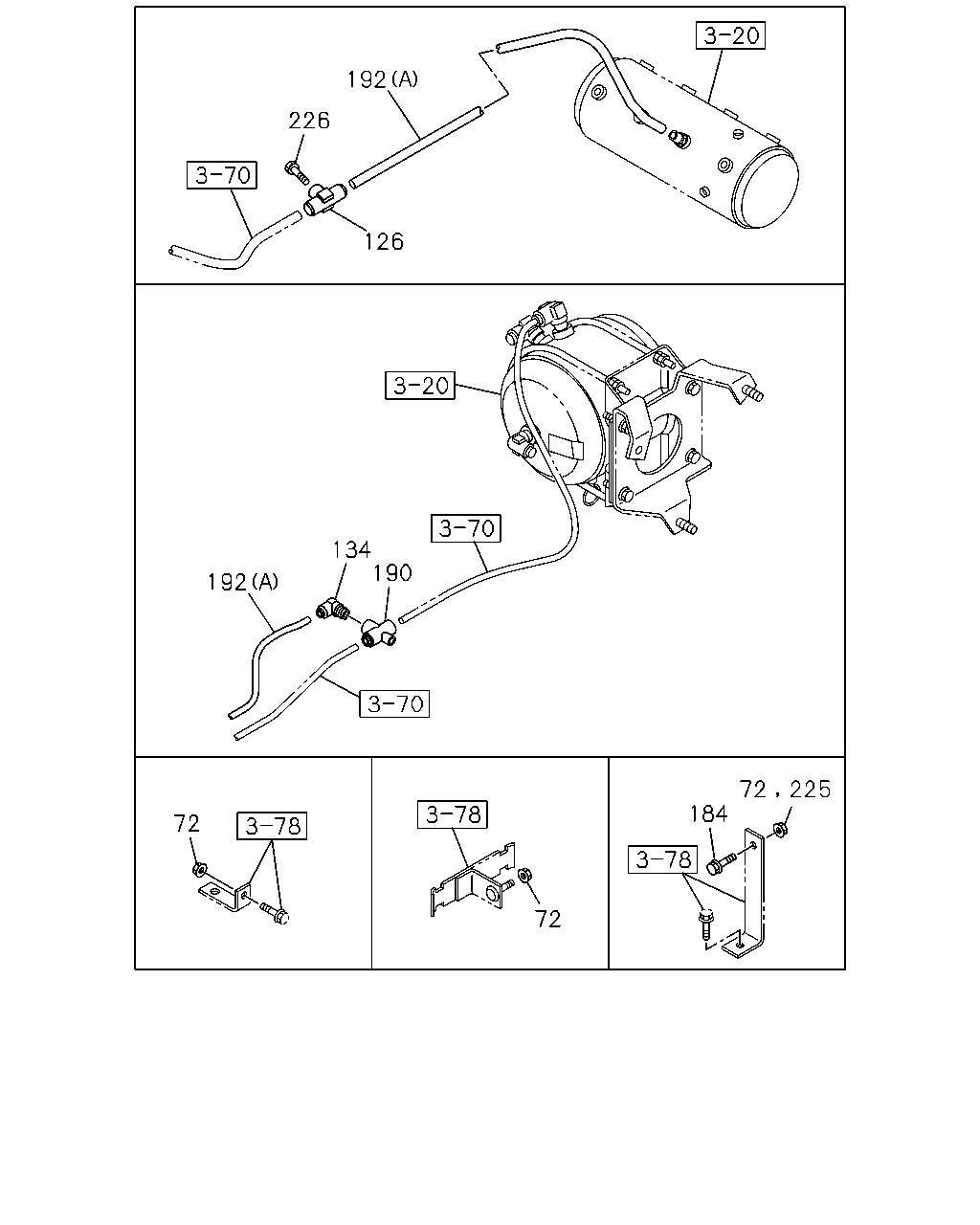

çizim 122218
226 192 126 134 192 190 72 72 184 25 72
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 1304- ●
72 NUT; BRKT
WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
72 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
72 NUT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
72 NUT; BRKT
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8 FLANGE 		0-91180-108-0 04 1 1304- ●
72 NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
72 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1304- ● ●
126 UNION; NYLON TUBE
HONG KONG EQUIPMENT(PQ1) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1310- ●
126 UNION; NYLON TUBE
DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1009-1303 ●
134 CONNECTOR
EXC. RIGID SEAT WO/ARM REST(TAZ) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1009-1303 ●
184 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1009-1303 ●
184 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1304- ● ●
184 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 1009-1303 ●
184 BOLT; TUBE CLIP
M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
190 UNION; 3 WAY
EXC. RIGID SEAT WO/ARM REST(TAZ) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1009-1303 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1304-1309 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1310- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 1304- ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98109-852-0 01 1 1304- ● ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98122-535-0 01 1 1304- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009- ● ●
225 NUT; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
225 NUT; TUBE CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 05 1 1009-1303 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
226 BOLT; UNION
MJT7U M/T(Y4X) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
EXC. RIGID SEAT WO/ARM REST(TAZ) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●

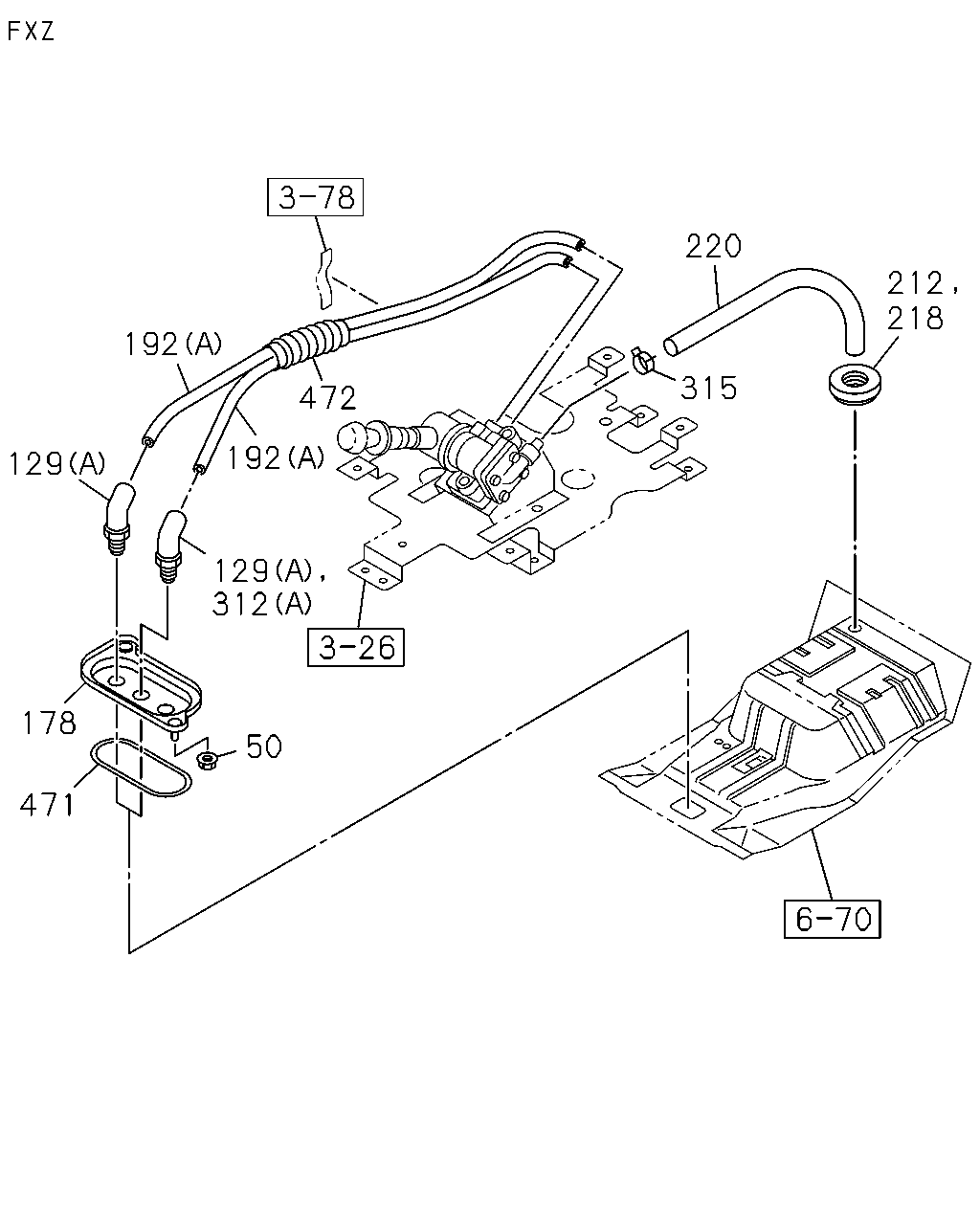

çizim 122221
471 178 129 192 50 312 129 192 472 220 315 212 218
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
129 CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1304- ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1304- ●
129 CONNECTOR; NYLON TUBE
(B) 		8-97633-768-0 01 1 1304- ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1009-1101 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1102-1303 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1304- ● ●
178 BRACKET; UNION 8-98017-056-1 01 1 1304- ●
178 BRACKET; UNION 8-98017-054-1 01 1 1009- ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1304-1309 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1310- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 1304- ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98109-852-0 01 1 1304- ● ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98122-535-0 01 1 1304- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009- ● ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1304- ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1102-1105 ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1106- ●
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1009-1101 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 1304- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1009- ●
225 NUT; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
225 NUT; TUBE CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 05 1 1009-1303 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
312 CONNECTOR; SUPPLY
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1304- ●
312 CONNECTOR; SUPPLY
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1304- ●
312 CONNECTOR; SUPPLY
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1009-1101 ●
315 CLIP
L=350 		1-09707-183-0 01 1 1305- ●
315 CLIP
L=350 		1-09707-183-0 01 1 1009-1303 ●
315 CLIP
ID=14 		8-94238-572-0 02 1 1304- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1009- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1009-1303 ●
471 SEAL; BRKT 1-79738-832-0 01 1 1304- ● ●
472 TUBE; SPUTTER 8-98108-051-0 02 1 1304- ●
472 TUBE; SPUTTER 8-98108-051-0 01 1 1009- ●

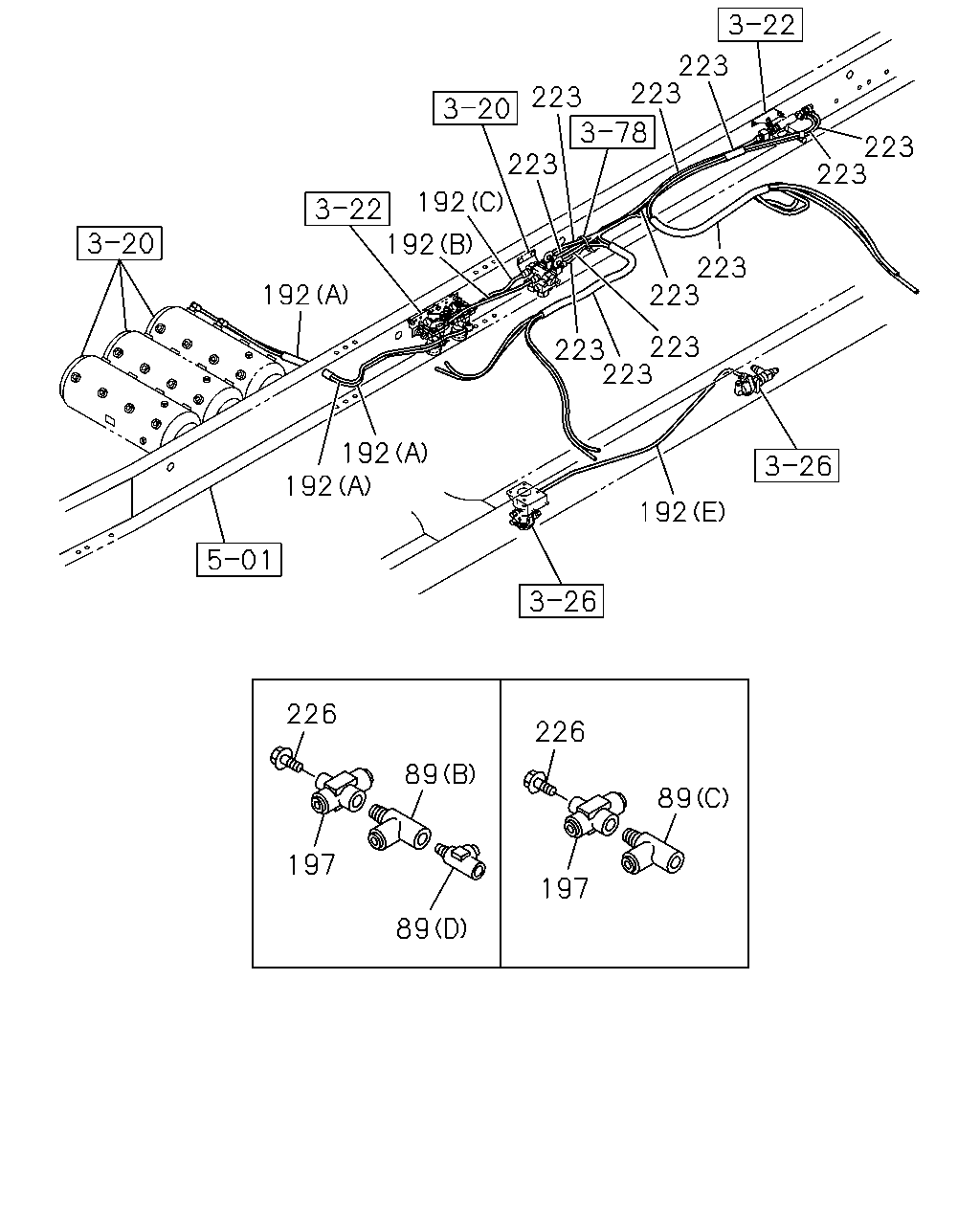

çizim 122392
192 192 192 223 223 223 223 223 223 223 223 223 223 223 192 192 192 226 89 89 197 226 197 89
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1303 ●
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1304- ● ●
89 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & R3/8 & RC3/8 3WAY 		1-09661-181-0 01 1 1009-1303 ●
89 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-09661-285-0 01 1 1009-1303 ●
89 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1009-1303 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1304-1309 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1310- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 1304- ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98109-852-0 01 1 1304- ● ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98122-535-0 01 1 1304- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009- ● ●
197 UNION ASM; NYLON TUBE
MJT7U M/T(Y4X) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1009-1303 ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1501- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1501- ●
223 TUBE; CORRUGATE
AIR SUSP DRIVER SEAT(A56) SERVICED BY L=4000 ID=19 		1-87411-028-0 01 1 1501- ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 01 1 1501- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1009- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1009- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 1009- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=15 		1-87411-026-0 AR 1 1009- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1009- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1009- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1009- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1009- ● ●
225 NUT; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
225 NUT; TUBE CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 05 1 1009-1303 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
226 BOLT; UNION
MJT7U M/T(Y4X) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
EXC. RIGID SEAT WO/ARM REST(TAZ) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●

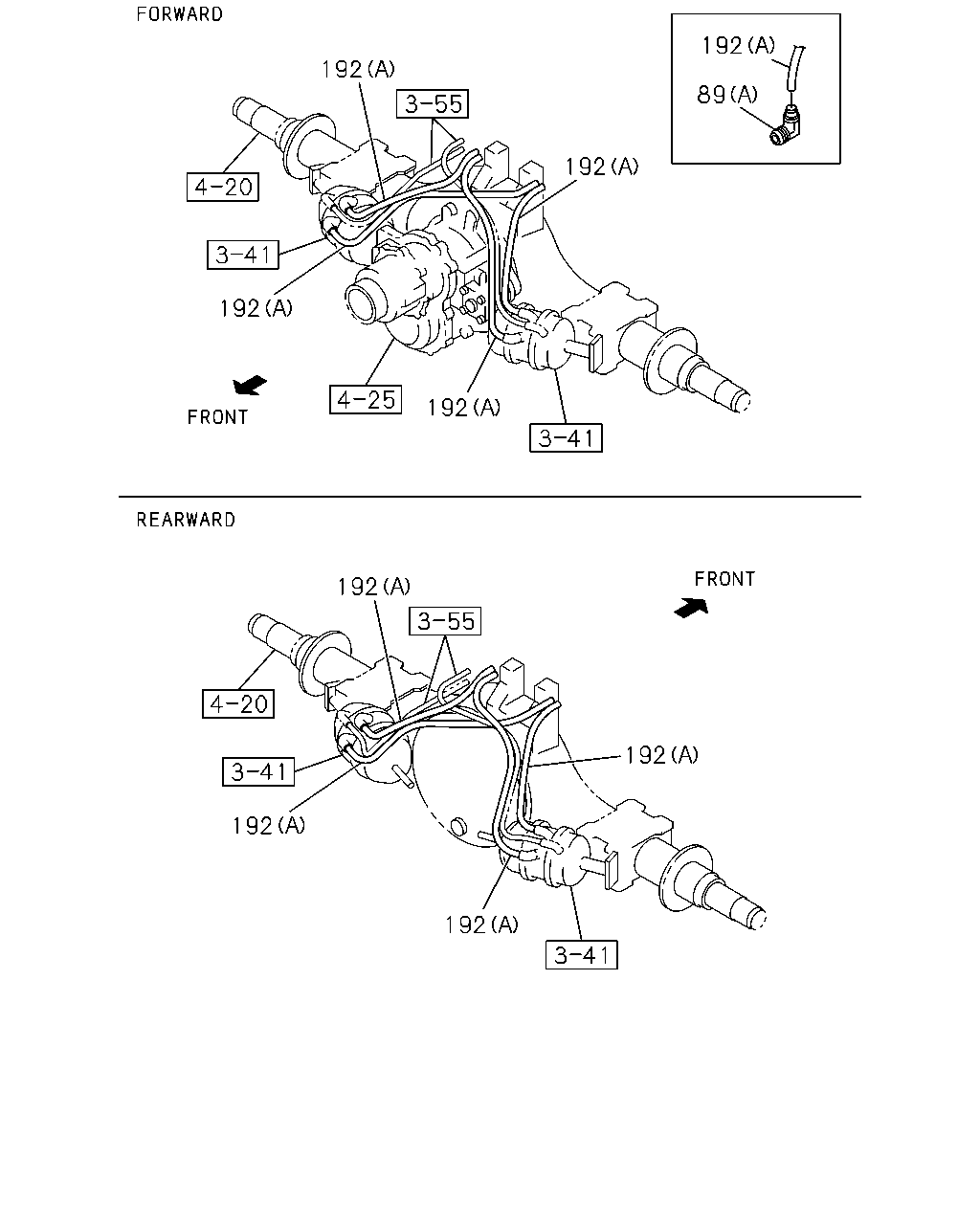

çizim 189599
192 192 192 89 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1009-1303 ●
89 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1304- ● ●
89 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN12 & R3/8 & RC3/8 3WAY 		1-09661-181-0 01 1 1009-1303 ●
89 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) 		1-09661-285-0 01 1 1009-1303 ●
89 CONNECTOR; NYLON TUBE
MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1009-1303 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1304-1309 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1310- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 1304- ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98109-852-0 01 1 1304- ● ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98122-535-0 01 1 1304- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009- ● ●
225 NUT; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
225 NUT; TUBE CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 05 1 1009-1303 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●

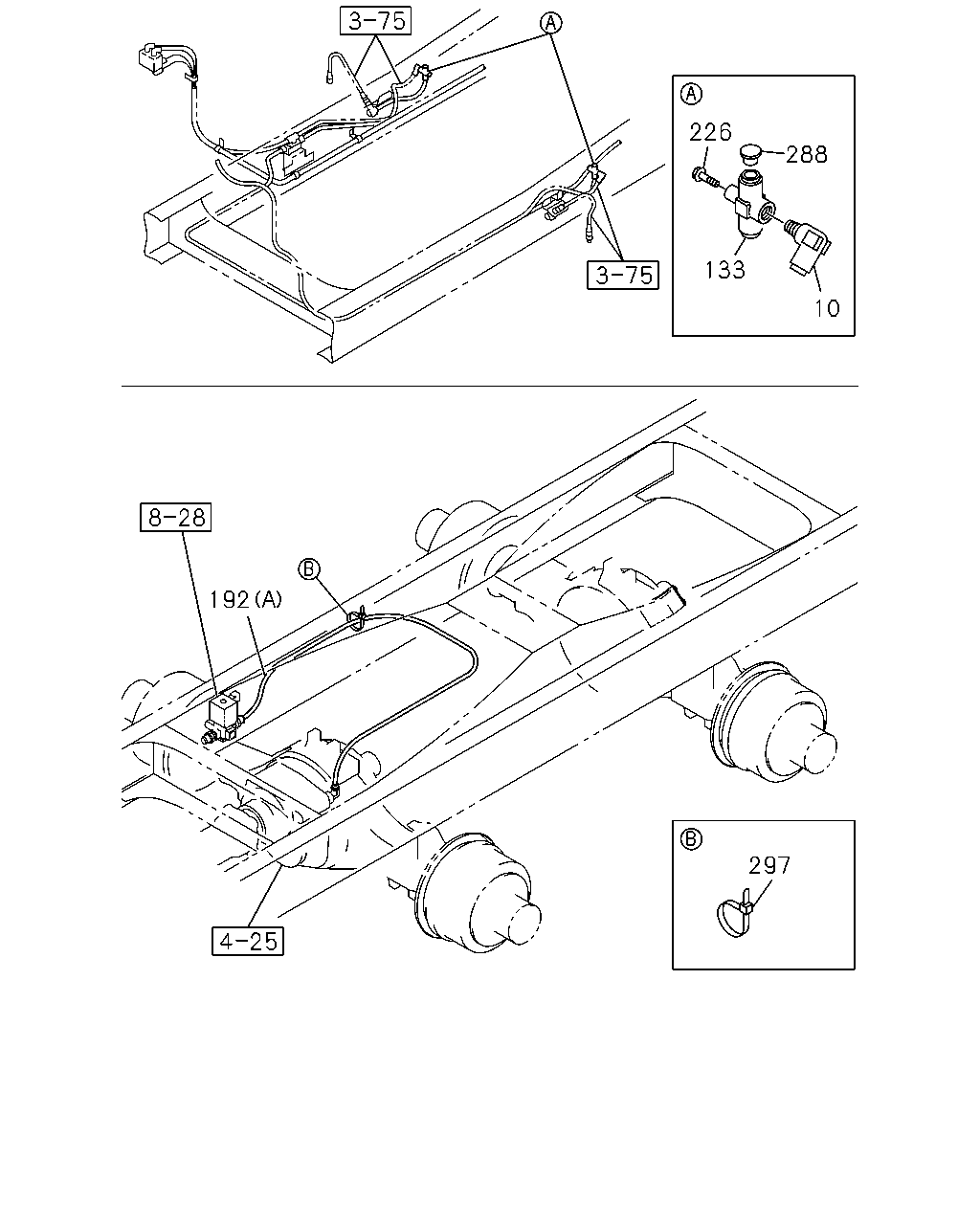

çizim 189603
226 133 288 10 192 297
BalonParca AdiParca NoAdetTipApplied Date A B
10 CONNECTOR; FLEX HOSE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 1304- ●
133 UNION; NIPPLE
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) DIN12X2 & R3/8 3WAY 		1-09661-131-0 02 1 1304- ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1304-1309 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1310- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 1304- ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98109-852-0 01 1 1304- ● ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98122-535-0 01 1 1304- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009- ● ●
225 NUT; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
225 NUT; TUBE CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 05 1 1009-1303 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
226 BOLT; UNION
HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE 		0-28650-825-0 01 1 1310- ●
226 BOLT; UNION
MJT7U M/T(Y4X) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
EXC. RIGID SEAT WO/ARM REST(TAZ) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
226 BOLT; UNION
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●
288 PLUG
WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) OD=12 		1-09661-617-0 02 1 1304- ●
297 CLIP; BAND
ZF9S1310 M/T(Y5K) L=350 		1-09707-183-0 01 1 1009-1303 ●
297 CLIP; BAND
ZF9S1310 M/T(Y5K) L=350 		1-09707-183-0 01 1 1304- ● ●

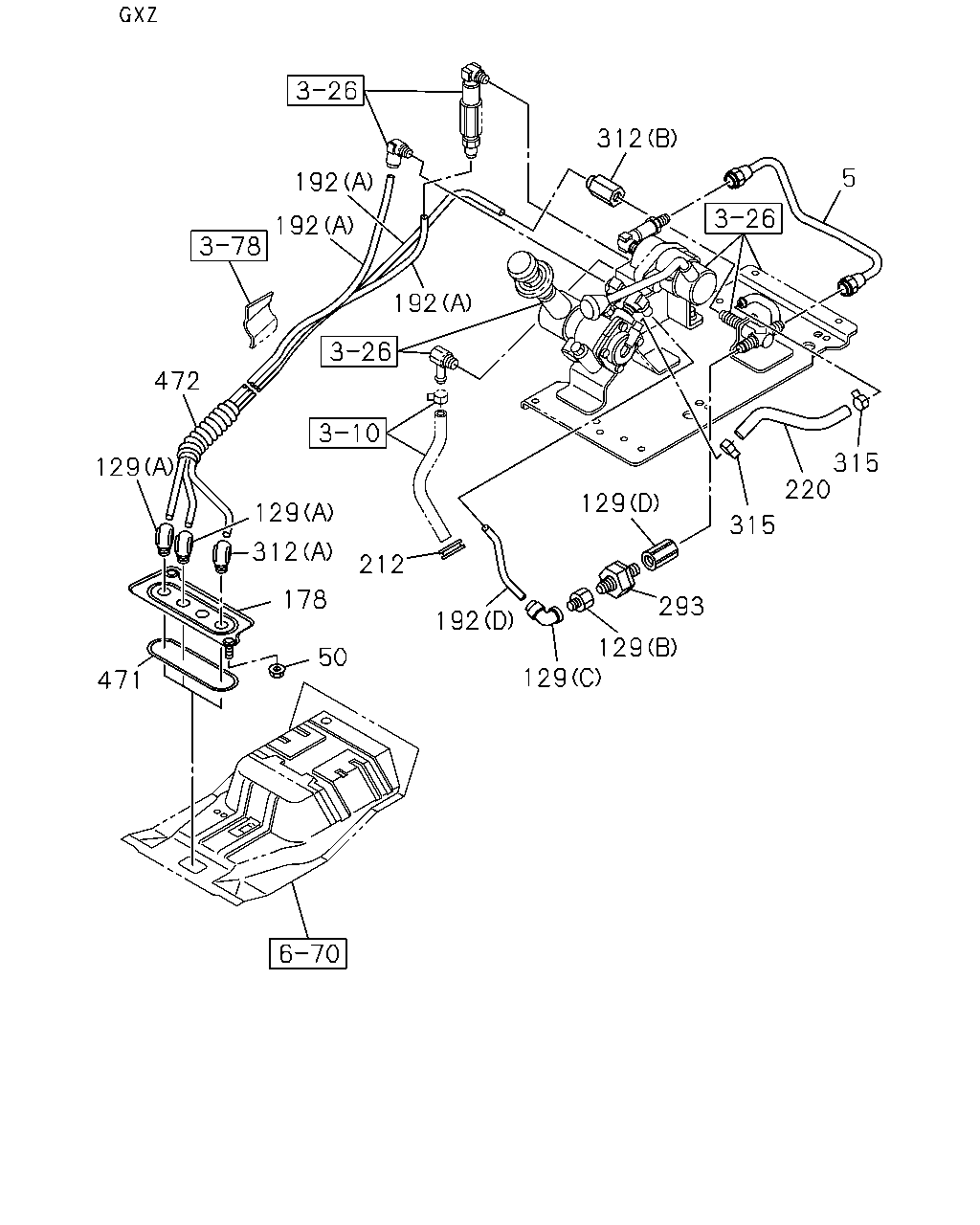

çizim 343288
471 129 472 192 192 50 178 312 129 192 312 212 192 129 129 293 315 220 315 129 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 PIPE; AIR,UNION TO PARKING VLV 8-97610-775-1 01 1 1304- ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
50 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ● ●
129 CONNECTOR; NYLON TUBE
(D) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1304- ●
129 CONNECTOR; NYLON TUBE
(C) 		8-97633-756-0 01 1 1304- ●
129 CONNECTOR; NYLON TUBE
(B) 		8-97633-768-0 01 1 1304- ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1009-1101 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1102-1303 ●
129 CONNECTOR; NYLON TUBE
(A) DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1304- ● ●
178 BRACKET; UNION 8-98017-056-1 01 1 1304- ●
178 BRACKET; UNION 8-98017-054-1 01 1 1009- ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1304-1309 ●
192 TUBE; NYLON
(E) 		1-09394-025-0 01 1 1310- ●
192 TUBE; NYLON
(D) 		8-98017-537-0 01 1 1304- ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98109-852-0 01 1 1304- ● ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1009-1303 ●
192 TUBE; NYLON
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98122-535-0 01 1 1304- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1009- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1009- ● ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1304- ●
212 GROMMET; AIR PIPE
OD=24 		9-61166-007-0 01 1 1102-1105 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=220 SERVICED BY L=10000 		9-09914-701-0 01 1 1304- ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1009- ●
225 NUT; TUBE CLIP
WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8 FLANGE 		0-91180-108-0 03 1 1009-1303 ●
225 NUT; TUBE CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE 		0-91180-108-0 05 1 1009-1303 ●
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 03 1 1304- ● ●
293 VALVE; CHECK 1-48410-479-1 01 1 1304- ●
312 CONNECTOR; SUPPLY
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 1304- ●
312 CONNECTOR; SUPPLY
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1304- ●
312 CONNECTOR; SUPPLY
(A) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1009-1101 ●
315 CLIP
L=350 		1-09707-183-0 01 1 1305- ●
315 CLIP
L=350 		1-09707-183-0 01 1 1009-1303 ●
315 CLIP
ID=14 		8-94238-572-0 02 1 1304- ●
315 CLIP
ID=14 		8-94238-572-0 01 1 1009- ●
471 SEAL; BRKT 1-79738-832-0 01 1 1009-1303 ●
471 SEAL; BRKT 1-79738-832-0 01 1 1304- ● ●
472 TUBE; SPUTTER 8-98108-051-0 02 1 1304- ●
472 TUBE; SPUTTER 8-98108-051-0 01 1 1009- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
