3-75 — BRAKE PIPING; AIR,FRONT (#71420) — 136 parça

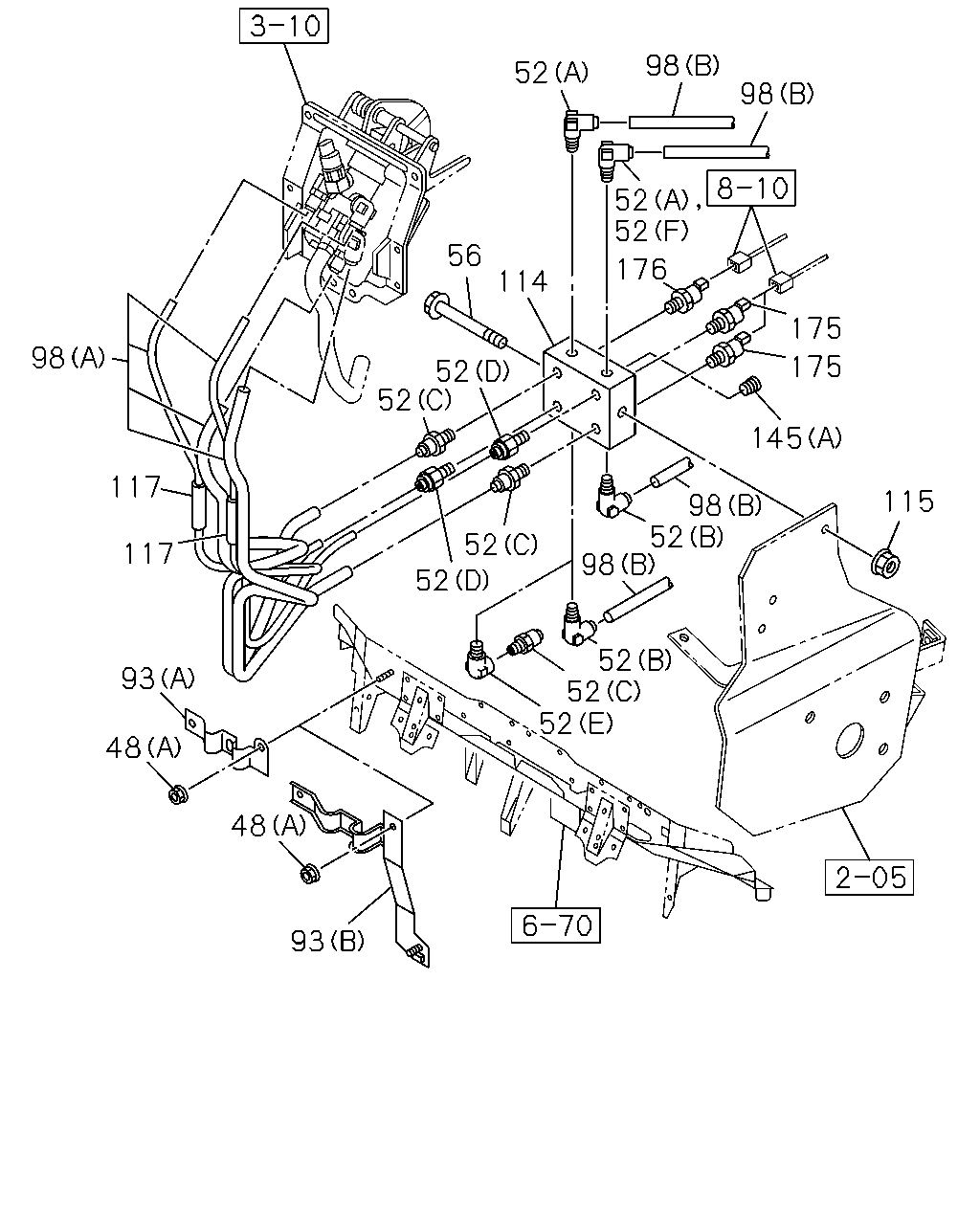

52 98 98 52 52 176 175 175 145 115 98 52 98 52 52 52 52 52 52 52 56 114 98 117 117 93 48 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	1009-1101	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1009-1303	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
52	CONNECTOR; NYLON TUBE (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1304-		●
52	CONNECTOR; NYLON TUBE (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-		●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	03	1	1304-		●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	1009-	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1009-1303	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1304-	●	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1009-1303	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1304-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1009-	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	1009-1303	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	1304-	●	●
93	BRACKET; UNION,TUBE (A)	8-98044-013-0	01	1	1009-1201	●
93	BRACKET; UNION,TUBE (B)	8-98186-924-0	01	1	1202-1303	●
93	BRACKET; UNION,TUBE (B)	8-98186-924-0	01	1	1304-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1009-1303	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1304-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=170 OD=12	1-49222-063-0	01	1	1009-1303	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=170 OD=12	1-49222-063-0	01	1	1009-1303	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=170 OD=12	1-49222-063-0	02	1	1304-1504	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98302-565-0	02	1	1505-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	1009-1303	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	1009-1303	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=240	1-49222-113-0	02	1	1304-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	1009-1303	●
114	UNION; NYLON TUBE	8-98057-394-1	01	1	1304-	●	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-	●	●
145	PLUG EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) OD=12	1-09661-617-0	02	1	1304-	●	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	1009-1303	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	1304-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1009-1303	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1304-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1009-1303	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1304-	●	●

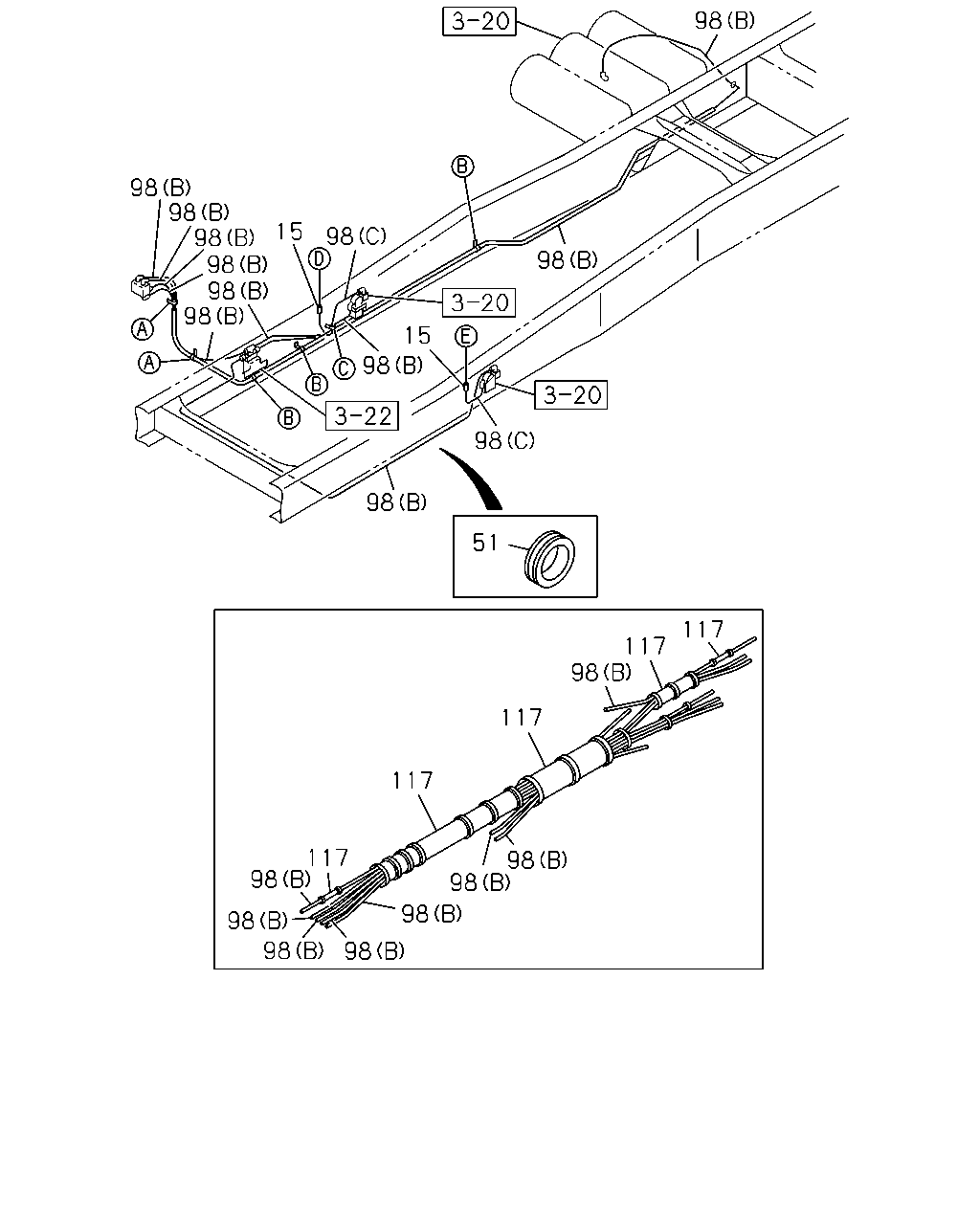

98 98 98 98 15 98 98 98 98 98 98 15 98 98 51 98 98 98 98 98 98 98 98 117 117 117 117 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-1101	●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=25	1-09332-011-1	01	1	1009-1303	●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=17	9-09956-256-2	01	1	1009-1303	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1009-1303	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1304-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=170 OD=12	1-49222-063-0	01	1	1009-1303	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=170 OD=12	1-49222-063-0	01	1	1009-1303	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C) L=170 OD=12	1-49222-063-0	02	1	1304-1504	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98302-565-0	02	1	1505-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	1009-1303	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	1009-1303	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) L=240	1-49222-113-0	02	1	1304-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1009-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1009-	●	●

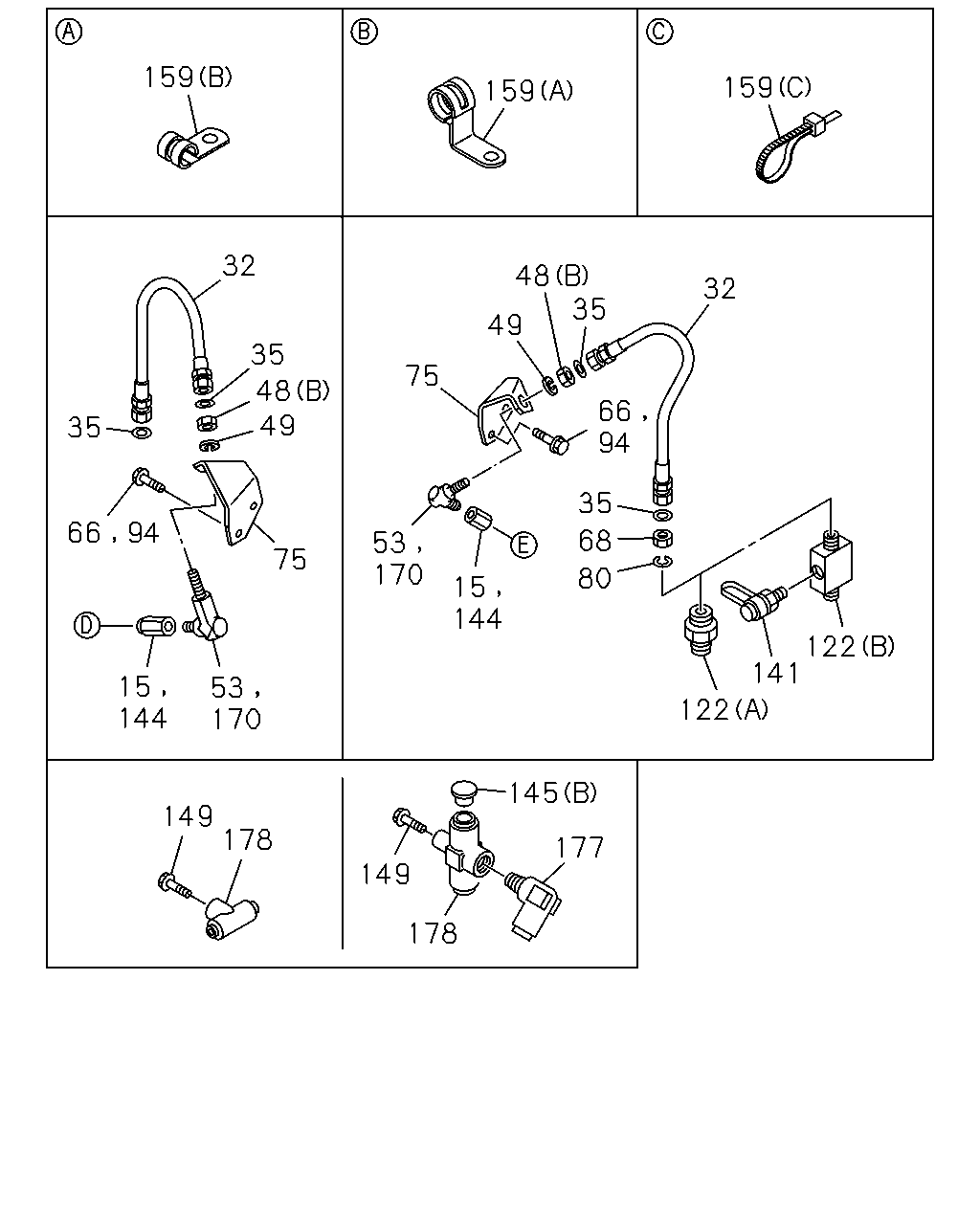

159 159 159 35 32 35 48 49 66 94 75 15 144 53 170 149 178 149 145 177 178 15 144 53 170 75 49 48 35 32 122 141 122 80 68 35 94 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1009-1101	●
32	HOSE; FLEX,FRT	0-87847-430-1	02	1	1009-1303	●
32	HOSE; FLEX,FRT	0-87847-430-1	02	1	1304-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1009-1303	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1304-	●	●
48	NUT; UNION BRKT (B) M20	0-91111-520-0	01	1	1009-1101	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1009-1303	●
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1304-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1009-1101	●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	1009-1101	●
66	BOLT; HOSE BRKT M8X30 FLANGE	0-28650-830-0	04	1	1102-1303	●
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	1304-	●	●
68	NUT; UNION M20	0-91111-520-0	01	1	1009-1101	●
68	NUT; UNION M20	0-91111-520-0	02	1	1102-1303	●
68	NUT; UNION M20	0-91111-520-0	02	1	1304-	●	●
75	BRACKET; UNION	8-98094-074-0	01	1	1009-1303	●
75	BRACKET; UNION	8-98094-074-0	01	1	1304-	●	●
75	BRACKET; UNION	8-98094-075-0	01	1	1009-1303	●
75	BRACKET; UNION	8-98094-075-0	01	1	1304-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1009-1101	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1102-1303	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	02	1	1304-	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1009-1101	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	01	1	1009-1303	●
122	CONNECTOR; FLEX HOSE HONG KONG EQUIPMENT(PQ1) (A) M20 & PT3/8	1-09660-731-1	01	1	1009-1303	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	02	1	1304-	●	●
122	CONNECTOR; FLEX HOSE NEW ZEALAND EQUIPMENT(PK5) (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1009-1303	●
141	CONNECTOR; TEST NEW ZEALAND EQUIPMENT(PK5) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-1303	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1102-1303	●
144	ADAPTER DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	1304-	●	●
145	PLUG EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) OD=12	1-09661-617-0	02	1	1304-	●	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	1009-1303	●
145	PLUG (A) PT1/4	9-99204-513-0	01	1	1304-	●	●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
159	CLIP; NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31 H=30 L=35	1-09700-994-0	03	1	1304-	●	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	26	1	1304-	●
159	CLIP; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) ID=31 H=30 L=35	1-09700-994-0	02	1	1304-	●	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1304-1304		●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	02	1	1304-		●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	03	1	1009-1303	●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1304-	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	1009-	●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	1009-	●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1009-1303	●
159	CLIP; NYLON TUBE WHEEL BASE 5300MM(53W) (C) L=350	1-09707-183-0	22	1	1304-	●
159	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (C) L=350	1-09707-183-0	23	1	1009-1303	●
159	CLIP; NYLON TUBE WHEEL BASE 4500MM(45W) (C) L=350	1-09707-183-0	18	1	1304-	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	18	1	1009-1303	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) NEW ZEALAND EQUIPMENT(PK5) (C) L=350	1-09707-183-0	18	1	1009-1303	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (C) L=350	1-09707-183-0	19	1	1304-1304	●
159	CLIP; NYLON TUBE WHEEL BASE 4900MM(49W) (C) L=350	1-09707-183-0	20	1	1305-	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1305-		●
170	UNION; FLARE M20 & M20 ELBOW	1-09654-128-1	02	1	1102-1303	●
170	UNION; FLARE M20 & M20 ELBOW	1-09654-128-1	02	1	1304-	●	●
177	CONNECTOR EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
178	UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1009-1303	●
178	UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN12X2 & R3/8 3WAY	1-09661-131-0	02	1	1304-	●	●
