Isuzu WW
▶
BUSES
▶
LV
▶
10818 - LV123/150/423-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

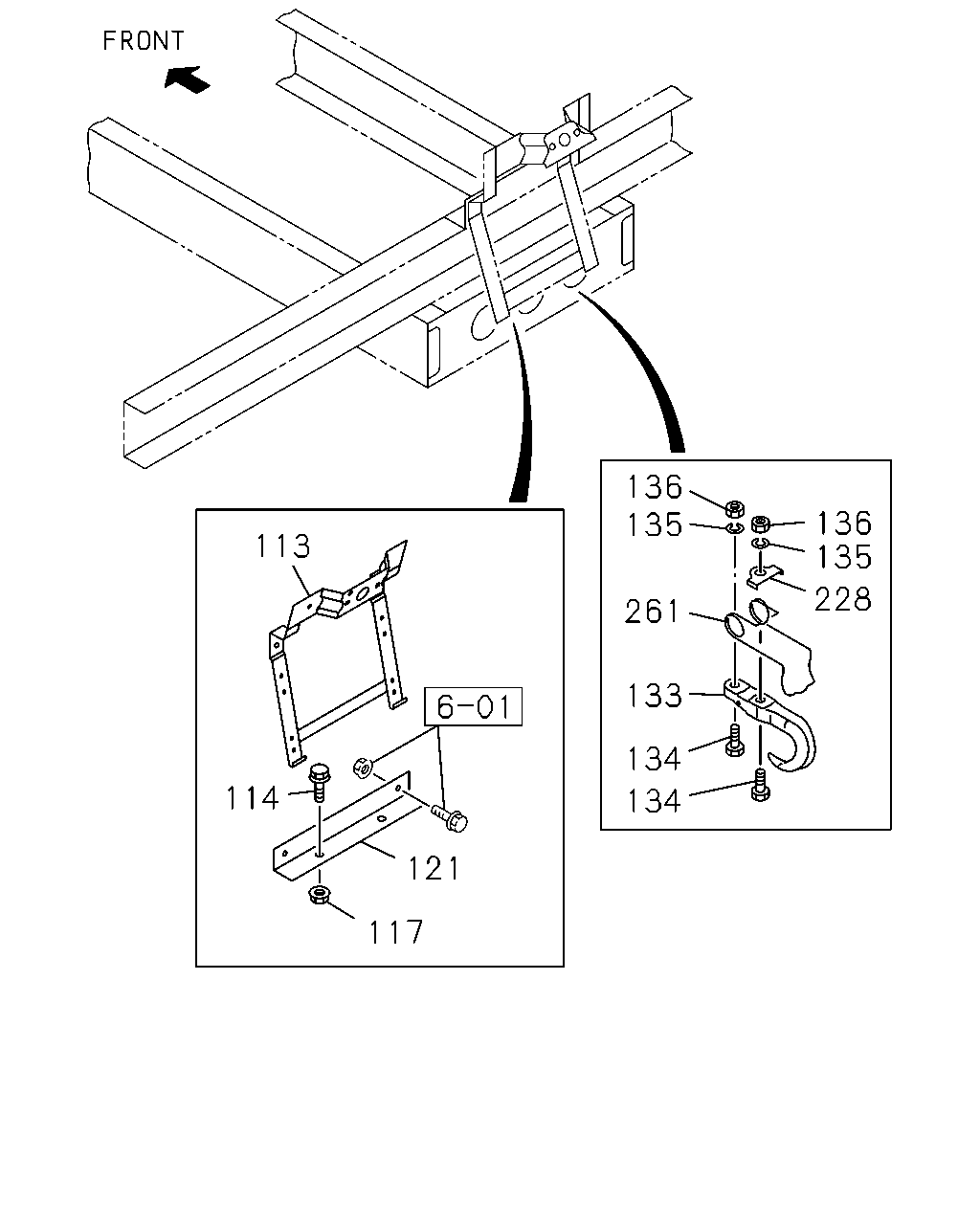

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#7142) — 29 parça
Tümü
A - LVD5FB
B - LVR5FB
136
135
136
135
113
228
261
133
134
114
134
121
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
113
BRACKET; LICENSE PLATE
1-53485-049-2
01
1
0012-0203
●
●
113
BRACKET; LICENSE PLATE
LICENSE PLATE BRKT SUPPLY<NMN>
1-53485-049-2
01
1
0204-0907
●
●
113
BRACKET; LICENSE PLATE
LICENSE PLATE BRKT SUPPLY<NMN>
8-98052-734-1
01
1
0908-
●
●
114
BOLT; BRKT,LICENSE PLATE
M10X25 FLANGE
0-28681-025-0
02
1
0012-0203
●
●
114
BOLT; BRKT,LICENSE PLATE
LICENSE PLATE BRKT SUPPLY<NMN> M10X25 FLANGE
0-28681-025-0
02
1
0204-0512
●
●
114
BOLT; BRKT,LICENSE PLATE
LICENSE PLATE BRKT SUPPLY<NMN> M10X25 FLANGE
0-28651-025-0
02
1
0601-
●
●
117
NUT; BRKT
M10 FLANGE
0-91150-210-0
02
1
0012-0203
●
●
117
NUT; BRKT
LICENSE PLATE BRKT SUPPLY<NMN> M10 FLANGE
0-91150-210-0
02
1
0204-0602
●
●
117
NUT; BRKT
LICENSE PLATE BRKT SUPPLY<NMN> M10 FLANGE
0-91180-210-0
02
1
0603-
●
●
121
STAY; RR LICENSE PLATE BRKT
1-53485-016-0
01
1
0012-0203
●
●
121
STAY; RR LICENSE PLATE BRKT
LICENSE PLATE BRKT SUPPLY<NMN>
1-53485-016-0
01
1
0204-
●
●
133
HOOK
1-57181-027-1
01
1
0012-0301
●
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
0302-
●
134
BOLT; HOOK
M16X60
0-10811-660-0
01
1
0012-0301
●
134
BOLT; HOOK
TOW HOOK<V76> M16X60
0-10811-660-0
01
1
0302-0512
●
134
BOLT; HOOK
TOW HOOK<V76> M16X60
0-10861-660-0
01
1
0601-
●
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
0012-0301
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20801-650-0
01
1
0302-0512
●
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
0601-
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0012-0301
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
9-09150-516-0
02
1
0302-0603
●
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-516-0
02
1
0604-
●
136
NUT; HOOK
M16
9-99110-416-0
02
1
0012-0301
●
136
NUT; HOOK
TOW HOOK<V76> M16
9-99110-416-0
02
1
0302-0512
●
136
NUT; HOOK
TOW HOOK<V76> M16
0-91110-516-0
02
1
0601-
●
228
STOPPER; SPR RR HOOK
9-53519-006-0
01
1
0012-0301
●
228
STOPPER; SPR RR HOOK
TOW HOOK<V76>
9-53519-006-0
01
1
0302-
●
261
SPRING; RR HOOK
9-53519-003-0
01
1
0012-0301
●
261
SPRING; RR HOOK
TOW HOOK<V76>
9-53519-003-0
01
1
0302-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
