Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#71419) — 204 parça

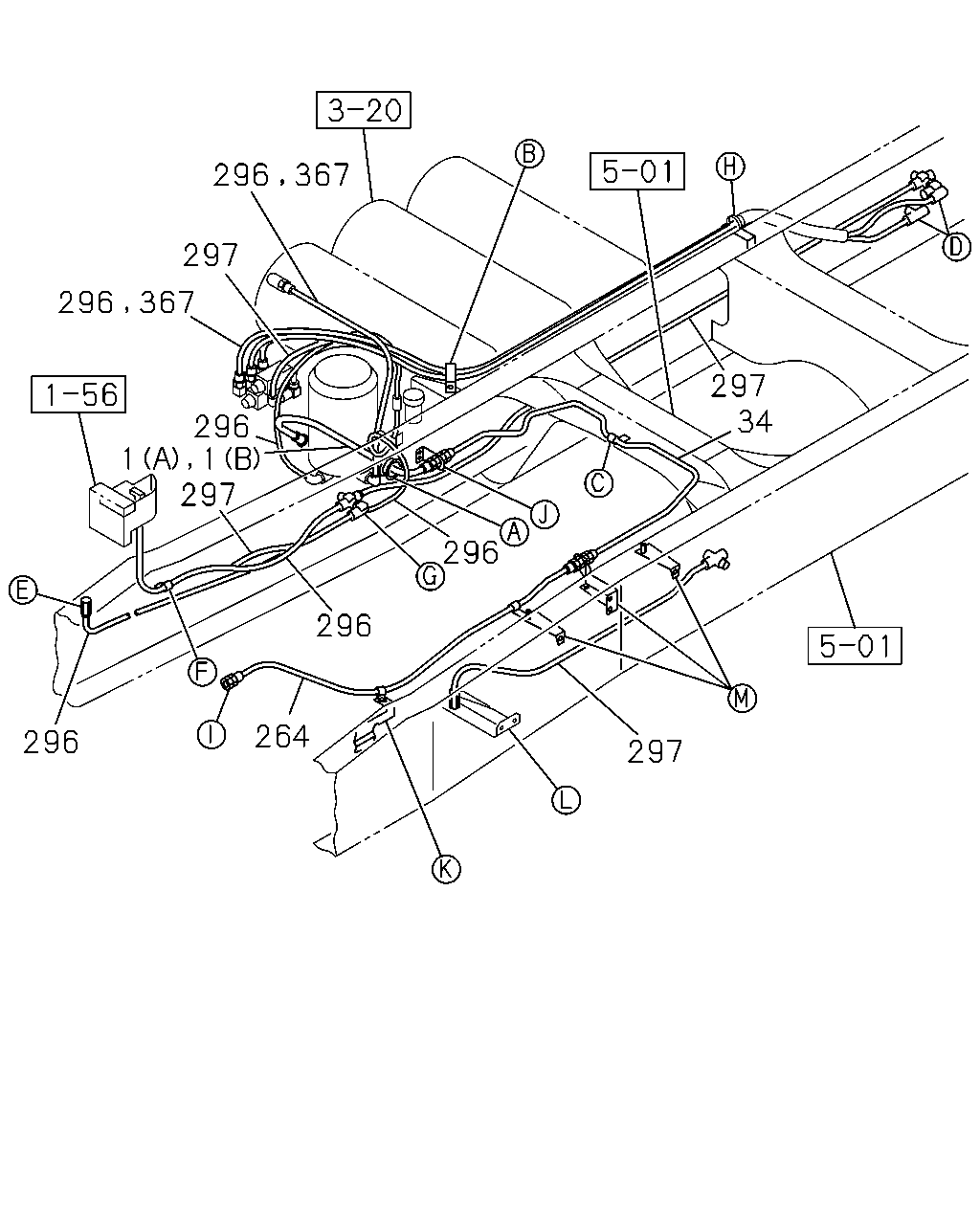

297 264 296 296 296 34 297 367 296 297 296 367 296 297 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-98175-881-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK BATTERY 80D26L<TM1> (A)	1-09363-940-0	01	1	1304-	●	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 115E41L<8MA> (A)	8-98100-332-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-09363-940-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> (B)	8-98159-233-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK BATTERY 115E41L<8MA> (A)	8-98100-332-0	01	1	1304-	●	●
34	PIPE; AIR FRAME EQUIPMENT HEAVY DUTY<F01> L=1287	8-97620-985-0	01	1	1009-	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,HONG KONG EQUIPMENT(PQ1) L=1258	8-97618-580-0	01	1	1009-1303	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258	8-97618-580-0	01	1	1304-	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	1304-		●
34	PIPE; AIR WHEEL BASE 6300MM(63W) L=1499	8-98158-802-0	01	1	1009-1303	●
264	HOSE; FLEX A/T ALLISON 4430(Y5V) L=1160	8-98208-138-0	01	1	1304-	●
264	HOSE; FLEX ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1009-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1009-1303	●
264	HOSE; FLEX MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1304-	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K) L=1150	1-09363-791-0	01	1	1304-		●
296	TUBE; NYLON SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1310-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1310-	●
296	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1310-		●
296	TUBE; NYLON ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1501-	●
296	TUBE; NYLON WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1501-	●
296	TUBE; NYLON WHEEL BASE 4500MM(45W) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-	●
296	TUBE; NYLON MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-	●
296	TUBE; NYLON MAL6R M/T(Y2J),MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-	●
296	TUBE; NYLON SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
297	TUBE; NYLON ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1501-	●
297	TUBE; NYLON MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1501-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
367	TUBE; CORRUGATE ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1501-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●

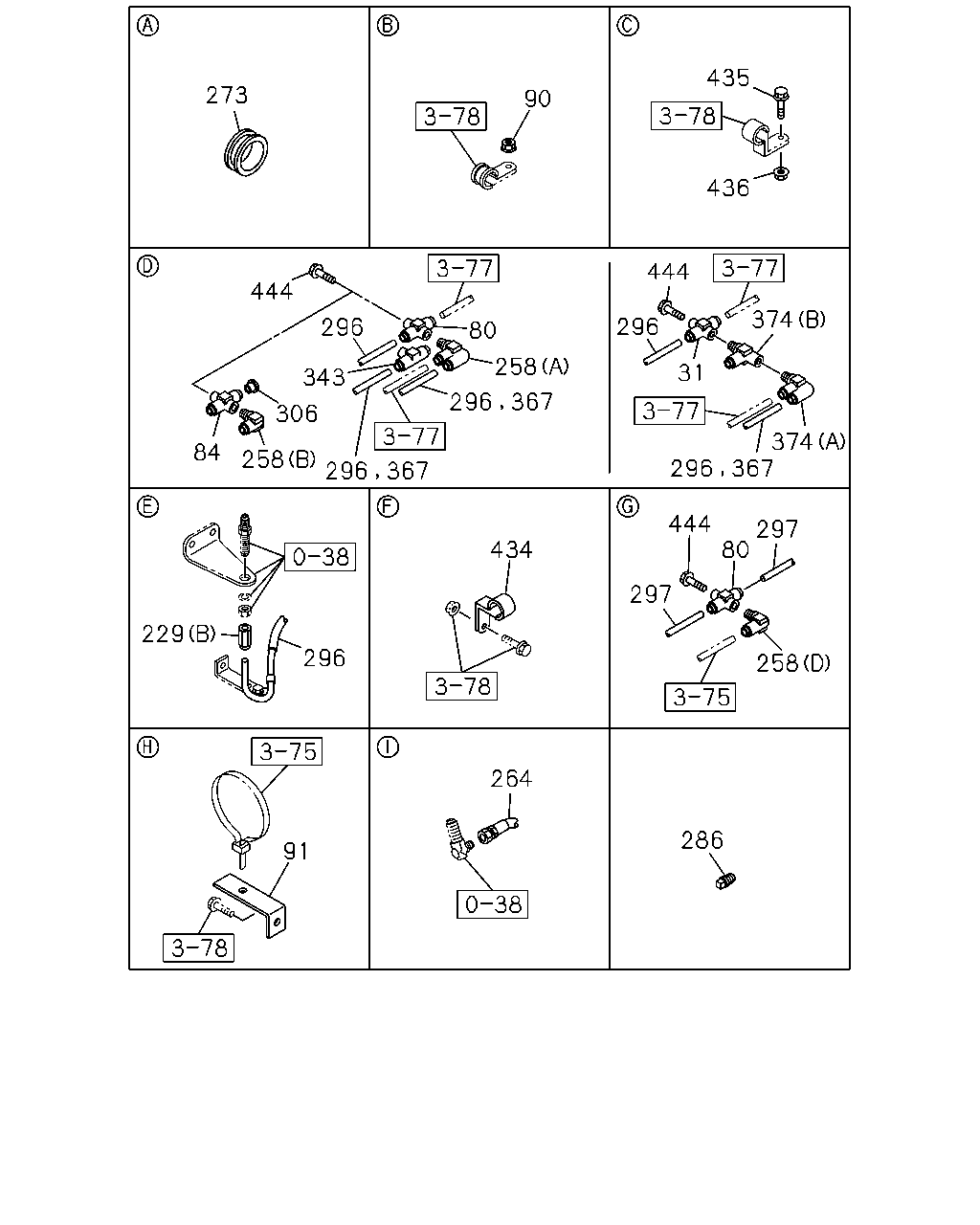

286 264 91 229 296 434 258 297 444 297 80 367 296 374 374 444 296 31 84 306 343 258 444 80 296 296 367 296 258 367 436 435 90 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	UNION; 3 WAY MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1304-	●
80	UNION; 3 WAY WHEEL BASE 6600MM(66W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1304-1412	●
80	UNION; 3 WAY A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1304-1412	●
80	UNION; 3 WAY WHEEL BASE 6600MM(66W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1501-	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	1501-	●
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-1303	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1009-1303	●
80	UNION; 3 WAY ZF9S1310 M/T(Y5K) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	1304-	●	●
84	UNION; NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1304-	●
84	UNION; NYLON TUBE HONG KONG EQUIPMENT(PQ1) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	1304-		●
90	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
90	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
91	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W) L=60 H=30	1-47477-716-1	02	1	1009-1303	●
91	BRACKET; TUBE CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) L=60 H=30	1-47477-716-1	01	1	1304-	●
229	ADAPTER; NYLON TUBE MAL6R M/T(Y2J) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1304-	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1009-1303	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1304-	●	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-1303	●
229	ADAPTER; NYLON TUBE MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1304-	●
229	ADAPTER; NYLON TUBE ZF9S1310 M/T(Y5K) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1304-		●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-1303	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 6600MM(66W) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-1412	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1501-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 6600MM(66W) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1501-	●
258	CONNECTOR; NYLON TUBE MJT7U M/T(Y4X) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
258	CONNECTOR; NYLON TUBE MJT7U M/T(Y4X) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
258	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
258	CONNECTOR; NYLON TUBE MJT7U M/T(Y4X) (C) PT3/8 & PT3/8	1-09661-303-0	01	1	1009-	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●	●
258	CONNECTOR; NYLON TUBE A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
264	HOSE; FLEX A/T ALLISON 4430(Y5V) L=1160	8-98208-138-0	01	1	1304-	●
264	HOSE; FLEX ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1009-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1009-1303	●
264	HOSE; FLEX MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1304-	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K) L=1150	1-09363-791-0	01	1	1304-		●
273	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-1303	●
273	GROMMET ID=32 OD=40 T=18	1-09891-003-0	01	1	1304-	●	●
286	PLUG; AIR PIPE PT3/8	9-09204-517-0	01	1	1304-1306		●
296	TUBE; NYLON SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1310-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1310-	●
296	TUBE; NYLON HONG KONG EQUIPMENT(PQ1) SERVICED BY L=2000 OD=12	1-87411-011-0	05	1	1310-		●
296	TUBE; NYLON ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1501-	●
296	TUBE; NYLON WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1501-	●
296	TUBE; NYLON WHEEL BASE 4500MM(45W) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-	●
296	TUBE; NYLON MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-	●
296	TUBE; NYLON MAL6R M/T(Y2J),MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W) HONG KONG EQUIPMENT(PQ1) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-	●
296	TUBE; NYLON SINGAPORE EQUIPMENT(WQ3) SERVICED BY L=4000 OD=12	1-87411-012-0	01	1	1310-		●
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
297	TUBE; NYLON ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1501-	●
297	TUBE; NYLON MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1501-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
306	PLUG; NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) OD=12	1-09661-617-0	01	1	1304-	●
306	PLUG; NYLON TUBE HONG KONG EQUIPMENT(PQ1) OD=12	1-09661-617-0	01	1	1304-		●
343	UNION; NYLON TUBE TRANSMISSION-FULLER RTO11908(Y5L) DIN8X2 & M8 2WAY	1-09661-133-0	01	1	1009-1303	●
367	TUBE; CORRUGATE ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1501-	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1009-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1009-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1009-	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1009-	●	●
374	CONNECTOR MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
374	CONNECTOR MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) (B) DIN12 & R3/8 & RC3/8 3WAY	1-09661-181-0	01	1	1304-	●
434	CLIP ID=8 H=20 L=20	1-09700-604-0	01	1	1009-1303	●
434	CLIP ID=8 H=20 L=20	1-09700-604-0	01	1	1304-	●	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
435	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
436	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
444	BOLT; UNION WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
444	BOLT; UNION WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
444	BOLT; UNION WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
444	BOLT; UNION ZF9S1310 M/T(Y5K) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
444	BOLT; UNION HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28650-820-0	01	1	1304-		●
444	BOLT; UNION M8X20 FLANGE	0-28650-820-0	01	1	1304-		●

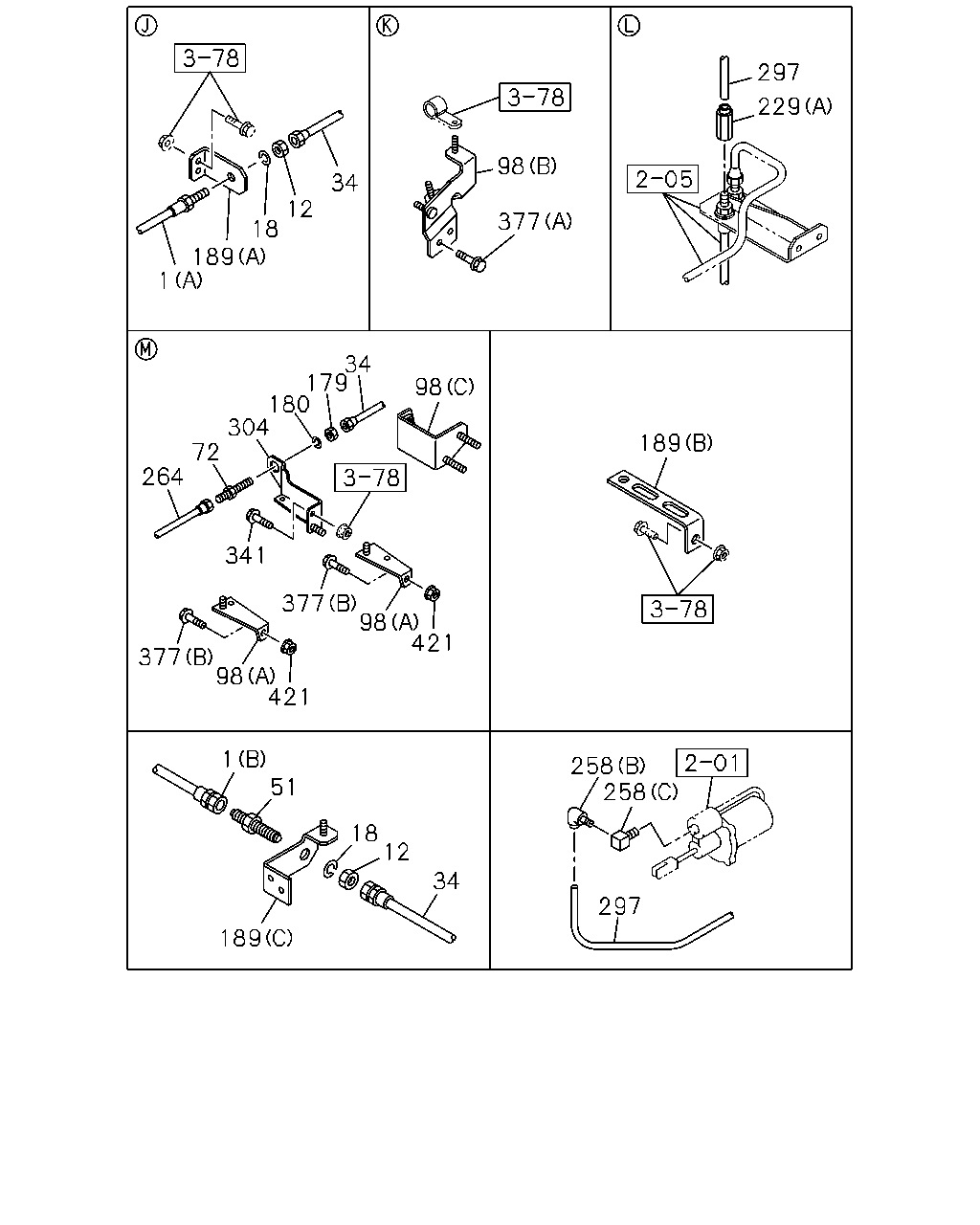

297 258 258 189 18 12 34 51 1 421 98 377 377 341 421 98 264 72 304 180 179 34 98 189 297 229 98 377 34 12 18 189 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,AIR TANK WHEEL BASE 6300MM(63W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)	8-98175-881-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK BATTERY 80D26L<TM1> (A)	1-09363-940-0	01	1	1304-	●	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 115E41L<8MA> (A)	8-98100-332-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A)	1-09363-940-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK WHEEL BASE 6300MM(63W) BATTERY 115E41L<8MA> (B)	8-98159-233-0	01	1	1009-1303	●
1	HOSE; FLEX,AIR TANK BATTERY 115E41L<8MA> (A)	8-98100-332-0	01	1	1304-	●	●
12	NUT; UNION M22	0-91111-522-0	01	1	1009-1303	●
12	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-1303	●
18	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
34	PIPE; AIR FRAME EQUIPMENT HEAVY DUTY<F01> L=1287	8-97620-985-0	01	1	1009-	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,HONG KONG EQUIPMENT(PQ1) L=1258	8-97618-580-0	01	1	1009-1303	●
34	PIPE; AIR EXC. FRAME EQUIPMENT HEAVY DUTY<F01> L=1258	8-97618-580-0	01	1	1304-	●
34	PIPE; AIR L=1258	8-97618-580-0	01	1	1304-		●
34	PIPE; AIR WHEEL BASE 6300MM(63W) L=1499	8-98158-802-0	01	1	1009-1303	●
51	UNION WHEEL BASE 6300MM(63W) M22	0-92123-315-0	01	1	1009-1303	●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	1009-1303	●
72	UNION; AIR PIPE M22	0-92123-315-0	01	1	1304-	●	●
98	BRACKET; AIR PIPE MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-97609-096-0	01	1	1304-	●
98	BRACKET; AIR PIPE MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98237-153-0	01	1	1304-	●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	1009-1303	●
98	BRACKET; AIR PIPE MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-97609-096-0	02	1	1304-	●
98	BRACKET; AIR PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) (A)	8-97609-096-0	02	1	1304-	●
98	BRACKET; AIR PIPE (A)	8-97609-096-0	02	1	1304-		●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	1009-1303	●
98	BRACKET; AIR PIPE (B)	8-97610-999-0	01	1	1304-	●	●
179	NUT; UNION M22	0-91111-522-0	01	1	1009-1303	●
179	NUT; UNION M22	0-91111-522-0	01	1	1304-	●	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1009-1303	●
180	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1304-	●	●
189	BRACKET; FLEX HOSE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-47479-473-0	01	1	1009-1303	●
189	BRACKET; FLEX HOSE WHEEL BASE 6300MM(63W) (B)	1-47479-598-0	01	1	1009-1303	●
189	BRACKET; FLEX HOSE (A)	1-47479-473-0	01	1	1304-	●	●
189	BRACKET; FLEX HOSE WHEEL BASE 6300MM(63W) (C)	8-98158-821-0	01	1	1009-1303	●
229	ADAPTER; NYLON TUBE MAL6R M/T(Y2J) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	1304-	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1009-1303	●
229	ADAPTER; NYLON TUBE (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1304-	●	●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-1303	●
229	ADAPTER; NYLON TUBE MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1304-	●
229	ADAPTER; NYLON TUBE ZF9S1310 M/T(Y5K) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1304-		●
258	CONNECTOR; NYLON TUBE (A) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-1303	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 6600MM(66W) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-1412	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1501-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 6600MM(66W) (A) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1501-	●
258	CONNECTOR; NYLON TUBE MJT7U M/T(Y4X) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
258	CONNECTOR; NYLON TUBE MJT7U M/T(Y4X) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
258	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
258	CONNECTOR; NYLON TUBE MJT7U M/T(Y4X) (C) PT3/8 & PT3/8	1-09661-303-0	01	1	1009-	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
258	CONNECTOR; NYLON TUBE ZF9S1310 M/T(Y5K) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●	●
258	CONNECTOR; NYLON TUBE A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
264	HOSE; FLEX A/T ALLISON 4430(Y5V) L=1160	8-98208-138-0	01	1	1304-	●
264	HOSE; FLEX ENGINE REAR PTO(SV1) L=1000	1-09363-794-0	01	1	1009-	●
264	HOSE; FLEX EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1009-1303	●
264	HOSE; FLEX MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=1150	1-09363-791-0	01	1	1304-	●
264	HOSE; FLEX ZF9S1310 M/T(Y5K) L=1150	1-09363-791-0	01	1	1304-		●
297	TUBE; NYLON ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1501-	●
297	TUBE; NYLON MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) SERVICED BY L=4000 OD=8	1-87411-007-0	01	1	1501-	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1009-	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1009-	●	●
304	BRACKET; UNION	8-97610-362-1	01	1	1009-1303	●
304	BRACKET; UNION	8-97610-362-1	01	1	1304-	●	●
341	BOLT; BRKT WHEEL BASE 4500MM(45W) M8X35 FLANGE	0-28650-835-0	01	1	1304-	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
341	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
341	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
377	BOLT; BRKT FIX MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
377	BOLT; BRKT FIX WHEEL BASE 4500MM(45W) (B) M8X35 FLANGE	0-28650-835-0	02	1	1304-	●
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
377	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
377	BOLT; BRKT FIX MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
377	BOLT; BRKT FIX (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
421	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
