◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#71415) — 69 parça

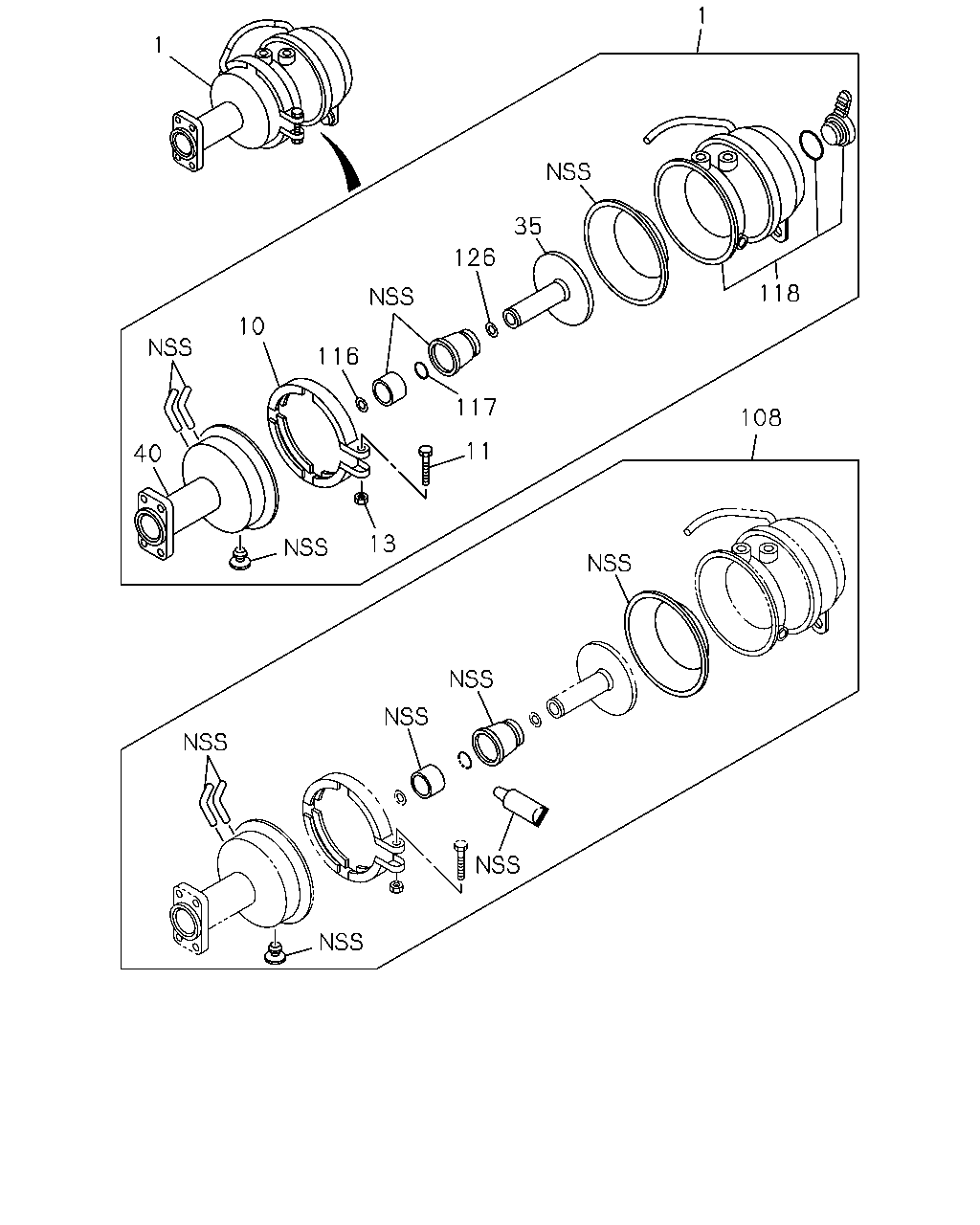

çizim 118314
1 1 40 10 116 126 35 13 11 117 118 108
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1304- ● ●
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1009-1303 ●
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1009-1303 ●
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1304- ● ●
10 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1304- ● ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1009-1303 ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1009-1303 ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1304- ● ●
11 BOLT; CLAMP RING 1-48269-257-0 02 1 1304- ● ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1009-1303 ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1009-1303 ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1304- ● ●
13 NUT; CLAMP RING 1-48269-147-0 02 1 1304- ● ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1009-1303 ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1009-1303 ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1304- ● ●
35 PLATE; ROD END,SPR CHAMBER 8-98146-974-0 02 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-140-1 01 1 1009-1303 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-140-1 01 1 1009-1303 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-140-1 01 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD RH,REARWARD LH 		1-48251-140-1 01 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-141-1 01 1 1009-1303 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-141-1 01 1 1009-1303 ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-141-1 01 1 1304- ● ●
40 COVER ASM; LWR,SPR CHAMBER
FORWARD LH,REARWARD RH 		1-48251-141-1 01 1 1304- ● ●
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1009-1303 ●
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1009-1303 ●
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1304- ● ●
108 REPAIR KIT; SPR CHAMBER 8-98146-982-0 02 1 1304- ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1009-1303 ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1009-1303 ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1304- ● ●
116 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1304- ● ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1009-1303 ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1009-1303 ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1304- ● ●
117 RING; SPR CHAMBER 8-98146-966-0 02 1 1304- ● ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-113-0 01 1 1009-1303 ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-113-0 01 1 1009-1303 ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-113-0 01 1 1304- ● ●
118 CHAMBER; PIGGY BACK
FORWARD RH,REARWARD LH 		1-87412-113-0 01 1 1304- ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-114-0 01 1 1009-1303 ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-114-0 01 1 1009-1303 ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-114-0 01 1 1304- ● ●
118 CHAMBER; PIGGY BACK
FORWARD LH,REARWARD RH 		1-87412-114-0 01 1 1304- ● ●
126 SHIM 8-98146-965-0 AR 1 1009-1303 ●
126 SHIM 8-98146-965-0 AR 1 1009-1303 ●
126 SHIM 8-98146-965-0 AR 1 1304- ● ●
126 SHIM 8-98146-965-0 AR 1 1304- ● ●
çizim 189597
1 1 32 32 1 1 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD RH,REARWARD LH 		1-87412-097-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1009-1303 ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1304- ● ●
1 CHAMBER ASM; SPRING
FORWARD LH,REARWARD RH 		1-87412-098-0 01 1 1304- ● ●
32 CONNECTOR; SPR CHAMBER
HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1009-1303 ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1304- ● ●
32 CONNECTOR; SPR CHAMBER
NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 1009-1303 ●
32 CONNECTOR; SPR CHAMBER
NEW ZEALAND EQUIPMENT(PK5) (B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1009-1303 ●
