Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#71411) — 288 parça

142 24 30 24 31 93 231 142 24 96 58 220 102 105 103 108 108 167 104 99 108 282 231 108 25 108 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

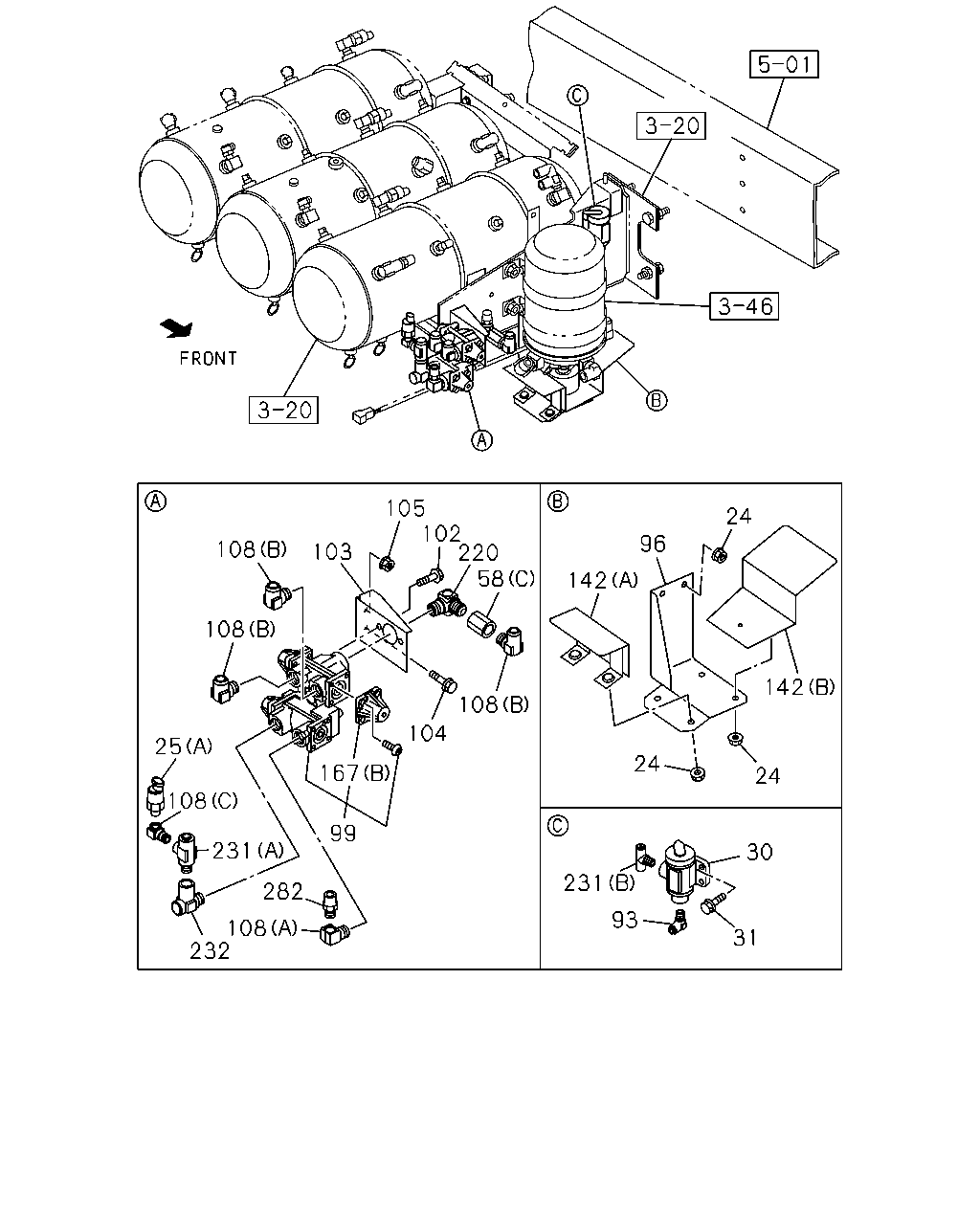

24	NUT M8 FLANGE	0-91180-108-0	06	1	1009-1303	●
24	NUT M8 FLANGE	0-91180-108-0	06	1	1304-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	1009-1303	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1304-	●	●
30	GOVERNOR; AIR CONT HONG KONG EQUIPMENT(PQ1)	1-48350-063-2	01	1	1304-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1009-1303	●
30	GOVERNOR; AIR CONT SINGAPORE EQUIPMENT(WQ3)	1-48350-093-2	01	1	1304-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1303	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1304-	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-1303	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	1304-	●
58	ADAPTER (B) PT3/8	1-48319-058-0	01	1	1009-	●
58	ADAPTER WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	02	1	1009-1303	●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-1303	●
93	CONNECTOR; GOV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●	●
96	BRACKET	8-98093-436-0	01	1	1009-1303	●
96	BRACKET	8-98093-436-0	01	1	1304-	●	●
99	VALVE; PROTECTION BRAKE REGULATION ADR<TDU>	1-48110-294-1	01	1	1009-1303	●
99	VALVE; PROTECTION	1-48110-290-3	01	1	1304-	●	●
99	VALVE; PROTECTION BRAKE REGULATION HONG KONG<TCZ>	1-48110-290-1	01	1	1009-1303	●
99	VALVE; PROTECTION EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU>	1-48110-288-1	01	1	1009-1303	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	1009-1303	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE	0-28050-816-0	02	1	1304-	●	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1009-1303	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1304-	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1009-1303	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1304-	●	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	1009-1303	●
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	01	1	1304-	●	●
108	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1304-		●
108	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-	●
108	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (E) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1304-	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1009-1303	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1304-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	1009-1303	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	1304-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-1303	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●	●
108	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-	●
108	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (E) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1304-	●
108	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1304-		●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1009-1303	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1304-	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1009-1303	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1304-	●	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1304-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1009-1303	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1304-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1009-1303	●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1304-	●	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1009-1303	●
231	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B)	1-09661-073-0	01	1	1304-	●	●
231	CONNECTOR; NYLON TUBE (B)	1-09661-073-0	01	1	1009-1303	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1304-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1009-1303	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1304-	●	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-1303	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-	●	●

155 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

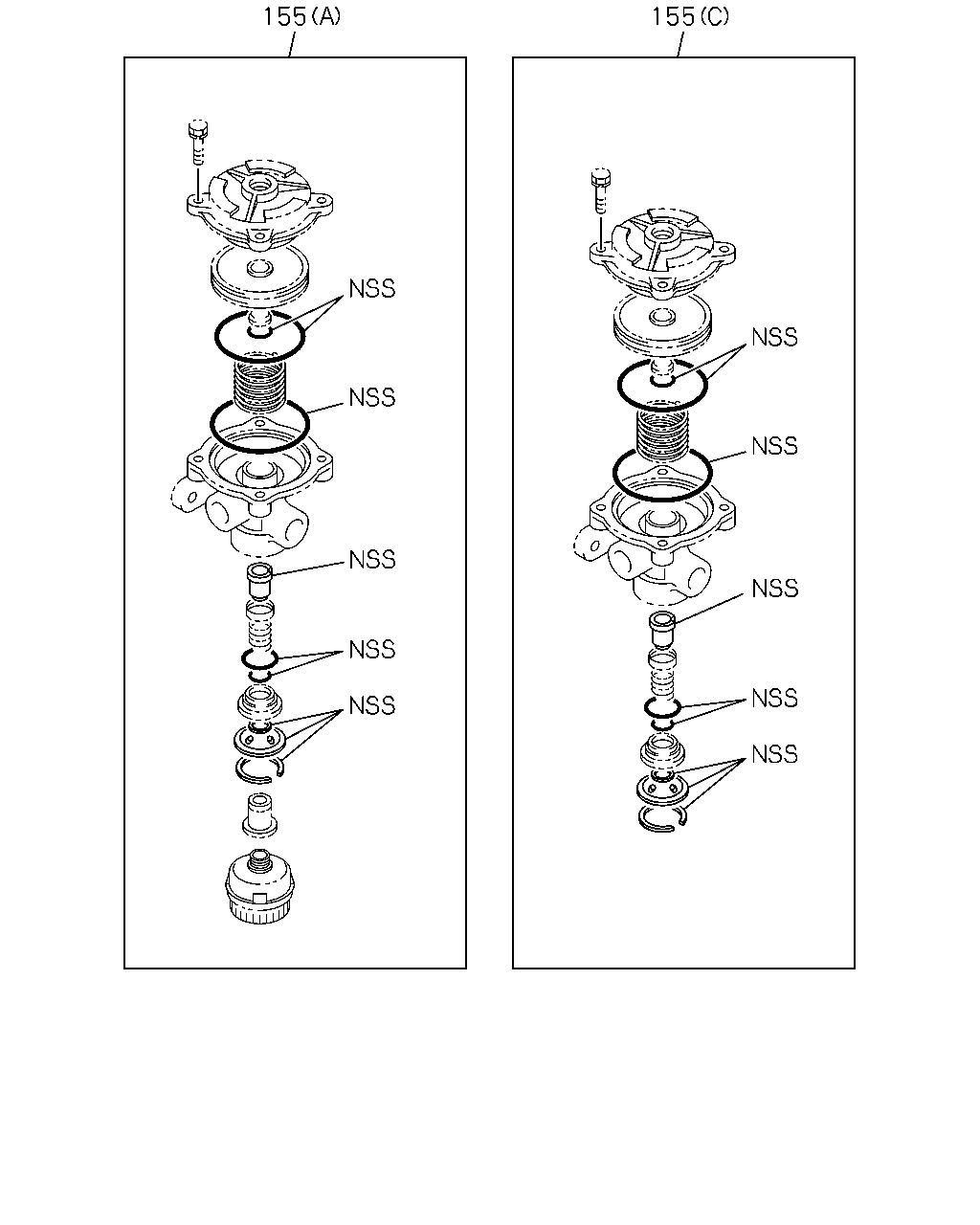

155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1009-1303	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1304-	●	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	02	1	1009-1303	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-033-0	02	1	1009-1303	●
155	REPAIR KIT; RELAY VALVE (C)	1-85576-033-0	02	1	1304-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●

234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●

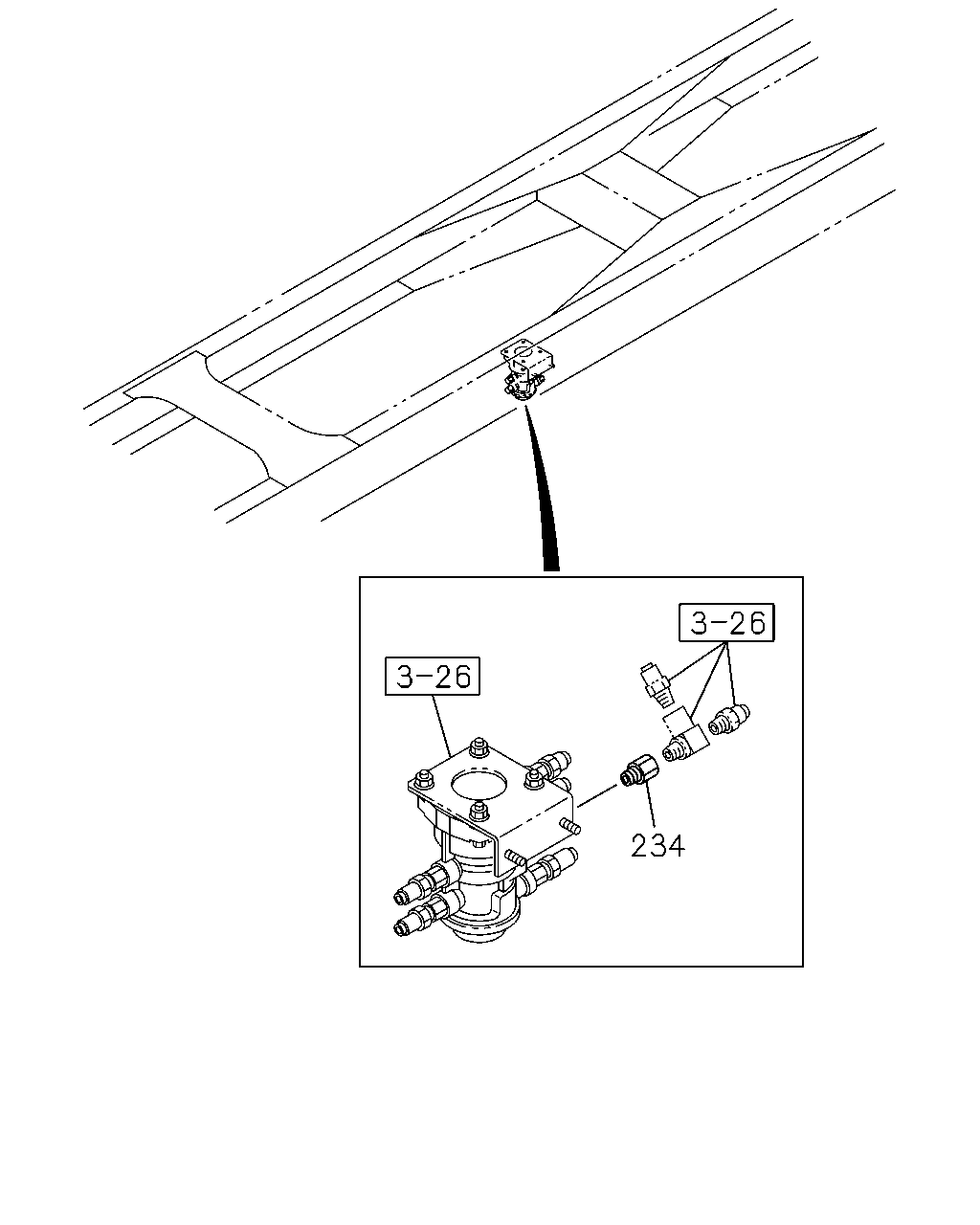

234	UNION PT3/8	1-09664-210-0	01	1	1304-		●

63 65 10 74 10 10 10 74 25 58 213 58 10 62 63 65 62 213 181 74 25 74 10 213 181 10 181 213 74 10 181 74 213 10 10 181 213 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

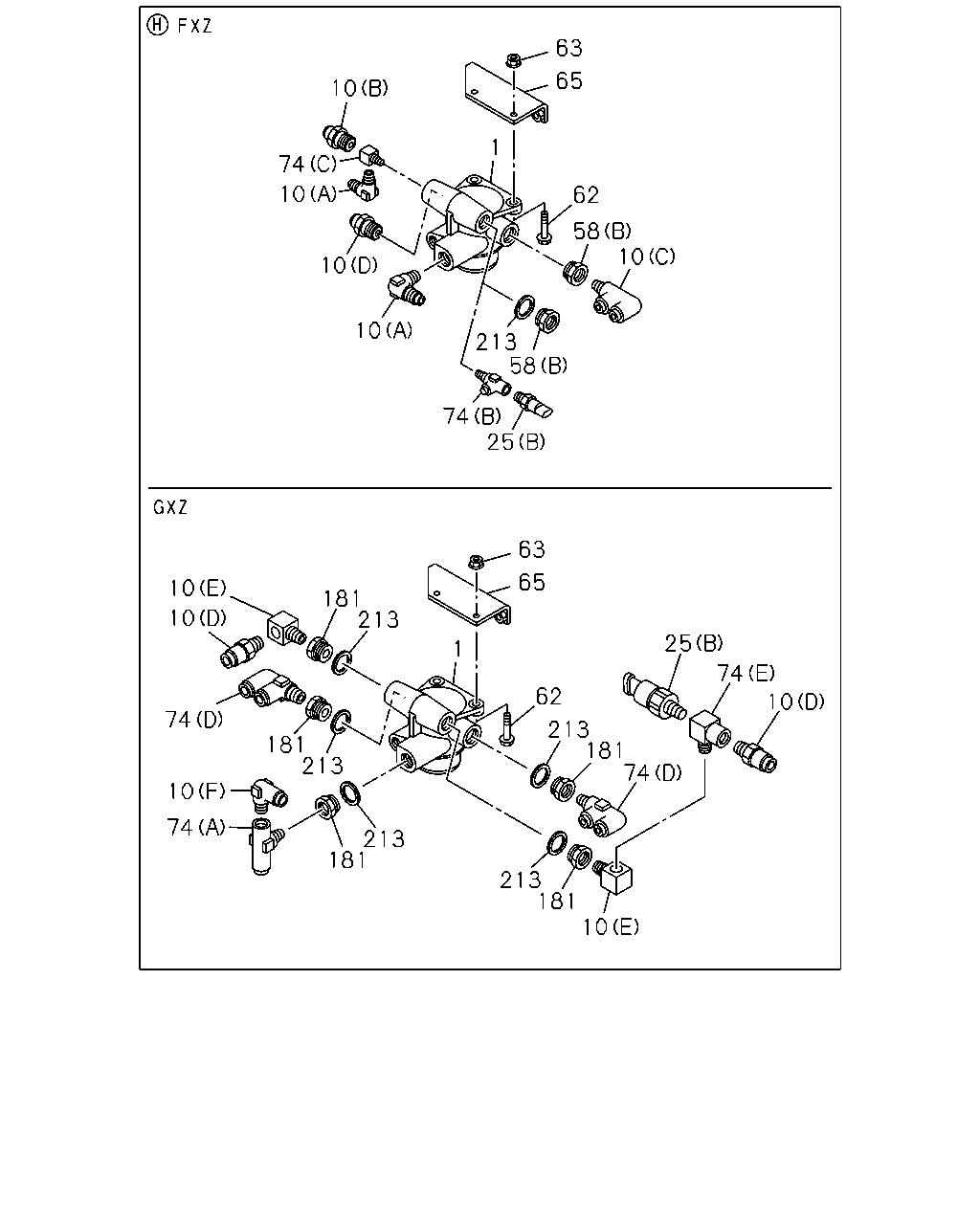

1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1009-1303	●
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1304-	●	●
10	CONNECTOR (E) PT3/8 ELBOW	1-09660-696-0	02	1	1304-		●
10	CONNECTOR (F) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
10	CONNECTOR (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	1304-		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-	●
10	CONNECTOR (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●
10	CONNECTOR (C) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1009-	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT	1-09661-091-0	01	1	1009-1303	●
10	CONNECTOR (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1304-	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
25	SWITCH; PRESSURE (A) STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	1009-1303	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1304-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1303	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1304-	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-1303	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	1304-	●
58	ADAPTER (B) PT3/8	1-48319-058-0	01	1	1009-	●
58	ADAPTER WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	02	1	1009-1303	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1009-1303	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1304-	●	●
74	CONNECTOR; 3WAY (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1304-		●
74	CONNECTOR; 3WAY (E) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1304-		●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1009-1303	●
74	CONNECTOR; 3WAY (C) PT3/8 3WAY	1-09661-300-0	01	1	1304-	●
74	CONNECTOR; 3WAY (C) PT3/8 3WAY	1-09661-300-0	01	1	1009-1303	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1304-	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1304-		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1009-	●
181	ADAPTER; PRESSURE SW INNER PT3/8,OUTER M22	1-09650-494-1	05	1	1304-		●
213	GASKET ID=22.5	9-09571-422-0	04	1	1009-1303	●
213	GASKET ID=22.5	9-09571-422-0	05	1	1304-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●

54 19 6 74 114 54 64 13 276 54 13 48 16 262 157 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

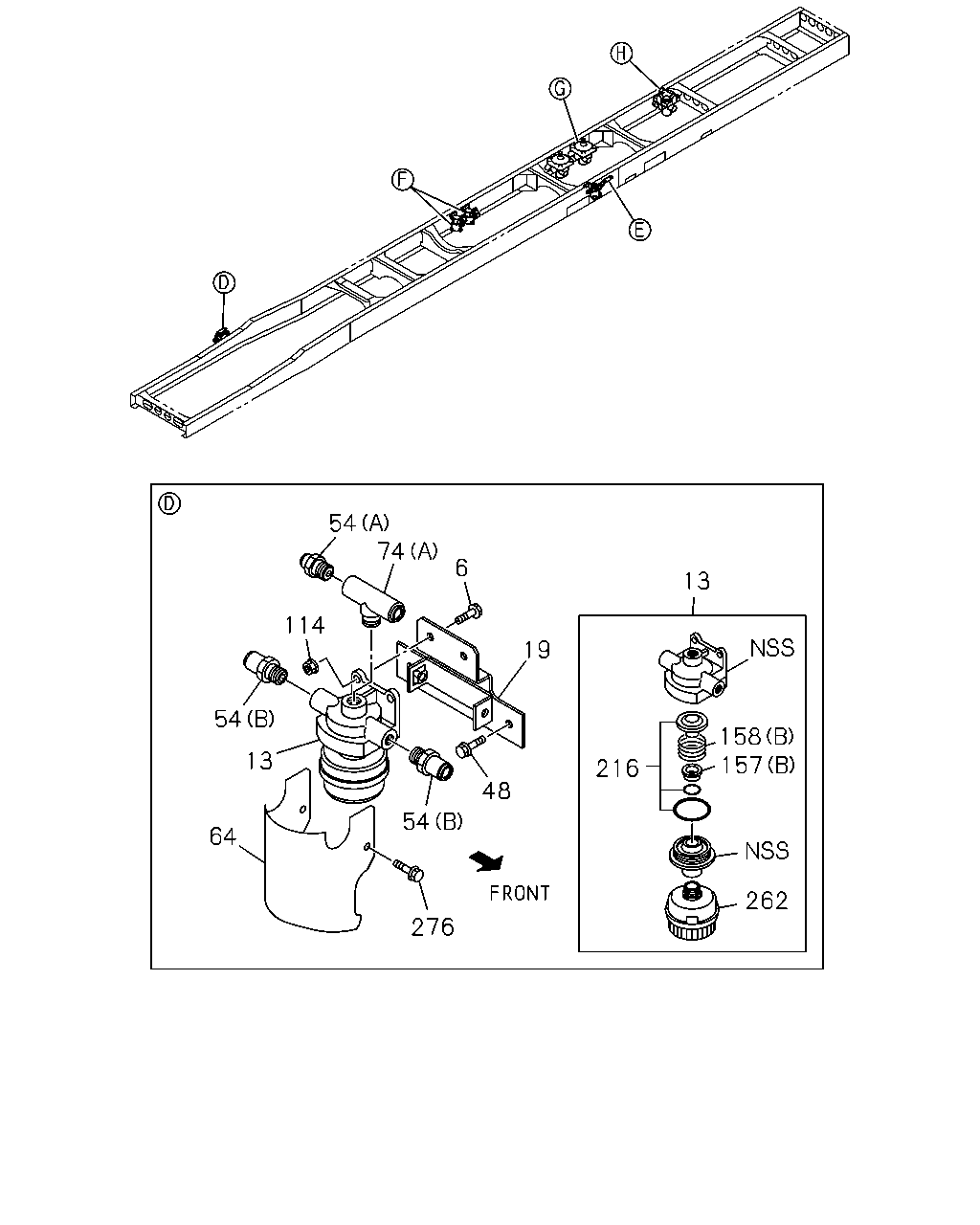

6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
6	BOLT; VLV M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1009-1303	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1304-	●	●
19	BRACKET; QUICK RELEASE VLV	1-47471-014-0	01	1	1009-1303	●
19	BRACKET; QUICK RELEASE VLV	1-47471-014-0	01	1	1304-	●	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-1303	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1304-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-1303	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1304-	●	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	1009-1303	●
64	PROTECTOR; QUICK RELEASE VALVE	8-98043-421-0	01	1	1304-	●	●
74	CONNECTOR; 3WAY (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	02	1	1304-		●
74	CONNECTOR; 3WAY (E) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1304-		●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1009-1303	●
74	CONNECTOR; 3WAY (C) PT3/8 3WAY	1-09661-300-0	01	1	1304-	●
74	CONNECTOR; 3WAY (C) PT3/8 3WAY	1-09661-300-0	01	1	1009-1303	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1304-	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1304-		●
74	CONNECTOR; 3WAY (B) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1009-	●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
114	NUT; VLV M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	1009-1303	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	1304-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48213-002-0	02	1	1009-1303	●
157	RETAINER; VALVE (B)	1-48213-002-0	02	1	1304-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1009-1303	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1304-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1009-1303	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1304-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1009-1303	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1304-	●	●
262	SILENCER; RELAY VALVE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	02	1	1009-1303	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1009-1303	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●

108 27 20 108 242 22 28 120 28 27 108 28 108 27 108 242 108 108 242 56 73 4 12 12 12 12 8 12 12 12 52 2 2 5 55 12 55 55 182 2 12 55 12 2 12 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

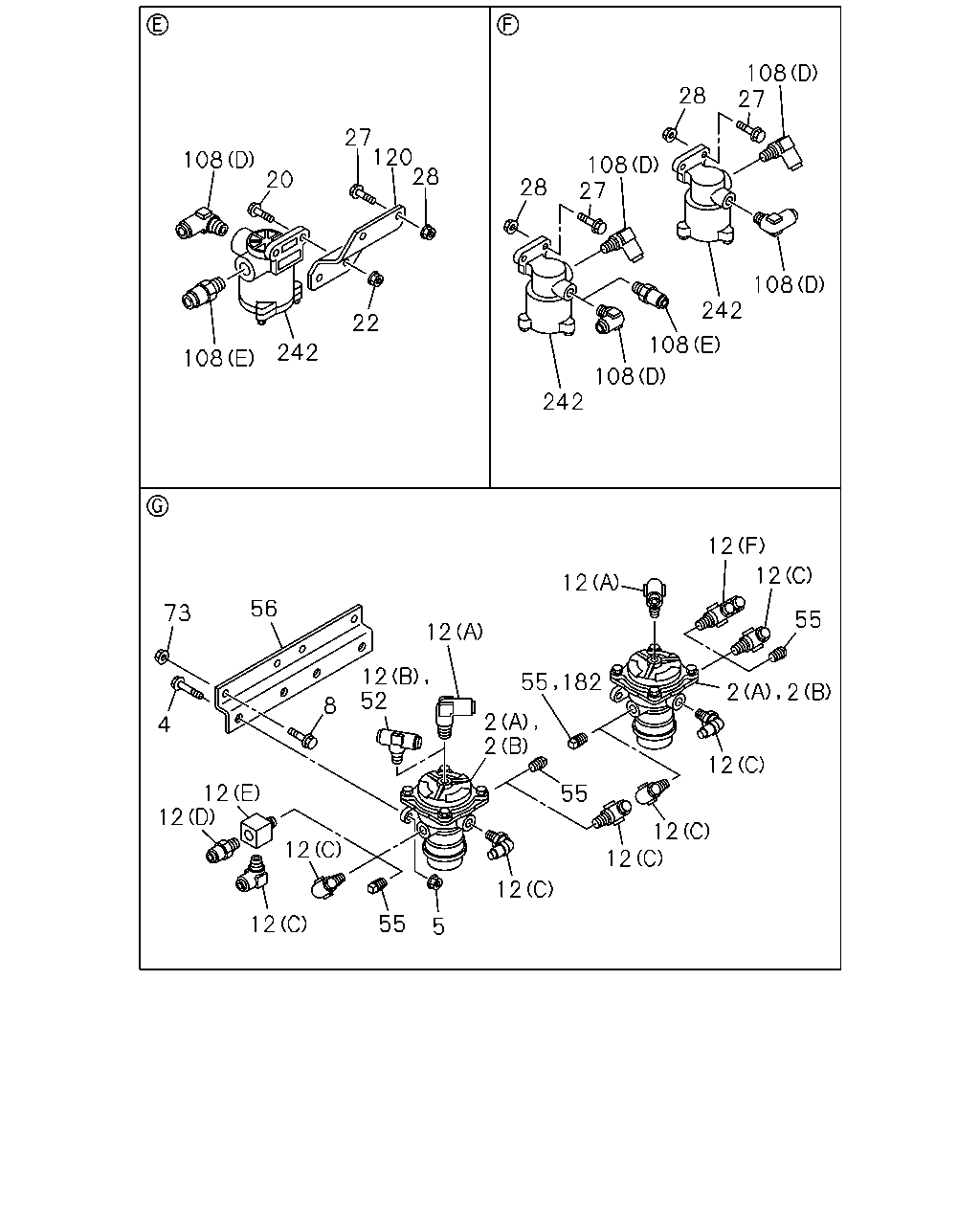

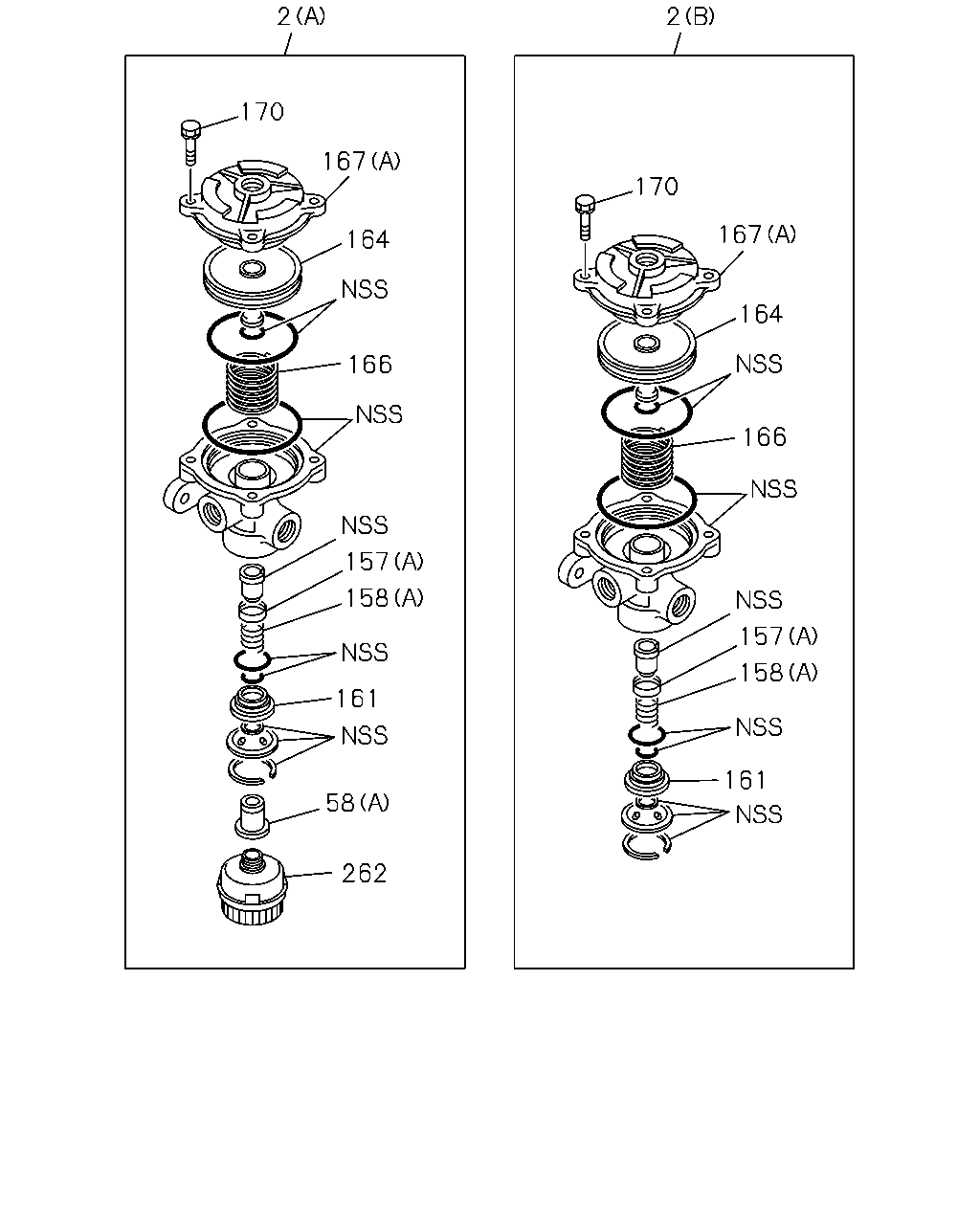

2	VALVE; RELAY WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	02	1	1009-1303	●
2	VALVE; RELAY WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48210-875-0	02	1	1009-1303	●
2	VALVE; RELAY (B)	1-48210-875-0	02	1	1304-	●	●
4	BOLT; RELAY VLV TO BRKT EXC. ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE	0-28651-030-0	04	1	1304-	●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	04	1	1304-		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE	0-28651-035-0	04	1	1009-	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE	0-91180-210-0	04	1	1009-1303	●
5	NUT M10 FLANGE	0-91180-210-0	04	1	1304-	●	●
8	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	04	1	1304-1412	●
8	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1304-1412		●
8	BOLT; BRKT WHEEL BASE 4900MM(49W) M8X25 FLANGE	0-28650-825-0	04	1	1501-	●
8	BOLT; BRKT WHEEL BASE 5300MM(53W) ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	04	1	1501-	●
8	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1501-		●
8	BOLT; BRKT WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	03	1	1009-1303	●
8	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1304-1412	●
8	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28650-825-0	03	1	1501-	●
8	BOLT; BRKT WHEEL BASE 5300MM(53W) EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	03	1	1501-	●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA) (F) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	1304-	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1304-		●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1304-		●
12	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA) (E) PT3/8 3WAY	1-09661-300-0	01	1	1304-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-1303	●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1009-	●
20	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
22	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1304-	●
27	BOLT; AIR VLV WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●
27	BOLT; AIR VLV WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	02	1	1304-	●
27	BOLT; AIR VLV SINGAPORE EQUIPMENT(WQ3) M8X35 FLANGE	0-28650-835-0	04	1	1304-		●
28	NUT; AIR VLV SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	02	1	1304-	●
28	NUT; AIR VLV SINGAPORE EQUIPMENT(WQ3) M8 FLANGE	0-91180-108-0	04	1	1304-		●
52	CONNECTOR; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1304-	●
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	02	1	1009-1303	●
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	02	1	1304-	●
55	PLUG; SUPPLY PT3/8	9-09204-517-0	02	1	1304-		●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA)	1-47479-937-0	01	1	1009-1303	●
56	BRACKET; RELAY VLV	1-47479-937-0	01	1	1304-	●	●
73	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	04	1	1304-1412	●
73	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1304-1412		●
73	NUT; BRKT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	04	1	1501-	●
73	NUT; BRKT WHEEL BASE 5300MM(53W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	04	1	1501-	●
73	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1501-		●
73	NUT; BRKT WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	03	1	1009-1303	●
73	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	03	1	1304-1412	●
73	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	03	1	1501-	●
73	NUT; BRKT WHEEL BASE 5300MM(53W) EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	03	1	1501-	●
108	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1304-		●
108	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-	●
108	CONNECTOR; ELBOW WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (E) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1304-	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1009-1303	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1304-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	1009-1303	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	1304-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-1303	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●	●
108	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1304-	●
108	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) (E) DIN12 & R1/4 STRAIGHT	1-09660-967-0	01	1	1304-	●
108	CONNECTOR; ELBOW SINGAPORE EQUIPMENT(WQ3) (D) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1304-		●
120	BRACKET; VLV WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) SINGAPORE EQUIPMENT(WQ3)	8-98088-292-0	01	1	1304-	●
182	PLUG; RELAY VLV EXC. ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	01	1	1304-	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
242	VALVE; REGULATION SINGAPORE EQUIPMENT(WQ3)	1-48410-722-0	02	1	1304-		●
242	VALVE; REGULATION WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3)	1-48410-722-0	01	1	1304-	●
242	VALVE; REGULATION WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3)	1-48410-722-0	01	1	1304-	●
242	VALVE; REGULATION SINGAPORE EQUIPMENT(WQ3)	1-48410-722-0	02	1	1304-		●

2 2 170 167 164 166 157 158 161 58 262 170 164 167 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48210-997-0	02	1	1009-1303	●
2	VALVE; RELAY WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48210-875-0	02	1	1009-1303	●
2	VALVE; RELAY (B)	1-48210-875-0	02	1	1304-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1303	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1304-	●	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1009-1303	●
58	ADAPTER (B) INNER PT3/8,OUTER M22	1-09650-494-1	05	1	1304-	●
58	ADAPTER (B) PT3/8	1-48319-058-0	01	1	1009-	●
58	ADAPTER WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A) M22 ADAPTER	1-48219-154-0	02	1	1009-1303	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	1009-1303	●
157	RETAINER; VALVE (A)	1-48419-020-0	01	1	1304-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (B)	1-48213-002-0	02	1	1009-1303	●
157	RETAINER; VALVE (B)	1-48213-002-0	02	1	1304-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1009-1303	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1304-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1009-1303	●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	1304-	●	●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	02	1	1009-1303	●
161	GUIDE; VALVE	1-48129-014-0	02	1	1304-	●	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-071-0	02	1	1009-1303	●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	1304-	●	●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	02	1	1009-1303	●
166	SPRING; PISTON	1-47819-090-0	02	1	1304-	●	●
167	COVER; VALVE (B)	1-48119-625-0	04	1	1304-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1009-1303	●
167	COVER; VALVE (A)	1-48219-070-0	02	1	1304-	●	●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA)	1-48219-039-0	08	1	1009-1303	●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	1304-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1009-1303	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1304-	●	●
262	SILENCER; RELAY VALVE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA)	1-48219-149-0	02	1	1009-1303	●

259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
259	REPAIR KIT; VALVE SINGAPORE EQUIPMENT(WQ3) W/GREASE	1-85576-381-0	02	1	1304-		●
259	REPAIR KIT; VALVE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W), WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) SINGAPORE EQUIPMENT(WQ3) W/GREASE	1-85576-381-0	01	1	1304-	●

240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1009-1303	●
240	REPAIR KIT; AIR CONT GOV HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3)	1-85576-467-0	01	1	1304-	●	●

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1009-1303	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1304-	●	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-294-0	02	1	1009-1303	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6300MM(63W) ANTILOCK BRAKE SYSTEM(BFA) (C)	1-85576-033-0	02	1	1009-1303	●
155	REPAIR KIT; RELAY VALVE (C)	1-85576-033-0	02	1	1304-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1009-1303	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1304-	●	●

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1009-1109	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-1303	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1304-	●	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-451-2	01	1	1304-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
