Sayfa 3-20 - Isuzu EPC

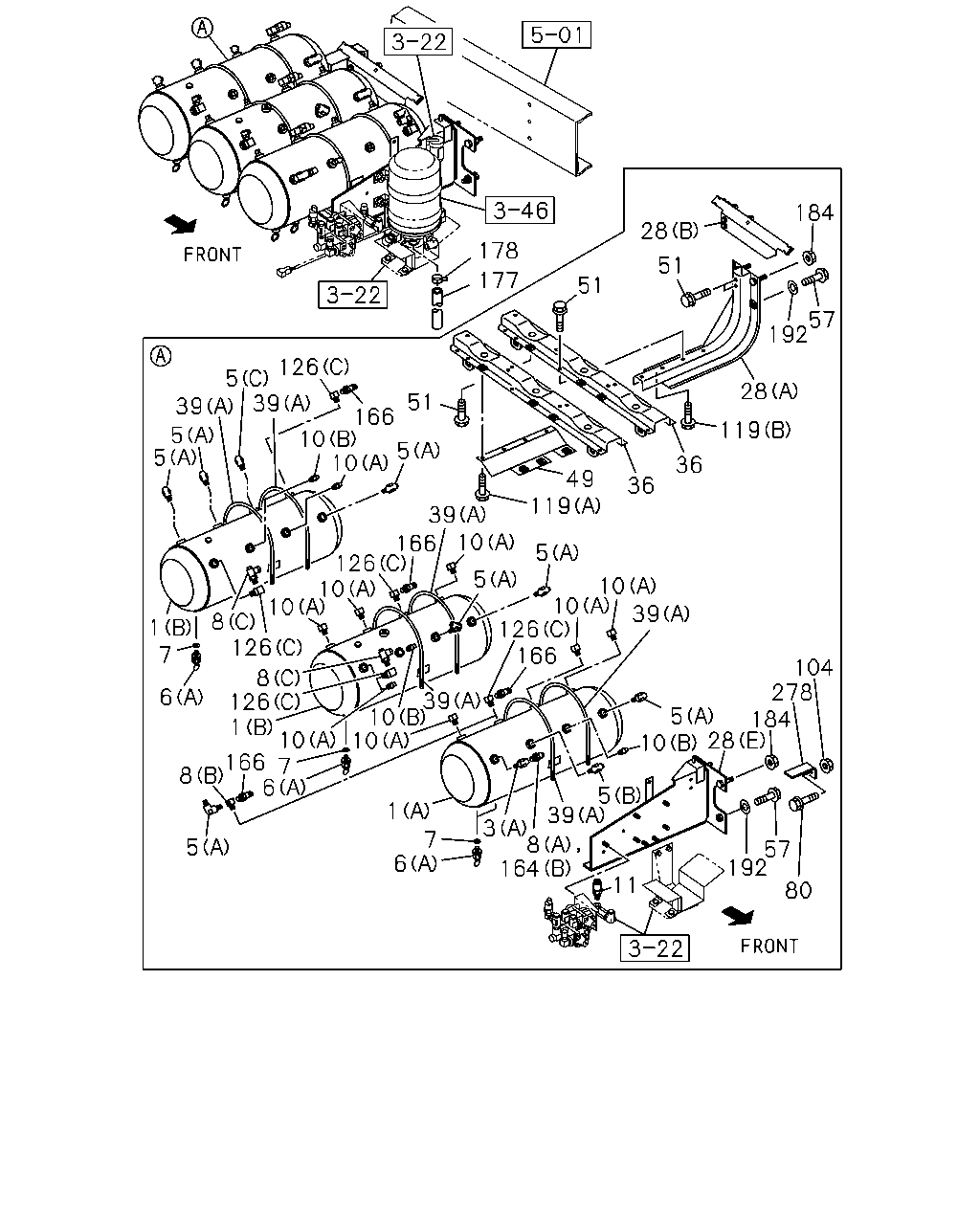

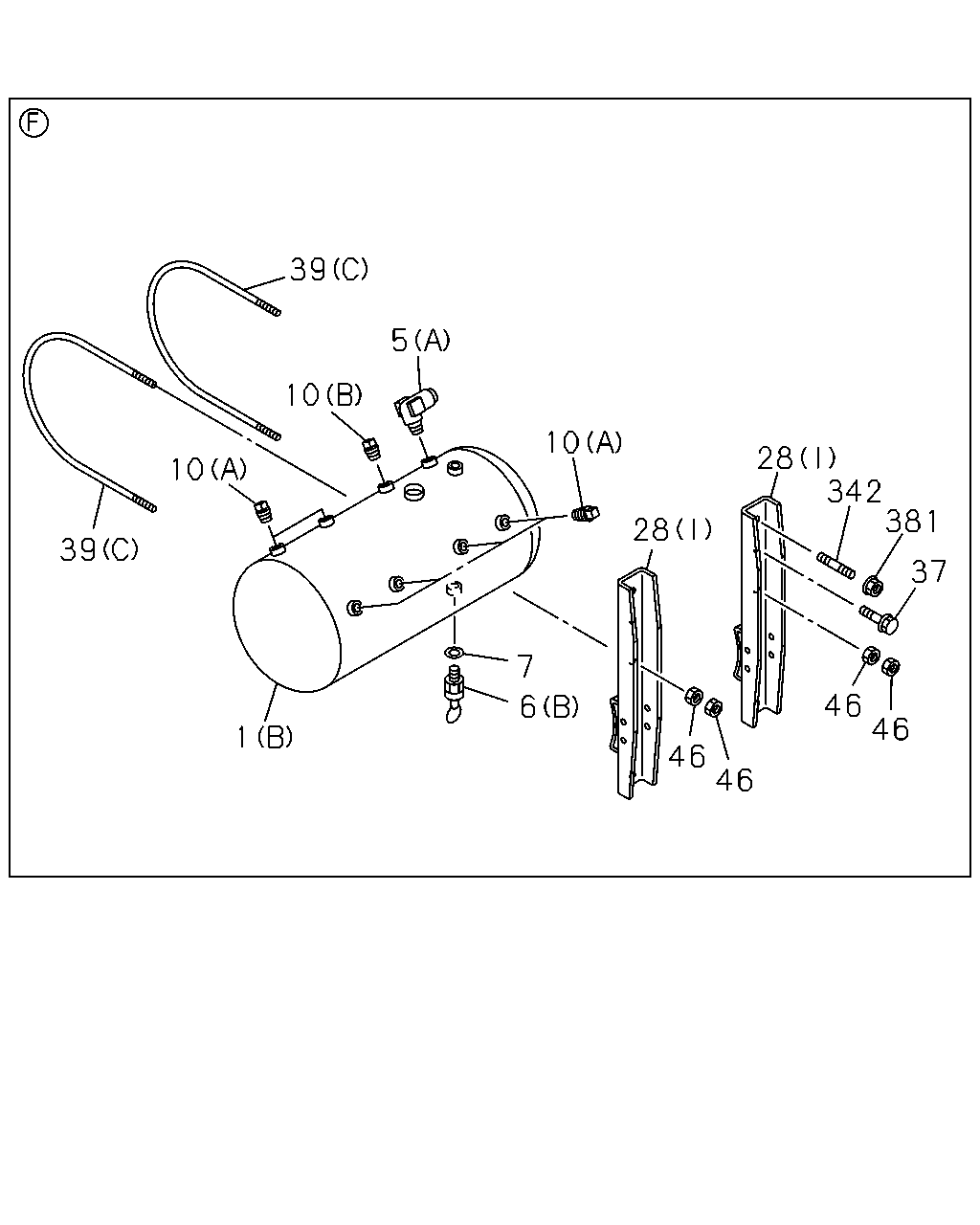

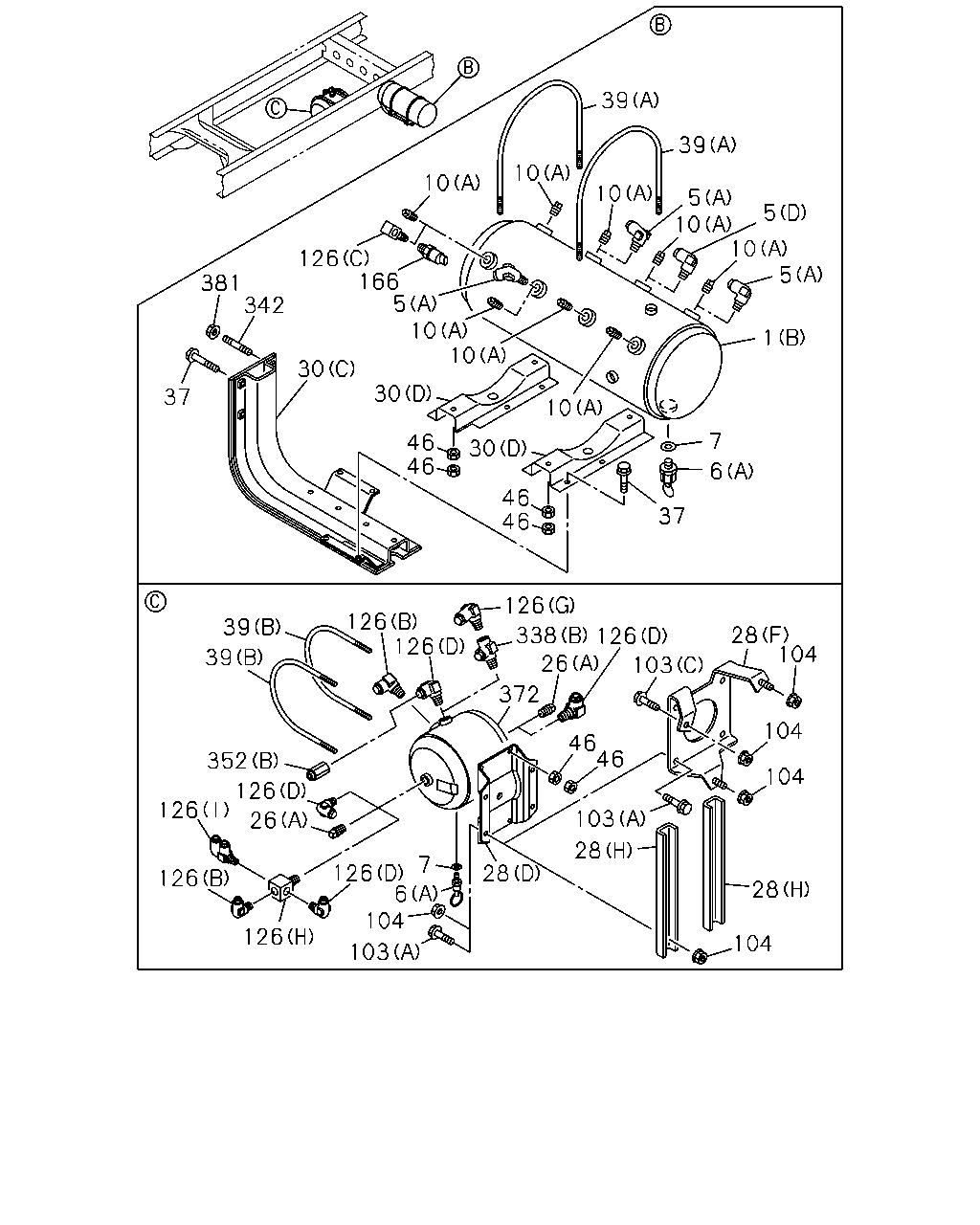

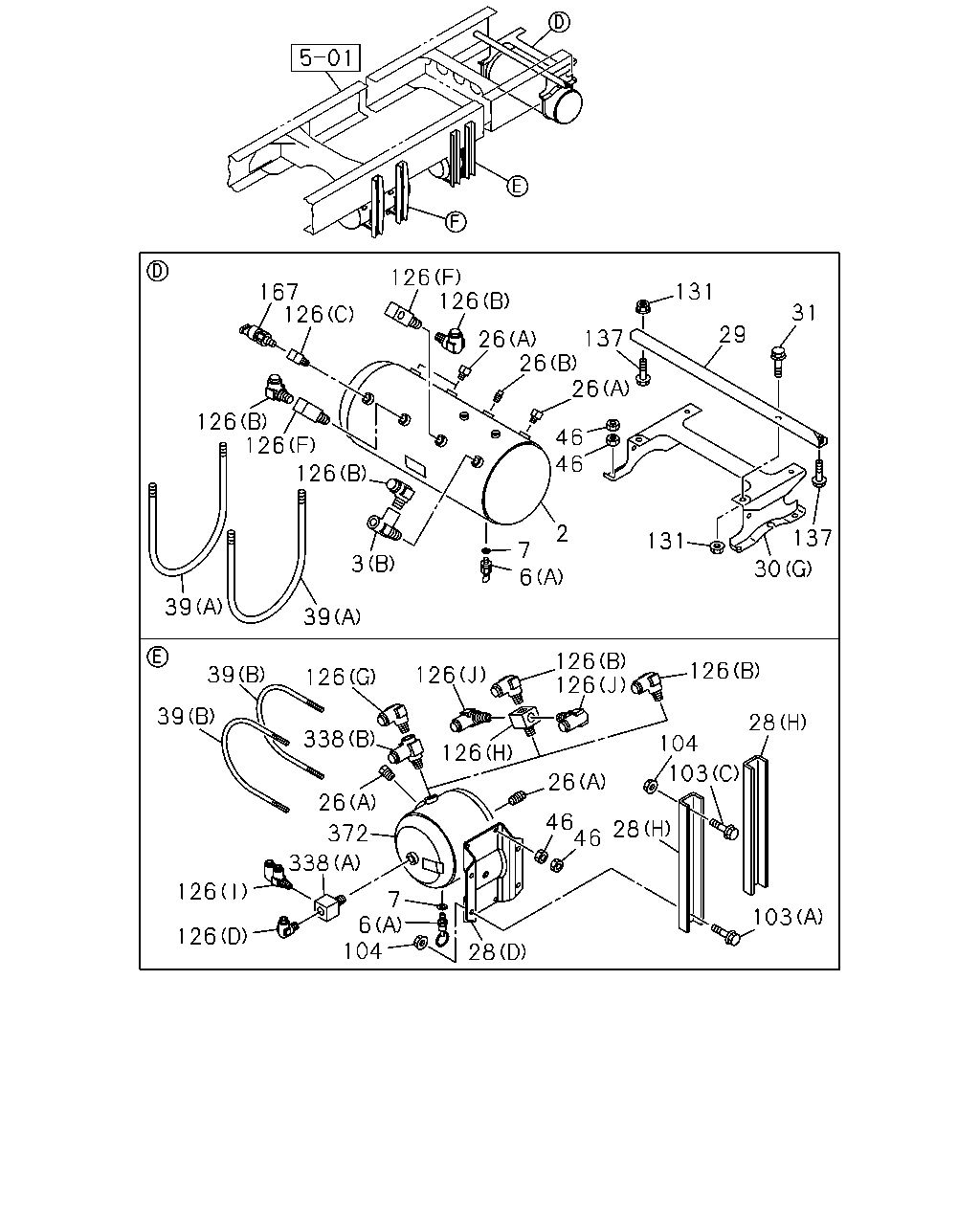

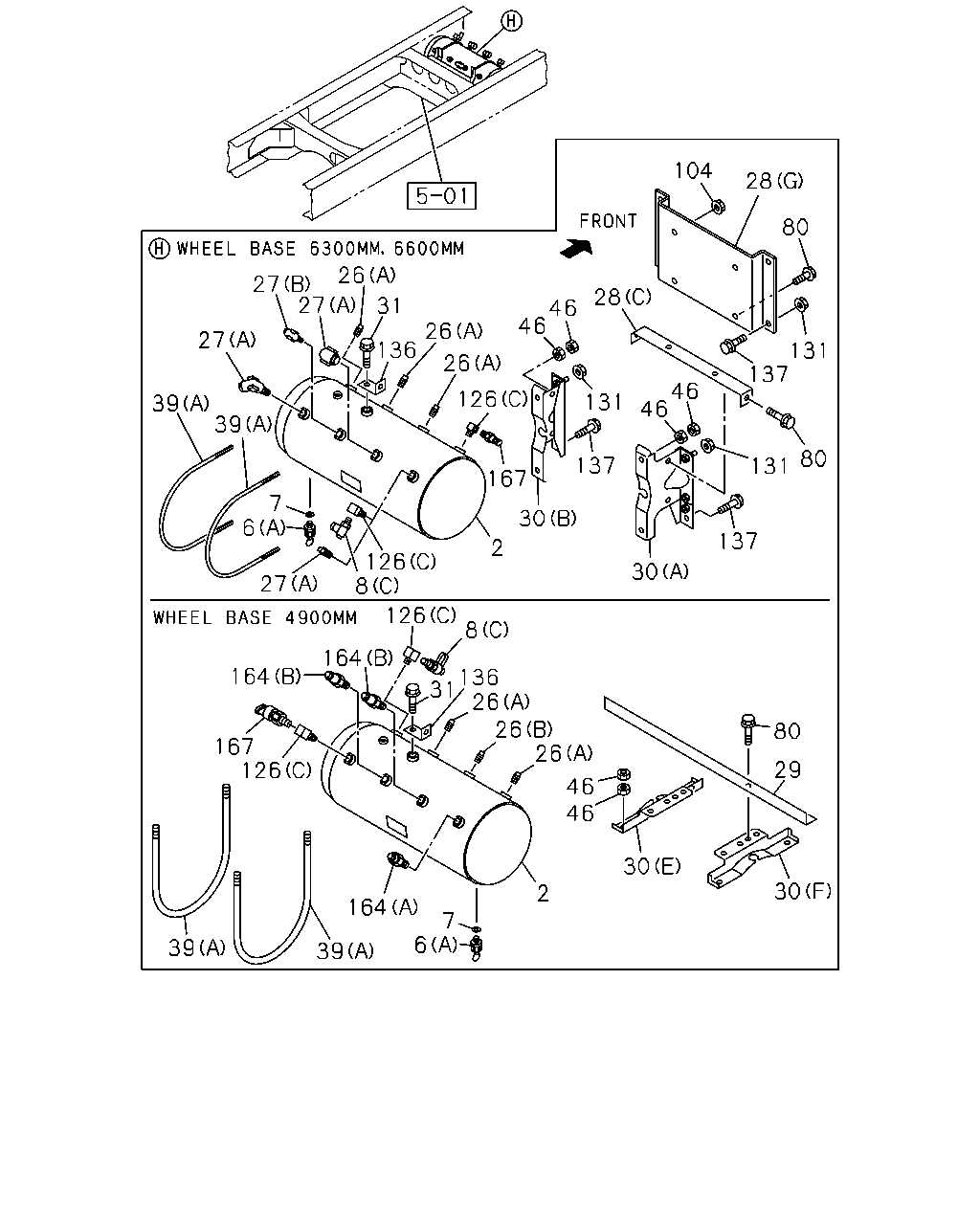

3-20 — AIR TANK (#71410) — 1074 parça

167 126 126 26 26 137 131 29 31 26 46 46 131 30 137 126 126 126 2 7 6 28 104 103 28 103 126 126 26 46 46 126 338 26 372 338 7 6 104 28 126 126 39 39 39 39 126 126 126 126 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR	8-97617-855-1	01	1	1009-1106	●
2	TANK; AIR	8-98187-713-0	01	1	1107-1303	●
2	TANK; AIR	8-98187-713-0	01	1	1304-		●
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1304-		●
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1009-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W) (A)	1-48312-015-0	03	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	03	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	1009-1303	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1009-1303	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	1009-1303	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	1304-	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 6300MM(63W) (A) PT3/8	9-09204-517-0	04	1	1009-1303	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-		●
28	BRACKET; AIR TANK (I)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-1303	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1304-	●	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 5300MM(53W) (F)	8-98100-984-0	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6300MM(63W) (C)	8-97621-120-1	01	1	1009-1010	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (G)	8-98100-837-1	01	1	1009-1303	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK (H)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-985-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
29	BRACKET; AIR TANK WHEEL BASE 4900MM(49W)	8-97620-998-0	01	1	1009-1303	●
29	BRACKET; AIR TANK	8-97619-245-1	01	1	1304-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (G)	8-98234-793-0	01	1	1304-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (C)	8-97618-393-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1304-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (D)	8-97618-394-0	02	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1304-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1009-1303	●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1304-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-	●	●
46	NUT; U-BOLT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1304-	●
103	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-	●
103	BOLT; BRKT (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-		●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (D) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
103	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1009-1303	●
103	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
103	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1009-1303	●
103	BOLT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-1303	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1304-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	03	1	1304-	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-1303	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
104	NUT; BRKT WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	02	1	1304-	●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1304-		●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW (F) PT3/8 & PT3/8 ELBOW	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-1504	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
131	NUT; BRKT FIX WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	03	1	1009-1303	●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	05	1	1304-		●
131	NUT; BRKT FIX WHEEL BASE 6300MM(63W) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
131	NUT; BRKT FIX WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	04	1	1009-1303	●
137	BOLT; BRKT WHEEL BASE 4900MM(49W) M12X30 FLANGE	0-28651-230-0	04	1	1009-1303	●
137	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	1304-		●
137	BOLT; BRKT WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) M12X30 FLANGE	0-28651-230-0	02	1	1009-1303	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1304-		●
338	CONNECTOR; 3WAY VLV MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8 3WAY	1-09661-300-0	01	1	1304-	●
338	CONNECTOR; 3WAY VLV AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8 3WAY	1-09661-300-0	01	1	1304-		●
338	CONNECTOR; 3WAY VLV MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-	●
338	CONNECTOR; 3WAY VLV MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-	●
338	CONNECTOR; 3WAY VLV AIR SUSP DRIVER SEAT(A56) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-		●
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1009-1303	●
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1304-	●	●

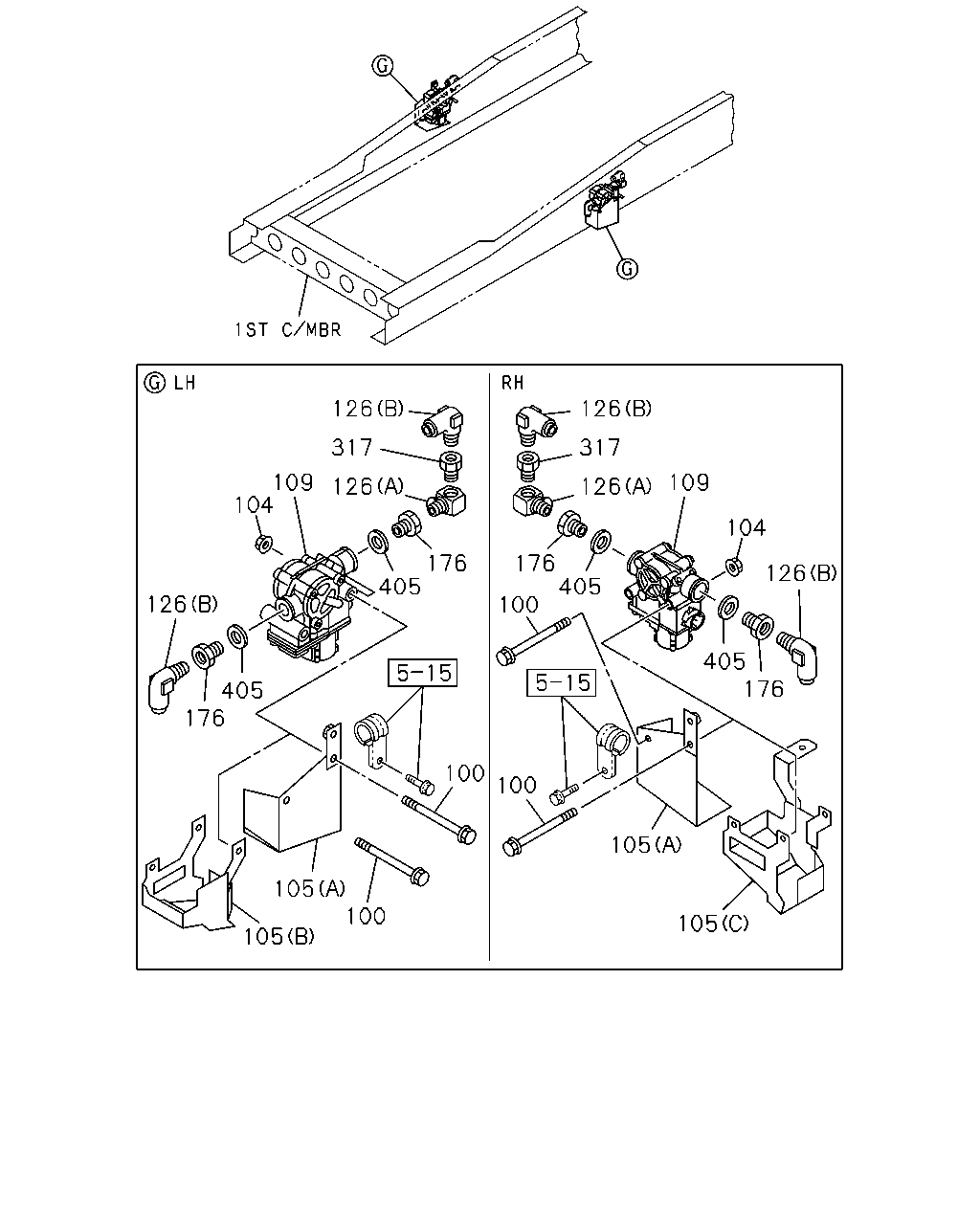

126 126 126 109 104 126 317 176 405 100 405 176 105 105 100 317 109 104 126 405 405 176 105 100 105 100 176 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1009-1303	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1304-	●	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1009-1303	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1304-	●	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-1303	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1304-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	03	1	1304-	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-1303	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
104	NUT; BRKT WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	02	1	1304-	●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1304-		●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98061-815-0	01	1	1009-1303	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98061-815-0	01	1	1304-1504	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98300-152-0	01	1	1505-	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98164-196-0	01	1	1009-1303	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98164-196-0	01	1	1304-1504	●	●
105	COVER; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98300-155-0	01	1	1505-	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1009-1303	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1304-1504	●	●
109	MODULATOR; FRT ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW (F) PT3/8 & PT3/8 ELBOW	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-1504	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-1303	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1304-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1303	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1304-	●	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) PT3/8	1-09664-210-0	01	1	1009-1303	●
317	CONNECTOR; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) PT3/8	1-09664-210-0	01	1	1304-	●	●
405	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	04	1	1009-1303	●
405	GASKET ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	04	1	1304-	●	●

104 28 80 131 137 131 80 137 30 30 2 167 126 8 27 6 7 39 39 27 27 26 136 27 26 126 26 137 131 46 46 28 46 46 31 126 136 26 26 26 46 46 30 30 29 80 2 7 6 164 39 39 126 167 164 164 8 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	TANK; AIR	8-97617-855-1	01	1	1009-1106	●
2	TANK; AIR	8-98187-713-0	01	1	1107-1303	●
2	TANK; AIR	8-98187-713-0	01	1	1304-		●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W) (A)	1-48312-015-0	03	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	03	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-1303	●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1304-		●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-1303	●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-1303	●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-1303	●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	1009-1303	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1009-1303	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	1009-1303	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	1304-	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 6300MM(63W) (A) PT3/8	9-09204-517-0	04	1	1009-1303	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-		●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B) DIN12 & R1/4 ELBOW	1-09660-958-0	01	1	1009-1303	●
27	UNION; ELBOW,AIR TANK WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
28	BRACKET; AIR TANK (I)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-1303	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1304-	●	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 5300MM(53W) (F)	8-98100-984-0	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6300MM(63W) (C)	8-97621-120-1	01	1	1009-1010	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (G)	8-98100-837-1	01	1	1009-1303	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK (H)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-985-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
29	BRACKET; AIR TANK WHEEL BASE 4900MM(49W)	8-97620-998-0	01	1	1009-1303	●
29	BRACKET; AIR TANK	8-97619-245-1	01	1	1304-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (G)	8-98234-793-0	01	1	1304-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (C)	8-97618-393-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1304-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (D)	8-97618-394-0	02	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1304-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1009-1303	●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
31	BOLT; BRKT TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1304-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-	●	●
46	NUT; U-BOLT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1304-	●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
80	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28650-820-0	02	1	1009-1010	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M12X35 FLANGE	0-28651-235-0	02	1	1009-1303	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-1303	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1304-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	03	1	1304-	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-1303	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
104	NUT; BRKT WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	02	1	1304-	●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1304-		●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW (F) PT3/8 & PT3/8 ELBOW	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-1504	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
131	NUT; BRKT FIX WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	03	1	1009-1303	●
131	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	05	1	1304-		●
131	NUT; BRKT FIX WHEEL BASE 6300MM(63W) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
131	NUT; BRKT FIX WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	04	1	1009-1303	●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1009-1303	●
136	BRACKET; CLIP L=55 B=25	1-47478-439-0	01	1	1304-	●	●
137	BOLT; BRKT WHEEL BASE 4900MM(49W) M12X30 FLANGE	0-28651-230-0	04	1	1009-1303	●
137	BOLT; BRKT M12X35 FLANGE	0-28651-235-0	06	1	1304-		●
137	BOLT; BRKT WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) M12X30 FLANGE	0-28651-230-0	02	1	1009-1303	●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-1303	●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-1303	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB STAMP 5.5	8-97609-249-0	01	1	1304-		●

37 7 46 6 46 30 10 46 46 30 30 342 381 37 166 126 10 5 10 10 10 39 10 39 5 5 10 10 5 1 28 104 104 104 28 104 28 46 46 372 126 103 26 338 126 126 126 39 39 352 123 26 126 126 103 7 126 6 104 103 28 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (A)	8-97617-854-0	01	1	1009-1106	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●
1	TANK ASM; AIR WHEEL BASE 6300MM(63W) (B)	8-97617-855-1	02	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 6300MM(63W) (B)	8-98187-713-0	02	1	1107-1303	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1304-		●
5	UNION; AIR TANK (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1304-		●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK WHEEL BASE 6300MM(63W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W) (A)	1-48312-015-0	03	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	03	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	1304-		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	01	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1304-		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●
10	PLUG; AIR TANK WHEEL BASE 6300MM(63W) (B) PT1/4	9-99204-513-0	02	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK TRANSMISSION-FULLER RTO11908(Y5L) (A) PT3/8	9-09204-517-0	01	1	1009-1303	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) PT3/8	9-09204-517-0	02	1	1009-1303	●
26	PLUG; SUB AIR TANK ZF9S1310 M/T(Y5K) (A) PT3/8	9-09204-517-0	02	1	1009-1303	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	1304-	●	●
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
26	PLUG; SUB AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-		●
26	PLUG; SUB AIR TANK WHEEL BASE 6300MM(63W) (A) PT3/8	9-09204-517-0	04	1	1009-1303	●
26	PLUG; SUB AIR TANK WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
26	PLUG; SUB AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-	●
26	PLUG; SUB AIR TANK AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8	9-09204-517-0	02	1	1304-		●
28	BRACKET; AIR TANK (I)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-1303	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1304-	●	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 5300MM(53W) (F)	8-98100-984-0	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6300MM(63W) (C)	8-97621-120-1	01	1	1009-1010	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (G)	8-98100-837-1	01	1	1009-1303	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK (H)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-985-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (E)	8-98100-865-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (G)	8-98234-793-0	01	1	1304-		●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W) (F)	8-98100-866-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (C)	8-97618-393-0	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (C)	8-97618-393-0	01	1	1304-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) (D)	8-97618-394-0	02	1	1009-1303	●
30	BRACKET; AIR TANK,SUB (D)	8-97618-394-0	02	1	1304-	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (A)	8-97618-390-1	01	1	1009-1303	●
30	BRACKET; AIR TANK,SUB WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) (B)	8-97618-391-1	01	1	1009-1303	●
37	BOLT; AIR TANK WHEEL BASE 6600MM(66W) BRAKE REGULATION HONG KONG<TCZ> M10X25 FLANGE	0-28651-025-0	08	1	1009-1303	●
37	BOLT; AIR TANK NEW ZEALAND EQUIPMENT(PK5) M10X25 FLANGE	0-28651-025-0	08	1	1009-1303	●
37	BOLT; AIR TANK M10X25 FLANGE	0-28651-025-0	08	1	1304-	●
37	BOLT; AIR TANK NEW ZEALAND EQUIPMENT(PK5) M10X40 FLANGE	0-28651-040-0	02	1	1009-1303	●
37	BOLT; AIR TANK M10X40 FLANGE	0-28651-040-0	02	1	1304-	●
37	BOLT; AIR TANK WHEEL BASE 6600MM(66W) BRAKE REGULATION HONG KONG<TCZ> M10X40 FLANGE	0-28651-040-0	04	1	1009-1303	●
37	BOLT; AIR TANK M12X35 FLANGE	0-28651-235-0	02	1	1304-		●
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1304-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-	●	●
46	NUT; U-BOLT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1304-	●
103	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-	●
103	BOLT; BRKT (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-		●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (D) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
103	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1009-1303	●
103	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
103	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1009-1303	●
103	BOLT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-1303	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1304-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	03	1	1304-	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-1303	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
104	NUT; BRKT WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	02	1	1304-	●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1304-		●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW (F) PT3/8 & PT3/8 ELBOW	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-1504	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4900MM(49W) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK NEW ZEALAND EQUIPMENT(PK5) ENGINE REAR PTO(SV1) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6300MM(63W) STAMP 5.5	8-97609-249-0	02	1	1009-1303	●
338	CONNECTOR; 3WAY VLV MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8 3WAY	1-09661-300-0	01	1	1304-	●
338	CONNECTOR; 3WAY VLV AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (A) PT3/8 3WAY	1-09661-300-0	01	1	1304-		●
338	CONNECTOR; 3WAY VLV MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-	●
338	CONNECTOR; 3WAY VLV MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-	●
338	CONNECTOR; 3WAY VLV AIR SUSP DRIVER SEAT(A56) (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1304-		●
342	STUD M12X30,M12X16 L=56	8-98144-947-0	02	1	1304-		●
342	STUD NEW ZEALAND EQUIPMENT(PK5) M10X30 L=45	8-98035-675-0	02	1	1009-1303	●
342	STUD M10X30 L=45	8-98035-675-0	02	1	1304-	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-1303	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1304-	●	●
352	CONNECTOR; STRAIGHT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-1303	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504		●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1505-	●	●
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1009-1303	●
372	TANK; AIR,ACCESORY	8-98090-803-1	01	1	1304-	●	●
381	NUT; SUB TANK M12 FLANGE	0-91180-212-0	02	1	1304-		●
381	NUT; SUB TANK NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE	0-91180-210-0	02	1	1009-1303	●
381	NUT; SUB TANK M10 FLANGE	0-91180-210-0	02	1	1304-	●

5 5 39 5 39 126 10 166 51 10 5 39 166 126 10 10 8 1 7 6 8 5 6 166 7 1 126 8 126 10 10 10 39 166 1 7 6 3 164 8 39 5 10 5 28 192 57 80 11 184 278 104 39 10 10 126 5 10 119 5 49 36 36 119 28 192 57 184 51 28 51 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (A)	8-97617-854-0	01	1	1009-1106	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●
1	TANK ASM; AIR WHEEL BASE 6300MM(63W) (B)	8-97617-855-1	02	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 6300MM(63W) (B)	8-98187-713-0	02	1	1107-1303	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1304-		●
3	VALVE; CHECK,AIR TANK (B) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1304-		●
3	VALVE; CHECK,AIR TANK (A)	1-48320-031-1	01	1	1009-	●
5	UNION; AIR TANK (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1304-		●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK WHEEL BASE 6300MM(63W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W) (A)	1-48312-015-0	03	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	03	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1009-1303	●
8	CONNECTOR; AIR TANK (B) PT3/8X2 & PT1/4 3WAY	1-09656-708-0	01	1	1304-		●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-1303	●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-1303	●
8	CONNECTOR; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1009-1303	●
8	CONNECTOR; AIR TANK (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1009-	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	1304-		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	01	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1304-		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●
10	PLUG; AIR TANK WHEEL BASE 6300MM(63W) (B) PT1/4	9-99204-513-0	02	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1009-1303	●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	1304-	●	●
28	BRACKET; AIR TANK (I)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-1303	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1304-	●	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 5300MM(53W) (F)	8-98100-984-0	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6300MM(63W) (C)	8-97621-120-1	01	1	1009-1010	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (G)	8-98100-837-1	01	1	1009-1303	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK (H)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-985-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
36	STAY; MAIN TANK	8-97618-091-1	02	1	1009-1303	●
36	STAY; MAIN TANK	8-97618-091-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1304-	●	●
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1009-1303	●
49	BRACKET; AIR TANK	8-98110-683-0	01	1	1304-	●	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1009-1303	●
51	BOLT; STAY TO BRKT M8X20 FLANGE	0-28650-820-0	10	1	1304-	●	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1009-1303	●
57	BOLT; BRKT,AIR TANK TO FRAME M14X45	1-09000-764-0	04	1	1304-	●	●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
80	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
80	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X20 FLANGE	0-28650-820-0	02	1	1009-1010	●
80	BOLT; BRKT WHEEL BASE 6600MM(66W) M12X35 FLANGE	0-28651-235-0	02	1	1009-1303	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1009-1303	●
104	NUT; BRKT M10	0-91110-510-0	04	1	1304-	●	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	03	1	1304-	●
104	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	1009-1303	●
104	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
104	NUT; BRKT WHEEL BASE 6600MM(66W) M12 FLANGE	0-91180-212-0	02	1	1009-1303	●
104	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M12 FLANGE	0-91180-212-0	02	1	1304-	●
104	NUT; BRKT M12 FLANGE	0-91180-212-0	02	1	1304-		●
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1303	●
119	BOLT; STAY (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1009-1303	●
119	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW (F) PT3/8 & PT3/8 ELBOW	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-1504	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1009-1303	●
164	CONNECTOR; SUB AIR TANK WHEEL BASE 4900MM(49W) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4900MM(49W) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6600MM(66W) NEW ZEALAND EQUIPMENT(PK5) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) EXC. ENGINE REAR PTO(SV1) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK NEW ZEALAND EQUIPMENT(PK5) ENGINE REAR PTO(SV1) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6300MM(63W), WHEEL BASE 6600MM(66W) STAMP 5.5	8-97609-249-0	01	1	1009-1303	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK STAMP 5.5	8-97609-249-0	01	1	1304-	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6300MM(63W) STAMP 5.5	8-97609-249-0	02	1	1009-1303	●
177	HOSE; RUBBER,DRAIN HONG KONG EQUIPMENT(PQ1) L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1009-1303	●
177	HOSE; RUBBER,DRAIN L=55 SERVICED BY L=3000	0-03566-300-0	01	1	1304-	●	●
178	CLIP; HOSE HONG KONG EQUIPMENT(PQ1) ID=21	8-94242-034-0	01	1	1009-1303	●
178	CLIP; HOSE ID=21	8-94242-034-0	01	1	1304-	●	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1009-1303	●
184	NUT; BRKT M14	1-09440-072-0	04	1	1304-	●	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1009-1303	●
192	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	1304-	●	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1009-1303	●
278	BRACKET; CONNECTOR L=75	1-47478-323-0	01	1	1304-	●	●

39 10 1 10 39 5 7 46 6 46 46 37 381 342 28 28 10 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-97617-855-1	01	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B)	8-98187-713-0	01	1	1107-1303	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (B)	8-98187-713-0	01	1	1304-	●
1	TANK ASM; AIR (A)	8-97617-854-0	01	1	1009-1106	●
1	TANK ASM; AIR (A)	8-98187-712-0	01	1	1107-	●
1	TANK ASM; AIR WHEEL BASE 6300MM(63W) (B)	8-97617-855-1	02	1	1009-1106	●
1	TANK ASM; AIR WHEEL BASE 6300MM(63W) (B)	8-98187-713-0	02	1	1107-1303	●
1	TANK ASM; AIR (B)	8-98187-713-0	02	1	1304-		●
5	UNION; AIR TANK (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1304-	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1304-		●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
5	UNION; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
5	UNION; AIR TANK WHEEL BASE 6300MM(63W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	1009-1303	●
5	UNION; AIR TANK (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-	●
5	UNION; AIR TANK (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1009-	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
5	UNION; AIR TANK (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1304-		●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	02	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK (A)	1-48312-015-0	01	1	1304-	●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6300MM(63W) (A)	1-48312-015-0	03	1	1009-1303	●
6	COCK; DRAIN,AIR TANK (B)	1-48312-017-0	01	1	1304-		●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	02	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	01	1	1304-	●
7	GASKET; DRAIN COCK WHEEL BASE 6300MM(63W) ID=14	1-09630-145-0	03	1	1009-1303	●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	03	1	1304-		●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	02	1	1304-		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	04	1	1304-	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) PT3/8	9-09204-517-0	01	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	03	1	1304-	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	06	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	07	1	1304-		●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1009-1303	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●	●
10	PLUG; AIR TANK (B) PT1/4	9-99204-513-0	01	1	1304-	●
10	PLUG; AIR TANK WHEEL BASE 6300MM(63W) (B) PT1/4	9-99204-513-0	02	1	1009-1303	●
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	02	1	1304-	●
28	BRACKET; AIR TANK (I)	8-98237-155-1	02	1	1304-		●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (A)	8-97618-088-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (D)	8-98092-756-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1009-1303	●
28	BRACKET; AIR TANK (E)	8-98093-562-1	01	1	1304-	●	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1009-1303	●
28	BRACKET; AIR TANK (B)	8-98112-257-0	01	1	1304-	●	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-984-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 5300MM(53W) (F)	8-98100-984-0	01	1	1304-	●
28	BRACKET; AIR TANK WHEEL BASE 6300MM(63W) (C)	8-97621-120-1	01	1	1009-1010	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (G)	8-98100-837-1	01	1	1009-1303	●
28	BRACKET; AIR TANK MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (H)	8-98100-973-1	02	1	1304-	●
28	BRACKET; AIR TANK (H)	8-98100-973-1	02	1	1304-		●
28	BRACKET; AIR TANK ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (F)	8-98100-985-0	01	1	1009-1303	●
28	BRACKET; AIR TANK WHEEL BASE 6600MM(66W) (F)	8-98100-985-0	01	1	1304-	●
37	BOLT; AIR TANK WHEEL BASE 6600MM(66W) BRAKE REGULATION HONG KONG<TCZ> M10X25 FLANGE	0-28651-025-0	08	1	1009-1303	●
37	BOLT; AIR TANK NEW ZEALAND EQUIPMENT(PK5) M10X25 FLANGE	0-28651-025-0	08	1	1009-1303	●
37	BOLT; AIR TANK M10X25 FLANGE	0-28651-025-0	08	1	1304-	●
37	BOLT; AIR TANK NEW ZEALAND EQUIPMENT(PK5) M10X40 FLANGE	0-28651-040-0	02	1	1009-1303	●
37	BOLT; AIR TANK M10X40 FLANGE	0-28651-040-0	02	1	1304-	●
37	BOLT; AIR TANK WHEEL BASE 6600MM(66W) BRAKE REGULATION HONG KONG<TCZ> M10X40 FLANGE	0-28651-040-0	04	1	1009-1303	●
37	BOLT; AIR TANK M12X35 FLANGE	0-28651-235-0	02	1	1304-		●
39	U-BOLT; AIR TANK ZF9S1310 M/T(Y5K) (A) L=253	1-48317-248-1	04	1	1304-		●
39	U-BOLT; AIR TANK (C)	1-48317-289-0	02	1	1304-		●
39	U-BOLT; AIR TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-	●	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	02	1	1304-		●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	04	1	1009-1303	●
39	U-BOLT; AIR TANK (A) L=253	1-48317-248-1	06	1	1304-	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1009-1303	●
39	U-BOLT; AIR TANK (B) L=210	1-48317-458-1	02	1	1304-	●	●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1304-		●
46	NUT; U-BOLT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	1304-	●	●
46	NUT; U-BOLT MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) M8	0-91110-508-0	08	1	1304-	●
46	NUT; U-BOLT AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) M8	0-91110-508-0	08	1	1304-		●
46	NUT; U-BOLT M8	0-91110-508-0	16	1	1009-1303	●
46	NUT; U-BOLT M8	0-91110-508-0	24	1	1304-	●
342	STUD M12X30,M12X16 L=56	8-98144-947-0	02	1	1304-		●
342	STUD NEW ZEALAND EQUIPMENT(PK5) M10X30 L=45	8-98035-675-0	02	1	1009-1303	●
342	STUD M10X30 L=45	8-98035-675-0	02	1	1304-	●
381	NUT; SUB TANK M12 FLANGE	0-91180-212-0	02	1	1304-		●
381	NUT; SUB TANK NEW ZEALAND EQUIPMENT(PK5) M10 FLANGE	0-91180-210-0	02	1	1009-1303	●
381	NUT; SUB TANK M10 FLANGE	0-91180-210-0	02	1	1304-	●

241 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
241	BOLT; SET,CONT VLV (B) M10X20 FLANGE	0-28051-020-0	02	1	1304-		●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1009-1303	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1304-1309	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●

103 100 126 126 101 369 352 126 352 126 369 176 257 107 176 257 107 102 103 102 126 352 369 176 257 100 107 352 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1009-1303	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X80 FLANGE	0-28050-880-0	04	1	1304-	●	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1009-1303	●
100	BOLT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8X140 FLANGE	0-28055-814-0	02	1	1304-	●	●
101	NUT; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	1009-	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	1-47471-372-0	01	1	1304-1504		●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98300-012-0	01	1	1505-		●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98034-539-2	01	1	1009-1504	●
102	BRACKET; MODULATOR ANTILOCK BRAKE SYSTEM(BFA)	8-98272-821-0	01	1	1505-	●
103	BOLT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-	●
103	BOLT; BRKT (C) M12X35 FLANGE	0-28651-235-0	04	1	1304-		●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (D) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
103	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1009-1303	●
103	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	04	1	1304-	●	●
103	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE	0-28650-825-0	02	1	1009-	●
103	BOLT; BRKT (C) M10X30 FLANGE	0-28651-030-0	01	1	1009-1303	●
103	BOLT; BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (C) M10X30 FLANGE	0-28651-030-0	01	1	1304-	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1009-1303	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	1-48240-115-0	02	1	1304-1504	●	●
107	MODULATOR; RR ANTILOCK BRAKE SYSTEM(BFA)	8-98215-454-0	02	1	1505-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (J) DIN6 & R3/8 ELBOW	1-09661-234-0	01	1	1304-	●
126	CONNECTOR; ELBOW (F) PT3/8 & PT3/8 ELBOW	1-09660-778-1	02	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1304-		●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-	●
126	CONNECTOR; ELBOW RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1304-		●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW	1-09660-696-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J) WHEEL BASE 4900MM(49W) RIGID SEAT WO/ARM REST(TAZ) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1304-	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1009-1303	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	1304-	●	●
126	CONNECTOR; ELBOW ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1009-1504	●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1304-		●
126	CONNECTOR; ELBOW TRANSMISSION-FULLER RTO11908(Y5L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-	●
126	CONNECTOR; ELBOW (I) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	02	1	1304-		●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1304-	●
126	CONNECTOR; ELBOW WHEEL BASE 6300MM(63W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56),RIGID SEAT WO/ARM REST(TAZ) (H) PT3/8 4WAY	1-09661-489-0	01	1	1304-	●
126	CONNECTOR; ELBOW ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (D) M12 & PT3/8 ELBOW	1-09650-436-0	01	1	1009-1303	●
126	CONNECTOR; ELBOW MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-	●
126	CONNECTOR; ELBOW AIR SUSP DRIVER SEAT(A56) (G) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1304-		●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1009-1303	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1304-	●	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1009-1303	●
176	ADAPTER ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1304-	●	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	02	1	1009-1303	●
257	GASKET; PLUG ANTILOCK BRAKE SYSTEM(BFA) ID=22.5	9-09571-422-0	02	1	1304-	●	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1009-1303	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	1304-	●	●
352	CONNECTOR; STRAIGHT ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1009-1303	●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1304-1504		●
352	CONNECTOR; STRAIGHT ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1505-	●	●
369	CONNECTOR; 3WAY ANTILOCK BRAKE SYSTEM(BFA) PT3/8 3WAY	1-09661-300-0	02	1	1009-1303	●
369	CONNECTOR; 3WAY ANTILOCK BRAKE SYSTEM(BFA) PT3/8 3WAY	1-09661-300-0	02	1	1304-	●	●

241 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	GROMMET; PIPE OD=35	8-94122-971-0	01	1	1009-	●
241	BOLT; SET,CONT VLV (B) M10X20 FLANGE	0-28051-020-0	02	1	1304-		●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1009-1303	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1304-1309	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●	●
241	BOLT; SET,CONT VLV (A) M8X70 FLANGE	0-28050-870-0	02	1	1310-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
