◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#7141) — 23 parça

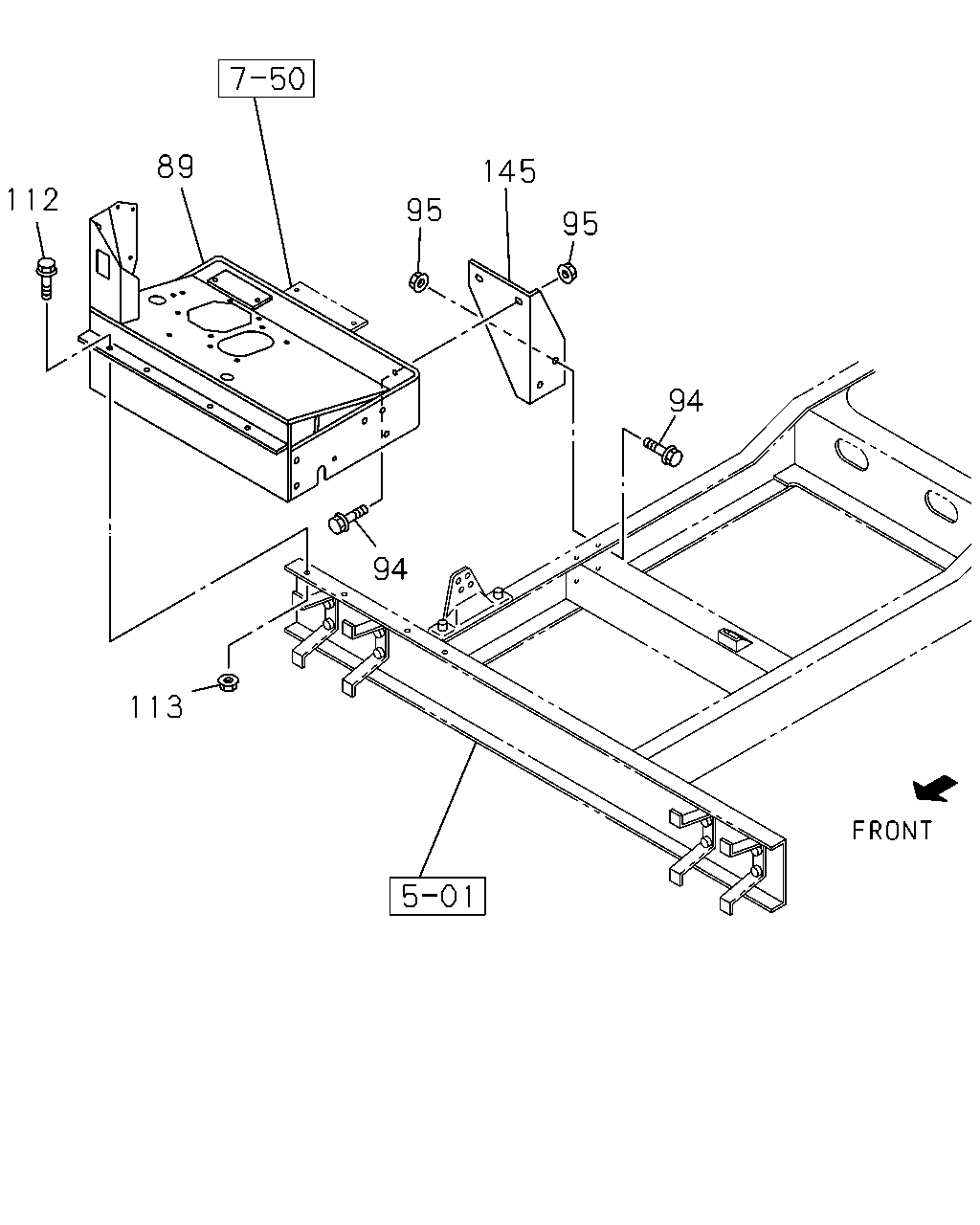

çizim 6901
89 145 112 95 95 94 94 113
BalonParca AdiParca NoAdetTipApplied Date A B
89 BOARD ASM; PEDAL
A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) EXC. EURO3 SPECIFICATION(NJX) 		1-65600-706-0 01 1 0204- ●
89 BOARD ASM; PEDAL
ENGINE CONTROL U2(Q3U) 		1-65600-602-1 01 1 0107-0107 ●
89 BOARD ASM; PEDAL
EURO3 SPECIFICATION(NJX) 		1-65600-602-1 01 1 0108-0203 ●
89 BOARD ASM; PEDAL
EURO3 SPECIFICATION(NJX) 		1-65600-602-1 01 1 0204-0210 ●
89 BOARD ASM; PEDAL
6WA1 TC-C(55L) 		1-65600-602-1 01 1 0204-0210 ●
89 BOARD ASM; PEDAL
6SD1 TC(32L) EURO3 SPECIFICATION(NJX) 		1-65600-602-1 01 1 0211- ●
89 BOARD ASM; PEDAL
6SD1 TC-S(83L) 		1-65600-602-1 01 1 0211- ●
89 BOARD ASM; PEDAL
6WA1 TC-C(55L) 		1-65600-602-1 01 1 0211- ●
89 BOARD ASM; PEDAL 1-65600-564-1 01 1 0012-0106 ● ●
89 BOARD ASM; PEDAL
EXC. EURO3 SPECIFICATION(NJX) 		1-65600-564-1 01 1 0107-0203 ●
89 BOARD ASM; PEDAL 1-65600-564-1 01 1 0107-0203 ●
89 BOARD ASM; PEDAL
6SD1 TC(32L) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) 		1-65600-564-1 01 1 0204- ● ●
94 BOLT; BRKT,PEDAL BOARD
M10X35 FLANGE 		0-28681-035-0 04 1 0012-0012 ●
94 BOLT; BRKT,PEDAL BOARD
M10X35 FLANGE 		0-28681-035-0 04 1 0101-0512 ● ●
94 BOLT; BRKT,PEDAL BOARD
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
95 NUT; BRKT,PEDAL BOARD
M10 FLANGE 		0-91150-210-0 04 1 0012-0012 ●
95 NUT; BRKT,PEDAL BOARD
M10 FLANGE 		0-91150-210-0 04 1 0101-0602 ● ●
95 NUT; BRKT,PEDAL BOARD
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
112 BOLT; PEDAL BOARD
M12X35 FLANGE 		0-28681-235-0 06 1 0012-0512 ● ●
112 BOLT; PEDAL BOARD
M12X35 FLANGE 		0-28651-235-0 06 1 0601- ● ●
113 NUT; PEDAL BOARD
M12 FLANGE 		0-91150-212-0 06 1 0012-0602 ● ●
113 NUT; PEDAL BOARD
M12 FLANGE 		0-91180-212-0 06 1 0603- ● ●
145 BRACKET; PEDAL BOARD 1-47478-509-1 01 1 0012- ● ●
