2-85 — POWER TAKE OFF CONTROL (#71406) — 96 parça

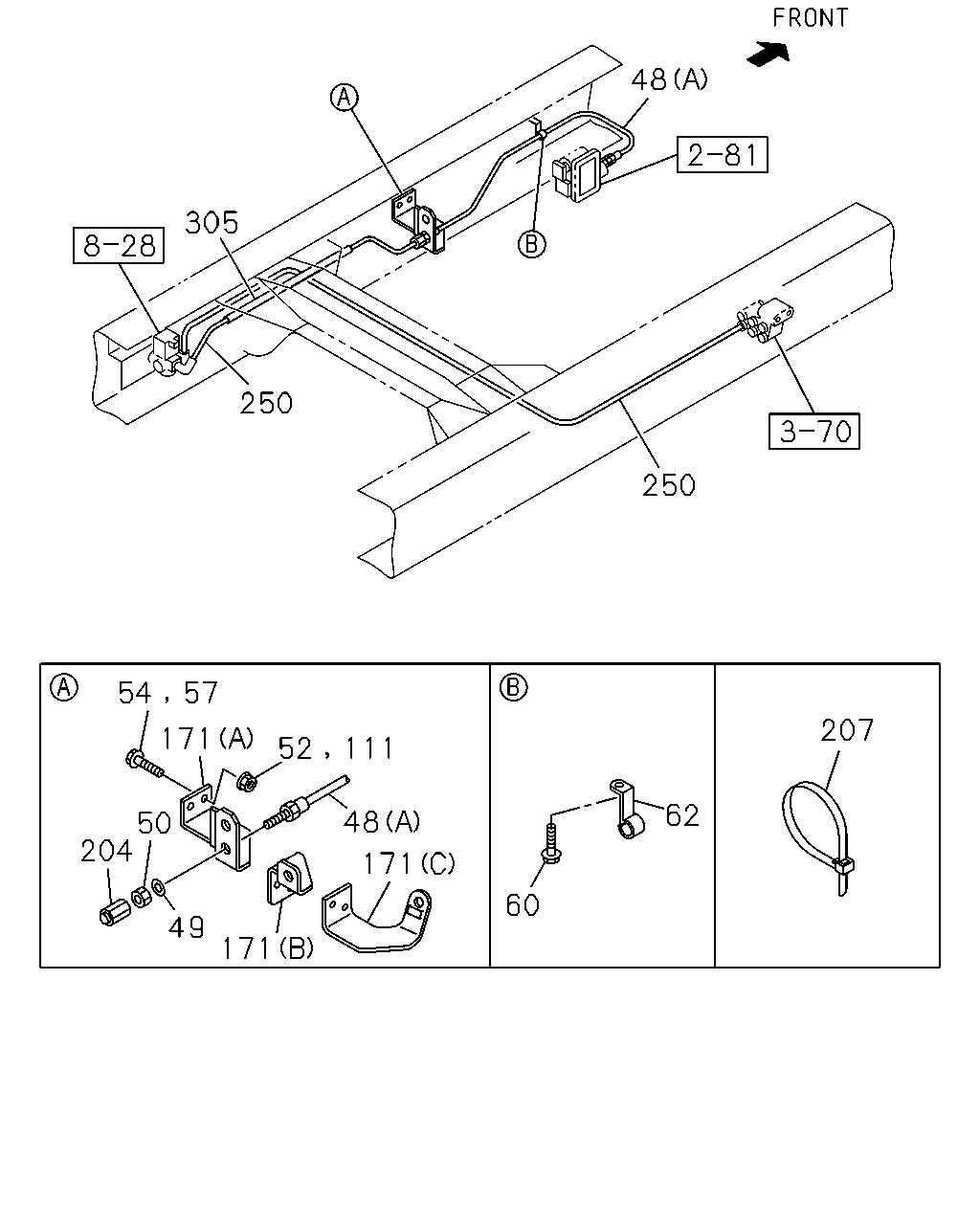

çizim 114496
305 250 48 250 54 57 171 52 111 48 171 204 49 171 50 60 62 207
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) L=350 		1-09363-624-0 01 1 1304- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) (B) L=400 		1-09363-606-0 01 1 1304- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=800 		1-09363-695-0 01 1 1009-1303 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=840 		8-98240-439-0 01 1 1304- ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1009-1303 ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1304- ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		0-91510-512-0 01 1 1304- ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1009-1303 ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1304- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1304- ●
52 NUT; PIPE CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
54 BOLT; PIPE CLIP
WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ●
54 BOLT; PIPE CLIP
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
57 BOLT; BRKT
WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1303 ●
57 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1009-1303 ●
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 02 1 1304- ●
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1009-1303 ●
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=13 		1-09701-030-1 02 1 1304- ●
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		8-98237-150-0 01 1 1304- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (D) 		8-98086-261-0 01 1 1304- ● ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-088-0 01 1 1009-1303 ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98240-933-0 01 1 1304- ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1303 ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1304- ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1304- ●
207 CLIP; BAND
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=350 		1-09707-183-0 01 1 1009-1303 ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1304-1412 ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1501- ●
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1304- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1009-1303 ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1304- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1009-1303 ●
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1304-1412 ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1304-1412 ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1501- ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1501- ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 1009-1303 ●
çizim 114534
4 15 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL<SV6> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1304- ●
3 BOLT; BRKT,DUMP CONT LEVER
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1012-1303 ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1304- ●
4 BRACKET; PTO CONT
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) 		8-98060-621-0 01 1 1012-1303 ●
4 BRACKET; PTO CONT
PTO CONTROL<SV6> 		8-98060-621-0 01 1 1304- ●
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79996-092-0 01 1 1304- ●
15 LEVER ASM; PTO CONT
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) 		1-79907-048-1 01 1 1012-1303 ●
15 LEVER ASM; PTO CONT
PTO CONTROL<SV6> 		1-79907-048-1 01 1 1304- ●

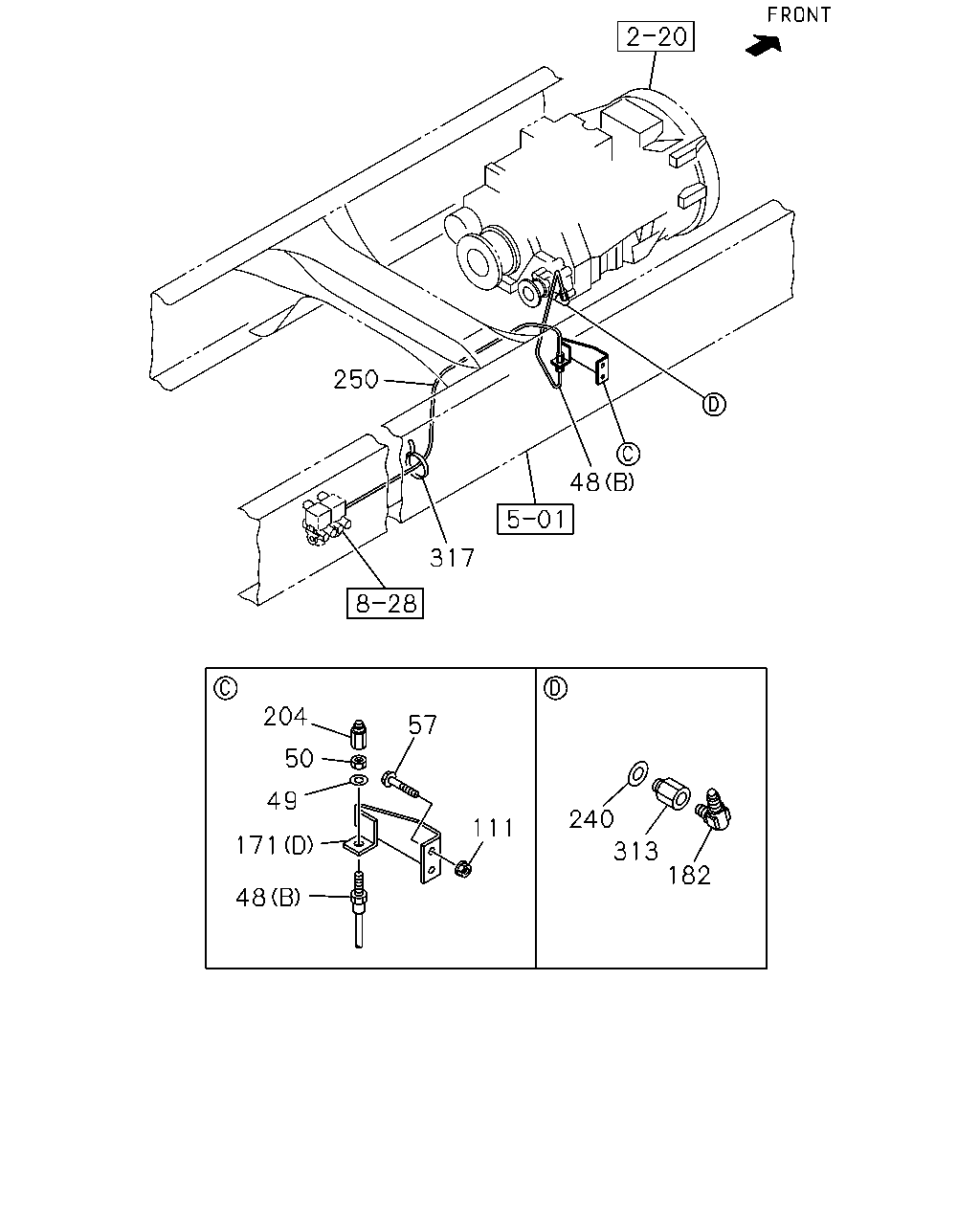

çizim 343115
250 317 48 204 50 49 171 48 111 57 240 313 182
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) L=350 		1-09363-624-0 01 1 1304- ●
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) (B) L=400 		1-09363-606-0 01 1 1304- ● ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=800 		1-09363-695-0 01 1 1009-1303 ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) L=840 		8-98240-439-0 01 1 1304- ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1009-1303 ●
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 1304- ●
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 		0-91510-512-0 01 1 1304- ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1009-1303 ●
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1304- ●
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1304- ●
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ● ●
57 BOLT; BRKT
WHEEL BASE 4500MM(45W) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1304- ●
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 02 1 1009-1303 ●
57 BOLT; BRKT
WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 02 1 1304- ●
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
111 NUT; BRKT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) 		8-98237-150-0 01 1 1304- ●
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) (D) 		8-98086-261-0 01 1 1304- ● ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) 		1-47471-088-0 01 1 1009-1303 ●
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) 		8-98240-933-0 01 1 1304- ●
182 CONNECTOR; FLARE
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1304- ● ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1009-1303 ●
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1304- ●
204 CONNECTOR; NYLON TUBE
PTO ZF TRANS RR(BDM) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1304- ●
240 GASKET; CONNECTOR,PTO
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) ID=12.2 		1-09630-084-0 01 1 1304-1312 ● ●
240 GASKET; CONNECTOR,PTO
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) ID=12.2 		8-98251-344-0 01 1 1401- ● ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1304-1412 ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1501- ●
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1304- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1009-1303 ●
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1304- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1009-1303 ●
250 TUBE; NYLON
WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1304-1412 ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1304-1412 ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1501- ●
250 TUBE; NYLON
WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) PTO ZF TRANS RR(BDM) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1501- ●
313 ADAPTER
ZF9S1310 M/T(Y5K) PTO ZF TRANS RR(BDM) PT1/4 		1-09654-396-0 01 1 1304- ● ●
317 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) L=350 		1-09707-183-0 02 1 1304- ●
317 CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=350 		1-09707-183-0 01 1 1304- ●
317 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) L=350 		1-09707-183-0 01 1 1304- ●

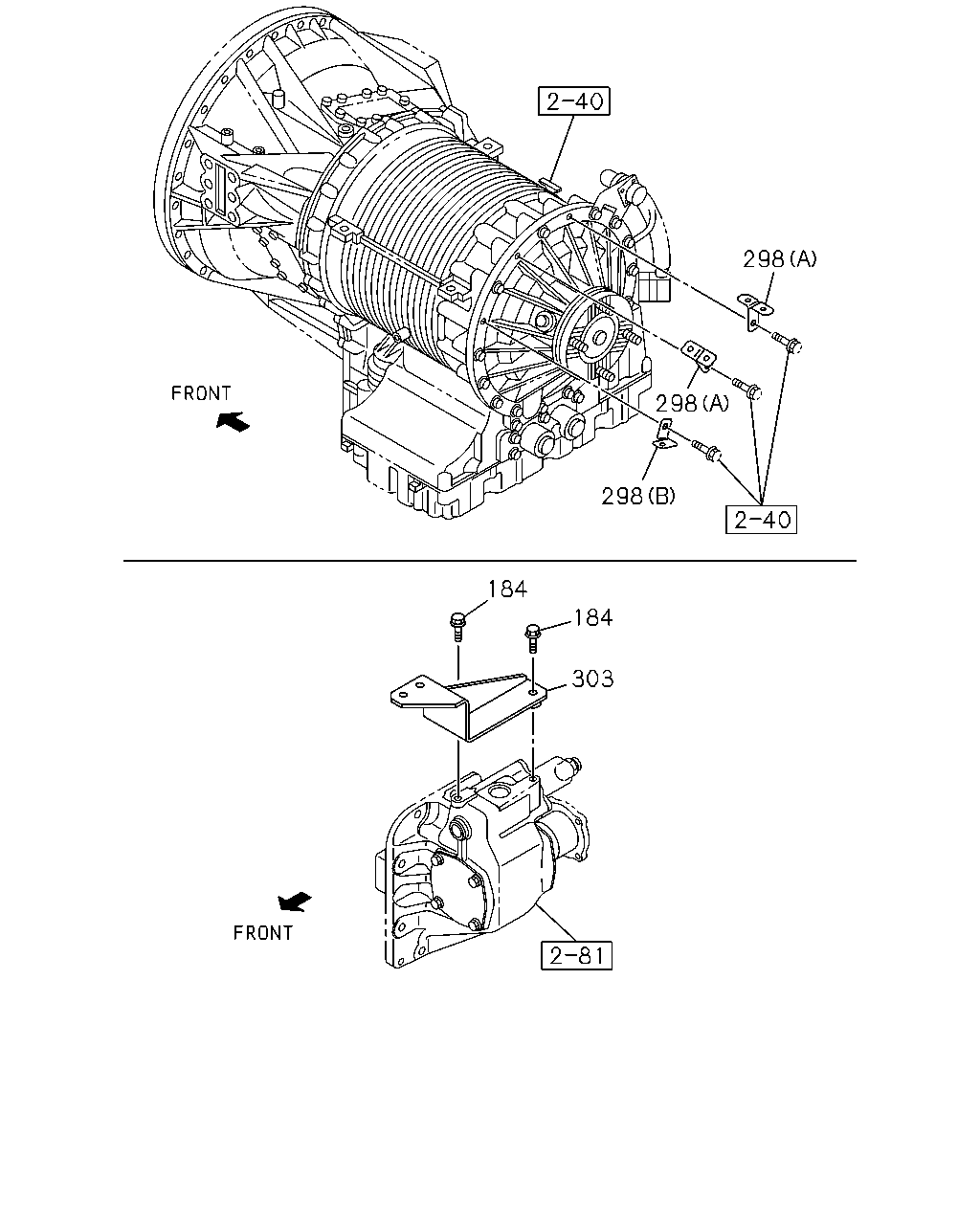

çizim 345780
184 184 303 298 298 298
BalonParca AdiParca NoAdetTipApplied Date A B
184 BOLT; CLIP FIX
MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 17INCH CLUTCH(RF3) M10X30 FLANGE 		0-28151-030-0 02 1 1304- ●
298 BRACKET; HARNESS
A/T ALLISON 4430(Y5V) (A) 		8-98202-655-0 02 1 1304- ●
298 BRACKET; HARNESS
A/T ALLISON 4430(Y5V) (B) 		8-98202-657-0 01 1 1304- ●
303 BRACKET; CLIP
MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 17INCH CLUTCH(RF3) 		8-98237-151-0 01 1 1304- ●
