2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#71405) — 128 parça

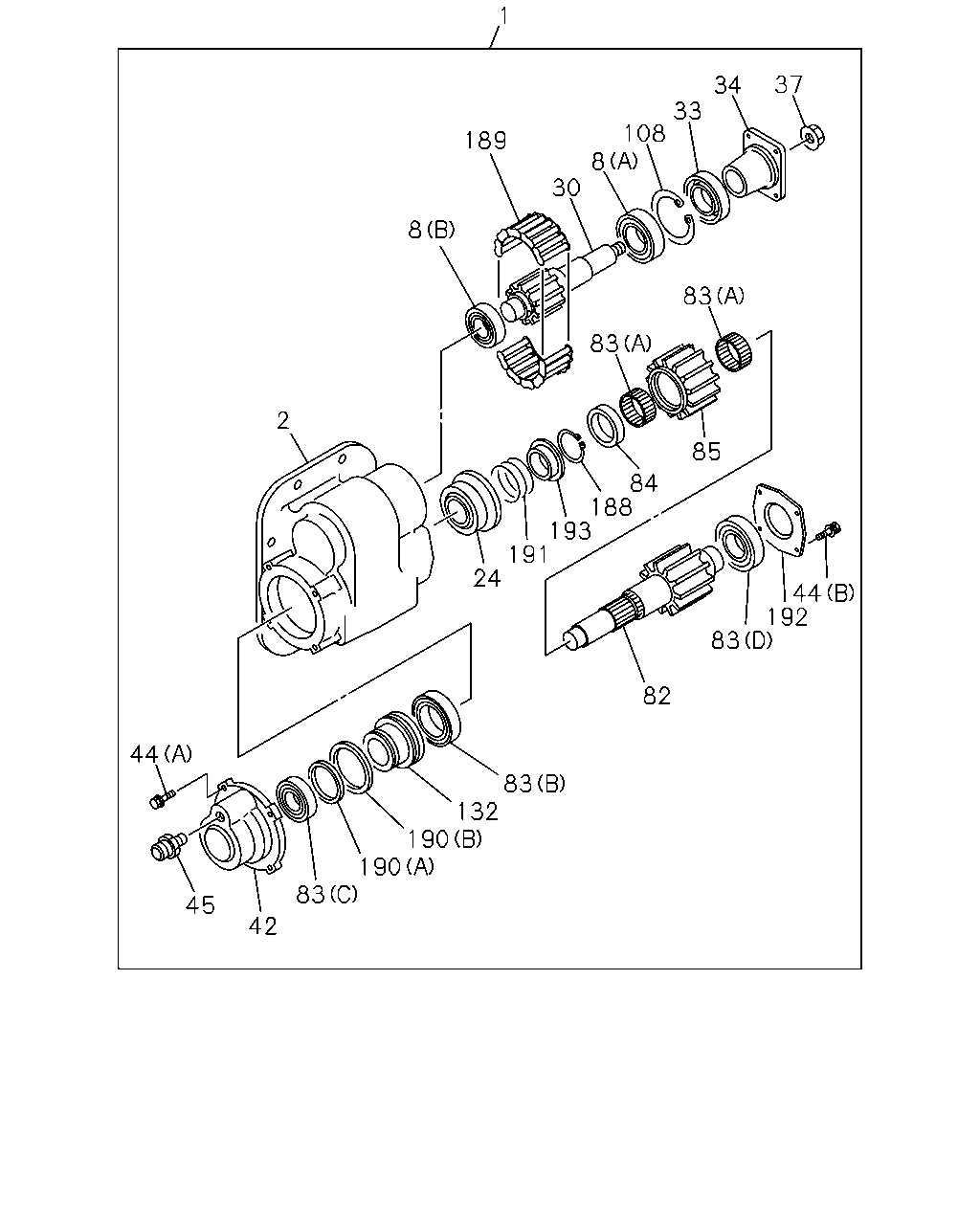

1 189 8 2 44 45 42 132 190 190 83 83 82 83 192 44 24 191 193 188 84 85 83 83 30 8 108 33 34 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98185-759-0	01	1	1304-
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-2	01	1	1009-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-462-0	01	1	1304-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-09810-263-0	01	1	1304-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-38225-017-0	01	1	1304-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-231-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-232-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-233-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-234-0	01	1	1009-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38225-014-0	01	1	1304-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	1009-1509
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-289-0	01	1	1510-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-463-0	01	1	1304-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	1009-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98028-791-0	01	1	1304-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	1009-1509
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-288-0	01	1	1510-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-465-0	01	1	1304-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	1009-1509
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-771-0	01	1	1510-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24	8-98046-899-0	01	1	1304-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	1009-1509
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	8-98037-772-0	01	1	1510-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38377-007-0	01	1	1304-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	1009-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M10X20 FLANGE	0-28151-020-0	02	1	1304-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	1009-1509
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28050-816-0	04	1	1510-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	1009-1509
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28050-825-0	04	1	1510-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	1009-1509
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1303
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38211-027-0	01	1	1009-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09800-259-0	01	1	1009-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09800-260-0	01	1	1009-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) JTEKT	1-09810-233-0	01	1	1009-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (D) NSK	1-09810-234-0	01	1	1009-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-09811-397-0	02	1	1009-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-97012-835-0	01	1	1009-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-057-0	01	1	1009-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38241-104-0	01	1	1009-
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=57.9	9-09180-562-0	01	1	1009-1509
108	RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	0-91800-762-0	01	1	1510-
132	PISTON; CYL,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38377-010-0	01	1	1009-
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-09588-199-0	01	1	1009-
189	CHAIN; DRIVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-082-1	01	1	1009-
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-38152-020-0	01	1	1009-
190	CUP; PISTON,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-38152-021-0	01	1	1009-
191	SPRING; SLEEVE,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-005-0	01	1	1009-
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38151-604-0	01	1	1009-1509
192	COVER; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-612-0	01	1	1510-
193	RETAINER; SPRING TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38226-056-0	01	1	1009-

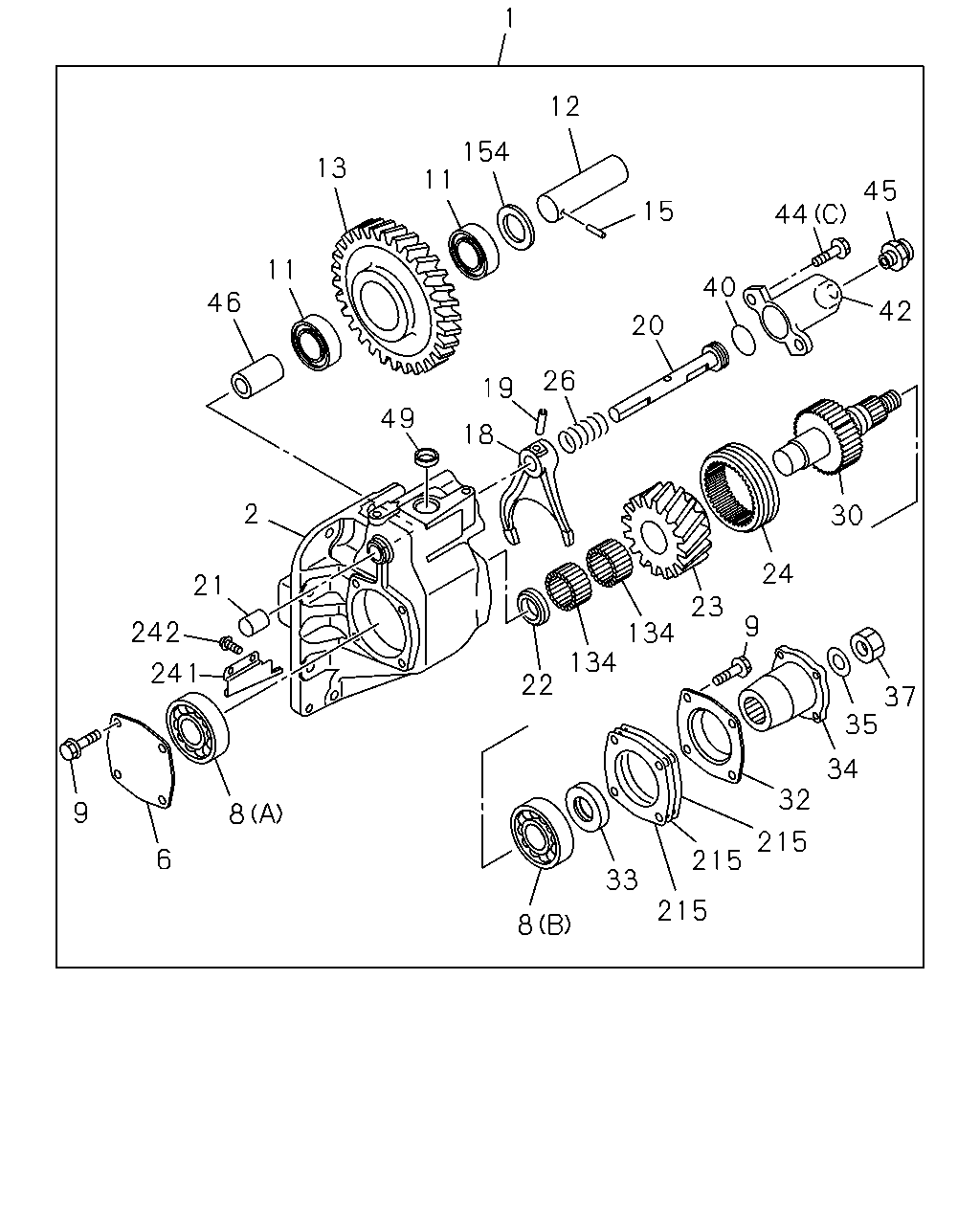

1 12 13 11 46 11 154 15 44 45 42 40 20 26 18 19 2 49 21 242 8 6 9 8 215 22 134 134 23 24 30 32 35 37 34 215 215 33 9 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98185-759-0	01	1	1304-
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38000-315-2	01	1	1009-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-462-0	01	1	1304-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-081-0	01	1	1009-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-464-0	01	1	1304-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	1-09810-263-0	01	1	1304-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	1-38225-017-0	01	1	1304-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) JTEKT	1-09810-231-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) NSK	1-09810-232-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) JTEKT	1-09810-233-0	01	1	1009-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) NSK	1-09810-234-0	01	1	1009-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M10X20 FLANGE	0-28151-020-0	08	1	1304-
11	BEARING; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-469-0	02	1	1304-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38211-039-0	01	1	1304-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=39	8-98195-468-0	01	1	1304-
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09878-614-0	01	1	1304-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38361-041-0	01	1	1304-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	9-09878-614-0	01	1	1304-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38371-048-1	01	1	1304-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98046-619-0	01	1	1304-
22	COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38226-082-0	01	1	1304-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=19	8-98195-467-0	01	1	1304-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38225-014-0	01	1	1304-
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38225-009-0	01	1	1009-1509
24	SLEEVE; DOG CLU,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-289-0	01	1	1510-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98101-162-0	01	1	1304-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-463-0	01	1	1304-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38111-083-0	01	1	1009-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-466-0	01	1	1304-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98028-791-0	01	1	1304-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-035-0	01	1	1009-1509
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98240-288-0	01	1	1510-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-465-0	01	1	1304-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38512-019-0	01	1	1009-1509
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-771-0	01	1	1510-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98047-566-0	01	1	1304-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24	8-98046-899-0	01	1	1304-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	1-38119-036-0	01	1	1009-1509
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M16	8-98037-772-0	01	1	1510-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-94002-613-0	01	1	1304-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38377-007-0	01	1	1304-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38151-021-0	01	1	1009-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) M10X20 FLANGE	0-28151-020-0	02	1	1304-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28080-816-0	04	1	1009-1509
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X16 FLANGE	0-28050-816-0	04	1	1510-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28080-825-0	04	1	1009-1509
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X25 FLANGE	0-28050-825-0	04	1	1510-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M8X30 FLANGE	0-28680-830-0	04	1	1009-1509
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-1303
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-
46	COLLAR; DIST,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-483-0	01	1	1304-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98037-773-0	01	1	1304-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09811-429-0	02	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.55	8-98195-470-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.60	8-98195-471-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.65	8-98195-472-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.70	8-98195-473-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.75	8-98195-474-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.80	8-98195-475-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.85	8-98195-476-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.90	8-98195-477-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=2.95	8-98195-478-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.00	8-98195-479-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.05	8-98195-480-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.10	8-98195-481-0	01	1	1304-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=3.15	8-98195-482-0	01	1	1304-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10	5-33156-010-0	04	1	1304-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	5-33156-011-0	04	1	1304-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.20	5-33156-012-0	04	1	1304-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.40	5-33156-013-0	04	1	1304-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.65	5-33156-014-0	04	1	1304-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.80	5-33156-015-0	04	1	1304-
241	BRACKET; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98195-484-0	01	1	1304-
242	SCREW; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98047-569-0	02	1	1304-
