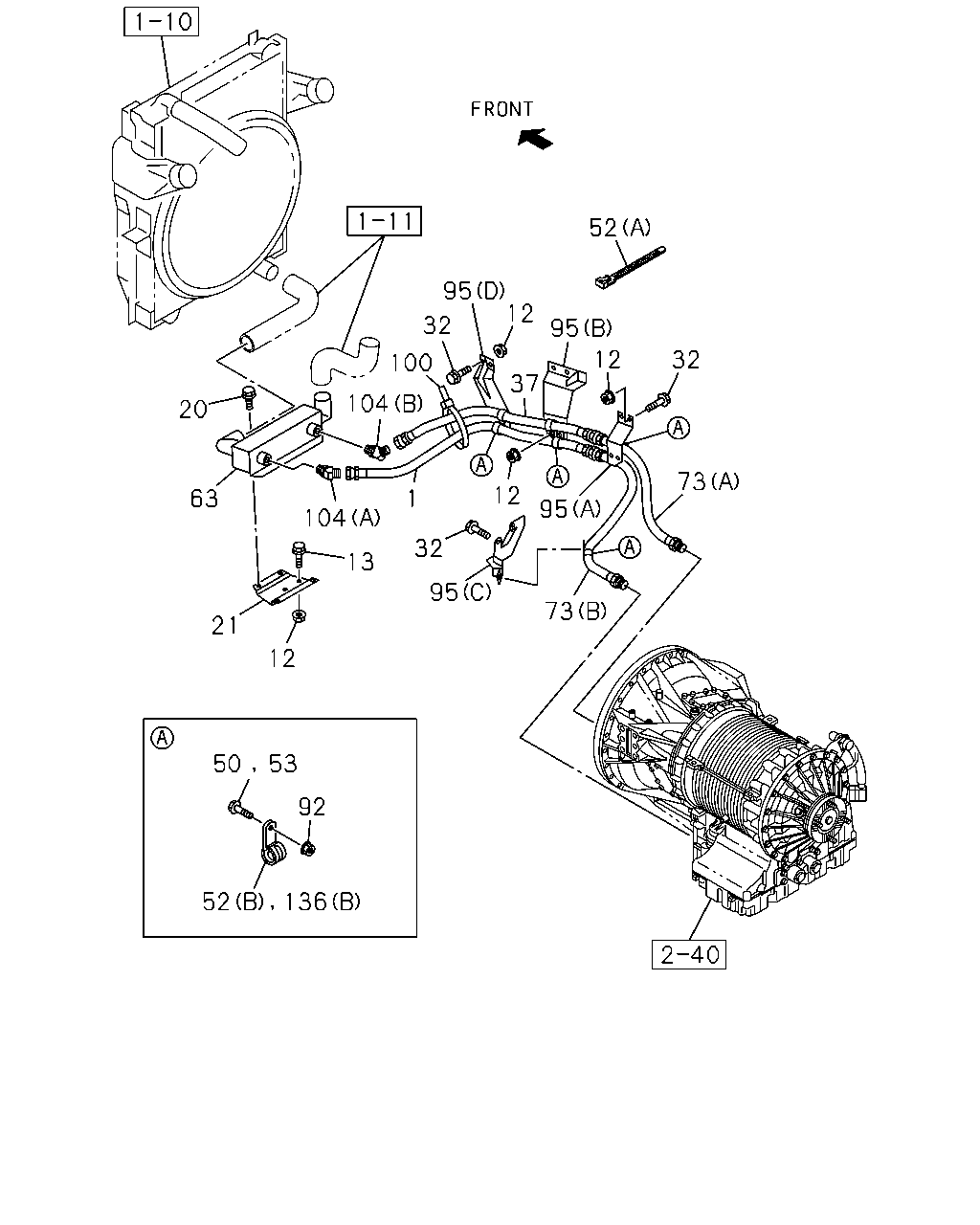

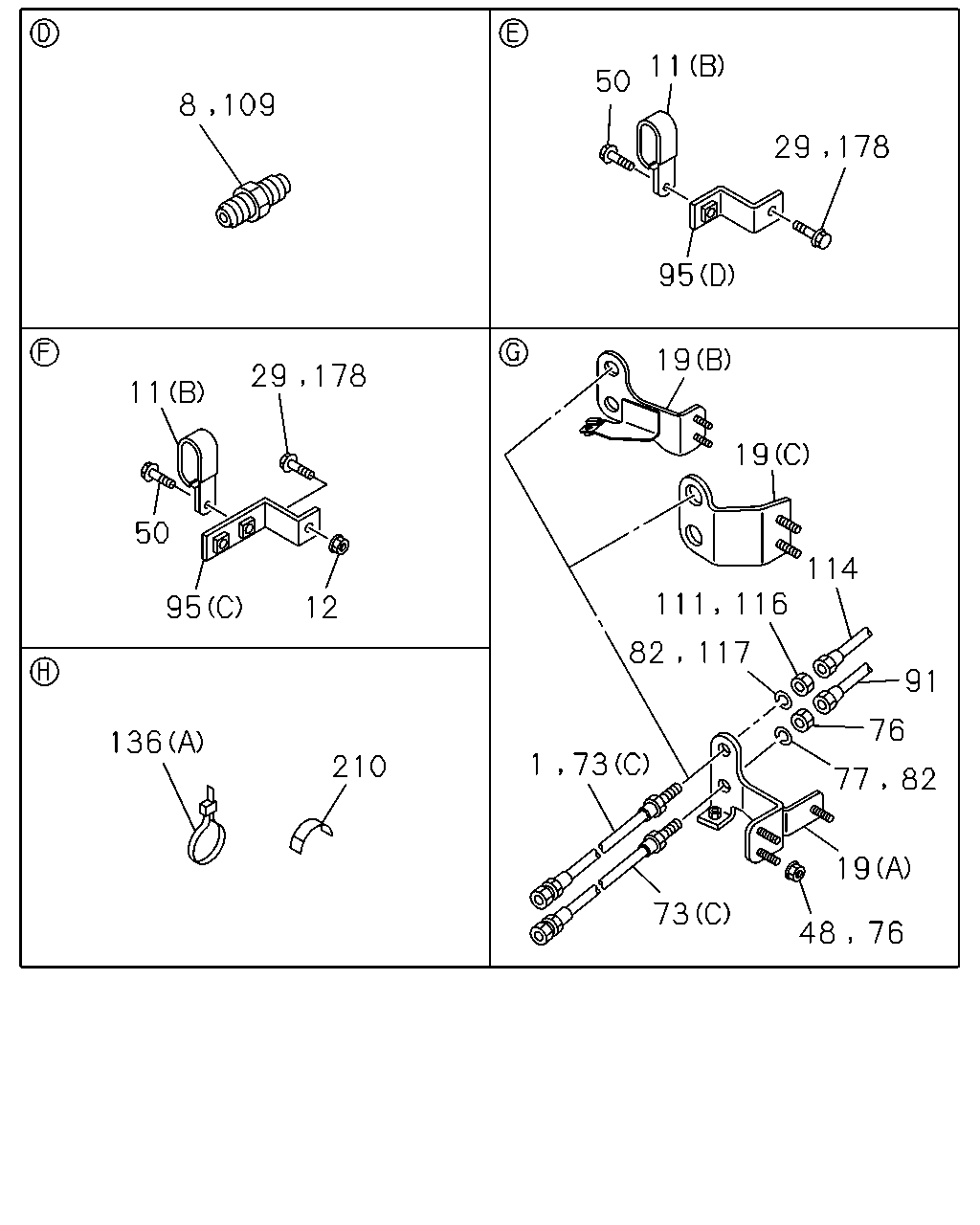

2-53 — TRANSMISSION OIL COOLER SYSTEM (#71404) — 147 parça

8 109 11 29 178 50 95 12 136 210 50 11 29 178 95 19 19 114 111 116 82 117 91 76 77 82 1 73 73 48 76 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7U M/T(Y4X) L=440	1-09365-318-0	01	1	1009-1303
1	HOSE; ATF A/T ALLISON 4430(Y5V)	8-98235-256-0	01	1	1304-
8	UNION MJT7U M/T(Y4X) M22 L=51	0-92123-015-0	02	1	1009-
11	CLIP; PIPE MJT7U M/T(Y4X) (A) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE MJT7U M/T(Y4X) (B) ID=16X2 L=20	0-95325-535-0	04	1	1009-
12	NUT; BRKT A/T<X9D> M10 FLANGE	0-91180-210-0	02	1	1304-
12	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1009-1303
12	NUT; BRKT MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	02	1	1304-
19	BRACKET; FLEX HOSE MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	8-98240-449-0	01	1	1304-
19	BRACKET; FLEX HOSE MJT7U M/T(Y4X) (A)	8-98175-432-0	01	1	1009-1303
19	BRACKET; FLEX HOSE MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	8-98237-154-0	01	1	1304-
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M8X25 FLANGE	0-28650-825-0	01	1	1304-
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M8X20 FLANGE	0-28050-820-0	02	1	1009-1303
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M8X20 FLANGE	0-28050-820-0	01	1	1304-
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M10X20 FLANGE	0-28051-020-0	01	1	1009-
48	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	03	1	1009-1303
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28050-820-0	04	1	1009-1303
50	BOLT; CLIP A/T ALLISON 4430(Y5V) M8X25 FLANGE	0-28650-825-0	03	1	1304-
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28650-820-0	06	1	1304-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	8-98237-189-0	02	1	1304-
73	HOSE; FLEX,TRANS A/T ALLISON 4430(Y5V) (A)	8-98230-054-0	01	1	1304-
73	HOSE; FLEX,TRANS A/T ALLISON 4430(Y5V) (B)	8-98230-055-0	01	1	1304-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) (C) L=440	1-09365-318-0	01	1	1009-1303
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=440	1-09365-318-0	02	1	1304-
76	NUT; FLEX HOSE MJT7U M/T(Y4X) M22	0-91111-522-0	01	1	1009-1303
76	NUT; FLEX HOSE MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1304-
77	WASHER; LK MJT7U M/T(Y4X) ID=22.5	0-91510-522-0	01	1	1009-1303
82	WASHER; LK,UNION MJT7U M/T(Y4X) ID=22.5	0-91510-522-0	02	1	1304-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=932	8-98237-117-0	01	1	1304-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1283	8-98240-442-0	01	1	1304-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) L=1243	8-98176-136-0	01	1	1009-1303
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1282	8-98226-132-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (C)	8-97644-092-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (D)	8-98205-947-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (A)	8-98230-050-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (B)	8-98230-053-0	01	1	1304-
95	BRACKET; CLIP MJT7U M/T(Y4X) (C)	1-47479-482-0	02	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (B)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (A)	8-97610-664-0	01	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (D)	8-98169-606-0	01	1	1009-
109	UNION MJT7U M/T(Y4X) M22 L=51	0-92123-015-0	02	1	1009-
111	NUT; UNION MJT7U M/T(Y4X) M22	0-91111-522-0	02	1	1304-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=886	8-98237-118-0	01	1	1304-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1380	8-98240-445-0	01	1	1304-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) L=1403	8-98176-137-0	01	1	1009-1303
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1380	8-98226-135-0	01	1	1304-
116	NUT; BRKT,FLEX HOSE MJT7U M/T(Y4X) M22	0-91111-522-0	01	1	1009-1303
117	WASHER; LK,FLEX HOSE MJT7U M/T(Y4X) ID=22.5	0-91510-522-0	01	1	1009-1303
136	CLIP; FLEX HOSE MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) ID=18 H=23 L=28	1-09701-070-0	02	1	1304-
136	CLIP; FLEX HOSE A/T ALLISON 4430(Y5V) (B) ID=32.5	8-98235-593-0	04	1	1304-
136	CLIP; FLEX HOSE MJT7U M/T(Y4X) (A) L=350	1-09707-183-0	01	1	1009-
178	BOLT; BRKT,CLIP MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) M8X35 FLANGE	0-28650-835-0	02	1	1304-
178	BOLT; BRKT,CLIP MJT7U M/T(Y4X) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303
178	BOLT; BRKT,CLIP MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X30 FLANGE	0-28650-830-0	02	1	1304-
210	BAND; FLEX HOSE MJT7U M/T(Y4X) L=175	1-09707-178-0	01	1	1009-

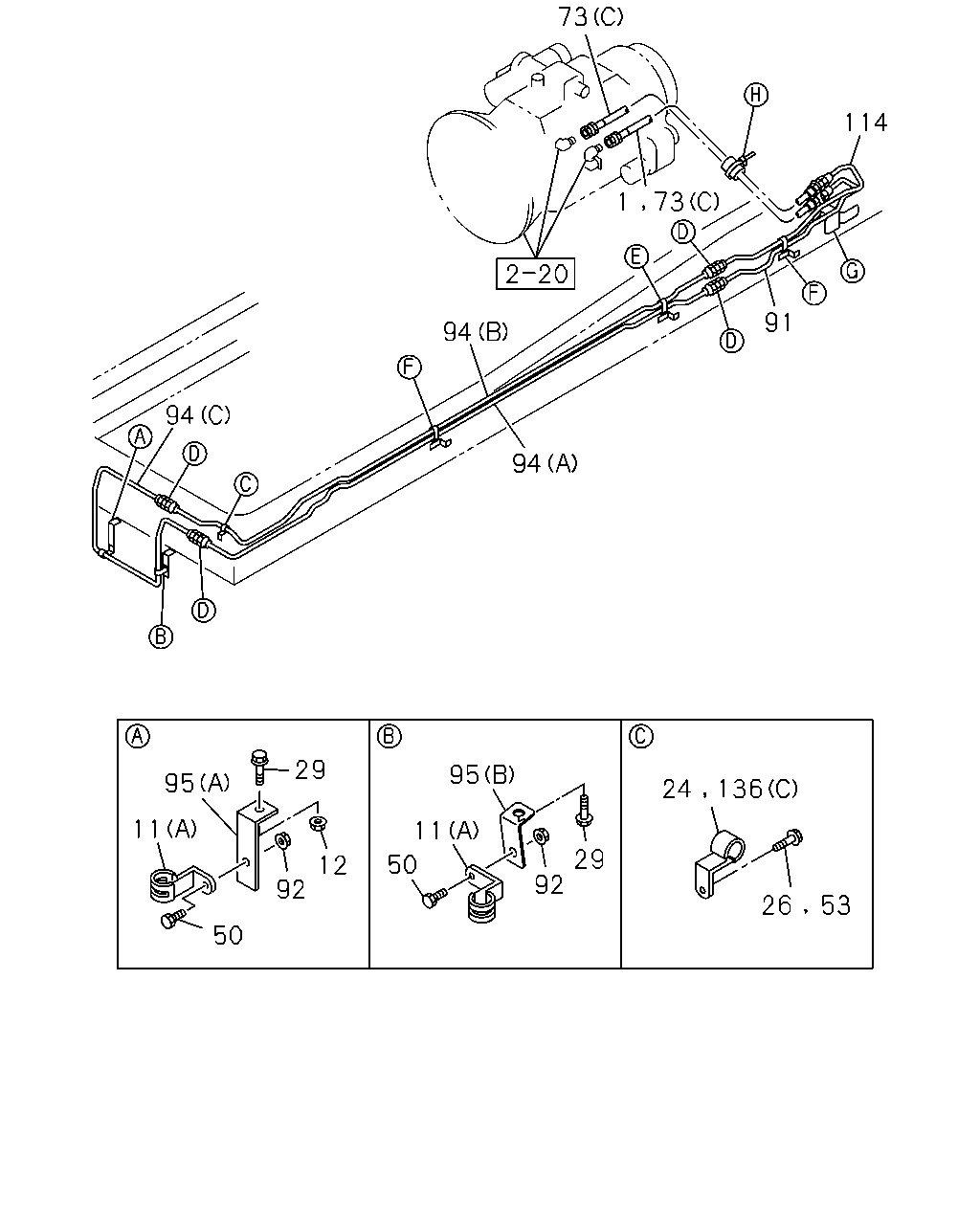

73 114 1 73 94 91 94 94 95 29 11 50 12 92 11 50 95 92 29 24 136 26 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7U M/T(Y4X) L=440	1-09365-318-0	01	1	1009-1303
1	HOSE; ATF A/T ALLISON 4430(Y5V)	8-98235-256-0	01	1	1304-
11	CLIP; PIPE MJT7U M/T(Y4X) (A) ID=19 L=28	0-95235-856-0	02	1	1009-
11	CLIP; PIPE MJT7U M/T(Y4X) (B) ID=16X2 L=20	0-95325-535-0	04	1	1009-
12	NUT; BRKT A/T<X9D> M10 FLANGE	0-91180-210-0	02	1	1304-
12	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1009-1303
12	NUT; BRKT MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	02	1	1304-
24	CLIP; OIL PIPE MJT7U M/T(Y4X) ID=15 H=24 L=20	1-09700-606-0	01	1	1009-
26	BOLT; PIPE CLIP MJT7U M/T(Y4X) M8X16 FLANGE	0-28050-816-0	01	1	1009-
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M8X25 FLANGE	0-28650-825-0	01	1	1304-
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M8X20 FLANGE	0-28050-820-0	02	1	1009-1303
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M8X20 FLANGE	0-28050-820-0	01	1	1304-
29	BOLT; FILTER TO BRKT MJT7U M/T(Y4X) M10X20 FLANGE	0-28051-020-0	01	1	1009-
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28050-820-0	04	1	1009-1303
50	BOLT; CLIP A/T ALLISON 4430(Y5V) M8X25 FLANGE	0-28650-825-0	03	1	1304-
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28650-820-0	06	1	1304-
53	BOLT; CLIP,FLEX HOSE,A/T MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	1304-
53	BOLT; CLIP,FLEX HOSE,A/T A/T ALLISON 4430(Y5V) M8X25 FLANGE	0-28650-825-0	02	1	1304-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	8-98237-189-0	02	1	1304-
73	HOSE; FLEX,TRANS A/T ALLISON 4430(Y5V) (A)	8-98230-054-0	01	1	1304-
73	HOSE; FLEX,TRANS A/T ALLISON 4430(Y5V) (B)	8-98230-055-0	01	1	1304-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) (C) L=440	1-09365-318-0	01	1	1009-1303
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=440	1-09365-318-0	02	1	1304-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=932	8-98237-117-0	01	1	1304-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1283	8-98240-442-0	01	1	1304-
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) L=1243	8-98176-136-0	01	1	1009-1303
91	PIPE; OIL,FLEX HOSE TO UNION MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1282	8-98226-132-0	01	1	1304-
92	NUT; CLIP A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	04	1	1304-
92	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1009-
94	PIPE; OIL,UNION TO UNION MJT7U M/T(Y4X) (A) L=1370	8-98176-138-0	01	1	1009-1303
94	PIPE; OIL,UNION TO UNION MJT7U M/T(Y4X) (B) L=1687	8-98240-511-0	01	1	1304-
94	PIPE; OIL,UNION TO UNION MJT7U M/T(Y4X) (C) L=1010	8-97619-241-0	01	1	1009-
94	PIPE; OIL,UNION TO UNION MJT7U M/T(Y4X) (B) L=1665	8-98169-604-0	01	1	1009-1303
94	PIPE; OIL,UNION TO UNION MJT7U M/T(Y4X) (A) L=1336	8-98226-133-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (C)	8-97644-092-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (D)	8-98205-947-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (A)	8-98230-050-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (B)	8-98230-053-0	01	1	1304-
95	BRACKET; CLIP MJT7U M/T(Y4X) (C)	1-47479-482-0	02	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (B)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (A)	8-97610-664-0	01	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (D)	8-98169-606-0	01	1	1009-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=886	8-98237-118-0	01	1	1304-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1380	8-98240-445-0	01	1	1304-
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) L=1403	8-98176-137-0	01	1	1009-1303
114	PIPE; OIL,UNION TO FLEX HOSE MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=1380	8-98226-135-0	01	1	1304-
136	CLIP; FLEX HOSE MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) ID=18 H=23 L=28	1-09701-070-0	02	1	1304-
136	CLIP; FLEX HOSE A/T ALLISON 4430(Y5V) (B) ID=32.5	8-98235-593-0	04	1	1304-
136	CLIP; FLEX HOSE MJT7U M/T(Y4X) (A) L=350	1-09707-183-0	01	1	1009-

20 63 21 12 13 104 104 100 32 95 37 95 12 52 32 12 73 95 12 32 95 73 50 53 92 52 136 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; ATF MJT7U M/T(Y4X) L=440	1-09365-318-0	01	1	1009-1303
1	HOSE; ATF A/T ALLISON 4430(Y5V)	8-98235-256-0	01	1	1304-
12	NUT; BRKT A/T<X9D> M10 FLANGE	0-91180-210-0	02	1	1304-
12	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1009-1303
12	NUT; BRKT MJT7U M/T(Y4X),A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	02	1	1304-
13	BOLT; BRKT A/T<X9D> M10X30 FLANGE	0-28651-030-0	02	1	1304-
20	BOLT; COOLER TO BRKT A/T<X9D> M8X25 FLANGE	0-28650-825-0	04	1	1304-
21	BRACKET; COOLER A/T<X9D>	1-47471-141-1	01	1	1304-
32	BOLT; BRKT A/T ALLISON 4430(Y5V) M12X40 FLANGE	0-28051-240-0	02	1	1304-
32	BOLT; BRKT A/T ALLISON 4430(Y5V) M8X30 FLANGE	0-28650-830-0	06	1	1304-
37	HOSE; FLEX,OIL COOLER PIPE TO A/T A/T ALLISON 4430(Y5V)	8-98230-057-0	01	1	1304-
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28050-820-0	04	1	1009-1303
50	BOLT; CLIP A/T ALLISON 4430(Y5V) M8X25 FLANGE	0-28650-825-0	03	1	1304-
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303
50	BOLT; CLIP MJT7U M/T(Y4X) M8X20 FLANGE	0-28650-820-0	06	1	1304-
52	CLIP; FLEX HOSE,A/T A/T ALLISON 4430(Y5V) (B) ID=32.5	8-98235-593-0	03	1	1304-
52	CLIP; FLEX HOSE,A/T A/T ALLISON 4430(Y5V) (A) L=250	5-09707-030-1	03	1	1304-
53	BOLT; CLIP,FLEX HOSE,A/T MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	02	1	1304-
53	BOLT; CLIP,FLEX HOSE,A/T A/T ALLISON 4430(Y5V) M8X25 FLANGE	0-28650-825-0	02	1	1304-
63	COOLER; OIL A/T<X9D>	8-98213-369-0	01	1	1304-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C)	8-98237-189-0	02	1	1304-
73	HOSE; FLEX,TRANS A/T ALLISON 4430(Y5V) (A)	8-98230-054-0	01	1	1304-
73	HOSE; FLEX,TRANS A/T ALLISON 4430(Y5V) (B)	8-98230-055-0	01	1	1304-
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) (C) L=440	1-09365-318-0	01	1	1009-1303
73	HOSE; FLEX,TRANS MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=440	1-09365-318-0	02	1	1304-
92	NUT; CLIP A/T ALLISON 4430(Y5V) M8 FLANGE	0-91180-108-0	04	1	1304-
92	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1009-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (C)	8-97644-092-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (D)	8-98205-947-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (A)	8-98230-050-0	01	1	1304-
95	BRACKET; CLIP A/T ALLISON 4430(Y5V) (B)	8-98230-053-0	01	1	1304-
95	BRACKET; CLIP MJT7U M/T(Y4X) (C)	1-47479-482-0	02	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (B)	8-97610-663-0	01	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (A)	8-97610-664-0	01	1	1009-
95	BRACKET; CLIP MJT7U M/T(Y4X) (D)	8-98169-606-0	01	1	1009-
100	CLIP; BAND,RUBBER SLEEVE A/T ALLISON 4430(Y5V) L=350	1-09707-183-0	01	1	1304-
104	CONNECTOR; COOLER A/T ALLISON 4430(Y5V) (A)	1-09664-239-0	01	1	1304-
104	CONNECTOR; COOLER A/T ALLISON 4430(Y5V) (B)	1-09664-262-0	01	1	1304-
136	CLIP; FLEX HOSE MJT7U M/T(Y4X) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) ID=18 H=23 L=28	1-09701-070-0	02	1	1304-
136	CLIP; FLEX HOSE A/T ALLISON 4430(Y5V) (B) ID=32.5	8-98235-593-0	04	1	1304-
136	CLIP; FLEX HOSE MJT7U M/T(Y4X) (A) L=350	1-09707-183-0	01	1	1009-
