1-01 — ACCELERATOR PEDAL AND CONTROL (#714) — 113 parça

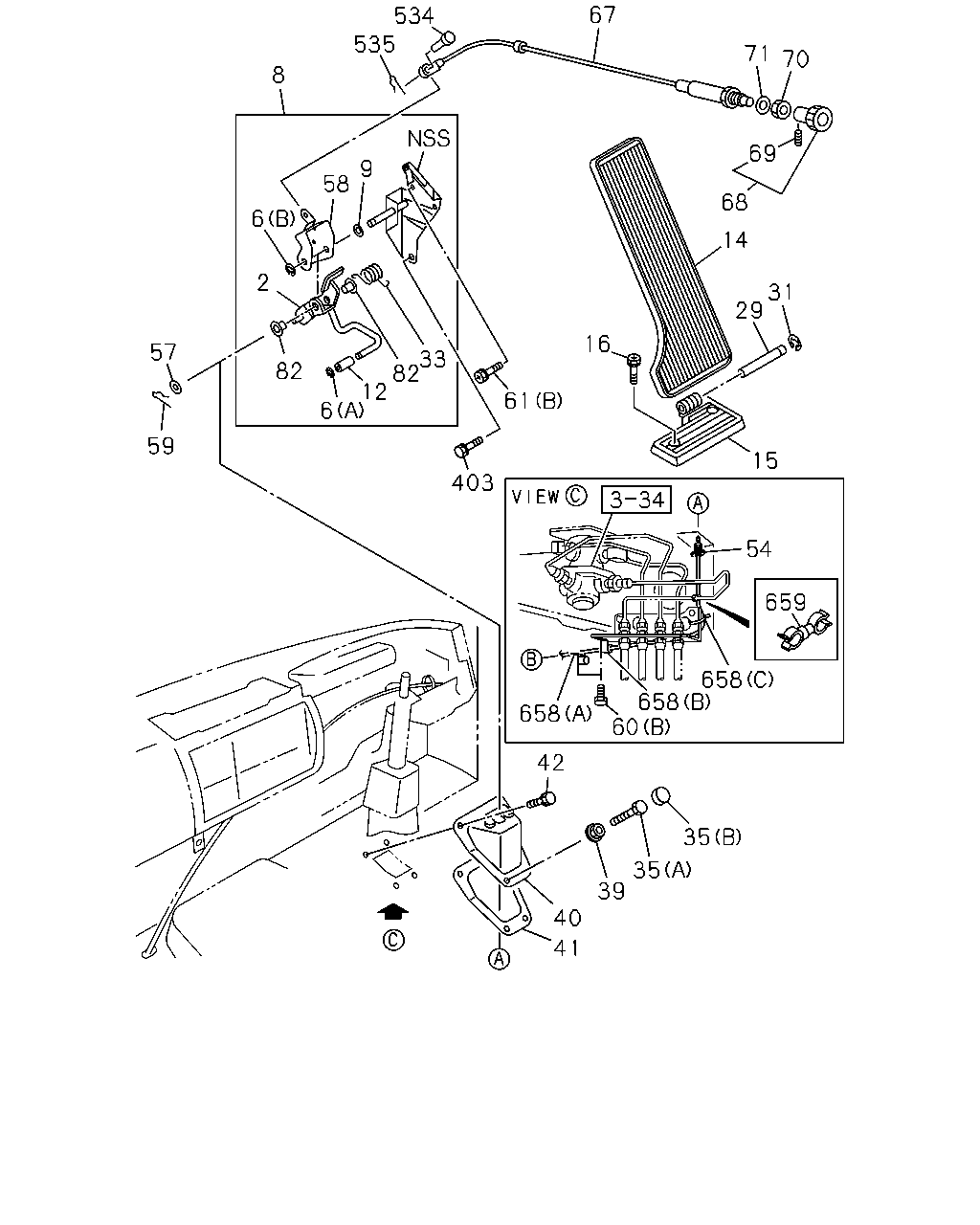

çizim 28961
67 534 535 71 70 8 69 9 58 68 6 14 2 31 29 16 57 33 82 12 82 61 6 59 15 403 54 659 658 658 60 658 42 35 35 39 40 41
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT 1-73997-904-1 01 1 9204- ● ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=9 		9-09185-409-0 01 1 9204-9306 ● ●
6 RING; SNAP,LINK TO LINK
(B) ID=8 		9-09185-408-0 01 1 9307- ● ● ●
6 RING; SNAP,LINK TO LINK
(A) ID=6 		9-09185-406-0 01 1 9204- ● ● ●
8 LINK ASM; ENG CONT 1-23240-067-2 01 1 9204- ● ● ●
9 WASHER; PL,CONT LINK
ID=10.5 OD=16 		9-09855-178-0 01 1 9204- ● ● ●
12 ROLLER; ENG CONT LEVER 1-09989-007-0 01 1 9204- ● ● ●
14 PAD; PEDAL,ACCEL 1-23241-021-0 01 1 9204- ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73997-675-3 01 1 9204-9305 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 9306- ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X24 W/PL WASHER 		1-09981-504-0 02 1 9204- ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8 L=74 		1-09987-206-0 01 1 9204- ● ● ●
31 RING; SNAP,ACCEL PEDAL
ID=6 		9-09185-406-0 01 1 9204- ● ● ●
33 SPRING; IDLING CONT LEVER 1-73997-906-0 01 1 9204- ● ● ●
35 STOPPER; ACCEL PEDAL
(A) 		1-09980-582-0 01 1 9204- ● ● ●
35 STOPPER; ACCEL PEDAL
(B) RUBBER 		1-23249-009-0 01 1 9204- ● ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 FLANGE 		8-94279-060-0 01 1 9204- ● ● ●
40 BRACKET; ENG CONT CABLE 1-73997-632-1 01 1 9204- ● ● ●
41 SEAL; BRKT,ENG CONT CABLE 1-73998-451-0 01 1 9204- ● ● ●
42 BOLT; BRKT,ENG CONT CABLE
M6X16 W/LK&PL WASHER 		1-09980-586-0 03 1 9204- ● ● ●
54 CABLE; ENG CONT
L=1935 		1-23210-745-4 01 1 9204-9211 ● ●
54 CABLE; ENG CONT
L=1935 		1-23230-001-0 01 1 9212- ● ●
54 CABLE; ENG CONT
L=2551 		1-23210-977-2 01 1 9505- ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9204- ● ● ●
58 LEVER; IDLING CONT 1-73997-905-1 01 1 9204- ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 9204- ● ● ●
60 BOLT; CABLE
(A) M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9204- ● ● ●
60 BOLT; CABLE
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9204- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28010-820-0 01 1 9204-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M5X14 W/LK WASHER 		1-09980-023-0 01 1 9204- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9505- ●
67 CABLE ASM; IDLE CONT
L=387 		1-73998-538-1 01 1 9204- ● ● ●
68 KNOB; IDLE CONT
W/SCREW 		8-94134-716-0 01 1 9204- ● ● ●
69 SCREW; KNOB,IDLE CONT 5-09120-004-0 01 1 9204- ● ● ●
70 NUT; CONT CABLE
M18 RING NUT 		5-09409-004-1 01 1 9204- ● ● ●
71 WASHER; WAVE,CONT CABLE
ID=18.5 		5-09550-005-0 01 1 9204- ● ● ●
82 BUSHING; ENG CONT LVR 8-94206-569-0 02 1 9204- ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
M6X20 W/LK&PL WASHER 		1-09980-493-0 03 1 9204- ● ● ●
534 PIN; JAW JOINT,IDLING CONT CABLE 1-09987-034-1 01 1 9204- ● ● ●
535 PIN; SNAP,IDLING CONT CABLE
L=17.9 		1-09747-002-0 01 1 9204- ● ● ●
658 CLIP; ENG CONT CABLE
(A) ID=11 L=20 		9-09525-032-0 01 1 9204- ● ●
658 CLIP; ENG CONT CABLE
(B) ID=13 		1-09700-757-0 01 1 9505- ●
658 CLIP; ENG CONT CABLE
(C) L=140 		5-09707-031-0 01 1 9505- ●
659 CLIP; ACCEL CONT CABLE
ID=8.3 & 10 		8-94176-792-0 01 1 9204- ● ●

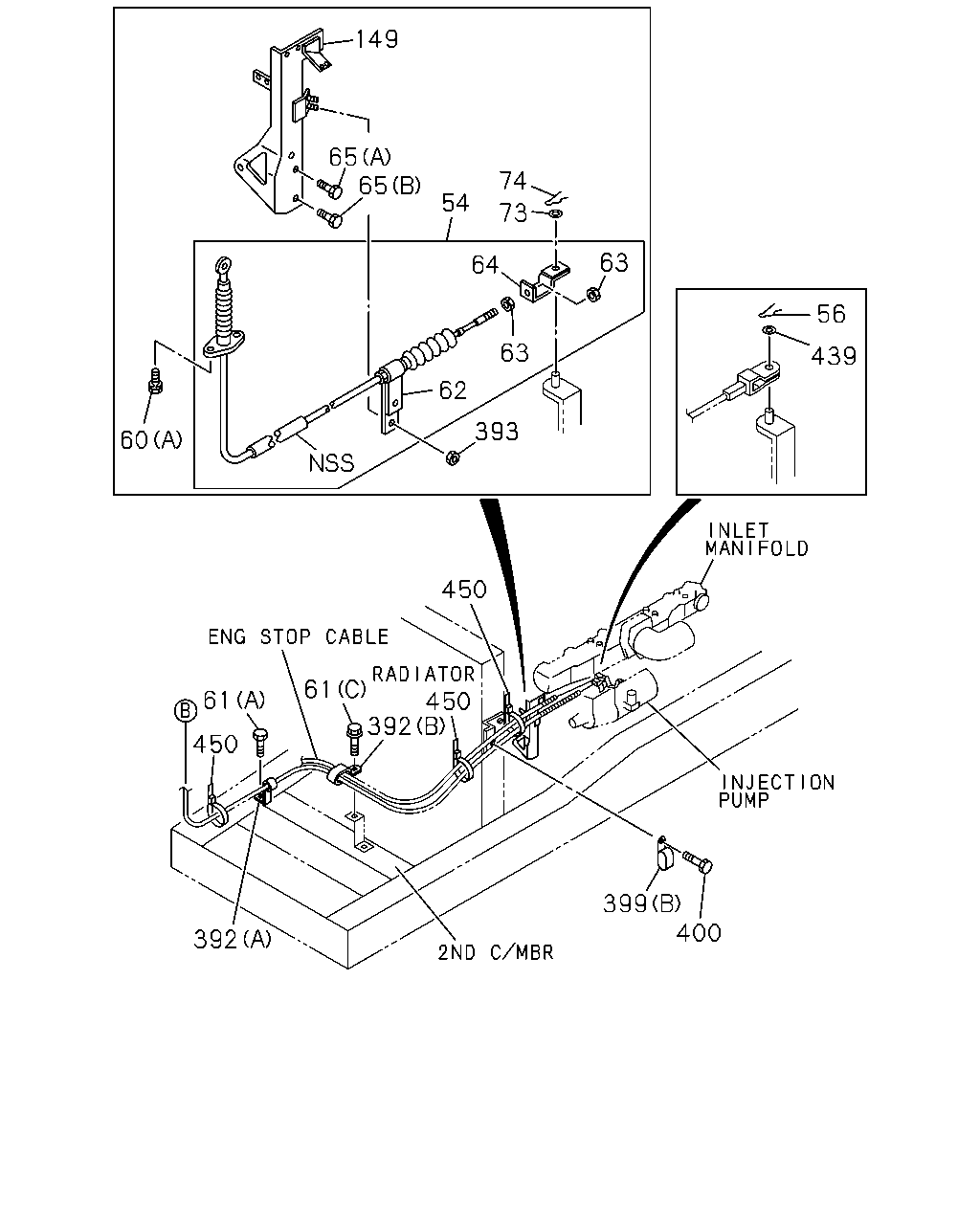

çizim 94754
149 65 65 74 54 73 63 64 56 63 439 62 393 60 450 61 450 392 61 450 399 400 392
BalonParca AdiParca NoAdetTipApplied Date A B C
54 CABLE; ENG CONT
L=1935 		1-23210-745-4 01 1 9204-9211 ● ●
54 CABLE; ENG CONT
L=1935 		1-23230-001-0 01 1 9212- ● ●
54 CABLE; ENG CONT
L=2551 		1-23210-977-2 01 1 9505- ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9204-9205 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9206- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9505- ●
60 BOLT; CABLE
(A) M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9204- ● ● ●
60 BOLT; CABLE
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9204- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28010-820-0 01 1 9204-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M5X14 W/LK WASHER 		1-09980-023-0 01 1 9204- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9505- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9204- ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9204- ● ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9204- ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9505- ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 9505- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 9505- ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9204- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9204- ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9505- ●
149 BRACKET; ENG CONT 8-94394-516-5 01 1 9505- ●
392 CLIP; ACCEL CONT CABLE
ID=9 H=60 		1-09700-956-0 01 1 9204- ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 H=40 L=25 		1-09700-620-0 01 1 9505- ●
392 CLIP; ACCEL CONT CABLE
(B) ID=9X2 L=16 		9-09534-825-0 01 1 9505- ●
393 NUT; CLIP TO FRAME
M6 FLANGE 		0-91150-106-0 02 1 9505- ●
399 CLIP; CABLE,RAD SIDE
(A) ID=9 & 7 L=15 & 15 		1-09700-653-0 01 1 9204-9205 ● ●
399 CLIP; CABLE,RAD SIDE
(B) ID=9X2 L=16 		9-09534-825-0 01 1 9206- ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 		0-28010-812-0 01 1 9204-9204 ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 FLANGE 		0-28080-812-0 01 1 9205- ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9204- ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9204- ● ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF<KB6> L=140 		5-09707-031-0 01 1 9505- ●

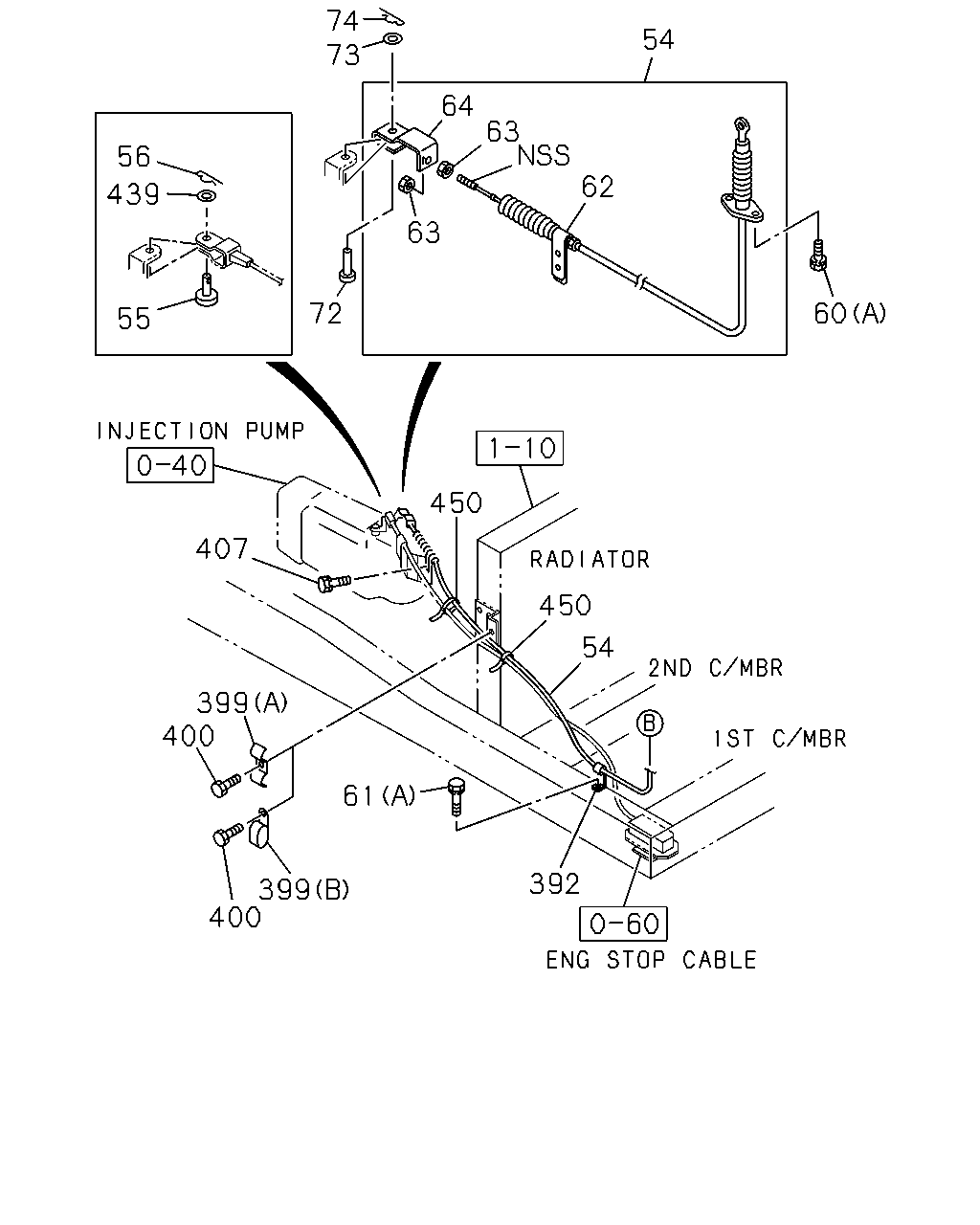

çizim 95438
74 73 54 64 63 62 56 439 63 72 60 55 450 407 450 54 399 400 61 392 399 400
BalonParca AdiParca NoAdetTipApplied Date A B C
54 CABLE; ENG CONT
L=1935 		1-23210-745-4 01 1 9204-9211 ● ●
54 CABLE; ENG CONT
L=1935 		1-23230-001-0 01 1 9212- ● ●
54 CABLE; ENG CONT
L=2551 		1-23210-977-2 01 1 9505- ●
55 PIN; JAW JOINT 1-09744-096-1 01 1 9204-9207 ● ●
55 PIN; JAW JOINT
L=11 		1-09744-102-0 01 1 9208- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9204-9205 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 9206- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 9505- ●
60 BOLT; CABLE
(A) M6X16 W/LK&PL WASHER 		1-09980-458-0 02 1 9204- ● ● ●
60 BOLT; CABLE
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 01 1 9204- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28010-820-0 01 1 9204-9204 ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M5X14 W/LK WASHER 		1-09980-023-0 01 1 9204- ● ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(C) M8X16 FLANGE 		0-28080-816-0 01 1 9505- ●
62 CLIP; ENG CONT CABLE
L=30 		1-09700-326-0 01 1 9204- ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 9204- ● ● ●
64 BRACKET; ENG CONT CABLE 1-09768-018-1 01 1 9204- ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 9505- ●
72 PIN; JAW JOINT,CABLE END 1-09744-083-0 01 1 9204- ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 9204- ● ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 9204- ● ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 9505- ●
392 CLIP; ACCEL CONT CABLE
ID=9 H=60 		1-09700-956-0 01 1 9204- ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=13 H=40 L=25 		1-09700-620-0 01 1 9505- ●
392 CLIP; ACCEL CONT CABLE
(B) ID=9X2 L=16 		9-09534-825-0 01 1 9505- ●
399 CLIP; CABLE,RAD SIDE
(A) ID=9 & 7 L=15 & 15 		1-09700-653-0 01 1 9204-9205 ● ●
399 CLIP; CABLE,RAD SIDE
(B) ID=9X2 L=16 		9-09534-825-0 01 1 9206- ● ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 		0-28010-812-0 01 1 9204-9204 ● ●
400 BOLT; CLIP,RAD SIDE
M8X12 FLANGE 		0-28080-812-0 01 1 9205- ● ● ●
407 BOLT; CLIP TO ENG
M6X18 		0-28010-618-0 02 1 9204-9204 ● ●
407 BOLT; CLIP TO ENG
M6X18 FLANGE 		0-28080-618-0 02 1 9205-9207 ● ●
407 BOLT; CLIP TO ENG
M6X20 FLANGE 		0-28080-620-0 02 1 9208- ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 9204- ● ● ●
450 CLIP; BAND
L=140 		5-09707-031-0 02 1 9204- ● ● ●
450 CLIP; BAND
EXC. AUTO ENG SHUTOFF<KB6> L=140 		5-09707-031-0 01 1 9505- ●
