◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30A - GEAR SHIFTER AND QUADRANT BOX ▶
2-30A — GEAR SHIFTER AND QUADRANT BOX (#71395) — 324 parça

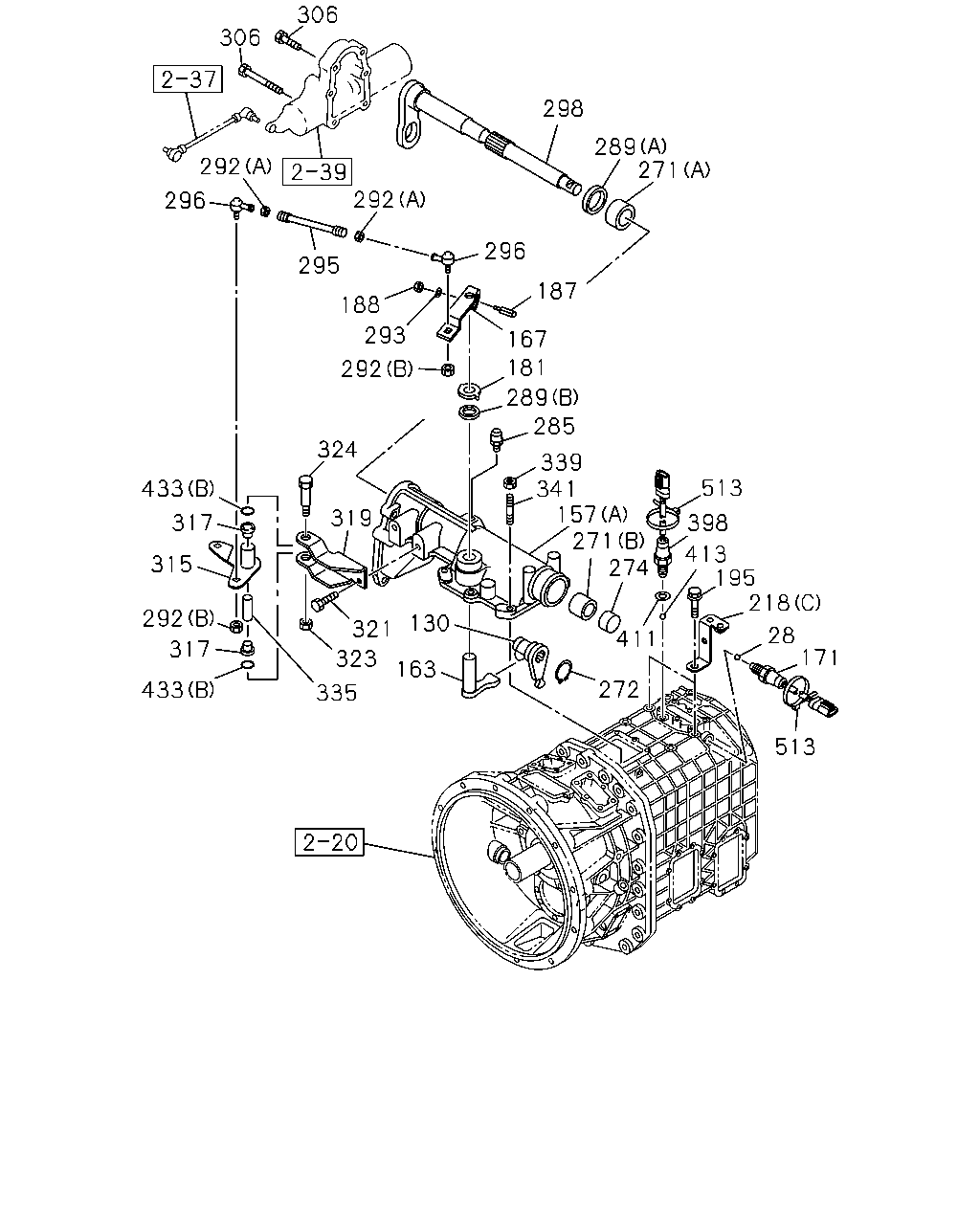

çizim 189575
306 306 292 296 295 292 298 296 188 187 293 292 167 289 181 271 289 339 285 341 513 157 271 274 398 413 195 218 28 171 513 411 272 130 163 321 323 335 433 292 317 315 433 317 324 319
BalonParca AdiParca NoAdetTipApplied Date A B
28 BALL; INTER LK 9-00097-501-0 04 1 1009-1303 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1304- ● ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1009-1303 ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1304- ● ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1009-1303 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1304-1311 ● ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1304- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1009-1303 ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1304- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1009-1303 ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1304- ● ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1009-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-1303 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1304- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1009-1303 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1304- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1009-1303 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1304- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1009-1303 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1304- ● ●
195 BOLT
M10X25 FLANGE 		0-28751-025-0 02 1 1009- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1009-1303 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		8-98133-847-0 02 1 1304- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 1304- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 1304- ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1009-1303 ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1304- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1009-1303 ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1304- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1009-1303 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1304- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1009-1303 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1304- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1009-1303 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1304- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1009-1303 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1304- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1009-1303 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1304- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1009-1303 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1304- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1009-1303 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1304- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1009-1303 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1304- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1009-1303 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1304- ● ●
296 ROD END 1-09760-108-0 02 1 1009-1303 ●
296 ROD END 1-09760-108-0 02 1 1304- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1009-1303 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1304- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1009-1303 ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1304- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1009-1303 ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1304- ● ●
315 LEVER; SELECT 8-98097-127-0 01 1 1009-1303 ●
315 LEVER; SELECT 8-98097-127-0 01 1 1304- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1009-1303 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1009-1303 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1304- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1009-1303 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1304- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1009-1303 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1304- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 1009-1303 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 1304- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1009-1303 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1304- ● ●
339 NUT; QUAD BOX
M10 FLANGE 		0-91180-210-0 06 1 1009- ●
341 STUD; QUAD BOX
M10X25 L=40 		0-44011-025-0 06 1 1009- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 1009-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 1304- ●
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 1009- ●
413 BALL; BACK SW 9-00097-013-0 01 1 1009- ●
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 1009-1303 ●
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 1304- ● ●
513 CLIP; BAND
L=140 		5-09707-031-1 02 1 1304- ●

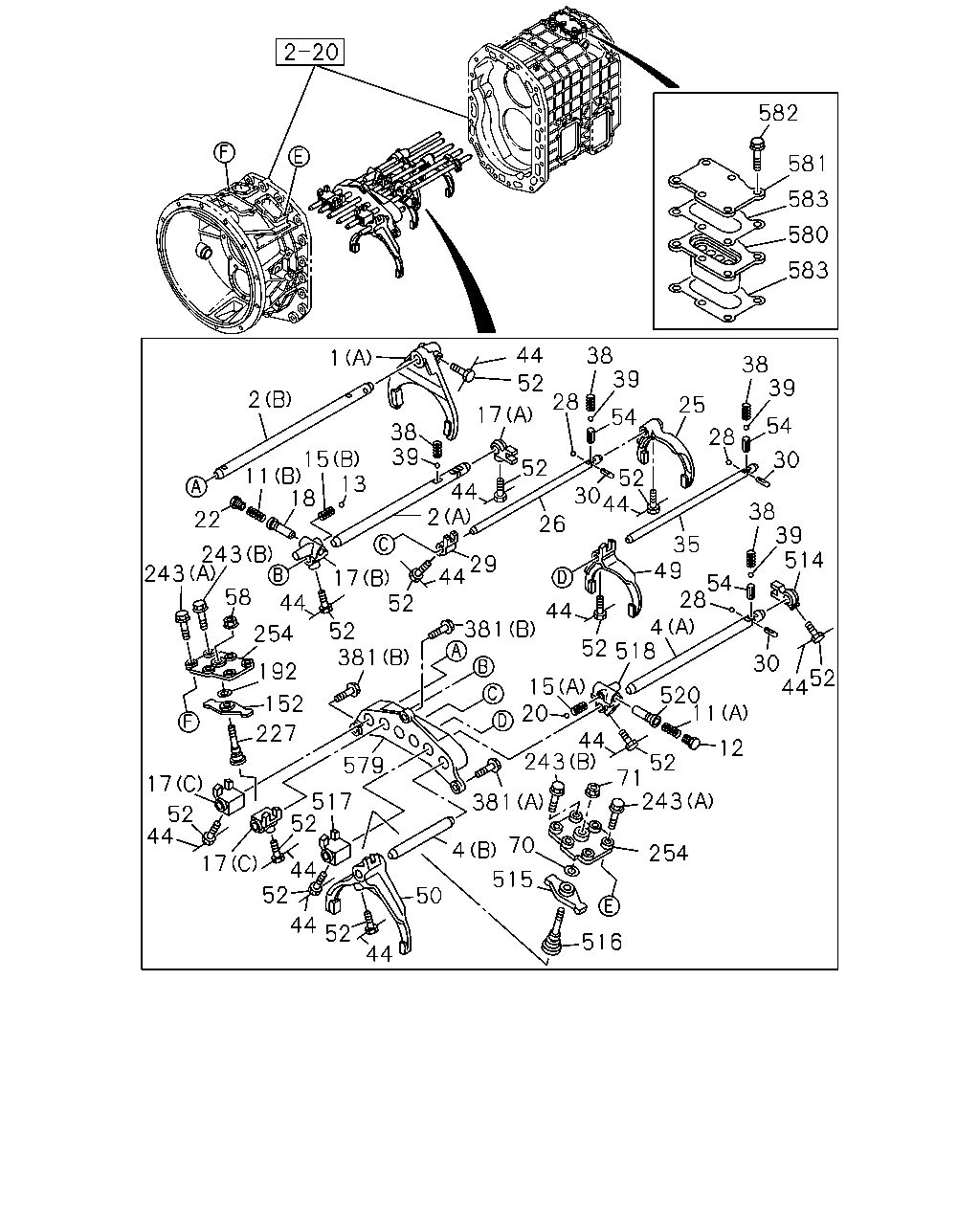

çizim 189578
582 583 580 583 581 516 254 243 515 50 381 71 243 520 44 30 4 52 518 44 15 20 44 70 4 44 52 44 52 17 44 52 44 517 227 17 152 192 381 579 12 52 11 514 38 35 28 49 26 44 39 54 30 52 25 54 39 38 28 28 54 39 38 44 17 52 52 44 2 1 38 15 11 2 22 18 243 243 58 44 254 381 52 17 44 52 52 29 30 39 13 52
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 1304- ●
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-541-0 01 1 1304- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-579-0 01 1 1009- ●
2 ROD; SHIFT,1ST & REV
(D) 		1-33531-415-1 01 1 1304- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1009- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1009- ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-400-1 01 1 1304- ●
4 ROD; SHIFT,6TH
(C) 		1-33531-405-1 01 1 1304- ●
4 ROD; SHIFT,6TH
(D) 		1-33531-407-1 01 1 1304- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1009- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1009- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1009- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1009-1303 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1304-1510 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1511- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1304- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1009- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1009-1303 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1304- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1009- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1009-1303 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1304- ● ●
17 BLOCK; SHIFT,1ST & REV
(E) 		1-33511-298-4 01 1 1304- ●
17 BLOCK; SHIFT,1ST & REV
(D) 		1-33511-540-0 01 1 1304- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1009- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1009- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1009- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1009-1303 ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1304- ● ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1009-1303 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1304- ● ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1304- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1009- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 1304- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1009- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 1304- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1009- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1009-1303 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1304- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1009-1303 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1304- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 1009-1303 ●
30 PIN; INTER LK 9-33534-003-0 03 1 1304- ● ●
35 ROD; SHIFT,4TH & 5TH BLOCK 1-33531-442-1 01 1 1009- ●
38 SPRING; DETENT 1-09580-379-0 04 1 1009-1303 ●
38 SPRING; DETENT 1-09580-379-0 04 1 1304- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 1009-1303 ●
39 BALL; DETENT 1-09843-012-0 04 1 1304- ● ●
44 WIRE; LK
L=180 		1-09780-024-0 10 1 1009- ●
44 WIRE; LK
L=200 		9-08351-020-0 02 1 1009- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 1304- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1009- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 1304- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1009- ●
52 BOLT; SHIFT ARM
M12X20 W/HOLE 		1-09052-038-0 12 1 1009- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1009-1303 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1304- ● ●
58 NUT
M12 FLANGE 		0-91180-212-0 01 1 1009- ●
70 WASHER; PL,SHIFT LEVER
ID=16.5 		9-09857-042-0 01 1 1009- ●
71 NUT; SHIFT LEVER
M12 FLANGE 		0-91180-212-0 01 1 1009- ●
152 LEVER; RELAY,SELECT 1-33511-560-1 01 1 1009- ●
192 WASHER; PL
ID=16.5 		9-09857-042-0 01 1 1009- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 1304- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1009- ●
243 BOLT; COVER
(A) M10X30 FLANGE 		0-28151-030-0 08 1 1009- ●
243 BOLT; COVER
(B) M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1009- ●
254 COVER; LEVER 1-33141-054-0 02 1 1009- ●
381 BOLT
(A) M10X35 FLANGE 		0-28751-035-0 01 1 1009- ●
381 BOLT
(B) M10X34 FLANGE REAMER 		1-09040-091-1 02 1 1009- ●
514 BLOCK; 6-7 SETTING 1-33511-605-0 01 1 1009- ●
515 LEVER; SHIFT,6TH & 7TH 1-33511-560-1 01 1 1009- ●
516 SPINDLE; 6TH & 7TH 1-33519-104-0 01 1 1009- ●
517 BLOCK; SHIFT,6TH & 7TH 1-33511-557-0 01 1 1009- ●
518 BLOCK ASM; SHIFT,6TH & 7TH 1-33511-558-1 01 1 1009- ●
520 SLEEVE; 6TH & 7TH 1-33516-022-1 01 1 1009- ●
579 BLOCK; SHIFT,ROD GUIDE 1-33539-065-1 01 1 1009- ●
580 BLOCK; INTERLOCK 1-33539-064-1 01 1 1009- ●
581 COVER; BLOCK 1-33141-056-0 01 1 1009- ●
582 BOLT; SPRING GUIDE
M10X35 FLANGE 		0-28151-035-0 06 1 1009- ●
583 GASKET; SPRING GUIDE 1-33142-047-0 02 1 1009- ●

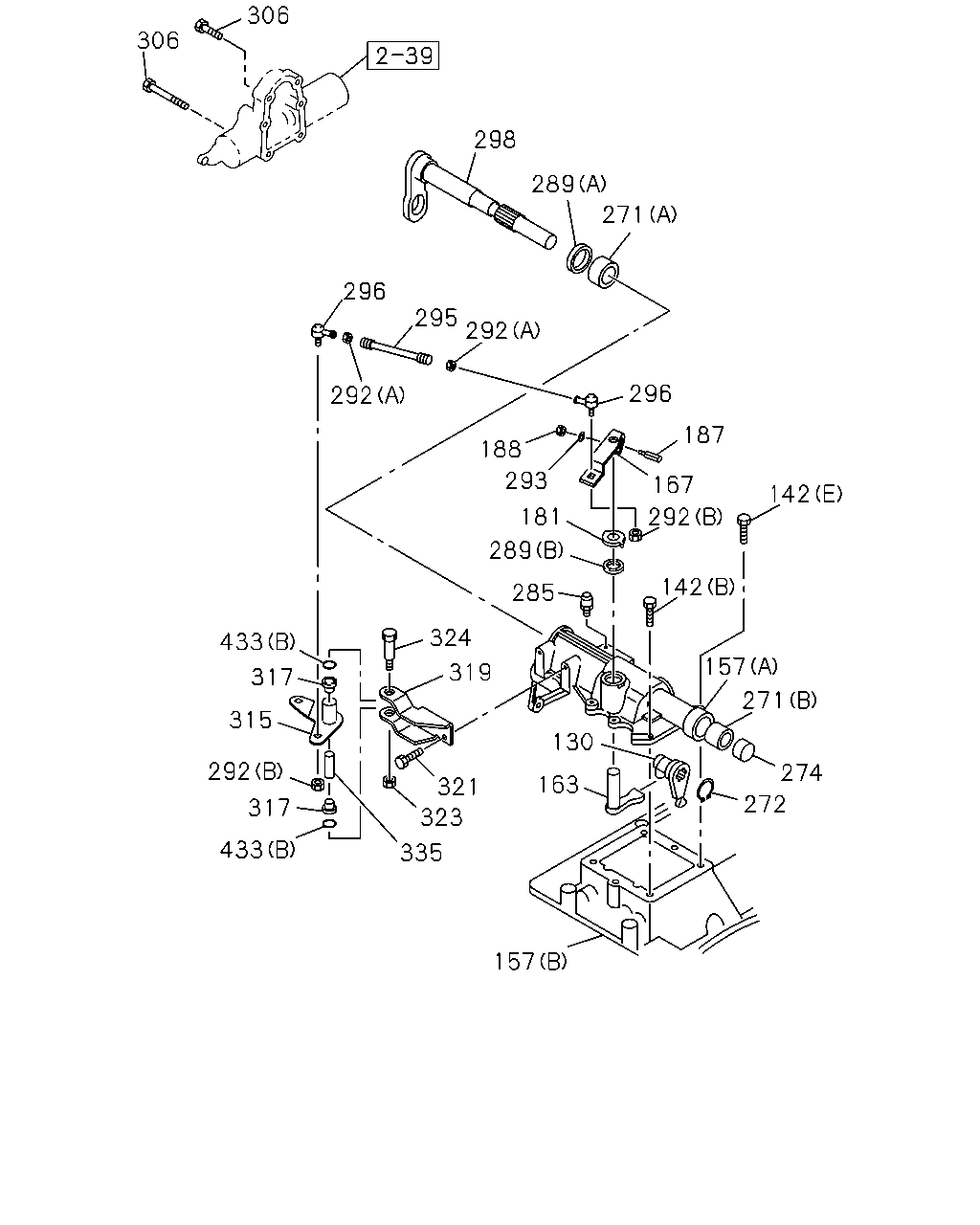

çizim 345229
157 163 272 271 274 157 130 335 321 323 433 292 315 433 317 324 319 285 289 293 188 181 296 167 142 292 142 292 295 296 292 271 289 298 306 306 317 187
BalonParca AdiParca NoAdetTipApplied Date A B
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1009-1303 ●
130 LEVER; SHIFT,INTERNAL 1-33521-124-0 01 1 1304- ● ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1304- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1304- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 1304- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 1304- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 1304- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1304- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1009-1303 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1304-1311 ● ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1304- ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1009-1303 ●
163 LEVER; SELECT,INTERNAL 1-33522-162-1 01 1 1304- ● ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1009-1303 ●
167 LEVER; SELECT,EXTERNAL 1-33521-163-0 01 1 1304- ● ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1009-1303 ●
181 WASHER; PL,SELECT LEVER
OD=40 		1-09532-008-0 01 1 1304- ● ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1009-1303 ●
187 BOLT; SELECT LEVER
M8X42 		1-33659-045-0 01 1 1304- ● ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1009-1303 ●
188 NUT; SELECT LEVER
M8 FLANGE 		1-09440-062-1 01 1 1304- ● ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1009-1303 ●
271 BUSHING; QUAD BOX
(B) ID=20 OD=23 		1-33549-016-0 01 1 1304- ● ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1009-1303 ●
271 BUSHING; QUAD BOX
(A) ID=28 OD=32 		1-33549-104-0 01 1 1304- ● ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1009-1303 ●
272 RING; SNAP,QUAD BOX 1-09588-175-0 01 1 1304- ● ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1009-1303 ●
274 COVER; SHAFT,QUAD BOX 9-33545-017-1 01 1 1304- ● ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1009-1303 ●
285 BREATHER; AIR,QUAD BOX 1-33149-008-0 01 1 1304- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1009-1303 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30 		1-09625-386-0 01 1 1304- ● ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1009-1303 ●
289 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41 		1-09625-647-0 01 1 1304- ● ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1009-1303 ●
292 NUT; LINK ROD
(A) M8 		0-91111-508-0 02 1 1304- ● ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1009-1303 ●
292 NUT; LINK ROD
(B) M8 FLANGE 		1-09440-062-1 02 1 1304- ● ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1009-1303 ●
293 WASHER; PL,TAPER BOLT
ID=8.4 OD=22 		0-91610-708-0 01 1 1304- ● ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1009-1303 ●
295 ROD; LINK,RELAY LEVER 9-08400-816-0 01 1 1304- ● ●
296 ROD END 1-09760-108-0 02 1 1009-1303 ●
296 ROD END 1-09760-108-0 02 1 1304- ● ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1009-1303 ●
298 SHAFT; SHIFT LEVER 1-33522-180-0 01 1 1304- ● ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1009-1303 ●
306 BOLT; SHIFT ASSISTOR
M10X45 FLANGE 		0-28151-045-0 02 1 1304- ● ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1009-1303 ●
306 BOLT; SHIFT ASSISTOR
M10X80 FLANGE 		0-28151-080-0 04 1 1304- ● ●
315 LEVER; SELECT 8-98097-127-0 01 1 1009-1303 ●
315 LEVER; SELECT 8-98097-127-0 01 1 1304- ● ●
317 BUSHING; LEVER 1-09330-119-0 02 1 1009-1303 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1009-1303 ●
319 BRACKET; SELECT LEVER 1-33657-753-0 01 1 1304- ● ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1009-1303 ●
321 BOLT; BRKT,RELAY LEVER
M10X22 FLANGE 		0-28181-022-0 02 1 1304- ● ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1009-1303 ●
323 NUT; LK,SELECT LEVER 1-33659-219-0 01 1 1304- ● ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 1009-1303 ●
324 BOLT; SHAFT
M10X60 FLANGE 		0-28051-060-0 01 1 1304- ● ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1009-1303 ●
335 COLLAR; DIST,RELAY LEVER ASM 1-33659-220-0 01 1 1304- ● ●
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 1009-1303 ●
433 GASKET; BUSHING
(B) 		1-09623-636-0 02 1 1304- ● ●

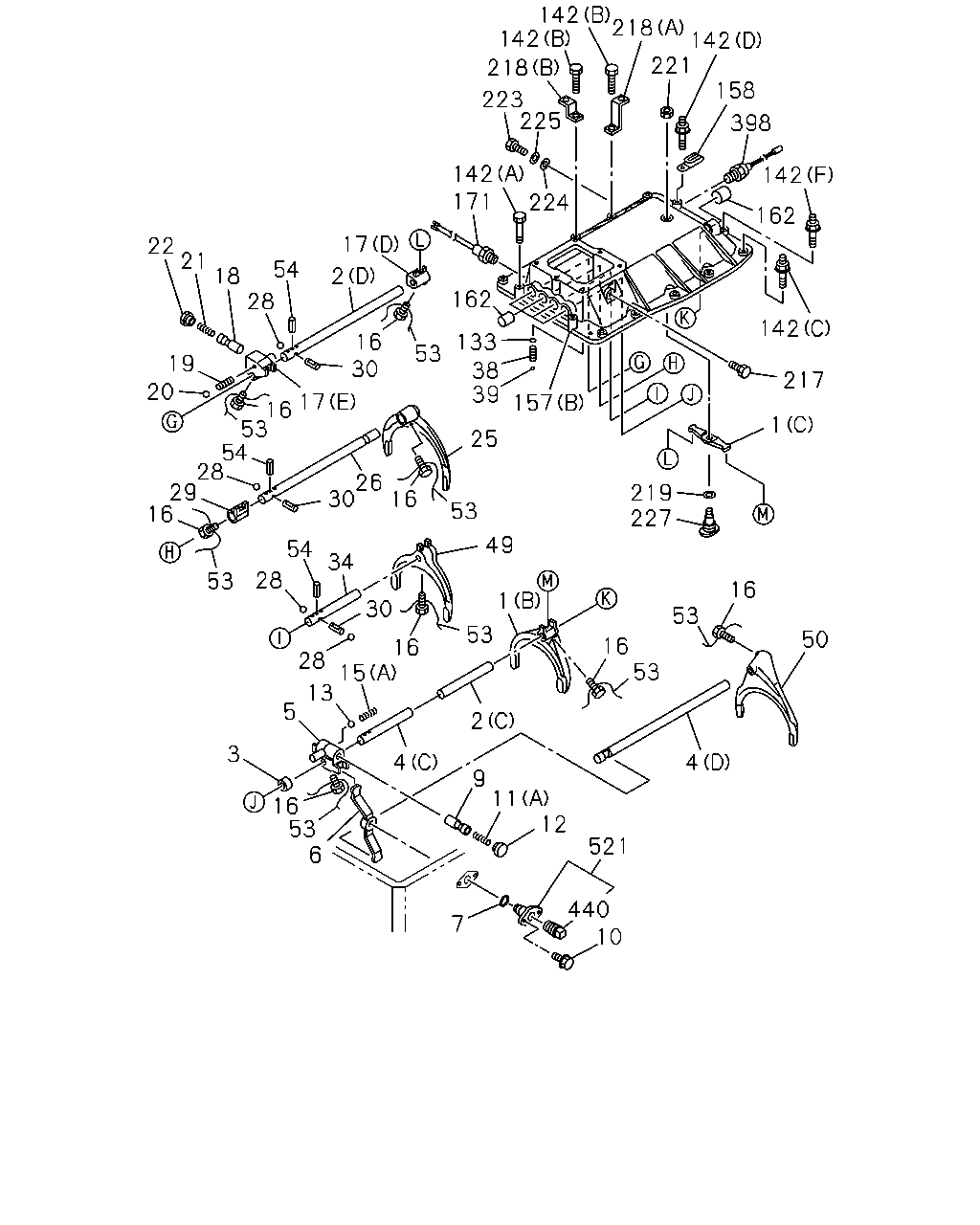

çizim 345442
22 17 2 54 28 18 21 19 20 53 16 17 30 16 53 54 28 29 16 53 26 30 28 54 16 25 53 34 49 30 28 3 13 5 16 15 53 16 53 6 4 1 2 9 11 7 12 521 440 10 4 16 53 53 50 16 227 219 157 39 38 133 162 171 224 142 225 223 218 142 142 218 221 142 158 142 398 162 142 217 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ARM; SHIFT,1ST & REV
(B) 		1-33511-458-0 01 1 1304- ●
1 ARM; SHIFT,1ST & REV
(C) 		1-33511-541-0 01 1 1304- ●
1 ARM; SHIFT,1ST & REV
(A) 		1-33511-579-0 01 1 1009- ●
2 ROD; SHIFT,1ST & REV
(D) 		1-33531-415-1 01 1 1304- ●
2 ROD; SHIFT,1ST & REV
(A) 		1-33531-438-0 01 1 1009- ●
2 ROD; SHIFT,1ST & REV
(B) 		1-33531-456-0 01 1 1009- ●
2 ROD; SHIFT,1ST & REV
(C) 		1-33531-400-1 01 1 1304- ●
3 STOPPER; 6TH SHIFT ROD 9-33537-018-0 01 1 1304- ●
4 ROD; SHIFT,6TH
(C) 		1-33531-405-1 01 1 1304- ●
4 ROD; SHIFT,6TH
(D) 		1-33531-407-1 01 1 1304- ●
4 ROD; SHIFT,6TH
(A) 		1-33531-443-1 01 1 1009- ●
4 ROD; SHIFT,6TH
(B) 		1-33531-445-0 01 1 1009- ●
5 BLOCK; SHIFT,6TH 1-33511-372-2 01 1 1304- ●
6 LEVER; RELAY 9-33511-402-1 01 1 1304- ●
7 GASKET; SPINDLE
ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 		1-09623-057-0 01 1 1304- ●
9 SLEEVE; 6TH,SHIFT BLOCK 1-33516-022-1 01 1 1304- ●
10 BOLT; SPINDLE
M14X20 		1-09044-078-0 02 1 1304- ●
11 SPRING; RETURN,SHIFT SLEEVE
(B) 		1-09580-444-0 01 1 1009- ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1009-1303 ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		9-09941-160-0 01 1 1304-1510 ● ●
11 SPRING; RETURN,SHIFT SLEEVE
(A) 		8-98294-206-0 01 1 1511- ● ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1304- ●
12 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1009- ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1009-1303 ●
13 BALL; LK,SHIFT SLEEVE 9-00097-509-0 01 1 1304- ● ●
15 SPRING; LK,SHIFT SLEEVE
(B) 		1-09580-439-0 01 1 1009- ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1009-1303 ●
15 SPRING; LK,SHIFT SLEEVE
(A) 		9-09941-007-0 01 1 1304- ● ●
16 BOLT; SHIFT ARM & BLOCK SET
M12X20 W/HOLE 		1-09052-038-0 08 1 1304- ●
17 BLOCK; SHIFT,1ST & REV
(E) 		1-33511-298-4 01 1 1304- ●
17 BLOCK; SHIFT,1ST & REV
(D) 		1-33511-540-0 01 1 1304- ●
17 BLOCK; SHIFT,1ST & REV
(A) 		1-33511-202-3 01 1 1009- ●
17 BLOCK; SHIFT,1ST & REV
(B) 		1-33511-552-1 01 1 1009- ●
17 BLOCK; SHIFT,1ST & REV
(C) 		1-33511-557-0 02 1 1009- ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1009-1303 ●
18 SLEEVE; 1ST & REV,SHIFT BLOCK 1-33516-022-1 01 1 1304- ● ●
19 SPRING; COIL COMP 1-09580-438-0 01 1 1304- ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1009-1303 ●
20 BALL; DETENT SLEEVE 9-00097-509-0 01 1 1304- ● ●
21 SPRING; COIL COMP SLEEVE 1-09580-444-0 01 1 1304- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-003-1 01 1 1304- ●
22 CAP; RETURN SPR,SHIFT BLOCK 1-33516-039-1 01 1 1009- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-440-0 01 1 1304- ●
25 ARM; SHIFT,2ND & 3RD 1-33511-435-0 01 1 1009- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-401-1 01 1 1304- ●
26 ROD; SHIFT,2ND & 3RD 1-33531-440-1 01 1 1009- ●
28 BALL; INTER LK 9-00097-501-0 04 1 1009-1303 ●
28 BALL; INTER LK 9-00097-501-0 04 1 1304- ● ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1009-1303 ●
29 BLOCK; SHIFT,2ND & 3RD 1-33511-376-1 01 1 1304- ● ●
30 PIN; INTER LK 9-33534-003-0 03 1 1009-1303 ●
30 PIN; INTER LK 9-33534-003-0 03 1 1304- ● ●
34 ROD; SHIFT,4TH & 5TH ARM 1-33531-402-1 01 1 1304- ●
38 SPRING; DETENT 1-09580-379-0 04 1 1009-1303 ●
38 SPRING; DETENT 1-09580-379-0 04 1 1304- ● ●
39 BALL; DETENT 1-09843-012-0 04 1 1009-1303 ●
39 BALL; DETENT 1-09843-012-0 04 1 1304- ● ●
49 ARM; SHIFT,4TH & 5TH 1-33511-461-0 01 1 1304- ●
49 ARM; SHIFT,4TH & 5TH 1-33511-466-1 01 1 1009- ●
50 ARM; SHIFT,6TH 1-33511-185-3 01 1 1304- ●
50 ARM; SHIFT,6TH 1-33511-550-0 01 1 1009- ●
53 WIRE; BOLT
L=180 		1-09780-024-0 06 1 1304- ●
53 WIRE; BOLT
L=200 		9-08351-020-0 02 1 1304- ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1009-1303 ●
54 PIN; SPR,SHIFT BLOCK 1-09748-014-0 03 1 1304- ● ●
133 SEAT; SPR 1-33549-072-0 04 1 1304- ●
142 BOLT; QUAD BOX
(A) M10X55 FLANGE 		8-97365-449-0 02 1 1304- ●
142 BOLT; QUAD BOX
(C) M10X20,M10X26 L=56 		8-98010-334-0 03 1 1304- ●
142 BOLT; QUAD BOX
(D) M10X20,M10X45 L=75 		8-98010-335-0 01 1 1304- ●
142 BOLT; QUAD BOX
(F) M10X20,M10X55 L=85 		8-98032-017-0 01 1 1304- ●
142 BOLT; QUAD BOX
(B) M10X28 FLANGE 		8-98044-944-0 11 1 1304- ●
142 BOLT; QUAD BOX
(E) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 1304- ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1009-1303 ●
157 BOX; QUAD,TRANS
(A) 		1-33541-507-3 01 1 1304-1311 ● ●
157 BOX; QUAD,TRANS
(A) 		8-98231-390-0 01 1 1312- ● ●
157 BOX; QUAD,TRANS
(B) 		1-33541-345-2 01 1 1304- ●
158 CLIP; HARNESS
L=36 		8-94224-891-1 01 1 1304- ●
162 COVER; SHIFT ROD,QUAD BOX
OD=24 L=31 		9-33545-011-1 05 1 1304- ●
171 SWITCH; NEUTRAL 8-98166-989-0 01 1 1009-1109 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1110-1303 ●
171 SWITCH; NEUTRAL 8-97640-725-0 01 1 1304- ● ●
217 SCREW; SET,6TH SHIFT BLOCK
M8X12.5 		9-09814-533-0 01 1 1304- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		1-82699-639-1 02 1 1009-1303 ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(C) 		8-98133-847-0 02 1 1304- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(A) 		1-47475-689-0 01 1 1304- ●
218 BRACKET; HARNESS CLIP,QUAD BOX
(B) 		1-82699-425-0 01 1 1304- ●
219 WASHER; PL,SPINDLE
ID=16.5 		9-09857-042-0 01 1 1304- ●
221 NUT; SPINDLE
M12 FLANGE 		0-91180-212-0 01 1 1304- ●
223 SCREW; SET,QUAD BOX
M14X45 		9-09816-057-1 01 1 1304- ●
224 WASHER; PL,QUAD BOX
ID=15 		0-91610-514-0 01 1 1304- ●
225 WASHER; LK,QUAD BOX
ID=14.2 		0-91510-514-0 01 1 1304- ●
227 SPINDLE; 1ST & REV 1-33519-012-0 01 1 1304- ●
227 SPINDLE; 1ST & REV 1-33519-104-0 01 1 1009- ●
398 SWITCH; REV LAMP 8-98042-853-0 01 1 1009-1209 ●
398 SWITCH; REV LAMP 8-98228-482-0 01 1 1210- ●
398 SWITCH; REV LAMP 1-82440-082-0 01 1 1304- ●
440 PLUG; OIL
PT1/4 		9-99204-513-0 01 1 1304- ●
521 SPINDLE; 6TH 1-33119-255-0 01 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
