Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11309 - FXZ(RHD)EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-25A - SPEEDOMETER DRIVEN GEAR
▶
2-25A — SPEEDOMETER DRIVEN GEAR
(#71389) — 37 parça
Tümü
A - MJT7U M/T
B - MAL6R M/T
◀

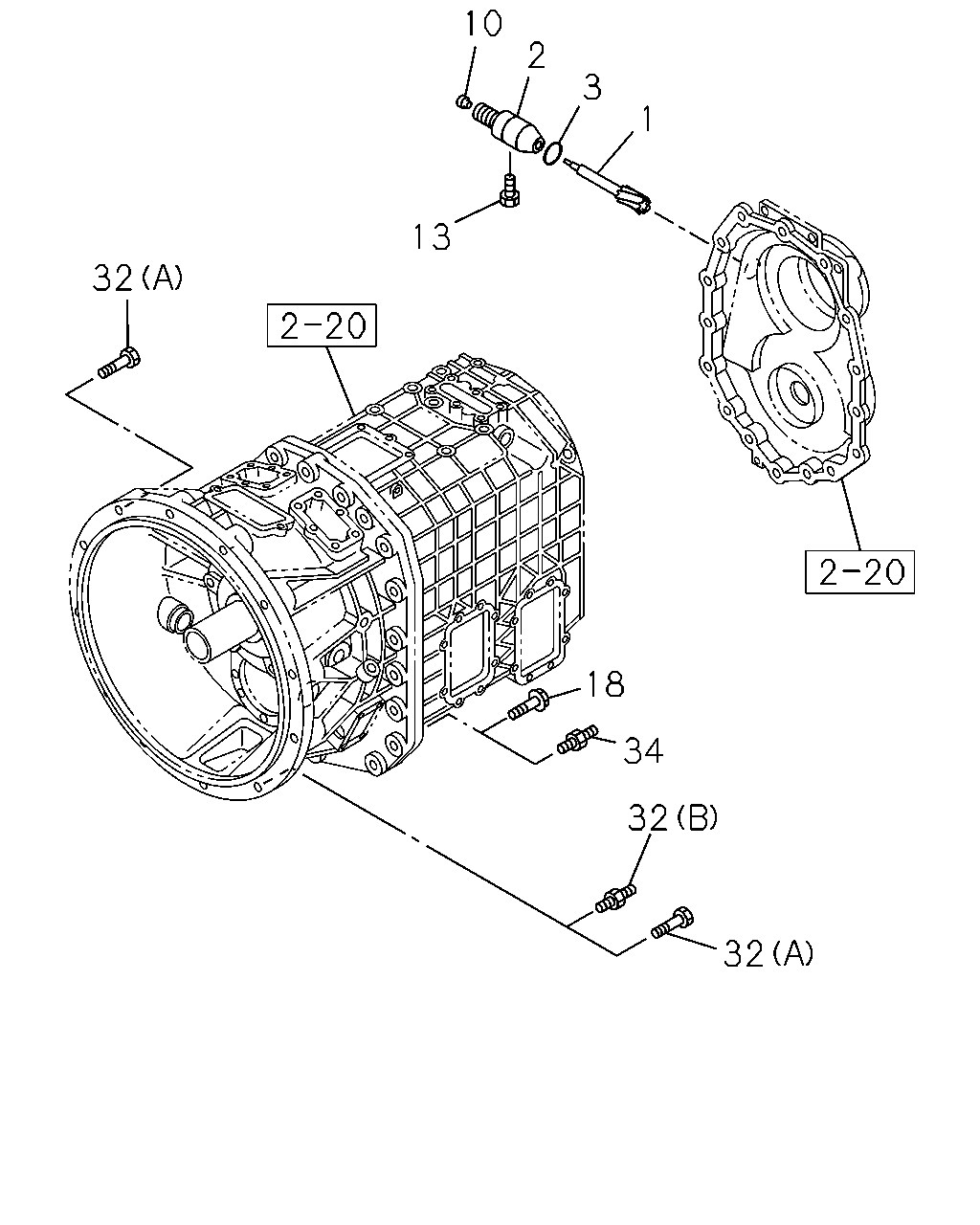

[225A] MJT (17 parça)

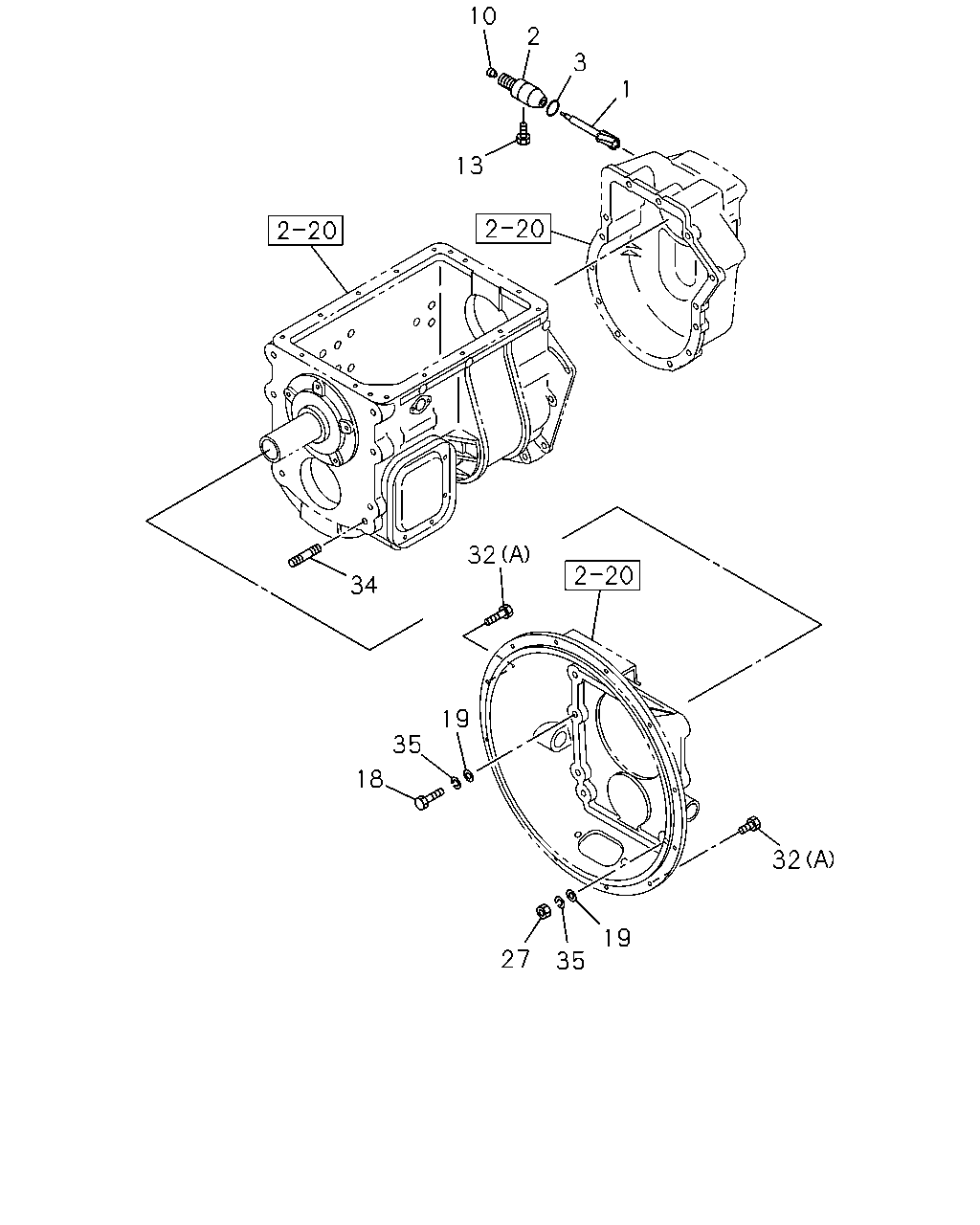

[225A] MAL (20 parça)
▶
32
13
10
2
3
1
18
34
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
1009-1303
●
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
1304-
●
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
1009-1303
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
1304-
●
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1009-1303
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1304-
●
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1009-1303
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1304-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1009-1303
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1304-
●
●
18
BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER
0-50651-650-0
06
1
1304-
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
17
1
1009-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE
0-28151-235-0
12
1
1304-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
FXZ(FG****) (A) M12X70 FLANGE
0-28151-270-0
10
1
1009-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
FXZ(FG****) (B) M10X16,M12X70 L=97.7
1-09049-038-1
02
1
1009-
●
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
02
1
1009-
●
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
1304-
●
10
3
2
1
13
32
34
19
35
18
35
27
19
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
1009-1303
●
1
GEAR; DRIVEN,SPD
Z=15
1-33372-147-4
01
1
1304-
●
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
1009-1303
●
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
1-33373-077-0
01
1
1304-
●
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1009-1303
●
3
GASKET; BUSHING
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-246-0
01
1
1304-
●
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1009-1303
●
10
SEAL; OIL,DRIVE GEAR
ALSO INCLUDED IN GASKET SET(M/T). NOK
1-09625-510-0
01
1
1304-
●
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1009-1303
●
13
SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE
8-98014-141-0
01
1
1304-
●
●
18
BOLT; CLU HSG TO TRANS
M16X50 W/LK&PL WASHER
0-50651-650-0
06
1
1304-
●
18
BOLT; CLU HSG TO TRANS
M12X50 FLANGE
0-28151-250-0
17
1
1009-
●
19
WASHER; PL,CLU HSG TO TRANS
ID=17 OD=30
0-91610-516-0
02
1
1304-
●
27
NUT; CLU HSG TO TRANS
M16
0-91110-516-0
02
1
1304-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
(A) M12X35 FLANGE
0-28151-235-0
12
1
1304-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
FXZ(FG****) (A) M12X70 FLANGE
0-28151-270-0
10
1
1009-
●
32
BOLT; CLU HSG TO FLYWHEEL HSG
FXZ(FG****) (B) M10X16,M12X70 L=97.7
1-09049-038-1
02
1
1009-
●
34
STUD; CLU HSG
M10X28,M12X50 L=89.7
1-09049-037-0
02
1
1009-
●
34
STUD; CLU HSG
M16X45 L=69
9-04411-645-0
02
1
1304-
●
35
WASHER; LK,CLU HSG TO TRANS
ID=16.2
0-91510-516-0
02
1
1304-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
