Sayfa 2-20B - Isuzu EPC

2-20B — MANUAL TRANSMISSION ASM AND CASE (#71387) — 223 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

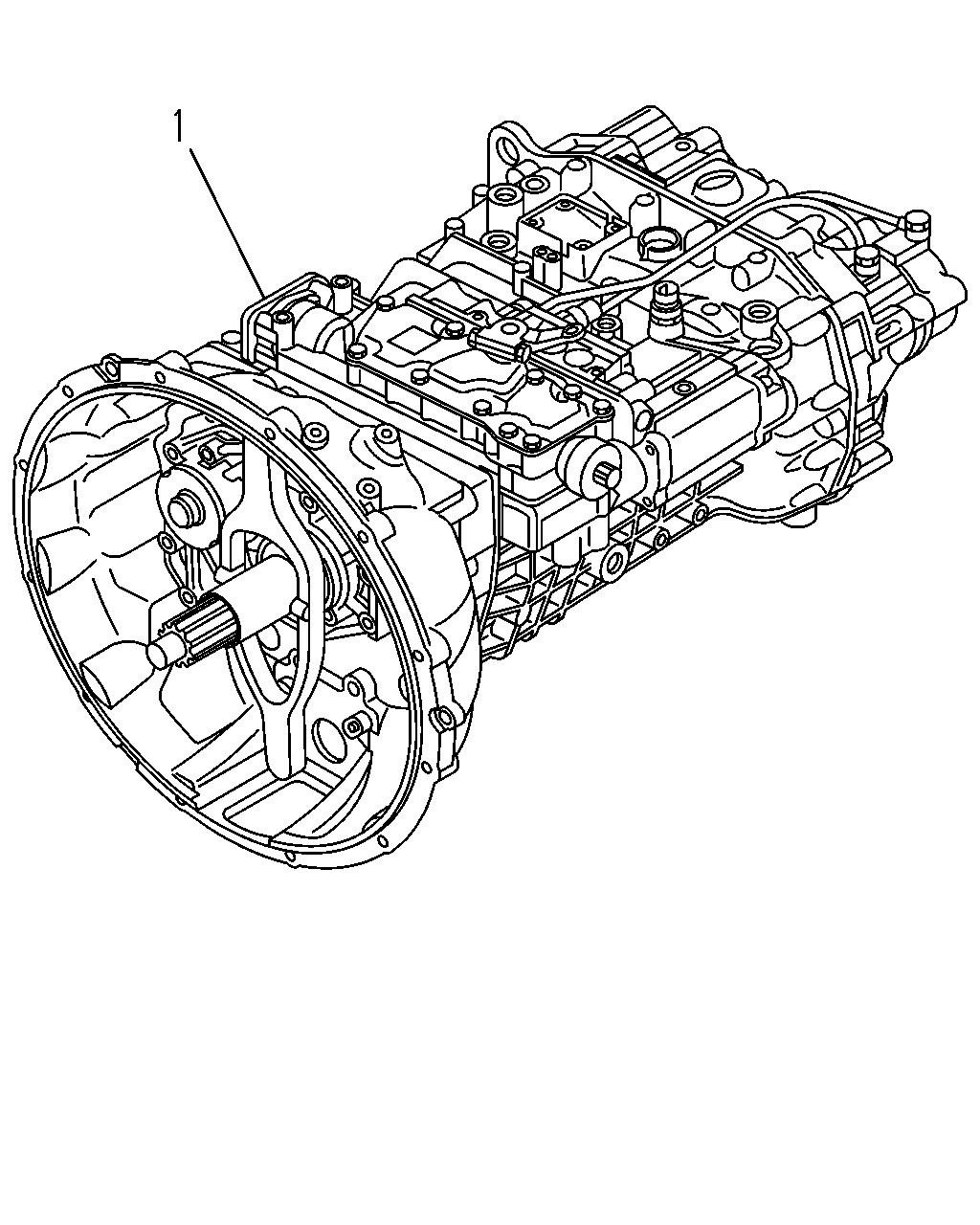

1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	8-98079-599-1	01	1	1304-
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) SHIFT PATTERN DOUBLE-H<EDZ>	8-98167-318-1	01	1	1304-
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN DOUBLE-H<EDZ>	8-98133-471-0	01	1	1009-1010
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN DOUBLE-H<EDZ>	8-98167-317-0	01	1	1011-1303
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN DOUBLE-H<EDZ> EXC. PTO ZF TRANS RR(BDM)	8-98167-317-1	01	1	1304-
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN SINGLE-H<EDY>	8-98133-473-0	01	1	1009-1106
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN SINGLE-H<EDY>	8-98167-319-0	01	1	1107-1303
1	TRANSMISSION ASM; MANUAL SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	8-98167-319-1	01	1	1304-

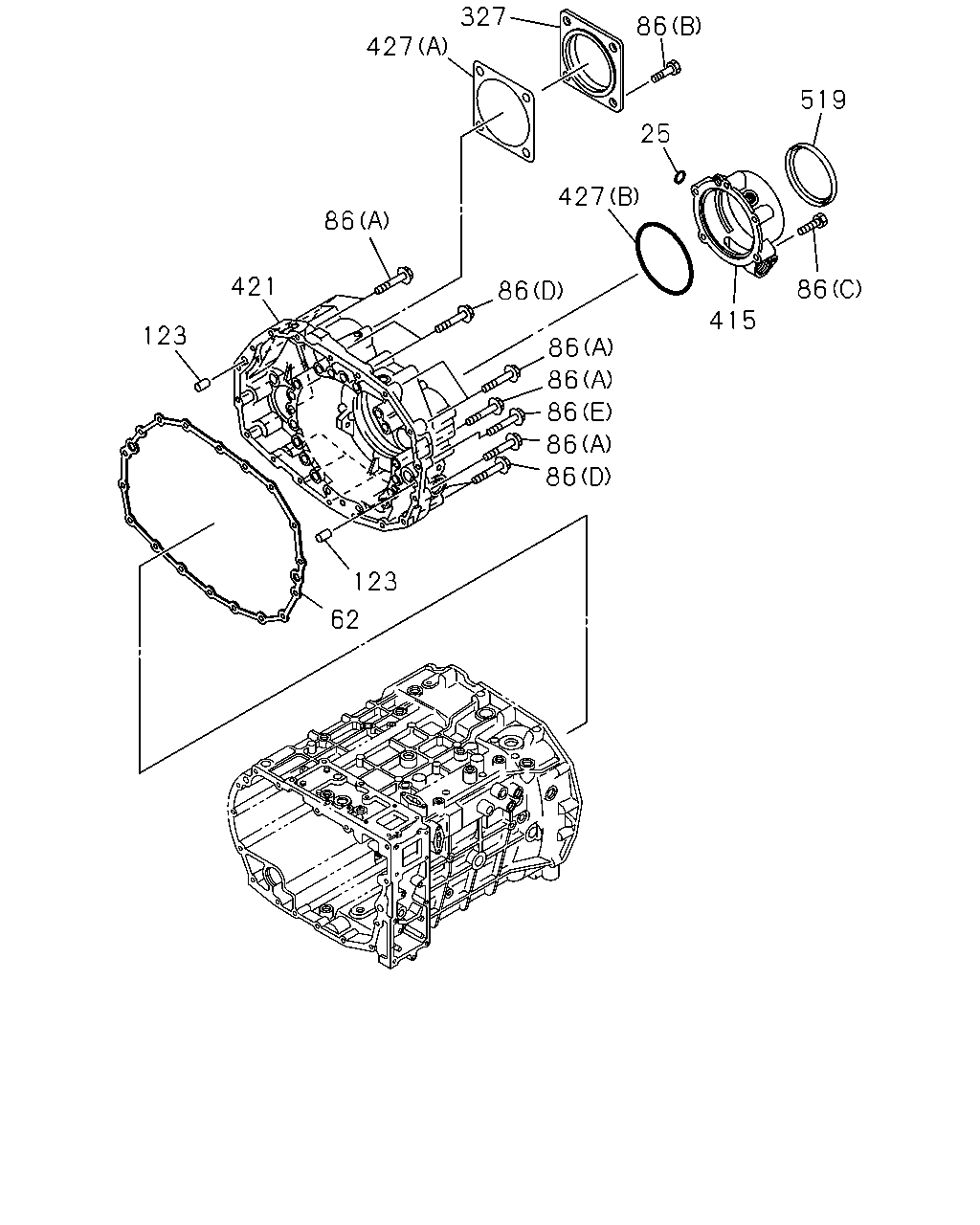

327 427 86 519 25 427 415 86 86 421 123 123 62 86 86 86 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	GASKET; COVER	1-33139-060-0	01	1	1009-
62	GASKET; RR COVER	1-33132-087-0	01	1	1009-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A) M10X70	1-33119-616-0	12	1	1304-1305
86	BOLT; RR COVER (A) M10X70	1-33119-616-0	12	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (D) M10X110	1-33139-235-0	05	1	1304-1305
86	BOLT; RR COVER (D) M10X110	1-33139-235-0	05	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (E) M10X50	1-33139-236-0	01	1	1304-1305
86	BOLT; RR COVER (E) M10X50	1-33139-236-0	01	1	1306-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C) M10X60	1-33139-237-0	05	1	1304-1305
86	BOLT; RR COVER (C) M10X60	1-33139-237-0	05	1	1306-
86	BOLT; RR COVER SHIFT PATTERN DOUBLE-H<EDZ> (B) M12X25	1-33119-594-0	04	1	1011-1106
86	BOLT; RR COVER (B) M12X25	1-33119-594-0	04	1	1107-1303
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (B) M12X25	1-33119-594-0	04	1	1304-
86	BOLT; RR COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B) M12X25	1-33119-594-0	04	1	1304-
86	BOLT; RR COVER (B) M12X25 M12X25	1-33119-400-0	04	1	1009-1010
86	BOLT; RR COVER SHIFT PATTERN SINGLE-H<EDY> (B) M12X25 M12X25	1-33119-400-0	04	1	1011-1106
86	BOLT; RR COVER (A) M10X70 M10X70	1-33119-522-0	12	1	1009-1303
86	BOLT; RR COVER SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A) M10X70 M10X70	1-33119-522-0	12	1	1304-1305
86	BOLT; RR COVER SHIFT PATTERN DOUBLE-H<EDZ> (A) M10X70 M10X70	1-33119-522-0	12	1	1304-1305
86	BOLT; RR COVER (D) M10X110 M10X110	1-33139-057-0	05	1	1009-1303
86	BOLT; RR COVER SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (D) M10X110 M10X110	1-33139-057-0	05	1	1304-1305
86	BOLT; RR COVER SHIFT PATTERN DOUBLE-H<EDZ> (D) M10X110 M10X110	1-33139-057-0	05	1	1304-1305
86	BOLT; RR COVER (E) M10X50 M10X50	1-33139-058-0	01	1	1009-1303
86	BOLT; RR COVER SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (E) M10X50 M10X50	1-33139-058-0	01	1	1304-1305
86	BOLT; RR COVER SHIFT PATTERN DOUBLE-H<EDZ> (E) M10X50 M10X50	1-33139-058-0	01	1	1304-1305
86	BOLT; RR COVER (C) M10X60 M10X60	1-33139-118-0	05	1	1009-1303
86	BOLT; RR COVER SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C) M10X60 M10X60	1-33139-118-0	05	1	1304-1305
86	BOLT; RR COVER SHIFT PATTERN DOUBLE-H<EDZ> (C) M10X60 M10X60	1-33139-118-0	05	1	1304-1305
123	DOWEL; TRANS CASE	1-33119-292-0	04	1	1009-
327	COVER; RR,COUNTER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33131-273-0	01	1	1304-1305
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-273-0	01	1	1306-
327	COVER; RR,COUNTER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33131-273-0	01	1	1306-
327	COVER; RR,COUNTER	1-33131-165-0	01	1	1009-1303
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	1304-1305
415	COVER; BRG SHIFT PATTERN DOUBLE-H<EDZ>	1-33131-269-0	01	1	1009-1106
415	COVER; BRG	1-33131-269-0	01	1	1107-
415	COVER; BRG SHIFT PATTERN SINGLE-H<EDY>	1-33131-262-0	01	1	1009-1106
421	COVER; RR,TRANS PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33131-275-0	01	1	1304-1305
421	COVER; RR,TRANS	1-33131-275-0	01	1	1306-
421	COVER; RR,TRANS	1-33131-261-0	01	1	1009-1303
421	COVER; RR,TRANS SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33131-261-0	01	1	1304-1305
421	COVER; RR,TRANS SHIFT PATTERN DOUBLE-H<EDZ>	1-33131-261-0	01	1	1304-1305
427	GASKET; RR COVER (A)	1-33132-054-0	01	1	1009-1303
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM) (A)	1-33132-054-0	01	1	1304-
427	GASKET; RR COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33132-054-0	01	1	1304-
427	GASKET; RR COVER (B)	1-33132-078-0	01	1	1009-1303
427	GASKET; RR COVER SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33132-078-0	01	1	1304-1305
427	GASKET; RR COVER SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33132-078-0	01	1	1304-1305
427	GASKET; RR COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33132-088-0	01	1	1304-1305
427	GASKET; RR COVER (B)	1-33132-088-0	01	1	1306-
519	GASKET; SHAFT	1-33139-059-0	01	1	1009-

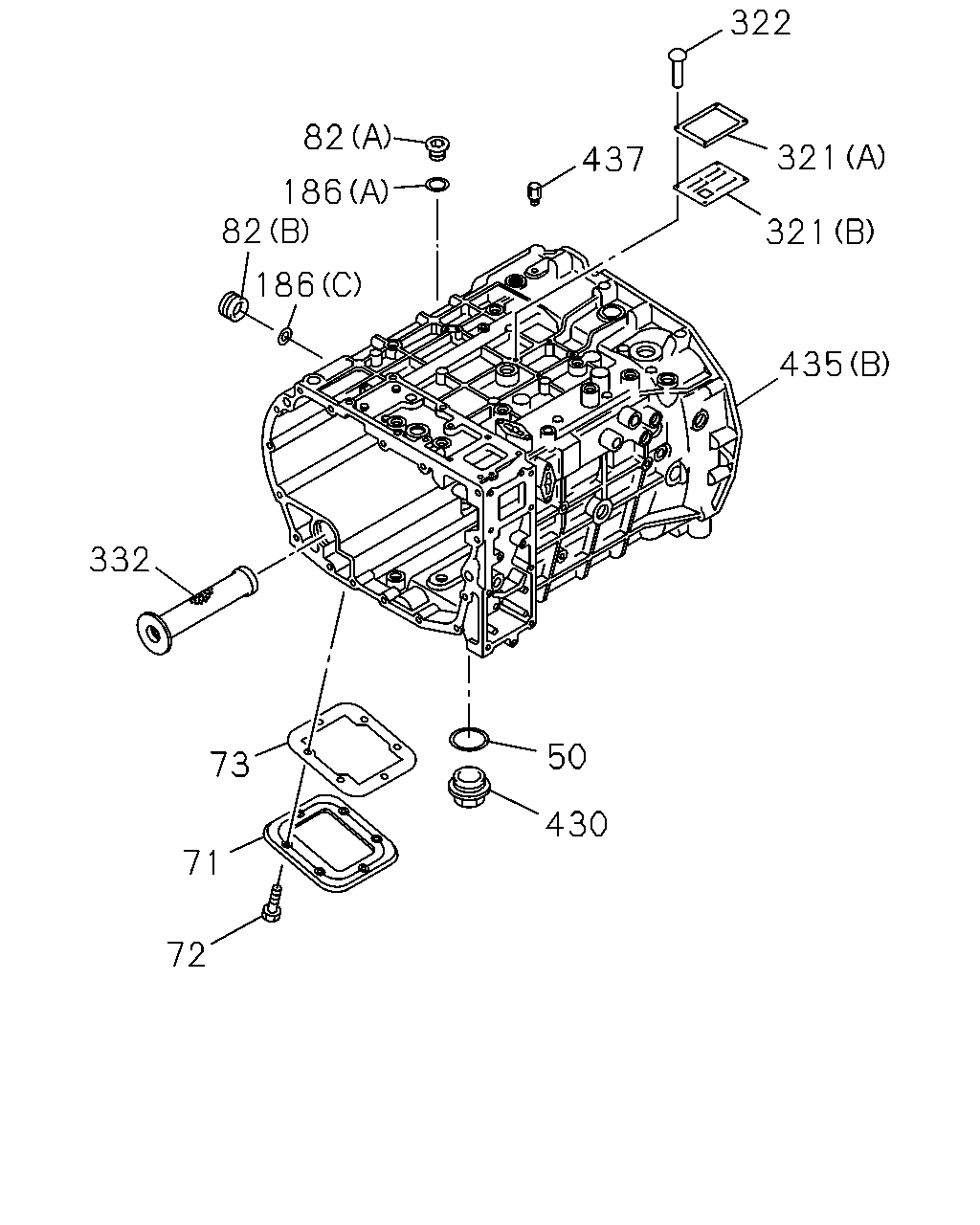

322 321 321 435 50 430 73 71 72 437 82 186 82 186 332

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	GASKET; DRAIN PLUG	1-33119-293-0	01	1	1009-
71	COVER; SIDE,TRANS CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33119-622-0	01	1	1304-1305
71	COVER; SIDE,TRANS CASE	1-33119-622-0	01	1	1306-
71	COVER; SIDE,TRANS CASE	1-33119-407-0	01	1	1009-1303
71	COVER; SIDE,TRANS CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33119-407-0	01	1	1304-1305
71	COVER; SIDE,TRANS CASE SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-407-0	01	1	1304-1305
72	BOLT; SIDE COVER SHIFT PATTERN DOUBLE-H<EDZ> M10X22	1-33119-592-0	06	1	1011-1106
72	BOLT; SIDE COVER M10X22	1-33119-592-0	06	1	1107-
72	BOLT; SIDE COVER M10X22	1-36129-014-1	06	1	1009-1010
72	BOLT; SIDE COVER SHIFT PATTERN SINGLE-H<EDY> M10X22	1-36129-014-1	06	1	1011-1106
73	GASKET; SIDE COVER TO TRANS CASE	1-33119-237-0	01	1	1009-
82	PLUG; SCREW,CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C)	1-33119-618-0	02	1	1304-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1304-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33119-620-0	02	1	1304-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-34539-113-0	02	1	1011-1106
82	PLUG; SCREW,CASE (C)	1-34539-113-0	02	1	1107-1303
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C)	1-34539-113-0	02	1	1304-1305
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-34539-113-0	02	1	1304-1305
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1009-1303
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33119-171-0	01	1	1304-1305
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33119-171-0	01	1	1304-1305
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1009-1303
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33119-268-0	02	1	1304-1305
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33119-268-0	02	1	1304-1305
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1009-1010
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> (C)	1-33119-285-0	02	1	1011-1106
186	RING; SEAL (A)	1-33119-249-0	01	1	1009-
186	RING; SEAL (B)	1-33119-286-0	02	1	1009-
186	RING; SEAL (C)	1-33119-435-0	02	1	1009-
321	PLATE; NAME (A)	1-33119-519-0	01	1	1009-
321	PLATE; NAME (B)	1-33119-520-0	01	1	1009-
322	RIVET; NAME PLATE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33119-617-0	04	1	1304-1305
322	RIVET; NAME PLATE	1-33119-617-0	04	1	1306-
322	RIVET; NAME PLATE	1-33119-556-0	04	1	1009-1303
322	RIVET; NAME PLATE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33119-556-0	04	1	1304-1305
322	RIVET; NAME PLATE SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-556-0	04	1	1304-1305
332	FILTER; OIL	1-33119-437-0	01	1	1009-
430	PLUG; OIL DRAIN	1-33119-156-0	01	1	1009-1303
430	PLUG; OIL DRAIN SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33119-156-0	01	1	1304-1305
430	PLUG; OIL DRAIN SHIFT PATTERN DOUBLE-H<EDZ>	1-33119-156-0	01	1	1304-1305
430	PLUG; OIL DRAIN PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33119-621-0	01	1	1304-1305
430	PLUG; OIL DRAIN	1-33119-621-0	01	1	1306-
435	CASE; TRANS PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33111-380-0	01	1	1304-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS (A)	1-33111-373-0	01	1	1009-1303
435	CASE; TRANS SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33111-373-0	01	1	1304-1305
435	CASE; TRANS SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33111-373-0	01	1	1304-1305
435	CASE; TRANS SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33111-372-0	01	1	1009-
435	CASE; TRANS SHIFT PATTERN SINGLE-H<EDY> (B)	1-33111-371-0	01	1	1009-
437	BREATHER; TRANS PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-36122-006-0	01	1	1304-1305
437	BREATHER; TRANS	1-36122-006-0	01	1	1306-
437	BREATHER; TRANS	1-36122-004-0	01	1	1009-1303
437	BREATHER; TRANS SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-36122-004-0	01	1	1304-1305
437	BREATHER; TRANS SHIFT PATTERN DOUBLE-H<EDZ>	1-36122-004-0	01	1	1304-1305

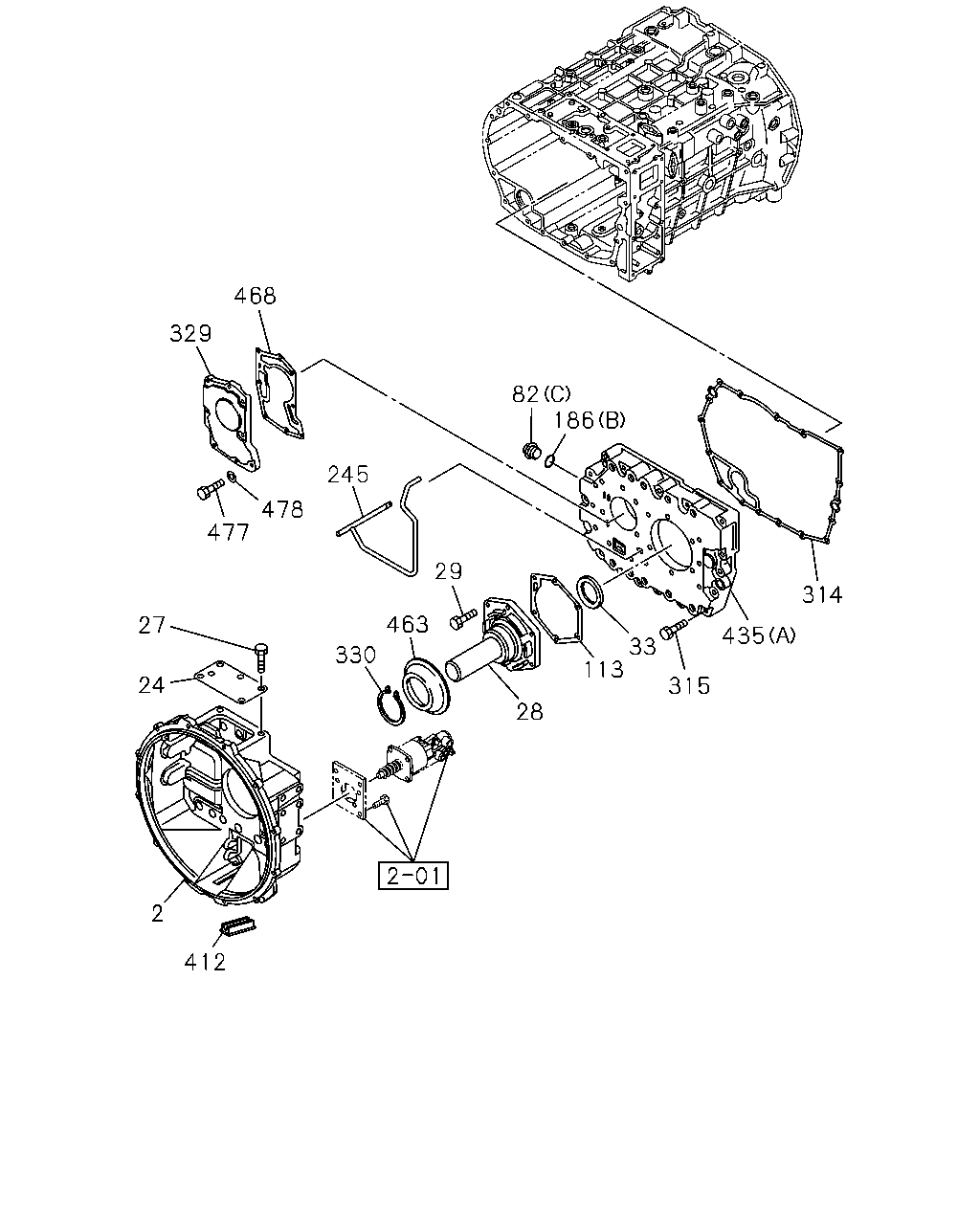

468 329 245 478 477 82 314 435 315 33 113 28 29 463 330 27 24 2 412 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; CLU SHIFT PATTERN DOUBLE-H<EDZ>	1-31111-232-0	01	1	1011-1106
2	HOUSING; CLU	1-31111-232-0	01	1	1107-
2	HOUSING; CLU	1-31111-225-0	01	1	1009-1010
2	HOUSING; CLU SHIFT PATTERN SINGLE-H<EDY>	1-31111-225-0	01	1	1011-1106
24	COVER; CHECK HOLE,DUST PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-31119-061-0	01	1	1304-1305
24	COVER; CHECK HOLE,DUST	1-31119-061-0	01	1	1306-
24	COVER; CHECK HOLE,DUST	1-31119-051-0	01	1	1009-1303
24	COVER; CHECK HOLE,DUST SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-31119-051-0	01	1	1304-1305
24	COVER; CHECK HOLE,DUST SHIFT PATTERN DOUBLE-H<EDZ>	1-31119-051-0	01	1	1304-1305
27	BOLT; COVER TO CLU HSG SHIFT PATTERN DOUBLE-H<EDZ>	1-31119-058-0	03	1	1011-1106
27	BOLT; COVER TO CLU HSG	1-31119-058-0	03	1	1107-
27	BOLT; COVER TO CLU HSG	1-31119-025-0	03	1	1009-1010
27	BOLT; COVER TO CLU HSG SHIFT PATTERN SINGLE-H<EDY>	1-31119-025-0	03	1	1011-1106
28	COVER; FRT,TRANS CASE	1-33121-167-0	01	1	1009-
29	BOLT; FRT COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> M8X30	1-33549-581-0	06	1	1304-1305
29	BOLT; FRT COVER M8X30	1-33549-581-0	06	1	1306-
29	BOLT; FRT COVER M8X30	1-33549-172-0	06	1	1009-1303
29	BOLT; FRT COVER SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) M8X30	1-33549-172-0	06	1	1304-1305
29	BOLT; FRT COVER SHIFT PATTERN DOUBLE-H<EDZ> M8X30	1-33549-172-0	06	1	1304-1305
33	SEAL; OIL,FRT COVER,T/M	1-33219-321-0	01	1	1009-
82	PLUG; SCREW,CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (C)	1-33119-618-0	02	1	1304-1305
82	PLUG; SCREW,CASE (C)	1-33119-618-0	02	1	1306-
82	PLUG; SCREW,CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33119-619-0	01	1	1304-1305
82	PLUG; SCREW,CASE (A)	1-33119-619-0	01	1	1306-
82	PLUG; SCREW,CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (B)	1-33119-620-0	02	1	1304-1305
82	PLUG; SCREW,CASE (B)	1-33119-620-0	02	1	1306-
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-34539-113-0	02	1	1011-1106
82	PLUG; SCREW,CASE (C)	1-34539-113-0	02	1	1107-1303
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (C)	1-34539-113-0	02	1	1304-1305
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (C)	1-34539-113-0	02	1	1304-1305
82	PLUG; SCREW,CASE (A)	1-33119-171-0	01	1	1009-1303
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33119-171-0	01	1	1304-1305
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33119-171-0	01	1	1304-1305
82	PLUG; SCREW,CASE (B)	1-33119-268-0	02	1	1009-1303
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (B)	1-33119-268-0	02	1	1304-1305
82	PLUG; SCREW,CASE SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33119-268-0	02	1	1304-1305
82	PLUG; SCREW,CASE (C)	1-33119-285-0	02	1	1009-1010
82	PLUG; SCREW,CASE SHIFT PATTERN SINGLE-H<EDY> (C)	1-33119-285-0	02	1	1011-1106
113	GASKET; FRT COVER TO TRANS CASE	1-33122-024-0	01	1	1009-
186	RING; SEAL (A)	1-33119-249-0	01	1	1009-
186	RING; SEAL (B)	1-33119-286-0	02	1	1009-
186	RING; SEAL (C)	1-33119-435-0	02	1	1009-
245	PIPE; OIL	1-33119-517-0	01	1	1009-
314	GASKET; CASE	1-33112-052-0	01	1	1009-
315	BOLT; CASE PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> M10X70	1-33119-616-0	17	1	1304-1305
315	BOLT; CASE M10X70	1-33119-616-0	17	1	1306-
315	BOLT; CASE M10X70	1-33119-522-0	17	1	1009-1303
315	BOLT; CASE SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) M10X70	1-33119-522-0	17	1	1304-1305
315	BOLT; CASE SHIFT PATTERN DOUBLE-H<EDZ> M10X70	1-33119-522-0	17	1	1304-1305
329	PUMP ASM; OIL SHIFT PATTERN DOUBLE-H<EDZ>	1-34150-123-0	01	1	1011-1106
329	PUMP ASM; OIL	1-34150-123-0	01	1	1107-
329	PUMP ASM; OIL	1-34150-121-0	01	1	1009-1010
329	PUMP ASM; OIL SHIFT PATTERN SINGLE-H<EDY>	1-34150-121-0	01	1	1011-1106
330	RING; RET	1-33129-005-0	01	1	1009-
412	CAP; CLU HSG SHIFT PATTERN DOUBLE-H<EDZ>	1-31119-015-0	01	1	1011-1106
412	CAP; CLU HSG	1-31119-015-0	01	1	1107-
435	CASE; TRANS PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> (A)	1-33111-380-0	01	1	1304-1305
435	CASE; TRANS (A)	1-33111-380-0	01	1	1306-
435	CASE; TRANS (A)	1-33111-373-0	01	1	1009-1303
435	CASE; TRANS SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) (A)	1-33111-373-0	01	1	1304-1305
435	CASE; TRANS SHIFT PATTERN DOUBLE-H<EDZ> (A)	1-33111-373-0	01	1	1304-1305
435	CASE; TRANS SHIFT PATTERN DOUBLE-H<EDZ> (B)	1-33111-372-0	01	1	1009-
435	CASE; TRANS SHIFT PATTERN SINGLE-H<EDY> (B)	1-33111-371-0	01	1	1009-
463	COVER; DUST,FRT COVER PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33129-018-0	01	1	1304-1305
463	COVER; DUST,FRT COVER	1-33129-018-0	01	1	1306-
463	COVER; DUST,FRT COVER	1-33129-004-0	01	1	1009-1303
463	COVER; DUST,FRT COVER SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33129-004-0	01	1	1304-1305
463	COVER; DUST,FRT COVER SHIFT PATTERN DOUBLE-H<EDZ>	1-33129-004-0	01	1	1304-1305
468	GASKET; OIL PUMP	1-34159-122-0	01	1	1009-
477	BOLT; OIL PUMP PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY> M8X30	1-33549-581-0	08	1	1304-1305
477	BOLT; OIL PUMP M8X30	1-33549-581-0	08	1	1306-
477	BOLT; OIL PUMP M8X30	1-33549-172-0	08	1	1009-1303
477	BOLT; OIL PUMP SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM) M8X30	1-33549-172-0	08	1	1304-1305
477	BOLT; OIL PUMP SHIFT PATTERN DOUBLE-H<EDZ> M8X30	1-33549-172-0	08	1	1304-1305
478	WASHER; LK,OIL PUMP PTO ZF TRANS RR(BDM) SHIFT PATTERN SINGLE-H<EDY>	1-33549-583-0	08	1	1304-1305
478	WASHER; LK,OIL PUMP	1-33549-583-0	08	1	1306-
478	WASHER; LK,OIL PUMP SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-577-0	08	1	1011-1106
478	WASHER; LK,OIL PUMP	1-33549-577-0	08	1	1107-1303
478	WASHER; LK,OIL PUMP SHIFT PATTERN SINGLE-H<EDY> EXC. PTO ZF TRANS RR(BDM)	1-33549-577-0	08	1	1304-1305
478	WASHER; LK,OIL PUMP SHIFT PATTERN DOUBLE-H<EDZ>	1-33549-577-0	08	1	1304-1305
478	WASHER; LK,OIL PUMP	1-36129-007-0	08	1	1009-1010
478	WASHER; LK,OIL PUMP SHIFT PATTERN SINGLE-H<EDY>	1-36129-007-0	08	1	1011-1106

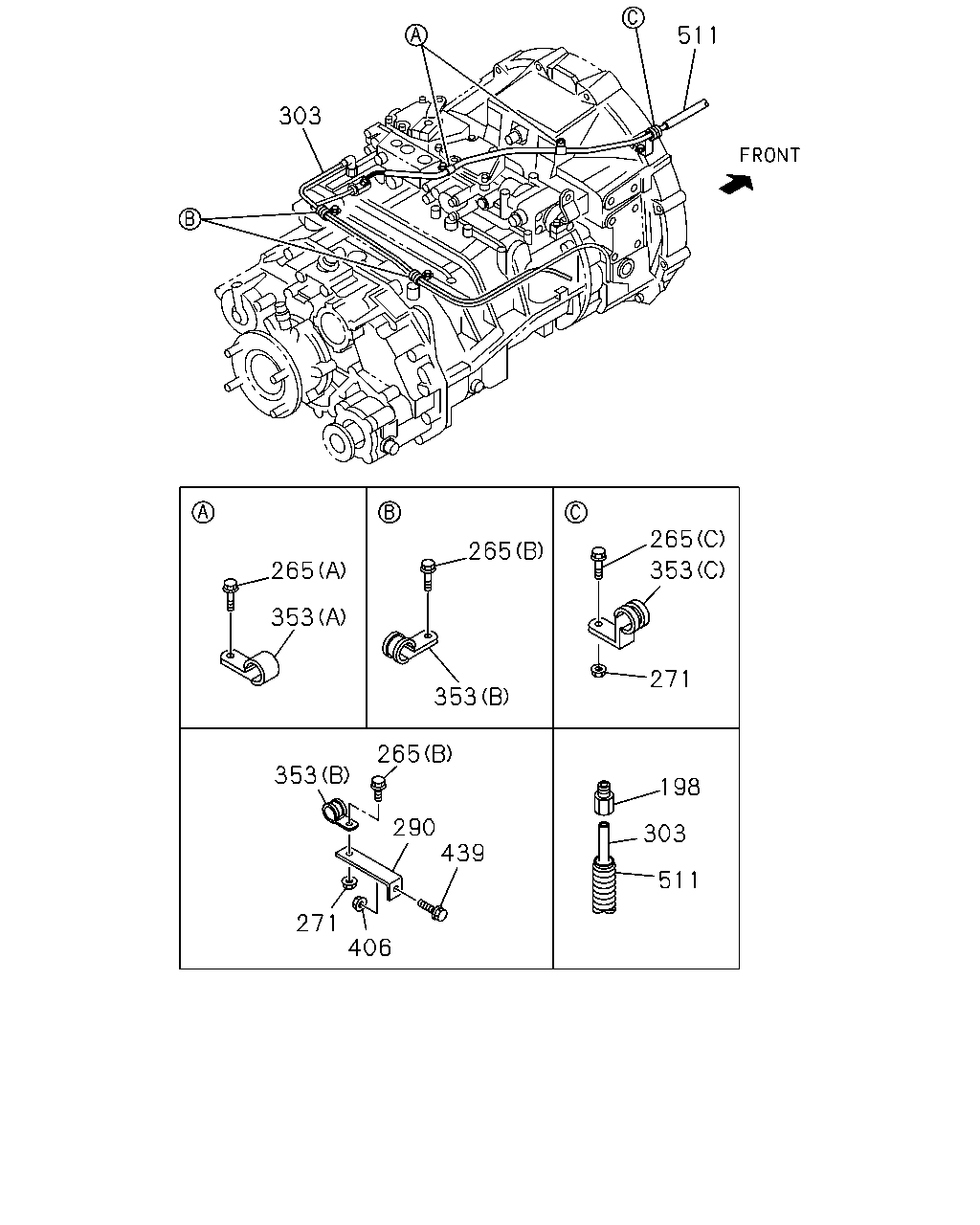

511 303 265 353 265 353 265 353 271 265 353 290 439 271 406 198 303 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
198	ADAPTER; NYLON TUBE SHIFT PATTERN DOUBLE-H<EDZ> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1304-
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (A) M8X20 FLANGE	0-28050-820-0	01	1	1009-1303
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (A) M8X20 FLANGE	0-28050-820-0	01	1	1304-
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (C) M8X14 FLANGE	0-28080-814-0	01	1	1009-1303
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (C) M8X14 FLANGE	0-28080-814-0	01	1	1304-
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (B) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303
265	BOLT; CLIP SHIFT PATTERN SINGLE-H<EDY> (B) M8X20 FLANGE	0-28650-820-0	02	1	1304-
265	BOLT; CLIP SHIFT PATTERN DOUBLE-H<EDZ> (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-
271	NUT; CLIP SHIFT PATTERN SINGLE-H<EDY> M8 FLANGE	0-91180-108-0	01	1	1009-1303
271	NUT; CLIP SHIFT PATTERN SINGLE-H<EDY>,SHIFT PATTERN DOUBLE-H<EDZ> M8 FLANGE	0-91180-108-0	01	1	1304-
290	BRACKET; CLIP SHIFT PATTERN DOUBLE-H<EDZ>	1-82698-358-0	01	1	1304-
303	TUBE; NYLON SHIFT PATTERN SINGLE-H<EDY> SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1009-1303
303	TUBE; NYLON FXZ(FG****) WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1304-1412
303	TUBE; NYLON GXZ(GG****) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1304-1412
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1501-
353	CLIP; NYLON TUBE SHIFT PATTERN SINGLE-H<EDY> (A) ID=11 L=20	0-95235-035-0	02	1	1009-
353	CLIP; NYLON TUBE SHIFT PATTERN SINGLE-H<EDY> (C) ID=11 H=20 L=25	1-09700-848-0	01	1	1009-
353	CLIP; NYLON TUBE SHIFT PATTERN SINGLE-H<EDY> (B) ID=18 L=28	1-09701-067-0	02	1	1009-
353	CLIP; NYLON TUBE SHIFT PATTERN DOUBLE-H<EDZ> (B) ID=18 L=28	1-09701-067-0	01	1	1304-
406	NUT; BRKT SHIFT PATTERN DOUBLE-H<EDZ> M8 FLANGE	0-91180-108-0	01	1	1304-
439	BOLT; BRKT SHIFT PATTERN DOUBLE-H<EDZ> M8X25 FLANGE	0-28650-825-0	01	1	1304-
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1009-1303
511	TUBE; CORRUGATE FXZ(FG****) WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1304-1412
511	TUBE; CORRUGATE GXZ(GG****) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1304-1412
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1501-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
