2-08 — CLUTCH MASTER CYLINDER (#71384) — 58 parça

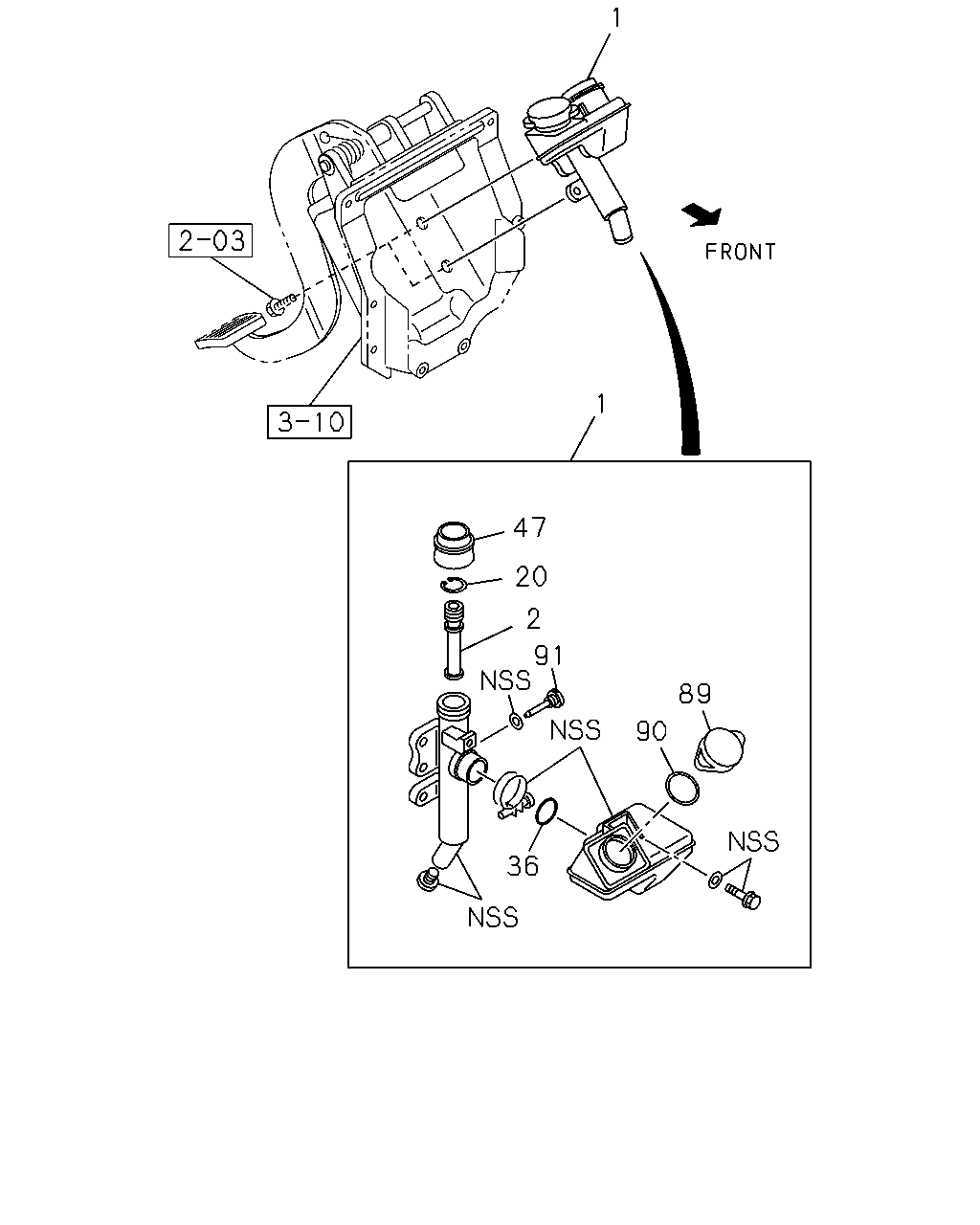

çizim 102831
1 1 47 2 91 20 90 36 89
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
MJT7U M/T(Y4X) 		1-47500-250-2 01 1 1009-1303 ●
1 CYLINDER ASM; CLUTCH MASTER
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47500-250-2 01 1 1304- ●
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-47500-358-2 01 1 1009-1303 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1310 M/T(Y5K) 		1-47500-357-3 01 1 1009-1303 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47500-357-3 01 1 1304- ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-357-3 01 1 1304- ●
2 REPAIR KIT; CLU M/CYL
MJT7U M/T(Y4X) 		1-85576-461-0 01 1 1009-1303 ●
2 REPAIR KIT; CLU M/CYL
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-85576-461-0 01 1 1304- ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION-FULLER RTO11908(Y5L) 		1-47550-053-1 01 1 1009-1303 ●
2 REPAIR KIT; CLU M/CYL
ZF9S1310 M/T(Y5K) 		1-47550-052-1 01 1 1009-1303 ●
2 REPAIR KIT; CLU M/CYL
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47550-052-1 01 1 1304- ●
2 REPAIR KIT; CLU M/CYL 1-47550-052-1 01 1 1304- ●
20 RING; SNAP,BODY
MJT7U M/T(Y4X) 		1-47519-013-0 01 1 1009-1303 ●
20 RING; SNAP,BODY
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47519-013-0 01 1 1304- ●
20 RING; SNAP,BODY
TRANSMISSION-FULLER RTO11908(Y5L) 		1-47515-010-0 01 1 1009-1303 ●
20 RING; SNAP,BODY
ZF9S1310 M/T(Y5K) 		1-47515-009-0 01 1 1009-1303 ●
20 RING; SNAP,BODY
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47515-009-0 01 1 1304- ●
20 RING; SNAP,BODY 1-47515-009-0 01 1 1304- ●
36 GASKET; CLU M/CYL
MJT7U M/T(Y4X) 		1-47519-014-0 01 1 1009-1303 ●
36 GASKET; CLU M/CYL
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47519-014-0 01 1 1304- ●
47 COVER; DUST,PUSH ROD
MJT7U M/T(Y4X) 		1-47519-018-0 01 1 1009-1303 ●
47 COVER; DUST,PUSH ROD
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47519-018-0 01 1 1304- ●
89 CAP; OIL FILLER,CLU M/CYL
MJT7U M/T(Y4X) 		1-47519-017-0 01 1 1009-1303 ●
89 CAP; OIL FILLER,CLU M/CYL
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47519-017-0 01 1 1304- ●
90 GASKET; OIL FILLER,CLU M/CYL
MJT7U M/T(Y4X) 		1-47519-016-0 01 1 1009-1303 ●
90 GASKET; OIL FILLER,CLU M/CYL
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47519-016-0 01 1 1304- ●
91 BOLT; STOPPER
MJT7U M/T(Y4X) 		1-47519-015-0 01 1 1009-1303 ●
91 BOLT; STOPPER
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47519-015-0 01 1 1304- ●
çizim 103709
13 11 21 2 20 19 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; CLUTCH MASTER
MJT7U M/T(Y4X) 		1-47500-250-2 01 1 1009-1303 ●
1 CYLINDER ASM; CLUTCH MASTER
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47500-250-2 01 1 1304- ●
1 CYLINDER ASM; CLUTCH MASTER
TRANSMISSION-FULLER RTO11908(Y5L) 		1-47500-358-2 01 1 1009-1303 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1310 M/T(Y5K) 		1-47500-357-3 01 1 1009-1303 ●
1 CYLINDER ASM; CLUTCH MASTER
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47500-357-3 01 1 1304- ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-357-3 01 1 1304- ●
2 REPAIR KIT; CLU M/CYL
MJT7U M/T(Y4X) 		1-85576-461-0 01 1 1009-1303 ●
2 REPAIR KIT; CLU M/CYL
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-85576-461-0 01 1 1304- ●
2 REPAIR KIT; CLU M/CYL
TRANSMISSION-FULLER RTO11908(Y5L) 		1-47550-053-1 01 1 1009-1303 ●
2 REPAIR KIT; CLU M/CYL
ZF9S1310 M/T(Y5K) 		1-47550-052-1 01 1 1009-1303 ●
2 REPAIR KIT; CLU M/CYL
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47550-052-1 01 1 1304- ●
2 REPAIR KIT; CLU M/CYL 1-47550-052-1 01 1 1304- ●
11 CAP; OUTER,CLU M/CYL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-47519-017-0 01 1 1009-1303 ●
11 CAP; OUTER,CLU M/CYL
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47519-017-0 01 1 1304- ●
11 CAP; OUTER,CLU M/CYL 1-47519-017-0 01 1 1304- ●
13 GASKET; OIL TANK
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-47519-016-0 01 1 1009-1303 ●
13 GASKET; OIL TANK
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47519-016-0 01 1 1304- ●
13 GASKET; OIL TANK 1-47519-016-0 01 1 1304- ●
19 BOOT; CLU M/CYL
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-47519-018-0 01 1 1009-1303 ●
19 BOOT; CLU M/CYL
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47519-018-0 01 1 1304- ●
19 BOOT; CLU M/CYL 1-47519-018-0 01 1 1304- ●
20 RING; SNAP,BODY
MJT7U M/T(Y4X) 		1-47519-013-0 01 1 1009-1303 ●
20 RING; SNAP,BODY
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) 		1-47519-013-0 01 1 1304- ●
20 RING; SNAP,BODY
TRANSMISSION-FULLER RTO11908(Y5L) 		1-47515-010-0 01 1 1009-1303 ●
20 RING; SNAP,BODY
ZF9S1310 M/T(Y5K) 		1-47515-009-0 01 1 1009-1303 ●
20 RING; SNAP,BODY
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47515-009-0 01 1 1304- ●
20 RING; SNAP,BODY 1-47515-009-0 01 1 1304- ●
21 VALVE; CHECK
ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) 		1-47565-004-0 01 1 1009-1303 ●
21 VALVE; CHECK
ZF9S1310 M/T(Y5K) 17INCH CLUTCH(RF3) 		1-47565-004-0 01 1 1304- ●
21 VALVE; CHECK 1-47565-004-0 01 1 1304- ●
