Sayfa 2-05 - Isuzu EPC

2-05 — CLUTCH PIPING (#71382) — 500 parça

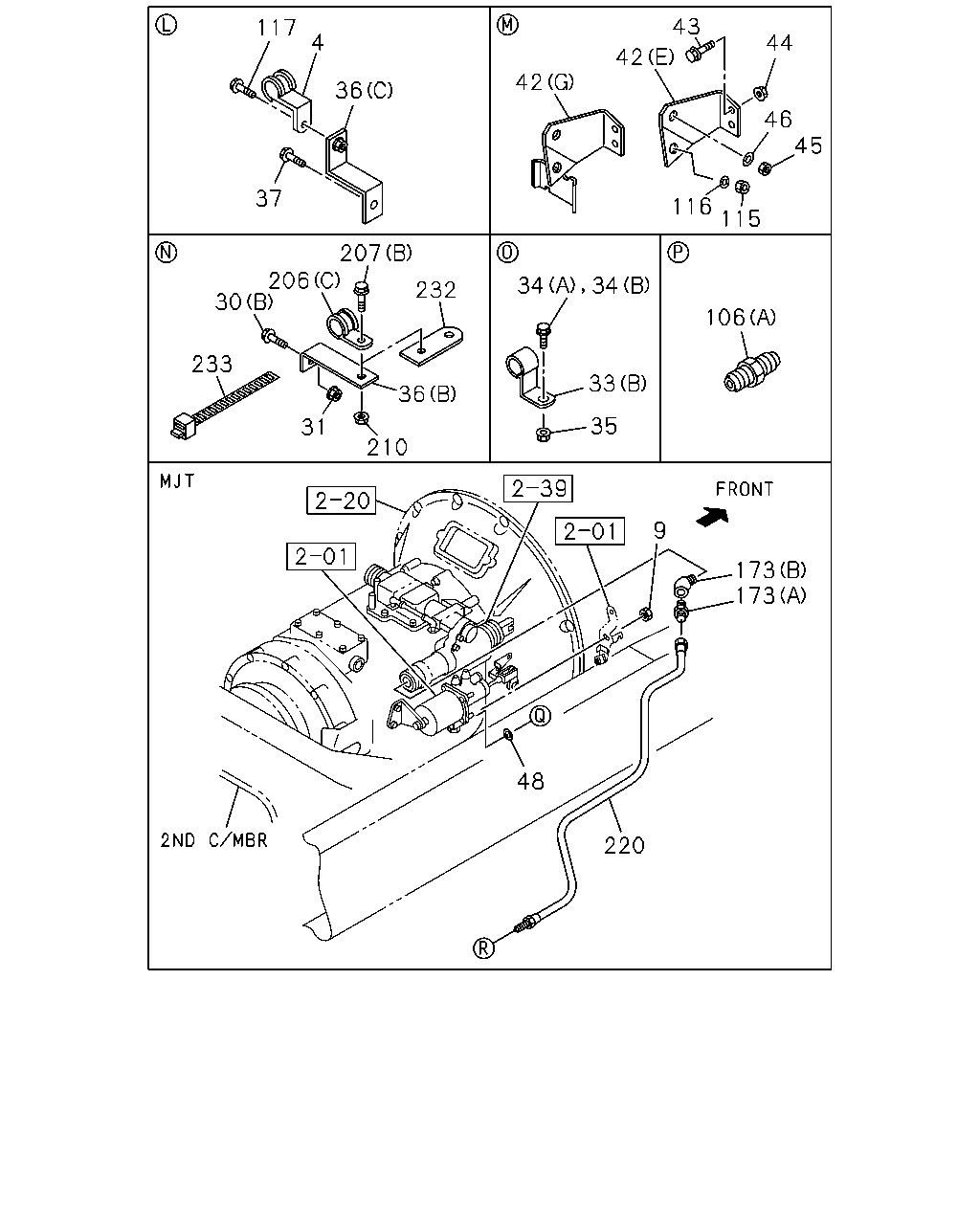

117 4 36 37 207 232 36 210 31 233 30 206 48 220 9 173 173 43 42 42 116 115 45 46 44 34 34 33 35 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) ID=16 H=25 L=25	1-09701-162-0	01	1	1009-	●
9	NUT; BRKT,FLEX HOSE MJT7U M/T(Y4X) M10 FLANGE	0-91180-210-0	02	1	1009-1303	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) M10 FLANGE	0-91180-210-0	02	1	1304-	●
30	BOLT; BRKT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-		●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
30	BOLT; BRKT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
30	BOLT; BRKT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
31	NUT; BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
31	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
31	NUT; BRKT ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
31	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
33	CLIP; OIL PIPE MJT7U M/T(Y4X) (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1009-1303	●
33	CLIP; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1304-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1304-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1009-1303	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	04	1	1009-1303	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (A) ID=9 L=20	0-95234-835-0	04	1	1304-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1009-1303	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (A) M8X35 FLANGE	0-28650-835-0	03	1	1304-	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-1303	●
34	BOLT; PIPE CLIP MAL6R M/T(Y2J) (B) M8X30 FLANGE	0-28650-830-0	03	1	1304-	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	03	1	1304-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (C) M8X16 FLANGE	0-28050-816-0	01	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
35	NUT; PIPE CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	04	1	1009-1303	●
35	NUT; PIPE CLIP MAL6R M/T(Y2J),MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	03	1	1304-	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	1009-1303	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	04	1	1304-	●	●
36	BRACKET; CLIP MJT7U M/T(Y4X) (B) L=95	1-82699-085-0	01	1	1009-	●
36	BRACKET; CLIP MJT7U M/T(Y4X) (C)	1-47475-689-0	01	1	1009-	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) (A) L=80 H=20	1-82699-304-0	01	1	1009-1303	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) (A) L=80 H=20	1-82699-304-0	01	1	1304-	●	●
37	BOLT; CLIP BRKT MJT7U M/T(Y4X) M10X16 FLANGE	0-28151-016-0	01	1	1009-	●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402		●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	1009-1201	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1202-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) (F)	1-47477-546-1	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (E)	1-47479-812-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (G)	8-98239-928-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1304-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-		●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) M12	9-09840-280-0	01	1	1009-1303	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=20.2	0-91510-520-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) ID=12.2	0-91510-512-0	01	1	1009-1303	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=11 OD=18	9-09572-510-0	01	1	1304-	●
48	GASKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) ID=10.2 OD=16.0	9-09571-410-0	01	1	1009-1303	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X) ID=10.2 OD=16.0	9-09571-410-0	01	1	1304-	●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1009-1303	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1009-1303	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●	●
106	UNION; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1009-1303	●
106	UNION; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	1-09654-191-1	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (B)	1-09654-191-1	01	1	1304-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-1303	●
115	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-1303	●
116	WASHER; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-		●
117	BOLT; CLIP,FLEX HOSE MJT7U M/T(Y4X) M8X16 FLANGE	0-28050-816-0	01	1	1009-	●
173	CONNECTOR MJT7U M/T(Y4X) (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1009-	●
173	CONNECTOR MJT7U M/T(Y4X) (B) R1/4 & RC1/4	1-09664-211-0	01	1	1009-	●
206	CLIP; TUBE MJT7U M/T(Y4X) (C) ID=16 L=28	1-09700-872-0	01	1	1009-	●
206	CLIP; TUBE BRAKE REGULATION ADR<TDU> (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1009-1303	●
206	CLIP; TUBE MJT7U M/T(Y4X) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) ID=17 L=21	8-98082-035-0	01	1	1009-1303	●
206	CLIP; TUBE MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) ID=15 L=28	1-09701-216-0	01	1	1009-1303	●
206	CLIP; TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (A) L=350	1-09707-183-0	01	1	1009-1303	●
207	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
207	BOLT; CLIP MJT7U M/T(Y4X) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
207	BOLT; CLIP MJT7U M/T(Y4X) (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
207	BOLT; CLIP MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
207	BOLT; CLIP ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-		●
207	BOLT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1202-1303	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1201	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1009-1201	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1202-1303	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
210	NUT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
210	NUT; CLIP MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	1304-	●
210	NUT; CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	1304-		●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T(Y2J) L=480	1-09363-659-0	01	1	1304-1305	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T(Y2J) L=420	1-09363-615-0	01	1	1306-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T(Y4X) L=400	1-09363-606-0	01	1	1009-1303	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T(Y4X) L=320	1-09363-656-0	01	1	1304-	●
232	BRACKET MAL6R M/T(Y2J),MJT7U M/T(Y4X)	1-82699-182-0	01	1	1304-	●
233	BAND; FLEX HOSE MAL6R M/T(Y2J) L=175	1-09707-178-0	01	1	1304-	●

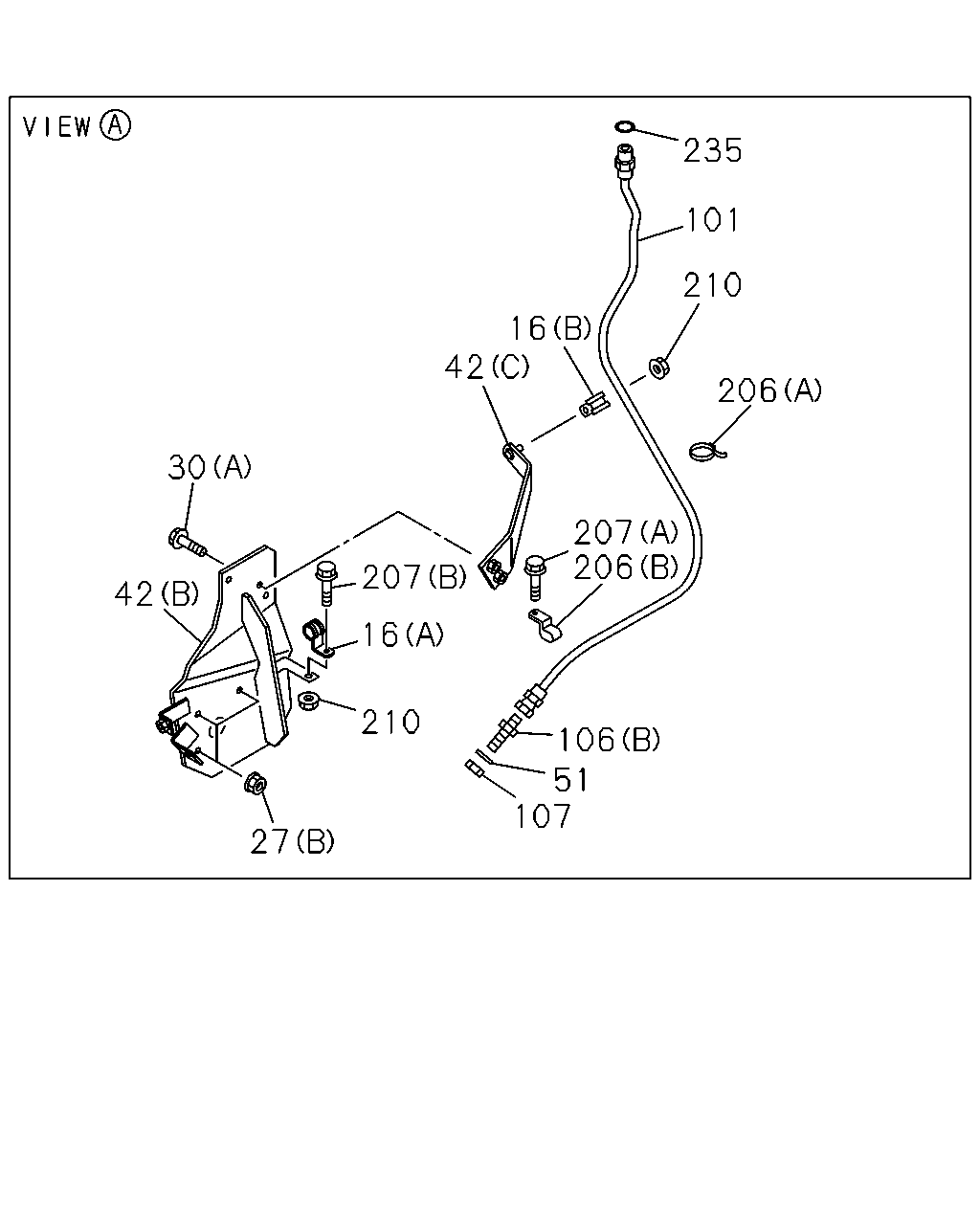

235 101 210 206 16 42 207 106 206 107 210 27 42 30 207 16 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	01	1	1009-1201	●
16	CLIP; FLEX HOSE (B) ID=16 L=28	1-09700-872-0	03	1	1202-1303	●
16	CLIP; FLEX HOSE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) ID=16 L=28	1-09700-872-0	03	1	1304-	●
16	CLIP; FLEX HOSE ZF9S1310 M/T(Y5K) (B) ID=16 L=28	1-09700-872-0	03	1	1304-		●
16	CLIP; FLEX HOSE (A) ID=18 L=28 H=30	1-09701-110-0	01	1	1009-1201	●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1009-1303	●
27	NUT; BRKT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) M10 FLANGE	0-91180-210-0	03	1	1304-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) (B) M10 FLANGE	0-91180-210-0	03	1	1304-		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) (A) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
30	BOLT; BRKT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-		●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
30	BOLT; BRKT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
30	BOLT; BRKT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402		●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	1009-1201	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1202-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) (F)	1-47477-546-1	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (E)	1-47479-812-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (G)	8-98239-928-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1304-	●	●
51	WASHER; LK MAL6R M/T(Y2J) ID=20.2	0-91510-620-0	01	1	1306-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1009-1303	●
51	WASHER; LK MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-	●
51	WASHER; LK ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-		●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98103-346-1	01	1	1009-1201	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE	8-98180-779-0	01	1	1202-1303	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K)	8-98180-779-0	01	1	1304-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE ZF9S1310 M/T(Y5K)	8-98180-779-0	01	1	1304-		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1009-1303	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1009-1303	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●	●
106	UNION; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1009-1303	●
106	UNION; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	1-09654-191-1	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (B)	1-09654-191-1	01	1	1304-		●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	01	1	1009-1303	●
107	NUT; UNION,OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-	●
107	NUT; UNION,OIL PIPE ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-		●
206	CLIP; TUBE MJT7U M/T(Y4X) (C) ID=16 L=28	1-09700-872-0	01	1	1009-	●
206	CLIP; TUBE BRAKE REGULATION ADR<TDU> (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1009-1303	●
206	CLIP; TUBE MJT7U M/T(Y4X) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) ID=17 L=21	8-98082-035-0	01	1	1009-1303	●
206	CLIP; TUBE MJT7U M/T(Y4X) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) ID=15 L=28	1-09701-216-0	01	1	1009-1303	●
206	CLIP; TUBE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (A) L=350	1-09707-183-0	01	1	1009-1303	●
207	BOLT; CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
207	BOLT; CLIP MJT7U M/T(Y4X) (B) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
207	BOLT; CLIP MJT7U M/T(Y4X) (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
207	BOLT; CLIP MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
207	BOLT; CLIP ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE	0-28650-820-0	01	1	1304-		●
207	BOLT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> (A) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1202-1303	●
210	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1009-1201	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1009-1201	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	02	1	1202-1303	●
210	NUT; CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
210	NUT; CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ADR<TDU> M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
210	NUT; CLIP MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	1304-	●
210	NUT; CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	1304-		●
235	GASKET; FLEX HOSE ID=10.2 OD=16.0	9-09571-410-0	01	1	1009-1303	●
235	GASKET; FLEX HOSE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=10.2 OD=16.0	9-09571-410-0	01	1	1304-	●
235	GASKET; FLEX HOSE ZF9S1310 M/T(Y5K) ID=10.2 OD=16.0	9-09571-410-0	01	1	1304-		●

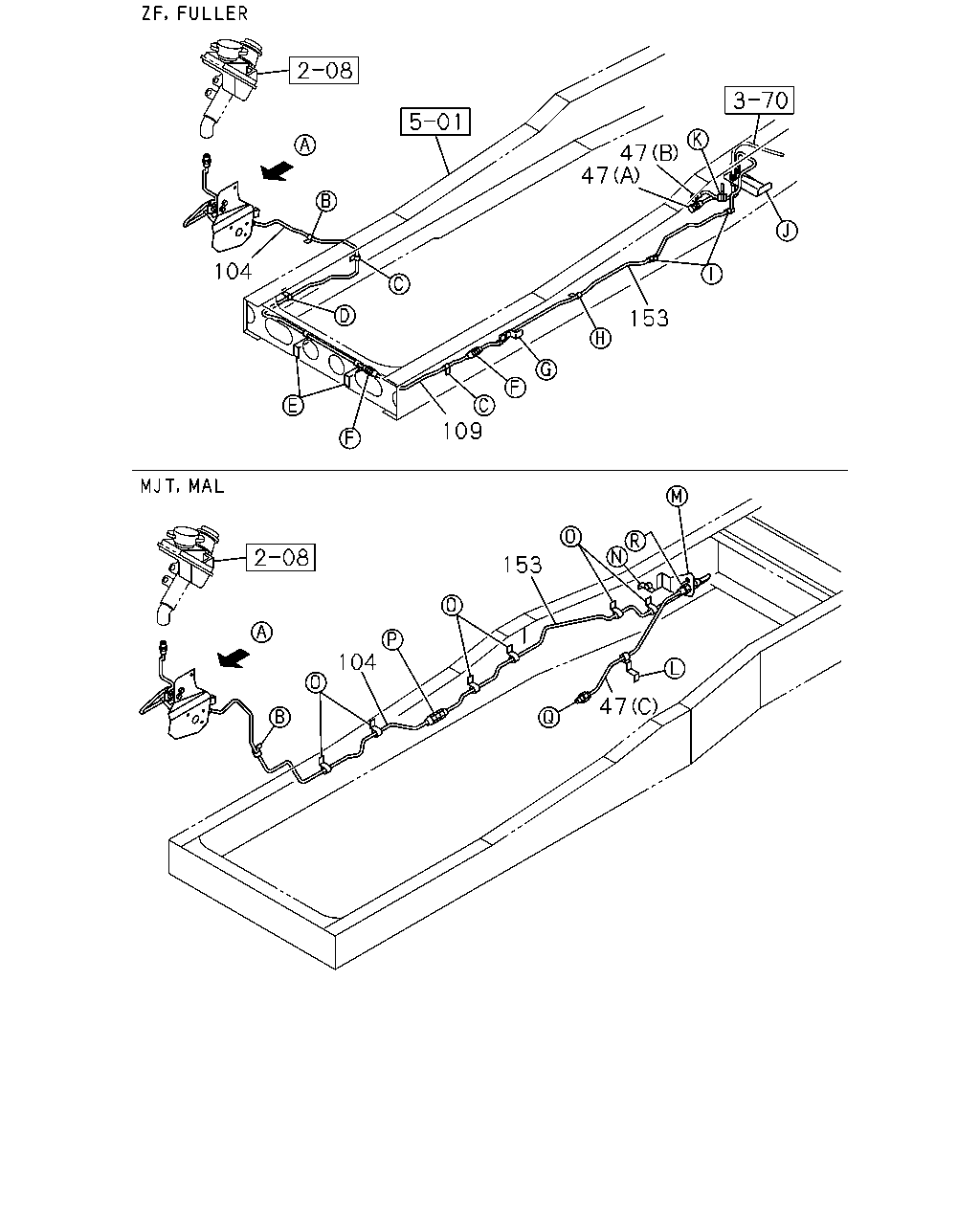

104 109 153 47 47 153 47 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=700	1-09364-456-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=650	1-09364-694-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (A) L=480	0-57806-480-1	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (B) L=470	1-09364-692-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) (A) L=430	1-09363-623-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) (B) L=460	8-98072-345-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=580	1-09363-692-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1304-1412	●
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1304-1412		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1501-	●
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1501-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=620	8-98072-333-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1304-1412	●
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1304-1412		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1501-	●
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1501-		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MAL6R M/T(Y2J),MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1262 SERVICED BY L=1400	1-47428-765-0	01	1	1304-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MJT7U M/T(Y4X) L=1203 SERVICED BY L=1250	1-47428-764-0	01	1	1009-1303	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR WHEEL BASE 4500MM(45W) L=1174 SERVICED BY L=1250	1-47428-764-0	01	1	1304-	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=1809 SERVICED BY L=1950	1-47428-769-0	01	1	1009-1303	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1310 M/T(Y5K) L=1783 SERVICED BY L=1800	1-47428-768-0	01	1	1304-	●	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1009-1303	●
109	PIPE; AIR,UNION TO UNION ZF9S1310 M/T(Y5K) L=1680 SERVICED BY L=1700	1-47428-767-0	01	1	1304-	●	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> L=1524	8-98186-634-0	01	1	1103-1303	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1102	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1103-1303	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1103-1303	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1304-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1784 SERVICED BY L=1800	1-47428-768-0	01	1	1009-1303	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1777 SERVICED BY L=1800	1-47428-768-0	01	1	1304-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) L=1766 SERVICED BY L=1800	1-47428-768-0	01	1	1009-1303	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) L=1813 SERVICED BY L=1950	1-47428-769-0	01	1	1304-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1303	●

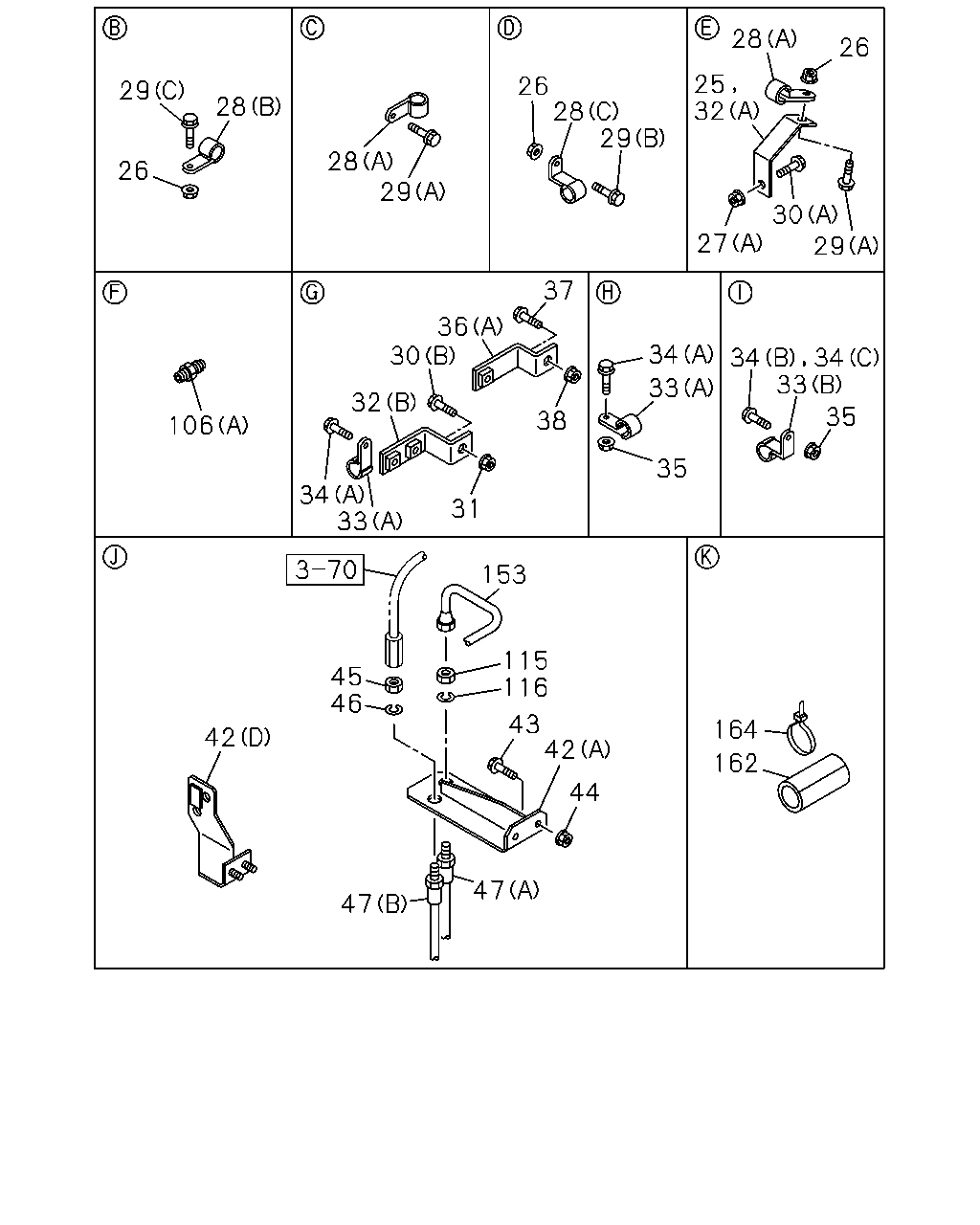

29 28 26 106 153 115 116 43 42 44 47 47 42 45 46 28 29 37 36 30 32 34 33 31 38 26 28 29 34 33 35 26 28 25 32 27 30 29 34 34 33 35 164 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L)	8-98123-057-0	01	1	1009-1303	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5)	8-98123-057-0	01	1	1009-1303	●
25	BRACKET; OIL PIPE ZF9S1310 M/T(Y5K)	8-98123-057-0	01	1	1304-	●	●
26	NUT; CLIP,OIL PIPE MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
26	NUT; CLIP,OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	1009-1303	●
26	NUT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	03	1	1304-	●	●
27	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	1009-1303	●
27	NUT; BRKT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) M10 FLANGE	0-91180-210-0	03	1	1304-	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) (B) M10 FLANGE	0-91180-210-0	03	1	1304-		●
27	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) (A) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
27	NUT; BRKT ZF9S1310 M/T(Y5K) (A) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
28	CLIP; OIL PIPE MJT7U M/T(Y4X) (A) ID=9 L=20	0-95234-835-0	01	1	1009-1303	●
28	CLIP; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) ID=9 L=20	0-95234-835-0	01	1	1304-	●
28	CLIP; OIL PIPE MJT7U M/T(Y4X) (B) ID=9 L=40	0-95234-875-0	02	1	1009-1303	●
28	CLIP; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) ID=9 L=40	0-95234-875-0	01	1	1304-	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=9 L=40	0-95234-875-0	01	1	1304-		●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	02	1	1009-1303	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (A) ID=9 L=20	0-95234-835-0	02	1	1304-	●	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=9 L=40	0-95234-875-0	01	1	1009-1303	●
28	CLIP; OIL PIPE MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	1304-	●
28	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1009-1303	●
28	CLIP; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1304-	●
28	CLIP; OIL PIPE (C) ID=8 H=20 L=20	1-09700-604-0	01	1	1304-		●
29	BOLT; CLIP,OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X) (A) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●
29	BOLT; CLIP,OIL PIPE MJT7U M/T(Y4X) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
29	BOLT; CLIP,OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
29	BOLT; CLIP,OIL PIPE MJT7U M/T(Y4X) (C) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
29	BOLT; CLIP,OIL PIPE MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (C) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	02	1	1009-1303	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
29	BOLT; CLIP,OIL PIPE ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
30	BOLT; BRKT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	03	1	1304-		●
30	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●	●
30	BOLT; BRKT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
30	BOLT; BRKT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
30	BOLT; BRKT ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
31	NUT; BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
31	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
31	NUT; BRKT TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
31	NUT; BRKT ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
31	NUT; BRKT MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	01	1	1304-	●
32	BRACKET; CLIP OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) (A)	8-98123-057-0	01	1	1009-1303	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K) NEW ZEALAND EQUIPMENT(PK5) (A)	8-98123-057-0	01	1	1009-1303	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K) (A)	8-98123-057-0	01	1	1304-	●	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B)	1-47479-482-0	01	1	1009-1303	●
32	BRACKET; CLIP OIL PIPE ZF9S1310 M/T(Y5K) (B)	1-47479-482-0	01	1	1304-	●	●
33	CLIP; OIL PIPE MJT7U M/T(Y4X) (B) ID=8 H=20 L=20	1-09700-604-0	04	1	1009-1303	●
33	CLIP; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1304-	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1304-		●
33	CLIP; OIL PIPE TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	1009-1303	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=9 L=20	0-95234-835-0	04	1	1009-1303	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K) (A) ID=9 L=20	0-95234-835-0	04	1	1304-	●	●
33	CLIP; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1009-1303	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) (A) M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) (A) M8X35 FLANGE	0-28650-835-0	03	1	1304-	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X30 FLANGE	0-28650-830-0	03	1	1009-1303	●
34	BOLT; PIPE CLIP MAL6R M/T(Y2J) (B) M8X30 FLANGE	0-28650-830-0	03	1	1304-	●
34	BOLT; PIPE CLIP MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	03	1	1304-	●
34	BOLT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (C) M8X16 FLANGE	0-28050-816-0	01	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (C) M8X16 FLANGE	0-28050-816-0	01	1	1304-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (B) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M8X20 FLANGE	0-28650-820-0	04	1	1009-1303	●
34	BOLT; PIPE CLIP ZF9S1310 M/T(Y5K) (A) M8X20 FLANGE	0-28650-820-0	04	1	1304-	●	●
35	NUT; PIPE CLIP MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	04	1	1009-1303	●
35	NUT; PIPE CLIP MAL6R M/T(Y2J),MJT7U M/T(Y4X) M8 FLANGE	0-91180-108-0	03	1	1304-	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	03	1	1009-1303	●
35	NUT; PIPE CLIP TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
35	NUT; PIPE CLIP ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	04	1	1304-	●	●
36	BRACKET; CLIP MJT7U M/T(Y4X) (B) L=95	1-82699-085-0	01	1	1009-	●
36	BRACKET; CLIP MJT7U M/T(Y4X) (C)	1-47475-689-0	01	1	1009-	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) (A) L=80 H=20	1-82699-304-0	01	1	1009-1303	●
36	BRACKET; CLIP ZF9S1310 M/T(Y5K) (A) L=80 H=20	1-82699-304-0	01	1	1304-	●	●
37	BOLT; CLIP BRKT MJT7U M/T(Y4X) M10X16 FLANGE	0-28151-016-0	01	1	1009-	●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
37	BOLT; CLIP BRKT ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●	●
38	NUT; CLIP BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
38	NUT; CLIP BRKT ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402		●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	1009-1201	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1202-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) (F)	1-47477-546-1	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (E)	1-47479-812-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (G)	8-98239-928-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1304-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-		●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) M12	9-09840-280-0	01	1	1009-1303	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=20.2	0-91510-520-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) ID=12.2	0-91510-512-0	01	1	1009-1303	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-		●
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=700	1-09364-456-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=650	1-09364-694-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (A) L=480	0-57806-480-1	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (B) L=470	1-09364-692-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) (A) L=430	1-09363-623-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) (B) L=460	8-98072-345-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=580	1-09363-692-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1304-1412	●
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1304-1412		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1501-	●
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1501-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=620	8-98072-333-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1304-1412	●
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1304-1412		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1501-	●
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1501-		●
106	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	1009-1303	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) (A) M14 STRAIGHT	0-92113-008-0	01	1	1009-1303	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●	●
106	UNION; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (A) M14 STRAIGHT	0-92113-008-0	01	1	1304-		●
106	UNION; OIL PIPE (B)	1-09654-191-1	01	1	1009-1303	●
106	UNION; OIL PIPE MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	1-09654-191-1	01	1	1304-	●
106	UNION; OIL PIPE ZF9S1310 M/T(Y5K) (B)	1-09654-191-1	01	1	1304-		●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-1303	●
115	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-1303	●
116	WASHER; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-		●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> L=1524	8-98186-634-0	01	1	1103-1303	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1102	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) EXC. POOR QUALITY DIESEL FUEL<KF0> L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1103-1303	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1103-1303	●
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1310 M/T(Y5K) L=1485 SERVICED BY L=1550	1-47428-766-0	01	1	1304-	●	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) L=1784 SERVICED BY L=1800	1-47428-768-0	01	1	1009-1303	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=1777 SERVICED BY L=1800	1-47428-768-0	01	1	1304-	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) L=1766 SERVICED BY L=1800	1-47428-768-0	01	1	1009-1303	●
153	PIPE ASM; CLU,UNION TO FLEX MJT7U M/T(Y4X) WHEEL BASE 4500MM(45W) L=1813 SERVICED BY L=1950	1-47428-769-0	01	1	1304-	●
153	PIPE ASM; CLU,UNION TO FLEX TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) L=1433 SERVICED BY L=1550	1-47428-766-0	01	1	1009-1303	●
162	COVER; RUBBER,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=175	1-09707-178-0	01	1	1009-1303	●
162	COVER; RUBBER,FLEX HOSE ZF9S1310 M/T(Y5K) L=175	1-09707-178-0	01	1	1304-	●	●
164	CLIP; BAND,FLEX HOSE ZF9S1310 M/T(Y5K),TRANSMISSION-FULLER RTO11908(Y5L) L=350	1-09707-183-0	01	1	1009-1303	●
164	CLIP; BAND,FLEX HOSE MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K) L=350	1-09707-183-0	01	1	1304-	●
164	CLIP; BAND,FLEX HOSE L=350	1-09707-183-0	01	1	1304-		●

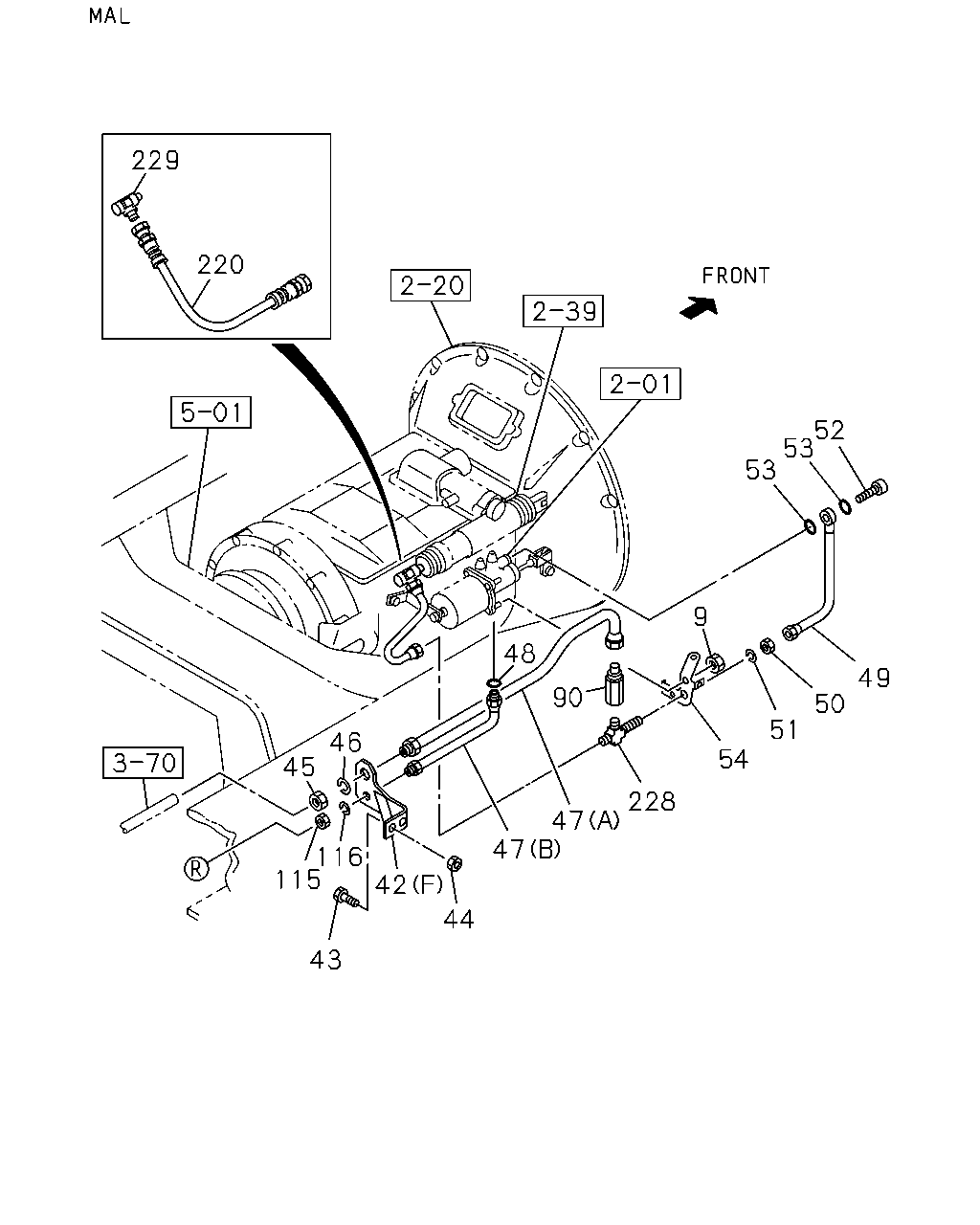

49 50 51 54 228 47 47 44 42 43 115 45 116 46 48 90 9 53 53 52 220 229

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE MJT7U M/T(Y4X) M10 FLANGE	0-91180-210-0	02	1	1009-1303	●
9	NUT; BRKT,FLEX HOSE MAL6R M/T(Y2J),MJT7U M/T(Y4X) 17INCH CLUTCH(RF3) M10 FLANGE	0-91180-210-0	02	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) FUEL TANK 400L<SDH> ENGINE REAR PTO(SV1) (D)	8-98161-856-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (C)	8-98179-878-0	01	1	1304-		●
42	BRACKET; FLEX HOSE,CLU CONT (B)	8-98091-266-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98091-266-1	01	1	1304-1402		●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (B)	8-98255-490-0	01	1	1403-		●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98091-280-1	01	1	1009-1201	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	8-98179-878-0	01	1	1202-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) (F)	1-47477-546-1	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (E)	1-47479-812-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) (G)	8-98239-928-0	01	1	1304-	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) EXC. FUEL TANK 400L<SDH> (D)	8-98105-674-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (D)	8-98099-829-0	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1009-1303	●
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) (A)	1-47476-912-1	01	1	1304-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1009-1303	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER ZF9S1310 M/T(Y5K) M8 FLANGE	0-91180-108-0	02	1	1304-		●
45	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) M12	9-09840-280-0	01	1	1009-1303	●
45	NUT; FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-	●
45	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M12	9-09840-280-0	01	1	1304-		●
46	WASHER; LK,FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=20.2	0-91510-520-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K), TRANSMISSION-FULLER RTO11908(Y5L) ID=12.2	0-91510-512-0	01	1	1009-1303	●
46	WASHER; LK,FLEX HOSE,CLU CONT MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=12.2	0-91510-512-0	01	1	1304-		●
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=700	1-09364-456-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MJT7U M/T(Y4X) (C) L=650	1-09364-694-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (A) L=470	1-09363-682-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (A) L=480	0-57806-480-1	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) ENGINE REAR PTO(SV1) (B) L=430	8-98072-326-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT MAL6R M/T(Y2J) (B) L=470	1-09364-692-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (A) L=380	1-09363-884-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT TRANSMISSION-FULLER RTO11908(Y5L) EXC. ENGINE REAR PTO(SV1) (B) L=370	8-98072-331-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (A) L=430	1-09363-623-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) (A) L=430	1-09363-623-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (B) L=460	8-98072-345-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 4900MM(49W) (B) L=460	8-98072-345-0	01	1	1304-	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (A) L=580	1-09363-692-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1304-1412	●
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1304-1412		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) L=580	1-09363-692-0	01	1	1501-	●
47	HOSE; FLEX,CLU CONT (A) L=580	1-09363-692-0	01	1	1501-		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (B) L=620	8-98072-333-0	01	1	1009-1303	●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1304-1412	●
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1304-1412		●
47	HOSE; FLEX,CLU CONT ZF9S1310 M/T(Y5K) WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) L=620	8-98072-333-0	01	1	1501-	●
47	HOSE; FLEX,CLU CONT (B) L=620	8-98072-333-0	01	1	1501-		●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J) ID=11 OD=18	9-09572-510-0	01	1	1304-	●
48	GASKET; FLEX HOSE,CLU CONT MJT7U M/T(Y4X) ID=10.2 OD=16.0	9-09571-410-0	01	1	1009-1303	●
48	GASKET; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X) ID=10.2 OD=16.0	9-09571-410-0	01	1	1304-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL6R M/T(Y2J) L=245	1-49117-733-0	01	1	1306-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAL6R M/T(Y2J) L=245	1-49117-733-0	01	1	1304-	●
50	NUT; UNION MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	1306-	●
50	NUT; UNION MAL6R M/T(Y2J) M20	0-91111-520-0	01	1	1304-	●
51	WASHER; LK MAL6R M/T(Y2J) ID=20.2	0-91510-620-0	01	1	1306-	●
51	WASHER; LK ID=14.2	0-91510-514-0	01	1	1009-1303	●
51	WASHER; LK MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-	●
51	WASHER; LK ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-		●
52	BOLT; EYE,AIR PIPE MAL6R M/T(Y2J) M14X27 FLANGE	1-09675-086-0	01	1	1306-	●
52	BOLT; EYE,AIR PIPE MAL6R M/T(Y2J) M14X27 FLANGE	1-09675-086-0	01	1	1304-	●
53	GASKET; JOINT BOLT MAL6R M/T(Y2J) ID=14.2 OD=19.2	1-09630-085-0	02	1	1306-1312	●
53	GASKET; JOINT BOLT MAL6R M/T(Y2J) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
53	GASKET; JOINT BOLT MAL6R M/T(Y2J) ID=14.2 OD=19.2	1-09630-085-0	02	1	1304-	●
54	BRACKET; AIR,FLEX HOSE MAL6R M/T(Y2J) 17INCH CLUTCH(RF3)	1-47477-284-1	01	1	1304-	●
90	NIPPLE; OIL PIPE MAL6R M/T(Y2J) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1304-	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	1009-1303	●
115	NUT; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-	●
115	NUT; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) M14	0-91111-514-0	01	1	1304-		●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	1009-1303	●
116	WASHER; FLEX HOSE,CLU CONT MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-	●
116	WASHER; FLEX HOSE,CLU CONT ZF9S1310 M/T(Y5K) ID=14.2	0-91510-514-0	01	1	1304-		●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T(Y2J) L=480	1-09363-659-0	01	1	1304-1305	●
220	HOSE; FLEX,POWER ASSIST MAL6R M/T(Y2J) L=420	1-09363-615-0	01	1	1306-	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T(Y4X) L=400	1-09363-606-0	01	1	1009-1303	●
220	HOSE; FLEX,POWER ASSIST MJT7U M/T(Y4X) L=320	1-09363-656-0	01	1	1304-	●
228	UNION; 3 WAY MAL6R M/T(Y2J)	1-09656-640-0	01	1	1306-	●
228	UNION; 3 WAY MAL6R M/T(Y2J)	1-09656-640-0	01	1	1304-	●
229	CONNECTOR; ELOBOW MAL6R M/T(Y2J) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1306-	●
229	CONNECTOR; ELOBOW MAL6R M/T(Y2J) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1304-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
