2-03 — CLUTCH PEDAL AND CONTROL (#71381) — 46 parça

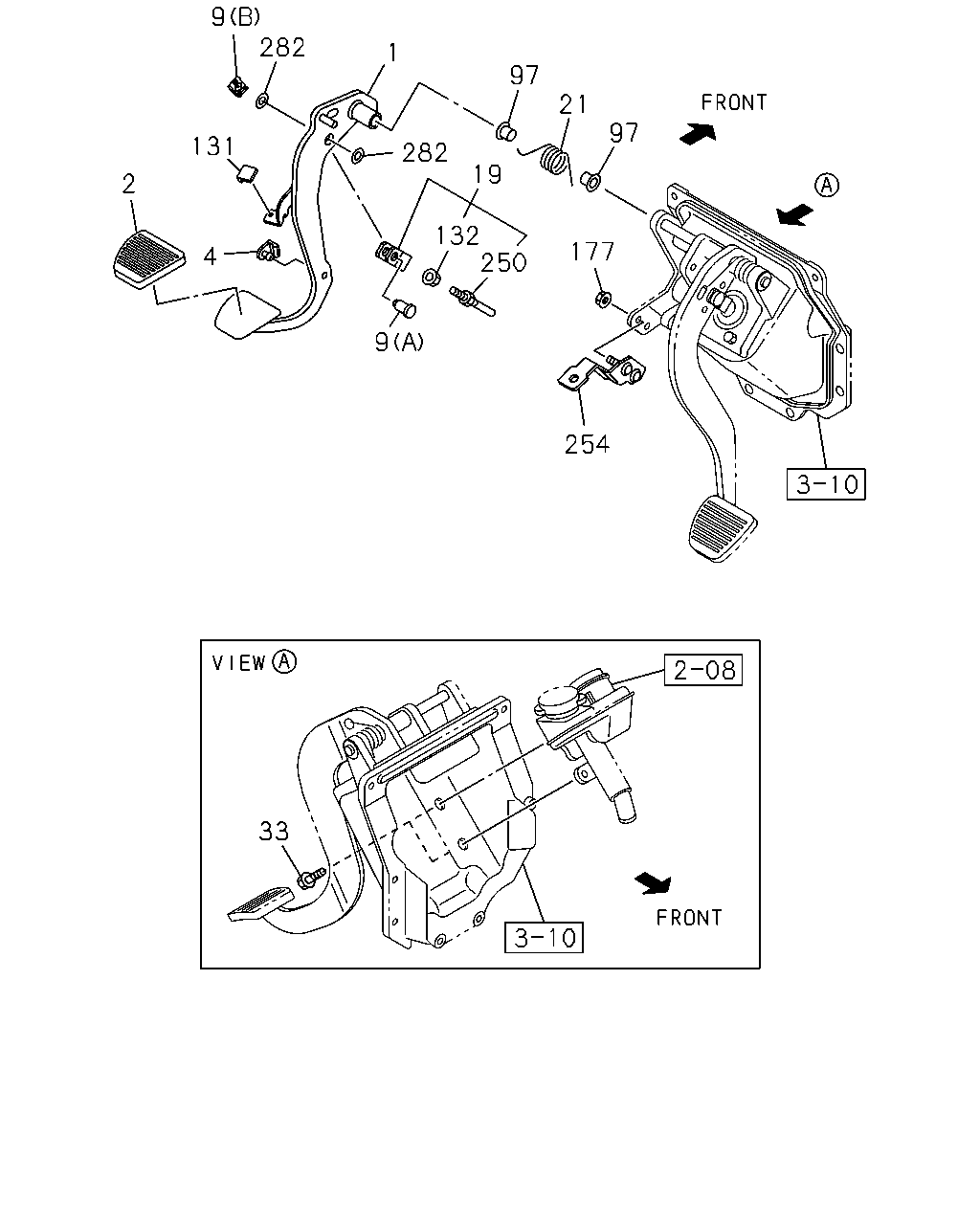

çizim 98497
33 254 177 250 132 19 97 97 282 1 282 9 131 2 4 21 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
MJT7U M/T(Y4X),TRANSMISSION-FULLER RTO11908(Y5L) 		8-97613-941-1 01 1 1009-1303 ●
1 PEDAL; CLU
MAL6R M/T(Y2J),MJT7U M/T(Y4X) 		8-97613-941-1 01 1 1304- ●
1 PEDAL; CLU
ZF9S1310 M/T(Y5K) 		8-98099-809-0 01 1 1009-1303 ●
1 PEDAL; CLU
ZF9S1310 M/T(Y5K) 		8-98099-809-0 01 1 1304- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1009-1303 ●
2 COVER; CLU PEDAL
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-98056-865-0 01 1 1304- ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1304- ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1009-1303 ●
4 STOPPER; CLU PEDAL
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-98079-251-0 01 1 1304- ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1304- ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1009-1303 ●
9 PIN; CLU PEDAL
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (B) 		8-98007-161-0 01 1 1304- ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1304- ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1009-1303 ●
9 PIN; CLU PEDAL
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) (A) 		8-98147-657-0 01 1 1304- ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1304- ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1009-1303 ●
19 ROD ASM; PUSH,CLU
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-98021-406-1 01 1 1304- ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1304- ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1009-1303 ●
21 SPRING; RETURN,CLU PEDAL
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-98021-560-0 01 1 1304- ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1304- ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1009-1303 ●
33 BOLT; CLU M/CYL TO BRKT
17INCH CLUTCH(RF3) M12X20 FLANGE 		0-28051-220-0 02 1 1304- ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1304- ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1009-1303 ●
97 BUSHING; CLU PEDAL SHAFT
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-94238-596-0 02 1 1304- ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1304- ●
131 STOPPER; CLU SW 8-97302-305-0 01 1 1009-1303 ●
131 STOPPER; CLU SW
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-97302-305-0 01 1 1304- ●
131 STOPPER; CLU SW 8-97302-305-0 01 1 1304- ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1009-1303 ●
132 NUT; LK,PUSH ROD
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 01 1 1304- ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1304- ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1009-1303 ●
177 NUT; BRKT
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) M8 FLANGE 		0-91180-108-0 02 1 1304- ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1304- ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1009-1303 ●
250 ROD; PUSH,CLU
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-97615-589-0 01 1 1304- ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1304- ●
254 BRACKET; CLU SENSOR 8-98021-377-1 01 1 1009-1303 ●
254 BRACKET; CLU SENSOR
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-98021-377-1 01 1 1304- ●
254 BRACKET; CLU SENSOR 8-98021-377-1 01 1 1304- ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1009-1303 ●
282 SPACER; CLU PEDAL
MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) 		8-98070-329-0 02 1 1304- ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1304- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
