◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#7138) — 21 parça

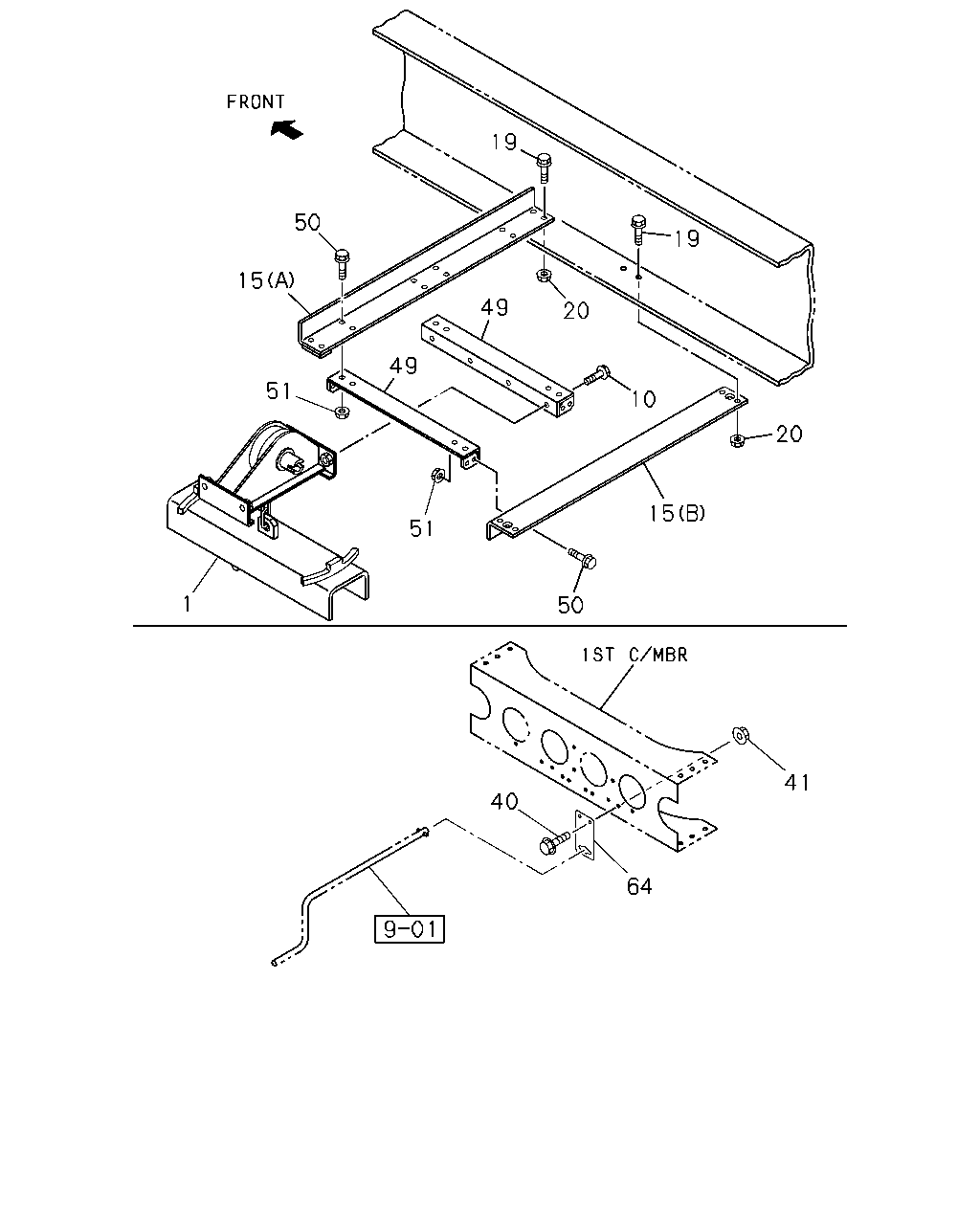

çizim 43227
19 50 1 15 49 20 49 51 10 20 15 51 1 50 41 40 64
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER<SFB> 		1-53630-210-2 01 1 0012- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER<SFB> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 		1-53630-208-2 01 1 0012- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER<SFB> M12X30 FLANGE 		0-28681-230-0 04 1 0012-0512 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER<SFB> M12X30 FLANGE 		0-28651-230-0 04 1 0601- ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER<SFB> (A) 		1-53618-055-2 01 1 0012- ● ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER<SFB> (B) 		1-53618-057-2 01 1 0012- ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER<SFB> M12X35 FLANGE 		0-28681-235-0 08 1 0012-0512 ● ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER<SFB> M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER<SFB> M12 FLANGE 		0-91150-212-0 08 1 0012-0602 ● ●
20 NUT; C/MBR
SPARE WHEEL CARRIER<SFB> M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●
40 BOLT; GUIDE TO FRAME
SPARE WHEEL CARRIER<SFB> M8X25 FLANGE 		0-28680-825-0 02 1 0012-0512 ● ●
40 BOLT; GUIDE TO FRAME
SPARE WHEEL CARRIER<SFB> M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
41 NUT; GUIDE
SPARE WHEEL CARRIER<SFB> M8 FLANGE 		0-91150-108-0 02 1 0012-0602 ● ●
41 NUT; GUIDE
SPARE WHEEL CARRIER<SFB> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER<SFB> 		1-53618-058-1 02 1 0012-0503 ● ●
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER<SFB> 		1-53618-066-0 02 1 0504- ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12X40 FLANGE 		0-28681-240-0 08 1 0012-0512 ● ●
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12 FLANGE 		0-91150-212-0 08 1 0012-0602 ● ●
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER<SFB> M12 FLANGE 		0-91180-212-0 08 1 0603- ● ●
64 GUIDE; HANDLE
SPARE WHEEL CARRIER<SFB> 		1-53631-465-0 01 1 0012- ● ●
