1-50 — EXHAUST PIPE AND SILENCER (#71375) — 128 parça

36 475 16 476 20 476 475 475 36 34 26 1 17 221 12 128 222 94 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 4500MM(45W)	8-97643-985-0	01	1	1304-	●
1	PIPE; EXH	8-97643-985-0	01	1	1304-		●
1	PIPE; EXH	8-98055-105-0	01	1	1009-1303	●
1	PIPE; EXH WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W)	8-98055-105-0	01	1	1304-	●
12	SILENCER ASM; EXH	8-97635-437-1	01	1	1009-1303	●
12	SILENCER ASM; EXH	8-97642-916-2	01	1	1304-	●	●
16	FLANGE; EXH PIPE	1-22115-217-0	01	1	1009-1303	●
16	FLANGE; EXH PIPE	1-22115-217-0	01	1	1304-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1009-1303	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1304-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1009-1303	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1304-	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1009-1303	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1304-1402	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1009-1303	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1304-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1009-1303	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1304-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1009-1303	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1304-	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	06	1	1009-1303	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	04	1	1304-	●	●
105	NUT; CLAMP M8 FLANGE	0-91180-108-0	04	1	1009-1303	●
105	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
128	PIPE; EXH,RR WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W)	8-97635-499-1	01	1	1304-	●
128	PIPE; EXH,RR	8-97635-499-1	01	1	1009-1303	●
128	PIPE; EXH,RR WHEEL BASE 4500MM(45W)	8-97645-511-0	01	1	1304-	●
128	PIPE; EXH,RR	8-97645-511-0	01	1	1304-		●
221	CLAMP; EXH SILENCER D=101.4	1-22133-170-1	01	1	1009-1303	●
222	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1009-1303	●
222	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1304-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112	1-22119-294-0	01	1	1009-1303	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112	1-22119-294-1	01	1	1304-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	1009-1303	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-1	02	1	1304-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	1-09583-248-0	04	1	1009-1303	●
476	SPRING; VIBNON,EXH PIPE (B)	1-09583-248-0	04	1	1304-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	8-94141-851-0	02	1	1009-1303	●
476	SPRING; VIBNON,EXH PIPE (A)	8-94141-851-0	02	1	1304-	●	●

36 475 16 476 20 476 475 475 36 34 26 1 116 225 17 12 128 222 94 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH WHEEL BASE 4500MM(45W)	8-97643-985-0	01	1	1304-	●
1	PIPE; EXH	8-97643-985-0	01	1	1304-		●
1	PIPE; EXH	8-98055-105-0	01	1	1009-1303	●
1	PIPE; EXH WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W)	8-98055-105-0	01	1	1304-	●
12	SILENCER ASM; EXH	8-97635-437-1	01	1	1009-1303	●
12	SILENCER ASM; EXH	8-97642-916-2	01	1	1304-	●	●
16	FLANGE; EXH PIPE	1-22115-217-0	01	1	1009-1303	●
16	FLANGE; EXH PIPE	1-22115-217-0	01	1	1304-	●	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1009-1303	●
17	BOLT; EXH PIPE M12X25 FLANGE	1-09000-604-0	04	1	1304-	●	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1009-1303	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	1304-	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1009-1303	●
26	STUD; EXH MANIF M12X125 L=145	8-97617-265-0	04	1	1304-1402	●	●
26	STUD; EXH MANIF M12X125 L=145	8-97648-063-0	04	1	1403-	●	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1009-1303	●
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1304-	●	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1009-1303	●
36	NUT; EXH PIPE (A) M12	0-91110-512-0	04	1	1304-	●	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1009-1303	●
36	NUT; EXH PIPE (B) M12	1-09400-131-0	04	1	1304-	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	06	1	1009-1303	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	04	1	1304-	●	●
105	NUT; CLAMP M8 FLANGE	0-91180-108-0	04	1	1009-1303	●
105	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
116	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	02	1	1304-	●	●
116	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	1009-1303	●
116	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1304-	●	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
125	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
128	PIPE; EXH,RR WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W)	8-97635-499-1	01	1	1304-	●
128	PIPE; EXH,RR	8-97635-499-1	01	1	1009-1303	●
128	PIPE; EXH,RR WHEEL BASE 4500MM(45W)	8-97645-511-0	01	1	1304-	●
128	PIPE; EXH,RR	8-97645-511-0	01	1	1304-		●
222	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1009-1303	●
222	CLAMP; EXH PIPE D=101.4	1-22133-170-1	01	1	1304-	●	●
225	PROTECTOR; HEAT WHEEL BASE 4500MM(45W)	8-97645-512-0	01	1	1304-	●
225	PROTECTOR; HEAT	8-97645-512-0	01	1	1304-		●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112	1-22119-294-0	01	1	1009-1303	●
475	BEARING; SEAL,VIBNON,EXH PIPE (A) OD=112	1-22119-294-1	01	1	1304-	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-0	02	1	1009-1303	●
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=122	1-22119-297-1	02	1	1304-	●	●
476	SPRING; VIBNON,EXH PIPE (B)	1-09583-248-0	04	1	1009-1303	●
476	SPRING; VIBNON,EXH PIPE (B)	1-09583-248-0	04	1	1304-	●	●
476	SPRING; VIBNON,EXH PIPE (A)	8-94141-851-0	02	1	1009-1303	●
476	SPRING; VIBNON,EXH PIPE (A)	8-94141-851-0	02	1	1304-	●	●

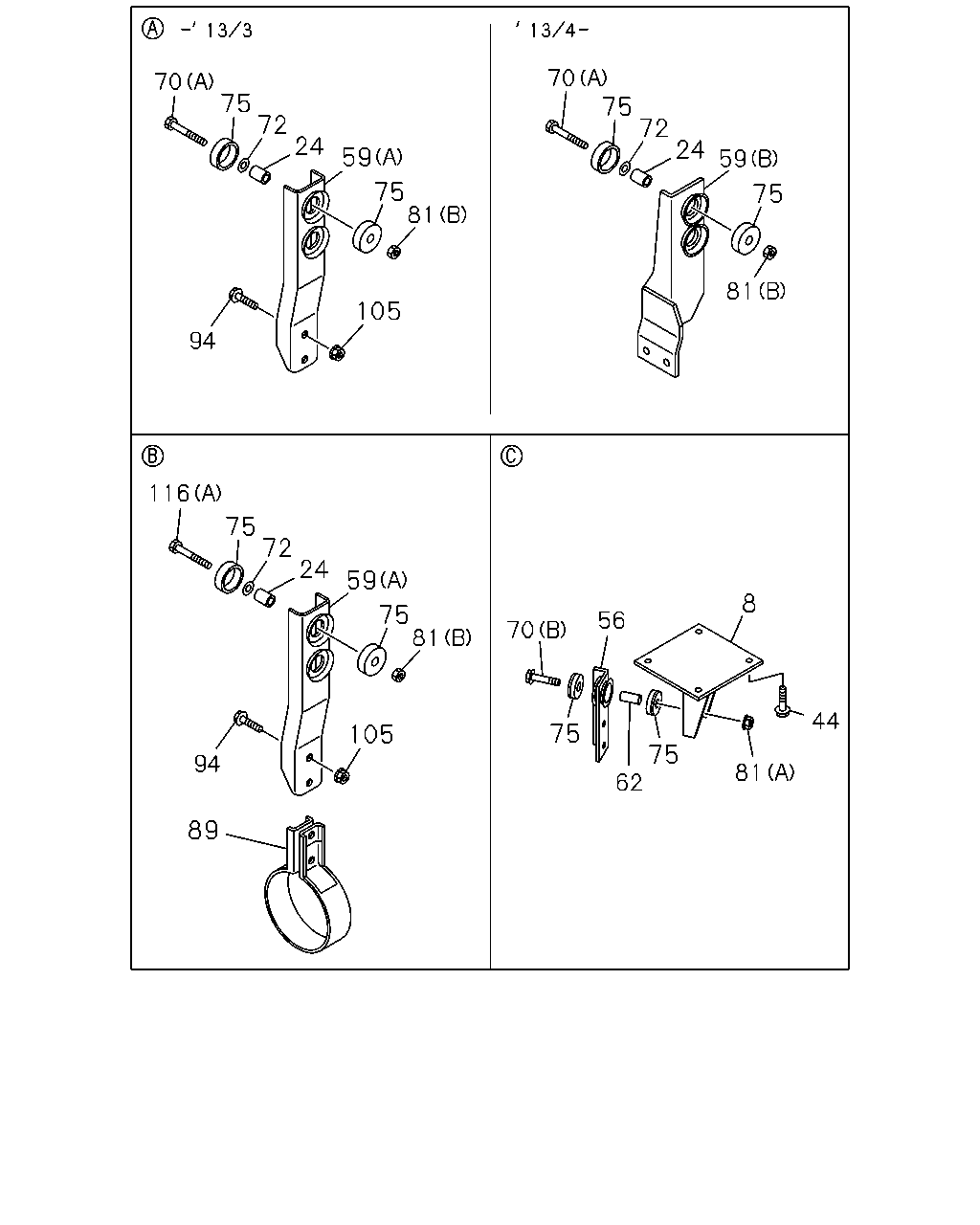

70 75 59 24 72 75 10 81 94 70 75 72 24 75 59 81 8 44 81 75 62 75 56 70 89 94 05 81 75 59 24 72 75 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BRACKET; EXH PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W)	8-98106-287-0	01	1	1009-1303	●
8	BRACKET; EXH PIPE WHEEL BASE 6300MM(63W)	8-97636-132-0	01	1	1009-1303	●
8	BRACKET; EXH PIPE	8-98106-287-0	01	1	1304-	●	●
24	COLLAR; DIST,CLAMP L=25	1-14234-083-0	02	1	1304-	●	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	04	1	1009-1303	●
24	COLLAR; DIST,CLAMP L=22	9-22159-024-0	02	1	1304-	●	●
44	BOLT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) M8X25 FLANGE	0-28050-825-0	04	1	1009-1303	●
44	BOLT; BRKT WHEEL BASE 6300MM(63W) M10X35 FLANGE	0-28051-035-0	02	1	1009-1303	●
44	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	04	1	1304-	●	●
56	BRACKET; CLAMP,EXH PIPE	8-98106-290-0	01	1	1009-1303	●
56	BRACKET; CLAMP,EXH PIPE	8-98106-290-0	01	1	1304-	●	●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 4500MM(45W) (B)	8-97643-986-1	01	1	1304-	●
59	BRACKET; EXH SILENCER,FRT (B)	8-97643-986-1	01	1	1304-		●
59	BRACKET; EXH SILENCER,FRT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (B)	8-97642-915-1	01	1	1304-	●
59	BRACKET; EXH SILENCER,FRT (A)	8-98055-106-0	02	1	1009-1303	●
59	BRACKET; EXH SILENCER,FRT (A)	8-98055-106-0	01	1	1304-	●	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1009-1303	●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	01	1	1304-	●	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	1009-1303	●
70	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1304-	●	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1009-1303	●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1304-	●	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1009-1303	●
72	WASHER; LK,BRKT ID=10.2	0-91510-810-0	04	1	1304-	●	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	02	1	1009-1303	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1009-1303	●
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	10	1	1304-	●	●
81	NUT; BRKT (B) M10	0-91110-510-0	04	1	1009-1303	●
81	NUT; BRKT (B) M10	0-91110-510-0	04	1	1304-	●	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1009-1303	●
81	NUT; BRKT (A) M10 FLANGE	0-91180-210-0	01	1	1304-	●	●
89	CLAMP; EXH SILENCER,RR	8-97621-090-0	01	1	1009-1303	●
89	CLAMP; EXH SILENCER,RR	8-97621-090-0	01	1	1304-	●	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	06	1	1009-1303	●
94	BOLT; CLAMP M8X40 FLANGE	0-28650-840-0	04	1	1304-	●	●
105	NUT; CLAMP M8 FLANGE	0-91180-108-0	04	1	1009-1303	●
105	NUT; CLAMP M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
116	BOLT; BRKT (B) M10X35 FLANGE	0-28051-035-0	02	1	1304-	●	●
116	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	1009-1303	●
116	BOLT; BRKT (A) M10X60	0-10856-060-0	02	1	1304-	●	●
