1-41 — FUEL PIPING; CHASSIS (#71373) — 263 parça

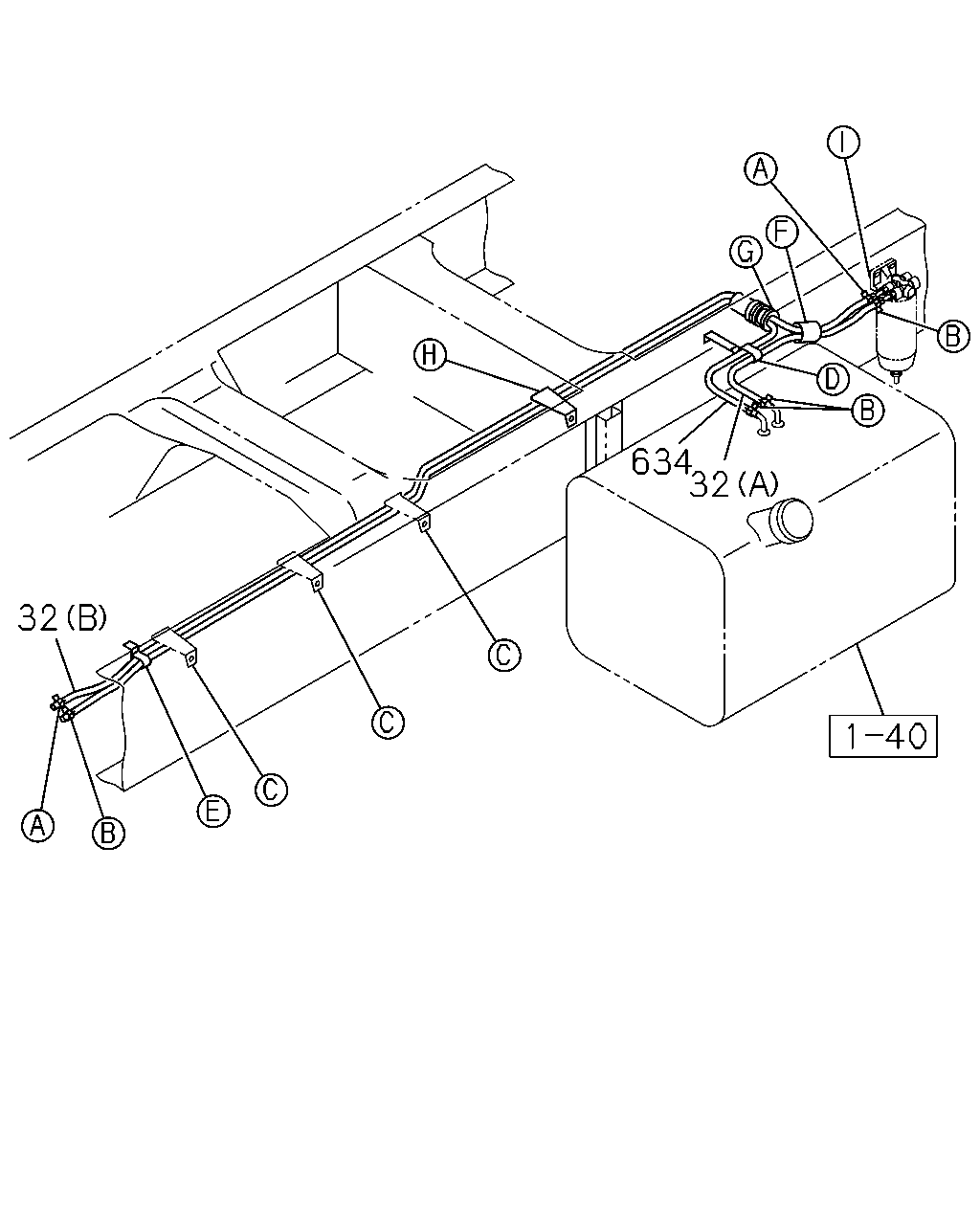

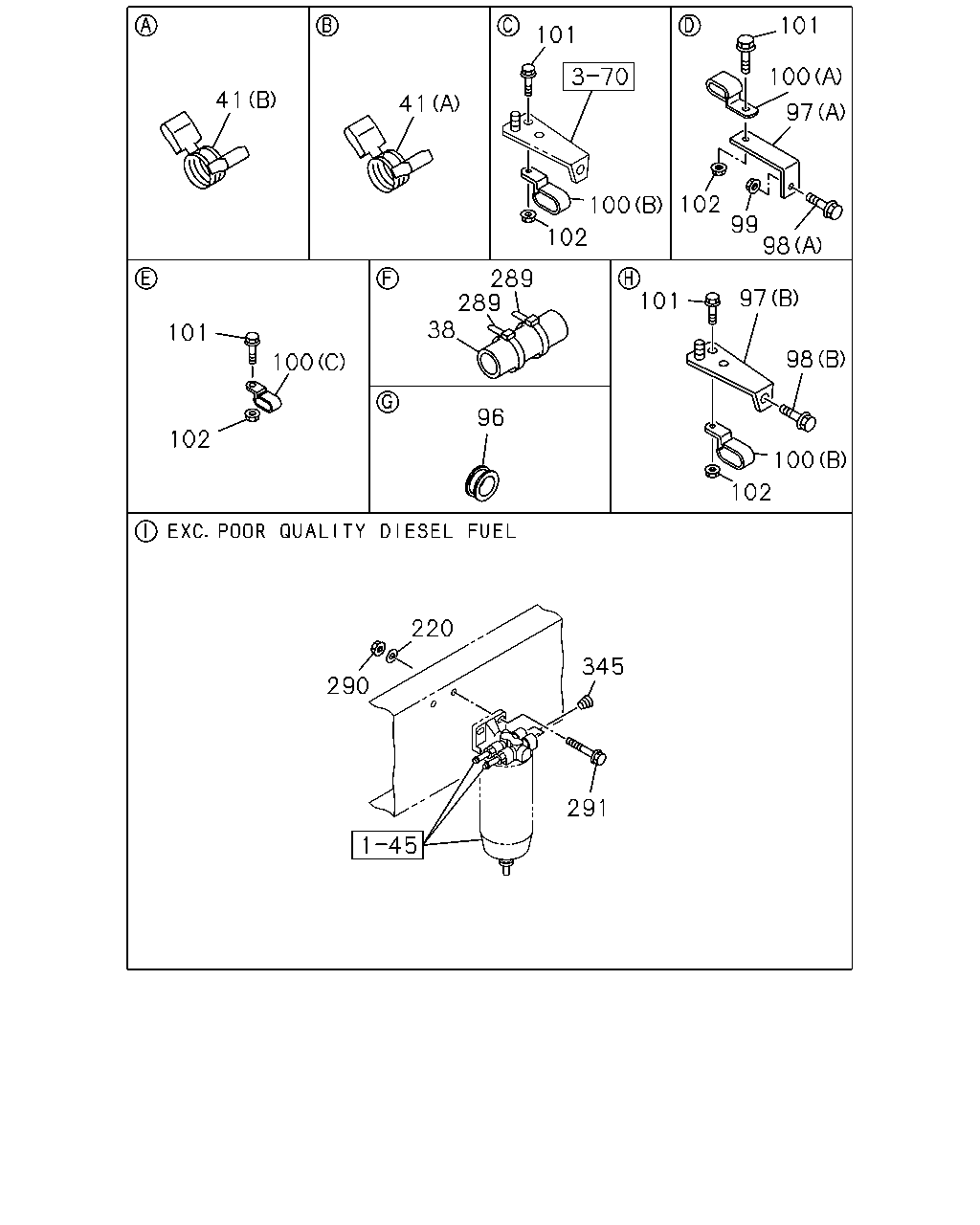

291 345 220 290 96 102 100 98 97 101 38 289 289 102 101 100 41 41 102 100 101 101 100 97 102 99 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 200L AL<THF> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1303	●
38	SLEEVE; RUBBER,RUBBER HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1303	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1304-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1304-		●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1009-1102	●
38	SLEEVE; RUBBER,RUBBER HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	1103-1303	●
38	SLEEVE; RUBBER,RUBBER HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1304-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	03	1	1304-1304	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1305-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	1009-1303	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	01	1	1304-1304	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1009-1303	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	01	1	1304-1304	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	01	1	1304-1304	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=19	8-94238-569-0	02	1	1305-	●	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1009-1303	●
96	GROMMET; PIPE,FUEL TANK ID=32 OD=40 T=18	1-09891-003-0	01	1	1304-	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (C)	8-98186-646-0	01	1	1103-1303	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-647-0	01	1	1103-1303	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98186-645-0	01	1	1103-1303	●
97	BRACKET; CLIP (C)	8-98186-645-0	01	1	1304-	●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A)	1-47475-927-0	01	1	1009-1010	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1011-1303	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) L=68	1-47475-525-0	01	1	1304-	●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1304-		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (B)	8-97609-096-0	01	1	1009-1303	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B)	8-97609-096-0	01	1	1304-	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1304-		●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (A) M8X25 FLANGE	0-28650-825-0	01	1	1009-1303	●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-	●
98	BOLT; BRKT,FUEL PIPE (A) M8X25 FLANGE	0-28650-825-0	01	1	1304-		●
98	BOLT; BRKT,FUEL PIPE FUEL TANK 400L<SDH> (B) M8X30 FLANGE	0-28650-830-0	01	1	1009-1303	●
98	BOLT; BRKT,FUEL PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-	●
98	BOLT; BRKT,FUEL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1304-		●
99	NUT; BRKT,CLIP,FUEL TANK FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
99	NUT; BRKT,CLIP,FUEL TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	01	1	1304-	●
99	NUT; BRKT,CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	01	1	1304-		●
100	CLIP; FUEL PIPE FUEL TANK 200L AL<THF> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	01	1	1009-1303	●
100	CLIP; FUEL PIPE A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1304-1412	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1304-1412	●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1304-1412		●
100	CLIP; FUEL PIPE ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1501-	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1501-	●
100	CLIP; FUEL PIPE (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1501-		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1009-1102	●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1103-1303	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1103-1303	●
100	CLIP; FUEL PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1304-	●
100	CLIP; FUEL PIPE (A) ID=14X29 H=15 L=20	1-09700-744-0	01	1	1304-		●
100	CLIP; FUEL PIPE FUEL TANK 400L<SDH> (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	04	1	1009-1303	●
100	CLIP; FUEL PIPE MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) (B) ID=19X32 H=17.5 L=50.5	1-09701-320-0	03	1	1304-	●
100	CLIP; FUEL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1009-1102	●
100	CLIP; FUEL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1103-1303	●
100	CLIP; FUEL PIPE WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1103-1303	●
100	CLIP; FUEL PIPE MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1304-	●
100	CLIP; FUEL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1304-	●
100	CLIP; FUEL PIPE WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	02	1	1009-1303	●
100	CLIP; FUEL PIPE A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1304-1412	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1304-1412	●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1304-1412		●
100	CLIP; FUEL PIPE ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1501-	●
100	CLIP; FUEL PIPE WHEEL BASE 6600MM(66W) (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1501-	●
100	CLIP; FUEL PIPE (C) ID=19X32 H=17.5 L=22.5	1-09701-315-0	01	1	1501-		●
101	BOLT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X20 FLANGE	0-28650-820-0	01	1	1304-	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	05	1	1009-1303	●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8X20 FLANGE	0-28650-820-0	05	1	1304-	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28650-820-0	05	1	1304-		●
101	BOLT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> M8X20 FLANGE	0-28650-820-0	06	1	1009-1303	●
102	NUT; CLIP,FUEL PIPE A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1304-1412	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	06	1	1304-1412	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	1304-1412		●
102	NUT; CLIP,FUEL PIPE ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	06	1	1501-	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6600MM(66W) M8 FLANGE	0-91180-108-0	06	1	1501-	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	06	1	1501-		●
102	NUT; CLIP,FUEL PIPE FUEL TANK 200L AL<THF> M8 FLANGE	0-91180-108-0	02	1	1009-1303	●
102	NUT; CLIP,FUEL PIPE MAL6R M/T(Y2J),ZF9S1310 M/T(Y5K),A/T ALLISON 4430(Y5V) WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	02	1	1304-	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4500MM(45W) M8 FLANGE	0-91180-108-0	02	1	1304-	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	06	1	1009-1303	●
102	NUT; CLIP,FUEL PIPE MJT7U M/T(Y4X) WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	1304-	●
102	NUT; CLIP,FUEL PIPE WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> M8 FLANGE	0-91180-108-0	07	1	1009-1303	●
102	NUT; CLIP,FUEL PIPE MJT7U M/T(Y4X) WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	05	1	1304-	●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1303	●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1304-	●	●
220	WASHER; PL WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1304-	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1303	●
220	WASHER; PL WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1304-1412	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1304-1412		●
220	WASHER; PL WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1501-	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1501-		●
289	CLIP; BAND,HOSE FUEL TANK 200L AL<THF> L=250	5-09707-030-1	04	1	1103-1303	●
289	CLIP; BAND,HOSE FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1303	●
289	CLIP; BAND,HOSE WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) L=250	5-09707-030-1	02	1	1304-	●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	02	1	1304-		●
289	CLIP; BAND,HOSE L=250	5-09707-030-1	04	1	1009-1102	●
289	CLIP; BAND,HOSE POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> L=250	5-09707-030-1	02	1	1103-1303	●
289	CLIP; BAND,HOSE WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) L=250	5-09707-030-1	04	1	1304-	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-1102	●
290	NUT; FILTER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1103-1303	●
290	NUT; FILTER TO BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10 FLANGE	0-91180-210-0	02	1	1103-1303	●
290	NUT; FILTER TO BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1304-1412	●
290	NUT; FILTER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	02	1	1304-1412	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1304-1412		●
290	NUT; FILTER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1501-	●
290	NUT; FILTER TO BRKT WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1501-	●
290	NUT; FILTER TO BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	02	1	1501-	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1501-		●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1303	●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1304-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1303	●
291	BOLT; FILER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1304-1412	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1304-1412		●
291	BOLT; FILER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1501-	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1501-		●
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1009-1102	●
345	PLUG EXC. POOR QUALITY DIESEL FUEL<KF0> NPTF3/8-18	8-97329-623-0	02	1	1103-1303	●

32 634 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A)	8-98186-644-1	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1304-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1304-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (B) L=2450 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2450 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
634	HOSE; RUBBER RETURN FUEL TANK 200L AL<THF> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1303	●
634	HOSE; RUBBER RETURN WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1304-1305	●
634	HOSE; RUBBER RETURN FUEL TANK 200L RECTANGULAR<NH6> L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	1306-	●
634	HOSE; RUBBER RETURN WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1303	●
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1304-	●
634	HOSE; RUBBER RETURN L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	1304-		●
634	HOSE; RUBBER RETURN WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> L=2100 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1303	●

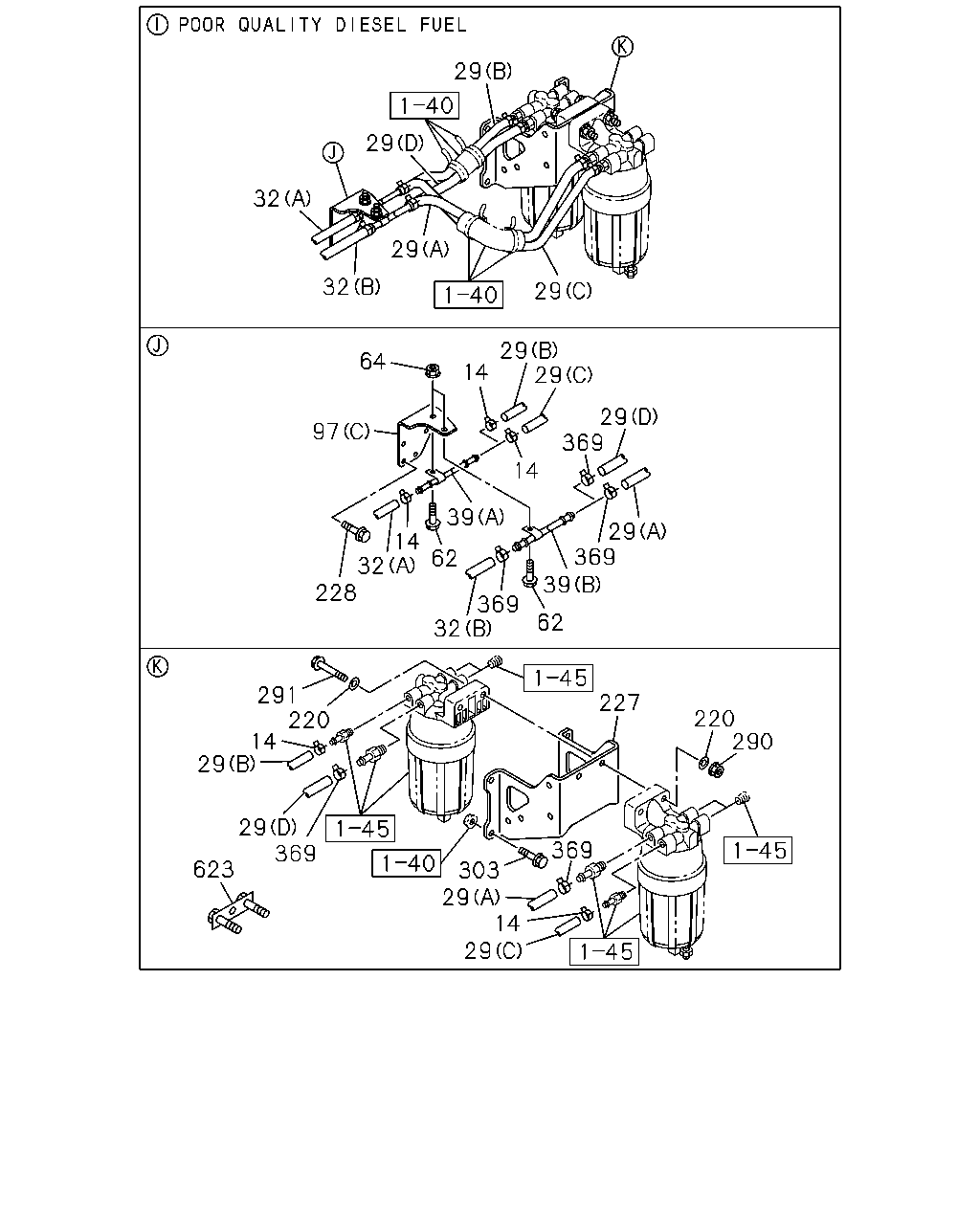

29 32 29 29 32 29 64 14 29 29 97 228 32 62 14 369 62 369 39 29 369 14 39 29 32 291 220 14 29 29 623 303 29 14 227 220 290 369 369 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	CLIP; HOSE POOR QUALITY DIESEL FUEL<KF0> ID=14	1-09704-102-0	04	1	1103-1303	●
14	CLIP; HOSE ID=14	1-09704-102-0	04	1	1304-	●	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=260 OD=14.5	8-98188-441-0	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B)	8-98188-440-0	01	1	1304-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (C) L=370 OD=14.5	8-98188-446-0	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (C) L=350 OD=14.5	8-98188-445-0	01	1	1304-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (D)	8-98188-456-0	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (D)	8-98188-455-0	01	1	1304-	●
29	HOSE; FUEL POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A)	8-98188-460-0	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (A) L=310 OD=19	8-98188-459-0	01	1	1304-	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A)	8-98186-639-1	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B)	8-98186-640-1	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-641-1	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (D)	8-98186-642-1	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-638-1	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A)	8-98186-638-1	01	1	1304-	●
29	HOSE; FUEL (A)	8-98186-638-1	01	1	1304-		●
29	HOSE; FUEL WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B)	8-98188-442-0	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B)	8-98188-442-0	01	1	1304-	●
29	HOSE; FUEL (B)	8-98188-442-0	01	1	1304-		●
29	HOSE; FUEL WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (C) L=400 OD=14.5	8-98188-447-0	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (C) L=400 OD=14.5	8-98188-447-0	01	1	1304-	●
29	HOSE; FUEL (C) L=400 OD=14.5	8-98188-447-0	01	1	1304-		●
29	HOSE; FUEL WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (D)	8-98188-458-0	01	1	1103-1303	●
29	HOSE; FUEL WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (D)	8-98188-458-0	01	1	1304-	●
29	HOSE; FUEL (D)	8-98188-458-0	01	1	1304-		●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) L=1000 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) (B) L=1500 SERVICED BY L=3000	0-01262-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (A)	8-98186-644-1	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=450 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=2100 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=2200 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK (A) L=600 SERVICED BY L=3000	0-01260-300-0	01	1	1304-	●	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1304-	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1800 SERVICED BY L=3000	0-01262-300-0	01	1	1304-		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=500 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 200L AL<THF> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=1300 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=900 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 4900MM(49W),WHEEL BASE 6600MM(66W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2400 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	1103-1303	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> (B) L=2450 SERVICED BY L=3000	0-01262-300-0	01	1	1009-1102	●
32	PIPE; DELIVERY,FUEL TANK WHEEL BASE 6300MM(63W) FUEL TANK 400L<SDH> EXC. POOR QUALITY DIESEL FUEL<KF0> (B) L=2450 SERVICED BY L=3000	0-01262-300-0	01	1	1103-1303	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (A)	8-98186-862-1	01	1	1103-1303	●
39	PIPE; FUEL (A)	8-98186-862-1	01	1	1304-	●	●
39	PIPE; FUEL POOR QUALITY DIESEL FUEL<KF0> (B)	8-98186-864-1	01	1	1103-1303	●
39	PIPE; FUEL (B)	8-98186-864-1	01	1	1304-	●	●
62	BOLT; CLIP FIX POOR QUALITY DIESEL FUEL<KF0> M8X20 FLANGE	0-28650-820-0	02	1	1103-1303	●
62	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	1304-	●	●
64	NUT; CLIP POOR QUALITY DIESEL FUEL<KF0> M8 FLANGE	0-91180-108-0	02	1	1103-1303	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1304-	●	●
97	BRACKET; CLIP POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (C)	8-98186-646-0	01	1	1103-1303	●
97	BRACKET; CLIP WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (C)	8-98186-647-0	01	1	1103-1303	●
97	BRACKET; CLIP WHEEL BASE 6300MM(63W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (C)	8-98186-645-0	01	1	1103-1303	●
97	BRACKET; CLIP (C)	8-98186-645-0	01	1	1304-	●	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A)	1-47475-927-0	01	1	1009-1010	●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (A) L=68	1-47475-525-0	01	1	1011-1303	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (A) L=68	1-47475-525-0	01	1	1304-	●
97	BRACKET; CLIP (A) L=68	1-47475-525-0	01	1	1304-		●
97	BRACKET; CLIP FUEL TANK 400L<SDH> (B)	8-97609-096-0	01	1	1009-1303	●
97	BRACKET; CLIP WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) (B)	8-97609-096-0	01	1	1304-	●
97	BRACKET; CLIP (B)	8-97609-096-0	01	1	1304-		●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1103-1303	●
220	WASHER; PL POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1304-	●	●
220	WASHER; PL WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	04	1	1304-	●
220	WASHER; PL ID=10.5 OD=26	0-91614-710-0	02	1	1009-1102	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1103-1303	●
220	WASHER; PL WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1304-1412	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1304-1412		●
220	WASHER; PL WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1501-	●
220	WASHER; PL EXC. POOR QUALITY DIESEL FUEL<KF0> ID=10.5 OD=26	0-91614-710-0	02	1	1501-		●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>	8-98184-813-0	01	1	1103-1303	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0>	8-98184-813-0	01	1	1304-	●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0>	8-98184-813-0	01	1	1304-		●
227	BRACKET; FUEL SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF>	8-98184-812-0	01	1	1103-1303	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0>	8-98184-812-0	01	1	1304-	●
227	BRACKET; FUEL SEDIMENTER WHEEL BASE 4500MM(45W)	8-98184-812-0	01	1	1304-	●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M8X30 FLANGE	0-28650-830-0	02	1	1103-1303	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M8X30 FLANGE	0-28650-830-0	02	1	1304-	●
228	BOLT; BRKT,SEDIMENTER M8X30 FLANGE	0-28650-830-0	02	1	1304-		●
228	BOLT; BRKT,SEDIMENTER POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M12X35 FLANGE	0-28651-235-0	02	1	1103-1303	●
228	BOLT; BRKT,SEDIMENTER WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) M8X35 FLANGE	0-28650-835-0	02	1	1304-	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1009-1102	●
290	NUT; FILTER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1103-1303	●
290	NUT; FILTER TO BRKT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>,FUEL TANK 200L AL<THF> M10 FLANGE	0-91180-210-0	02	1	1103-1303	●
290	NUT; FILTER TO BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1304-1412	●
290	NUT; FILTER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	02	1	1304-1412	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1304-1412		●
290	NUT; FILTER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1501-	●
290	NUT; FILTER TO BRKT WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10 FLANGE	0-91180-210-0	02	1	1501-	●
290	NUT; FILTER TO BRKT WHEEL BASE 5300MM(53W),WHEEL BASE 6600MM(66W) M10 FLANGE	0-91180-210-0	02	1	1501-	●
290	NUT; FILTER TO BRKT M10 FLANGE	0-91180-210-0	02	1	1501-		●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1103-1303	●
291	BOLT; FILER TO BRKT POOR QUALITY DIESEL FUEL<KF0> M10X90 FLANGE	0-28051-090-0	02	1	1304-	●	●
291	BOLT; FILER TO BRKT M10X60 FLANGE	0-28051-060-0	02	1	1009-1102	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1103-1303	●
291	BOLT; FILER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1304-1412	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1304-1412		●
291	BOLT; FILER TO BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1501-	●
291	BOLT; FILER TO BRKT EXC. POOR QUALITY DIESEL FUEL<KF0> M10X60 FLANGE	0-28051-060-0	02	1	1501-		●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> M10X40 FLANGE	0-28051-040-0	02	1	1103-1303	●
303	BOLT; BRKT POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	04	1	1304-	●	●
303	BOLT; BRKT WHEEL BASE 4500MM(45W) EXC. POOR QUALITY DIESEL FUEL<KF0> M10X40 FLANGE	0-28051-040-0	04	1	1304-	●
303	BOLT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M10X40 FLANGE	0-28051-040-0	04	1	1103-1303	●
369	CLAMP; HOSE,FUEL POOR QUALITY DIESEL FUEL<KF0> ID=19	8-94238-569-0	04	1	1103-1303	●
369	CLAMP; HOSE,FUEL ID=19	8-94238-569-0	04	1	1304-	●	●
623	PLATE; STUD BOLT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH>	8-98185-380-0	01	1	1103-1303	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
