◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11309 - FXZ(RHD)EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-40 - FUEL TANK ▶

1-40 — FUEL TANK (#71372) — 163 parça

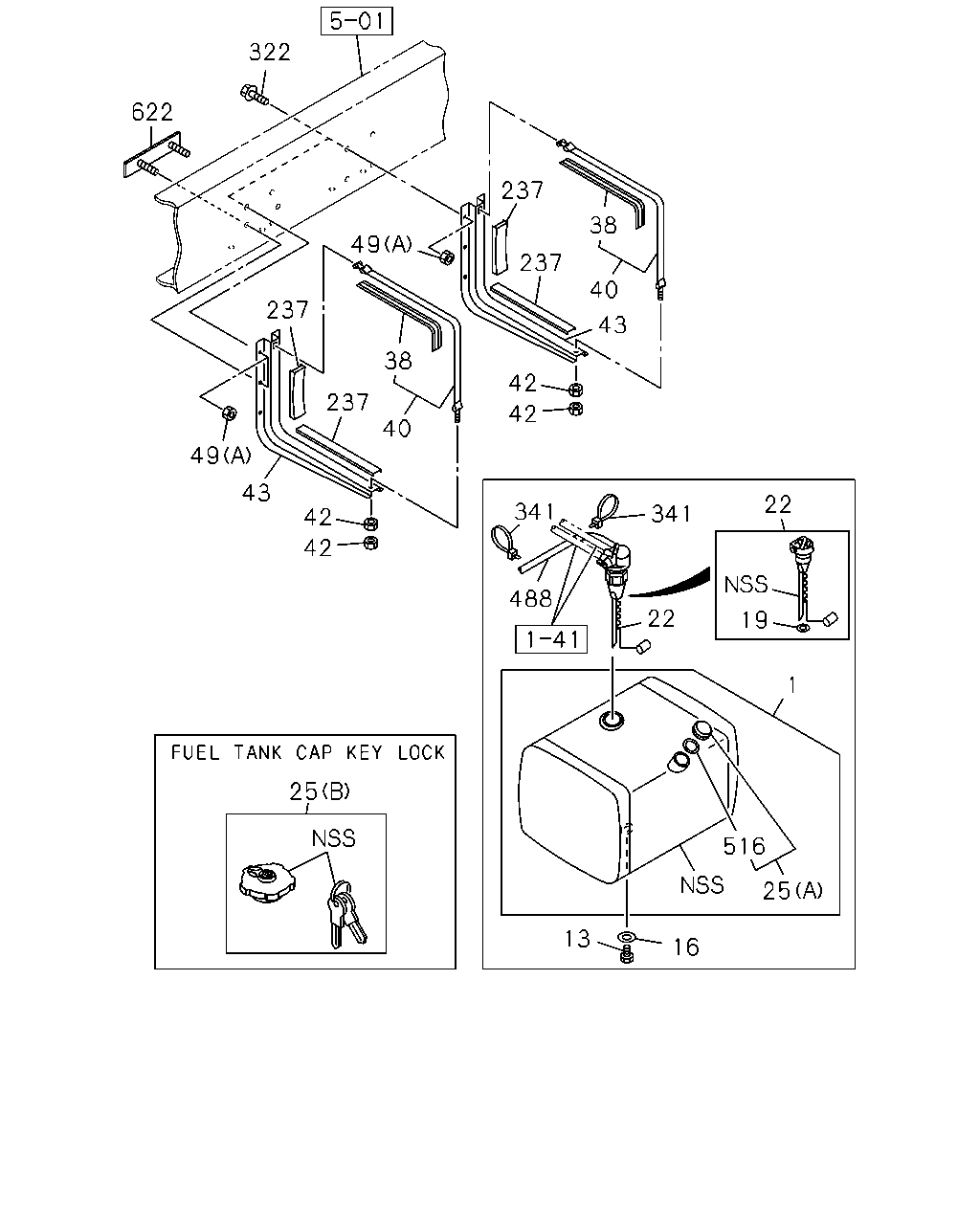

622 322 237 49 237 38 237 40 43 42 42 38 237 40 49 43 42 42 341 341 22 488 22 19 1 25 13 16 516 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L AL<THF> 514X685X625 200L	1-87412-051-0	01	1	1009-1303	●
1	TANK; FUEL FUEL TANK 200L RECTANGULAR<NH6> 745X650X480 200L	1-87411-169-0	01	1	1304-	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	1009-1109	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1110-1303	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1304-	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1304-		●
13	PLUG; SCREW,SUB TANK JOINT M18X12	0-92002-418-0	01	1	1009-1210	●
16	GASKET; PLUG ID=18.2 T=1.6	8-98030-453-0	01	1	1009-1210	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	1009-1210	●
22	UNIT; FUEL TANK	1-83141-132-0	01	1	1009-1210	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1009-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> (B)	1-22440-057-2	01	1	1304-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1009-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1304-	●
25	CAP; FILLER,FUEL TANK (B)	8-98108-595-0	01	1	1304-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (A)	1-22440-056-0	01	1	1009-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> (A)	1-22440-056-0	01	1	1304-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	1009-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1110-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1304-	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1304-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L RECTANGULAR<NH6> L=960	1-22553-044-0	02	1	1304-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1009-1303	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1304-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1304-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> L=1045	1-22550-262-0	02	1	1304-	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1009-1110	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-1303	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1304-	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1304-		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1009-1303	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1304-	●	●
43	BRACKET; FUEL TANK	8-97621-247-0	02	1	1304-		●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-529-1	02	1	1009-1303	●
43	BRACKET; FUEL TANK FUEL TANK 200L RECTANGULAR<NH6>	8-98242-691-0	02	1	1304-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1009-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) M10 FLANGE	0-91180-110-0	04	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) M10 FLANGE	0-91180-110-0	02	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-110-0	02	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-110-0	03	1	1103-1303	●
49	NUT; BRKT HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	06	1	1009-1303	●
49	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (A) M12	0-91110-512-0	08	1	1304-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M12	0-91110-512-0	08	1	1304-	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	1304-		●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	1009-1303	●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1) (A) M12	0-91110-512-0	08	1	1009-1303	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M12	0-91110-512-0	06	1	1304-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=450	1-22553-042-1	02	1	1009-1303	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> L=340	1-22553-043-2	02	1	1304-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	1009-1303	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> L=540	1-22553-064-1	02	1	1304-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1009-1303	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1304-	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1304-		●
322	BOLT; BRKT FIX HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1009-1303	●
322	BOLT; BRKT FIX FUEL TANK 200L RECTANGULAR<NH6> M12X40 FLANGE	0-28051-240-0	08	1	1304-	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X40 FLANGE	0-28051-240-0	08	1	1009-1303	●
322	BOLT; BRKT FIX M12X50 FLANGE	0-28051-250-0	10	1	1304-		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1) M12X40 FLANGE	0-28051-240-0	10	1	1009-1303	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	1304-	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1009-1303	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1304-	●	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1009-1303	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1304-	●	●
516	GASKET; CAP FUEL TANK 200L RECTANGULAR<NH6> ID=78	8-98259-383-0	01	1	1009-	●
622	STUD; BRACKET FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1)	1-53461-534-0	01	1	1009-1303	●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	1304-	●
622	STUD; BRACKET	1-53461-534-0	01	1	1304-		●

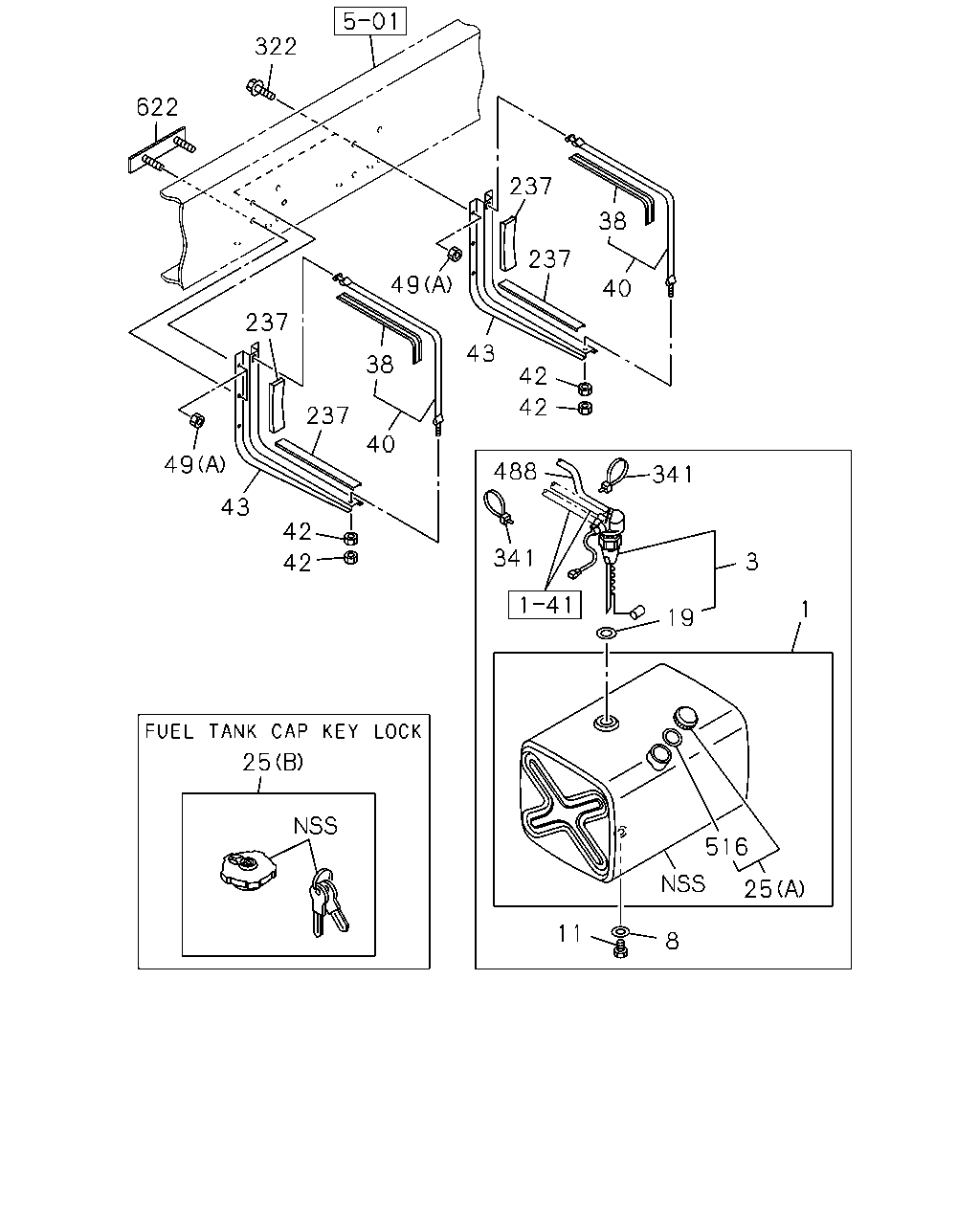

488 42 42 43 49 237 237 38 40 341 3 1 19 516 25 11 8 341 42 42 40 237 38 237 49 43 622 322 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 200L AL<THF> 514X685X625 200L	1-87412-051-0	01	1	1009-1303	●
1	TANK; FUEL FUEL TANK 200L RECTANGULAR<NH6> 745X650X480 200L	1-87411-169-0	01	1	1304-	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-699-1	01	1	1009-1109	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1110-1303	●
1	TANK; FUEL FUEL TANK 400L<SDH> 1050X680X625 400L	1-87411-788-3	01	1	1304-	●
1	TANK; FUEL 1050X680X625 400L	1-87411-788-3	01	1	1304-		●
3	UNIT; FUEL TANK,SUB FUEL TANK 200L RECTANGULAR<NH6>	8-98217-750-0	01	1	1304-	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1211-1303	●
3	UNIT; FUEL TANK,SUB FUEL TANK 400L<SDH>	8-98217-749-0	01	1	1304-	●
3	UNIT; FUEL TANK,SUB	8-98217-749-0	01	1	1304-		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1211-1303	●
8	GASKET; DRAIN PLUG,FUEL TANK ID=18.2 T=1.6	8-98030-453-0	01	1	1304-	●	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1211-1303	●
11	PLUG; DRAIN,FUEL TANK M18X12	0-92002-418-0	01	1	1304-	●	●
19	GASKET; FUEL TANK UNIT ID=54.5	8-98299-580-0	01	1	1211-	●	●
19	GASKET; FUEL TANK UNIT ID=58	1-83149-005-0	01	1	1009-1210	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B)	1-22440-057-2	01	1	1009-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> (B)	1-22440-057-2	01	1	1304-	●
25	CAP; FILLER,FUEL TANK FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1009-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (B)	8-98108-595-0	01	1	1304-	●
25	CAP; FILLER,FUEL TANK (B)	8-98108-595-0	01	1	1304-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L AL<THF> (A)	1-22440-056-0	01	1	1009-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> (A)	1-22440-056-0	01	1	1304-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98115-780-0	01	1	1009-1109	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1110-1303	●
25	CAP; FILLER,FUEL TANK FUEL TANK 400L<SDH> (A)	8-98182-306-0	01	1	1304-	●
25	CAP; FILLER,FUEL TANK (A)	8-98182-306-0	01	1	1304-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L RECTANGULAR<NH6> L=960	1-22553-044-0	02	1	1304-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1009-1303	●
38	INSULATION; SUPPORT BELT FUEL TANK 400L<SDH> L=1156	1-22553-039-1	02	1	1304-	●
38	INSULATION; SUPPORT BELT L=1156	1-22553-039-1	02	1	1304-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> L=1045	1-22550-262-0	02	1	1304-	●
40	BELT; SUPPORT,FUEL TANK L=1210	1-22550-261-0	02	1	1009-1110	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1111-1303	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 400L<SDH> L=1210	8-98202-448-0	02	1	1304-	●
40	BELT; SUPPORT,FUEL TANK L=1210	8-98202-448-0	02	1	1304-		●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1009-1303	●
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1304-	●	●
43	BRACKET; FUEL TANK	8-97621-247-0	02	1	1304-		●
43	BRACKET; FUEL TANK FUEL TANK 200L AL<THF>	1-53461-529-1	02	1	1009-1303	●
43	BRACKET; FUEL TANK FUEL TANK 200L RECTANGULAR<NH6>	8-98242-691-0	02	1	1304-	●
43	BRACKET; FUEL TANK FUEL TANK 400L<SDH>	1-53461-525-1	02	1	1009-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) M10 FLANGE	0-91180-110-0	04	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) M10 FLANGE	0-91180-110-0	02	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-110-0	02	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-110-0	03	1	1103-1303	●
49	NUT; BRKT HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	06	1	1009-1303	●
49	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (A) M12	0-91110-512-0	08	1	1304-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M12	0-91110-512-0	08	1	1304-	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	1304-		●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	1009-1303	●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1) (A) M12	0-91110-512-0	08	1	1009-1303	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M12	0-91110-512-0	06	1	1304-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=450	1-22553-042-1	02	1	1009-1303	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> L=340	1-22553-043-2	02	1	1304-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L AL<THF> L=540	1-22553-064-1	02	1	1009-1303	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L RECTANGULAR<NH6> L=540	1-22553-064-1	02	1	1304-	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1009-1303	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 400L<SDH>	1-22553-037-1	04	1	1304-	●
237	GASKET; BRKT TO FUEL TANK	1-22553-037-1	04	1	1304-		●
322	BOLT; BRKT FIX HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	12	1	1009-1303	●
322	BOLT; BRKT FIX FUEL TANK 200L RECTANGULAR<NH6> M12X40 FLANGE	0-28051-240-0	08	1	1304-	●
322	BOLT; BRKT FIX FUEL TANK 200L AL<THF> M12X40 FLANGE	0-28051-240-0	08	1	1009-1303	●
322	BOLT; BRKT FIX M12X50 FLANGE	0-28051-250-0	10	1	1304-		●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1) M12X40 FLANGE	0-28051-240-0	10	1	1009-1303	●
322	BOLT; BRKT FIX FUEL TANK 400L<SDH> M12X40 FLANGE	0-28051-240-0	10	1	1304-	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1009-1303	●
341	CLIP; BAND,RUBBER HOSE L=350	1-09707-183-0	02	1	1304-	●	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1009-1303	●
488	HOSE; RUBBER	8-98134-936-0	01	1	1304-	●	●
516	GASKET; CAP FUEL TANK 200L RECTANGULAR<NH6> ID=78	8-98259-383-0	01	1	1009-	●
622	STUD; BRACKET FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1)	1-53461-534-0	01	1	1009-1303	●
622	STUD; BRACKET FUEL TANK 400L<SDH>	1-53461-534-0	01	1	1304-	●
622	STUD; BRACKET	1-53461-534-0	01	1	1304-		●

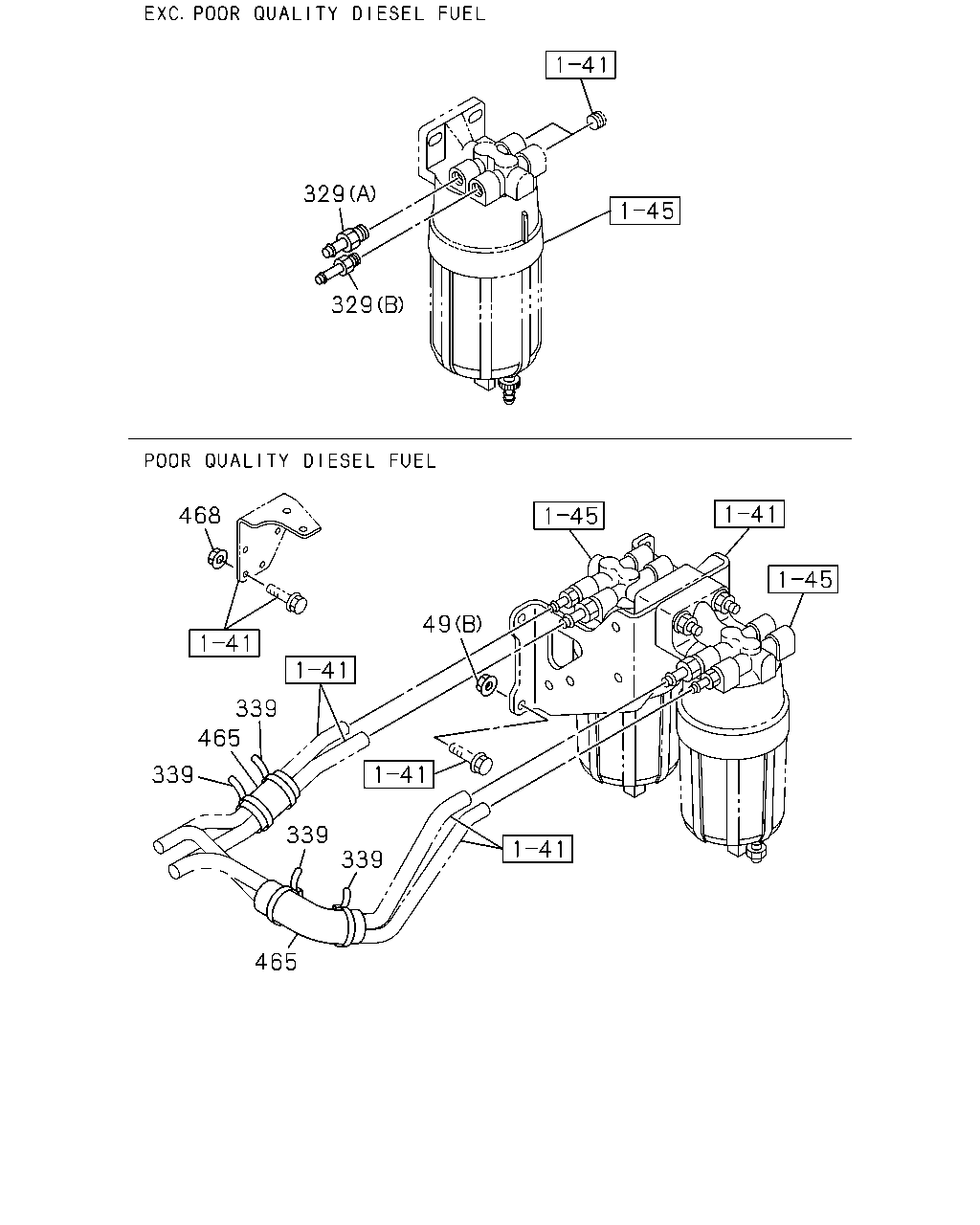

329 329 468 339 465 339 339 465 339 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 400L<SDH> (B) M10 FLANGE	0-91180-110-0	04	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> (B) M10 FLANGE	0-91180-110-0	02	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 6300MM(63W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-110-0	02	1	1103-1303	●
49	NUT; BRKT WHEEL BASE 6600MM(66W) POOR QUALITY DIESEL FUEL<KF0> (B) M10 FLANGE	0-91180-110-0	03	1	1103-1303	●
49	NUT; BRKT HONG KONG EQUIPMENT(PQ1) FUEL TANK 400L<SDH> (A) M12	0-91110-512-0	06	1	1009-1303	●
49	NUT; BRKT WHEEL BASE 4500MM(45W),WHEEL BASE 5300MM(53W), WHEEL BASE 6600MM(66W) (A) M12	0-91110-512-0	08	1	1304-	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M12	0-91110-512-0	08	1	1304-	●
49	NUT; BRKT (A) M12	0-91110-512-0	08	1	1304-		●
49	NUT; BRKT FUEL TANK 200L AL<THF> (A) M12	0-91110-512-0	08	1	1009-1303	●
49	NUT; BRKT FUEL TANK 400L<SDH> EXC. HONG KONG EQUIPMENT(PQ1) (A) M12	0-91110-512-0	08	1	1009-1303	●
49	NUT; BRKT WHEEL BASE 4900MM(49W) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M12	0-91110-512-0	06	1	1304-	●
329	JOINT ASM; EYE,FUEL PIPE (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1009-1102	●
329	JOINT ASM; EYE,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (A) NPTF3/8-18 OD=12	8-98122-952-0	01	1	1103-1303	●
329	JOINT ASM; EYE,FUEL PIPE (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1009-1102	●
329	JOINT ASM; EYE,FUEL PIPE EXC. POOR QUALITY DIESEL FUEL<KF0> (B) NPTF3/8-18 OD=10	8-98122-953-0	01	1	1103-1303	●
339	CLIP; BAND,FUEL HOSE POOR QUALITY DIESEL FUEL<KF0> L=250	5-09707-030-1	04	1	1103-1303	●
339	CLIP; BAND,FUEL HOSE L=250	5-09707-030-1	04	1	1304-	●	●
465	SLEEVE; RUBBER POOR QUALITY DIESEL FUEL<KF0> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1103-1303	●
465	SLEEVE; RUBBER L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1304-	●	●
468	NUT POOR QUALITY DIESEL FUEL<KF0> FUEL TANK 200L AL<THF> M12 FLANGE	0-91180-112-0	02	1	1103-1303	●
