0-60 — ENGINE ELECTRICAL CONTROL PARTS (#71361) — 152 parça

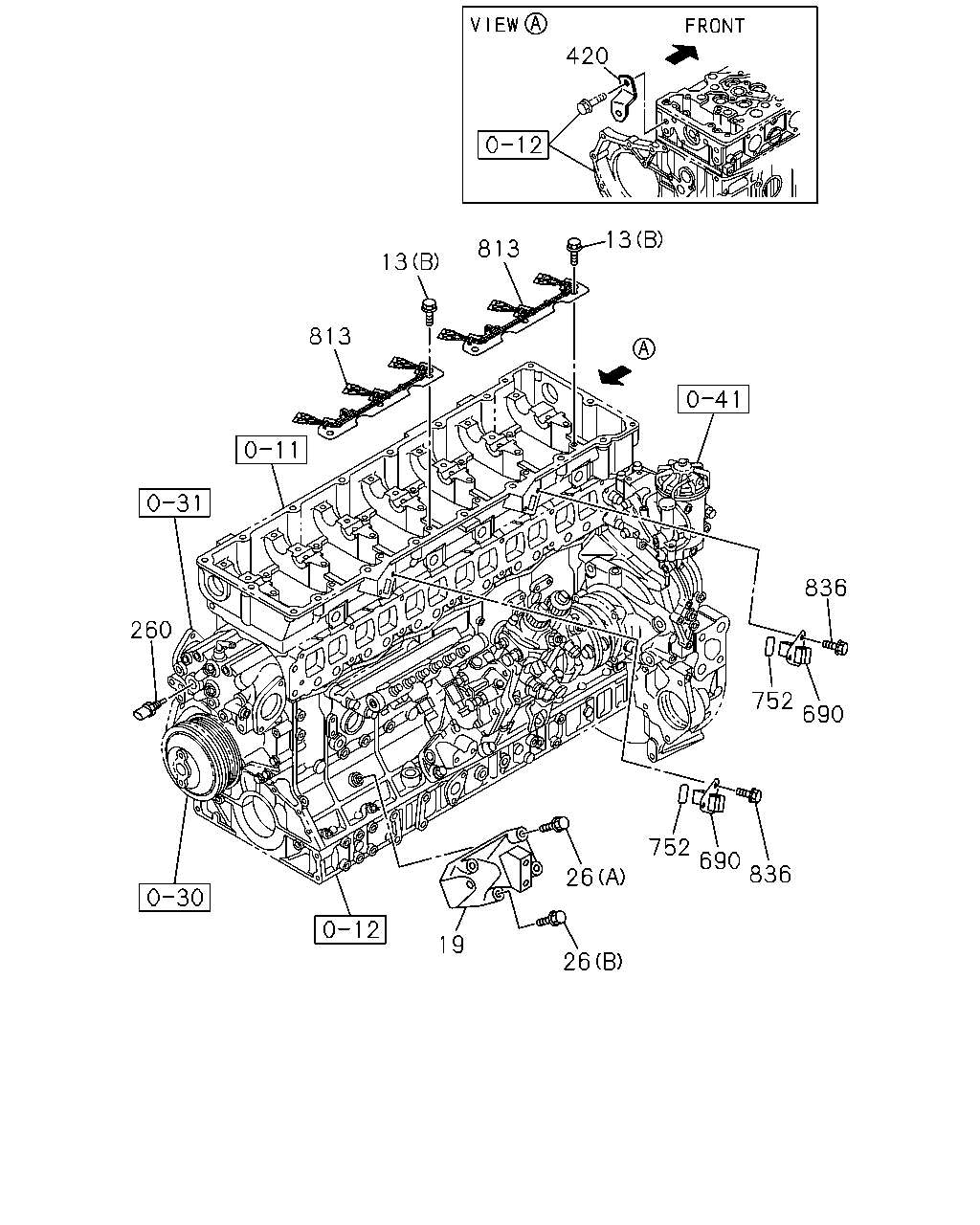

420 13 836 752 690 836 690 752 26 26 19 260 813 13 813

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	1009-1303	●
13	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	1304-	●	●
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1009-1303	●
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1304-	●	●
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
19	BRACKET; GEN	8-97605-943-0	01	1	1009-1303	●
19	BRACKET; GEN	8-97605-943-0	01	1	1304-	●	●
26	BOLT; GEN BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	1009-1303	●
26	BOLT; GEN BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	1304-	●	●
26	BOLT; GEN BRKT (B) M12X70 FLANGE	0-28151-270-0	01	1	1009-1303	●
26	BOLT; GEN BRKT (B) M12X70 FLANGE	0-28151-270-0	01	1	1304-	●	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	1009-1303	●
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	1304-1406	●	●
260	SENSOR; WATER TEMP NISHIDA	8-98260-257-0	01	1	1407-	●	●
420	BRACKET; HARNESS ENGINE REAR PTO(SV1)	8-98024-768-1	01	1	1009-	●
690	CONNECTOR	8-94390-858-1	02	1	1009-1303	●
690	CONNECTOR	8-94390-858-1	02	1	1304-	●	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	1009-1303	●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	1304-	●	●
813	HARNESS; INJECTOR	8-97603-762-1	02	1	1009-1303	●
813	HARNESS; INJECTOR	8-97603-762-1	02	1	1304-	●	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	04	1	1009-1303	●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	04	1	1304-	●	●

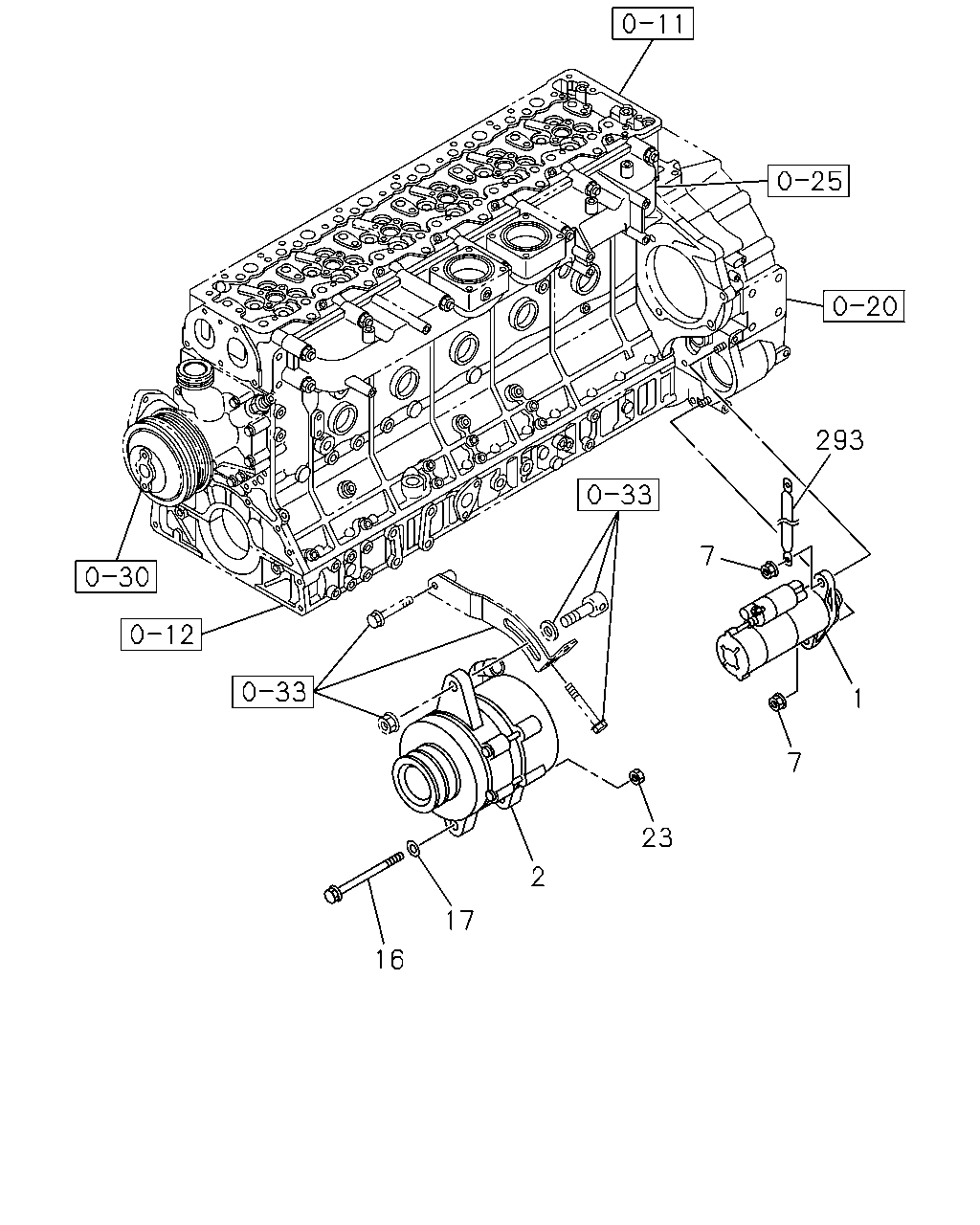

1 293 7 7 23 2 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	1-81100-432-2	01	1	1009-1209	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98222-203-0	01	1	1210-1303	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT.	8-98222-203-2	01	1	1304-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A MITSUBISHI	8-98127-497-0	01	1	1009-1112	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A MITSUBISHI	8-98200-164-0	01	1	1201-1303	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A MITSUBISHI	8-98127-498-0	01	1	1009-1303	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO	8-98169-360-2	01	1	1304-	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A MITSUBISHI	8-98127-499-0	01	1	1009-1303	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	1009-1303	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	02	1	1304-	●	●
16	BOLT; GEN GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M14X123	9-09801-204-1	01	1	1009-1303	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	1304-	●	●
16	BOLT; GEN GENERATOR 24V90A(K44) M14X157	1-09040-106-0	01	1	1009-1303	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	1009-1303	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	1304-	●	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	1009-1303	●
23	NUT; GEN M14 FLANGE	0-91150-114-0	01	1	1304-	●	●
293	CABLE; STARTER EARTH ENGINE REAR PTO(SV1)	1-82650-410-1	01	1	1009-	●
293	CABLE; STARTER EARTH EXC. ENGINE REAR PTO(SV1)	8-97633-822-0	01	1	1009-1303	●
293	CABLE; STARTER EARTH EXC. ENGINE REAR PTO(SV1)	8-97633-822-0	01	1	1304-	●
293	CABLE; STARTER EARTH	8-97633-822-0	01	1	1304-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	1009-1304	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	1305-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1009-1303	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1304-	●	●

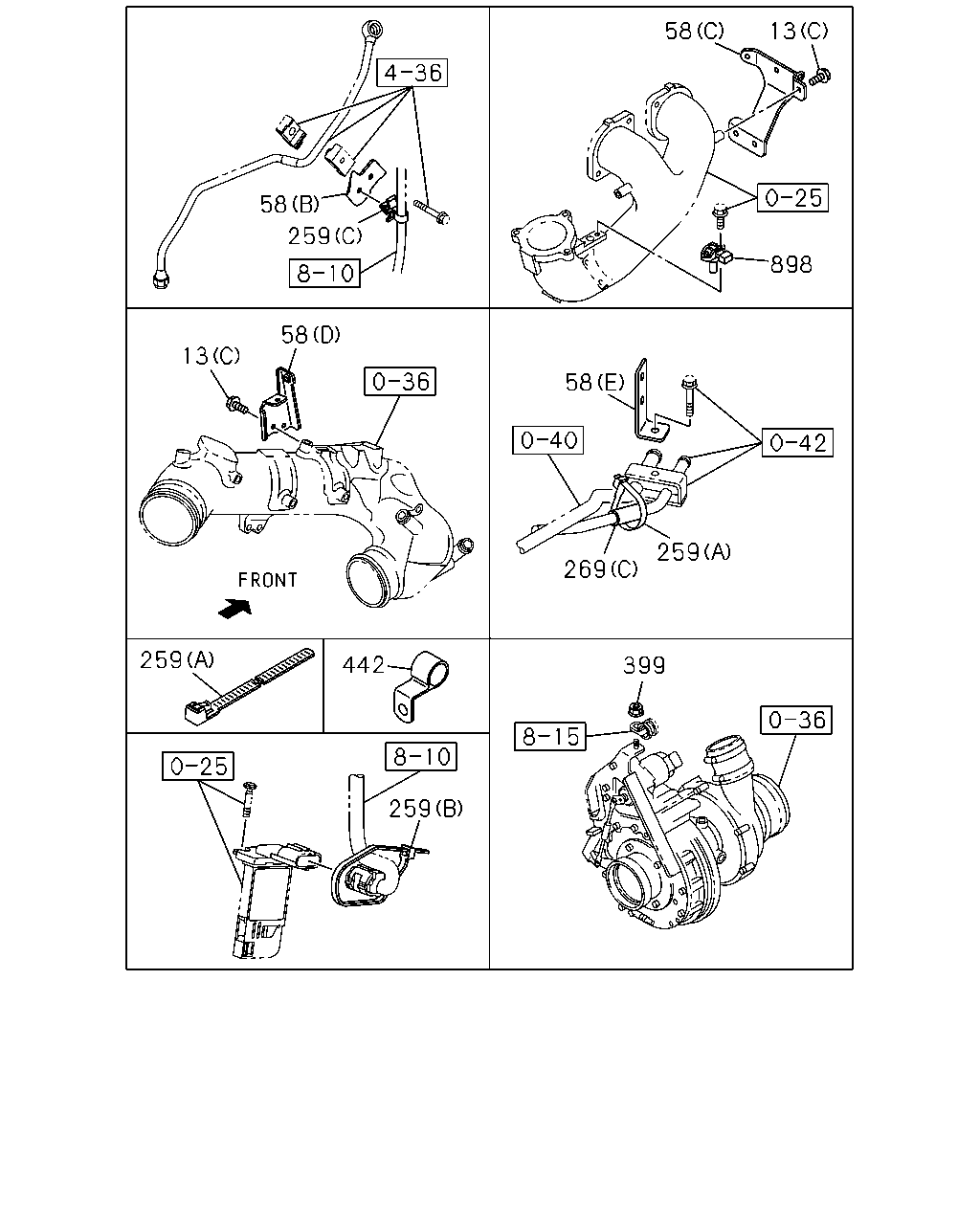

58 259 58 13 898 58 259 269 399 259 442 259 58 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	1009-1303	●
13	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	1304-	●	●
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1009-1303	●
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1304-	●	●
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
58	BRACKET; CLIP (D)	8-97628-321-1	01	1	1009-1303	●
58	BRACKET; CLIP (D)	8-97628-321-1	01	1	1304-	●	●
58	BRACKET; CLIP (C)	8-97633-824-1	01	1	1009-1303	●
58	BRACKET; CLIP (C)	8-97633-824-1	01	1	1304-	●	●
58	BRACKET; CLIP (A)	8-97633-825-1	01	1	1009-1303	●
58	BRACKET; CLIP (A)	8-97633-825-1	01	1	1304-	●	●
58	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	8-97625-412-0	01	1	1009-	●
58	BRACKET; CLIP ENGINE REAR PTO(SV1) (E)	8-98021-694-1	01	1	1009-	●
58	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	8-97625-412-0	02	1	1009-1303	●
58	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	8-97625-412-0	02	1	1304-	●
58	BRACKET; CLIP (B)	8-97625-412-0	02	1	1304-		●
259	CLIP; BAND,HARNESS TO OIL PIPE (A) L=250	5-09707-030-1	09	1	1009-1205	●
259	CLIP; BAND,HARNESS TO OIL PIPE (A) L=250	8-98216-430-0	09	1	1206-1303	●
259	CLIP; BAND,HARNESS TO OIL PIPE (A) L=250	8-98216-430-0	09	1	1304-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE (B) L=251	8-97619-917-0	01	1	1009-1303	●
259	CLIP; BAND,HARNESS TO OIL PIPE (B) L=251	8-97619-917-0	01	1	1304-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE (C) L=109.5	8-97807-385-0	01	1	1009-1303	●
259	CLIP; BAND,HARNESS TO OIL PIPE (C) L=109.5	8-97807-385-0	01	1	1304-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE ENGINE REAR PTO(SV1) (A) L=250	5-09707-030-1	01	1	1009-1205	●
259	CLIP; BAND,HARNESS TO OIL PIPE ENGINE REAR PTO(SV1) (A) L=250	8-98216-430-0	01	1	1206-	●
269	SLEEVE; RUBBER,CABLE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1009-1303	●
269	SLEEVE; RUBBER,CABLE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1304-	●	●
269	SLEEVE; RUBBER,CABLE (B) ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-1303	●
269	SLEEVE; RUBBER,CABLE (B) ID=32 OD=36 L=50	1-09337-023-0	01	1	1304-	●	●
269	SLEEVE; RUBBER,CABLE (C) ID=10 OD=14 L=30	9-09956-682-0	02	1	1009-1303	●
269	SLEEVE; RUBBER,CABLE (C) ID=10 OD=14 L=30	9-09956-682-0	02	1	1304-	●	●
269	SLEEVE; RUBBER,CABLE ENGINE REAR PTO(SV1) (C) ID=10 OD=14 L=30	9-09956-682-0	01	1	1009-	●
399	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1009-1303	●
399	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1304-	●	●
442	CLIP; GRAND FUEL TANK 200L RECTANGULAR<NH6> ID=15 H=24 L=20	1-09700-606-0	01	1	1304-	●
898	SENSOR; BOOST	8-98009-418-0	01	1	1009-1303	●
898	SENSOR; BOOST	8-98009-418-0	01	1	1304-	●	●

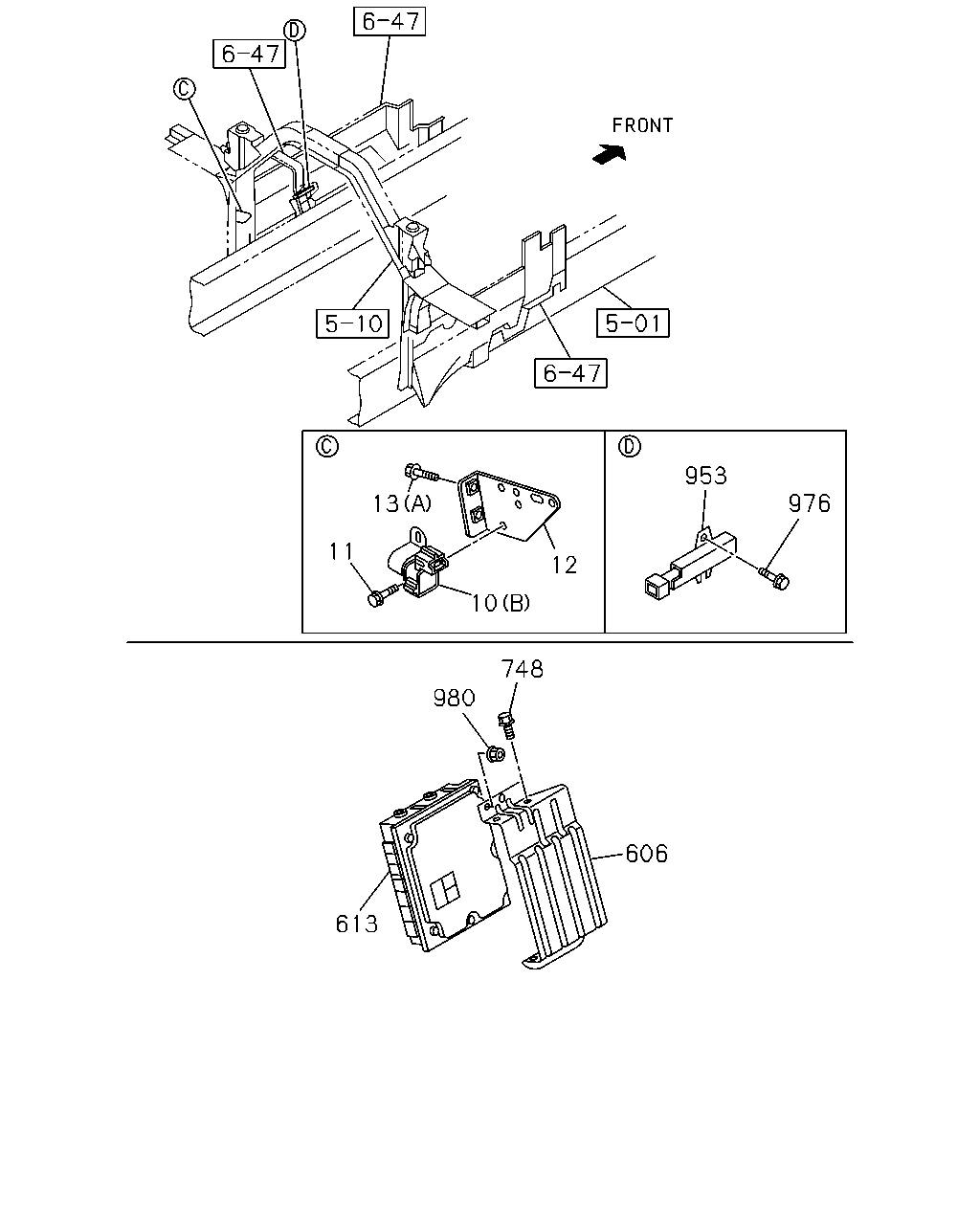

13 11 12 10 953 976 606 748 980 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	1009-1304	●
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-1	01	1	1305-	●	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1009-1303	●
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1304-	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
12	BRACKET; STARTER RELAY	8-97620-875-2	01	1	1009-1303	●
12	BRACKET; STARTER RELAY	8-97620-875-2	01	1	1304-	●	●
13	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	1009-1303	●
13	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	04	1	1304-	●	●
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1009-1303	●
13	BOLT; BRKT (B) M8X20 FLANGE	0-28650-820-0	06	1	1304-	●	●
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1009-1303	●
13	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1304-	●	●
606	BRACKET; CONT UNIT	8-98168-567-0	01	1	1009-1303	●
606	BRACKET; CONT UNIT	8-98168-567-0	01	1	1304-	●	●
613	CONTROL UNIT; ENG A/T ALLISON 4430(Y5V) HONG KONG EQUIPMENT(PQ1)	8-97645-097-0	01	1	1304-	●
613	CONTROL UNIT; ENG A/T ALLISON 4430(Y5V) SINGAPORE EQUIPMENT(WQ3)	8-97645-098-0	01	1	1304-	●
613	CONTROL UNIT; ENG HONG KONG EQUIPMENT(PQ1)	8-97636-971-2	01	1	1009-1303	●
613	CONTROL UNIT; ENG MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) HONG KONG EQUIPMENT(PQ1)	8-97636-971-2	01	1	1304-	●
613	CONTROL UNIT; ENG ZF9S1310 M/T(Y5K) HONG KONG EQUIPMENT(PQ1)	8-97636-971-2	01	1	1304-		●
613	CONTROL UNIT; ENG NEW ZEALAND EQUIPMENT(PK5)	8-97636-974-2	01	1	1009-1303	●
613	CONTROL UNIT; ENG MAL6R M/T(Y2J),MJT7U M/T(Y4X),ZF9S1310 M/T(Y5K) SINGAPORE EQUIPMENT(WQ3)	8-97645-589-0	01	1	1304-	●
613	CONTROL UNIT; ENG ZF9S1310 M/T(Y5K) SINGAPORE EQUIPMENT(WQ3)	8-97645-589-0	01	1	1304-		●
748	BOLT; CONT UNIT M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	1009-1303	●
748	BOLT; CONT UNIT M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	1304-	●	●
953	RESISTOR; CONT UNIT	8-97357-613-0	01	1	1009-1303	●
953	RESISTOR; CONT UNIT	8-97357-613-0	01	1	1304-	●	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28650-620-0	02	1	1009-1303	●
976	BOLT; RESISTOR M6X20 FLANGE	0-28650-620-0	02	1	1304-	●	●
980	NUT; CONT UNIT M8 FLANGE	0-91180-108-0	04	1	1009-1303	●
980	NUT; CONT UNIT M8 FLANGE	0-91180-108-0	04	1	1304-	●	●

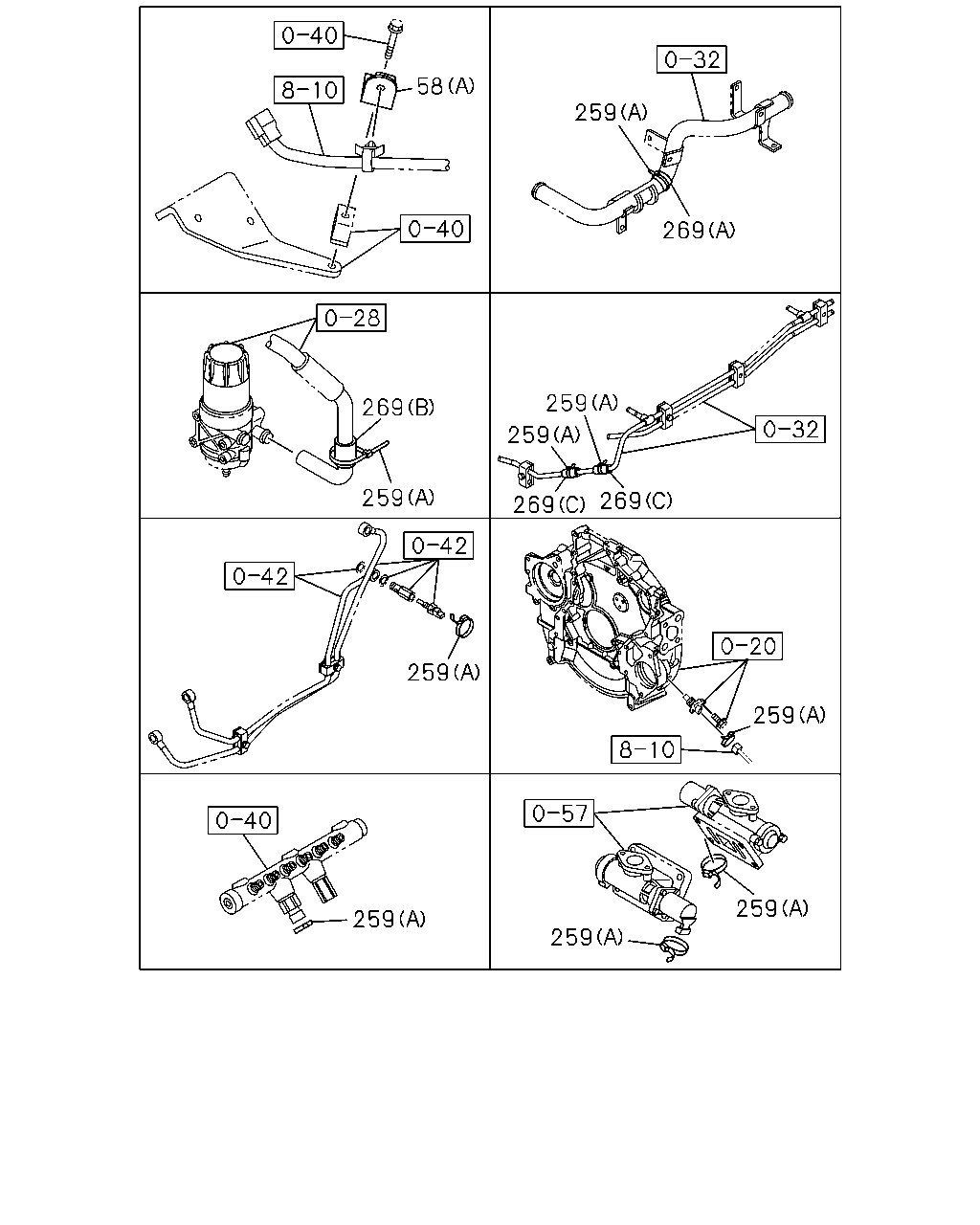

58 259 269 259 259 269 269 259 259 259 259 259 259 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
58	BRACKET; CLIP (D)	8-97628-321-1	01	1	1009-1303	●
58	BRACKET; CLIP (D)	8-97628-321-1	01	1	1304-	●	●
58	BRACKET; CLIP (C)	8-97633-824-1	01	1	1009-1303	●
58	BRACKET; CLIP (C)	8-97633-824-1	01	1	1304-	●	●
58	BRACKET; CLIP (A)	8-97633-825-1	01	1	1009-1303	●
58	BRACKET; CLIP (A)	8-97633-825-1	01	1	1304-	●	●
58	BRACKET; CLIP ENGINE REAR PTO(SV1) (B)	8-97625-412-0	01	1	1009-	●
58	BRACKET; CLIP ENGINE REAR PTO(SV1) (E)	8-98021-694-1	01	1	1009-	●
58	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	8-97625-412-0	02	1	1009-1303	●
58	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	8-97625-412-0	02	1	1304-	●
58	BRACKET; CLIP (B)	8-97625-412-0	02	1	1304-		●
259	CLIP; BAND,HARNESS TO OIL PIPE (A) L=250	5-09707-030-1	09	1	1009-1205	●
259	CLIP; BAND,HARNESS TO OIL PIPE (A) L=250	8-98216-430-0	09	1	1206-1303	●
259	CLIP; BAND,HARNESS TO OIL PIPE (A) L=250	8-98216-430-0	09	1	1304-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE (B) L=251	8-97619-917-0	01	1	1009-1303	●
259	CLIP; BAND,HARNESS TO OIL PIPE (B) L=251	8-97619-917-0	01	1	1304-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE (C) L=109.5	8-97807-385-0	01	1	1009-1303	●
259	CLIP; BAND,HARNESS TO OIL PIPE (C) L=109.5	8-97807-385-0	01	1	1304-	●	●
259	CLIP; BAND,HARNESS TO OIL PIPE ENGINE REAR PTO(SV1) (A) L=250	5-09707-030-1	01	1	1009-1205	●
259	CLIP; BAND,HARNESS TO OIL PIPE ENGINE REAR PTO(SV1) (A) L=250	8-98216-430-0	01	1	1206-	●
269	SLEEVE; RUBBER,CABLE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1009-1303	●
269	SLEEVE; RUBBER,CABLE (A) ID=17 OD=21 L=40	1-09337-012-0	01	1	1304-	●	●
269	SLEEVE; RUBBER,CABLE (B) ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-1303	●
269	SLEEVE; RUBBER,CABLE (B) ID=32 OD=36 L=50	1-09337-023-0	01	1	1304-	●	●
269	SLEEVE; RUBBER,CABLE (C) ID=10 OD=14 L=30	9-09956-682-0	02	1	1009-1303	●
269	SLEEVE; RUBBER,CABLE (C) ID=10 OD=14 L=30	9-09956-682-0	02	1	1304-	●	●
269	SLEEVE; RUBBER,CABLE ENGINE REAR PTO(SV1) (C) ID=10 OD=14 L=30	9-09956-682-0	01	1	1009-	●

441 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
428	CLIP; HARNESS ID=32 L=35	1-09701-244-0	03	1	1009-1303	●
428	CLIP; HARNESS ID=32 L=35	1-09701-244-0	03	1	1304-	●	●
441	BOLT; HARNESS TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1009-1303	●
441	BOLT; HARNESS TO FRAME M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28650-835-0	02	1	1009-1303	●
441	BOLT; HARNESS TO FRAME M8X35 FLANGE	0-28650-835-0	02	1	1304-	●	●
