Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#7135) — 323 parça

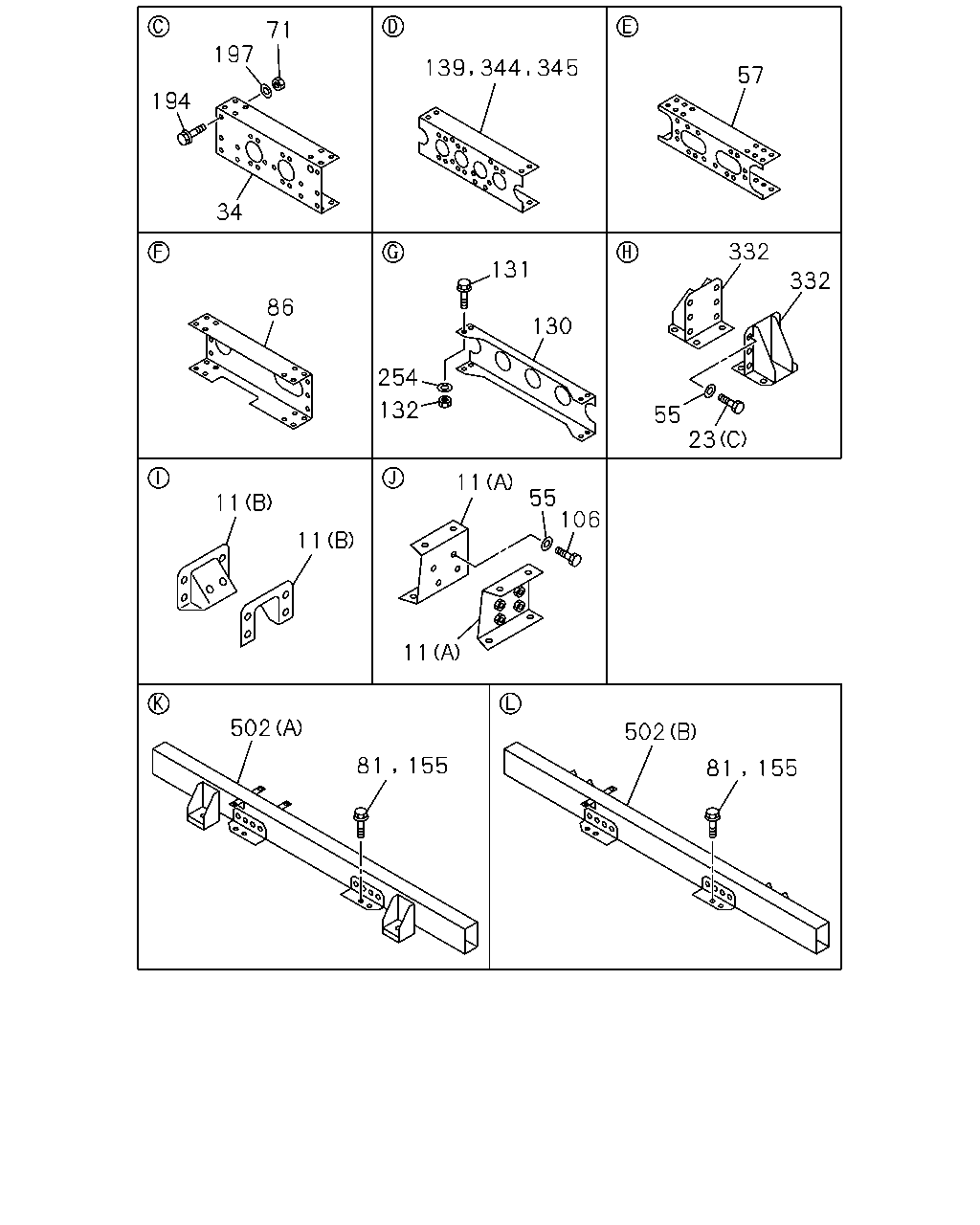

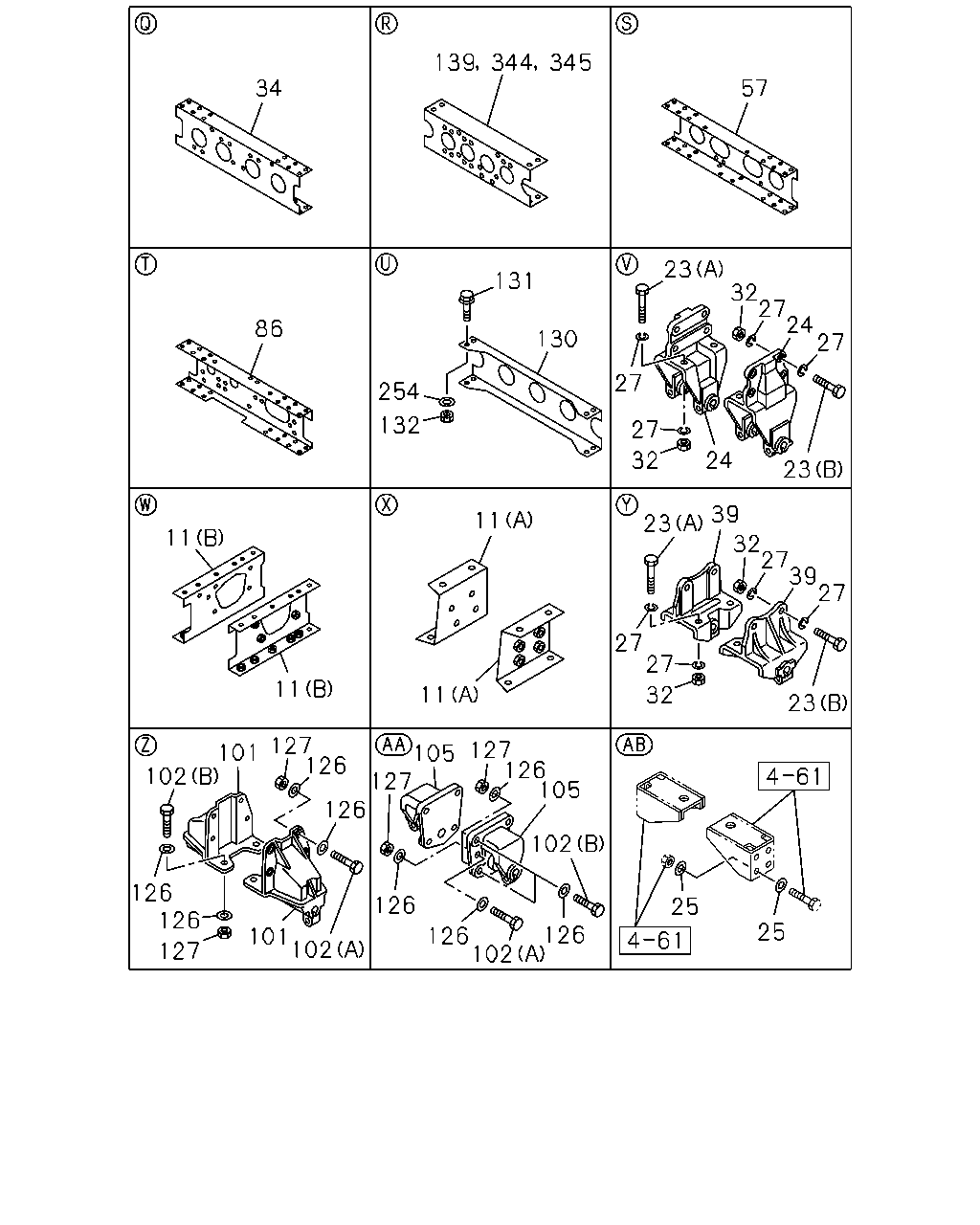

139 344 345 34 57 23 32 27 24 27 131 86 130 27 254 132 27 32 24 23 39 11 23 11 32 27 39 27 27 27 11 32 11 23 127 126 105 127 126 127 126 105 101 102 102 126 126 126 25 25 126 126 102 101 102 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-363-0	01	1	0212-0212	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-363-0	01	1	0301-	●
11	BRACKET; ENG MTG 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-364-0	01	1	0212-0212	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-364-0	01	1	0301-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (A) FRONT	1-53211-290-0	01	1	0012-0106	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-290-0	01	1	0107-0211	●
11	BRACKET; ENG MTG 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-290-0	01	1	0212-0212	●
11	BRACKET; ENG MTG 6SD1 TC-S(83L) (A) FRONT	1-53211-290-0	01	1	0212-0212	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (A) FRONT	1-53211-291-0	01	1	0012-0106	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-291-0	01	1	0107-0211	●
11	BRACKET; ENG MTG 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-291-0	01	1	0212-0212	●
11	BRACKET; ENG MTG 6SD1 TC-S(83L) (A) FRONT	1-53211-291-0	01	1	0212-0212	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-225-0	01	1	0012-0203	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (B) REAR	1-53221-225-0	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-224-0	01	1	0012-0203	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (B) REAR	1-53221-224-0	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-222-1	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-222-2	01	1	0107-0203	●	●	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. EURO3 SPECIFICATION(NJX),FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-222-2	01	1	0107-0203	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) REAR	1-53221-222-2	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-223-0	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-223-0	01	1	0107-0203	●	●	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. EURO3 SPECIFICATION(NJX),FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-223-0	01	1	0107-0203	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) REAR	1-53221-223-0	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (A) FRONT	1-53211-292-0	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-210-1	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (A) FRONT	1-53211-293-0	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-211-0	01	1	0012-0106	●
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD5FB) (C) M14X40	9-92061-440-0	12	1	0012-0512	●
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD5FB) (C) M14X40	0-20951-440-0	12	1	0601-	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) (A) M16X60	9-91066-660-0	08	1	0012-0203	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (A) M16X60	9-91066-660-0	08	1	0204-0512	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (A) M16X60	0-10956-660-0	08	1	0601-	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) (B) M16X50	9-92061-650-0	12	1	0012-0203	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) M16X50	9-92061-650-0	12	1	0204-0512	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) M16X50	0-20951-650-0	12	1	0601-	●
24	BRACKET; FRT SPR,FRT RR ENG LEAF SUSP(LVR5FB)	1-53351-254-0	02	1	0012-0203	●
24	BRACKET; FRT SPR,FRT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53351-254-0	02	1	0204-	●
25	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR5FB) ID=15	9-09651-069-0	16	1	0012-0203	●
25	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) ID=15	9-09651-069-0	16	1	0204-	●
27	WASHER; LK,BRKT,FRT SPR RR ENG LEAF SUSP(LVR5FB) ID=16.2	1-09503-223-0	40	1	0012-0203	●
27	WASHER; LK,BRKT,FRT SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) ID=16.2	1-09503-223-0	40	1	0204-	●
32	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) M16	9-99110-516-0	20	1	0012-0203	●
32	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) M16	9-99110-516-0	20	1	0204-0512	●
32	NUT; BRKT FIX RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) M16	0-91110-516-0	20	1	0601-	●
34	MEMBER; CROSS,3RD RR ENG AIR SUSP(LVD5FB)	1-53181-950-1	01	1	0012-	●
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR5FB)	1-53181-954-0	01	1	0012-0203	●
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53181-954-0	01	1	0204-	●
39	BRACKET; FRT SPR,RR RR ENG LEAF SUSP(LVR5FB)	1-53352-181-0	02	1	0012-0203	●
39	BRACKET; FRT SPR,RR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53352-181-0	02	1	0204-	●
57	MEMBER; CROSS,RR SUSP FRT RR ENG AIR SUSP(LVD5FB)	1-53181-945-1	01	1	0012-	●
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR5FB)	1-53181-955-1	01	1	0012-0203	●
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53181-955-1	01	1	0204-	●
86	MEMBER; CROSS,RR SUSP RR RR ENG AIR SUSP(LVD5FB)	1-53181-946-4	01	1	0012-	●
86	MEMBER; CROSS,RR SUSP RR RR ENG LEAF SUSP(LVR5FB)	1-53181-956-4	01	1	0012-0203	●
86	MEMBER; CROSS,RR SUSP RR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53181-956-4	01	1	0204-	●
101	BRACKET; RR SPR,FRT RR ENG LEAF SUSP(LVR5FB)	1-53353-124-0	02	1	0012-0203	●
101	BRACKET; RR SPR,FRT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53353-124-0	02	1	0204-	●
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR5FB) (A) M16X60	9-91066-660-0	12	1	0012-0203	●
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (A) M16X60	9-91066-660-0	12	1	0204-0512	●
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (A) M16X60	0-10956-660-0	12	1	0601-	●
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR5FB) (B) M16X70	9-91066-670-0	12	1	0012-0203	●
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) M16X70	9-91066-670-0	12	1	0204-0512	●
102	BOLT; BRKT,RR SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) M16X70	0-10956-670-0	12	1	0601-	●
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR5FB)	1-53354-078-0	01	1	0012-0203	●
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53354-078-0	01	1	0204-	●
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR5FB)	1-53354-077-0	01	1	0012-0203	●
105	BRACKET; RR SPR,RR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53354-077-0	01	1	0204-	●
126	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR5FB) ID=16.2	1-09503-223-0	48	1	0012-0203	●
126	WASHER; PL,BRKT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) ID=16.2	1-09503-223-0	48	1	0204-	●
127	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) M16	9-99110-516-0	24	1	0012-0203	●
127	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) M16	9-99110-516-0	24	1	0204-0512	●
127	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) M16	0-91110-516-0	24	1	0601-	●
130	MEMBER; CROSS,END	1-53181-928-0	01	1	0012-	●
131	BOLT; END C/MBR M14X30	9-92061-430-0	08	1	0012-0512	●
131	BOLT; END C/MBR M14X30	0-20951-430-0	08	1	0601-	●
132	NUT; END C/MBR M14	9-99110-514-0	08	1	0012-0512	●
132	NUT; END C/MBR M14	0-91110-514-0	08	1	0601-	●
139	MEMBER; CROSS,6TH	1-53181-952-2	01	1	0012-	●
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	08	1	0012-	●
344	MEMBER; CROSS,4TH	1-53181-952-2	01	1	0012-	●
345	MEMBER; CROSS,5TH	1-53181-952-2	01	1	0012-	●

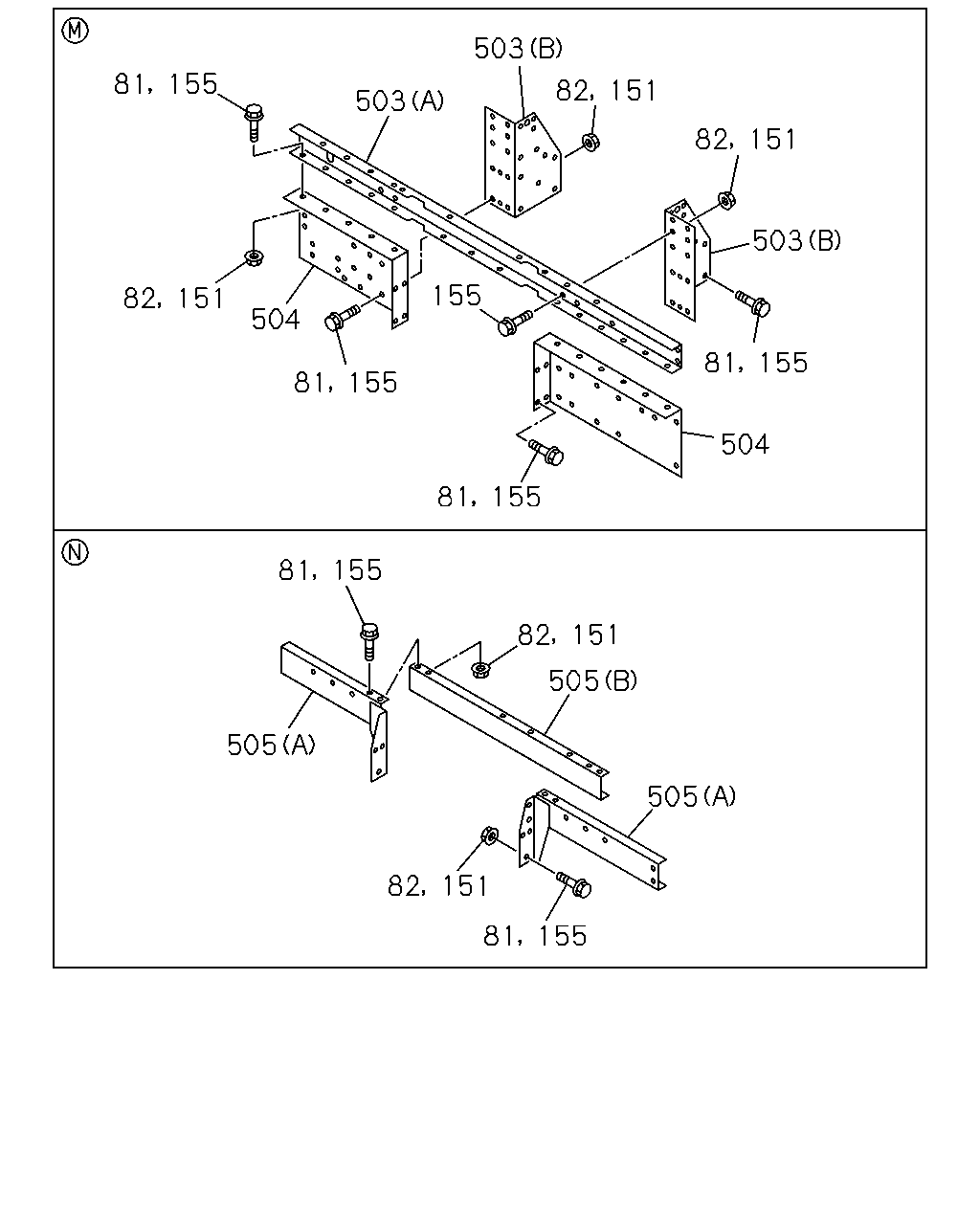

503 81 155 82 151 503 82 151 503 155 82 151 504 81 155 81 155 504 81 155 81 155 151 82 505 505 505 151 82 81 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0012-0512	●	●
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-	●	●
82	NUT; BRKT M12 FLANGE	0-91150-212-0	20	1	0012-0602	●	●
82	NUT; BRKT M12 FLANGE	0-91180-212-0	20	1	0603-	●	●
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0012-0602	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0012-0602	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91160-214-0	16	1	0012-0602	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91180-214-0	16	1	0603-	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0012-0512	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-	●	●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28681-235-0	02	1	0012-0106	●	●
155	BOLT; OUTRIGGER EXC. EURO3 SPECIFICATION(NJX) M12X35 FLANGE	0-28681-235-0	02	1	0107-0107	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0012-0512	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0012-0512	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER M14X35	0-28691-435-0	08	1	0012-0210	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0211-0512	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0012-0106	●	●
155	BOLT; OUTRIGGER EURO3 SPECIFICATION(NJX) M12X40 FLANGE	0-28681-240-0	02	1	0107-0107	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0108-0512	●	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0107-0512	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28861-445-0	16	1	0601-	●	●
503	OUTRIGGER; ENG RR (A)	1-53456-359-6	01	1	0012-	●	●
503	OUTRIGGER; ENG RR (B)	1-53456-361-2	01	1	0012-	●	●
503	OUTRIGGER; ENG RR (B)	1-53456-360-3	01	1	0012-	●	●
504	OUTRIGGER; LWR	1-53456-363-3	01	1	0012-	●	●
504	OUTRIGGER; LWR	1-53456-362-4	01	1	0012-0106	●	●
504	OUTRIGGER; LWR EXC. EURO3 SPECIFICATION(NJX)	1-53456-362-4	01	1	0107-	●	●
504	OUTRIGGER; LWR EURO3 SPECIFICATION(NJX)	1-53456-391-0	01	1	0107-	●
504	OUTRIGGER; LWR 6SD1 TC-S(83L)	1-53456-395-0	01	1	0211-	●
505	OUTRIGGER; END (B)	1-53456-364-0	01	1	0012-	●	●
505	OUTRIGGER; END (A)	1-53456-358-1	01	1	0012-	●	●
505	OUTRIGGER; END (A)	1-53456-357-3	01	1	0012-	●	●

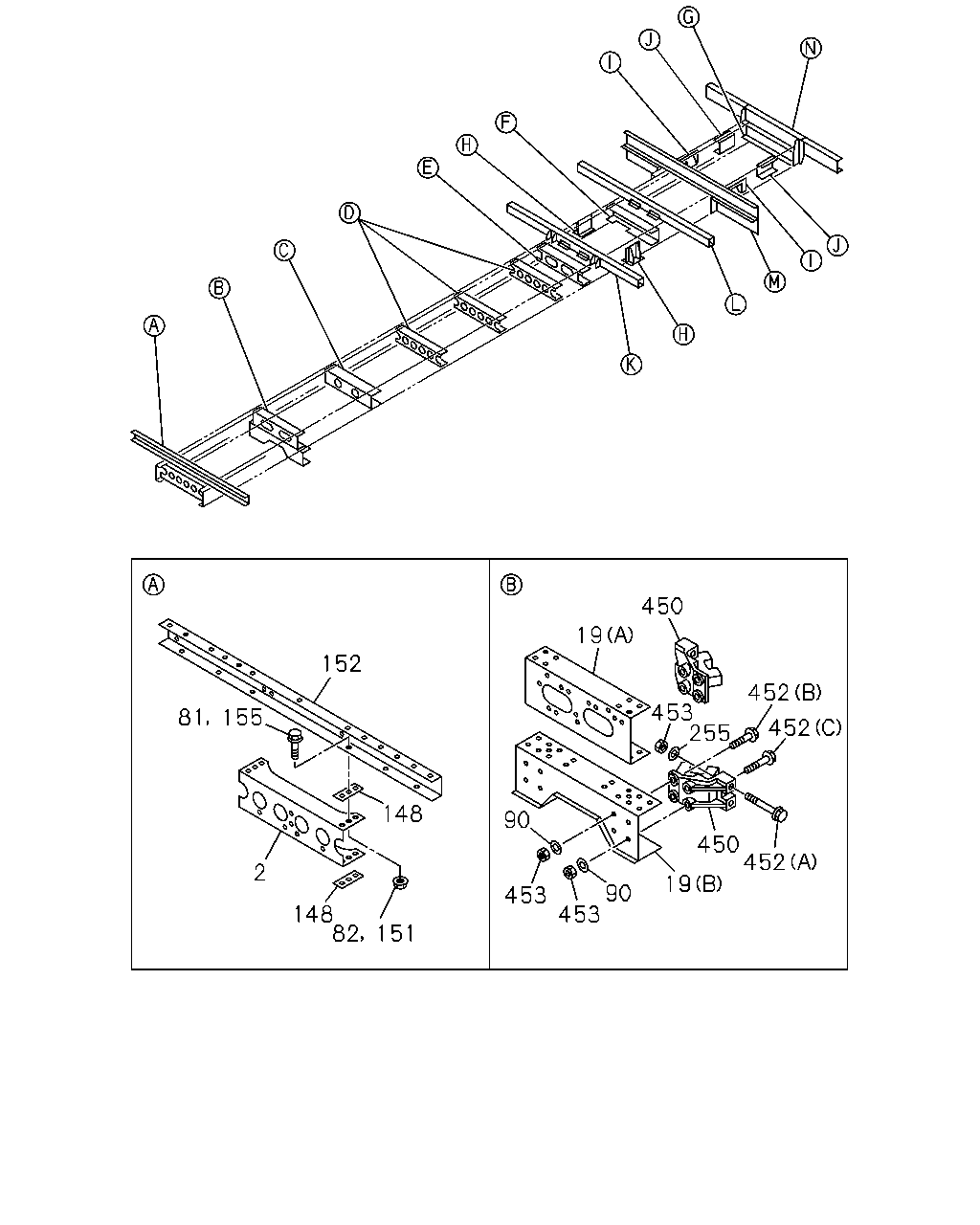

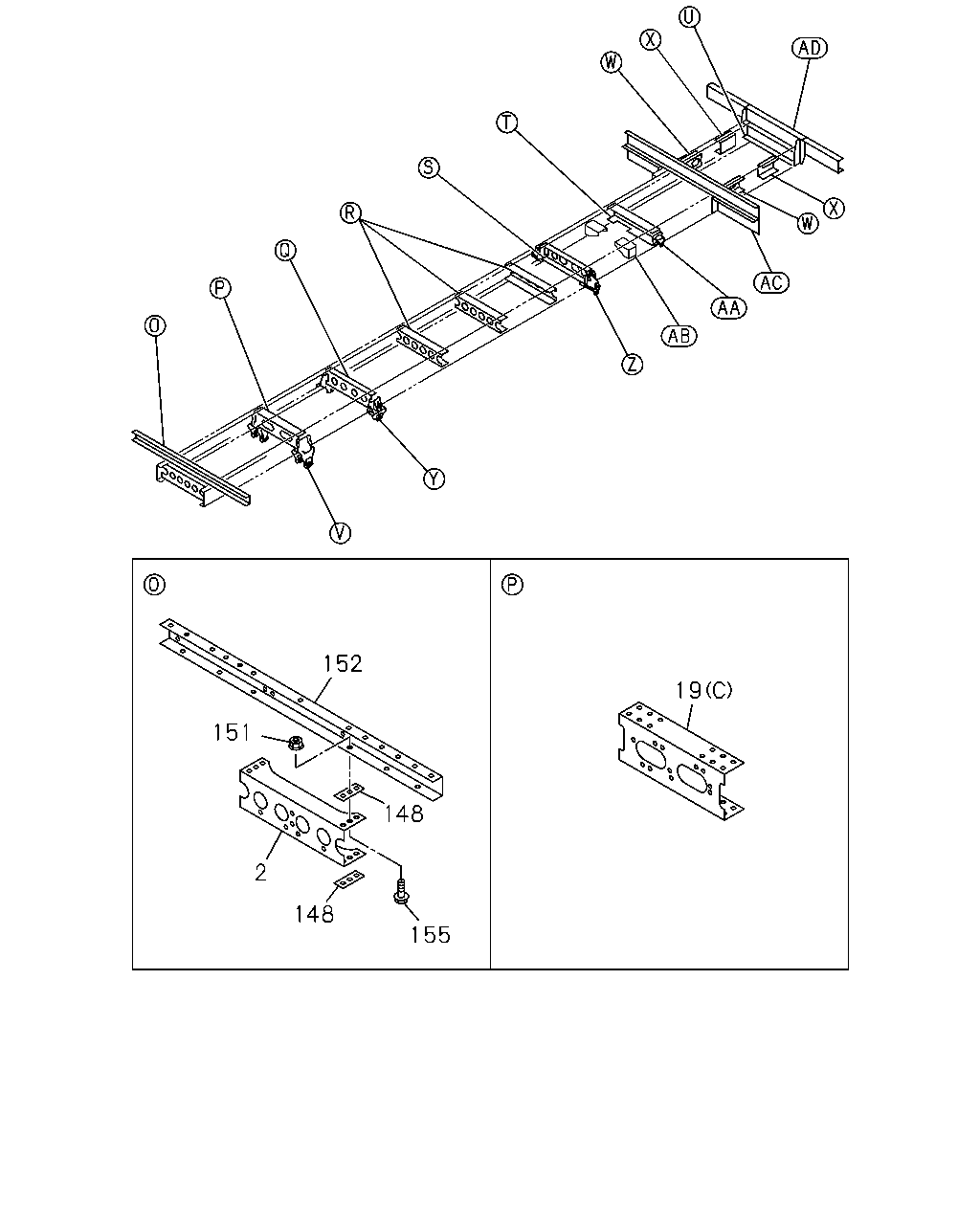

152 19 151 148 2 148 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-951-1	01	1	0012-	●
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD5FB) (A) UPPER	1-53181-947-1	01	1	0012-	●
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD5FB) (B) LOWER	1-53181-948-1	01	1	0012-	●
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR5FB) (C)	1-53181-953-0	01	1	0012-0203	●
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (C)	1-53181-953-0	01	1	0204-	●
148	SPACER; C/MBR UPPER	1-53167-554-0	01	1	0012-	●
148	SPACER; C/MBR LOWER	1-53167-555-0	01	1	0012-	●
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0012-0602	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0012-0602	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91160-214-0	16	1	0012-0602	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91180-214-0	16	1	0603-	●	●
152	OUTRIGGER	1-53456-308-2	01	1	0012-	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0012-0512	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-	●	●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28681-235-0	02	1	0012-0106	●	●
155	BOLT; OUTRIGGER EXC. EURO3 SPECIFICATION(NJX) M12X35 FLANGE	0-28681-235-0	02	1	0107-0107	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0012-0512	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0012-0512	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER M14X35	0-28691-435-0	08	1	0012-0210	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0211-0512	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0012-0106	●	●
155	BOLT; OUTRIGGER EURO3 SPECIFICATION(NJX) M12X40 FLANGE	0-28681-240-0	02	1	0107-0107	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0108-0512	●	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0107-0512	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28861-445-0	16	1	0601-	●	●

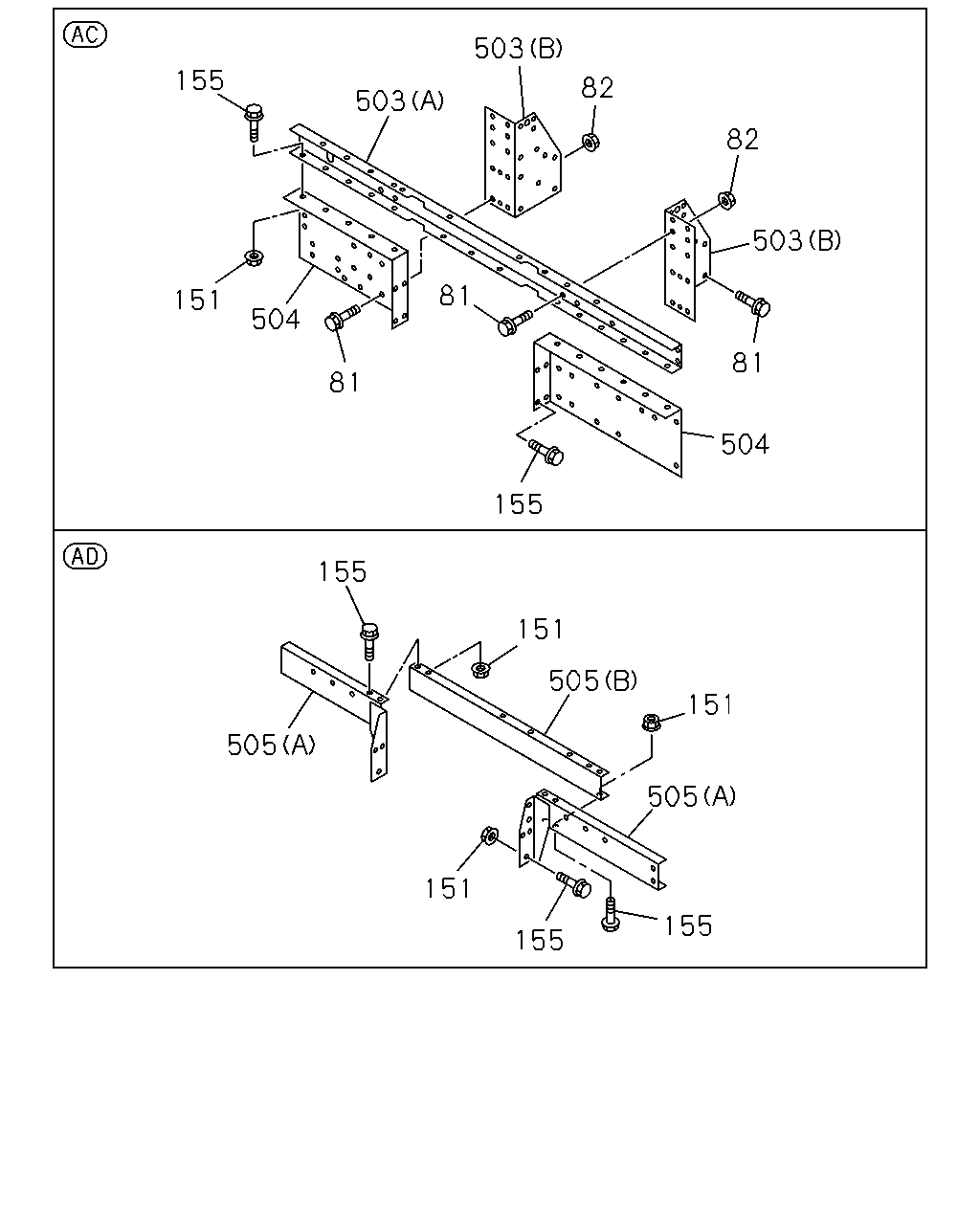

503 155 82 503 82 503 81 151 504 81 81 504 155 155 151 505 151 505 505 151 155 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0012-0512	●	●
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-	●	●
82	NUT; BRKT M12 FLANGE	0-91150-212-0	20	1	0012-0602	●	●
82	NUT; BRKT M12 FLANGE	0-91180-212-0	20	1	0603-	●	●
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0012-0602	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0012-0602	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91160-214-0	16	1	0012-0602	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91180-214-0	16	1	0603-	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0012-0512	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-	●	●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28681-235-0	02	1	0012-0106	●	●
155	BOLT; OUTRIGGER EXC. EURO3 SPECIFICATION(NJX) M12X35 FLANGE	0-28681-235-0	02	1	0107-0107	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0012-0512	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0012-0512	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER M14X35	0-28691-435-0	08	1	0012-0210	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0211-0512	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0012-0106	●	●
155	BOLT; OUTRIGGER EURO3 SPECIFICATION(NJX) M12X40 FLANGE	0-28681-240-0	02	1	0107-0107	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0108-0512	●	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0107-0512	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28861-445-0	16	1	0601-	●	●
503	OUTRIGGER; ENG RR (A)	1-53456-359-6	01	1	0012-	●	●
503	OUTRIGGER; ENG RR (B)	1-53456-361-2	01	1	0012-	●	●
503	OUTRIGGER; ENG RR (B)	1-53456-360-3	01	1	0012-	●	●
504	OUTRIGGER; LWR	1-53456-363-3	01	1	0012-	●	●
504	OUTRIGGER; LWR	1-53456-362-4	01	1	0012-0106	●	●
504	OUTRIGGER; LWR EXC. EURO3 SPECIFICATION(NJX)	1-53456-362-4	01	1	0107-	●	●
504	OUTRIGGER; LWR EURO3 SPECIFICATION(NJX)	1-53456-391-0	01	1	0107-	●
504	OUTRIGGER; LWR 6SD1 TC-S(83L)	1-53456-395-0	01	1	0211-	●
505	OUTRIGGER; END (B)	1-53456-364-0	01	1	0012-	●	●
505	OUTRIGGER; END (A)	1-53456-358-1	01	1	0012-	●	●
505	OUTRIGGER; END (A)	1-53456-357-3	01	1	0012-	●	●

71 197 57 194 34 332 131 332 86 130 254 132 55 23 11 55 106 11 11 11 502 502 81 155 81 155 139 344 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-363-0	01	1	0212-0212	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-363-0	01	1	0301-	●
11	BRACKET; ENG MTG 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-364-0	01	1	0212-0212	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-364-0	01	1	0301-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (A) FRONT	1-53211-290-0	01	1	0012-0106	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-290-0	01	1	0107-0211	●
11	BRACKET; ENG MTG 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-290-0	01	1	0212-0212	●
11	BRACKET; ENG MTG 6SD1 TC-S(83L) (A) FRONT	1-53211-290-0	01	1	0212-0212	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (A) FRONT	1-53211-291-0	01	1	0012-0106	●
11	BRACKET; ENG MTG (A) FRONT	1-53211-291-0	01	1	0107-0211	●
11	BRACKET; ENG MTG 6SD1 TC(32L) EURO3 SPECIFICATION(NJX) (A) FRONT	1-53211-291-0	01	1	0212-0212	●
11	BRACKET; ENG MTG 6SD1 TC-S(83L) (A) FRONT	1-53211-291-0	01	1	0212-0212	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-225-0	01	1	0012-0203	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (B) REAR	1-53221-225-0	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-224-0	01	1	0012-0203	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) (B) REAR	1-53221-224-0	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-222-1	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-222-2	01	1	0107-0203	●	●	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. EURO3 SPECIFICATION(NJX),FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-222-2	01	1	0107-0203	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) REAR	1-53221-222-2	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-223-0	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-223-0	01	1	0107-0203	●	●	●
11	BRACKET; ENG MTG RR ENG AIR SUSP(LVD5FB) EXC. EURO3 SPECIFICATION(NJX),FRAME EQUIPMENT TAIWAN<NKQ> (B) REAR	1-53221-223-0	01	1	0107-0203	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) REAR	1-53221-223-0	01	1	0204-	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (A) FRONT	1-53211-292-0	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-210-1	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (A) FRONT	1-53211-293-0	01	1	0012-0106	●
11	BRACKET; ENG MTG RR ENG LEAF SUSP(LVR5FB) (B) REAR	1-53221-211-0	01	1	0012-0106	●
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD5FB) (C) M14X40	9-92061-440-0	12	1	0012-0512	●
23	BOLT; BRKT,SPR RR ENG AIR SUSP(LVD5FB) (C) M14X40	0-20951-440-0	12	1	0601-	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) (A) M16X60	9-91066-660-0	08	1	0012-0203	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (A) M16X60	9-91066-660-0	08	1	0204-0512	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (A) M16X60	0-10956-660-0	08	1	0601-	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) (B) M16X50	9-92061-650-0	12	1	0012-0203	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) M16X50	9-92061-650-0	12	1	0204-0512	●
23	BOLT; BRKT,SPR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (B) M16X50	0-20951-650-0	12	1	0601-	●
34	MEMBER; CROSS,3RD RR ENG AIR SUSP(LVD5FB)	1-53181-950-1	01	1	0012-	●
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR5FB)	1-53181-954-0	01	1	0012-0203	●
34	MEMBER; CROSS,3RD RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53181-954-0	01	1	0204-	●
55	WASHER; PL RR ENG AIR SUSP(LVD5FB) ID=15	9-09651-069-0	12	1	0012-	●
57	MEMBER; CROSS,RR SUSP FRT RR ENG AIR SUSP(LVD5FB)	1-53181-945-1	01	1	0012-	●
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR5FB)	1-53181-955-1	01	1	0012-0203	●
57	MEMBER; CROSS,RR SUSP FRT RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53181-955-1	01	1	0204-	●
71	NUT; 2ND C/MBR RR ENG AIR SUSP(LVD5FB) M12	9-99110-512-0	08	1	0012-0512	●
71	NUT; 2ND C/MBR RR ENG AIR SUSP(LVD5FB) M12	0-91110-512-0	08	1	0601-	●
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0012-0512	●	●
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-	●	●
86	MEMBER; CROSS,RR SUSP RR RR ENG AIR SUSP(LVD5FB)	1-53181-946-4	01	1	0012-	●
86	MEMBER; CROSS,RR SUSP RR RR ENG LEAF SUSP(LVR5FB)	1-53181-956-4	01	1	0012-0203	●
86	MEMBER; CROSS,RR SUSP RR RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L)	1-53181-956-4	01	1	0204-	●
106	BOLT; BRKT RR ENG AIR SUSP(LVD5FB) M14X40	9-92061-440-0	04	1	0012-0512	●
106	BOLT; BRKT RR ENG AIR SUSP(LVD5FB) M14X40	0-20951-440-0	04	1	0601-	●
130	MEMBER; CROSS,END	1-53181-928-0	01	1	0012-	●
131	BOLT; END C/MBR M14X30	9-92061-430-0	08	1	0012-0512	●
131	BOLT; END C/MBR M14X30	0-20951-430-0	08	1	0601-	●
132	NUT; END C/MBR M14	9-99110-514-0	08	1	0012-0512	●
132	NUT; END C/MBR M14	0-91110-514-0	08	1	0601-	●
139	MEMBER; CROSS,6TH	1-53181-952-2	01	1	0012-	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0012-0512	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-	●	●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28681-235-0	02	1	0012-0106	●	●
155	BOLT; OUTRIGGER EXC. EURO3 SPECIFICATION(NJX) M12X35 FLANGE	0-28681-235-0	02	1	0107-0107	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0012-0512	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0012-0512	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER M14X35	0-28691-435-0	08	1	0012-0210	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0211-0512	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0012-0106	●	●
155	BOLT; OUTRIGGER EURO3 SPECIFICATION(NJX) M12X40 FLANGE	0-28681-240-0	02	1	0107-0107	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0108-0512	●	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0107-0512	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28861-445-0	16	1	0601-	●	●
194	BOLT; 2ND C/MBR RR ENG AIR SUSP(LVD5FB) M12X35	9-92061-235-0	08	1	0012-0512	●
194	BOLT; 2ND C/MBR RR ENG AIR SUSP(LVD5FB) M12X35	0-20951-235-0	08	1	0601-	●
197	WASHER; PL,2ND C/MBR RR ENG AIR SUSP(LVD5FB) ID=12.5	9-09164-512-0	08	1	0012-	●
254	WASHER; PL,C/MBR ID=15	9-09651-069-0	08	1	0012-	●
332	BRACKET; BUFFER RUBBER RR ENG AIR SUSP(LVD5FB)	1-53369-189-0	02	1	0012-	●
344	MEMBER; CROSS,4TH	1-53181-952-2	01	1	0012-	●
345	MEMBER; CROSS,5TH	1-53181-952-2	01	1	0012-	●
502	OUTRIGGER; RR SUSP RR ENG AIR SUSP(LVD5FB) (A) FRONT	1-53456-366-1	01	1	0012-	●	●
502	OUTRIGGER; RR SUSP RR ENG AIR SUSP(LVD5FB) (B) REAR	1-53456-367-2	01	1	0012-	●	●

450 19 152 453 255 452 81 155 452 148 90 450 452 2 19 90 453 453 148 82 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST	1-53181-951-1	01	1	0012-	●
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD5FB) (A) UPPER	1-53181-947-1	01	1	0012-	●
19	MEMBER; CROSS,2ND RR ENG AIR SUSP(LVD5FB) (B) LOWER	1-53181-948-1	01	1	0012-	●
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR5FB) (C)	1-53181-953-0	01	1	0012-0203	●
19	MEMBER; CROSS,2ND RR ENG LEAF SUSP(LVR5FB) 6SD1 TC(32L) (C)	1-53181-953-0	01	1	0204-	●
81	BOLT; BRKT M12X30 FLANGE	0-28691-230-0	30	1	0012-0512	●	●
81	BOLT; BRKT M12X30 FLANGE	0-28661-230-0	30	1	0601-	●	●
82	NUT; BRKT M12 FLANGE	0-91150-212-0	20	1	0012-0602	●	●
82	NUT; BRKT M12 FLANGE	0-91180-212-0	20	1	0603-	●	●
90	WASHER; PL RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> ID=16.2	1-09503-223-0	24	1	0012-0203	●
148	SPACER; C/MBR UPPER	1-53167-554-0	01	1	0012-	●
148	SPACER; C/MBR LOWER	1-53167-555-0	01	1	0012-	●
151	NUT; OUTRIGGER M10 FLANGE	0-91150-210-0	06	1	0012-0602	●	●
151	NUT; OUTRIGGER M10 FLANGE	0-91180-210-0	06	1	0603-	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	13	1	0012-0602	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	13	1	0603-	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91160-214-0	08	1	0012-0602	●	●
151	NUT; OUTRIGGER M14 FLANGE	0-91180-214-0	08	1	0603-	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91160-214-0	16	1	0012-0602	●	●
151	NUT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14 FLANGE	0-91180-214-0	16	1	0603-	●	●
152	OUTRIGGER	1-53456-308-2	01	1	0012-	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28681-035-0	06	1	0012-0512	●	●
155	BOLT; OUTRIGGER M10X35 FLANGE	0-28651-035-0	06	1	0601-	●	●
155	BOLT; OUTRIGGER M12X35 FLANGE	0-28681-235-0	02	1	0012-0106	●	●
155	BOLT; OUTRIGGER EXC. EURO3 SPECIFICATION(NJX) M12X35 FLANGE	0-28681-235-0	02	1	0107-0107	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28691-230-0	11	1	0012-0512	●	●
155	BOLT; OUTRIGGER M12X30 FLANGE	0-28661-230-0	11	1	0601-	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28691-430-0	08	1	0012-0512	●	●
155	BOLT; OUTRIGGER M14X30 FLANGE	0-28661-430-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER M14X35	0-28691-435-0	08	1	0012-0210	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28691-440-0	08	1	0211-0512	●	●
155	BOLT; OUTRIGGER M14X40 FLANGE	0-28661-440-0	08	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0012-0106	●	●
155	BOLT; OUTRIGGER EURO3 SPECIFICATION(NJX) M12X40 FLANGE	0-28681-240-0	02	1	0107-0107	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28681-240-0	02	1	0108-0512	●	●
155	BOLT; OUTRIGGER M12X40 FLANGE	0-28651-240-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28891-445-0	16	1	0107-0512	●	●
155	BOLT; OUTRIGGER RR ENG AIR SUSP(LVD5FB) M14X45 FLANGE	0-28861-445-0	16	1	0601-	●	●
255	WASHER; PL,BRKT RR ENG AIR SUSP(LVD5FB) ID=15	9-09651-069-0	04	1	0012-	●
450	BRACKET; V ROD RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ>	1-53353-117-0	02	1	0012-0203	●
452	BOLT; V ROD RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> (A) M16X100	9-91066-600-0	04	1	0012-0203	●
452	BOLT; V ROD RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> (B) M16X60	9-91066-660-0	04	1	0012-0203	●
452	BOLT; V ROD RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> (C) M16X70	9-91066-670-0	04	1	0012-0203	●
453	NUT; V ROD RR ENG AIR SUSP(LVD5FB) EXC. FRAME EQUIPMENT TAIWAN<NKQ> M16	9-99110-516-0	12	1	0012-0203	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
