9-01 — TOOLS (#71332) — 122 parça

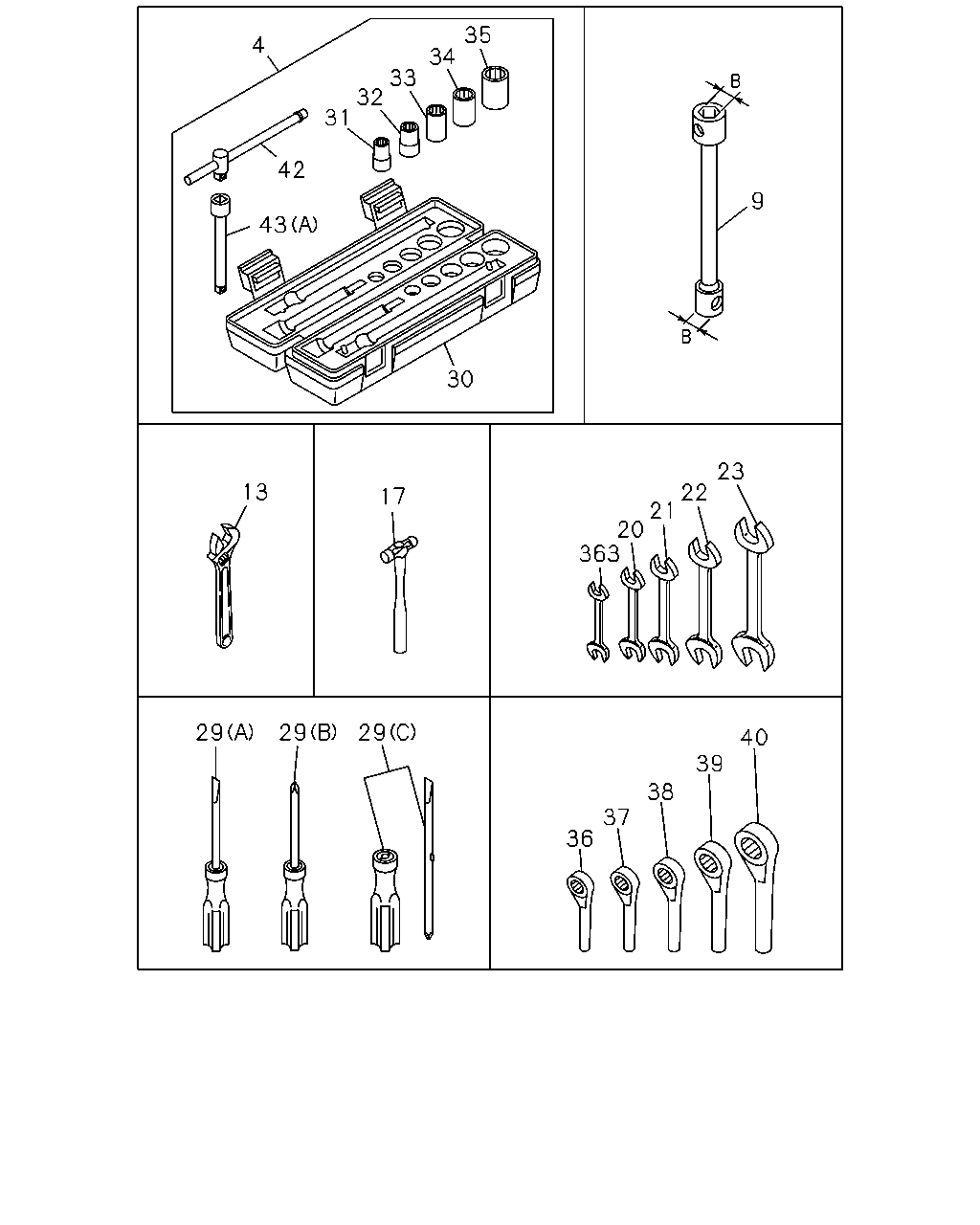

9 30 35 34 33 32 31 4 42 43 23 22 21 20 363 17 13 29 29 29 40 39 38 37 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WRENCH KIT; SOCKET INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-491-0	01	1	1009-
4	WRENCH KIT; SOCKET CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-491-0	01	1	1009-
9	WRENCH; WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440	1-85113-015-1	01	1	1009-1601
9	WRENCH; WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=445	8-98316-703-0	01	1	1602-
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> B=33X30 L=450	1-85111-033-1	01	1	1009-1601
9	WRENCH; WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> CAUTIONS ENGLISH<RR8>,CAUTIONS CHINESE<SL7> TOOL B KIT<SL1> B=33X30 L=450	8-98316-700-0	01	1	1602-
13	WRENCH; MONKEY INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> L=247	1-85117-006-0	01	1	1009-1407
13	WRENCH; MONKEY CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=247	1-85117-006-0	01	1	1009-1407
13	WRENCH; MONKEY INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> L=255	8-98270-303-0	01	1	1408-
13	WRENCH; MONKEY CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=255	8-98270-303-0	01	1	1408-
17	HAMMER INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	9-85121-406-0	01	1	1009-
17	HAMMER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	9-85121-406-0	01	1	1009-
20	WRENCH; 10X12 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 10X12	0-95902-510-0	01	1	1009-
20	WRENCH; 10X12 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 10X12	0-95902-510-0	01	1	1009-
21	WRENCH; 14X17 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 14X17	0-95902-514-0	01	1	1009-
21	WRENCH; 14X17 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 14X17	0-95902-514-0	01	1	1009-
22	WRENCH; 19X22 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 19X22	0-95902-519-0	01	1	1009-
22	WRENCH; 19X22 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 19X22	0-95902-519-0	01	1	1009-
23	WRENCH; 24X27 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 24X27	0-95902-524-0	01	1	1009-
23	WRENCH; 24X27 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 24X27	0-95902-524-0	01	1	1009-
29	DRIVER; SCREW INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> (A) <-> L=285	1-85151-004-0	01	1	1009-
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (A) <-> L=285	1-85151-004-0	01	1	1009-
29	DRIVER; SCREW INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> (C) <+>,<-> L=160	8-94242-798-1	01	1	1009-
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (C) <+>,<-> L=160	8-94242-798-1	01	1	1009-
29	DRIVER; SCREW INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> (B) <+> L=275	9-09595-023-0	01	1	1009-
29	DRIVER; SCREW CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (B) <+> L=275	9-09595-023-0	01	1	1009-
30	BOX; SOCKET WRENCH INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-492-0	01	1	1009-
30	BOX; SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-492-0	01	1	1009-
31	WRENCH; 12 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-495-0	01	1	1009-
31	WRENCH; 12 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-495-0	01	1	1009-
32	WRENCH; 14 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-496-0	01	1	1009-
32	WRENCH; 14 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-496-0	01	1	1009-
33	WRENCH; 17 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-497-0	01	1	1009-
33	WRENCH; 17 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-497-0	01	1	1009-
34	WRENCH; 19 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-498-0	01	1	1009-
34	WRENCH; 19 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-498-0	01	1	1009-
35	WRENCH; 22 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-499-0	01	1	1009-
35	WRENCH; 22 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-499-0	01	1	1009-
36	WRENCH; 24	9-85111-377-0	01	1	1009-
37	WRENCH; 27	9-85111-375-0	01	1	1009-
38	WRENCH; 32	9-85111-358-0	01	1	1009-
39	WRENCH; 36	9-85111-374-0	01	1	1009-
40	WRENCH; 41	9-85111-356-0	01	1	1009-
42	HANDLE; SLIDING INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85000-500-0	01	1	1009-
42	HANDLE; SLIDING CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85000-500-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> (A)	1-85000-501-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (B) OD=25 L=480	8-98257-407-0	01	1	1502-
363	WRENCH; OPEN END 8X10 INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 8X10	0-95902-508-0	01	1	1009-
363	WRENCH; OPEN END 8X10 CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 8X10	0-95902-508-0	01	1	1009-

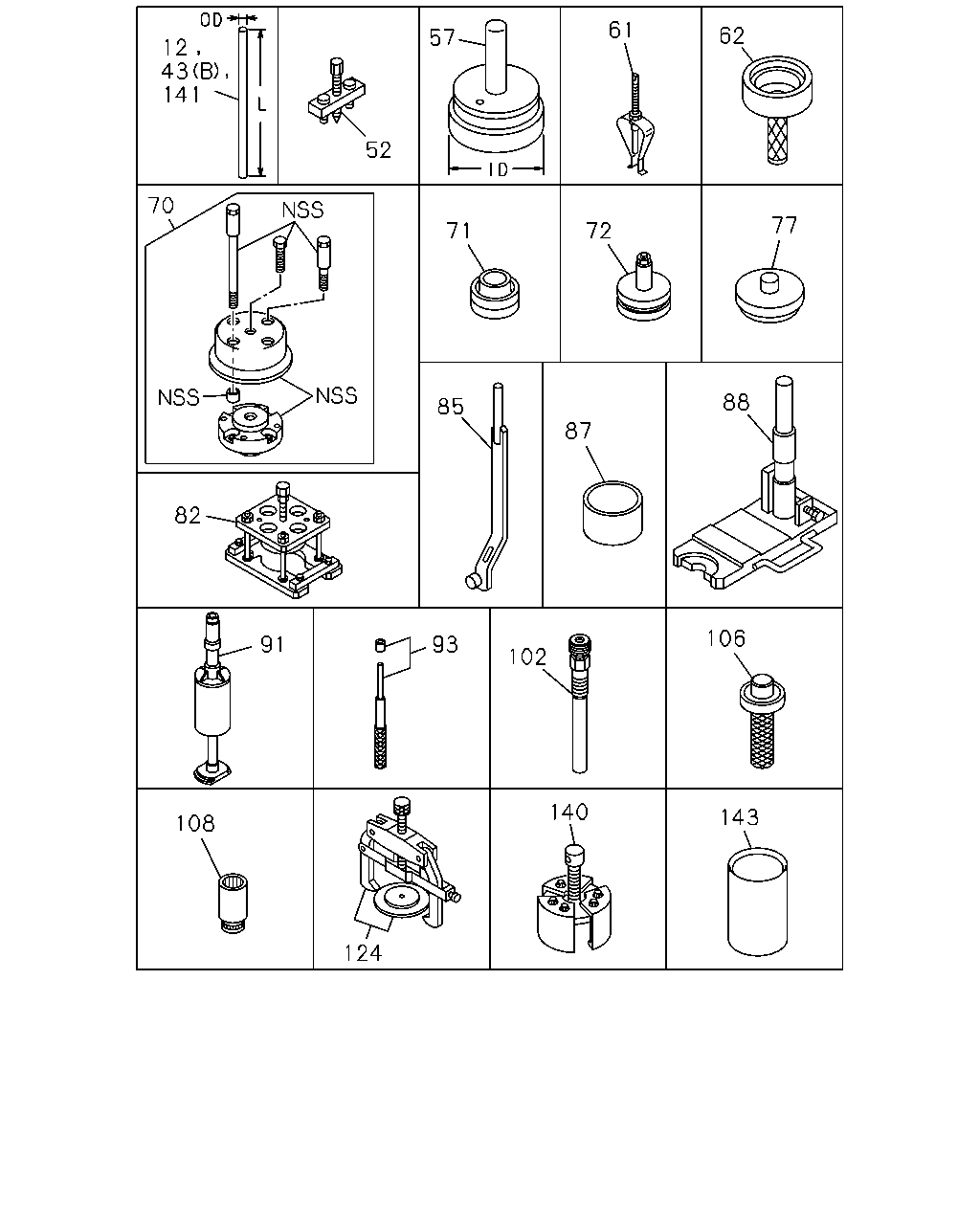

12 43 141 52 57 61 62 77 72 71 70 82 85 87 88 91 93 102 106 143 140 108 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HANDLE; WRENCH,WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> OD=25 L=480	1-85116-011-0	01	1	1009-1501
12	HANDLE; WRENCH,WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> OD=25 L=480	1-85116-011-0	01	1	1009-1501
12	HANDLE; WRENCH,WHEEL PIN INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> OD=25 L=480	8-98257-407-0	01	1	1502-
12	HANDLE; WRENCH,WHEEL PIN CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> OD=25 L=480	8-98257-407-0	01	1	1502-
43	BAR; EXTENSION,SOCKET WRENCH INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> (A)	1-85000-501-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> (A)	1-85000-501-0	01	1	1009-
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT<SL1> (B) OD=25 L=480	8-98257-407-0	01	1	1502-
52	REMOVER; WATER PUMP	1-85210-047-0	01	1	1009-
57	TOOL; SETTING CRANK GEAR ID=144.5	1-85221-072-0	01	1	1009-
57	TOOL; SETTING CRANK GEAR ID=165.8	1-85221-075-0	01	1	1009-
61	PULLER ASM; PILOT BRG	1-85220-028-0	01	1	1009-
62	TOOL ASM; SETTING WEAR RING	1-85221-079-0	01	1	1009-
70	TOOL; SETTING,OIL SEAL	8-98194-607-0	01	1	1109-
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-029-0	01	1	1009-1108
72	TOOL; SETTING,OIL SEAL,RR	1-85220-030-0	01	1	1009-1108
77	TOOL; SETTING,CYL LINER	1-85221-073-0	01	1	1009-
82	PULLER ASM; CR/SHF GEAR	1-85210-051-0	01	1	1009-
85	REPLACER ASM; VALVE SPR	1-85235-007-0	01	1	1009-
87	TOOL; PISTON	1-85221-082-0	01	1	1009-
88	TOOL; CONNROD BUSHING	1-85220-037-0	01	1	1009-
91	REPLACER ASM; CYL LINER	1-85231-021-0	01	1	1009-
93	SETTING KIT; VALVE GUIDE L=260	9-85231-202-0	01	1	1009-
102	ADAPTER; COMP GAGE	5-85317-001-0	01	1	1009-
106	TOOL; SETTING PILOT BRG	1-85221-080-0	01	1	1009-
108	WRENCH; SOCKET	9-85113-132-0	01	1	1009-
124	PULLER ASM; BRG DIFF	9-85210-131-0	01	1	1009-
140	REMOVER; WEAR RING	1-85210-053-0	01	1	1009-
141	HANDLE; WRENCH TOOL B KIT<SL1> OD=16 L=200	9-85111-934-0	01	1	1009-
143	GUIDE; BOOT,TIE ROD END	1-85229-013-0	01	1	1009-

115 125 126 127 129 135 144 151 153 154 156 160 162 162 163 164 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
115	PLIER INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	5-85171-002-0	01	1	1009-1410
115	PLIER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	5-85171-002-0	01	1	1009-1410
115	PLIER INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	8-98282-845-0	01	1	1411-
115	PLIER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	8-98282-845-0	01	1	1411-
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	1009-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1009-
127	WRENCH ASM; HUB BRG NUT L=400 B=116	8-98119-000-1	01	1	1009-
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	1009-
130	WRENCH; BOX TOOL B KIT<SL1> B=63	9-85111-368-0	01	1	1009-
135	COVER; ENG MTG,FRT TOOL B KIT<SL1>	9-85595-016-0	02	1	1009-
144	BASE; BOOT GUIDE,TIE ROD END	1-85229-009-0	01	1	1009-
151	REMOVER; OIL BRK,FRT RETURN SPR ID=16	1-85237-002-0	01	1	1009-
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	1009-
154	SLEEPER; KING PIN	1-85238-003-0	01	1	1009-
156	PULLER; ANCHOR PIN	1-85210-025-0	01	1	1009-
160	REMOVER; NEEDLE BRG L=220	1-85238-001-0	01	1	1009-
162	SETTING TOOL; NEEDLE BRG (A) L=181	1-85238-008-0	01	1	1009-
162	SETTING TOOL; NEEDLE BRG (B) L=213	1-85238-009-0	01	1	1009-
163	TOOL; SETTING	9-85221-231-0	01	1	1009-
164	GUIDE; SNAP RING PILOT BRG	1-85176-001-0	01	1	1009-

169 171 172 174 186 189 192 193 208 227 230 237 417 453

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
169	BRACKET; SPLINE YOKE	1-85221-317-0	01	1	1009-
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	1009-
172	PULLER ASM; BRG DIFF PILOT	9-85210-182-0	01	1	1009-
174	PULLER ASM; MAIN CLU SHAFT	9-85210-148-0	01	1	1009-
186	ADJUSTER; BRAKE	1-85269-008-0	01	1	1009-
189	TUBE; AIR BREATHER INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> L=460	9-85291-414-0	01	1	1009-
189	TUBE; AIR BREATHER CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> L=460	9-85291-414-0	01	1	1009-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1009-
193	JACK ASM INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 15TON	1-85510-019-2	01	1	1009-
193	JACK ASM CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1> 15TON	1-85510-019-2	01	1	1009-
208	HANDLE; JACK TOOL B KIT<SL1> L=600	1-85515-009-0	01	1	1009-1107
208	HANDLE; JACK TOOL B KIT<SL1> L=600	8-98181-437-0	01	1	1108-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1009-
230	PUMP; GREASE INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	1-85556-007-5	01	1	1009-
230	PUMP; GREASE CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	1-85556-007-5	01	1	1009-
237	BAG; TOOL INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7>	8-97130-902-1	01	1	1009-
237	BAG; TOOL CAUTIONS ENGLISH<RR8> TOOL B KIT<SL1>	8-97130-902-1	01	1	1009-
417	BOLT; CHAMBER RELEASE 1/2-13 UNC L=124 4-SETS	1-85576-331-1	01	1	1009-
453	TOOL; SETTING,COUPLING	8-97620-813-0	01	1	1009-

348 388 388 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
146	REPLACER KIT; LEAF SPR	9-85231-556-0	01	1	1009-
348	PULLER; TORQUE ROD	1-85230-008-0	01	1	1009-
388	WRENCH; U-BOLT (A)	9-85111-954-0	01	1	1009-
388	WRENCH; U-BOLT (B)	9-85111-955-0	01	1	1009-
