◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#71318) — 49 parça

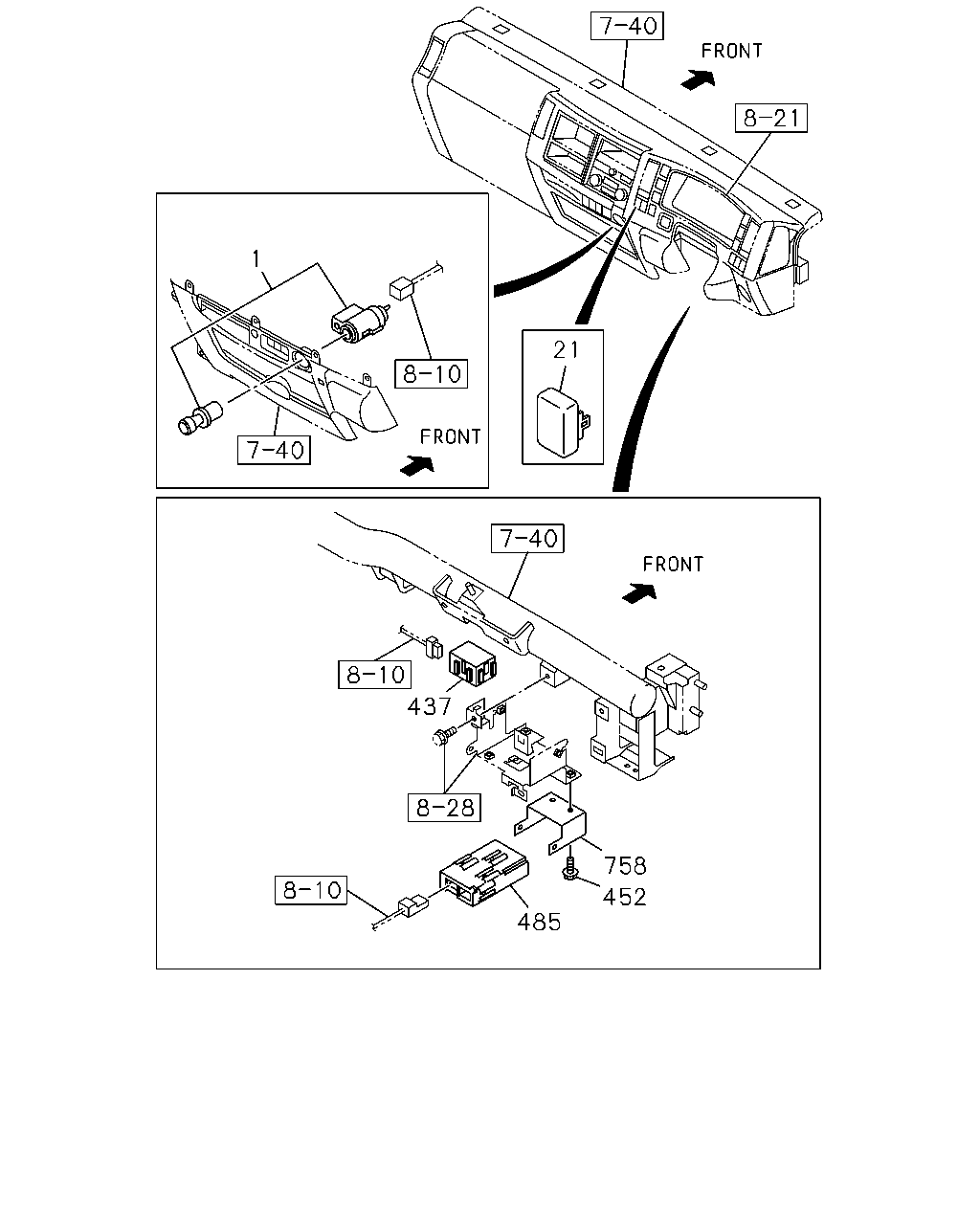

çizim 138109
1 21 437 485 758 452
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1009-
21 COVER; HOLE 8-98025-954-1 01 1 1009-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1009-
452 BOLT; BRKT
ZF9S1310 M/T(Y5K) M6X16 FLANGE 		0-28650-616-0 02 1 1009-1407
452 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1408-
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 1009-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1310 M/T(Y5K) 		8-98048-743-1 01 1 1009-1407
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1408-

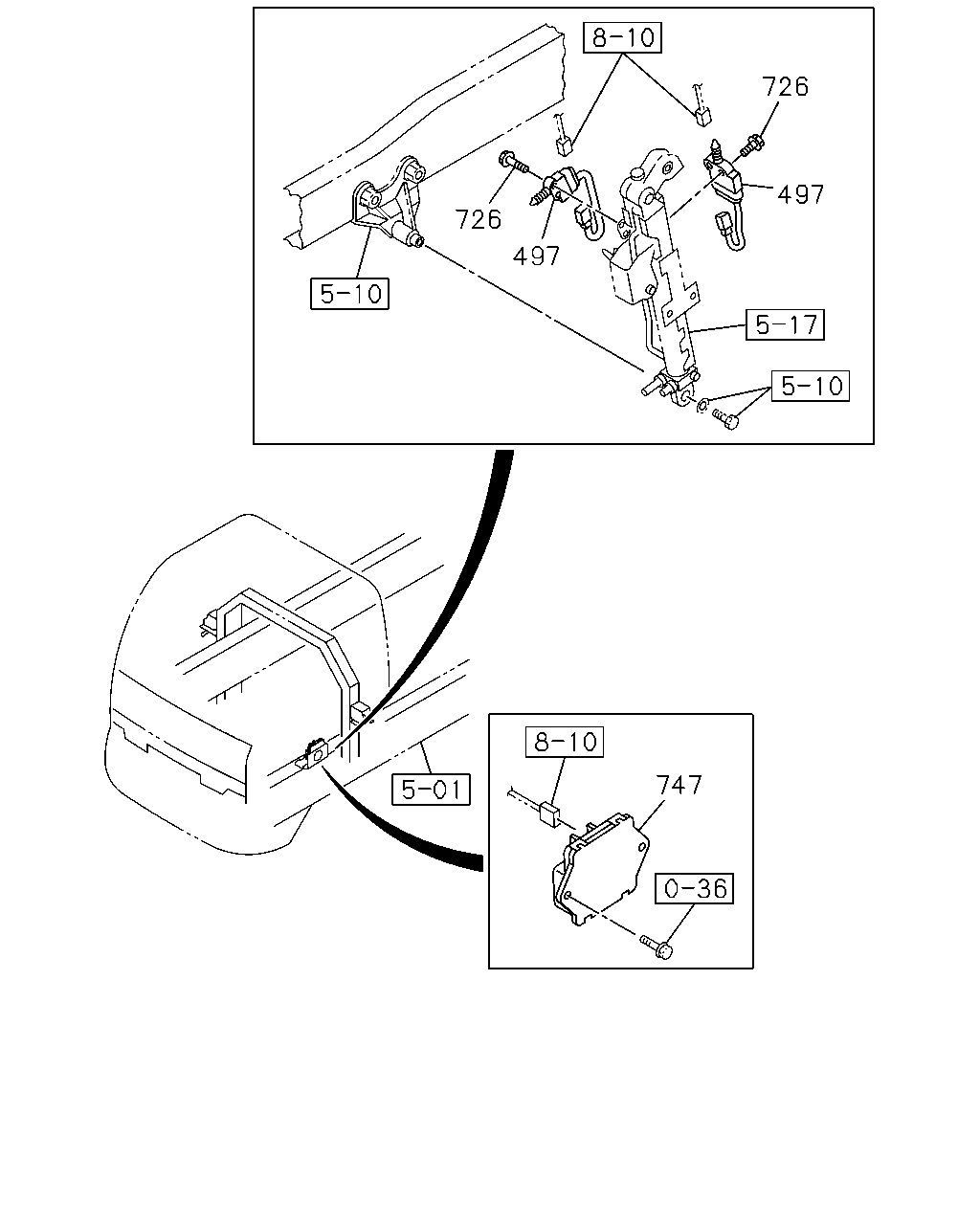

çizim 138367
726 497 497 726 747
BalonParca AdiParca NoAdetTipApplied Date
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1009-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1009-
747 CONTROL UNIT; TURBOCHARGER 8-98118-472-0 01 1 1009-

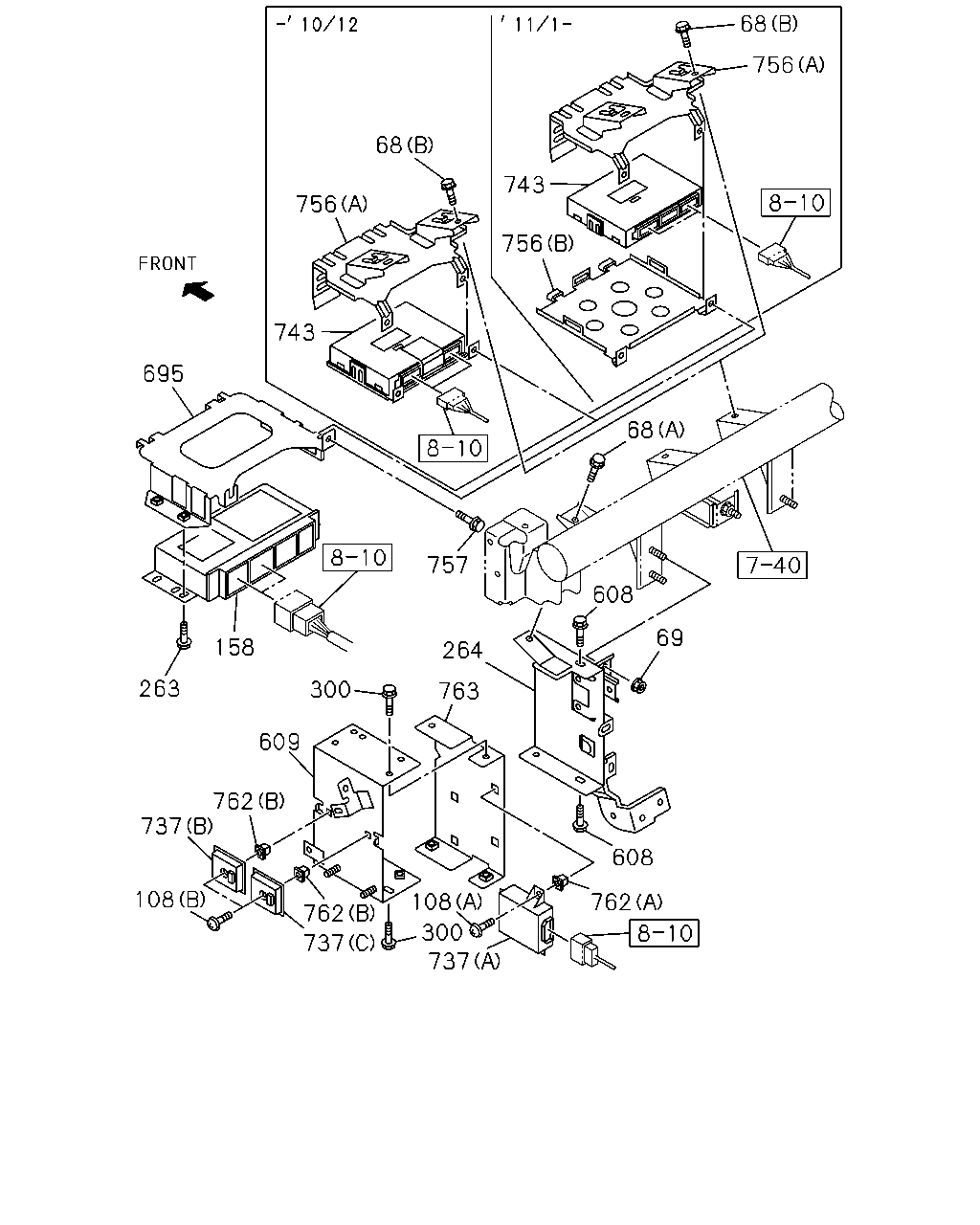

çizim 138481
68 756 743 756 756 68 743 695 608 68 757 158 263 609 762 737 108 762 737 108 300 737 264 763 300 608 762 69
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1009-
68 BOLT; BRKT
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER 		1-09980-492-0 02 1 1009-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1009-
108 BOLT; TRANS CONT MODULE
SHIFT PATTERN SINGLE-H<EDY> (A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1009-
108 BOLT; TRANS CONT MODULE
SHIFT PATTERN SINGLE-H<EDY> (B) M4X25 TAPPING 		0-74160-425-0 02 1 1009-
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-261-0 01 1 1009-1201
158 CONTROLLER; ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98170-648-0 01 1 1202-
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 04 1 1009-
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1009-
300 BOLT; CONT UNIT BRKT
SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 04 1 1009-
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1009-
608 BOLT; CONT UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> M6X16 FLANGE 		0-28650-616-0 05 1 1009-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 1009-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98095-337-0 01 1 1009-1308
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) AUTO DOOR LOCK<AU4> EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1309-
609 BRACKET ASM; ELEC UNIT,AIR SUS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> 		8-98169-737-1 01 1 1309-
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1009-
737 CONTROL UNIT; TRANSMISSION
SHIFT PATTERN SINGLE-H<EDY> (A) 		1-80111-271-0 01 1 1009-
737 CONTROL UNIT; TRANSMISSION
SHIFT PATTERN SINGLE-H<EDY> (B) 		8-98095-040-0 01 1 1009-
737 CONTROL UNIT; TRANSMISSION
SHIFT PATTERN SINGLE-H<EDY> (C) 		8-98095-041-0 01 1 1009-
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98176-213-0 01 1 1009-1012
743 CONTROL UNIT; BCM
MULTI INFORMATION DISPLAY<7NY> 		8-98182-026-3 01 1 1101-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> (B) 		8-98111-836-1 01 1 1101-
756 BRACKET; ECU,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98056-411-3 01 1 1009-
757 BOLT; BRKT,BCM
MULTI INFORMATION DISPLAY<7NY> EXC. ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE 		0-28650-616-0 02 1 1009-
762 GROMMET; TRANS CONT MODULE
SHIFT PATTERN SINGLE-H<EDY> (A) D=8.6X7.7 L=7.5 		8-94279-078-0 03 1 1009-
762 GROMMET; TRANS CONT MODULE
SHIFT PATTERN SINGLE-H<EDY> (B) D=7.5X7.5 L=7 		8-94430-147-0 02 1 1009-
763 BRACKET; TRANS CONT MODULE
SHIFT PATTERN SINGLE-H<EDY> 		8-98085-587-0 01 1 1009-

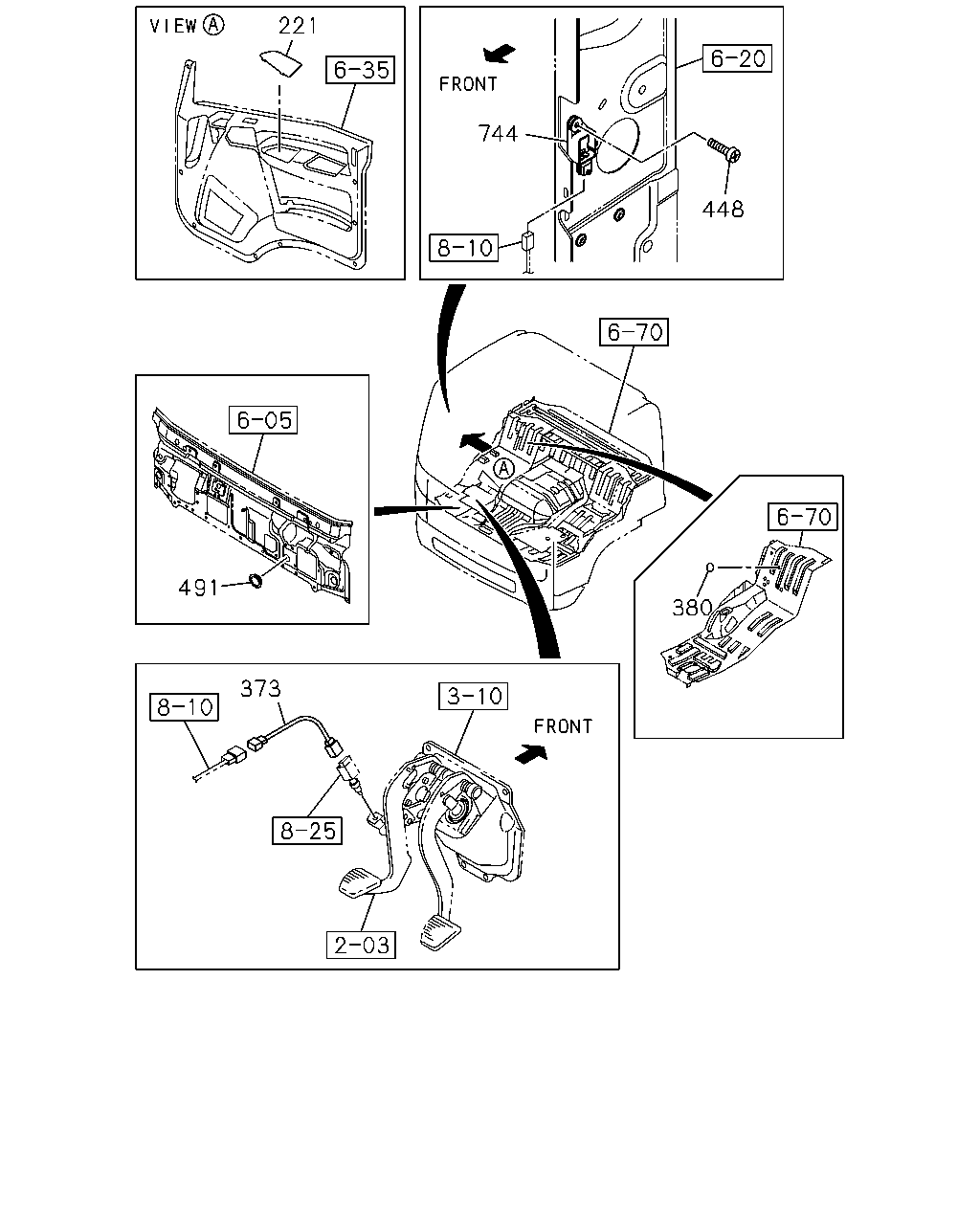

çizim 189434
221 744 448 491 373 380
BalonParca AdiParca NoAdetTipApplied Date
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1009-
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1009-
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1009-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1009-
448 BOLT; SENSOR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-1 02 1 1009-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1009-
744 SENSOR; AIR BAG
AIR BAG DRIVER(AJ3) 		8-97386-841-2 01 1 1009-
