Isuzu WW
▶
TRUCKS
▶
FYH
▶
11308 - FYH RHD EURO5 ENGINE REAR PTO
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

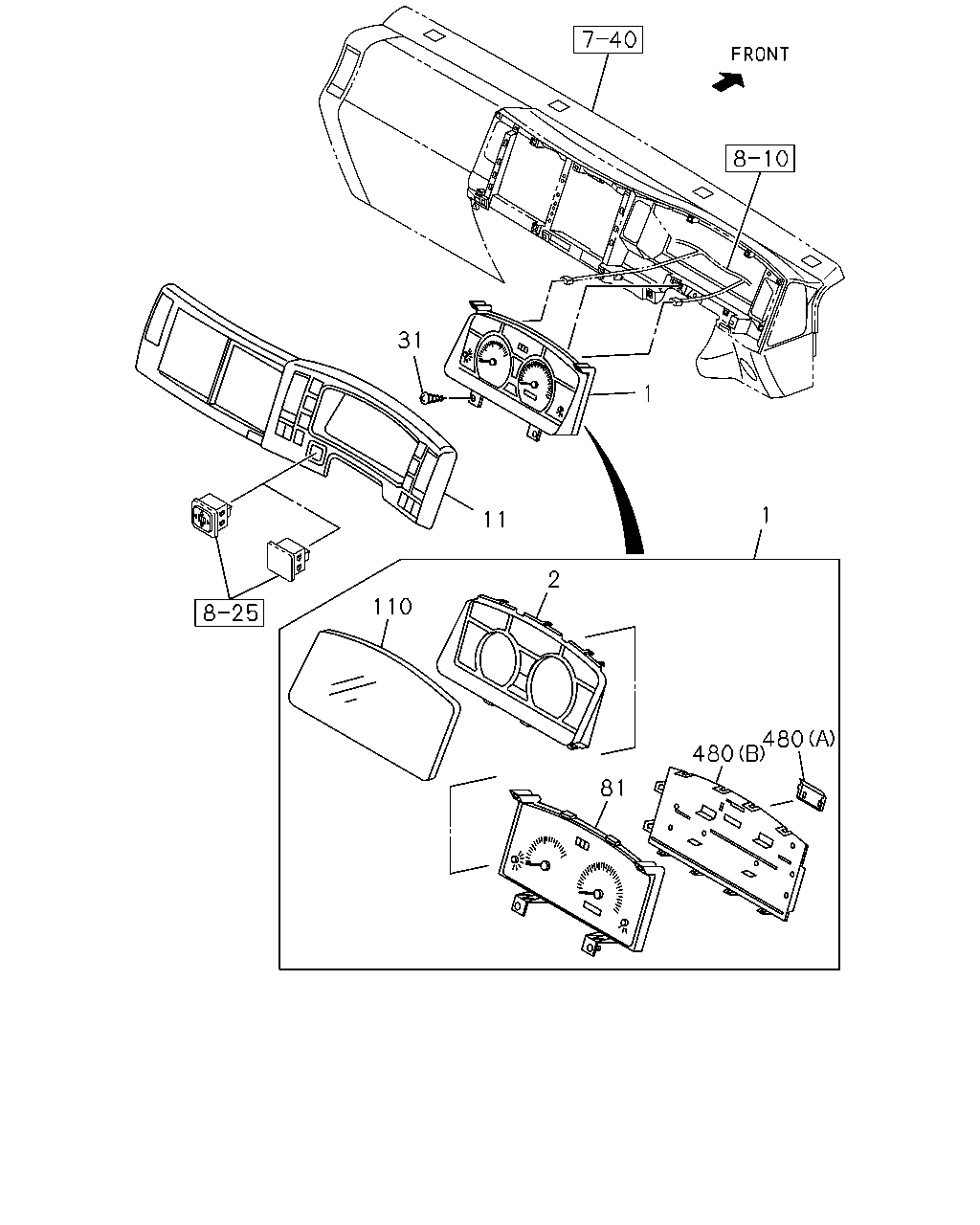

8-21 - METER ASM
▶
8-21 — METER ASM
(#71316) — 14 parça
31
1
11
2
110
1
81
480
480
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4>
8-98121-013-0
01
1
1009-1101
1
METER COMPL; CLUSTER
ENGINE OVERRUN BUZZER<SK4>
8-98179-477-1
01
1
1102-
1
METER COMPL; CLUSTER
EXC. ENGINE OVERRUN BUZZER<SK4>
8-98117-586-0
01
1
1009-1101
1
METER COMPL; CLUSTER
EXC. ENGINE OVERRUN BUZZER<SK4>
8-98179-476-2
01
1
1102-
2
PANEL; CLUSTER
8-98054-432-0
01
1
1009-
11
CLUSTER ASM; METER
DARK GRAY
8-97405-350-6
01
1
1009-
31
SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
04
1
1009-
81
METER SUB ASM
ENGINE OVERRUN BUZZER<SK4>
8-98155-164-0
01
1
1009-1101
81
METER SUB ASM
ENGINE OVERRUN BUZZER<SK4>
8-98179-485-0
01
1
1102-
81
METER SUB ASM
EXC. ENGINE OVERRUN BUZZER<SK4>
8-98155-163-0
01
1
1009-1101
81
METER SUB ASM
EXC. ENGINE OVERRUN BUZZER<SK4>
8-98179-484-0
01
1
1102-
110
GLASS; CLUSTER METER
8-98054-642-0
01
1
1009-
480
COVER; METER
(B) BLACK
8-98054-433-0
01
1
1009-
480
COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION
8-98054-881-0
01
1
1009-
