◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#71314) — 358 parça

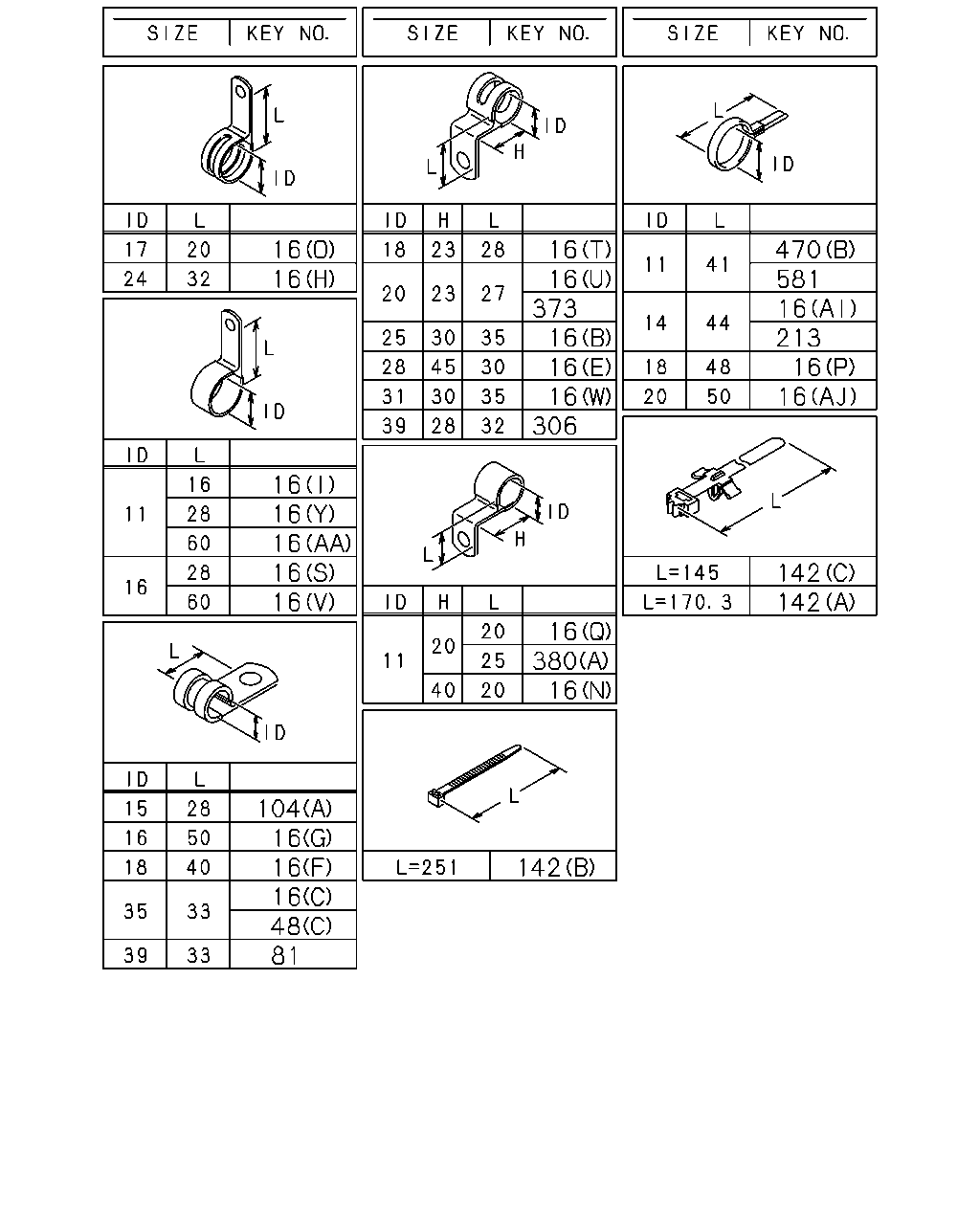

çizim 136614
16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 104 48 81 380 306 373 470 581 16 213 142 142 142
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=250 		1-09707-126-0 01 1 1009-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1103-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009-
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
16 CLIP; HARNESS
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-
16 CLIP; HARNESS
(C) ID=35 L=33 		1-09700-945-0 01 1 1009-
16 CLIP; HARNESS
(E) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-
16 CLIP; HARNESS
(F) ID=18 L=40 		1-09701-111-0 01 1 1009-
16 CLIP; HARNESS
(G) ID=16 L=50 		1-09701-158-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 07 1 1009-
16 CLIP; HARNESS
(J) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009-
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 08 1 1009-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-
16 CLIP; HARNESS
(L) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009-
16 CLIP; HARNESS
(N) D=11 H=40 L=20 		8-94246-610-0 01 1 1009-
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009-
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106-
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009-
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009-
16 CLIP; HARNESS
(P) ID=18 L=48 		9-09917-429-0 01 1 1009-
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009-
16 CLIP; HARNESS
(Q) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (I) ID=11 L=16 		0-95235-025-0 02 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1009-1206
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1009-1206
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (R) L=155 		8-97173-307-0 18 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (R) L=155 		8-97173-307-0 18 1 1009-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AH) L=40.6 		8-97229-357-0 02 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AH) L=40.6 		8-97229-357-0 02 1 1009-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) L=250 		5-09707-030-1 01 1 1009-1407
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 01 1 1408-
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=28 		0-95235-556-0 01 1 1009-
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=60 		0-95235-596-0 02 1 1009-
16 CLIP; HARNESS
EXC. SHIFT PATTERN SINGLE-H<EDY> (Y) ID=11 L=28 		0-95235-055-0 01 1 1009-
16 CLIP; HARNESS
EXC. SHIFT PATTERN SINGLE-H<EDY> (AA) ID=11 L=60 		0-95235-096-0 02 1 1009-
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 08 1 1009-
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 1009-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1109
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1110-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1110-
81 CLIP; HARNESS
ID=39 L=33 		8-98009-359-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009-
142 CLIP; HARNESS,ENG
(A) L=170.3 		8-97209-720-0 01 1 1009-
142 CLIP; HARNESS,ENG
(B) L=251 		8-97619-917-0 02 1 1009-
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 01 1 1009-1009
142 CLIP; HARNESS,ENG
(C) L=145 		8-98116-079-0 02 1 1010-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1009-
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 1009-
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1009-
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1009-
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1009-
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 02 1 1009-1111
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1112-1407
470 CLIP; HARNESS,LICENSE LAMP
(D) L=250 		5-09707-030-1 04 1 1408-
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41 		1-09700-403-0 01 1 1009-
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1009-
581 CLIP; HARNESS,REAR SUSP
ANTILOCK BRAKE SYSTEM(BFA) ID=11 L=41 		1-09700-403-0 02 1 1009-

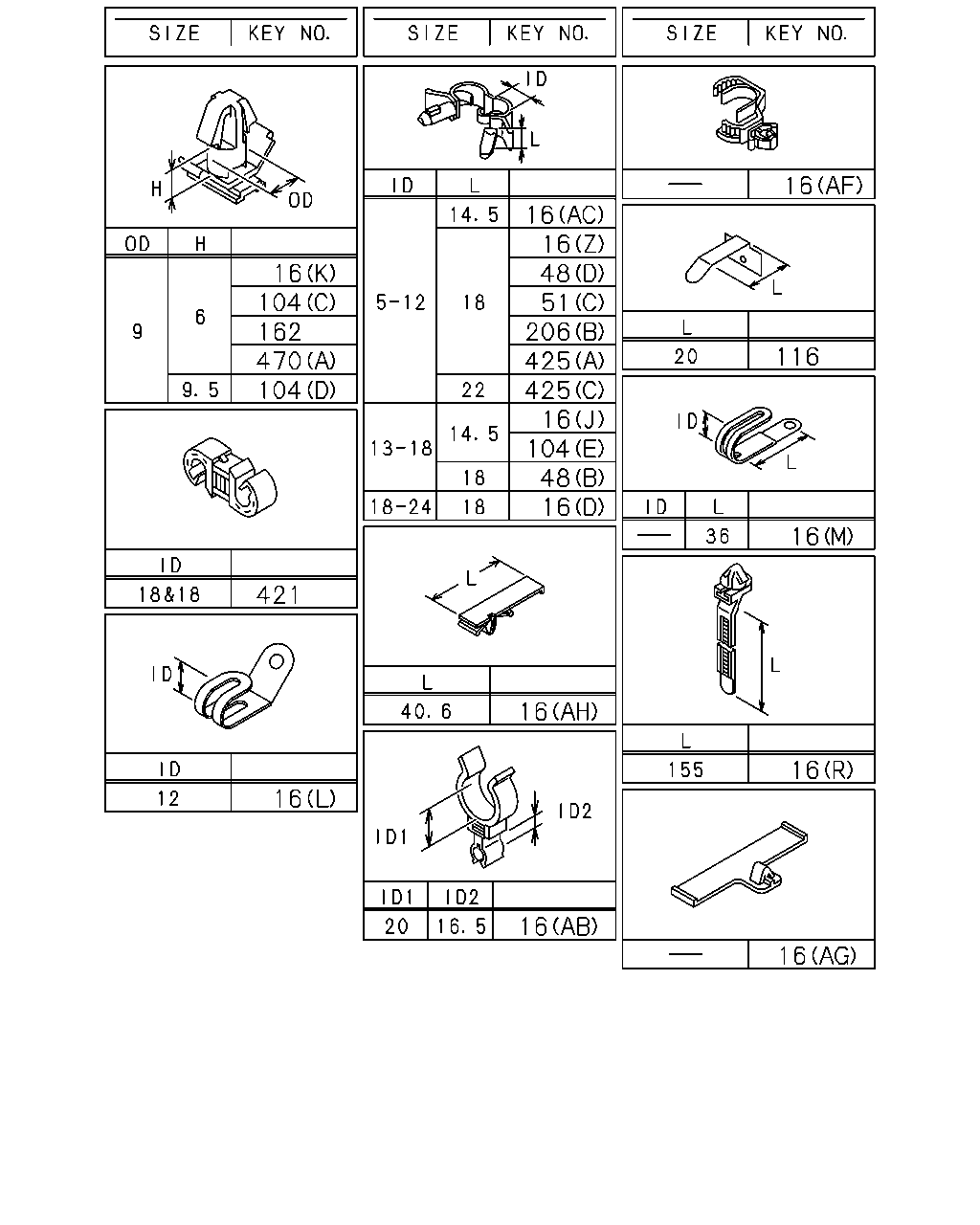

çizim 136619
16 16 16 16 16 16 16 16 16 16 16 116 16 104 162 470 104 421 48 51 206 425 425 104 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=250 		1-09707-126-0 01 1 1009-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1103-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009-
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
16 CLIP; HARNESS
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-
16 CLIP; HARNESS
(C) ID=35 L=33 		1-09700-945-0 01 1 1009-
16 CLIP; HARNESS
(E) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-
16 CLIP; HARNESS
(F) ID=18 L=40 		1-09701-111-0 01 1 1009-
16 CLIP; HARNESS
(G) ID=16 L=50 		1-09701-158-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 07 1 1009-
16 CLIP; HARNESS
(J) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009-
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 08 1 1009-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-
16 CLIP; HARNESS
(L) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009-
16 CLIP; HARNESS
(N) D=11 H=40 L=20 		8-94246-610-0 01 1 1009-
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009-
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106-
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009-
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009-
16 CLIP; HARNESS
(P) ID=18 L=48 		9-09917-429-0 01 1 1009-
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009-
16 CLIP; HARNESS
(Q) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (I) ID=11 L=16 		0-95235-025-0 02 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1009-1206
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1009-1206
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (R) L=155 		8-97173-307-0 18 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (R) L=155 		8-97173-307-0 18 1 1009-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AH) L=40.6 		8-97229-357-0 02 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AH) L=40.6 		8-97229-357-0 02 1 1009-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) L=250 		5-09707-030-1 01 1 1009-1407
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 01 1 1408-
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=28 		0-95235-556-0 01 1 1009-
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=60 		0-95235-596-0 02 1 1009-
16 CLIP; HARNESS
EXC. SHIFT PATTERN SINGLE-H<EDY> (Y) ID=11 L=28 		0-95235-055-0 01 1 1009-
16 CLIP; HARNESS
EXC. SHIFT PATTERN SINGLE-H<EDY> (AA) ID=11 L=60 		0-95235-096-0 02 1 1009-
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 08 1 1009-
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 1009-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1109
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1110-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1110-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1009-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1009-1410
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 02 1 1411-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1410
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1009-
116 CLIP; ROOF HARNESS
LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 01 1 1009-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1009-
206 CLIP; FUEL TANK HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 01 1 1009-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1009-
421 CLIP; FLOOR HARNESS
ID=18 & 18 		8-94323-068-0 02 1 1009-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 01 1 1009-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=18 		1-09709-287-0 01 1 1009-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=5-12 L=22 		1-09709-288-0 01 1 1009-
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 02 1 1009-1111
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1112-1407
470 CLIP; HARNESS,LICENSE LAMP
(D) L=250 		5-09707-030-1 04 1 1408-
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41 		1-09700-403-0 01 1 1009-
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1009-
çizim 137115
7 53 53 53 53 53 53 53 53 312 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 1009-
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 1009-1404
53 BRACKET; HARNESS
(E) L=82 B=20 		8-98259-390-0 01 1 1405-
53 BRACKET; HARNESS
(F) L=65 		1-47479-064-1 01 1 1009-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1009-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 14 1 1009-
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 1009-
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 1009-
53 BRACKET; HARNESS
(C) L=115 		1-82698-360-0 01 1 1009-
53 BRACKET; HARNESS
(J) 		1-82698-514-0 01 1 1009-
53 BRACKET; HARNESS
(K) 		8-98052-458-0 01 1 1009-
53 BRACKET; HARNESS
(L) 		8-98078-801-0 01 1 1009-
53 BRACKET; HARNESS
(M) 		8-98102-490-0 01 1 1009-
53 BRACKET; HARNESS
(I) 		8-98124-778-0 01 1 1009-
53 BRACKET; HARNESS
(D) 		8-98127-603-1 01 1 1009-
53 BRACKET; HARNESS
(B) 		8-98154-215-1 01 1 1009-1009
53 BRACKET; HARNESS
(B) 		8-98178-990-0 01 1 1010-
312 BRACKET; CLIP HARNESS
L=120 		8-97619-440-0 01 1 1009-
çizim 137301
211 335 335 375 375 375 600
BalonParca AdiParca NoAdetTipApplied Date
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) 		1-47479-430-0 02 1 1009-
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 1009-
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82698-167-0 01 1 1009-
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 1009-
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 1009-
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 1009-
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1009-

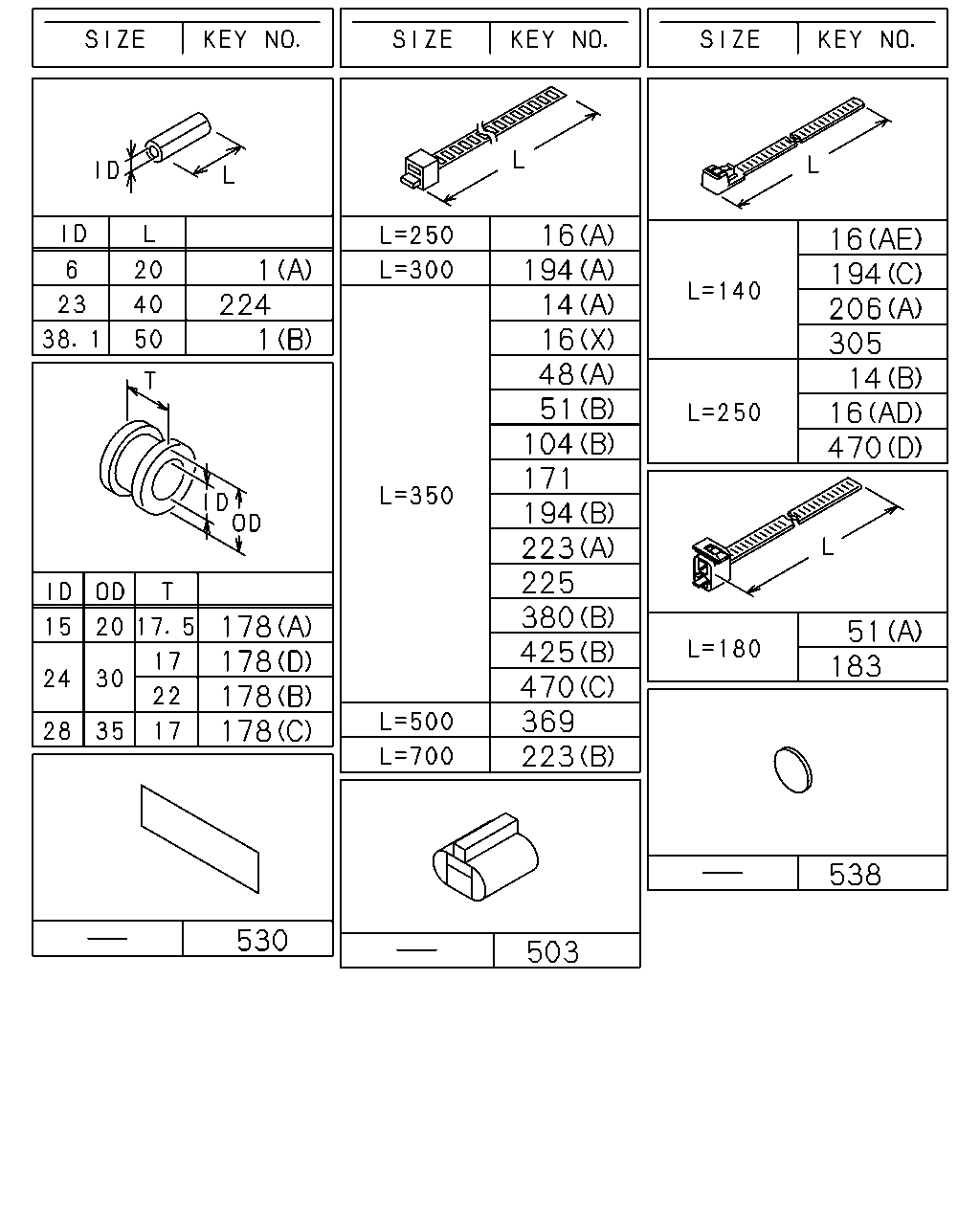

çizim 189424
1 224 1 178 178 178 178 530 16 194 14 16 48 51 104 171 194 223 225 380 425 470 369 223 503 16 194 206 305 14 16 470 51 183 538
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(A) ID=6 L=20 		1-09360-924-0 01 1 1009-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (B) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 1009-
14 CLIP; BAND,HARNESS
(B) L=250 		1-09707-126-0 02 1 1009-
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=350 		1-09707-183-0 02 1 1009-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1103-
16 CLIP; HARNESS
POOR QUALITY DIESEL FUEL<KF0> (AD) L=250 		5-09707-030-1 02 1 1103-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=250 		1-09707-126-0 01 1 1009-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 08 1 1009-
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 02 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1103-
16 CLIP; HARNESS
(H) ID=24 L=32 		1-09700-766-1 01 1 1009-
16 CLIP; HARNESS
(T) ID=18 H=23 L=28 		1-09700-860-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1009-
16 CLIP; HARNESS
(B) ID=25 H=30 L=35 		1-09700-875-0 01 1 1009-
16 CLIP; HARNESS
(C) ID=35 L=33 		1-09700-945-0 01 1 1009-
16 CLIP; HARNESS
(E) ID=28 H=45 L=30 		1-09700-948-0 01 1 1009-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1009-
16 CLIP; HARNESS
(F) ID=18 L=40 		1-09701-111-0 01 1 1009-
16 CLIP; HARNESS
(G) ID=16 L=50 		1-09701-158-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 01 1 1009-
16 CLIP; HARNESS
(Z) ID=5-12 L=18 		1-09709-287-0 07 1 1009-
16 CLIP; HARNESS
(J) ID=13-18 L=14.5 		1-09709-290-0 01 1 1009-
16 CLIP; HARNESS
(D) ID=18-24 L=18 		1-09709-294-0 08 1 1009-
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 04 1 1009-1102
16 CLIP; HARNESS
(AC) ID=5-12 L=14.5 		1-09987-221-0 02 1 1103-
16 CLIP; HARNESS
(L) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 1009-
16 CLIP; HARNESS
(AE) L=140 		5-09707-031-1 04 1 1009-
16 CLIP; HARNESS
(M) L=36 		8-94224-891-1 01 1 1009-
16 CLIP; HARNESS
(N) D=11 H=40 L=20 		8-94246-610-0 01 1 1009-
16 CLIP; HARNESS
(AF) ID=10 & 16 		8-94413-325-0 01 1 1009-
16 CLIP; HARNESS
(AB) ID=20 & 16.5 		8-94486-835-0 01 1 1009-
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 03 1 1009-1105
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1106-
16 CLIP; HARNESS
(O) ID=17 L=20 		8-97619-251-0 04 1 1009-
16 CLIP; HARNESS
(AI) ID=14 L=44 		9-09917-427-0 03 1 1009-
16 CLIP; HARNESS
(P) ID=18 L=48 		9-09917-429-0 01 1 1009-
16 CLIP; HARNESS
(AJ) ID=20 L=50 		9-09917-430-0 02 1 1009-
16 CLIP; HARNESS
(Q) ID=11 H=20 L=20 		8-98033-780-0 01 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (I) ID=11 L=16 		0-95235-025-0 02 1 1009-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1009-1206
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1009-1206
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 01 1 1207-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (R) L=155 		8-97173-307-0 18 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (R) L=155 		8-97173-307-0 18 1 1009-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AH) L=40.6 		8-97229-357-0 02 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AH) L=40.6 		8-97229-357-0 02 1 1009-
16 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-
16 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (AG) 		8-98052-679-0 02 1 1009-
16 CLIP; HARNESS
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (AD) L=250 		5-09707-030-1 01 1 1009-1407
16 CLIP; HARNESS
(AD) L=250 		5-09707-030-1 01 1 1408-
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (S) ID=16 L=28 		0-95235-556-0 01 1 1009-
16 CLIP; HARNESS
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> (V) ID=16 L=60 		0-95235-596-0 02 1 1009-
16 CLIP; HARNESS
EXC. SHIFT PATTERN SINGLE-H<EDY> (Y) ID=11 L=28 		0-95235-055-0 01 1 1009-
16 CLIP; HARNESS
EXC. SHIFT PATTERN SINGLE-H<EDY> (AA) ID=11 L=60 		0-95235-096-0 02 1 1009-
48 CLIP; FRAME HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 08 1 1009-
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1009-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1009-
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 14 1 1009-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1109
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1110-
48 CLIP; FRAME HARNESS
(D) ID=5-12 L=18 		1-09709-287-0 01 1 1110-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 1009-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 01 1 1009-1410
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=350 		1-09707-183-0 02 1 1411-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=5-12 L=18 		1-09709-287-0 01 1 1009-1410
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 03 1 1009-
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 		1-09709-179-0 01 1 1009-
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1009-
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1009-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 01 1 1009-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1009-
178 GROMMET; HARNESS
(D) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1009-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 1009-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 04 1 1009-
183 CLIP; CONNECTOR
L=180 		1-09707-162-1 01 1 1009-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 1009-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 1009-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 02 1 1009-
194 CLIP; BAND
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=300 		1-09707-001-1 02 1 1009-
206 CLIP; FUEL TANK HARNESS
(B) ID=5-12 L=18 		1-09709-287-0 01 1 1009-
206 CLIP; FUEL TANK HARNESS
(A) L=140 		5-09707-031-1 02 1 1009-
223 CLIP; AIR TANK HARNESS
(A) L=350 		1-09707-183-0 01 1 1009-
223 CLIP; AIR TANK HARNESS
(B) L=700 		1-09707-190-0 02 1 1009-
224 SLEEVE; RUBBER,HARNESS
ID=23 OD=27 L=40 		1-09337-015-0 01 1 1009-
225 CLIP; AIR TANK HARNESS
L=350 		1-09707-183-0 02 1 1009-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 1009-
369 CLIP; BAND EDS HARNESS
L=500 		1-09707-082-1 01 1 1009-
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1009-
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 01 1 1009-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) L=350 		1-09707-183-0 01 1 1009-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) ID=5-12 L=18 		1-09709-287-0 01 1 1009-
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) ID=5-12 L=22 		1-09709-288-0 01 1 1009-
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (C) L=350 		1-09707-183-0 02 1 1009-1111
470 CLIP; HARNESS,LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (D) L=250 		5-09707-030-1 04 1 1112-1407
470 CLIP; HARNESS,LICENSE LAMP
(D) L=250 		5-09707-030-1 04 1 1408-
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (B) ID=11 L=41 		1-09700-403-0 01 1 1009-
470 CLIP; HARNESS,LICENSE LAMP
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) OD=9 H=6 		1-09709-178-0 01 1 1009-
503 CONNECTOR 1-82690-666-0 01 1 1009-
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1009-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1009-
çizim 189430
38 150 38 139 150 466 242 38 150 38 127 38 386 358 377 242 38 377 386 38 386 490 38 38 86 139 242 313 38 139 139 524 294 219 340 525 515 423
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(I) M6X10 FLANGE 		0-28050-610-0 01 1 1009-
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28050-812-0 02 1 1009-
38 BOLT; CLIP,HARNESS
(A) M8X35 FLANGE 		0-28050-835-0 03 1 1009-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1009-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 07 1 1009-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1009-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 04 1 1009-
38 BOLT; CLIP,HARNESS
(F) M8X35 FLANGE 		0-28650-835-0 01 1 1009-
38 BOLT; CLIP,HARNESS
(F) M8X35 FLANGE 		0-28650-835-0 02 1 1009-
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		1-09044-079-0 01 1 1009-1105
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(H) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
38 BOLT; CLIP,HARNESS
(J) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1009-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1009-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1009-
139 BOLT; BRKT
(B) M8X12 FLANGE 		0-28050-812-0 01 1 1009-
139 BOLT; BRKT
(C) M10X20 FLANGE 		0-28151-020-0 02 1 1009-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 13 1 1009-
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1009-1010
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1011-
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 1011-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 04 1 1009-1407
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1408-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1010
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-1010
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 01 1 1011-1407
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28650-830-0 04 1 1408-
150 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 01 1 1009-
150 BOLT; CLIP
(A) M8X16 FLANGE 		0-28050-816-0 08 1 1009-
150 BOLT; CLIP
(C) M8X66 FLANGE 		8-98081-507-0 02 1 1009-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1009-
219 NUT
M8 FLANGE 		0-91180-108-0 09 1 1009-
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 02 1 1009-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28050-820-0 01 1 1009-
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1009-
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1009-
294 NUT
M8 FLANGE 		0-91180-108-0 08 1 1009-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 01 1 1009-
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91180-108-0 04 1 1009-
313 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 1009-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 1009-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1009-
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1009-
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1009-
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1009-
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1009-1202
386 BOLT; GRAND HARNESS
(C) M8X24 W/PL WASHER 		8-98141-256-1 02 1 1203-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1009-
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 1009-
490 BOLT; CLIP,RELAY BOX
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 1009-1407
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1408-
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1009-1407
515 NUT; BRKT
M8 FLANGE 		0-91180-108-0 13 1 1408-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1009-
525 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
