◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#71313) — 211 parça

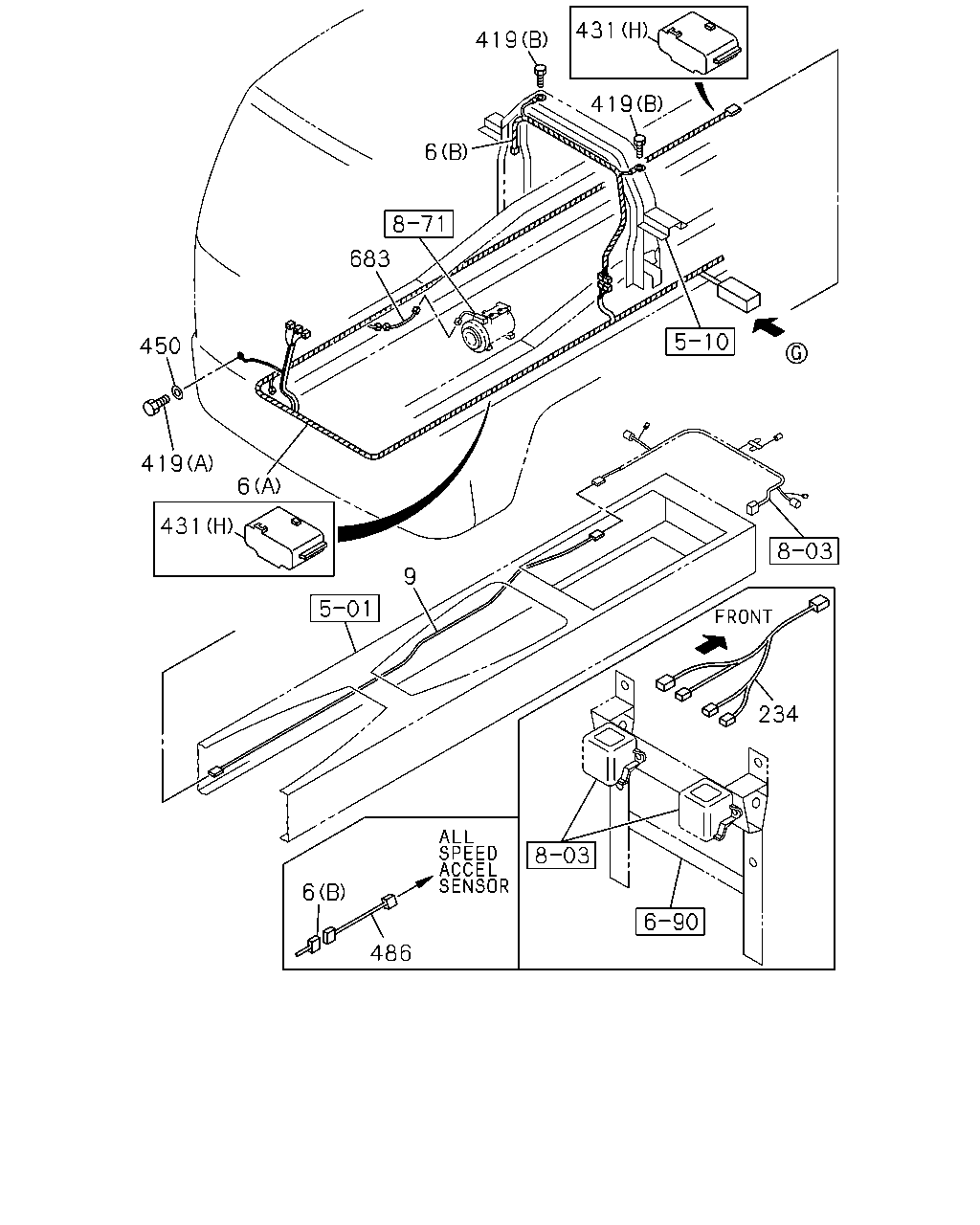

çizim 136023
431 419 6 419 683 450 6 419 431 234 6 486 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98165-038-2 01 1 1009-
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98165-037-2 01 1 1009-
9 HARNESS; FRAME,RR 8-98165-039-0 01 1 1009-
234 HARNESS; LICENSE LAMP
HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98131-066-0 01 1 1009-
419 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 1009-
419 BOLT; CAB EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 1009-1201
419 BOLT; CAB EARTH
(B) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1202-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1207
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1207
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 01 1 1009-
486 HARNESS; ALL SPEED ACCEL
ENGINE REAR PTO(SV1) 		8-98163-095-0 01 1 1009-
683 HARNESS; EXT,COOLER
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97609-020-1 01 1 1009-

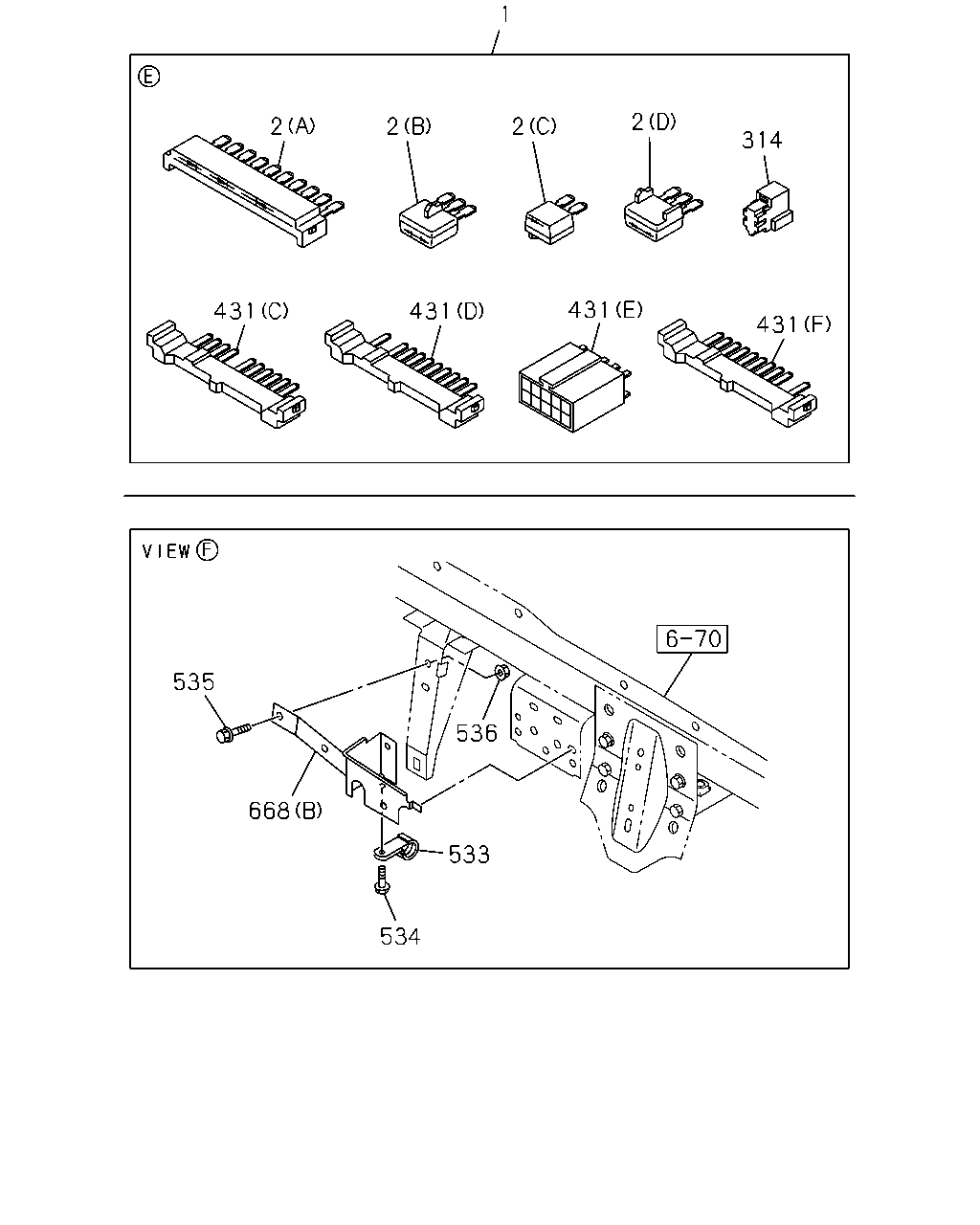

çizim 136309
2 2 2 2 314 431 431 431 431 535 668 536 533 534 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) 		8-98234-213-1 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98234-213-3 01 1 1306-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> SINGAPORE EQUIPMENT(WQ3) 		8-98234-212-1 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98234-212-3 01 1 1306-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) IN HOUSE PRODUCTION<TKF> 		8-98192-078-0 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98192-078-0 01 1 1204-1207
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98210-561-0 01 1 1208-1303
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) 		8-98210-561-0 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) IN HOUSE PRODUCTION<TKF> 		8-98192-077-0 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98192-077-0 01 1 1204-1207
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98210-560-0 01 1 1208-1303
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) 		8-98210-560-0 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98155-304-4 01 1 1009-1104
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98155-304-4 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98164-920-3 01 1 1009-1104
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98164-920-3 01 1 1105-1203
2 DIODE; CABLE HARNESS
SINGAPORE EQUIPMENT(WQ3) (C) BLACK 2P-1.5A 		8-94422-639-1 02 1 1304-1305
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1009-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A 		8-94416-438-1 01 1 1009-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-1303
2 DIODE; CABLE HARNESS
HONG KONG EQUIPMENT(PQ1) (C) BLACK 2P-1.5A 		8-94422-639-1 01 1 1304-1305
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A 		8-94422-639-1 02 1 1306-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 1009-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1009-1207
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1207
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1207
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009-
533 CLIP
ID=31 L=35 		1-09700-329-1 01 1 1009-
534 BOLT
M8X20 FLANGE 		0-28650-820-0 01 1 1009-
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1009-1302
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 03 1 1303-1303
535 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1304-
536 NUT; BRKT FIX
M8 		8-98041-929-0 01 1 1009-
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1009-
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1009-

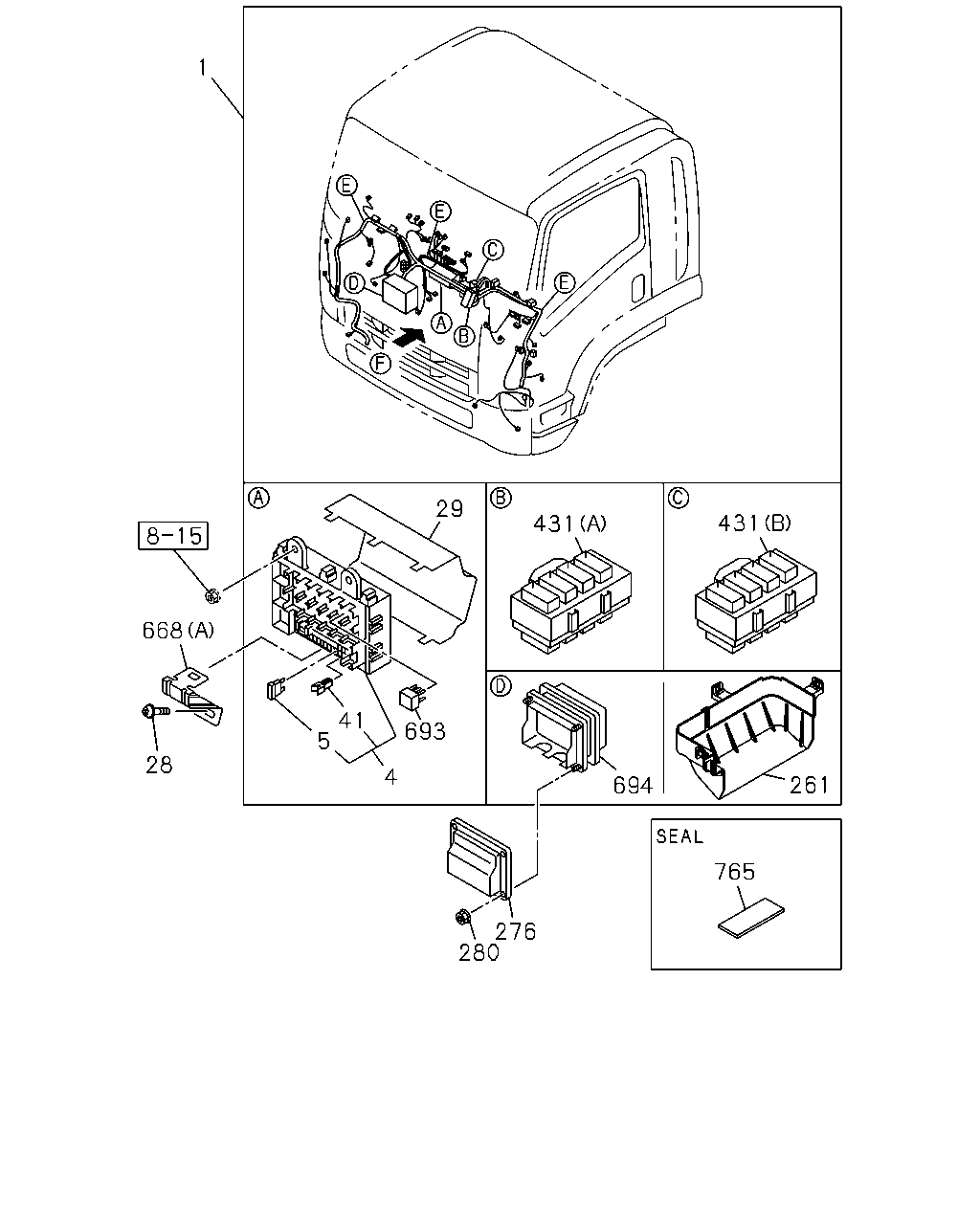

çizim 136378
668 28 29 1 5 693 41 276 280 694 31 765 261 431 4
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) 		8-98234-213-1 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98234-213-3 01 1 1306-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> SINGAPORE EQUIPMENT(WQ3) 		8-98234-212-1 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98234-212-3 01 1 1306-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) IN HOUSE PRODUCTION<TKF> 		8-98192-078-0 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98192-078-0 01 1 1204-1207
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98210-561-0 01 1 1208-1303
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) 		8-98210-561-0 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) IN HOUSE PRODUCTION<TKF> 		8-98192-077-0 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98192-077-0 01 1 1204-1207
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98210-560-0 01 1 1208-1303
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) 		8-98210-560-0 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98155-304-4 01 1 1009-1104
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98155-304-4 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98164-920-3 01 1 1009-1104
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98164-920-3 01 1 1105-1203
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1009-
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1009-
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1009-
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1009-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 AR 1 1009-
28 SCREW; FUSE BOX
M6X16 FLANGE 		0-28650-616-0 01 1 1009-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1009-
41 PULLER; FUSE 8-98054-260-0 01 1 1009-
261 COVER; CONNECTOR BOX 8-98065-986-1 01 1 1009-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1009-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 1009-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1207
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1207
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009-
668 BRACKET; HARNESS
(A) 		8-98095-653-2 01 1 1009-
668 BRACKET; HARNESS
(B) 		8-98117-572-0 01 1 1009-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1009-
694 BOX ASM; CONNECTOR 8-98057-771-0 01 1 1009-
765 TAPE
100X40 		1-72498-022-1 01 1 1409-1512

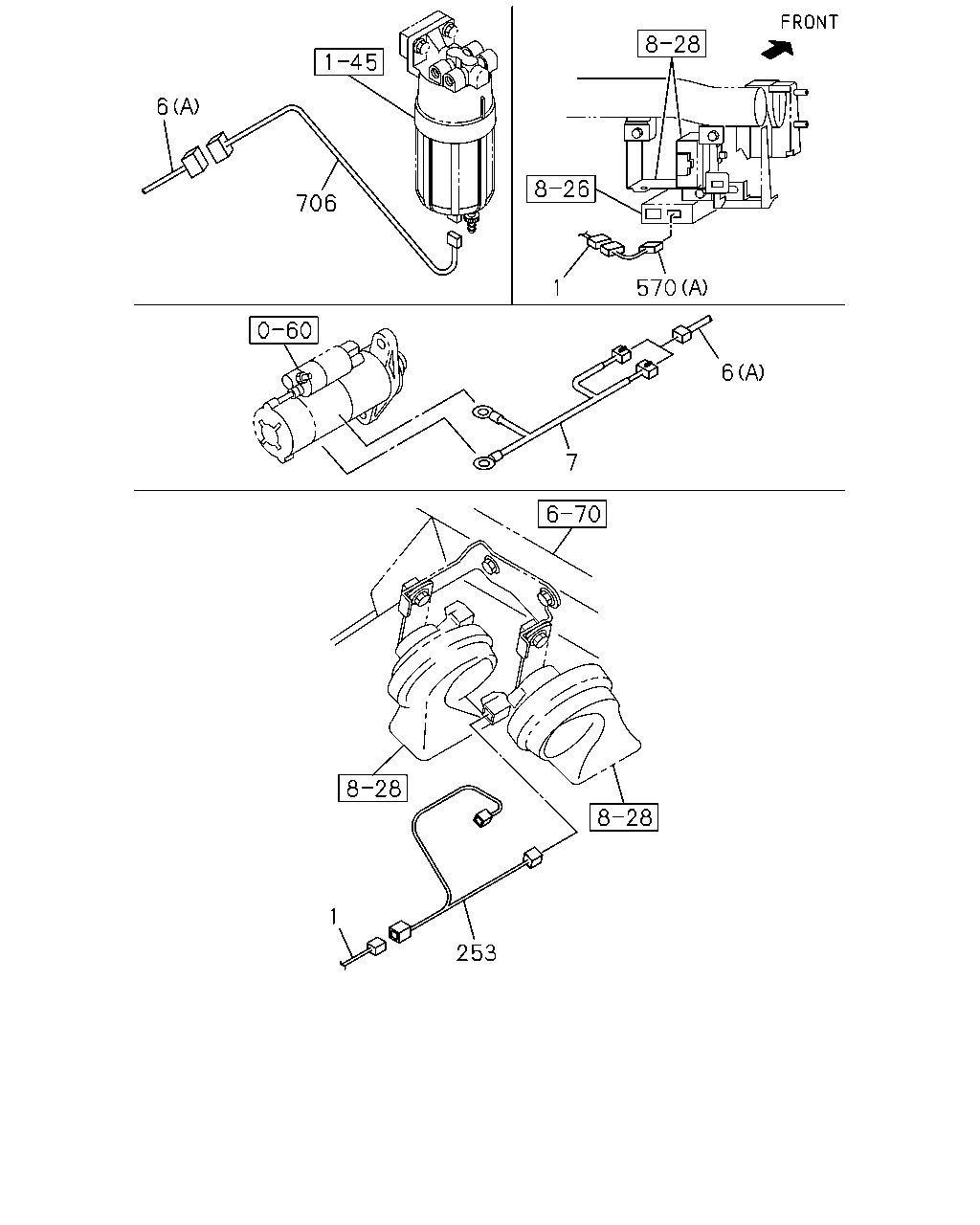

çizim 136636
6 706 1 570 6 7 253 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> SINGAPORE EQUIPMENT(WQ3) 		8-98234-213-1 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98234-213-3 01 1 1306-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> SINGAPORE EQUIPMENT(WQ3) 		8-98234-212-1 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98234-212-3 01 1 1306-
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) IN HOUSE PRODUCTION<TKF> 		8-98192-078-0 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98192-078-0 01 1 1204-1207
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98210-561-0 01 1 1208-1303
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1) 		8-98210-561-0 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) IN HOUSE PRODUCTION<TKF> 		8-98192-077-0 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98192-077-0 01 1 1204-1207
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98210-560-0 01 1 1208-1303
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1) 		8-98210-560-0 01 1 1304-1305
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98155-304-4 01 1 1009-1104
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN DOUBLE-H<EDZ> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98155-304-4 01 1 1105-1203
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) 		8-98164-920-3 01 1 1009-1104
1 HARNESS; CAB
ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98164-920-3 01 1 1105-1203
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98165-038-2 01 1 1009-
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98165-037-2 01 1 1009-
7 LINK ASM; FUSIBLE
ENGINE REAR PTO(SV1) EXC. GENERATOR 24V90A(K44) 		8-98106-137-0 01 1 1009-
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) ENGINE REAR PTO(SV1) 		8-98106-138-0 01 1 1009-
7 LINK ASM; FUSIBLE
GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1) 		8-98103-000-0 01 1 1009-
7 LINK ASM; FUSIBLE
EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1) 		8-98088-132-0 01 1 1009-
253 HARNESS; EXT,HORN
ELECTRICAL HORN<WB7> 		8-98074-081-2 01 1 1009-
253 HARNESS; EXT,HORN
EXC. ELECTRICAL HORN<WB7> 		8-98074-080-3 01 1 1009-
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (B) 		8-98058-327-1 01 1 1009-
570 HARNESS; SPEED SENSOR
(A) 		8-98148-602-0 01 1 1009-
706 HARNESS; EXT,SEDIMENTER
POOR QUALITY DIESEL FUEL<KF0> 		8-98187-172-1 01 1 1103-
706 HARNESS; EXT,SEDIMENTER 8-98079-754-0 01 1 1009-1102
706 HARNESS; EXT,SEDIMENTER
EXC. POOR QUALITY DIESEL FUEL<KF0> 		8-98079-754-0 01 1 1103-

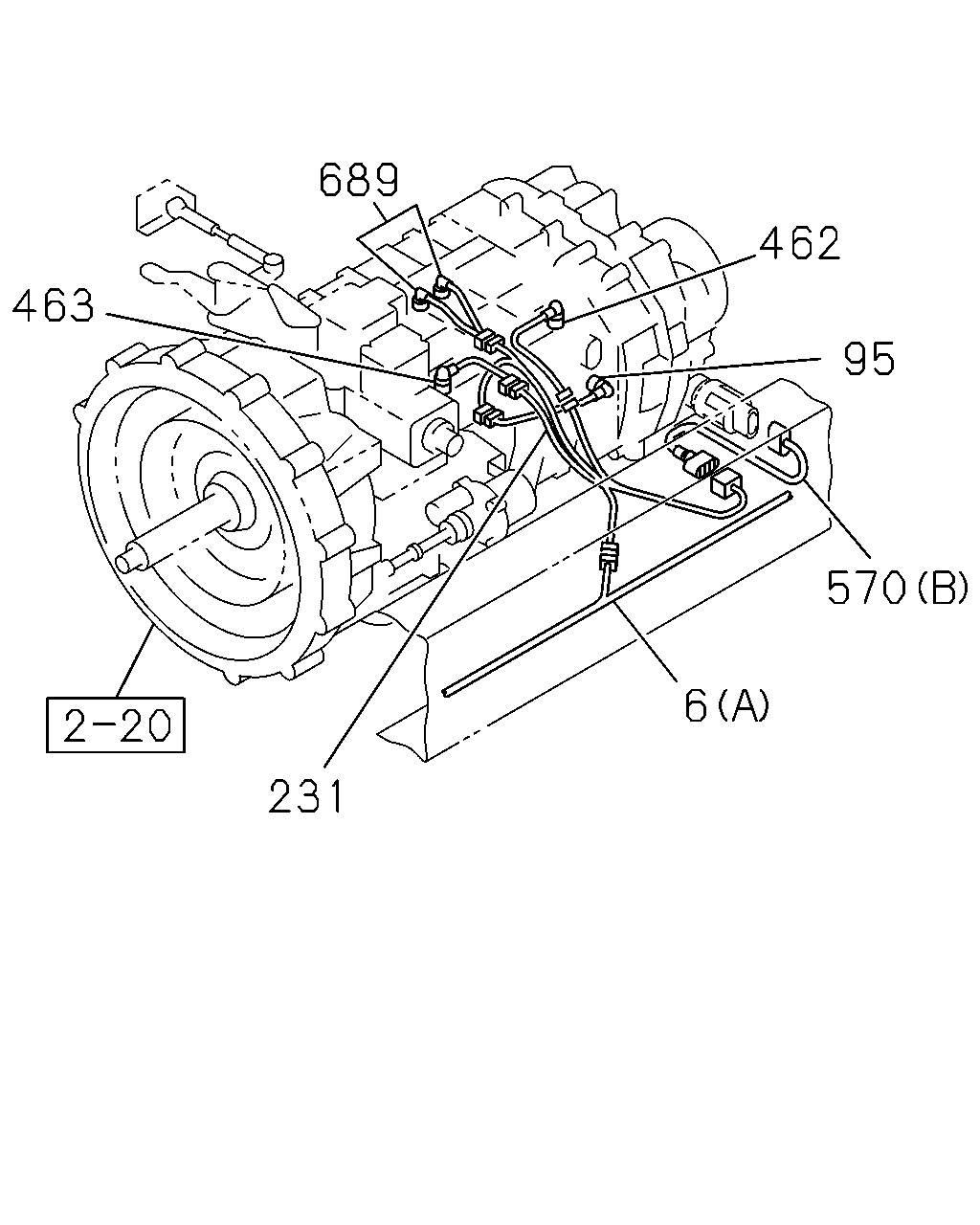

çizim 137041
231 6 570 95 462 689 463
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98165-038-2 01 1 1009-
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98165-037-2 01 1 1009-
95 HARNESS; NEUTRAL SW
SHIFT PATTERN DOUBLE-H<EDZ> RED 		8-98145-855-0 01 1 1009-
95 HARNESS; NEUTRAL SW
SHIFT PATTERN SINGLE-H<EDY> RED 		8-98145-854-0 01 1 1009-
231 HARNESS; TRANS
SHIFT PATTERN SINGLE-H<EDY> 		8-98163-093-0 01 1 1009-
231 HARNESS; TRANS
EXC. SHIFT PATTERN SINGLE-H<EDY> 		8-98172-096-0 01 1 1009-
462 HARNESS; SW,RANGE
BLUE 		8-98145-857-0 01 1 1009-
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1009-
570 HARNESS; SPEED SENSOR
ZF9S1310 M/T(Y5K) (B) 		8-98058-327-1 01 1 1009-
570 HARNESS; SPEED SENSOR
(A) 		8-98148-602-0 01 1 1009-
689 HARNESS; PRESSURE & ECU SWITCH
SHIFT PATTERN SINGLE-H<EDY> 		1-82659-229-1 01 1 1009-1101
689 HARNESS; PRESSURE & ECU SWITCH
SHIFT PATTERN SINGLE-H<EDY> 		8-98148-603-0 01 1 1102-

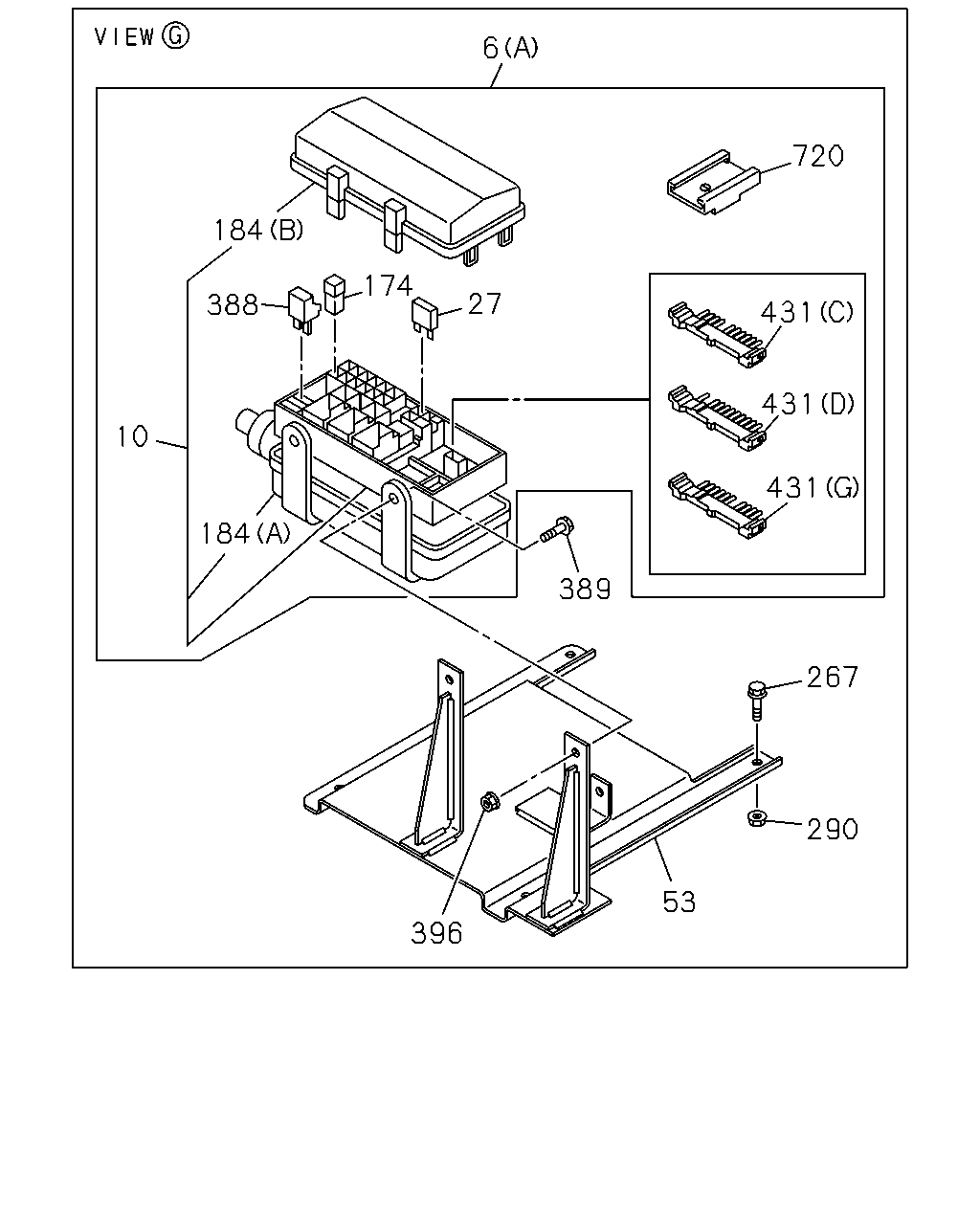

çizim 137118
53 290 267 396 184 10 388 184 174 389 431 431 431 720 6 27
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98165-038-2 01 1 1009-
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98165-037-2 01 1 1009-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1009-
27 FUSE UNIT
10A RED 		8-98054-257-0 03 1 1009-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 01 1 1009-
53 BRACKET; FUSE BOX 8-98168-973-2 01 1 1009-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 1009-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 1009-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 1009-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1009-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1408-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1009-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1009-
267 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1009-
267 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1009-
290 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1009-
388 DIODE; RELAY BOX
BLACK 4P-1.5A 		8-94381-730-0 01 1 1009-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 1009-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1009-
396 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 03 1 1009-1102
396 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 1103-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1009-1207
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1009-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 07 1 1009-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 08 1 1009-1207
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 1009-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1009-1207
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1009-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1009-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1009-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1009-

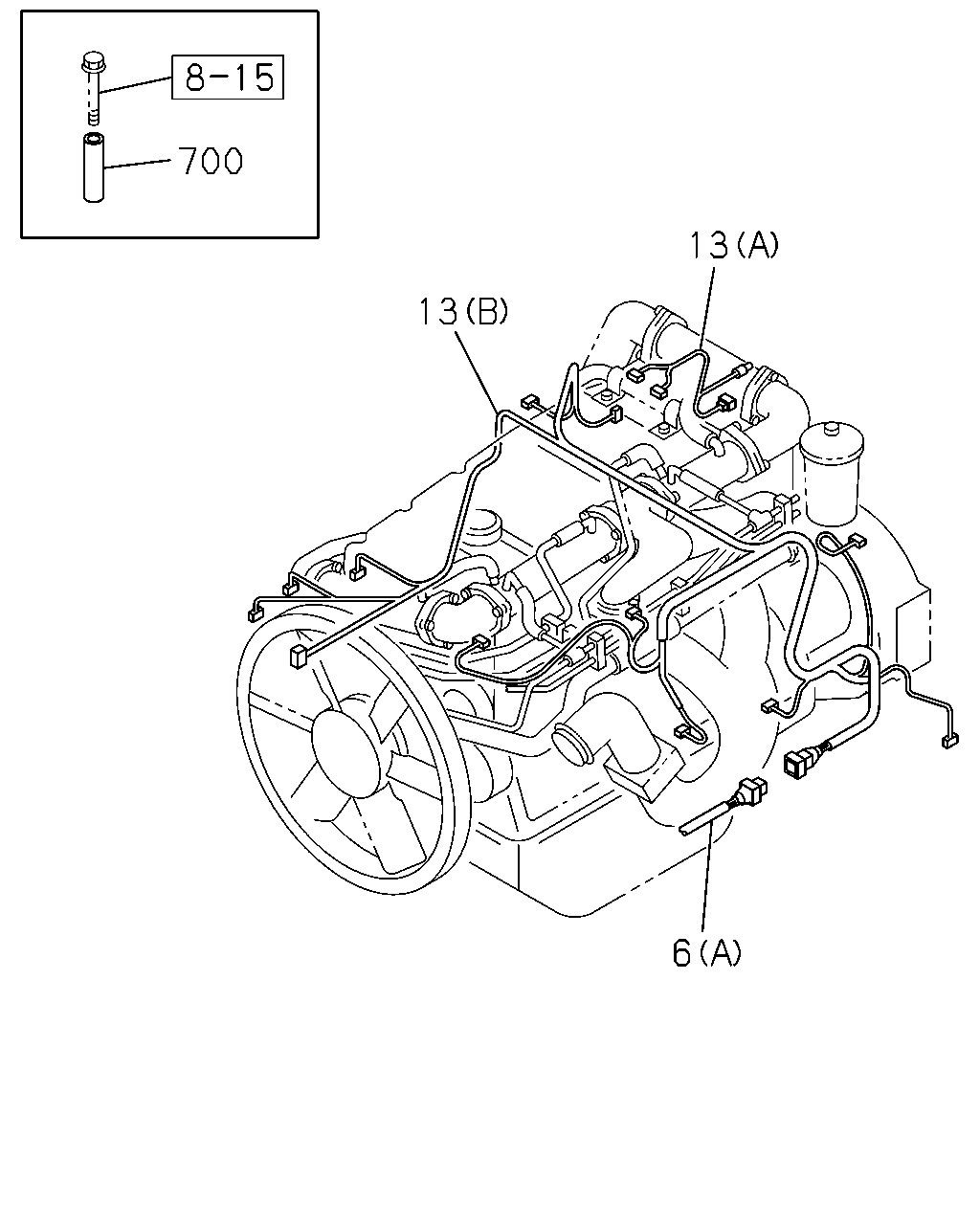

çizim 189426
700 13 13 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98165-038-2 01 1 1009-
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98165-037-2 01 1 1009-
13 HARNESS; ENG
(B) 		8-97628-333-4 01 1 1009-1204
13 HARNESS; ENG
(B) 		8-98210-223-1 01 1 1205-
13 HARNESS; ENG
(A) 		8-98160-805-0 01 1 1009-
700 TUBE; DISTANCE
L=51 		1-11369-157-0 02 1 1009-

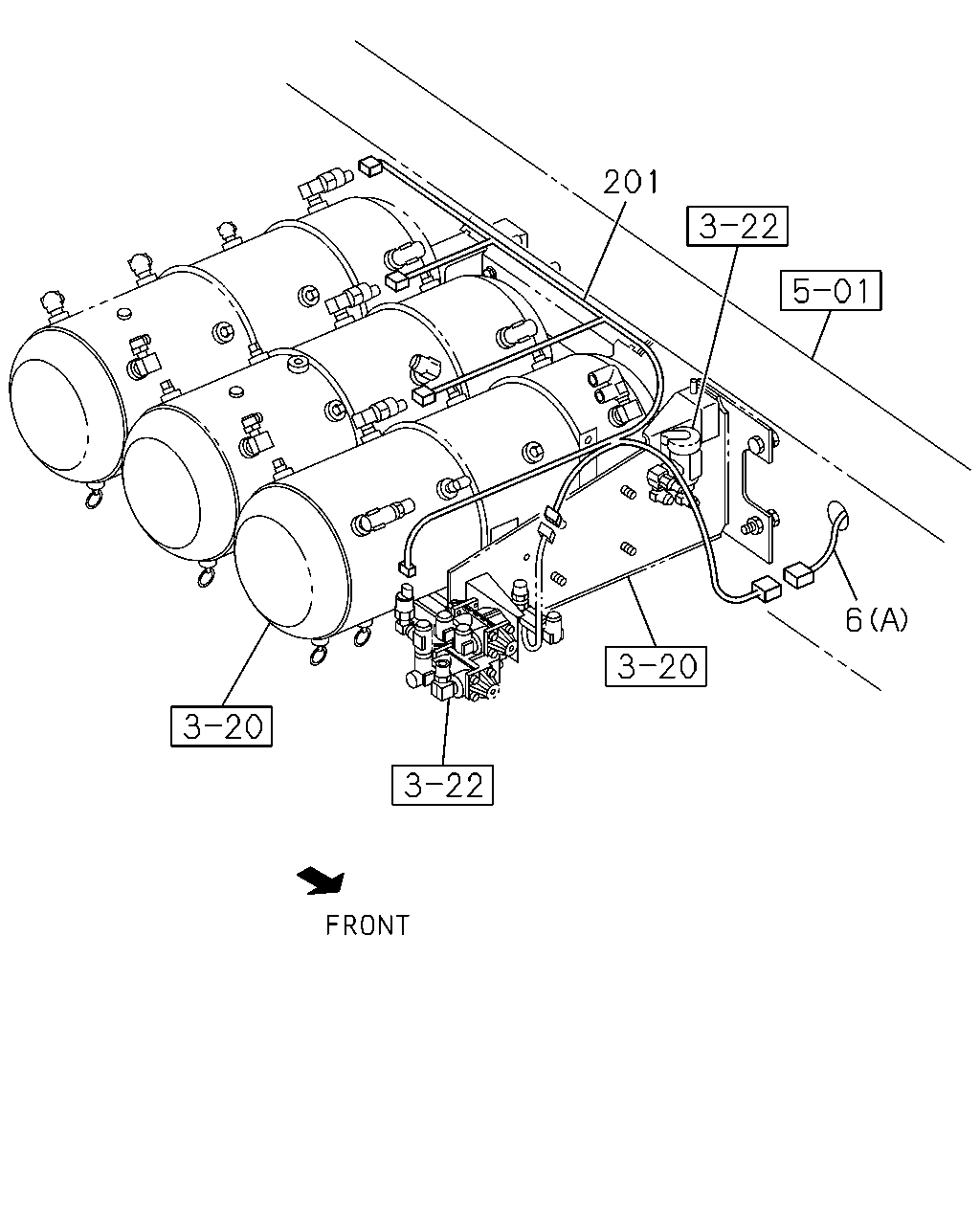

çizim 189427
201 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(B) 		8-98156-190-1 01 1 1009-
6 HARNESS; FRAME
GENERATOR 24V90A(K44) (A) 		8-98165-038-2 01 1 1009-
6 HARNESS; FRAME
EXC. GENERATOR 24V90A(K44) (A) 		8-98165-037-2 01 1 1009-
201 HARNESS; AIR TANK 8-98079-765-5 01 1 1009-

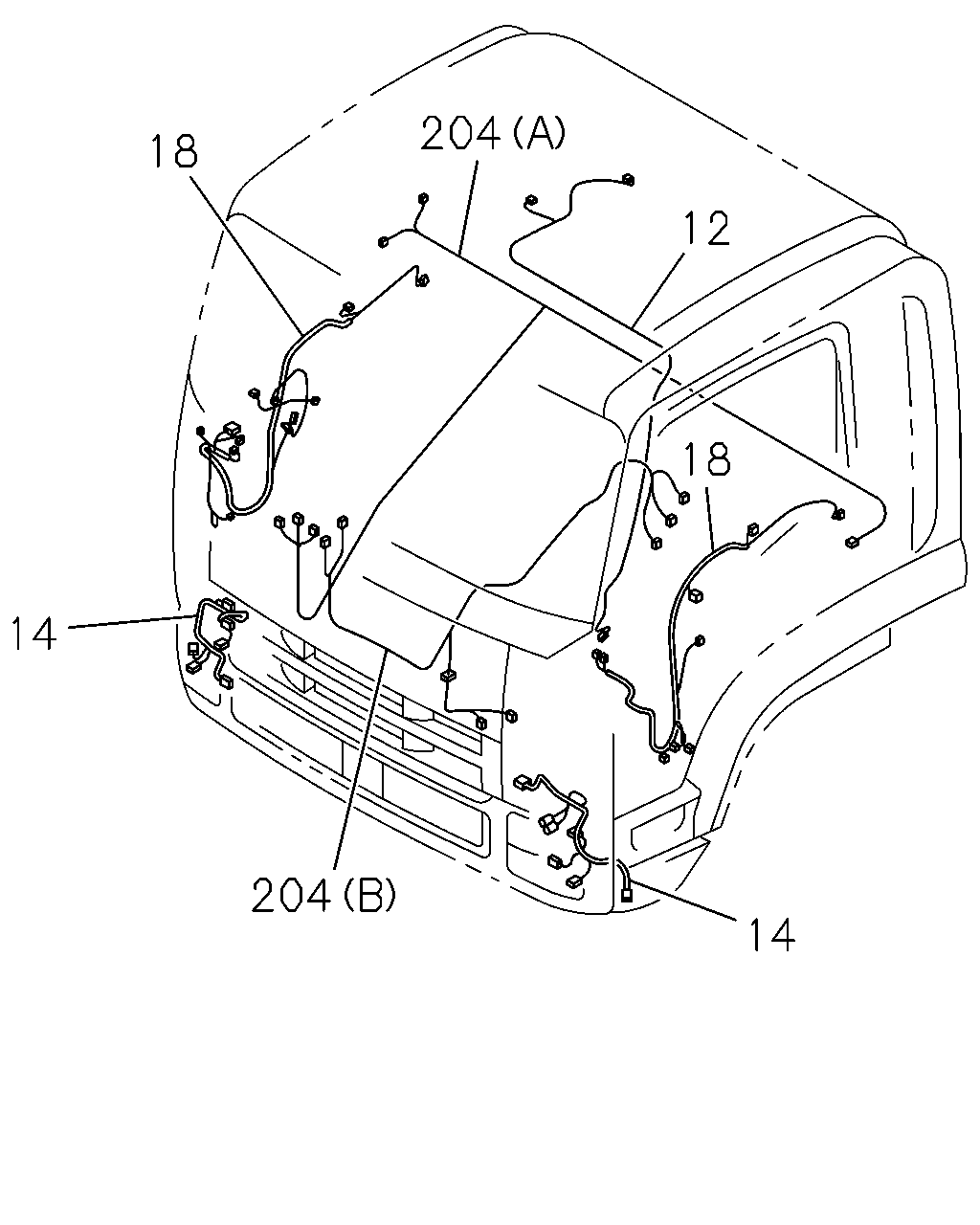

çizim 189432
18 204 12 18 14 204 14
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98048-931-2 01 1 1009-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC> 		8-98079-072-1 01 1 1009-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC> 		8-98085-333-0 01 1 1009-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC> 		8-98041-949-2 01 1 1009-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98103-680-1 02 1 1009-
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98075-629-3 02 1 1009-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-288-3 01 1 1009-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98084-283-3 01 1 1009-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-440-1 01 1 1009-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98108-439-1 01 1 1009-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98076-305-3 01 1 1009-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98076-304-3 01 1 1009-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-287-3 01 1 1009-
18 HARNESS; DOOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-282-3 01 1 1009-
204 HARNESS; CABLE,FLOOR
(B) 		8-98155-317-2 01 1 1009-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) (A) 		8-98155-318-0 01 1 1009-

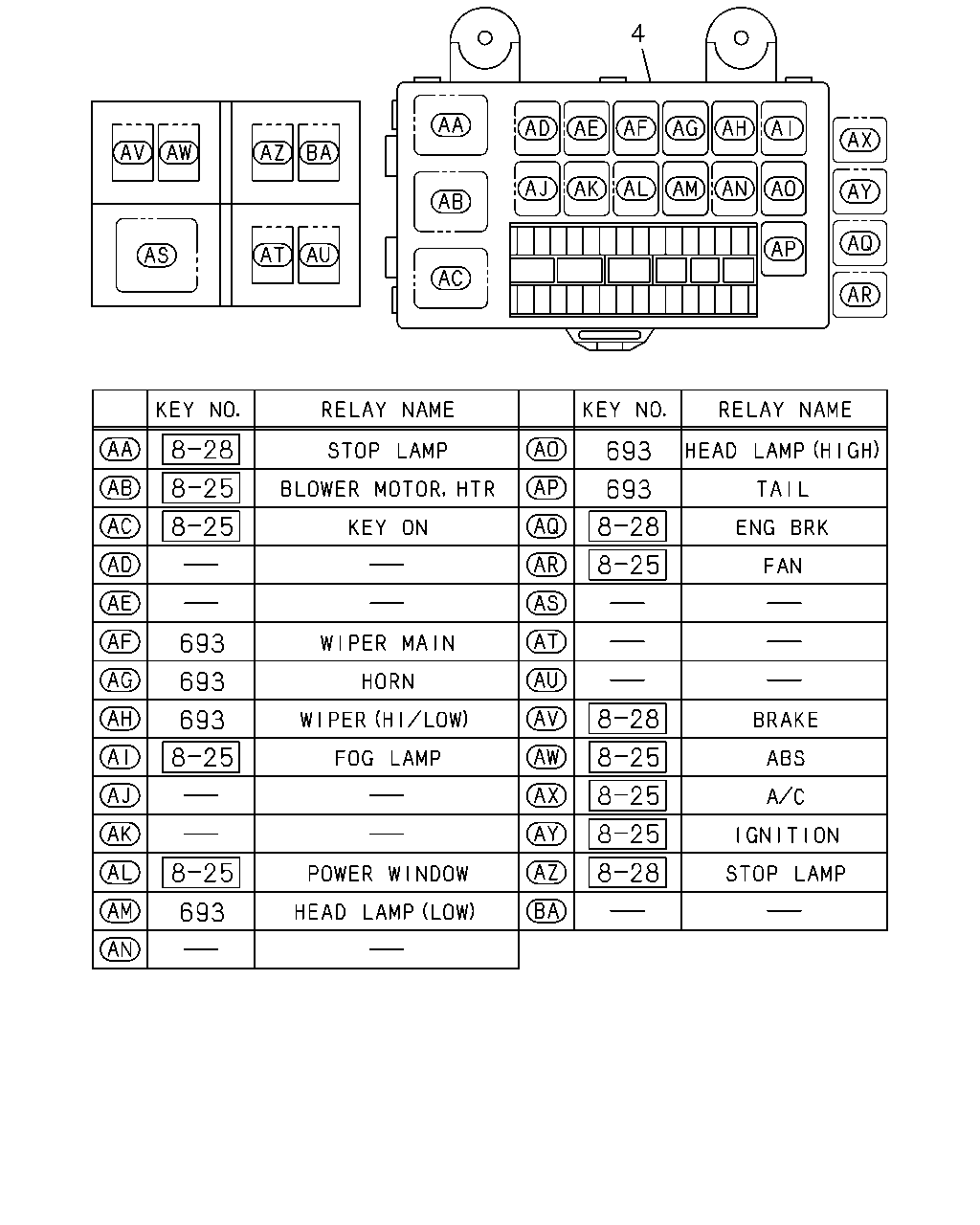

çizim 464841
4 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1009-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
