Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#71307) — 497 parça

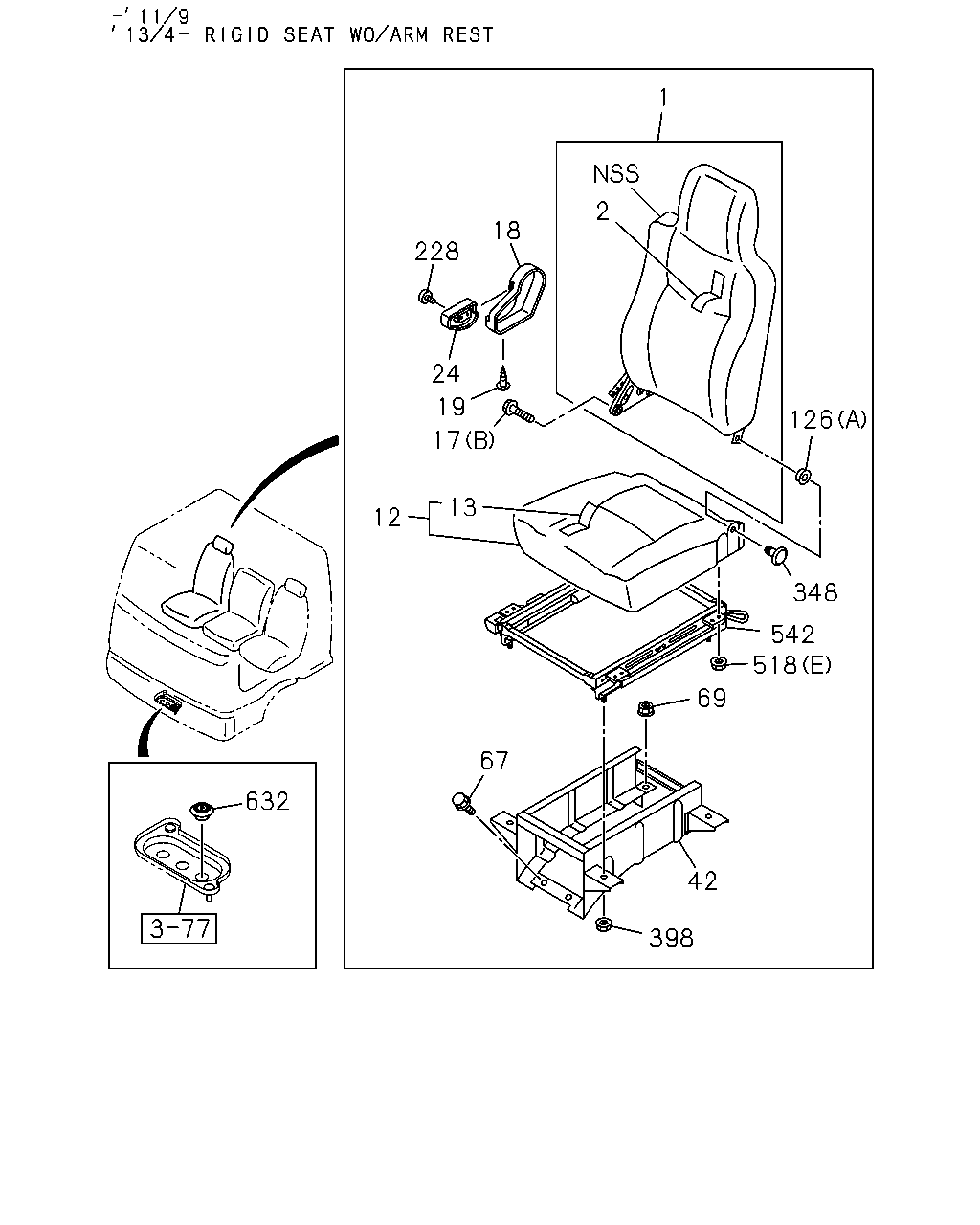

1 2 18 228 24 17 19 13 12 632 67 69 542 518 348 126 42 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97416-201-0	01	1	1009-1009
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1010-1512
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1009-1502
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97416-206-0	01	1	1009-1009
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1009-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97416-211-1	01	1	1009-1009
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1010-1512
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1009-1502
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97416-215-0	01	1	1009-1009
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1010-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1009-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1009-1502
17	BOLT; RECLINING DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1009-
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1009-1502
18	COVER; RECLINING DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER M5	8-98062-663-0	01	1	1009-1502
19	SCREW; COVER DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1009-1502
24	KNOB; RECLINING,FRT,SEAT DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1510-
42	STAND; DRIVER SEAT	1-75558-604-1	01	1	1009-1109
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1009-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1009-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1009-1502
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1009-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109
228	SCREW; KNOB M4	8-98062-662-0	01	1	1009-1502
228	SCREW; KNOB DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
398	NUT; STAND M8 FLANGE	1-75538-207-0	04	1	1009-1109
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1009-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE	8-98093-310-0	01	1	1009-1109
632	GROMMET RIGID SEAT WO/ARM REST(TAZ) OD=24	8-94119-796-0	01	1	1009-1109

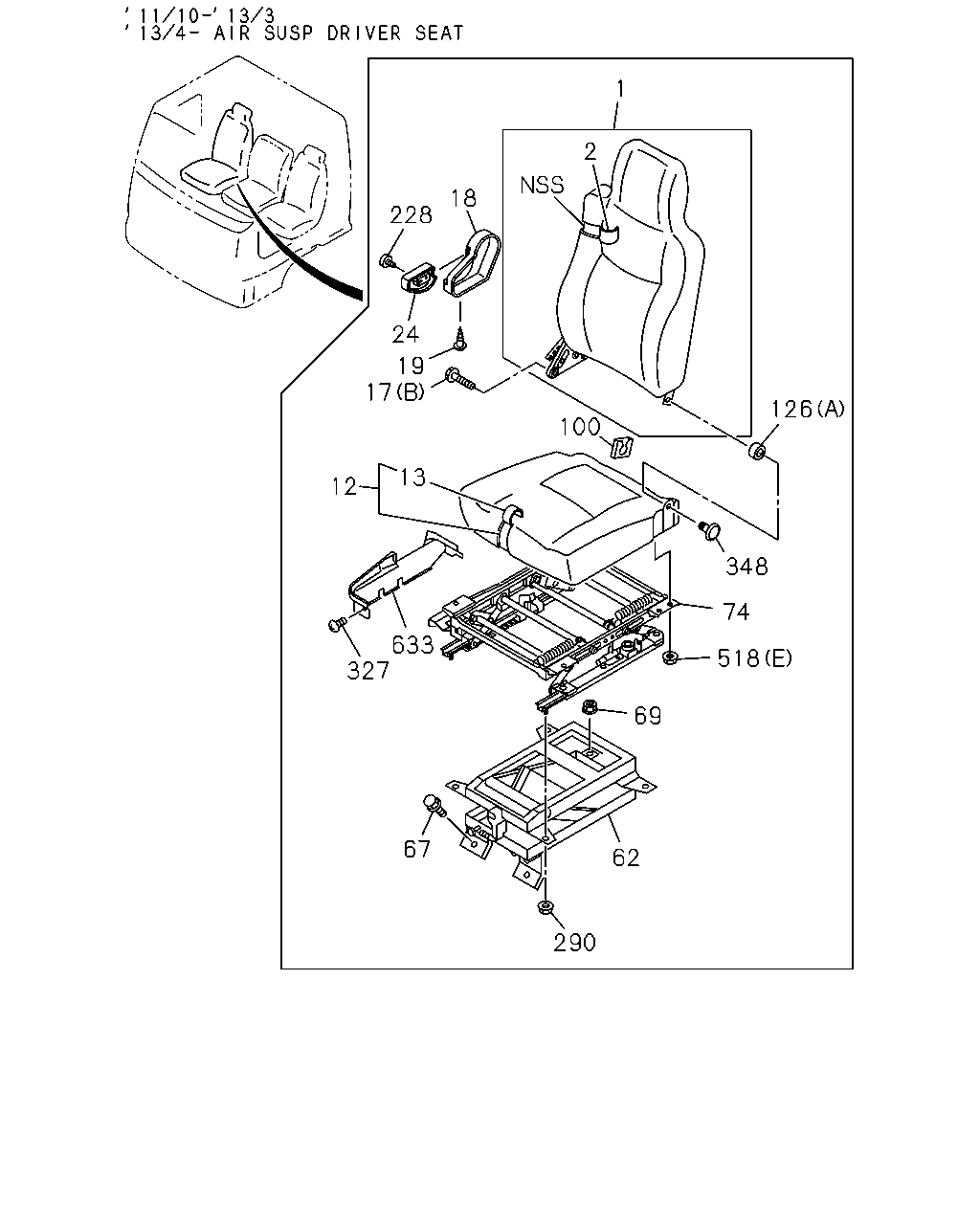

228 18 1 2 126 100 17 24 12 19 13 348 74 518 69 62 290 67 633 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97416-201-0	01	1	1009-1009
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-406-1	01	1	1010-1512
1	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1009-1502
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97466-618-0	01	1	1601-
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97416-206-0	01	1	1009-1009
2	COVER; TRIM,FRT SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-411-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1009-1502
2	COVER; TRIM,FRT SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-910-2	01	1	1510-
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97416-211-1	01	1	1009-1009
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97421-397-2	01	1	1010-1512
12	CUSHION; SEAT,FRT DELUXE SEAT(PQ8) DARK GRAY	8-97466-610-0	01	1	1601-
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1009-1502
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97409-954-2	01	1	1510-1512
12	CUSHION; SEAT,FRT VINYL SEAT(A83) DARK GRAY	8-97466-606-0	01	1	1601-
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97416-215-0	01	1	1009-1009
13	COVER; TRIM,FRT SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-401-2	01	1	1010-
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1009-1502
13	COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-909-1	01	1	1510-
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1009-1502
17	BOLT; RECLINING DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1009-
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1009-1502
18	COVER; RECLINING DELUXE SEAT(PQ8) GRAY	8-97409-332-0	01	1	1503-1509
18	COVER; RECLINING GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER M5	8-98062-663-0	01	1	1009-1502
19	SCREW; COVER DELUXE SEAT(PQ8) M5	8-98062-663-0	01	1	1503-1509
19	SCREW; COVER M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1009-1502
24	KNOB; RECLINING,FRT,SEAT DELUXE SEAT(PQ8) GRAY	8-97409-333-0	01	1	1503-1509
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-333-0	01	1	1510-

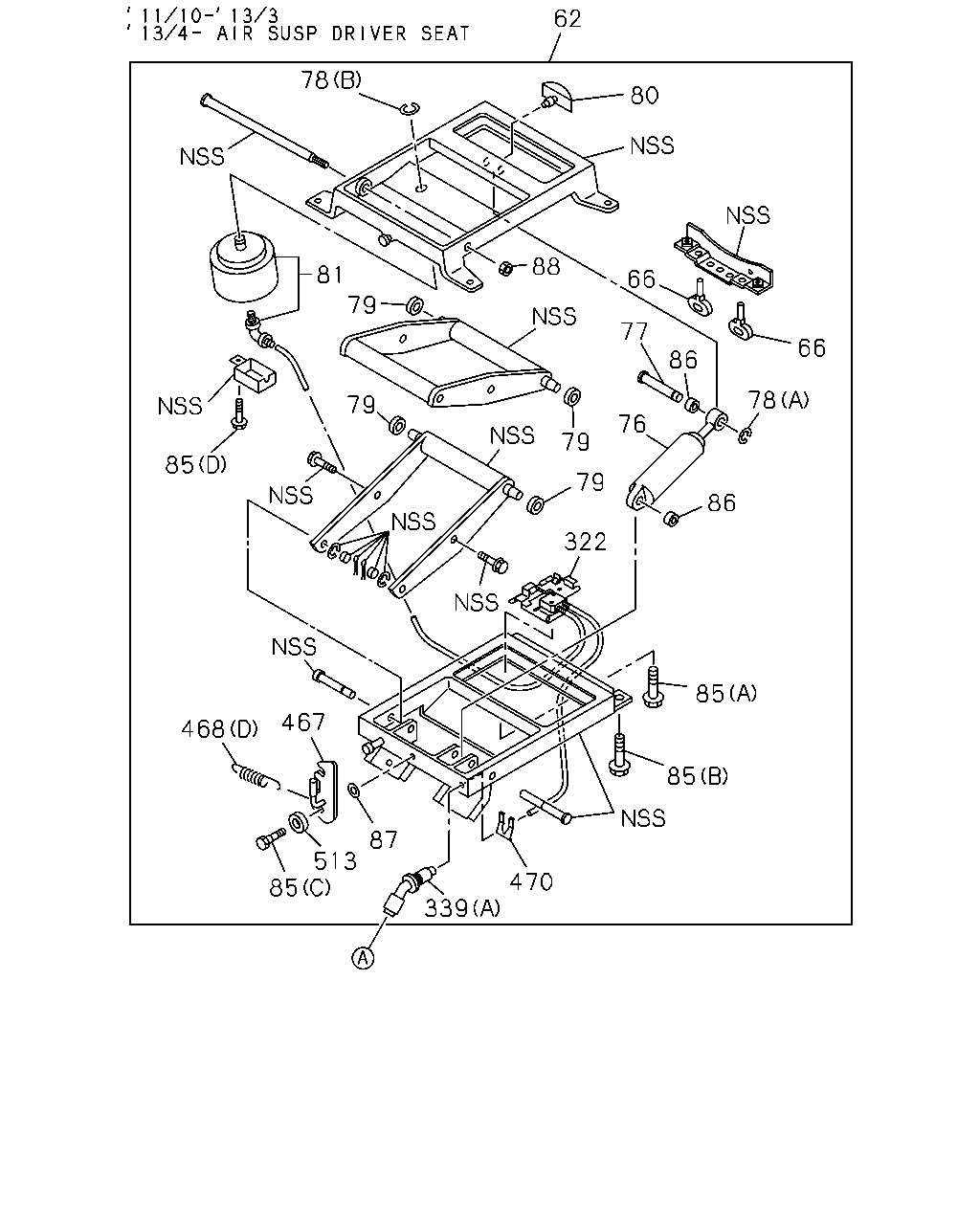

62	DAMPER ASM; SEAT SUSP	1-75538-183-9	01	1	1110-1403
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE	0-28451-020-0	02	1	1009-
69	NUT; FRT SEAT M10 FLANGE	0-91180-110-0	02	1	1009-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98003-678-0	01	1	1110-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-640-0	01	1	1510-
100	COVER; HINGE	8-98203-070-0	01	1	1110-1502
100	COVER; HINGE DELUXE SEAT(PQ8)	8-98203-070-0	01	1	1503-1509
100	COVER; HINGE	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1009-1502
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1009-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109
228	SCREW; KNOB M4	8-98062-662-0	01	1	1009-1502
228	SCREW; KNOB DELUXE SEAT(PQ8) M4	8-98062-662-0	01	1	1503-1509
228	SCREW; KNOB M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1110-1502
290	NUT; ADJ TO SUSP DELUXE SEAT(PQ8) M8 FLANGE	1-75538-207-0	04	1	1503-1509
290	NUT; ADJ TO SUSP M8 FLANGE	1-75538-207-0	04	1	1510-
327	CLIP; COVER	1-09987-273-0	01	1	1110-
348	BOLT; HINGE,SEAT	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1009-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
633	COVER; ADJ,TILT GRAY	8-97409-956-0	01	1	1110-1502
633	COVER; ADJ,TILT DELUXE SEAT(PQ8) GRAY	8-97409-956-0	01	1	1503-1509
633	COVER; ADJ,TILT GRAY	8-97409-956-0	01	1	1510-

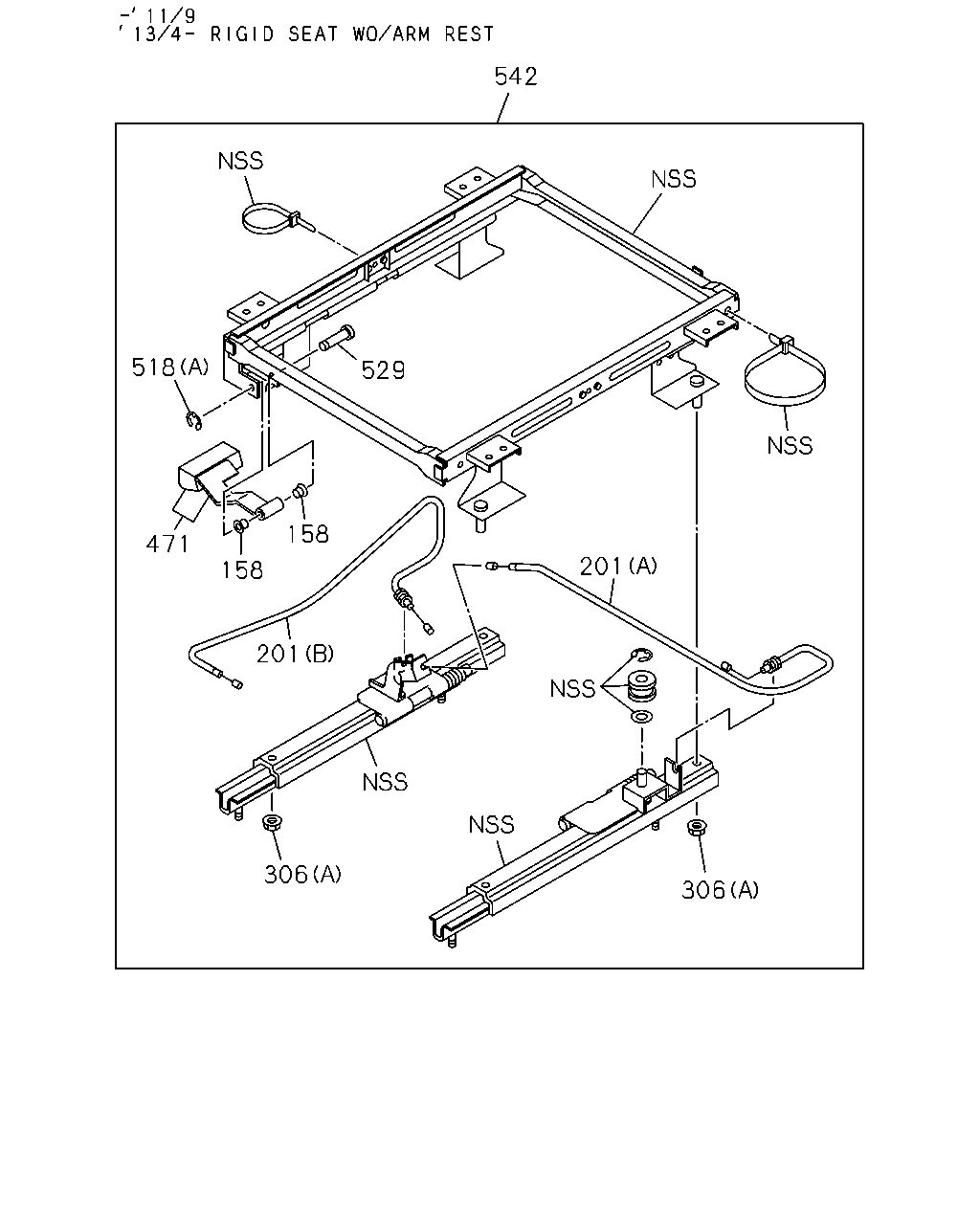

542 529 518 471 158 201 306 201 158 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1009-1502
158	BUSHING; LINK ARM DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1009-1502
201	CABLE; ADJ DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1009-1502
201	CABLE; ADJ DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1009-
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	08	1	1009-1109
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1110-1502
306	NUT; SEAT ADJ DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1510-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1502
471	LEVER; SEAT ADJ DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1510-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1009-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	1009-1502
529	PIN; LINK DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
542	ADJUSTER ASM; SEAT SLIDE	8-98093-310-0	01	1	1009-1109

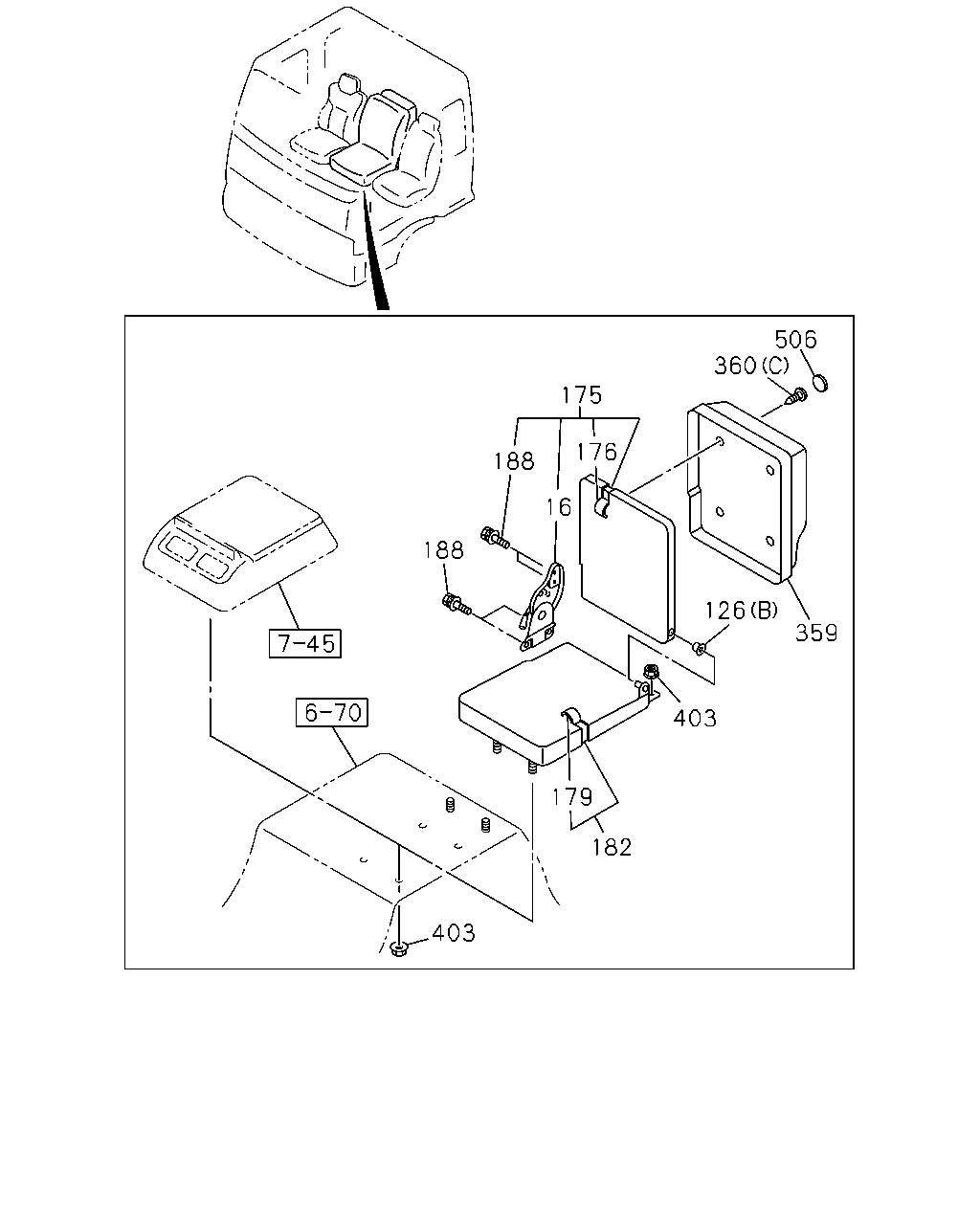

506 360 175 188 16 176 126 359 403 179 182 403 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-75418-062-1	01	1	1105-1109
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1009-1104
16	ADJUSTER ASM; RECLINING VINYL SEAT(A83) CENTER SEAT(SA1)	1-75418-062-1	01	1	1105-1109
16	ADJUSTER ASM; RECLINING CENTER SEAT(SA1)	1-75418-062-1	01	1	1110-
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1009-1502
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) (A)	8-98063-218-0	01	1	1503-1509
126	BUSHING; HINGE,RECLINING (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1009-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT(A83) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	8-97854-900-0	01	1	1105-1109
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-233-0	01	1	1009-1009
175	BACK ASM; PASSENGER CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-434-1	01	1	1010-
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-975-1	01	1	1009-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-234-0	01	1	1009-1009
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-435-1	01	1	1010-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-976-1	01	1	1009-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-237-0	01	1	1009-1009
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-432-1	01	1	1010-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-974-1	01	1	1009-
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97416-235-0	01	1	1009-1009
182	CUSHION ASM; CENTER SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1) DARK GRAY	8-97421-430-3	01	1	1010-
182	CUSHION ASM; CENTER SEAT VINYL SEAT(A83) CENTER SEAT(SA1) DARK GRAY	8-97409-973-3	01	1	1009-
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1009-1104
188	BOLT; BACK TO CUSHION VINYL SEAT(A83) CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1105-1109
188	BOLT; BACK TO CUSHION CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1110-
188	BOLT; BACK TO CUSHION DELUXE SEAT(PQ8) CENTER SEAT(SA1) M10X16 FLANGE	1-75198-053-0	04	1	1105-1109
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1009-1110
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1009-1009
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (D) M5X20	9-09829-324-1	02	1	1009-1009
403	NUT; CENTER SEAT CENTER SEAT(SA1) M8 FLANGE	0-91180-108-0	04	1	1009-
506	CAP; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97409-980-1	02	1	1009-

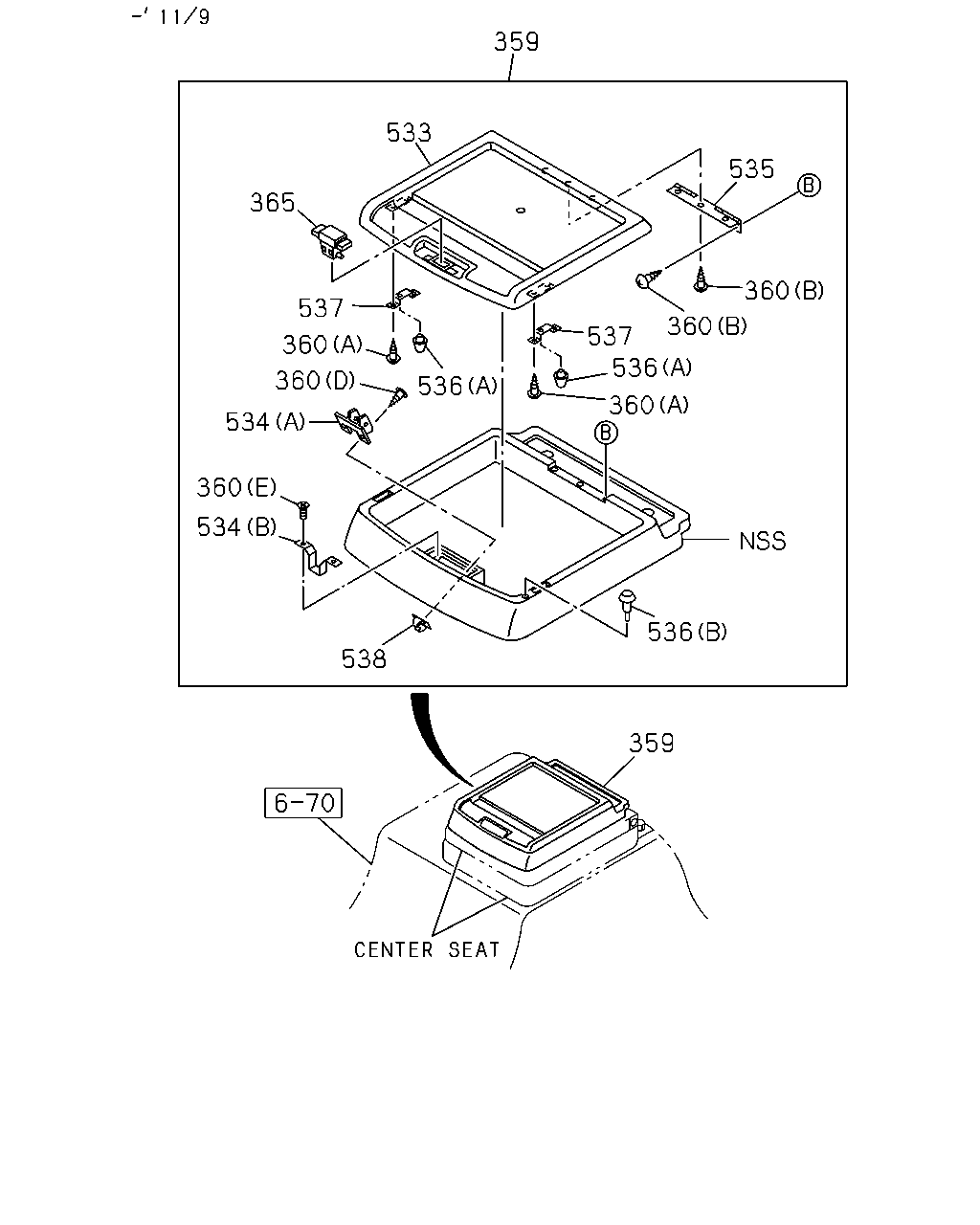

359 533 365 535 360 360 537 360 536 360 360 537 534 360 534 538 536 536 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1009-1110
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1009-1009
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (D) M5X20	9-09829-324-1	02	1	1009-1009
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-312-0	01	1	1009-1104
365	LOCK ASM; SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-72538-312-0	01	1	1105-1109
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-312-0	01	1	1110-
365	LOCK ASM; SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72538-312-0	01	1	1105-1109
533	LID; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97417-263-0	01	1	1009-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (A)	1-72538-181-0	01	1	1009-1009
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1010-1104
534	STRIKER; PARCEL BOX VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1105-1109
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1110-
534	STRIKER; PARCEL BOX DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1105-1109
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1009-1104
535	HINGE; PARCEL BOX VINYL SEAT(A83) CENTER SEAT(SA1)	1-72447-391-1	01	1	1105-1109
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1110-
535	HINGE; PARCEL BOX DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72447-391-1	01	1	1105-1109
536	RUBBER; CUSHION CENTER SEAT(SA1) (A)	5-09983-002-1	02	1	1009-1009
536	RUBBER; CUSHION CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1010-1104
536	RUBBER; CUSHION VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1105-1109
536	RUBBER; CUSHION CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1110-
536	RUBBER; CUSHION DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1105-1109
537	BRACKET; RUBBER CENTER SEAT(SA1)	1-72548-057-1	02	1	1009-1009
538	GROMMET; SCREW CENTER SEAT(SA1)	1-09983-165-0	02	1	1009-1009

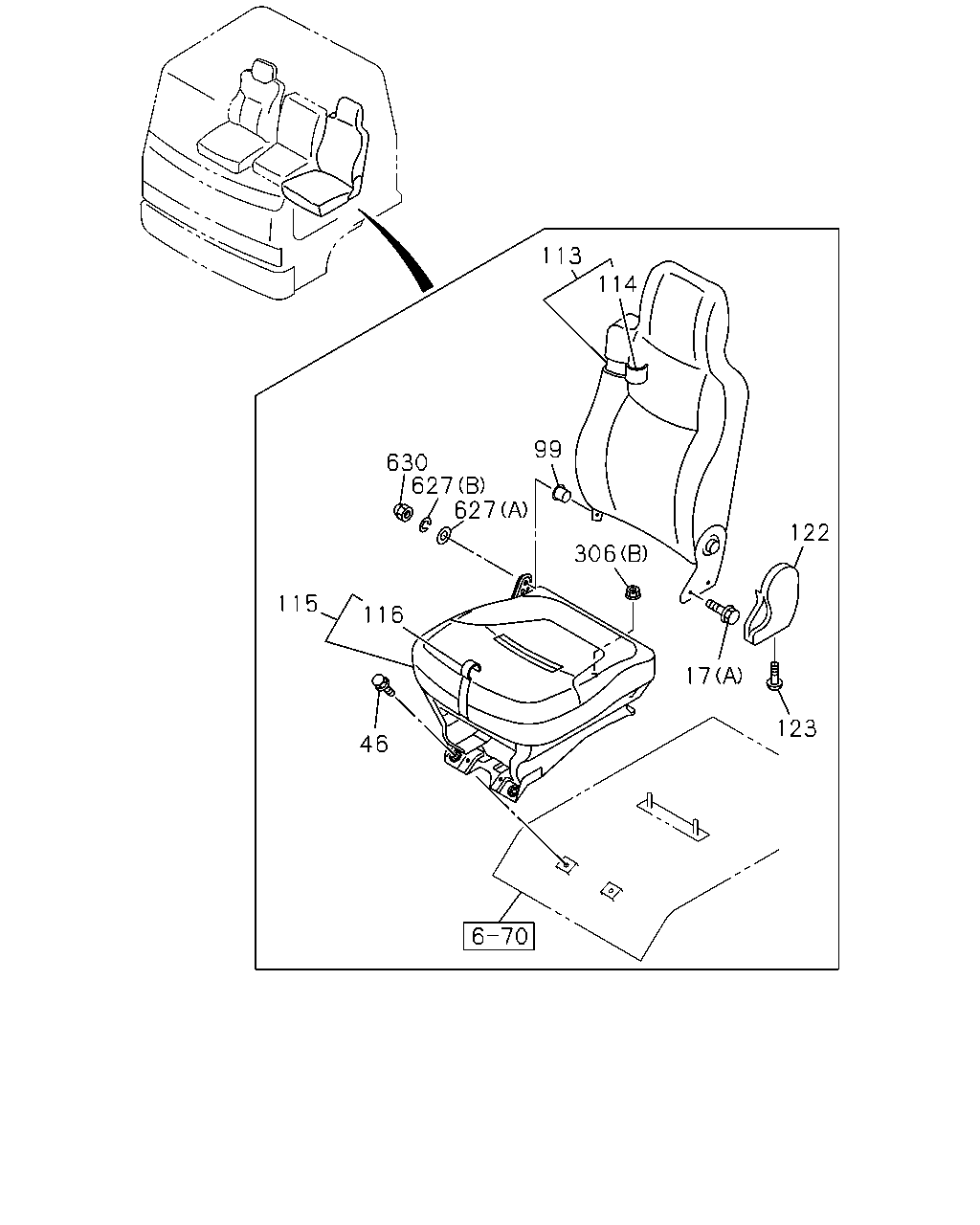

113 99 115 116 46 306 627 627 114 122 17 123 630

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1009-1502
17	BOLT; RECLINING DELUXE SEAT(PQ8) (B) M10X20	8-98062-661-0	02	1	1503-1509
17	BOLT; RECLINING (B) M10X20	8-98062-661-0	02	1	1510-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1009-
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	1009-
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	1009-1009
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97416-221-0	01	1	1009-1009
113	BACK ASM; SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-422-0	01	1	1010-
113	BACK ASM; SEAT VINYL SEAT(A83) DARK GRAY	8-97409-966-1	01	1	1009-
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97416-223-0	01	1	1009-1009
114	COVER; TRIM,PASSENGER SEAT,BACK DELUXE SEAT(PQ8) DARK GRAY	8-97421-424-0	01	1	1010-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT(A83) DARK GRAY	8-97411-916-0	01	1	1009-
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97416-225-0	01	1	1009-1009
115	CUSHION ASM; PASSENGER SEAT DELUXE SEAT(PQ8) DARK GRAY	8-97421-418-2	01	1	1010-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT(A83) DARK GRAY	8-97409-965-1	01	1	1009-
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97416-227-0	01	1	1009-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION DELUXE SEAT(PQ8) DARK GRAY	8-97421-420-1	01	1	1010-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT(A83) DARK GRAY	8-97411-915-0	01	1	1009-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1009-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1009-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1009-
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	08	1	1009-1109
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1110-1502
306	NUT; SEAT ADJ DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1510-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1009-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1009-
630	NUT; CAP M8	8-98063-225-0	01	1	1009-

62 80 66 88 78 81 77 78 86 76 79 79 322 85 85 470 339 87 513 85 468 467 79 79 86 66 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP	1-75538-183-9	01	1	1110-1403
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-1502
62	DAMPER ASM; SEAT SUSP DELUXE SEAT(PQ8)	8-98261-448-0	01	1	1503-1509
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1510-
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1110-1502
66	RUBBER; LWR STOPPER DELUXE SEAT(PQ8)	1-75538-145-0	02	1	1503-1509
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	1110-1502
76	DAMPER; AIR SUSP DELUXE SEAT(PQ8)	1-75538-139-0	01	1	1503-1509
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	1510-
77	PIN; DAMPER	1-75538-138-2	01	1	1110-1502
77	PIN; DAMPER DELUXE SEAT(PQ8)	1-75538-138-2	01	1	1503-1509
77	PIN; DAMPER	1-75538-138-2	01	1	1510-
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1110-1502
78	RING; SNAP DELUXE SEAT(PQ8) (A) ID=8	9-09185-408-0	01	1	1503-1509
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1110-1502
78	RING; SNAP DELUXE SEAT(PQ8) (B) ID=15	9-09185-415-0	01	1	1503-1509
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	1110-1403
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-1502
79	ROLLER ASM; AIR SUSP DELUXE SEAT(PQ8)	8-98261-489-0	04	1	1503-1509
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER	1-09987-123-0	01	1	1110-1502
80	RUBBER; STOPPER DELUXE SEAT(PQ8)	1-09987-123-0	01	1	1503-1509
80	RUBBER; STOPPER	1-09987-123-0	01	1	1510-
81	SPRING; AIR	1-75538-151-2	01	1	1110-1312
81	SPRING; AIR	8-98242-816-0	01	1	1401-1502
81	SPRING; AIR DELUXE SEAT(PQ8)	8-98242-816-0	01	1	1503-1509
81	SPRING; AIR	8-98242-816-0	01	1	1510-
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1503-1509
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1110-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (C)	1-09980-577-1	01	1	1503-1509
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1110-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (A) M6X12	1-75538-208-1	02	1	1503-1509
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	1110-1312
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-1502
85	BOLT; AIR SUSP DELUXE SEAT(PQ8) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1503-1509
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1510-
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1110-1502
86	BUSHING; GUIDE DELUXE SEAT(PQ8) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1503-1509
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1110-1502
87	WASHER; AIR SUSP DELUXE SEAT(PQ8) ID=8.2	0-91510-508-0	01	1	1503-1509
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1110-1502
88	NUT; AIR SUSP DELUXE SEAT(PQ8) M10	1-75537-273-1	01	1	1503-1509
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING	1-75538-186-3	01	1	1110-1502
322	VALVE; AIR SPRING DELUXE SEAT(PQ8)	1-75538-186-3	01	1	1503-1509
322	VALVE; AIR SPRING	1-75538-186-3	01	1	1510-
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1110-
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1110-1502
339	UNION; DRIVER SEAT DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1510-
467	LEVER; LOCK	1-75538-134-0	01	1	1110-1502
467	LEVER; LOCK DELUXE SEAT(PQ8)	1-75538-134-0	01	1	1503-1509
467	LEVER; LOCK	1-75538-134-0	01	1	1510-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1510-
470	CLIP; HOSE	1-75538-137-0	01	1	1110-1502
470	CLIP; HOSE DELUXE SEAT(PQ8)	1-75538-137-0	01	1	1503-1509
470	CLIP; HOSE	1-75538-137-0	01	1	1510-
513	SPACER; LEVER	1-75538-133-0	01	1	1110-1502
513	SPACER; LEVER DELUXE SEAT(PQ8)	1-75538-133-0	01	1	1503-1509
513	SPACER; LEVER	1-75538-133-0	01	1	1510-

468 468 512 51 532 278 518 543 518 471 158 158 551 201 306 63 518 518 63 306 201 551 551 72 302 302 302 302 551 468 529 468 518 518 278 532 51 512 51 51 278 543 302 543 518 302 518 302 518 72 543 518 302 543 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	1110-1502
51	SCREW; COVER DELUXE SEAT(PQ8)	1-75518-325-1	04	1	1503-1509
51	SCREW; COVER	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1110-1502
63	ADJUSTER; SEAT SLIDE DELUXE SEAT(PQ8) (A)	1-75518-199-1	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1110-1502
63	ADJUSTER; SEAT SLIDE DELUXE SEAT(PQ8) (B)	1-75518-323-0	01	1	1503-1509
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	1510-
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	1110-1502
72	SPACER; SEAT ADJ DELUXE SEAT(PQ8)	8-98291-668-0	02	1	1503-1509
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98003-678-0	01	1	1110-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT DELUXE SEAT(PQ8)	8-98291-640-0	01	1	1503-1509
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-640-0	01	1	1510-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1009-1502
158	BUSHING; LINK ARM DELUXE SEAT(PQ8)	1-75518-209-0	02	1	1503-1509
158	BUSHING; LINK ARM	1-75518-209-0	02	1	1510-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1009-1502
201	CABLE; ADJ DELUXE SEAT(PQ8) (A) L=667	1-75518-288-0	01	1	1503-1509
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	1510-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1009-1502
201	CABLE; ADJ DELUXE SEAT(PQ8) (B) L=605	1-75518-289-1	01	1	1503-1509
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1110-1502
278	COLLAR; FRT SEAT DELUXE SEAT(PQ8)	1-75518-244-0	03	1	1503-1509
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1110-1502
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT(PQ8) (B)	1-75518-266-2	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	1110-1502
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT(PQ8) (A)	8-98291-667-0	04	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1110-1502
302	BOLT; ADJ,HEIGHT CONT DELUXE SEAT(PQ8) (C)	1-75518-336-1	02	1	1503-1509
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE	0-91180-110-0	02	1	1009-
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	08	1	1009-1109
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1110-1502
306	NUT; SEAT ADJ DELUXE SEAT(PQ8) (A) M8 FLANGE	1-75538-207-0	06	1	1503-1509
306	NUT; SEAT ADJ (A) M8 FLANGE	1-75538-207-0	06	1	1510-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (A)	1-75518-206-0	01	1	1503-1509
468	SPRING; RETURN (A)	1-75518-206-0	01	1	1510-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (B)	1-75518-207-0	01	1	1503-1509
468	SPRING; RETURN (B)	1-75518-207-0	01	1	1510-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (C)	1-75518-208-0	02	1	1503-1509
468	SPRING; RETURN (C)	1-75518-208-0	02	1	1510-
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1110-1502
468	SPRING; RETURN DELUXE SEAT(PQ8) (D)	1-75538-132-0	01	1	1503-1509
468	SPRING; RETURN (D)	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1009-1502
471	LEVER; SEAT ADJ DELUXE SEAT(PQ8)	8-98107-869-0	01	1	1503-1509
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1510-
512	COVER; LEVER	1-75518-243-1	02	1	1110-1502
512	COVER; LEVER DELUXE SEAT(PQ8)	1-75518-243-1	02	1	1503-1509
512	COVER; LEVER	1-75518-243-1	02	1	1510-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (C) M8	1-75518-264-0	04	1	1503-1509
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (E) M8 FLANGE	1-75538-207-0	04	1	1503-1509
518	NUT; TILT ADJ (E) M8 FLANGE	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (D) M6 LOCK NUT	5-09984-020-0	02	1	1503-1509
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1110-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (B) M8 FLANGE	8-94152-886-0	04	1	1503-1509
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1009-1502
518	NUT; TILT ADJ DELUXE SEAT(PQ8) (A)	1-75518-263-0	01	1	1503-1509
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	1510-
529	PIN; LINK	1-75518-262-0	01	1	1009-1502
529	PIN; LINK DELUXE SEAT(PQ8)	1-75518-262-0	01	1	1503-1509
529	PIN; LINK	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1110-1502
532	LEVER ASM; TILT DELUXE SEAT(PQ8) (A)	1-75518-203-0	01	1	1503-1509
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1110-1502
532	LEVER ASM; TILT DELUXE SEAT(PQ8) (B)	1-75518-204-1	01	1	1503-1509
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	1510-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	1110-1502
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT(PQ8) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1509
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1110-1502
543	WASHER; HEIGHT ADJUSTER DELUXE SEAT(PQ8) (B) ID=8.4	9-09160-508-0	04	1	1503-1509
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1110-1502
551	SLIDER; HEIGHT ADJ DELUXE SEAT(PQ8)	1-75518-265-0	04	1	1503-1509
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	1510-

359 533 365 535 360 360 536 534 360 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL CENTER SEAT(SA1) GRAY	8-97417-261-0	01	1	1009-
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1009-1104
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	1009-1110
360	SCREW; PARCEL CENTER SEAT(SA1) (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL CENTER SEAT(SA1) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1009-1009
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-1104
360	SCREW; PARCEL VINYL SEAT(A83) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL DELUXE SEAT(PQ8) CENTER SEAT(SA1) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL CENTER SEAT(SA1) (D) M5X20	9-09829-324-1	02	1	1009-1009
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-312-0	01	1	1009-1104
365	LOCK ASM; SEAT VINYL SEAT(A83) CENTER SEAT(SA1)	1-72538-312-0	01	1	1105-1109
365	LOCK ASM; SEAT CENTER SEAT(SA1)	1-72538-312-0	01	1	1110-
365	LOCK ASM; SEAT DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72538-312-0	01	1	1105-1109
533	LID; PARCEL BOX CENTER SEAT(SA1) GRAY	8-97417-263-0	01	1	1009-
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (A)	1-72538-181-0	01	1	1009-1009
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1010-1104
534	STRIKER; PARCEL BOX VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1105-1109
534	STRIKER; PARCEL BOX CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1110-
534	STRIKER; PARCEL BOX DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-190-0	01	1	1105-1109
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1009-1104
535	HINGE; PARCEL BOX VINYL SEAT(A83) CENTER SEAT(SA1)	1-72447-391-1	01	1	1105-1109
535	HINGE; PARCEL BOX CENTER SEAT(SA1)	1-72447-391-1	01	1	1110-
535	HINGE; PARCEL BOX DELUXE SEAT(PQ8) CENTER SEAT(SA1)	1-72447-391-1	01	1	1105-1109
536	RUBBER; CUSHION CENTER SEAT(SA1) (A)	5-09983-002-1	02	1	1009-1009
536	RUBBER; CUSHION CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1010-1104
536	RUBBER; CUSHION VINYL SEAT(A83) CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1105-1109
536	RUBBER; CUSHION CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1110-
536	RUBBER; CUSHION DELUXE SEAT(PQ8) CENTER SEAT(SA1) (B)	1-72538-187-0	02	1	1105-1109

595 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT (B)	8-98014-971-0	01	1	1110-
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1110-1502
339	UNION; DRIVER SEAT DELUXE SEAT(PQ8) (A)	1-75538-131-3	01	1	1503-1509
339	UNION; DRIVER SEAT (A)	1-75538-131-3	01	1	1510-
595	TUBE; NYLON	8-98067-762-0	01	1	1110-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
