Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#71301) — 429 parça

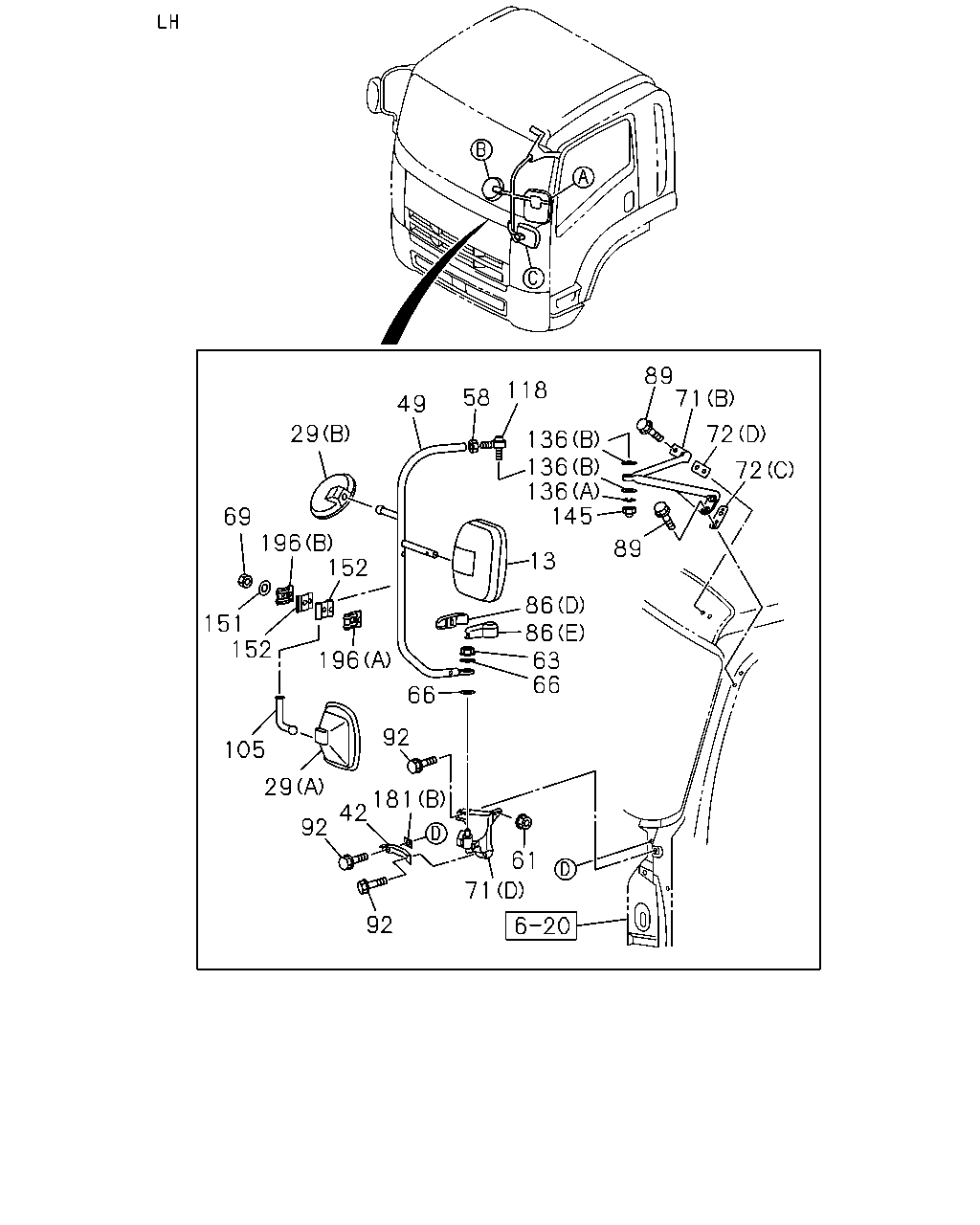

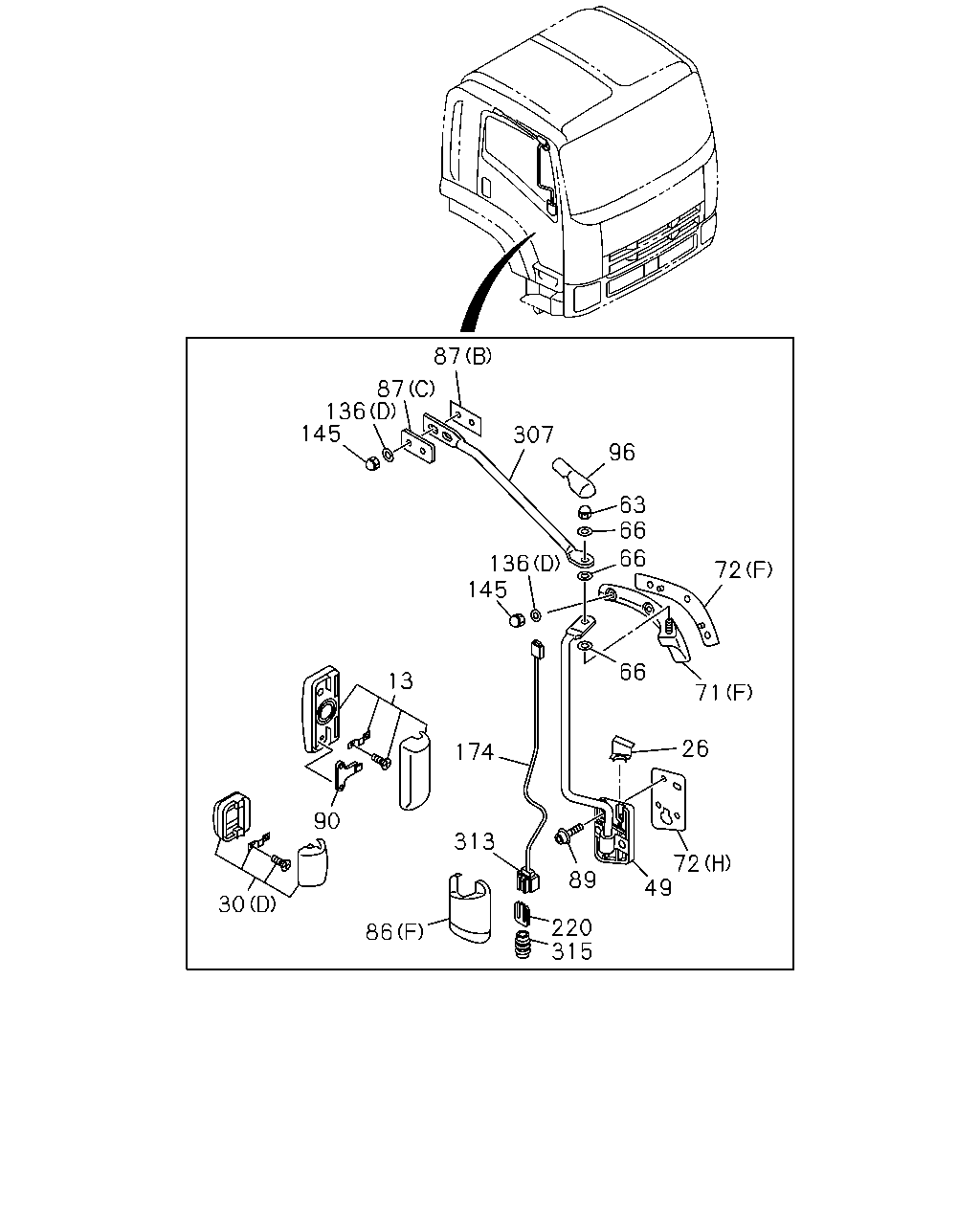

87 87 136 145 307 96 63 66 66 72 71 66 136 145 13 174 313 86 90 30 89 220 315 49 72 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-176-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-060-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1009-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-222-0	01	1	1009-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-221-0	01	1	1009-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-806-0	01	1	1009-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-805-0	01	1	1009-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1009-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-592-1	01	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-061-0	02	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98043-065-0	01	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98055-994-0	01	1	1009-1504
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98309-725-0	01	1	1505-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1009-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1009-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-781-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-199-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-780-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-198-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1009-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1009-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1009-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98174-337-0	01	1	1009-1109
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1110-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1009-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-022-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-544-2	01	1	1009-1109
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98201-957-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-021-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-543-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	1-71798-484-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-794-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-240-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98092-492-3	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-793-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H)	8-98039-277-2	02	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-797-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-245-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98064-776-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-796-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-545-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-546-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-541-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1009-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71737-646-2	02	1	1009-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-786-0	02	1	1009-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98063-789-0	01	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1009-
90	BRACKET; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98129-822-0	02	1	1009-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1009-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1009-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1009-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98125-653-0	02	1	1009-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	02	1	1009-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1009-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1009-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	02	1	1009-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	02	1	1009-

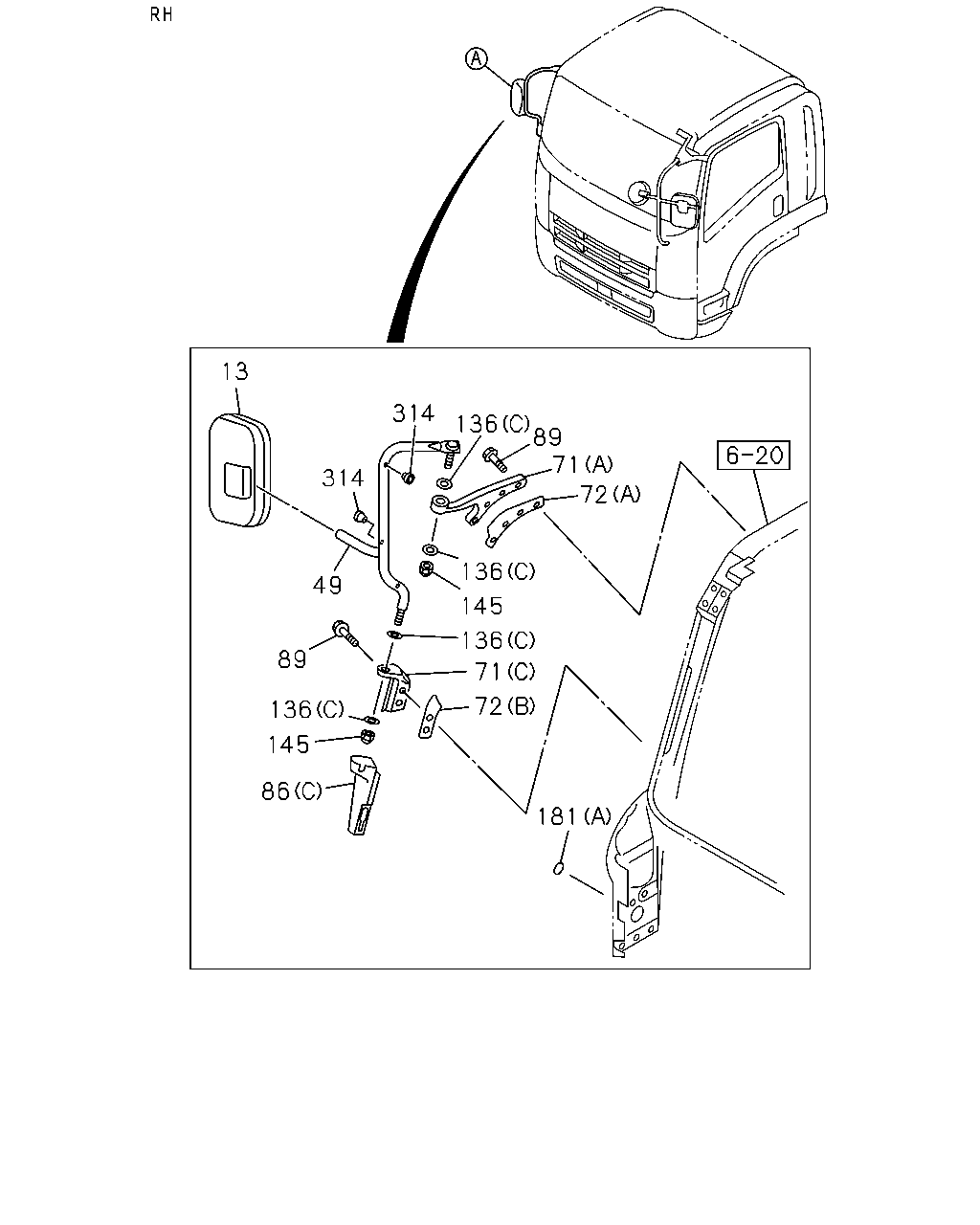

136 89 71 72 136 145 136 71 72 181 49 314 314 89 136 145 86 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-176-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-060-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1009-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1009-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1009-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-781-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-199-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-780-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-198-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-022-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-544-2	01	1	1009-1109
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98201-957-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-021-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-543-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	1-71798-484-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-794-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-240-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98092-492-3	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-793-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H)	8-98039-277-2	02	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-797-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-245-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98064-776-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-796-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-545-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-546-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-541-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1009-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1009-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1009-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1009-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1009-
314	BUFFER; STOPPER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94314-317-0	02	1	1009-

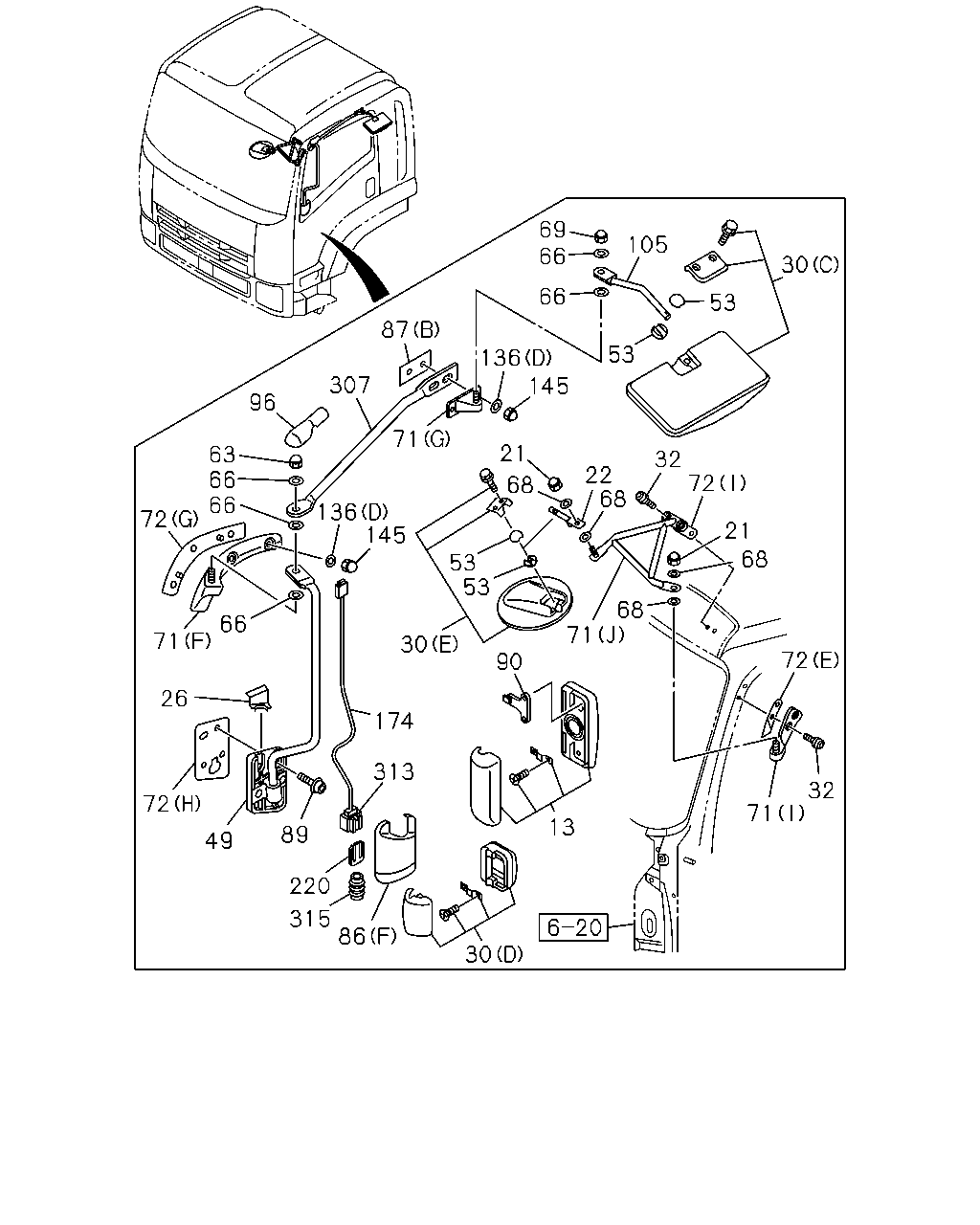

58 118 136 136 136 145 89 89 71 72 72 49 29 196 152 69 151 152 196 66 92 181 42 92 29 105 92 71 61 86 86 63 66 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-176-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-060-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1009-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1009-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1009-
42	ATTACHMENT; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98070-643-0	01	1	1009-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1009-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1009-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-781-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-199-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-780-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-198-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-
58	NUT; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M12	8-98061-883-0	01	1	1009-
61	NUT; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 FLANGE	0-91180-108-0	01	1	1009-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1009-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1009-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1009-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98174-337-0	01	1	1009-1109
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1110-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1009-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1009-
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-022-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-544-2	01	1	1009-1109
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98201-957-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-021-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-543-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	1-71798-484-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-794-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-240-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98092-492-3	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-793-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H)	8-98039-277-2	02	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-797-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-245-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98064-776-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-796-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-545-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-546-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-541-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1009-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1009-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1009-
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98041-571-2	01	1	1009-1402
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-761-0	01	1	1403-
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-109-2	01	1	1009-
118	JOINT ASM; BALL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-356-2	01	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1009-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1009-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1009-
151	WASHER; PL,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 T=2.0	1-09985-183-0	01	1	1009-
152	SHEET; MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71798-445-1	02	1	1009-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1009-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1009-
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-442-2	01	1	1009-
196	HOLDER; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-444-2	01	1	1009-

18 1 2 181 71 185 181 92

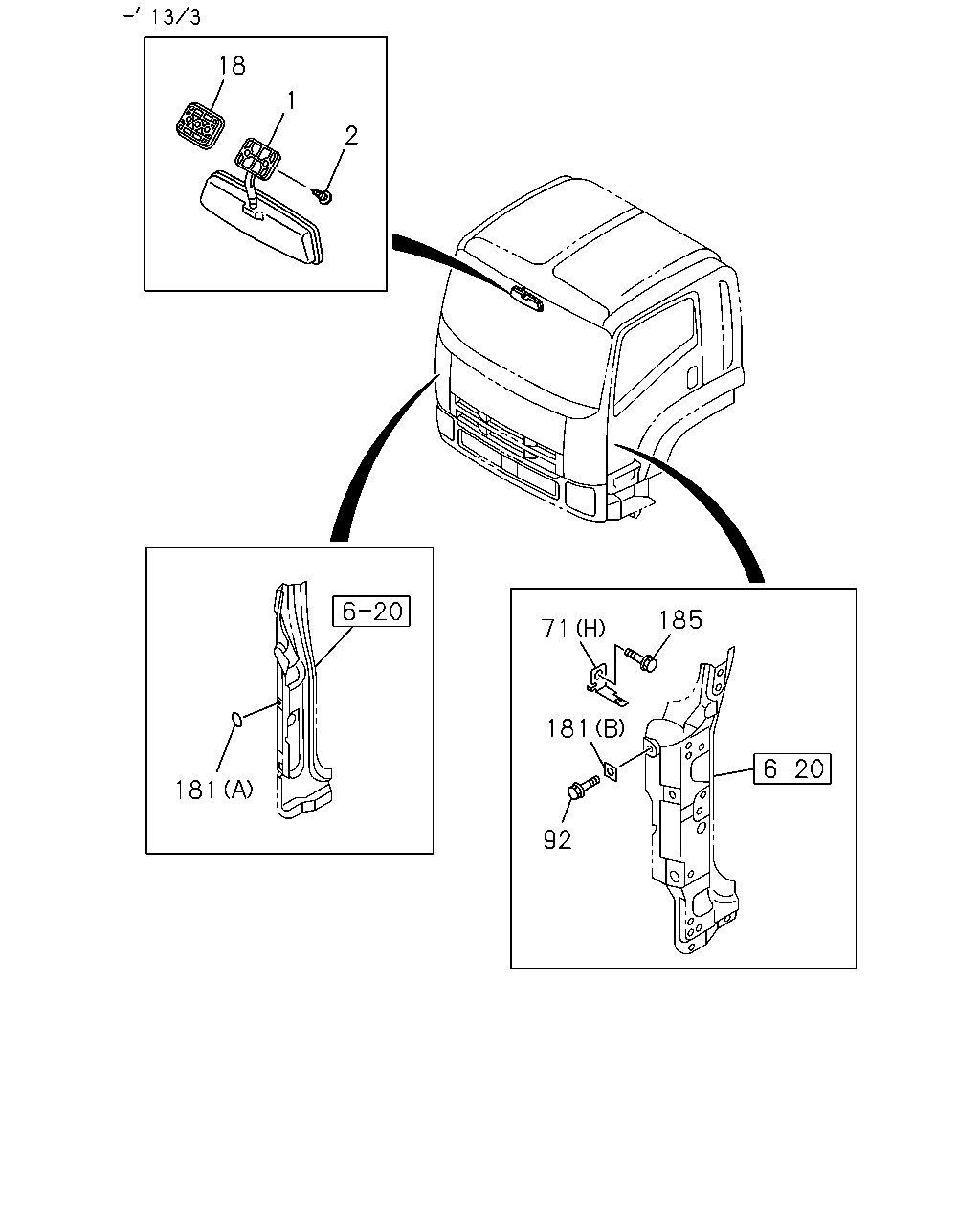

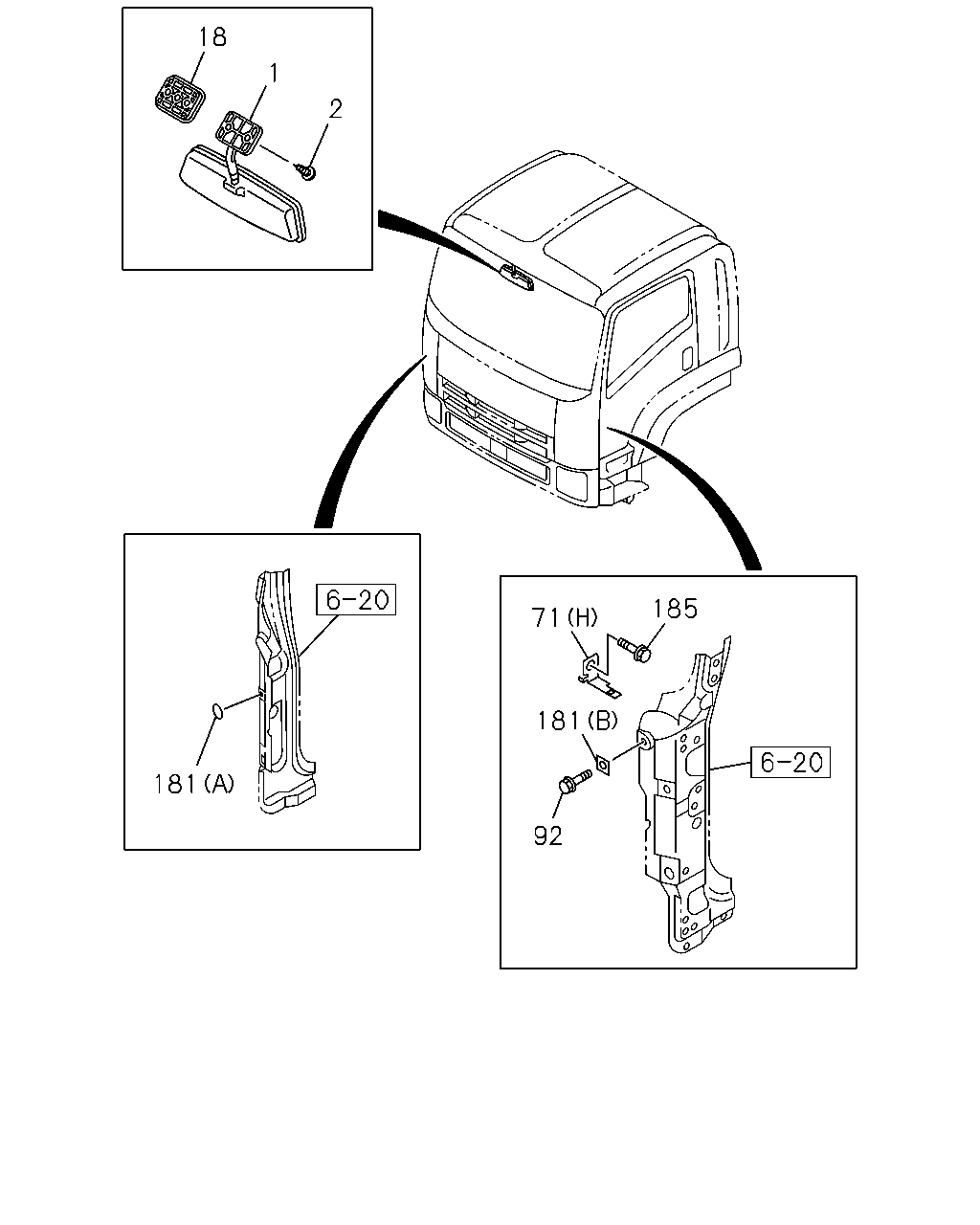

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1009-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1009-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-022-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-544-2	01	1	1009-1109
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98201-957-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-021-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-543-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	1-71798-484-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-794-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-240-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98092-492-3	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-793-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H)	8-98039-277-2	02	1	1009-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1009-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1009-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1009-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1009-
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE	0-28050-816-0	02	1	1009-

63 66 66 72 71 66 26 72 49 89 313 174 30 53 53 68 21 145 136 71 87 307 136 96 145 22 68 32 72 21 68 72 32 71 13 90 71 220 315 86 30 69 66 66 105 53 30 53 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-176-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-060-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1009-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5	1-09984-124-0	04	1	1009-
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1009-
22	STAY; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98092-493-0	01	1	1009-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-222-0	01	1	1009-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-221-0	01	1	1009-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-806-0	01	1	1009-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-805-0	01	1	1009-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1009-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-592-1	01	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-061-0	02	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98043-065-0	01	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98055-994-0	01	1	1009-1504
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER	1-71737-797-0	04	1	1009-
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	04	1	1009-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98085-113-1	01	1	1009-1402
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-749-0	01	1	1403-
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98091-477-0	01	1	1009-1502
49	STAY; MIRROR SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98305-582-0	01	1	1503-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-781-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-199-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-780-1	01	1	1009-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-198-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98060-218-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98064-777-1	01	1	1009-1202
49	STAY; MIRROR SIDE EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98166-194-0	01	1	1203-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1009-
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	04	1	1009-
63	NUT; STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M14 TOUGH LOCK NUT W/FLANGE	8-98174-339-0	01	1	1009-
63	NUT; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1009-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LOWER ID=15 OD=30 T=2.6	0-91610-614-0	01	1	1009-
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER	8-98174-337-0	01	1	1009-1109
66	WASHER; PL MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> UPPER ID=14.5 OD=27 T=1.5	8-98201-756-0	01	1	1110-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	1009-
66	WASHER; PL EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1009-
68	WASHER; STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-
69	NUT; CAP M10 CAP NUT	1-09984-134-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-022-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-544-2	01	1	1009-1109
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98201-957-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-021-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-543-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	1-71798-484-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-794-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-240-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98092-492-3	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-793-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H)	8-98039-277-2	02	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-535-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-537-1	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-351-0	01	1	1009-
72	SHEET MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-353-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	8-98031-797-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-245-1	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98064-776-0	01	1	1009-
72	SHEET EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-796-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-865-0	01	1	1009-
72	SHEET O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98101-864-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-605-0	01	1	1009-
72	SHEET EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (H)	8-98116-604-0	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-545-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-546-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-541-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1009-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71737-646-2	02	1	1009-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-786-0	02	1	1009-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98063-789-0	01	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	10	1	1009-
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X23	8-97310-216-1	08	1	1009-
90	BRACKET; MIRROR STAY O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98129-822-0	02	1	1009-
96	CAP; MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-173-0	02	1	1009-
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98041-571-2	01	1	1009-1402
105	STAY; SUB UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98257-761-0	01	1	1403-
105	STAY; SUB UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98080-109-2	01	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) ID=10	1-09985-180-0	01	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1009-
136	WASHER; LK,BRKT,MIRROR STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1009-
145	NUT; CAP,SUB STAY MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	03	1	1009-
145	NUT; CAP,SUB STAY EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8 CAP NUT	8-98059-914-0	10	1	1009-
174	HARNESS; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98125-653-0	02	1	1009-
220	HOLDER; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-536-0	02	1	1009-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-785-2	01	1	1009-
307	STAY; MIRROR SUPPORT EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98063-784-2	01	1	1009-
313	CONNECTOR; MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-94447-532-0	02	1	1009-
315	RUBBER ASM; CONNECTOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-82691-026-0	02	1	1009-

13 53 53 71 25 14 29 30 32 134 87 86 21 135 132 29 30 135 21 86 87 32 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98028-332-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-748-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98104-068-0	01	1	1009-1510
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-749-0	01	1	1511-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-176-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98043-060-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-992-1	01	1	1009-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR- O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98055-991-1	01	1	1009-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98045-690-0	01	1	1009-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-761-0	01	1	1511-
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98108-511-0	01	1	1009-1510
14	MIRROR ASM; OUTSIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98324-760-0	01	1	1511-
21	NUT; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5	1-09984-124-0	04	1	1009-
21	NUT; MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M10 CAP NUT	1-09984-134-0	02	1	1009-
25	SCREW; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M6X40	1-71707-223-0	04	1	1009-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-222-0	01	1	1009-
26	COVER; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71707-221-0	01	1	1009-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-806-0	01	1	1009-
26	COVER; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98031-805-0	01	1	1009-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-421-1	01	1	1009-
29	MIRROR ASM; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-422-0	01	1	1009-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-591-1	01	1	1009-
30	MIRROR; UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71798-592-1	01	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98043-061-0	02	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98043-065-0	01	1	1009-
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98055-994-0	01	1	1009-1504
30	MIRROR; UNDER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M5X40 W/PL WASHER	1-71737-797-0	04	1	1009-
32	SCREW; UNDER MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X26 W/PL WASHER	8-98067-249-2	04	1	1009-
53	PIVOT; SIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=22.2	1-71736-489-2	04	1	1009-
53	PIVOT; SIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> ID=19.1	1-71737-633-2	04	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-022-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-544-2	01	1	1009-1109
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98201-957-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-021-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-543-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	1-71798-484-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-794-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-240-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98092-492-3	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-793-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H)	8-98039-277-2	02	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B) BLACK	1-71737-649-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A) BLACK	1-71737-652-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-545-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	8-98040-546-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-541-1	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-803-2	01	1	1009-
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-802-2	01	1	1009-
87	SPACER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71737-646-2	02	1	1009-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98063-786-0	02	1	1009-
87	SPACER EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98063-789-0	01	1	1009-
132	RING; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-935-0	01	1	1009-
134	CLIP; MIRROR LENS MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	1-71737-936-0	01	1	1009-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	1-71737-929-0	01	1	1009-
135	LENS; MIRROR,SIDE UNDER MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	1-71798-838-0	01	1	1009-

18 1 2 181 71 181 185 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	1009-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	1009-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (E)	1-71707-224-0	02	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (B)	8-98040-022-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98040-544-2	01	1	1009-1109
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (D)	8-98201-957-0	01	1	1110-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (A)	8-98040-021-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (C)	8-98040-543-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (G)	1-71798-484-1	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-794-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (I)	8-98060-240-0	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (J)	8-98092-492-3	01	1	1009-
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> (F)	8-98031-793-2	01	1	1009-
71	BRACKET; OUTSIDE MIRROR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (H)	8-98039-277-2	02	1	1009-
92	BOLT; STAY BRKT,MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	04	1	1009-
92	BOLT; STAY BRKT,MIRROR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> M8X16 FLANGE	8-98076-109-0	01	1	1009-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1009-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1009-
185	BOLT; BRKT O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE	0-28050-816-0	02	1	1009-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
