◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#71300) — 18 parça
çizim 132776
4 4 181 263
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 1009-
4 LABEL; ENG MAINTENANCE
(A) 		8-98164-931-1 01 1 1009-
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 1009-
263 PLATE; CAUTION,JACK
INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT<SL1> CAUTIONS CHINESE<SL7> 		1-85881-878-0 01 1 1009-

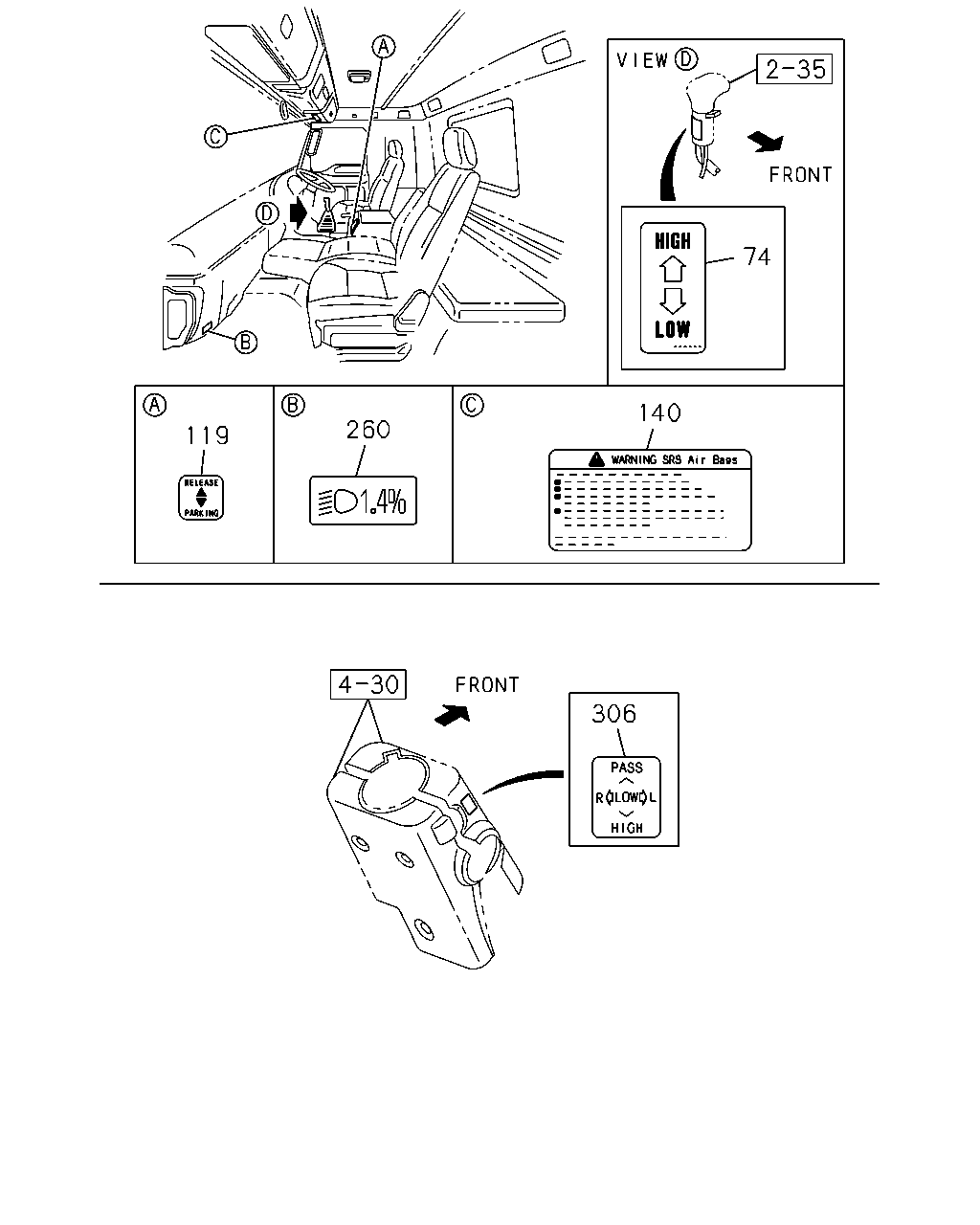

çizim 133232
74 140 260 119 306
BalonParca AdiParca NoAdetTipApplied Date
74 PLATE; CAUTION,CHANGE LEV
SHIFT PATTERN SINGLE-H<EDY> 		8-98118-493-0 01 1 1009-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS CHINESE<SL7> 		1-85881-874-0 01 1 1009-
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS ENGLISH<RR8> 		1-85881-759-0 01 1 1009-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) CAUTIONS CHINESE<SL7> 		8-98158-430-0 01 1 1009-
140 PLATE; CAUTION,SRS
AIR BAG DRIVER(AJ3) CAUTIONS ENGLISH<RR8> 		8-98139-964-0 01 1 1009-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1009-
306 LABEL; BEAM & PASS 8-98070-239-0 01 1 1009-
çizim 189409
49 35 160 289
BalonParca AdiParca NoAdetTipApplied Date
35 PLATE; CAUTION,CAB
CAUTIONS CHINESE<SL7> 		8-98171-036-0 01 1 1009-
35 PLATE; CAUTION,CAB
CAUTIONS ENGLISH<RR8> 		8-98017-667-1 01 1 1009-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		8-98155-328-0 01 1 1009-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ENGLISH<RR8> 		8-98076-221-0 01 1 1009-
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS CHINESE<SL7> 		8-98155-058-0 01 1 1009-
160 PLATE; CAUTION,TOWING
ZF9S1310 M/T(Y5K) CAUTIONS ENGLISH<RR8> 		1-85888-737-1 01 1 1009-
289 PLATE; CAUTION,DRIVING
HONG KONG EQUIPMENT(PQ1) CAUTIONS CHINESE<SL7> 		1-85883-223-1 01 1 1009-
