Isuzu WW
▶
TRUCKS
▶
FVM
▶
10632 - FVM-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-87 - COUPLING; INJECTION PUMP
▶

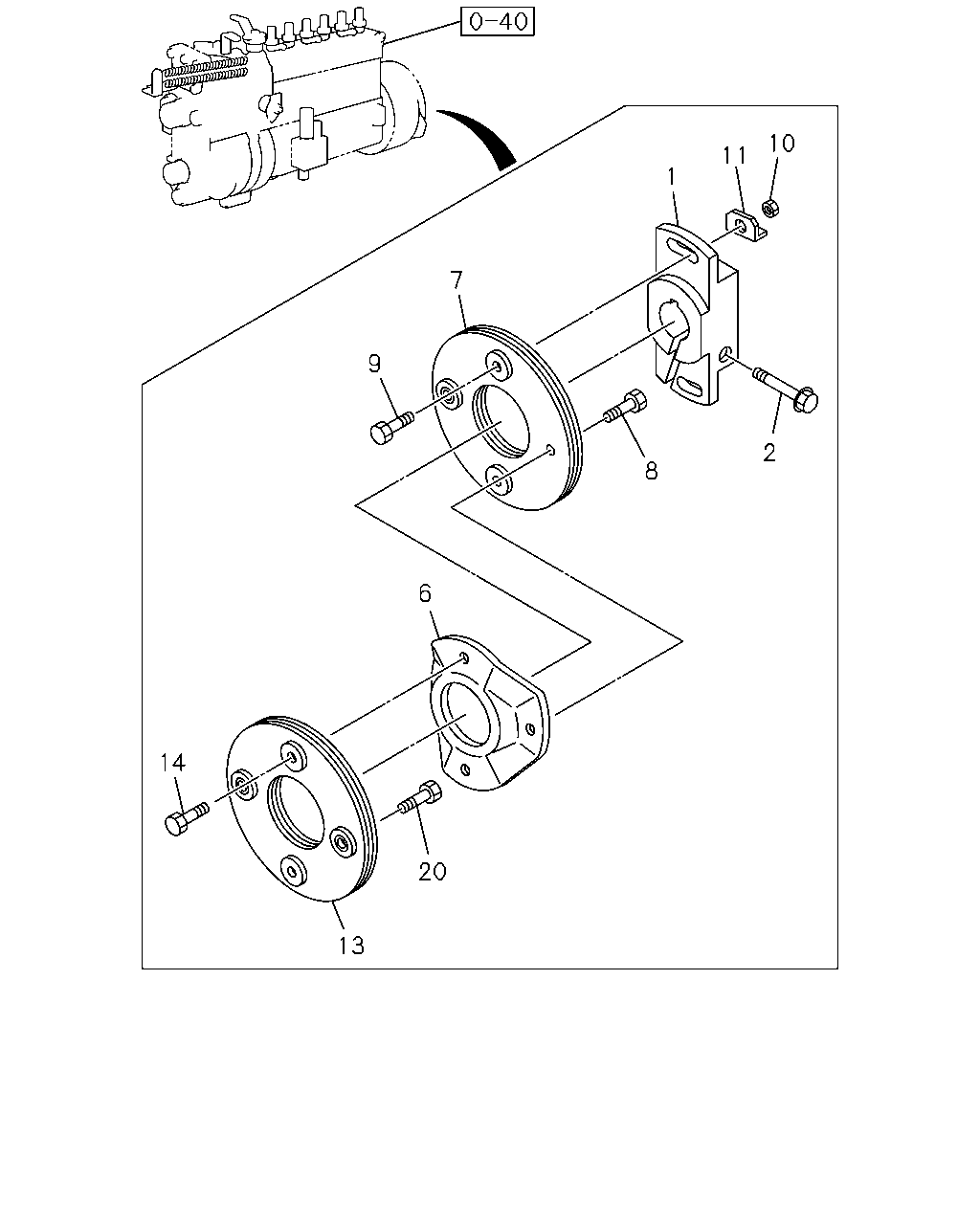

0-87 — COUPLING; INJECTION PUMP
(#713) — 33 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
C - 6HE1 STD ENG
◀
[087A] 6SA1 ENG (17 parça)
[087A] 6HE1 ENG (16 parça)
▶
10
11
1
7
9
2
8
6
14
20
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COUPLING; INJ PUMP DRIVE
1-15781-018-0
01
1
9204-
●
●
1
COUPLING; INJ PUMP DRIVE
1-15782-014-0
01
1
9505-
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-135-0
01
1
9204-
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-010-0
01
1
9505-
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-104-0
01
1
9204-
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-186-0
01
1
9505-
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-065-0
01
1
9204-
●
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15789-120-0
02
1
9204-
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15749-501-0
02
1
9505-
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15749-488-0
02
1
9204-
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-122-0
02
1
9505-
●
10
NUT; PLATE TO COUPLING,INJ PUMP
M8
9-09110-508-0
02
1
9204-
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-066-0
02
1
9505-
●
11
WASHER; PLATE TO COUPLING,INJ PUMP
1-15749-432-0
02
1
9204-
●
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-065-0
01
1
9204-
●
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-120-0
02
1
9204-
●
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-119-0
02
1
9204-
●
●
●
6
13
20
14
2
1
10
7
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
COUPLING; INJ PUMP DRIVE
1-15781-018-0
01
1
9204-
●
●
1
COUPLING; INJ PUMP DRIVE
1-15782-014-0
01
1
9505-
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-135-0
01
1
9204-
●
●
2
BOLT; COUPLING FIX,INJ PUMP
1-15789-010-0
01
1
9505-
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-104-0
01
1
9204-
●
●
6
COUPLING; CROSS,INJ PUMP DRIVE
1-15789-186-0
01
1
9505-
●
7
PLATE; COUPLING,COUPLING SIDE
1-15789-065-0
01
1
9204-
●
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15789-120-0
02
1
9204-
●
●
8
BOLT; PLATE TO CROSS COUPLING
1-15749-501-0
02
1
9505-
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15749-488-0
02
1
9204-
●
●
9
BOLT; PLATE TO COUPLING,INJ PUMP
1-15789-122-0
02
1
9505-
●
10
NUT; PLATE TO COUPLING,INJ PUMP
M8
9-09110-508-0
02
1
9204-
●
●
10
NUT; PLATE TO COUPLING,INJ PUMP
1-15789-066-0
02
1
9505-
●
13
PLATE; COUPLING,TIMER SIDE,INJ PUMP
1-15789-065-0
01
1
9204-
●
●
●
14
BOLT; PLATE TO CROSS COUPLING,TIMER SI
1-15789-120-0
02
1
9204-
●
●
●
20
BOLT; COUPLING TO INJ PUMP
1-15789-119-0
02
1
9204-
●
●
●
