◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#71292) — 20 parça

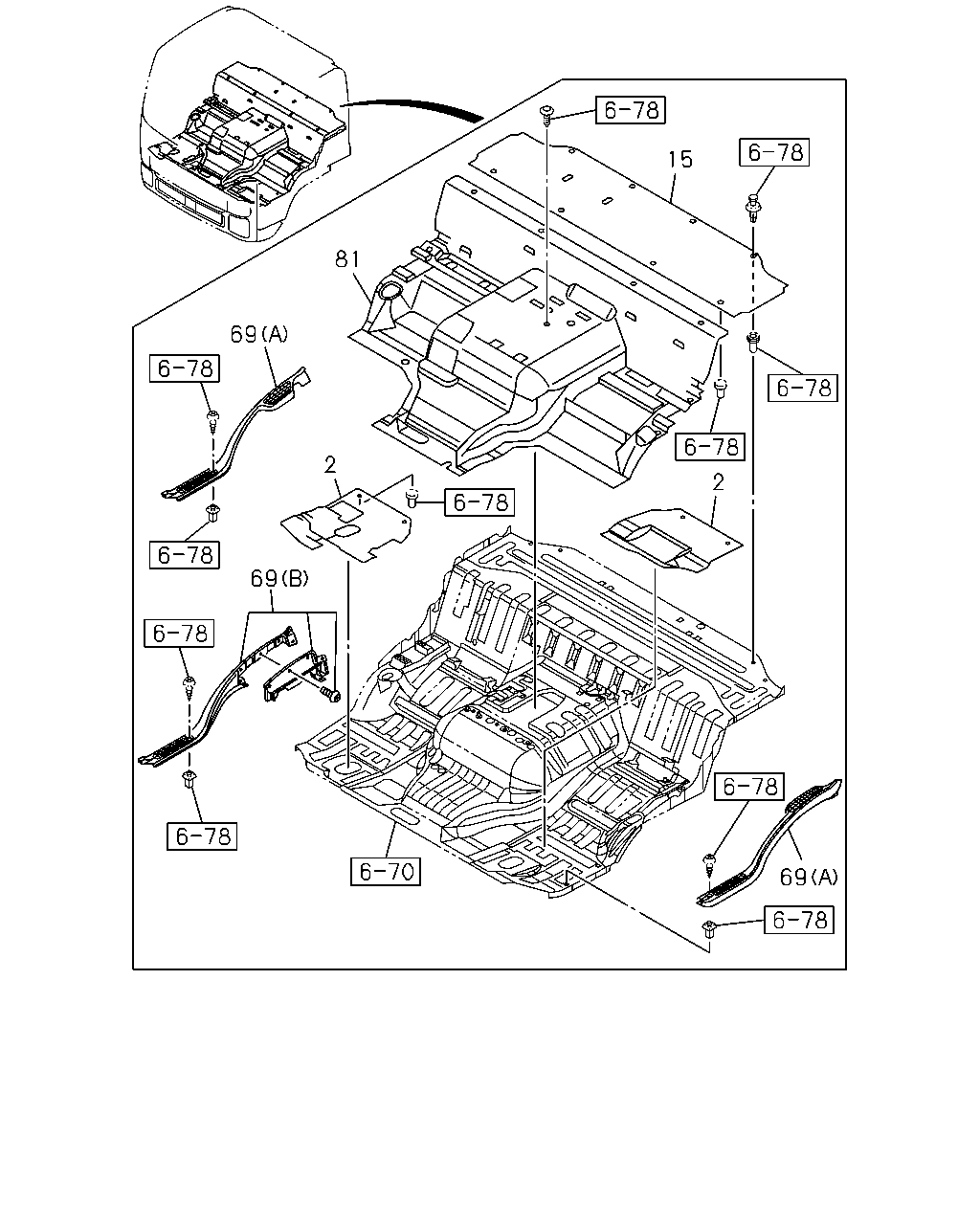

çizim 189415
81 69 2 69 2 15 69
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
DELUXE CARPET<BF2> DARK GRAY 		8-97421-810-0 01 1 1009-
2 MAT; FLOOR
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97421-809-0 01 1 1009-
2 MAT; FLOOR
DELUXE CARPET<BF2> EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97421-808-0 01 1 1009-
2 MAT; FLOOR
VINYL CARPET<B30> GRAY 		8-97413-133-1 01 1 1009-
2 MAT; FLOOR
VINYL CARPET<B30> HONG KONG EQUIPMENT(PQ1) GRAY 		8-97418-753-1 01 1 1009-
2 MAT; FLOOR
VINYL CARPET<B30> EXC. HONG KONG EQUIPMENT(PQ1) GRAY 		8-97413-132-2 01 1 1009-
15 MAT; FLOOR REAR
EXC. MATTRESS SLEEPER CAB<E40> DARK GRAY 		8-97418-951-0 01 1 1009-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) ENGINE REAR PTO(SV1) (B) GRAY 		8-97412-928-1 01 1 1012-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
ENGINE REAR PTO(SV1) SINGAPORE EQUIPMENT(WQ3) (B) GRAY 		8-97409-776-2 01 1 1012-1012
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
ENGINE REAR PTO(SV1) SINGAPORE EQUIPMENT(WQ3) (B) GRAY 		8-97407-414-3 01 1 1101-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97412-927-0 01 1 1009-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97412-926-0 01 1 1009-1011
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
HONG KONG EQUIPMENT(PQ1) EXC. ENGINE REAR PTO(SV1) (A) GRAY 		8-97412-926-0 01 1 1012-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97407-413-1 01 1 1009-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. HONG KONG EQUIPMENT(PQ1) (A) GRAY 		8-97407-412-1 01 1 1009-1011
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(WQ3) (A) GRAY 		8-97407-412-1 01 1 1012-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
SINGAPORE EQUIPMENT(WQ3) EXC. ENGINE REAR PTO(SV1) (A) GRAY 		8-97407-412-1 01 1 1012-
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> DARK GRAY 		8-97421-806-0 01 1 1009-1402
81 MAT; FLOOR,CENTER
DELUXE CARPET<BF2> DARK GRAY 		8-97424-930-0 01 1 1403-
81 MAT; FLOOR,CENTER
VINYL CARPET<B30> GRAY 		8-97413-081-6 01 1 1009-
