6-20 — SIDE PANEL AND STEP (#71282) — 134 parça

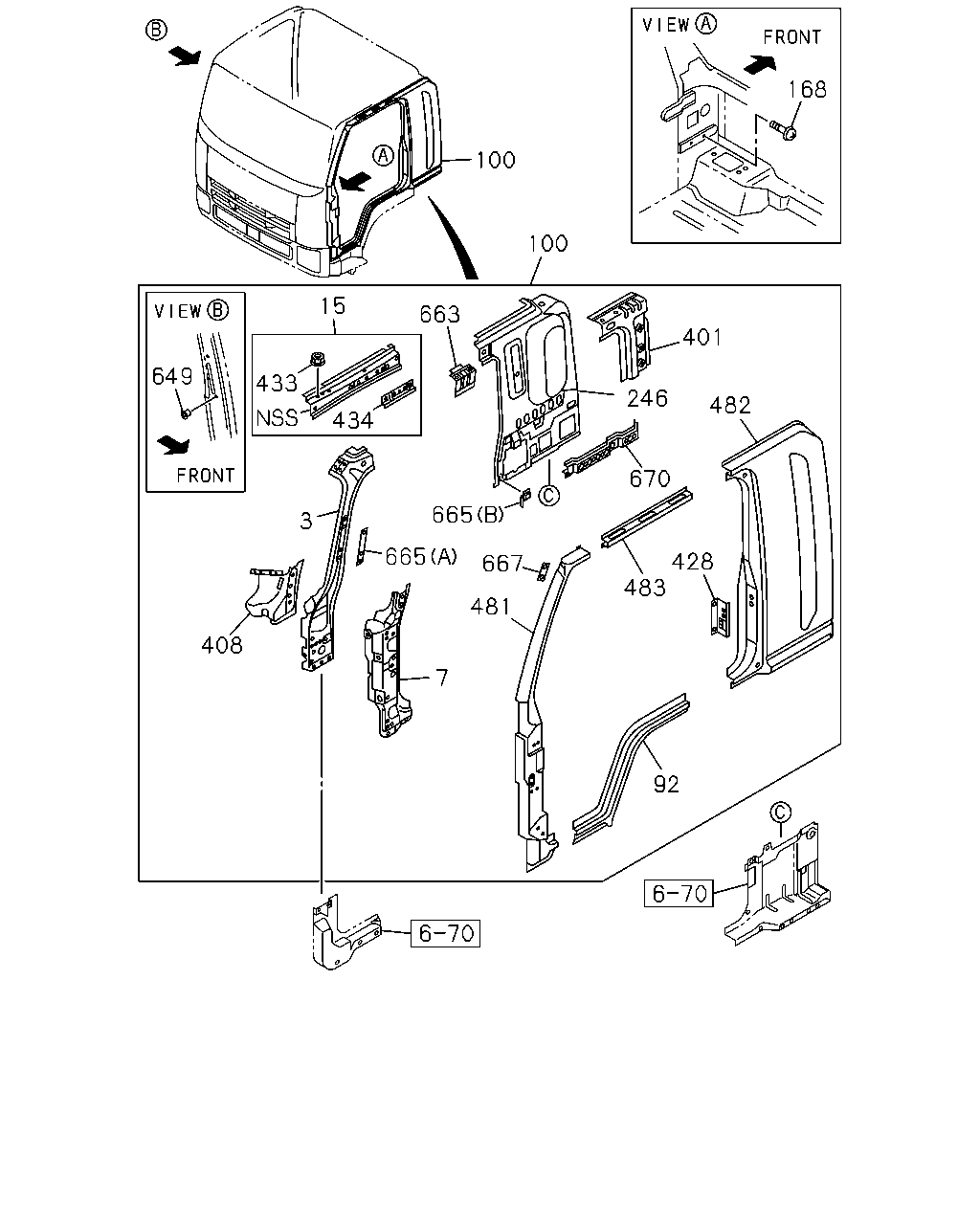

483 428 670 482 246 401 100 100 663 15 433 434 665 667 481 7 665 92 168 649 3 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	PANEL; CLOSING,FRT PILLAR	8-98058-237-1	01	1	1009-
3	PANEL; CLOSING,FRT PILLAR	8-98058-236-1	01	1	1009-
7	REINFORCEMENT; HINGE	8-97585-244-4	01	1	1009-
7	REINFORCEMENT; HINGE	8-97585-240-3	01	1	1009-
15	PANEL; CANT RAIL SIDE	8-97585-293-2	01	1	1009-
15	PANEL; CANT RAIL SIDE	8-97585-292-2	01	1	1009-
92	PANEL; SIDE SILL,CAB	8-98055-462-1	01	1	1009-
92	PANEL; SIDE SILL,CAB	8-98055-461-1	01	1	1009-
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC>	8-97586-079-7	01	1	1009-
100	PANEL ASM; BODY SIDE LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98122-093-1	01	1	1009-
100	PANEL ASM; BODY SIDE EXC. LAMPS TWO ROOF MARKER<TEC>	8-97586-073-9	01	1	1009-
100	PANEL ASM; BODY SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC>	8-98166-302-0	01	1	1009-
100	PANEL ASM; BODY SIDE MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98166-303-0	01	1	1009-
100	PANEL ASM; BODY SIDE EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC>	8-98122-095-1	01	1	1009-
168	BOLT; BODY SIDE PANEL T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	08	1	1009-
246	PANEL; RR PILLAR,INNER	8-97586-158-5	01	1	1009-
246	PANEL; RR PILLAR,INNER	8-97586-156-5	01	1	1009-
401	PATCH; CLOSING,FRT PILLAR	8-97586-161-2	01	1	1009-
401	PATCH; CLOSING,FRT PILLAR	8-97586-160-2	01	1	1009-
408	GUSSET; PILLAR	8-97586-194-2	01	1	1009-
408	GUSSET; PILLAR	8-97586-193-3	01	1	1009-
428	REINFORCEMENT; DOOR STRIKER	8-97585-261-4	01	1	1009-
428	REINFORCEMENT; DOOR STRIKER	8-97585-260-4	01	1	1009-
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1009-
433	NUT; HEADER SHELF M6	9-09114-086-0	02	1	1009-
434	PATCH; ASSIST GRIP	8-98039-020-0	01	1	1009-
434	PATCH; ASSIST GRIP	8-98039-019-0	01	1	1009-
481	PANEL; SIDE FRT PILLAR LAMPS TWO ROOF MARKER<TEC>	8-98092-915-0	01	1	1009-
481	PANEL; SIDE FRT PILLAR LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98093-579-0	01	1	1009-
481	PANEL; SIDE FRT PILLAR EXC. LAMPS TWO ROOF MARKER<TEC>	8-98055-453-0	01	1	1009-
481	PANEL; SIDE FRT PILLAR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC>	8-98093-580-0	01	1	1009-
481	PANEL; SIDE FRT PILLAR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98055-471-0	01	1	1009-
481	PANEL; SIDE FRT PILLAR EXC. MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC>	8-98055-470-0	01	1	1009-
482	PANEL; SIDE RR PILLAR	8-98055-469-0	01	1	1009-
482	PANEL; SIDE RR PILLAR	8-98055-468-0	01	1	1009-
483	PANEL; SIDE CANTRAIL	8-98055-460-0	01	1	1009-
483	PANEL; SIDE CANTRAIL	8-98055-458-0	01	1	1009-
649	NUT; POP M5 POP NUT	8-97249-574-0	02	1	1009-
663	BRACKET; AIR	8-97585-208-2	01	1	1009-
663	BRACKET; AIR	8-97585-207-2	01	1	1009-
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	1009-
665	REINFORCEMENT; GRIP,ASSIST (A)	8-97585-314-0	01	1	1009-
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	1009-
665	REINFORCEMENT; GRIP,ASSIST (B)	8-98012-287-1	01	1	1009-
667	BRACKET; MIRROR	8-98109-948-0	01	1	1009-
667	BRACKET; MIRROR MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB>	8-98109-948-0	02	1	1009-
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	1009-
670	STIFFENER; PANEL,SIDE	8-98015-044-1	01	1	1009-

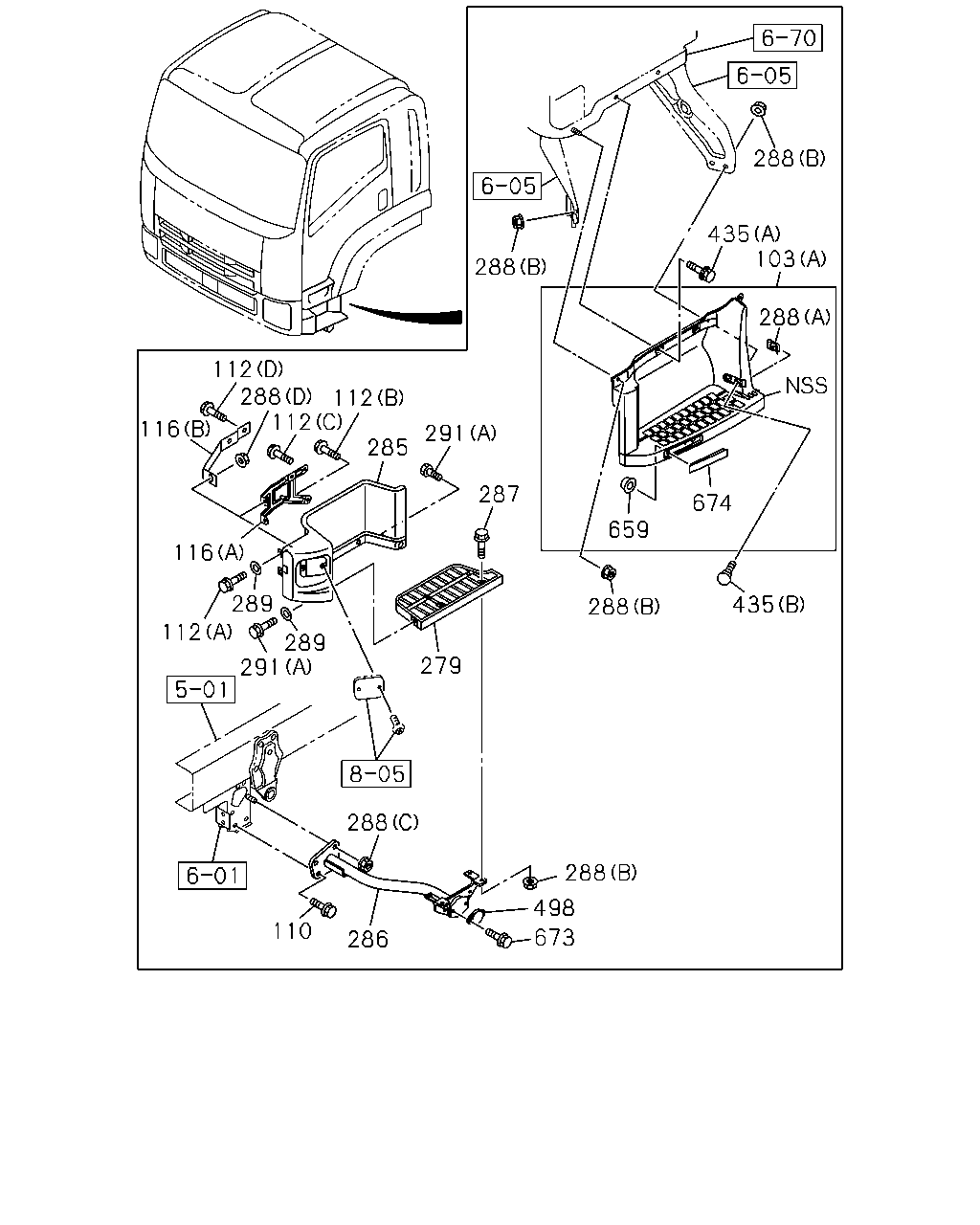

112 116 288 112 112 285 291 287 279 289 291 289 116 112 110 286 288 288 498 673 288 435 674 659 288 103 435 288 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-625-2	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-631-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-624-2	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-630-0	01	1	1009-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-977-2	01	1	1009-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-976-2	01	1	1009-
110	BOLT; 1ST STEP PLATE M12X40 FLANGE	0-28651-240-0	06	1	1009-
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	1009-1112
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	02	1	1201-
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	1009-1112
112	BOLT; 1ST STEP (D) M8X12 FLANGE	0-28050-812-0	04	1	1201-
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1112
112	BOLT; 1ST STEP (B) M6X20 FLANGE	0-28050-620-0	02	1	1201-
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	1009-1112
116	STAY; 1ST STEP,FRT (B)	8-98196-756-0	02	1	1201-
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	1009-1112
279	BOARD; STEP 1ST	1-53414-181-0	01	1	1009-
279	BOARD; STEP 1ST	1-53414-180-0	01	1	1009-
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	1009-
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	1009-
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-176-2	01	1	1009-
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-175-2	01	1	1009-
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-271-1	01	1	1009-
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-270-1	01	1	1009-
287	BOLT; BOARD STEP M8X40 FLANGE	0-28650-840-0	08	1	1009-1107
287	BOLT; BOARD STEP M8X35 FLANGE	0-28650-835-0	08	1	1108-
288	NUT; STEP (D) M6 FLANGE	0-91180-106-0	02	1	1201-
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1009-
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1009-
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	02	1	1009-
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1009-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	10	1	1009-
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98165-009-0	08	1	1009-
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	1009-
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1009-
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1009-
498	REFLECTOR	1-82290-011-1	02	1	1009-
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1009-
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	1009-
674	COVER; REFLECTOR	8-98092-734-0	01	1	1009-
674	COVER; REFLECTOR	8-98092-733-0	01	1	1009-

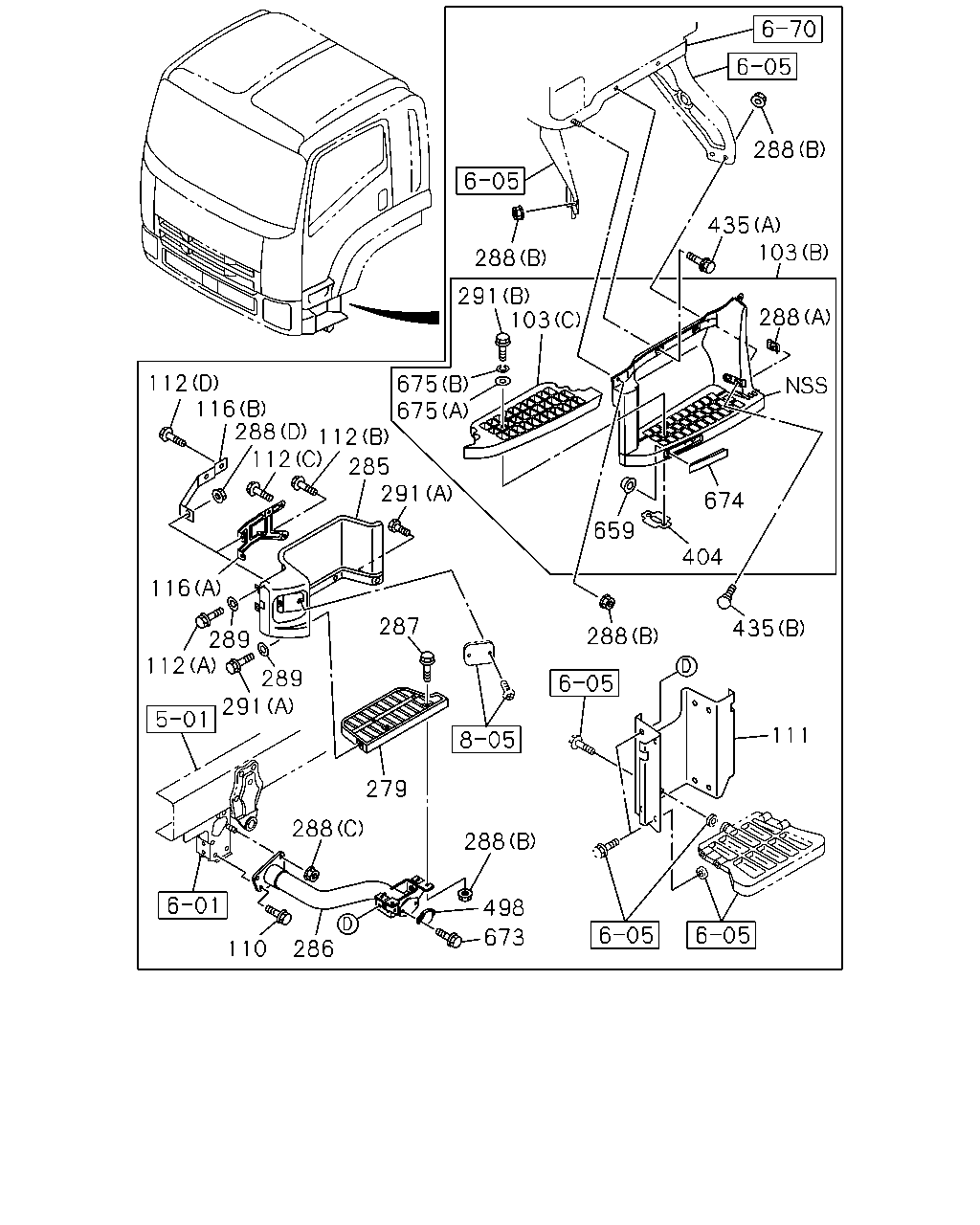

288 435 103 288 674 404 435 111 288 659 103 291 288 675 675 291 285 112 112 288 116 112 116 112 289 289 291 287 279 288 110 286 673 498 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-625-2	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-631-0	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (B)	8-98080-624-2	01	1	1009-
103	PLATE; STEP HONG KONG EQUIPMENT(PQ1) (C)	8-98080-630-0	01	1	1009-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-977-2	01	1	1009-
103	PLATE; STEP EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-98069-976-2	01	1	1009-
110	BOLT; 1ST STEP PLATE M12X40 FLANGE	0-28651-240-0	06	1	1009-
111	COVER; 1ST STEP HONG KONG EQUIPMENT(PQ1)	8-98155-124-1	02	1	1009-
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	04	1	1009-1112
112	BOLT; 1ST STEP (A) M6X16 FLANGE	0-28050-616-0	02	1	1201-
112	BOLT; 1ST STEP (B) M6X25 FLANGE	0-28050-625-0	02	1	1009-1112
112	BOLT; 1ST STEP (D) M8X12 FLANGE	0-28050-812-0	04	1	1201-
112	BOLT; 1ST STEP (C) M8X16 FLANGE	0-28050-816-0	04	1	1009-1112
112	BOLT; 1ST STEP (B) M6X20 FLANGE	0-28050-620-0	02	1	1201-
116	STAY; 1ST STEP,FRT (A)	8-98062-133-1	01	1	1009-1112
116	STAY; 1ST STEP,FRT (B)	8-98196-756-0	02	1	1201-
116	STAY; 1ST STEP,FRT (A)	8-98062-134-1	01	1	1009-1112
279	BOARD; STEP 1ST	1-53414-181-0	01	1	1009-
279	BOARD; STEP 1ST	1-53414-180-0	01	1	1009-
285	PLATE; STEP,1ST STEP	8-98017-535-3	01	1	1009-
285	PLATE; STEP,1ST STEP	8-98017-536-3	01	1	1009-
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-176-2	01	1	1009-
286	STEP ASM; 1ST HONG KONG EQUIPMENT(PQ1)	8-98146-175-2	01	1	1009-
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-271-1	01	1	1009-
286	STEP ASM; 1ST EXC. HONG KONG EQUIPMENT(PQ1)	8-98055-270-1	01	1	1009-
287	BOLT; BOARD STEP M8X40 FLANGE	0-28650-840-0	08	1	1009-1107
287	BOLT; BOARD STEP M8X35 FLANGE	0-28650-835-0	08	1	1108-
288	NUT; STEP (D) M6 FLANGE	0-91180-106-0	02	1	1201-
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	08	1	1009-
288	NUT; STEP (B) M8 FLANGE	0-91180-108-0	10	1	1009-
288	NUT; STEP (C) M12 FLANGE	0-91180-212-0	02	1	1009-
288	NUT; STEP (A) M8	8-98040-792-0	02	1	1009-
289	WASHER; PL,STEP ID=6.4 OD=18	0-91610-706-0	10	1	1009-
291	BOLT; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98165-009-0	08	1	1009-
291	BOLT; STEP PLATE (A) M6X12 FLANGE	0-28050-612-0	06	1	1009-
404	BRACKET HONG KONG EQUIPMENT(PQ1)	8-98080-646-1	04	1	1009-
435	BOLT; RR STEP (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1009-
435	BOLT; RR STEP (B) M8X18	8-98146-670-0	08	1	1009-
498	REFLECTOR	1-82290-011-1	02	1	1009-
659	CLIP; SPRING NUT	8-97811-510-0	04	1	1009-
673	BOLT; REFLECTOR M5X16 W/LK&PL WASHER	8-94198-538-0	04	1	1009-
674	COVER; REFLECTOR	8-98092-734-0	01	1	1009-
674	COVER; REFLECTOR	8-98092-733-0	01	1	1009-
675	WASHER; STEP PLATE HONG KONG EQUIPMENT(PQ1) (A)	8-98112-672-1	08	1	1009-
675	WASHER; STEP PLATE HONG KONG EQUIPMENT(PQ1) (B)	8-98112-673-1	08	1	1009-
