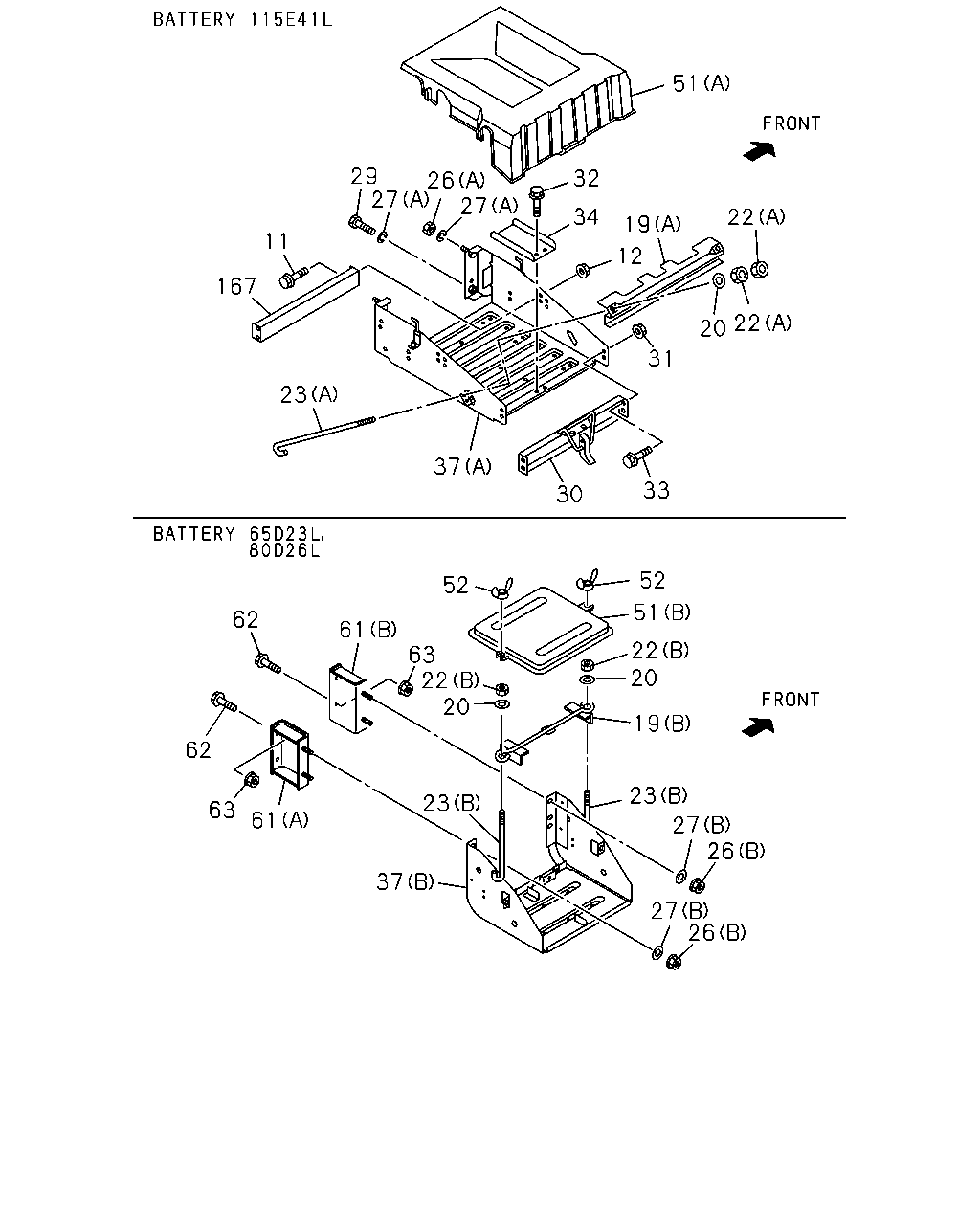

11 |
BOLT; BRKT FIX
BATTERY 115E41L<8MA>
M8X20 FLANGE
|
0-28050-820-0 |
04 |
1 |
1009- |
| |
12 |
NUT; BRKT FIX
BATTERY 115E41L<8MA>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1009- |
| |
19 |
STAY; BATTERY
BATTERY 115E41L<8MA>
(A)
|
8-98056-961-0 |
01 |
1 |
1009- |
| |
19 |
STAY; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
|
5-53615-004-1 |
01 |
1 |
1009- |
| |
20 |
WASHER; PL,STAY
ID=8.4 OD=22
|
0-91614-708-0 |
02 |
1 |
1009- |
| |
22 |
NUT; STAY
BATTERY 115E41L<8MA>
(A)
M8
|
0-91110-508-0 |
04 |
1 |
1009- |
| |
22 |
NUT; STAY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
1009- |
| |
23 |
BOLT; STAY
BATTERY 115E41L<8MA>
(A)
L=250
|
1-53616-108-0 |
02 |
1 |
1009- |
| |
23 |
BOLT; STAY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
L=120
|
9-53616-615-0 |
02 |
1 |
1009- |
| |
26 |
NUT; BRKT
BATTERY 115E41L<8MA>
(A)
M14
|
1-09440-072-0 |
02 |
1 |
1009- |
| |
26 |
NUT; BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1009- |
| |
27 |
WASHER; LK,BRKT
BATTERY 115E41L<8MA>
(A)
ID=14.2
|
0-91510-514-0 |
04 |
1 |
1009- |
| |
27 |
WASHER; LK,BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
ID=10.5 OD=22
|
0-91614-610-0 |
04 |
1 |
1009- |
| |
29 |
BOLT; BRKT TO FRAME
BATTERY 115E41L<8MA>
M14X45
|
1-09000-764-0 |
02 |
1 |
1009- |
| |
30 |
PLATE; BATTERY
BATTERY 115E41L<8MA>
|
1-53619-085-0 |
01 |
1 |
1009- |
| |
31 |
NUT; PLATE
BATTERY 115E41L<8MA>
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
1009- |
| |
32 |
BOLT; PLATE TO SPACER
BATTERY 115E41L<8MA>
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1009- |
| |
33 |
BOLT; PLATE TO BRKT
BATTERY 115E41L<8MA>
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
1009- |
| |
34 |
SPACER; BATTERY BRKT
BATTERY 115E41L<8MA>
|
8-98057-728-0 |
01 |
1 |
1009- |
| |
37 |
BRACKET; BATTERY
BATTERY 115E41L<8MA>
(A)
|
8-98088-440-3 |
01 |
1 |
1009- |
| |
37 |
BRACKET; BATTERY
BATTERY 65D23L<8EJ>
(B)
|
8-97384-068-2 |
01 |
1 |
1009- |
| |
37 |
BRACKET; BATTERY
BATTERY 80D26L<TM1>
(B)
|
8-97384-067-2 |
01 |
1 |
1009- |
| |
51 |
COVER; BATTERY
BATTERY 115E41L<8MA>
(A)
|
1-53612-068-0 |
01 |
1 |
1009- |
| |
51 |
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
|
8-97120-747-0 |
01 |
1 |
1009- |
| |
52 |
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M8 WING NUT
|
0-91118-408-0 |
02 |
1 |
1009- |
| |
61 |
DISTANCE; BRKT,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(B)
|
8-98088-828-0 |
01 |
1 |
1009- |
| |
61 |
DISTANCE; BRKT,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
(A)
|
8-98162-291-0 |
01 |
1 |
1009- |
| |
62 |
BOLT; DIST TO FRAME,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M10X35 FLANGE
|
0-28651-035-0 |
04 |
1 |
1009- |
| |
63 |
NUT; DIST TO FRAME
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1009- |
| |
167 |
BRACKET; STOPPER
BATTERY 115E41L<8MA>
|
8-98091-941-0 |
01 |
1 |
1009- |
