◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FYH ▶ 11308 - FYH RHD EURO5 ENGINE REAR PTO ▶ 5 - Frame, Cab Mounting ▶ 5-10 - CAB MOUNTING; FRAME SIDE ▶
5-10 — CAB MOUNTING; FRAME SIDE (#71272) — 94 parça
çizim 125559
65 202 202 203 204 205 204 203 112 27 48 51 535 191 191 535 51 48 27 536 51 535 535 535 191 535 535 535 191 51 536
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; BUSHING
M18X120 		1-09000-442-1 02 1 1009-
48 WASHER; PL
ID=19 OD=30 		1-09503-279-0 02 1 1009-
51 BUSHING; RUBBER 1-53458-714-0 04 1 1009-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1009-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1009-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1009-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1009-
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28051-235-0 08 1 1009-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1009-
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1009-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1009-
203 WASHER; RUBBER,SHOCK
(A) ID=10.8 OD=38 T=6 		1-51631-005-0 02 1 1009-
203 WASHER; RUBBER,SHOCK
(B) ID=10 OD=38 T=5 		1-51631-104-0 02 1 1009-
204 RUBBER; CUSHION,SHOCK 1-51631-004-0 04 1 1009-
205 WASHER; RUBBER,SHOCK 1-51631-079-0 02 1 1009-
535 BRACKET; LINK ARM
(A) 		8-98094-831-0 02 1 1009-
535 BRACKET; LINK ARM
(B) 		8-98094-832-0 02 1 1009-
535 BRACKET; LINK ARM
(C) 		8-98099-704-0 04 1 1009-
536 WASHER; SIDE
ID=34.5 		1-53458-281-1 02 1 1009-

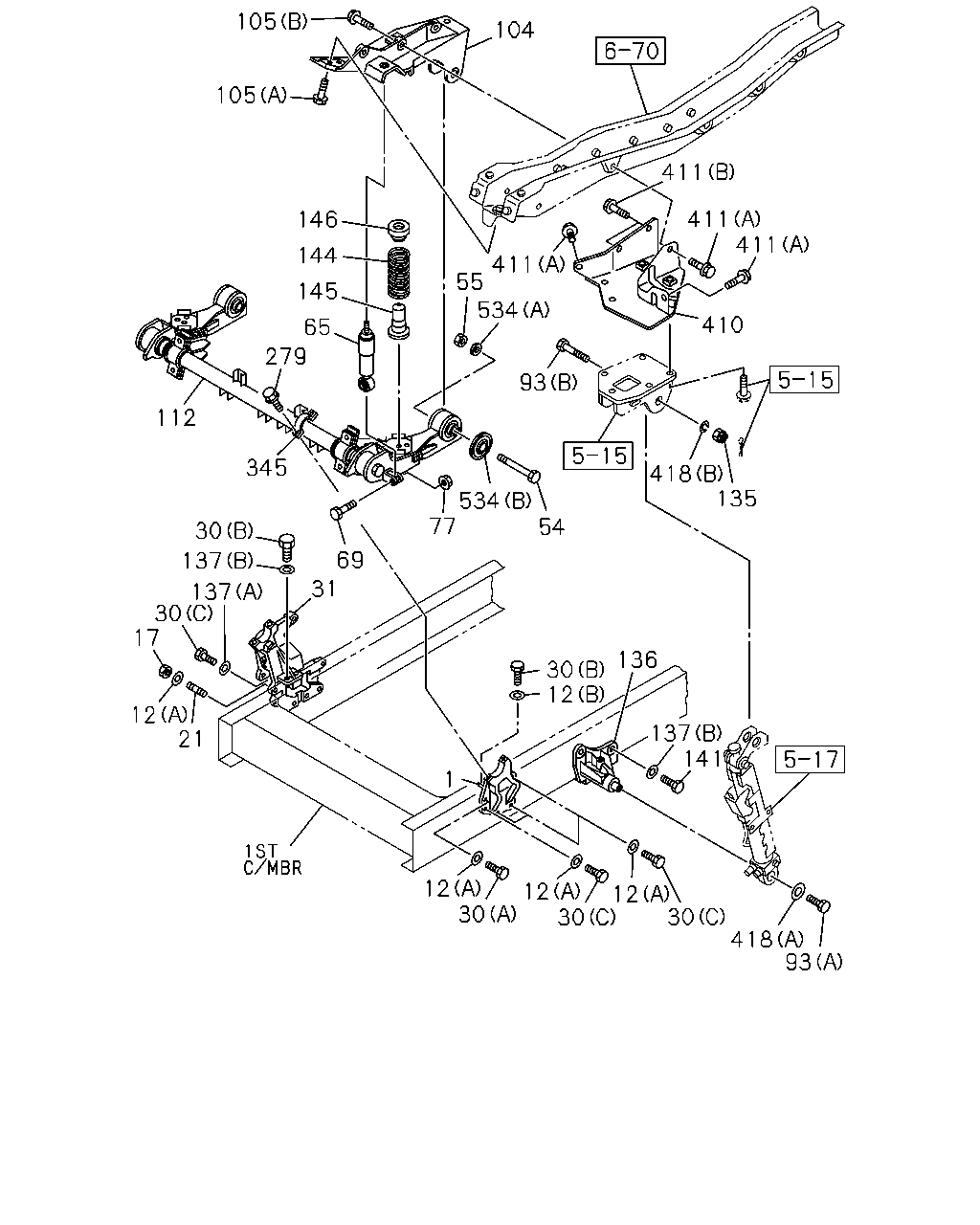

çizim 189398
105 105 04 411 411 410 411 55 93 534 146 144 145 65 279 112 345 30 137 137 30 17 12 21 12 1 12 30 30 30 12 418 93 141 137 136 30 12 534 77 69 31 54 418 135 411
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; CAB MTG 8-98054-826-0 01 1 1009-
12 WASHER; LK,BRKT
(A) ID=16.2 		1-09503-316-0 06 1 1009-
12 WASHER; LK,BRKT
(B) ID=15 		8-98010-627-1 02 1 1009-
17 NUT; BRKT,CAB TILT
M16 		0-91110-516-0 01 1 1009-
21 STUD; BRKT,CAB TILT
M16X50 L=74 		1-09300-117-0 01 1 1009-
30 BOLT; CAB FRT FOOT
(B) M14X60 		0-20951-460-0 04 1 1009-
30 BOLT; CAB FRT FOOT
(C) M16X50 		0-20951-650-0 09 1 1009-
30 BOLT; CAB FRT FOOT
(A) M16X60 		0-20951-660-0 01 1 1009-
31 BRACKET; CAB 8-98152-797-0 01 1 1009-
54 BOLT; RUBBER
M18X90 		0-10856-890-0 02 1 1009-
55 NUT; RUBBER
M18 		0-91110-518-0 02 1 1009-
65 ABSORBER; SHOCK,CAB FRT SUSPENSION 1-51630-604-1 02 1 1009-
69 BOLT; S/ABS,CAB FRT SUSPENSION
M12X60 		0-20801-260-0 02 1 1009-
77 NUT
M12 FLANGE 		0-91180-212-0 02 1 1009-
93 BOLT; PIN
(A) M10X30 		1-09000-283-0 01 1 1009-
93 BOLT; PIN
(B) M14X70 		1-53458-633-0 01 1 1009-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1009-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1009-
105 BOLT; BRKT TO CAB FRAME
(A) M12X35 FLANGE 		0-28651-235-0 06 1 1009-
105 BOLT; BRKT TO CAB FRAME
(B) M10X30 FLANGE 		0-28661-030-0 08 1 1009-
112 ARM ASM; LINK,CAB FRT SUSP 8-98100-381-1 01 1 1009-
135 NUT; PIN
M14 SLOTTED 		0-91116-514-0 01 1 1009-
136 BRACKET; OIL CYL 8-98054-835-0 01 1 1009-
137 WASHER; PL,BRKT
(A) ID=16.2 		1-09503-316-0 05 1 1009-
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 02 1 1009-
137 WASHER; PL,BRKT
(B) ID=15 		8-98010-627-1 04 1 1009-
141 BOLT; BRKT
M14X50 		0-20951-450-0 04 1 1009-
144 SPRING; COIL,CAB FRT SUSPENSION 1-09580-537-0 02 1 1009-
145 RUBBER; CUSHION,CAB FRT SUSPENSION 1-53366-139-0 02 1 1009-
146 SEAT; SPRING,CAB FRT SUSPENSION 1-53366-138-0 02 1 1009-
279 BOLT
M12X40 FLANGE 		0-28061-240-0 04 1 1009-1510
279 BOLT
M12X40 FLANGE 		8-98270-173-0 04 1 1511-
345 CAP; CAB 1-53458-336-3 02 1 1009-
410 REINFORCEMENT; CAB TILT 8-98054-960-3 01 1 1009-
411 BOLT; REINFORCEMENT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1009-
411 BOLT; REINFORCEMENT
(B) M10X30 FLANGE 		0-28661-030-0 02 1 1009-
418 WASHER; PL,PIN
(B) ID=14.2 		0-91510-814-0 01 1 1009-
418 WASHER; PL,PIN
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 1009-
534 WASHER; RUBBER
(A) ID=19 OD=30 		1-09503-279-0 02 1 1009-
534 WASHER; RUBBER
(B) ID=34.5 		1-53458-281-1 02 1 1009-

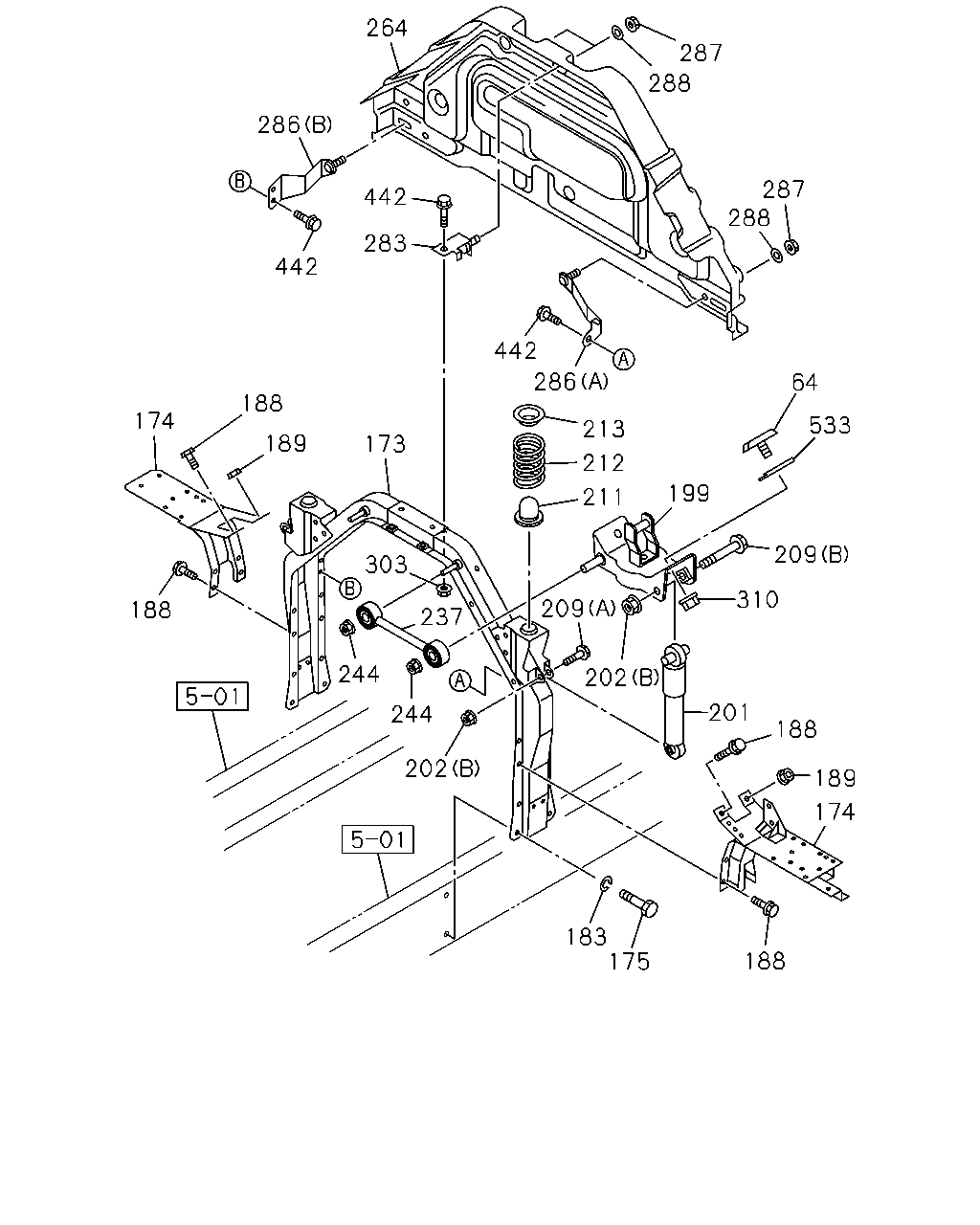

çizim 189401
286 442 283 442 264 288 287 287 288 64 533 213 212 211 199 286 442 173 189 188 174 188 202 244 244 237 303 209 202 201 188 189 174 183 310 209 175 188
BalonParca AdiParca NoAdetTipApplied Date
64 RUBBER; CUSHION 8-97113-340-0 04 1 1009-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-821-2 01 1 1009-
104 BRACKET; CAB FRAME,CAB FRT MTG 8-98054-822-2 01 1 1009-
173 MEMBER; CAB MTG RR 8-98054-836-3 01 1 1009-
174 OUTRIGGER 8-98054-839-2 01 1 1009-
174 OUTRIGGER 8-98054-838-1 01 1 1009-
175 BOLT; MEMBER TO FRAME
M14X40 		0-20951-440-0 08 1 1009-
183 WASHER; PL,MEMBER
ID=15 		8-98010-627-1 08 1 1009-
188 BOLT; OUTRIGGER
M12X30 FLANGE 		0-28661-230-0 10 1 1009-
189 NUT; OUTRIGGER
M12 FLANGE 		0-91180-212-0 02 1 1009-
199 BRACKET; CAB RR MTG 8-98025-488-4 01 1 1009-
199 BRACKET; CAB RR MTG 8-98025-489-4 01 1 1009-1403
199 BRACKET; CAB RR MTG 8-98270-495-0 01 1 1404-
201 ABSORBER ASM; SHOCK,RR MTG 8-98022-450-0 02 1 1009-1401
201 ABSORBER ASM; SHOCK,RR MTG 8-98269-510-0 02 1 1402-
202 NUT; S/ABS
(A) M10 FLANGE 		0-91180-110-0 02 1 1009-
202 NUT; S/ABS
(B) M12 FLANGE 		0-91180-212-0 04 1 1009-
202 NUT; S/ABS
(C) M10 		9-09111-410-0 02 1 1009-
209 BOLT; S/ABS
(A) M12X60 FLANGE 		0-28051-260-0 02 1 1009-
209 BOLT; S/ABS
(B) M12X100 FLANGE 		0-28061-200-0 02 1 1009-
211 RUBBER; CUSHION,S/ABS 1-53366-144-0 02 1 1009-
212 SPRING; COIL 1-09580-398-1 02 1 1009-
213 SEAT; SPR,S/ABS 1-53366-062-2 02 1 1009-
237 ROD ASM; LATERAL 1-53459-585-2 02 1 1009-
244 NUT; LATERAL ROD
M16 FLANGE 		0-91180-216-0 04 1 1009-
264 PANEL; BACK
HONG KONG EQUIPMENT(PQ1) 		8-98055-597-1 01 1 1009-
283 BRACKET; UPR
HONG KONG EQUIPMENT(PQ1) 		1-53457-187-0 01 1 1009-
286 BRACKET; LOW
HONG KONG EQUIPMENT(PQ1) (A) 		8-98057-240-0 01 1 1009-
286 BRACKET; LOW
HONG KONG EQUIPMENT(PQ1) (B) 		8-98057-241-0 01 1 1009-
287 NUT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 03 1 1009-
288 WASHER; PL
HONG KONG EQUIPMENT(PQ1) ID=8.4 OD=26 		0-91614-808-0 03 1 1009-
303 NUT; BRKT
HONG KONG EQUIPMENT(PQ1) M8 FLANGE 		0-91180-108-0 01 1 1009-
310 NUT; CUSHION
M8 FLANGE 		0-91180-108-0 04 1 1009-
442 BOLT; BRKT
HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE 		0-28650-820-0 04 1 1009-
533 SPACER; MTG RUBBER 8-98100-388-0 04 1 1009-
