◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 10818 - LV123/150/423-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#7127) — 218 parça

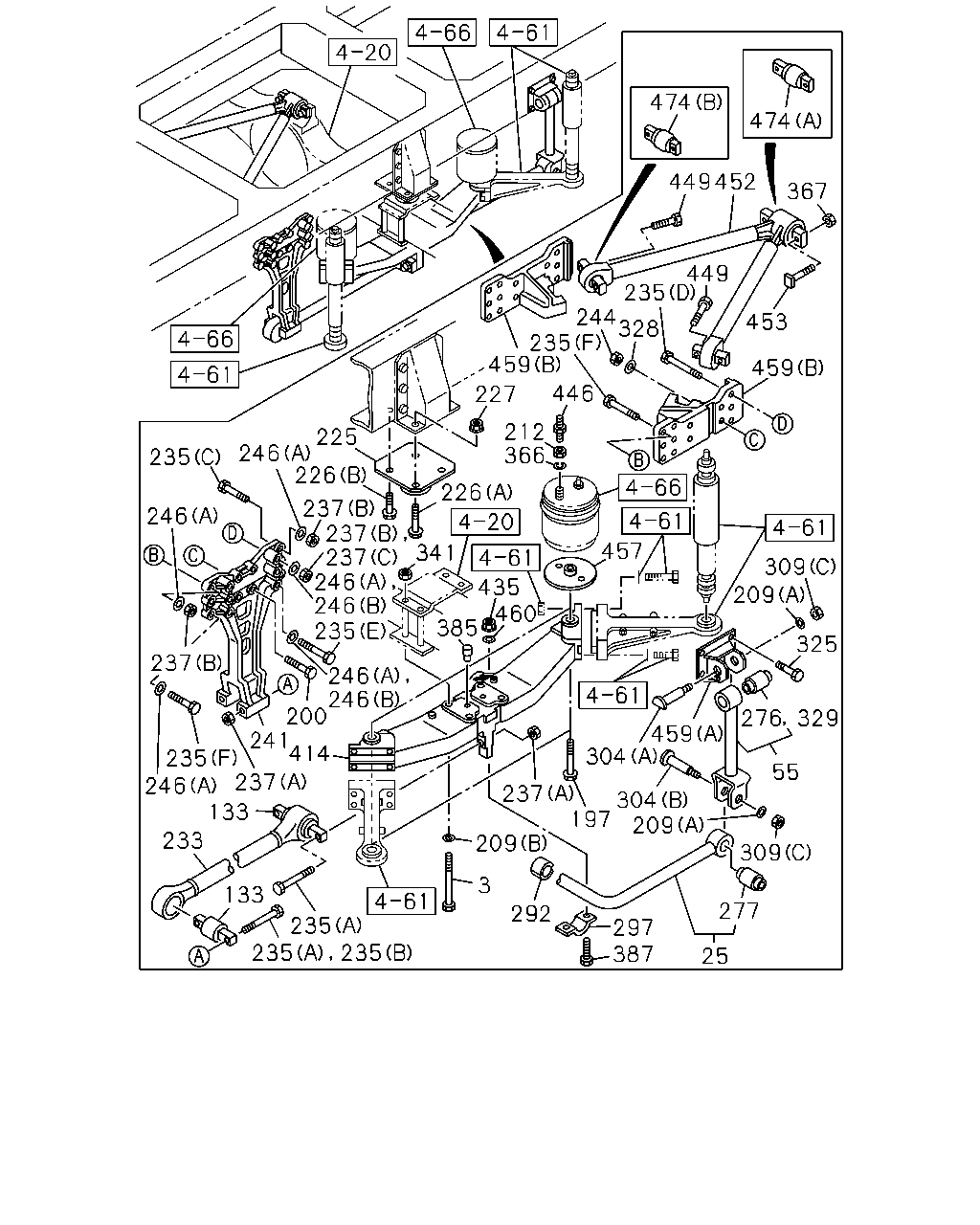

çizim 6365
474 474 367 449 235 244 328 235 459 227 453 459 446 212 366 225 246 226 235 226 237 237 237 237 246 246 235 246 457 309 237 435 460 385 209 325 246 246 200 241 414 276 329 459 304 235 246 237 133 55 237 304 197 209 209 233 309 3 133 277 292 235 297 387 25 449 452 341 235 235
BalonParca AdiParca NoAdetTipApplied Date A B
3 BOLT; BEAM
M24X295 		1-09000-622-2 08 1 0012- ●
25 BAR ASM; STAB,RR SUSP 1-51771-183-0 01 1 0012- ●
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-174-0 01 1 0012- ●
55 ROD; STAB 1-51773-088-1 02 1 0012-0711 ●
55 ROD; STAB 1-51773-113-1 02 1 0712- ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-072-2 02 1 0012- ●
133 BUSHING; RUBBER,TORQUE ROD 1-51519-166-1 04 1 0012-0312 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0401- ●
197 BOLT
M16X110 FLANGE 		1-09044-100-1 04 1 0012- ●
200 BOLT; BRKT
M16X60 		9-91066-660-0 08 1 0012-0512 ●
200 BOLT; BRKT
M16X60 		0-10956-660-0 08 1 0601- ●
209 WASHER; PL
(B) ID=25 		1-09503-282-0 08 1 0012- ●
209 WASHER; PL
(A) ID=21 		9-09164-520-0 04 1 0012- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (C) ID=16.5 		9-51631-040-0 04 1 0012- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (D) ID=20.8 		9-51631-041-0 04 1 0012- ●
212 NUT
M20 		9-99111-520-0 04 1 0012-0512 ●
212 NUT
M20 		0-91111-520-0 04 1 0601- ●
225 RUBBER; CUSHION,RR SPR 1-51374-004-0 02 1 0012- ●
225 RUBBER; CUSHION,RR SPR 1-53366-174-0 02 1 0012- ●
226 BOLT
(A) M12X30 FLANGE 		0-28691-230-0 04 1 0012-0512 ●
226 BOLT
(A) M12X30 FLANGE 		0-28661-230-0 04 1 0601- ●
226 BOLT
(B) M12X40 FLANGE 		0-28691-240-0 04 1 0012-0512 ●
226 BOLT
(B) M12X40 FLANGE 		0-28661-240-0 04 1 0601- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0012-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0012-0602 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
233 ROD ASM; TORQUE,RR SUSP
L=685 		1-51511-751-0 02 1 0012- ●
235 BOLT; TORQUE ROD
(B) M18X170 		1-09000-628-1 04 1 0508- ●
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-627-0 04 1 0012-0505 ●
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-568-0 08 1 0506-0507 ●
235 BOLT; TORQUE ROD
(A) M18X102 		1-09000-568-0 04 1 0508-0805 ●
235 BOLT; TORQUE ROD
(A) M18X102 		8-98012-877-0 04 1 0806- ●
235 BOLT; TORQUE ROD
(B) M18X170 		1-09000-628-1 04 1 0012-0505 ●
235 BOLT; TORQUE ROD
(C) M20X60 		1-09000-633-0 06 1 0012- ●
235 BOLT; TORQUE ROD
(D) M20X165 		1-09000-661-1 10 1 0012-0811 ●
235 BOLT; TORQUE ROD
(D) M20X165 		8-98010-548-0 10 1 0812- ●
235 BOLT; TORQUE ROD
(E) M20X160 		1-09000-697-0 02 1 0012- ●
235 BOLT; TORQUE ROD
(F) M20X75 		1-09000-736-0 06 1 0012-0606 ●
235 BOLT; TORQUE ROD
(F) M20X75 		1-09000-792-0 06 1 0607- ●
237 NUT; TORQUE ROD
(C) M20 		8-98010-408-0 10 1 0812- ●
237 NUT; TORQUE ROD
(A) M18 SELF LOCK 		1-09464-032-0 08 1 0012- ●
237 NUT; TORQUE ROD
(B) M20 		9-99110-520-0 20 1 0012-0512 ●
237 NUT; TORQUE ROD
(B) M20 		0-91110-520-0 20 1 0601-0811 ●
237 NUT; TORQUE ROD
(B) M20 		0-91110-520-0 10 1 0812- ●
241 BRACKET; TORQUE ROD 1-53361-081-2 02 1 0012- ●
244 NUT; BRKT
M16 		9-99110-516-0 08 1 0012-0512 ●
244 NUT; BRKT
M16 		0-91110-516-0 08 1 0601- ●
246 WASHER; TORQUE ROD
(B) ID=21 		8-98010-403-0 10 1 0812- ●
246 WASHER; TORQUE ROD
(A) ID=21 		9-09164-520-0 24 1 0012-0811 ●
246 WASHER; TORQUE ROD
(A) ID=21 		9-09164-520-0 14 1 0812- ●
276 BUSHING; STAB ROD 1-51779-055-0 02 1 0712- ●
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-079-1 04 1 0012- ●
277 BUSHING; STAB,RR UPR 1-51779-055-0 02 1 0012- ●
277 BUSHING; STAB,RR UPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-067-0 02 1 0012- ●
292 BUSHING; RUBBER,STAB 1-51779-100-0 04 1 0012- ●
297 CAP; STAB BAR 1-52175-013-1 02 1 0012-0108 ●
297 CAP; STAB BAR 1-52175-024-0 02 1 0109- ●
304 PIN; STAB ROD
(A) M20X106 		1-51361-028-2 02 1 0012- ●
304 PIN; STAB ROD
(B) M20X110 		1-51361-029-2 02 1 0012- ●
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (C) 		1-51789-020-2 02 1 0012- ●
309 NUT; STAB ROD
(C) M20 FLANGE 		1-09440-060-0 04 1 0012-0805 ●
309 NUT; STAB ROD
(C) M20 FLANGE 		8-98010-392-0 04 1 0806- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		9-99111-414-0 04 1 0012-0512 ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		0-91111-514-0 04 1 0601- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (B) M24 		9-99116-424-0 02 1 0012- ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28691-440-0 08 1 0012-0512 ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28661-440-0 08 1 0601- ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28891-445-0 08 1 0012-0512 ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28861-445-0 08 1 0601- ●
328 WASHER; PL,BRKT
ID=16.2 		1-09503-223-0 16 1 0012-0903 ●
328 WASHER; PL,BRKT
ID=16.2 		1-09503-316-0 16 1 0904- ●
329 BUSHING; STAB ROD 1-51779-055-0 02 1 0107-0711 ●
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		9-51631-039-0 04 1 0012- ●
341 NUT; BEAM
M24 		9-99110-524-0 08 1 0012-0512 ●
341 NUT; BEAM
M24 		0-91110-524-0 08 1 0601- ●
366 WASHER; LK
ID=20.2 		9-09150-520-0 04 1 0012-0603 ●
366 WASHER; LK
ID=20.2 		0-91510-520-0 04 1 0604- ●
367 NUT
M24 FLANGE 		1-42334-045-1 02 1 0012-0805 ●
367 NUT
M24 FLANGE 		8-98019-963-0 02 1 0806- ●
385 PIN; KNOCK,SUSP BEAM 1-52179-036-2 04 1 0012- ●
387 BOLT; CAP FIX,STAB BAR
M16X60 FLANGE 		1-09044-101-0 04 1 0012-0505 ●
387 BOLT; CAP FIX,STAB BAR
M16X50 FLANGE 		0-28891-650-0 04 1 0506-0512 ●
387 BOLT; CAP FIX,STAB BAR
M16X50 FLANGE 		0-28861-650-0 04 1 0601- ●
414 BEAM; AIR SPR 1-52170-104-0 01 1 0012- ●
414 BEAM; AIR SPR 1-52170-105-0 01 1 0012- ●
435 NUT; CAP
M16 		9-99110-516-0 04 1 0012-0512 ●
435 NUT; CAP
M16 		0-91110-516-0 04 1 0601- ●
446 CONNECTOR; AIR SPRING
M12 & PT1/4 STRAIGHT 		1-09650-074-1 04 1 0012- ●
449 BOLT; FRAME
M18X70 FLANGE 		1-09044-102-1 04 1 0012-0805 ●
449 BOLT; FRAME
M18X70 FLANGE 		8-98010-540-0 04 1 0806-1102 ●
449 BOLT; FRAME
M18X70 FLANGE 		8-98183-506-0 04 1 1103- ●
452 ROD ASM; V 1-51510-858-0 01 1 0012- ●
453 PIN; AXLE
M24X78 SQUARE HEAD 		1-09749-038-1 02 1 0012-0805 ●
453 PIN; AXLE
M24X78 SQUARE HEAD 		8-98010-551-0 02 1 0806- ●
457 PLATE; AIR SPRING,UPR 1-52119-250-1 04 1 0012- ●
459 BRACKET; ROD
(A) 		1-51781-123-4 02 1 0012- ●
459 BRACKET; ROD
(B) 		1-53353-137-1 01 1 0012- ●
459 BRACKET; ROD
(B) 		1-53353-136-1 01 1 0012- ●
460 WASHER; CAP
ID=16.2 		1-09503-223-0 04 1 0012-0903 ●
460 WASHER; CAP
ID=16.2 		1-09503-316-0 04 1 0904- ●
474 REPAIR KIT; V-ROD
(A) 		1-51519-173-0 01 1 0012- ●
474 REPAIR KIT; V-ROD
(B) 		1-51519-174-0 02 1 0012- ●

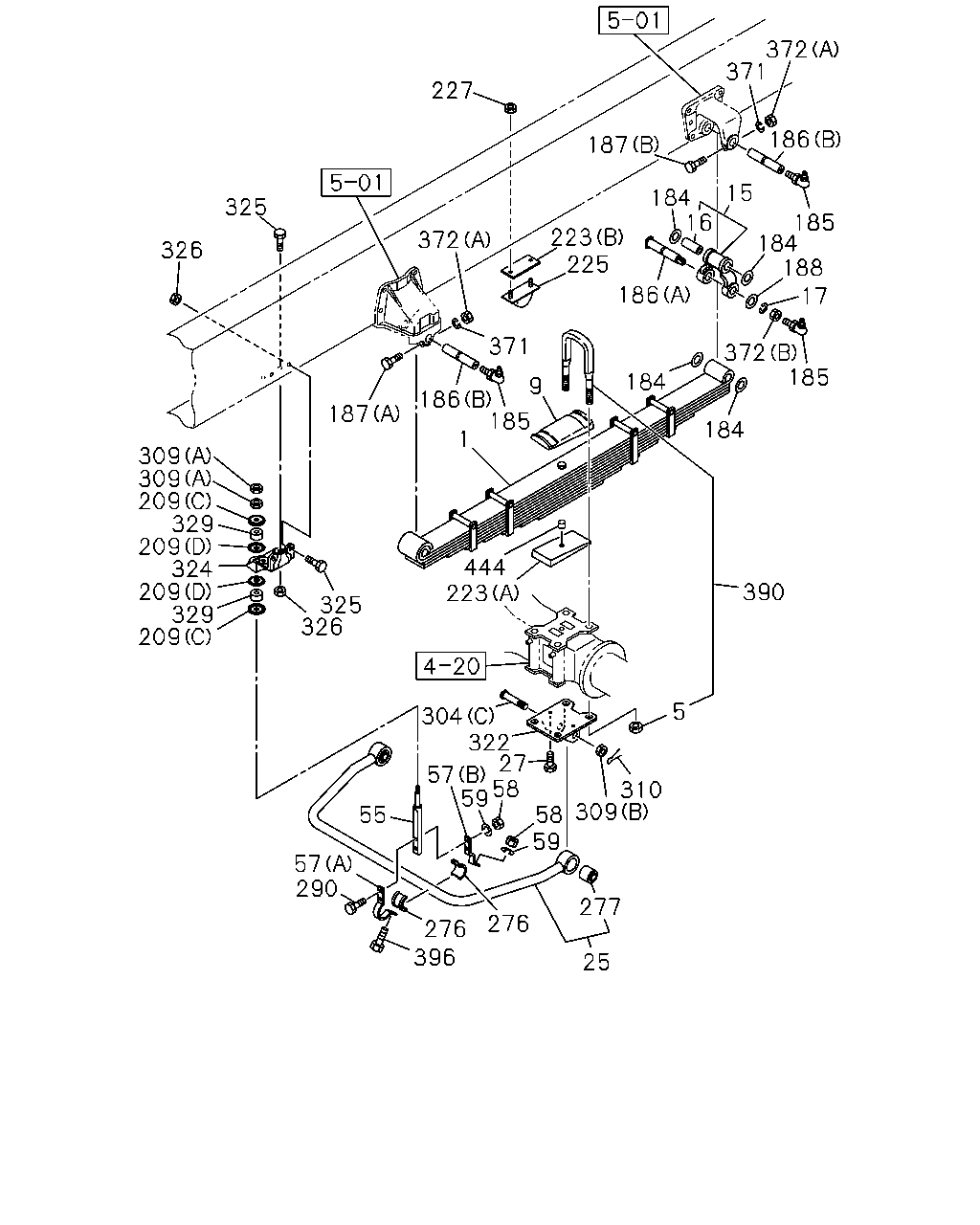

çizim 9586
372 371 227 186 187 15 184 16 325 185 184 188 17 223 225 372 326 186 371 372 185 184 9 186 185 187 184 1 309 309 209 329 209 324 209 329 209 444 223 390 325 326 5 304 322 27 57 58 59 310 309 58 59 55 57 290 277 276 276 396 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		1-51410-257-0 02 1 0012- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. WITH SILENT LINER LEAF SPRING<C1N> 10-LEAF 		1-51410-256-0 02 1 0012- ●
5 NUT; U-BOLT,RR SPR
M24 		9-99112-824-0 08 1 0012-0512 ●
5 NUT; U-BOLT,RR SPR
M24 		0-91112-824-0 08 1 0601- ●
9 PAD; U BOLT,RR SPR 1-51372-070-0 02 1 0012- ●
15 SHACKLE; RR SPR 1-51362-051-0 02 1 0012-0911 ●
15 SHACKLE; RR SPR 1-51362-050-0 02 1 0912- ●
16 BUSHING; SHACKLE,RR SPR 1-51351-024-1 02 1 0012-0911 ●
16 BUSHING; SHACKLE,RR SPR
OD=38 		1-51351-031-0 02 1 0912- ●
17 WASHER; LK,SHACKLE PIN
ID=24.5 OD=52 		9-51369-012-0 02 1 0012- ●
25 BAR ASM; STAB,RR SUSP 1-51771-183-0 01 1 0012- ●
25 BAR ASM; STAB,RR SUSP
STABILIZER SHAFT FRT&RR<FE6> 		1-51770-174-0 01 1 0012- ●
27 BOLT; STAB
STABILIZER SHAFT FRT&RR<FE6> M10X16 FLANGE 		0-28081-016-0 04 1 0012-0512 ●
27 BOLT; STAB
STABILIZER SHAFT FRT&RR<FE6> M10X16 FLANGE 		0-28051-016-0 04 1 0601- ●
55 ROD; STAB 1-51773-088-1 02 1 0012-0711 ●
55 ROD; STAB 1-51773-113-1 02 1 0712- ●
55 ROD; STAB
STABILIZER SHAFT FRT&RR<FE6> 		1-51773-072-2 02 1 0012- ●
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> (A) 		1-51789-027-2 02 1 0012- ●
57 CLAMP; ROD END
STABILIZER SHAFT FRT&RR<FE6> (B) 		1-51789-028-1 02 1 0012- ●
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		9-99110-412-0 06 1 0012-0512 ●
58 NUT; CLAMP,ROD END
STABILIZER SHAFT FRT&RR<FE6> M12 		0-91110-512-0 06 1 0601- ●
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		9-09150-512-0 06 1 0012-0603 ●
59 WASHER; LK,CLAMP
STABILIZER SHAFT FRT&RR<FE6> ID=12.2 		0-91510-512-0 06 1 0604- ●
184 WASHER; SPRING PIN 1-09503-277-0 08 1 0012- ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 ELBOW 		9-09031-210-0 06 1 0012-0512 ●
185 NIPPLE; GREASE,PIN,RR SPR
PT1/8 ELBOW 		0-90301-610-0 06 1 0601- ●
186 PIN; SHACKLE,RR SPR
(A) 		1-51361-025-0 02 1 0012- ●
186 PIN; SHACKLE,RR SPR
(B) 		1-51361-026-0 04 1 0012- ●
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28881-470-0 02 1 0012-0512 ●
187 BOLT; SPR & SHACKLE
(A) M14X70 FLANGE 		0-28851-470-0 02 1 0601- ●
187 BOLT; SPR & SHACKLE
(B) M14X80 FLANGE 		0-28881-480-0 02 1 0012-0512 ●
187 BOLT; SPR & SHACKLE
(B) M14X80 FLANGE 		0-28851-480-0 02 1 0601- ●
188 WASHER; PL,SHACKLE PIN 9-09164-624-0 02 1 0012- ●
209 WASHER; PL
(B) ID=25 		1-09503-282-0 08 1 0012- ●
209 WASHER; PL
(A) ID=21 		9-09164-520-0 04 1 0012- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (C) ID=16.5 		9-51631-040-0 04 1 0012- ●
209 WASHER; PL
STABILIZER SHAFT FRT&RR<FE6> (D) ID=20.8 		9-51631-041-0 04 1 0012- ●
223 SPACER; U BOLT,RR SPR
(A) 		1-51377-343-2 02 1 0012- ●
223 SPACER; U BOLT,RR SPR
(B) 		1-53157-950-0 02 1 0012- ●
225 RUBBER; CUSHION,RR SPR 1-51374-004-0 02 1 0012- ●
225 RUBBER; CUSHION,RR SPR 1-53366-174-0 02 1 0012- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91150-212-0 04 1 0012-0602 ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 04 1 0603- ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91150-210-0 04 1 0012-0602 ●
227 NUT; CUSHION RUBBER
M10 FLANGE 		0-91180-210-0 04 1 0603- ●
276 BUSHING; STAB ROD 1-51779-055-0 02 1 0712- ●
276 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-079-1 04 1 0012- ●
277 BUSHING; STAB,RR UPR 1-51779-055-0 02 1 0012- ●
277 BUSHING; STAB,RR UPR
STABILIZER SHAFT FRT&RR<FE6> 		1-51779-067-0 02 1 0012- ●
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> M12X50 		0-20801-250-0 04 1 0012-0910 ●
290 BOLT; STAB SUPPORTER
STABILIZER SHAFT FRT&RR<FE6> M12X50 		0-20851-250-0 04 1 0911- ●
304 PIN; STAB ROD
(A) M20X106 		1-51361-028-2 02 1 0012- ●
304 PIN; STAB ROD
(B) M20X110 		1-51361-029-2 02 1 0012- ●
304 PIN; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (C) 		1-51789-020-2 02 1 0012- ●
309 NUT; STAB ROD
(C) M20 FLANGE 		1-09440-060-0 04 1 0012-0805 ●
309 NUT; STAB ROD
(C) M20 FLANGE 		8-98010-392-0 04 1 0806- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		9-99111-414-0 04 1 0012-0512 ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (A) M14 		0-91111-514-0 04 1 0601- ●
309 NUT; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> (B) M24 		9-99116-424-0 02 1 0012- ●
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		9-08115-045-0 02 1 0012-0606 ●
310 PIN; SPLIT,STAB ROD
STABILIZER SHAFT FRT&RR<FE6> OD=4.6 L=45 		0-81125-045-0 02 1 0607- ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-102-0 02 1 0012-0111 ●
322 BRACKET; STAB BAR TO RR AXLE
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-048-4 02 1 0112- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-134-0 01 1 0012- ●
324 BRACKET; STAB BAR TO FRAME
STABILIZER SHAFT FRT&RR<FE6> 		1-51781-112-0 01 1 0012- ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28691-440-0 08 1 0012-0512 ●
325 BOLT; BRKT TO FRAME
M14X40 FLANGE 		0-28661-440-0 08 1 0601- ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28891-445-0 08 1 0012-0512 ●
325 BOLT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14X45 FLANGE 		0-28861-445-0 08 1 0601- ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91160-214-0 08 1 0012-0602 ●
326 NUT; BRKT TO FRAME
STABILIZER SHAFT FRT&RR<FE6> M14 FLANGE 		0-91180-214-0 08 1 0603- ●
329 BUSHING; STAB ROD 1-51779-055-0 02 1 0107-0711 ●
329 BUSHING; STAB ROD
STABILIZER SHAFT FRT&RR<FE6> 		9-51631-039-0 04 1 0012- ●
371 WASHER; LK,SHACKLE
ID=14.2 		9-09150-514-0 04 1 0012-0603 ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-514-0 04 1 0604-0903 ●
371 WASHER; LK,SHACKLE
ID=14.2 		0-91510-814-0 04 1 0904- ●
372 NUT; SHACKLE
(A) M14 		9-99110-514-0 04 1 0012-0512 ●
372 NUT; SHACKLE
(A) M14 		0-91110-514-0 04 1 0601- ●
372 NUT; SHACKLE
(B) M24 		9-99111-524-0 02 1 0012-0512 ●
372 NUT; SHACKLE
(B) M24 		0-91111-524-0 02 1 0601- ●
390 U-BOLT SET; RR SPRING
L=430 		1-87870-095-3 04 1 0012- ●
396 BOLT; CLAMP
STABILIZER SHAFT FRT&RR<FE6> M12X30 		0-20801-230-0 02 1 0012-0910 ●
396 BOLT; CLAMP
STABILIZER SHAFT FRT&RR<FE6> M12X30 		0-20851-230-0 02 1 0911- ●
444 PIN; CASTER PLATE 1-09740-058-0 02 1 0012- ●

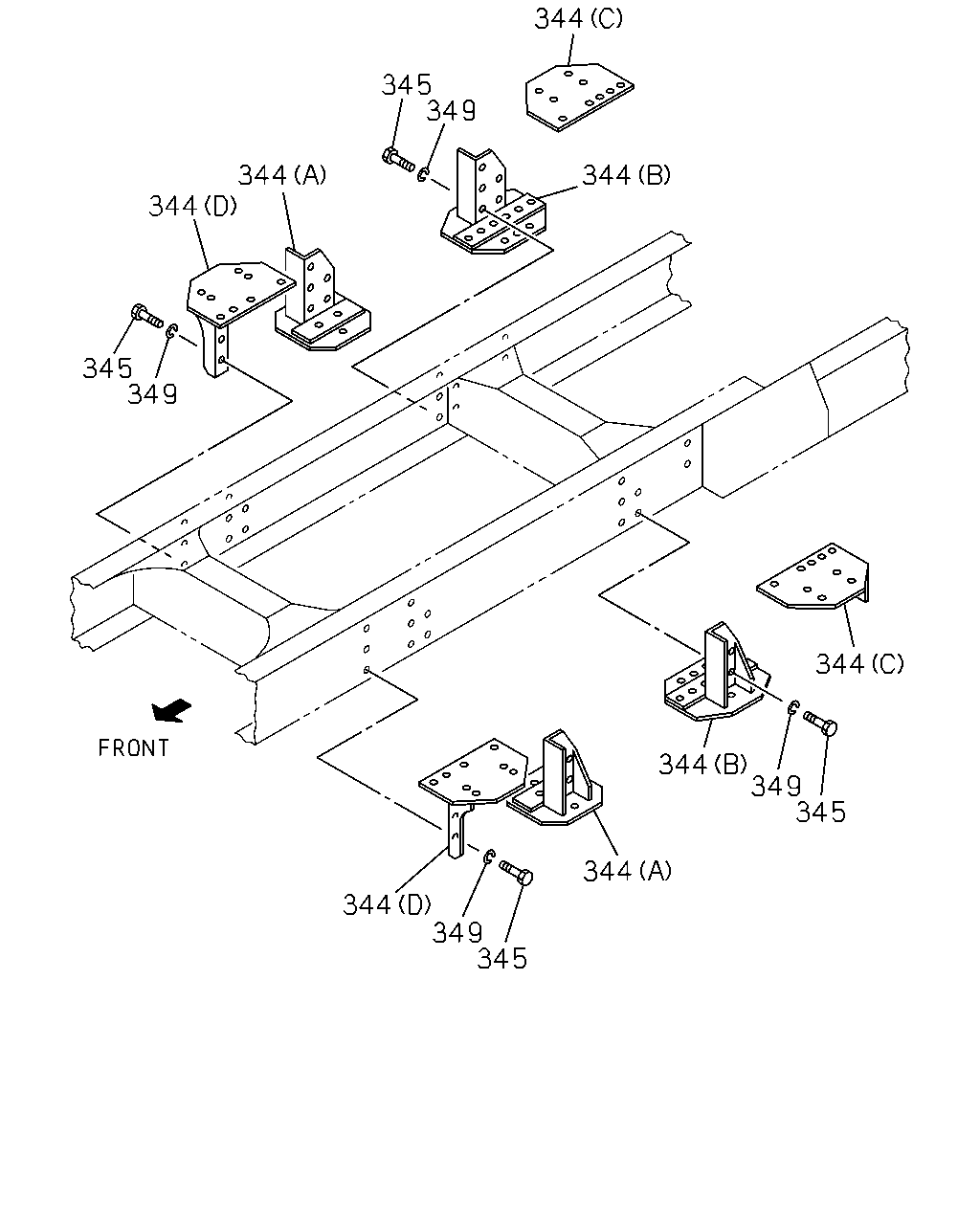

çizim 43620
344 345 349 344 344 344 345 349 344 344 349 345 344 344 349 345
BalonParca AdiParca NoAdetTipApplied Date A B
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (A) 		1-52171-196-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (A) 		1-52171-196-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (A) 		1-52171-196-1 01 1 0211- ●
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (B) 		1-52171-199-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (B) 		1-52171-199-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) 		1-52171-199-1 01 1 0211- ●
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (C) 		1-52171-203-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) 		1-52171-203-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) 		1-52171-203-1 01 1 0211- ●
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (D) 		1-52171-215-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (D) 		1-52171-215-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (D) 		1-52171-215-1 01 1 0211- ●
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (A) 		1-52171-197-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (A) 		1-52171-197-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (A) 		1-52171-197-1 01 1 0211- ●
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (B) 		1-52171-198-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (B) 		1-52171-198-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (B) 		1-52171-198-1 01 1 0211- ●
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (C) 		1-52171-202-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (C) 		1-52171-202-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (C) 		1-52171-202-1 01 1 0211- ●
344 BRACKET; AIR SPR,UPR
WHEEL BASE 6200MM(62W) (D) 		1-52171-216-1 01 1 0012-0203 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) (D) 		1-52171-216-1 01 1 0204-0210 ●
344 BRACKET; AIR SPR,UPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) (D) 		1-52171-216-1 01 1 0211- ●
345 BOLT; BRKT
WHEEL BASE 6200MM(62W) M14X40 		9-92061-440-0 30 1 0012-0203 ●
345 BOLT; BRKT
6SD1 TC(32L) WHEEL BASE 6200MM(62W) M14X40 		9-92061-440-0 30 1 0204-0210 ●
345 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) M14X40 		9-92061-440-0 30 1 0211-0512 ●
345 BOLT; BRKT
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) M14X40 		0-20951-440-0 30 1 0601- ●
349 WASHER; LK,AIR SPR
WHEEL BASE 6200MM(62W) ID=15 		9-09651-069-0 30 1 0012-0203 ●
349 WASHER; LK,AIR SPR
6SD1 TC(32L) WHEEL BASE 6200MM(62W) ID=15 		9-09651-069-0 30 1 0204-0210 ●
349 WASHER; LK,AIR SPR
6SD1 TC(32L),6SD1 TC-S(83L) WHEEL BASE 6200MM(62W) ID=15 		9-09651-069-0 30 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
